Product Type	Powerline Adapter Kit with Wi-Fi Extender
Brand	TP-Link
Model	TLWPA9610 KIT
Powerline Standard	HomePlug AV2
Maximum Powerline Speed	Up to 1000 Mbps
Wi-Fi	Dual-band 2.4 GHz and 5 GHz
Ethernet Port	1 Gigabit Ethernet port per unit
Buttons	Pair, WPS/Wi-Fi, Reset
Power Supply	Direct power plug (100-240 V, 50/60 Hz)
Power Consumption	3.5 W (typical)
Dimensions (W x D x H)	105 x 65 x 42 mm (estimated)
Unit Weight	180 g (estimated)
Safety	Do not plug into a power strip, avoid water and moisture
Maintenance and Cleaning	Wipe with a soft, dry cloth
Spare Parts and Repairability	Not repairable, 3-year warranty
Kit Contents	2 Powerline adapters (1 adapter + 1 extender), Ethernet cables, quick start guide
Compatibility	Any Powerline-compatible router
Mobile App	tpPLC (iOS/Android)
Certifications	CE, RoHS
Warranty	3-year limited warranty

Frequently Asked Questions - TLWPA9610 KIT TP-LINK

How to pair the Powerline adapters?

Plug both adapters into nearby power outlets. Press the Pair button on the adapter for 1 second. The power LED blinks. Within 2 minutes, press the Pair button on the extender for 1 second. When the Powerline LED lights up, pairing is complete.

How to copy Wi-Fi settings from the router to the extender?

Plug the extender near the router. Press the WPS button on the router. Within 2 minutes, press the Wi-Fi button on the extender for 1 second. The Wi-Fi LEDs blink rapidly and then stay on: the settings are copied.

What to do if the Powerline LED blinks or is red?

A blinking or red Powerline LED indicates poor signal quality. Move the extender to another power outlet, preferably on the same circuit as the adapter.

How to reset the Powerline adapter?

Press and hold the Reset button (using a pin) until all LEDs turn off and then back on. Reset is complete.

Can I plug the Powerline adapter into a power strip?

No, always plug the Powerline adapters directly into a wall outlet. Do not use a power strip, except for adapters with a pass-through socket that can accept a power strip on their female outlet.

How to add a new Powerline adapter to an existing network?

Repeat the pairing procedure: press the Pair button on both devices within 2 minutes. The new adapter will join the existing Powerline network.

What to do if I have no Internet access via the Powerline network?

Check that all Powerline adapters are on the same electrical circuit, that the Powerline LEDs are lit, and that Ethernet connections are correct. Also test a direct connection to the router.

The extender does not reconnect after moving it, why?

Ensure the adapters are on the same circuit. Re-pair them if necessary. Check for interference sources (hair dryer, air conditioner) near the adapters.

What is the warranty on this adapter?

TP-Link offers a limited 3-year warranty from the date of purchase against hardware and manufacturing defects under normal use.

Where to find the CE declaration of conformity?

The original CE declaration of conformity is available at http://www.tp-link.com/en/ce.

USER MANUAL TLWPA9610 KIT TP-LINK

TP-Link Technologies Co., Ltd. South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science

& Technology Park, Shennan Rd, Nanshan, Shenzhen, China

TP-Link UK Limited Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

TP-Link Hellas Ltd. Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link.

Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of

their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any

derivative such as translation, transformation, or adaptation without permission from P-Link Technologies Co., Ltd. Copyright © 2018 J.R. Link Technologies Co., Ltd. All rights reserved.

MADE IN CHINA

7106507825REV2111

tp-link

Quick Installation Guide

Powerline Extender

CONTENTS

01 / Deutsch
05 / English
09 / Espanol
13 / Eλληνικα
17 / Français
21 / Italiano
25 / Portugues
29 / Suomi
33 /Nederlands
37 / Svenska
41 / Norsk
45 / Dansk

Deutsch

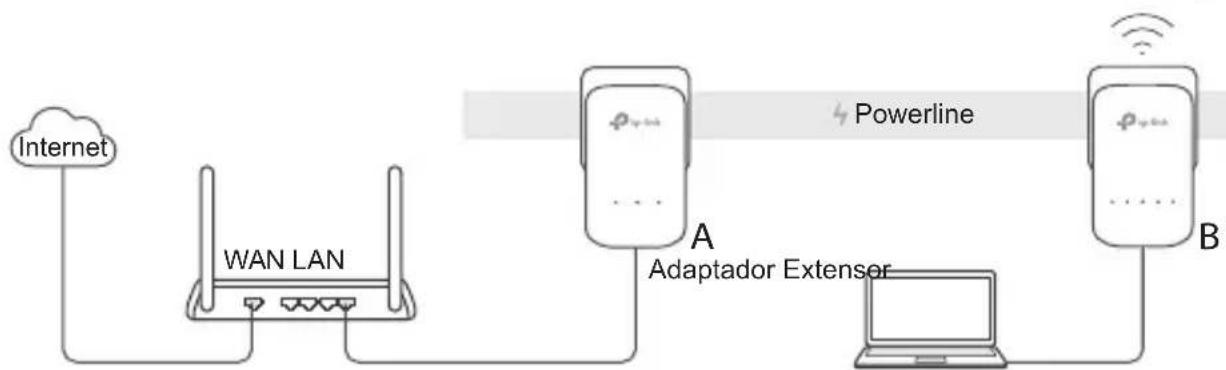

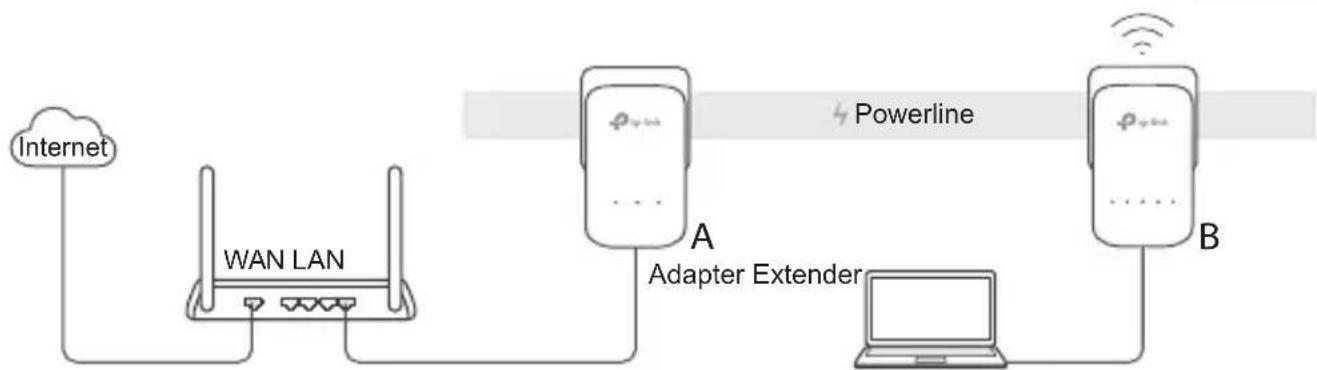

1. Connect the adapter to a LAN port of your router using an Ethernet cable.

2. Plug the powerline devices into the wall outlets near each other and on the same electrical circuit.

3. Pair the powerline devices.

A. Press the Pair button on the powerline adapter for 1 second. The Power LED⑥ starts blinking.

• If the Power LED does not blink, press the Pair button again.

B. Within 2 minutes, press the Pair button on the powerline extender for 1 second. The Power LED starts blinking. When the Powerline LED turns on, it's done.

English

1. Relocate the powerline extender to a new location. Connect to the Wi-Fi using the SSID and password on the product label.

2. A blinking or red Powerline LED indicates poor signal strength. Move the extender to another location.

3. Enjoy!

Tips: You can add more powerline devices to the existing powerline network by pairing these devices.

Attention

• Plug the powerline devices directly into the wall outlets but not the power strips.
• For passthrough powerline devices, plug the power strips into the integrated electrical sockets of the powerline devices.

Copy Wi-Fi Settings from Router to Extender

If your router supports WPS, you can follow the steps below to automatically copy the router's Wi-Fi settings (SSID and password) to the powerline extender.

1. Plug in the powerline extender near your router. Press the WPS button on your router.
2. Within 2 minutes, press the Wi-Fi button on the extender for 1 second.

3. When the 2.4GHz Wi-Fi LED and 5GHz Wi-Fi LED on the extender blink quickly for 3 seconds, and then stay on, it's done!

4. 5GHz Wi-Fi is not available on single-band products. For multiple-band products, the powerline extender copies by default both 2.4GHz and 5GHz wireless settings at the same time. If it fails to copy both, your router may be only able to clone one band at a time. Please check your router's manual for support.

Note: The wireless settings can also be configured through the powerline extender's web interface or through the tpPLC app. You can download the app from the App Store or Google Play, or simply scan the QR code.

English

FAQ (Frequently Asked Questions)

Q1. How do I reset my powerline extender?

A. With the extender powered on, press and hold the Reset button (use a pin if it is a hole) until all LEDs turn off. When all LEDs turn on again, the reset process is complete.
Q2. How to troubleshoot if there is no internet connection in my powerline network?
A1. Make sure all adapters and extenders are on the same electrical circuit.
A2. Make sure all Powerline LEDs are on. If not, pair your adapters and extenders again.
A3. Make sure all hardware connections are correctly and securely connected.
A4. Check if you have an internet connection by connecting the computer directly to the modem or router.
Q3. What can I do if a successfully-paired extender does not reconnect after being relocated?
A1. Make sure all powerline devices are on the same electrical circuit.
A2. Pair it again with another adapter or extender, and make sure the Powerline LED is on before relocating it.
A3. Check for possible interference, such as washers, air conditioners or other household appliances that may be too close to one of the powerline adapters or extenders.

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.

Espanol

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use the device where wireless devices are not allowed.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.
• Plug the powerline devices directly into the wall outlets but not the power strips.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTYES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS from the date of original retail purchase by the end-user purchaser.
