Brand	Grundig
Model	VCC 6670 A
Product type	Cylinder vacuum cleaner
Nominal power	800 W
Supply voltage	220-240 V, 50/60 Hz
Filter type	HEPA 13
Power cord length	7 m
Dust bin capacity	Approx. 2 L (estimate)
Weight	Approx. 5 kg (estimate)
Dimensions (L x W x H)	Approx. 30 x 25 x 25 cm (estimate)
Operating radius	Approx. 7 m (cable)
Noise level	Not specified (estimate 75 dB)
Brush for parquet/carpet	Included, high performance
Hard floor brush	Included
Telescopic tube	With adjustment lock
Suction control	On the handle
Thermal circuit breaker	Yes, automatic shut-off in case of overheating
Washable filter	Yes, filters are washable with water
Maintenance	Empty the dust bin after each use, clean filters regularly
Child safety	Use by children over 8 years old under supervision
Included accessories	Hose, telescopic tube, parquet/carpet brush, hard floor brush

Frequently Asked Questions - VCC 6670 A GRUNDIG

How to use the Grundig VCC 6670 A vacuum cleaner?

Plug in the appliance, press the On/Off button (A). Adjust the power with the suction control (L) on the handle. Use the brushes suitable for the floor.

What to do if the vacuum cleaner suddenly stops?

This is probably due to the thermal circuit breaker. Unplug the appliance, empty the dust bin, clean the filters, and let it cool for about an hour before restarting.

How to clean the HEPA filter?

Remove the filter, tap it to remove dust, then wash it with lukewarm water. Let it dry completely before reinstalling. Do not use a hairdryer.

Can I vacuum liquids with this vacuum cleaner?

No, this vacuum cleaner is designed only for vacuuming dust and dry particles. Do not use it on wet surfaces or to vacuum liquids.

How to empty the dust bin?

Press the dust bin removal button (F) and remove the bin. Empty it into a trash can. You can also wash the bin with lukewarm water.

What accessories are included?

The vacuum cleaner comes with a hose, telescopic tube, high-performance parquet/carpet brush, and hard floor brush.

How to adjust the parquet/carpet brush?

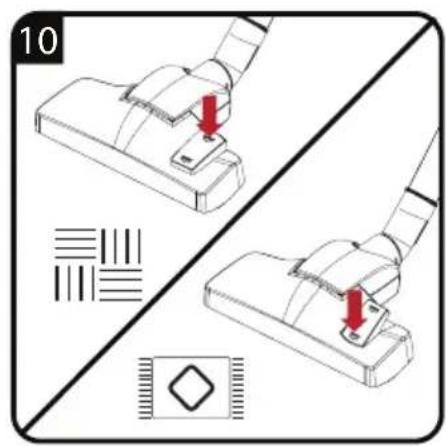

Use the brush adjustment lock (H) to adjust the height according to the floor type. For carpets, lower the brush; for hard floors, raise it.

Where can I find spare parts?

Use exclusively original Grundig accessories. You can order them from your dealer or authorized after-sales service.

How to store the vacuum cleaner?

Unplug the appliance and wrap the cable around the storage hooks. Store it in a dry place, out of reach of children.

The vacuum cleaner makes noise, is this normal?

A moderate noise level is normal. If the noise becomes excessive, check that the dust bin is not full and that the filters are not clogged.

USER MANUAL VCC 6670 A GRUNDIG

Two abstract geometric patterns: a woven bamboo design and a square with circular motifs (no text or symbols)

VCC 6670 A

M L K J I H G F E D O A B C N

Illustration of various cleaning and repair tools including a vacuum cleaner, tool holder, and a gift box with a red arrow (no text or symbols)

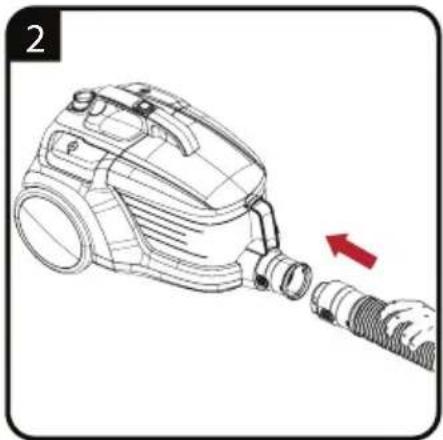

Line drawing of a vacuum cleaner with attached hose and pipe, no text or symbols present

Diagram of a medical or surgical device with a red arrow indicating a point of interest (no text or symbols present)

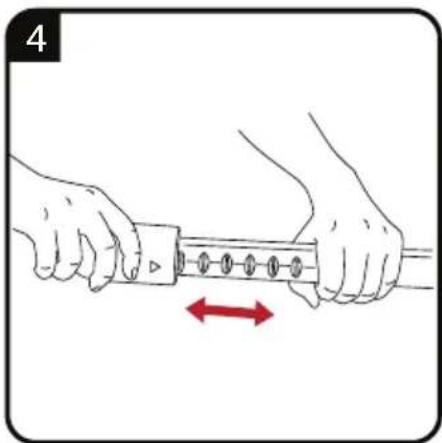

Illustration of hands holding a rectangular object with a red double-headed arrow indicating motion or movement (no text or symbols)

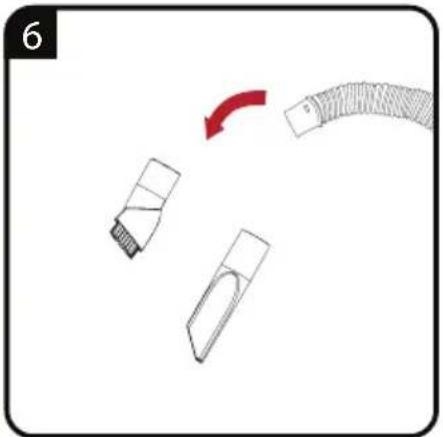

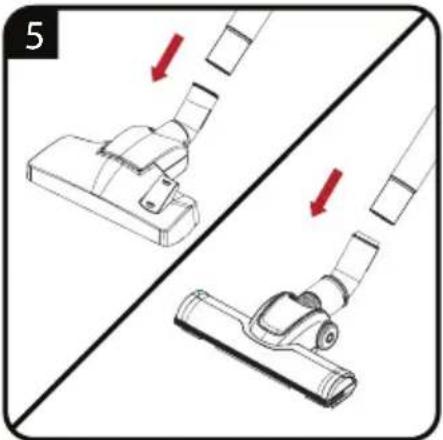

Diagram showing two different vacuum cleaner components with red arrows indicating motion direction (no text or symbols)

Diagram showing a mechanical component being moved with a red arrow indicating direction (no text or symbols)

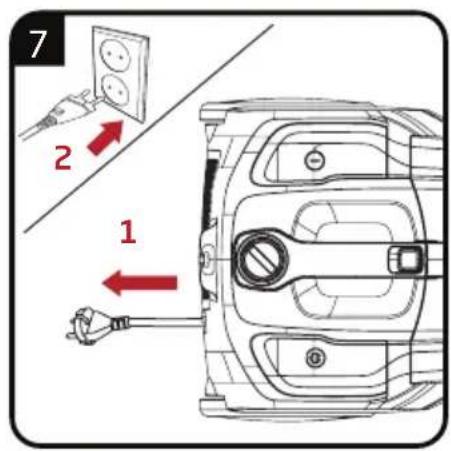

7 2 1

8 ON

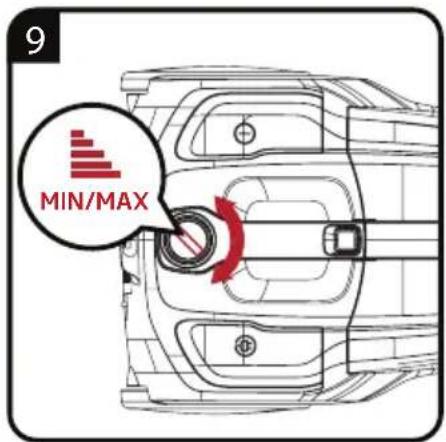

9 MIN/MAX

10

Diagram of a vacuum cleaner with a red arrow indicating motion, showing mechanical assembly (no text or symbols)

12

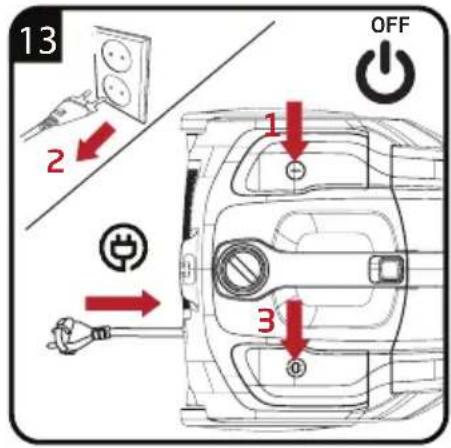

13 2 1 3 0 OFF

Technical line drawing of a vacuum cleaner with a red arrow indicating motion (no text or symbols)

Line drawing of a car with a hand adjusting the engine compartment, showing a red arrow indicating left-hand movement (no text or symbols present)

Technical line drawing of a vacuum cleaner assembly (no text or symbols)

3 1 -24h- 2

Diagram showing two views of a vacuum cleaner with a hand adjusting the component (no text or symbols present)

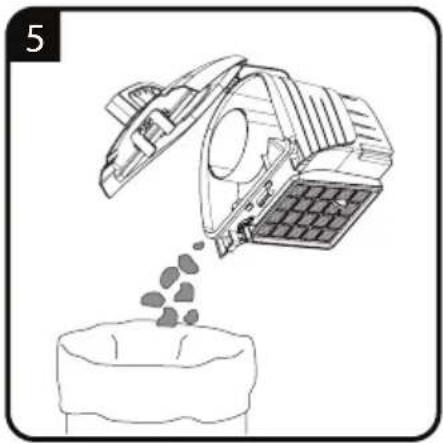

Line drawing of a robotic device pouring granular material into a container (no text or symbols)

Illustration of a hand inserting a grid into a device housing (no text or symbols)

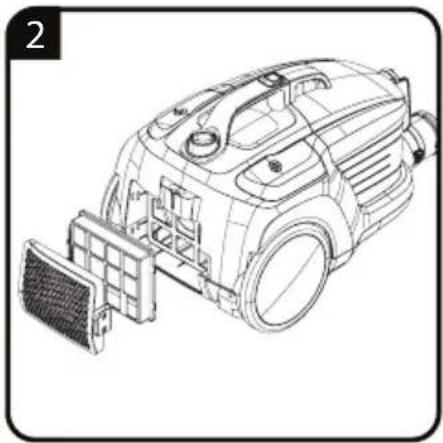

Exploded view diagram of a device showing internal components and a grid-patterned base (no text or symbols)

8 1 24h 2

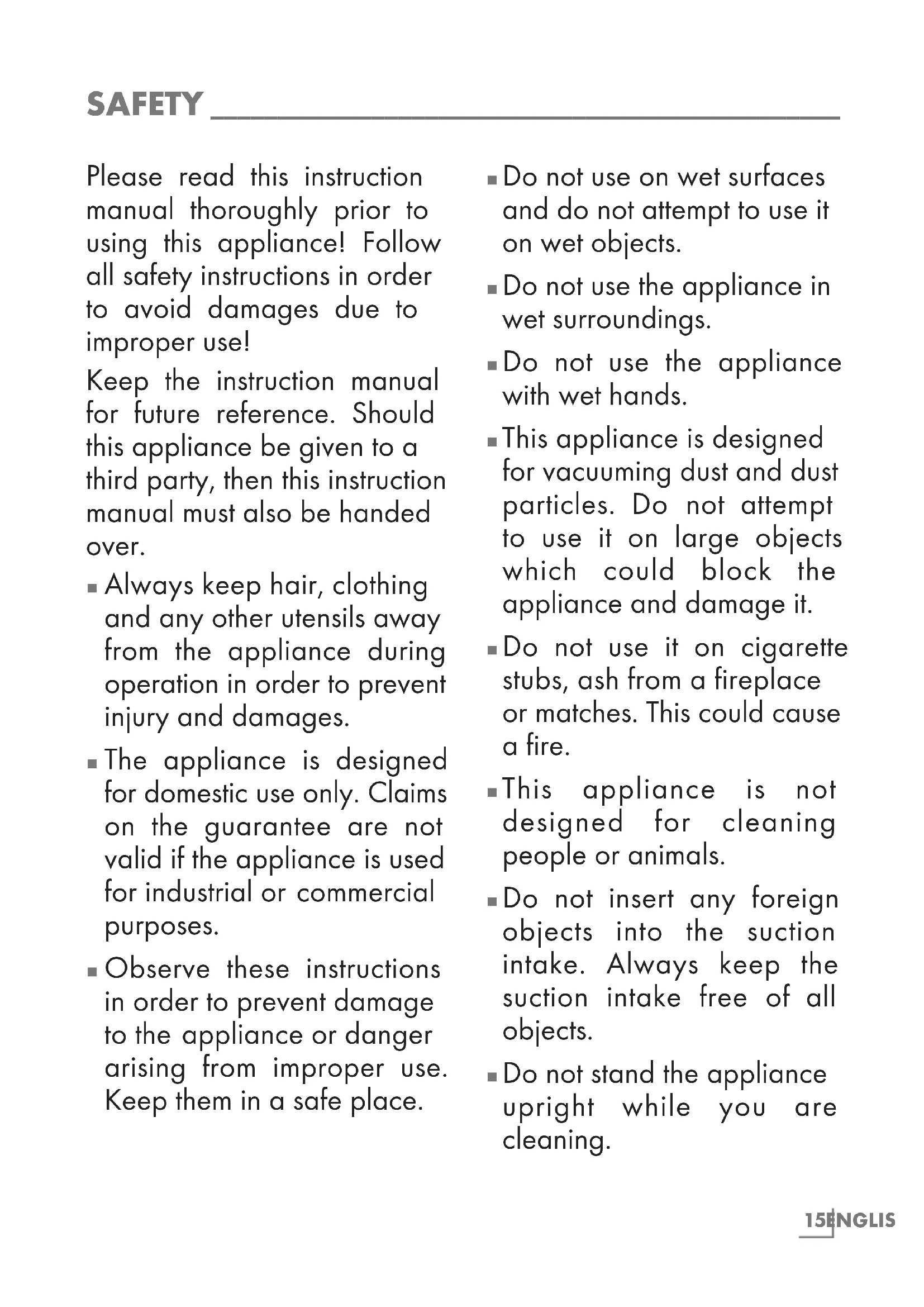

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damages due to improper use!

Keep the instruction manual for future reference. Should this appliance be given to a third party, then this instruction manual must also be handed over.

■ Always keep hair, clothing and any other utensils away from the appliance during operation in order to prevent injury and damages.

■ The appliance is designed for domestic use only. Claims on the guarantee are not valid if the appliance is used for industrial or commercial purposes.

- Observe these instructions in order to prevent damage to the appliance or danger arising from improper use. Keep them in a safe place.

■ Do not use on wet surfaces and do not attempt to use it on wet objects.
■ Do not use the appliance in wet surroundings.
■ Do not use the appliance with wet hands.
■ This appliance is designed for vacuuming dust and dust particles. Do not attempt to use it on large objects which could block the appliance and damage it.
■ Do not use it on cigarette stubs, ash from a fireplace or matches. This could cause a fire.
■This appliance is not designed for cleaning people or animals.
■ Do not insert any foreign objects into the suction intake. Always keep the suction intake free of all objects.
■ Do not stand the appliance upright while you are cleaning.

■ Do not roll the appliance over the power cord.
■ Do not pull the power cord round sharp edges and do not squash it.
■ If you move the appliance to another room, always disconnect the power cord and carry the appliance by the handle.
■ Never move the appliance by pulling on the power cord.
■ Never operate the appliance without the dust container or filter.
■ Change the filter when necessary.
■ Only use original GRUNDIG accessories when exchanging parts.
- Check if the mains voltage on the rating label corresponds to your local mains supply. The only way to disconnect the appliance from the mains is to pull out the plug.

■ Always pull out the power cord before cleaning or carrying out any maintenance on the appliance.
■ Whenever possible, insert the power cord plug directly into the socket. Avoid using extension cables or multipoint connectors.
■ For additional protection, this appliance should be connected to a household residual current device with a maximum rating of 30 mA. Consult your electrician for advice.
■ Pull out the power plug after use. Do not disconnect the plug by pulling on the cable.
■ Do not close any doors on top of the power cord.
■ Never use the appliance if it or the power cord is visibly damaged. This also applies if the appliance has accidentally become wet. Please contact your specialist dealer if this is the case.

• Our GRUNDIG Household Appliances meet all the applicable safety standards; thus if the appliance or the power cord is damaged, it must be replaced by the dealer, a service centre or a similarly qualified and authorised service person to avoid any danger arising. Faulty or unqualified repair work may cause danger and risk to the user.
• Keep the appliance away from children.
  ■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

■ Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage resulting from improper handling.
■ The vacuum cleaner is very powerful; thus before plugging the cord into the wall socket, make sure the switch is in the 'off' position. Hold the vacuum cleaner firmly when starting and while using it.
■ If the inlet, hose or telescopic tube is blocked, switch off the vacuum cleaner and remove the blockages before restarting the vacuum cleaner.

■ Washing filters improves vacuum performance. Make sure all the filters are completely dry before inserting back into the vacuum cleaner.

Caution

The motor is equipped with a thermal cut-out. If for any reason, the vacuum cleaner should over-heat, the thermostat will automatically turn the unit off. Should this occur, unplug the vacuum cleaner from the wall socket. Remove the dirt container and empty. Clean the filters. Allow the cleaner to cool for approximately 1 hour. Continue operating the appliance by inserting the power plug into the wall socket and switching it back on. If the appliance does not start, wait another 30 minutes and repeat the above-mentioned steps.

Esteemed Customer,

Congratulations for purchasing the new VCC 6670 A vacuum cleaner.

Please read the following instructions carefully in order to enjoy the use of your product with the GRUNDIG quality for many years.

A responsible approach!

GRUNDIG aims to provide social working conditions accepted by a contract that presents fair payment for both the employees and suppliers; efficient use of the raw material; reducing plastic waste amount for a few tons each year and ensuring that the accessories produced by it are used for 5 years minimum.

For a future worth living.

For a good reason. Grundig.

Specifications

Power : 800 W

Supply voltage : 220-240 V\~, 50/60 Hz

Filter : HEPA13

Cable length : 7 m

Technical and design modification rights are reserved.

Controls and parts

See the figure on page 3.

A On/Of button

B Dust container

c Suction nozzle

D Hose cap

E Hose

F Dust container removal button

G Parquet/carpet brush parking hook

H Brush adjustment latch

☐ High performance parquet/carpet brush

J Telescopic tube adjustment latch

K Telescopic tube

L Vacuum control

M Handle

N Hard floor brush

☐ Suction power adjustment knob

Cleaning and care

Switch off and unplug the appliance before cleaning it.

Warning

■ Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

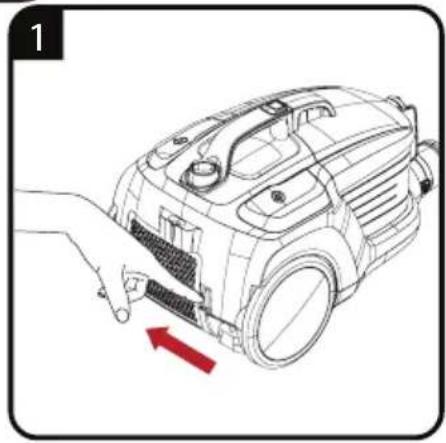

Cleaning the filters

Warnings

• Do not use appliances producing hot air such as hair dryer or heater to dry the filters.
• Do not install the filters without completely drying them; otherwise, smell of moisture may occur during use, water can leak from the back of the appliance or the filters may get damaged.
• Attach the filters into their places after they are dried.

Storage

If you do not intend to use the appliance for a long time, store it carefully.
■ Unplug the appliance.
- Keep the appliance out of the reach of children.

Handling and transportation

■ During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
- Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
■ Dropping the appliance may render it non-operational or cause permanent damage.

Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each househol performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Package of the product is made of recyclable materials in accordance with our National Legislation. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.
