USER MANUAL DEEBOT OZMO 610 ECOVACS

Manual de instrucciones ESCongratulations on the purchase of your ECOVACS ROBOTICS DEEBOT! We hope it brings you many years of satisfaction. We trust the purchase of your new robot will help keep your home clean and provide you more quality time to do other things. Should you encounter situations that have not been properly addressed in this Instruction Manual, please contact our Customer Service Center where a technician can address your specic problem or question. For more information, please visit the ECOVACS ROBOTICS official website: www.ecovacs.com The company reserves the right to make technological and/or design changes to this product for continuous improvement. Thank you for choosing DEEBOT! Live Smart. Enjoy Life. Benutzerhandbuch

EU-Declaration of conformity

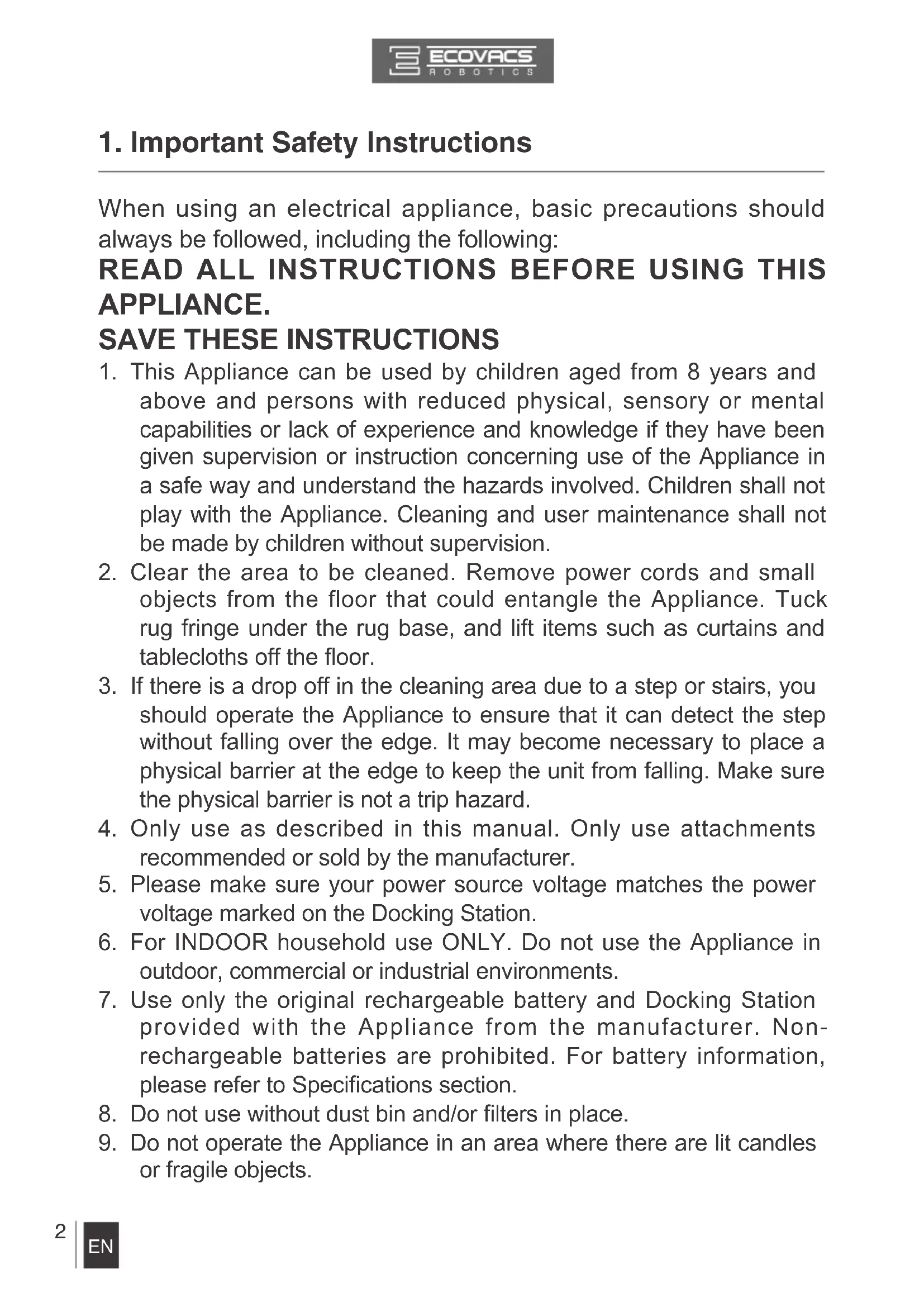

When using an electrical appliance, basic precautions should always be followed, including the following:

SAVE THESE INSTRUCTIONS

1. This Appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the Appliance in a safe way and understand the hazards involved. Children shall not play with the Appliance. Cleaning and user maintenance shall not be made by children without supervision.

2. Clear the area to be cleaned. Remove power cords and small

objects from the floor that could entangle the Appliance. Tuck rug fringe under the rug base, and lift items such as curtains and tablecloths off the oor.

3. If there is a drop off in the cleaning area due to a step or stairs, you

should operate the Appliance to ensure that it can detect the step without falling over the edge. It may become necessary to place a physical barrier at the edge to keep the unit from falling. Make sure the physical barrier is not a trip hazard.

4. Only use as described in this manual. Only use attachments

recommended or sold by the manufacturer.

5. Please make sure your power source voltage matches the power

voltage marked on the Docking Station.

6. For INDOOR household use ONLY. Do not use the Appliance in

outdoor, commercial or industrial environments.

7. Use only the original rechargeable battery and Docking Station

provided with the Appliance from the manufacturer. Non- rechargeable batteries are prohibited. For battery information, please refer to Specications section.

8. Do not use without dust bin and/or lters in place.

9. Do not operate the Appliance in an area where there are lit candles

10. Do not use in extremely hot or cold environments (below -5˚C/23˚F

or above 40˚C/104˚F).

11. Keep hair, loose clothing, ngers, and all parts of body away from

any openings and moving parts.

12. Do not operate the Appliance in a room where an infant or child is

13. Do not use Appliance on wet surfaces or surfaces with standing water.

14. Do not allow the Appliance to pick up large objects like stones, large

pieces of paper or any item that may clog the Appliance.

15. Do not use Appliance to pick up ammable or combustible materials

such as gasoline, printer or copier toner, or use in areas where they may be present.

16. Do not use Appliance to pick up anything that is burning or smoking,

such as cigarettes, matches, hot ashes, or anything that could cause a re.

17. Do not put objects into the suction intake. Do not use if the suction

intake is blocked. Keep the intake clear of dust, lint, hair, or anything that may reduce air ow.

18. Take care not to damage the power cord. Do not pull on or carry

the Appliance or Docking Station by the power cord, use the power cord as a handle, close a door on the power cord, or pull power cord around sharp edges or corners. Do not run Appliance over the power cord. Keep power cord away from hot surfaces.

19. If the power cord is damaged, it must be replaced by the

manufacturer or its service agent in order to avoid a hazard.

20. The power supply is not to be repaired and not to be used any

longer if it is damaged or defective.

21. Do not use with a damaged power cord or receptacle. Do not use

the Appliance or Docking Station if it is not working properly, has been dropped, damaged, left outdoors, or come in contact with water. It must be repaired by the manufacturer or its service agent in order to avoid a hazard.

22. Turn OFF the power switch before cleaning or maintaining the Appliance.

23. The plug must be removed from the receptacle before cleaning or

maintaining the Docking Station.

24. Remove the Appliance from the Docking Station, and turn OFF

the power switch to the Appliance before removing the battery for disposal of the Appliance.

25. The battery must be removed and discarded according to local laws

and regulations before disposal of the Appliance.

26. Please dispose of used batteries according to local laws and

27. Do not incinerate the Appliance even if it is severely damaged. The

batteries can explode in a re.

28. When not using the Docking Station for a long period of time, please

29. The Appliance must be used in accordance with the directions

in this Instruction Manual. ECOVACS ROBOTICS cannot be held liable or responsible for any damages or injuries caused by improper use.

30. The robot contains batteries that are only replaceable by skilled

persons. To replace or remove the battery, please contact Customer Service.

31. If the robot will not be used for a long time, fully charge the robot

and power OFF for storage and unplug the Docking Station.

32. WARNING: For the purposes of recharging the battery, only use the

detachable supply unit CH1630A provided with the appliance.

33. The Remote Control pre-installs two non-rechargeable AAA

batteries. To replace the battery of the Remote Control, please turn over the Remote Control, press and remove its Battery Cover. Remove the batteries, and insert the new batteries with the correct polarity. Reassemble the Battery Cover.

34. Non-rechargeable batteries are not to be recharged.

35. Different types of batteries or new and used batteries are not to be

36. Batteries of the Remote Control are to be inserted with the correct

37. Exhausted batteries are to be removed from the Appliance and

38. If the Remote Control is to be stored unused for a long period, the

batteries should be removed.

39. The supply terminals are not to be short-circuited.

Correct Disposal of this Product This marking indicates that this product should not be disposed of with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To recycle your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can safely recycle this product. For EU Declaration of Conformity information, visit https://www.ecovacs.com/global/compliance To disable Wi-Fi module on DEEBOT, power the robot ON. Place the robot on the Docking Station making sure the Charging Contacts on DEEBOT and the Docking Station Pins make a connection. Press and hold the AUTO Mode Button on the robot for 20 seconds until DEEBOT emits 3 beeps. To enable Wi-Fi module on DEEBOT, power the robot OFF and then power ON. The Wi- Fi module is turned on when DEEBOT is restarted. For EU Countries

2. Package Contents and Technical Specications

2.1 Package Contents

Robot(4) Side Brushes(2) Washable/Reusable Microber Cleaning ClothsMain Brush Option (Pre-installed)Cleaning Cloth PlateDocking StationRemote Control with BatteriesInstruction Manual Model DD4G, DD4G.**(*=0-9) Working Voltage 12V DC Rated Power 40W Docking Station Model CH1630A Rated Input Voltage 100-240V AC Rated output voltage 20V DC Rated Output Current 0.8A Rated power 25W Remote Control Model RC1633 Input Voltage 3V DC Remote Control Battery Type AAA Nominal Voltage 1.5V DC Frequency bands 2412-2472MHz Maximum RF power transmitted in the frequency band Max PA output power at 72.2 Mbps: 17.5 dBm Max PA output power in 11b mode: 21.5 dBm Off Mode Power Less than 0.50 W Networked Standby Power Less than 2.00 W

Technical and design specications may be changed in the course of continuous product improvement. Output power of the WIFI module is less than 100mW. Direct Suction OptionSponge Filter and High Efciency FilterReservoirEN

3. Bumper with Anti-

4. Reservoir Release Button

5. Anti-Drop Sensors

6. Charging Contacts

2. Package Contents and Technical Specications

5. High Efciency Filter

2. Package Contents and Technical Specications

Advanced Mopping System

Docking Station Remote Control

1. Infrared Signal Generator

2. Docking Station Pins

3. Return to Charger Mode Button

Before operating DEEBOT, take a few moments to survey the area to be cleaned and remove any obstacles. Please take care of DEEBOT and assist it at its rst time of cleaning. Remove power cords and small objects from the oor that could entangle the product, and tidy up the cleaning area to put furniture like chairs in their proper place. Before using the product near an area rug or on a short-pile area rug with tasseled edges, please fold area rug edges under themselves.

3. Operating and ProgrammingEN

3. Operating and Programming

Please be aware that the robot needs at least an 8 cm (3.1") clearance to clean under furniture without complications. If there is a step or stairs in the cleaning area, please operate DEEBOT to ensure its Anti- Drop Sensors can detect the drop off. It may be necessary to place a physical barrier at the edge of the drop off to keep the unit from falling over the edge. Please do not stand in narrow spaces, such as hallways, or DEEBOT may fail to identify the area to be cleaned.

Remove the protective strip from the robot’s Bumper before use.EN

3. Operating and Programming

When DEEBOT is not cleaning, it is suggested to keep it powered ON and charging instead of powered OFF. Install Side Brushes Attach Side Brushes to the bottom of DEEBOT by pressing a brush into each slot with the matching color until it clicks.

Power ON Open the robot’s Top Cover. Turn the robot's Power Switch to the ON position. DEEBOT is powered ON when DEEBOT emits a musical sound and the AUTO Mode Button stays illuminated.

Docking Station Placement Place the Docking Station on a level floor surface against the wall with the base perpendicular to the ground. Keep the immediate area 1.5m (5') in front of the charger and 0.5m (1.6') on both sides of the charger clear of objects and reective surfaces. Plug the Docking Station in. 1EN

Pause DEEBOT by pressing the AUTO Mode Button on DEEBOT or on the Remote Control.

DEEBOT can be directed to move forward, backward, left and right using the Direction Control Buttons on the Remote Control when it is Paused.

• The AUTO Mode Button on the robot’s Control Panel stops glowing after the robot is paused for more than 10 minutes. Press AUTO Mode Button on the robot or press any button on the Remote Control to wake up the robot.

Start Press the AUTO Mode Button on DEEBOT or on the Remote Control. DEEBOT starts to work immediately in AUTO Cleaning Mode.

3. Operating and Programming

Make sure to turn the robot’s Power Switch to the ON position before charging.

• AUTO Mode Button blinks when DEEBOT is charging. AUTO Mode Button stops glowing when DEEBOT is fully charged.

• When DEEBOT completes the cleaning cycle or when battery power gets low, DEEBOT automatically returns to the Docking Station to recharge itself. DEEBOT can also be sent back to the Docking Station at any time by pressing the Return to Charger Button on the Remote Control.

• Empty any remaining water from the Reservoir and remove the Cleaning Cloth Plate before charging DEEBOT. Place DEEBOT on the Docking Station making sure the Charging Contacts on DEEBOT and the Docking Station Pins make a connection. Charge DEEBOT for at least 4 hours before the rst use.

3. Operating and Programming

Pause DEEBOT. Open the robot’s Top Cover. Move the Power Switch to the OFF position.Set the cleaning pattern based on oor types.Random Cleaning Pattern should be set when cleaning carpet. In Random Pattern, DEEBOT cleans in a straight line and changes directions when it meets an obstacle.Programmed Cleaning Pattern is the robot's default pattern and should be set when cleaning bare oors. In Programmed Cleaning Pattern the robot plans the most efcient route, cleans in a back and forth straight-line pattern, returns to clean missed spots, then cleans room edges before completing the cleaning cycle. When DEEBOT is not cleaning, it is suggested to keep it powered ON and charging. For models with app-connectivity, various functions can be performed using the ECOVACS App.

3.3 Cleaning Pattern and Cleaning Mode Selection

DEEBOT has 2 Cleaning Patterns and several cleaning modes to choose from to effectively clean different oors. Cleaning Patterns and Cleaning modes are selected using the Remote Control or ECOVACS App.Set Cleaning PatternRandom Cleaning PatternProgrammed Cleaning Pattern (Default Pattern) OFFEN

3. Operating and Programming

Double-click the AUTO Button on the robot. Cleaning Pattern is switched when DEEBOT emits two beeps. Cleaning Patterns can also be set using the ECOVACS App. DEEBOT uses the set Cleaning Pattern when cleaning in AUTO Cleaning Mode. Select Cleaning Mode When Programmed Cleaning Pattern is Set:

• DEEBOT automatically conducts route planning when cleaning. If the robot is paused, moved manually or directed by the Remote Control during cleaning, DEEBOT will recongure the route and restart. Therefore, avoid using the Remote Control or moving DEEBOT manually when it is cleaning to ensure efciency.

• DEEBOT may pause temporarily to recalculate its cleaning path. This is normal. Please be patient, the frequency and duration of the pause is determined by room complexity.

• If the cleaning environment contains both bare oors and carpet, barriers (for example a closed door) should be set between different oor types and cleaning patterns should be set accordingly. If both oor types are to be cleaned in one cleaning cycle, Random Cleaning Pattern should be set. AUTO Cleaning Mode This is the most commonly used mode and is good for every day cleaning.

• AUTO Cleaning Mode cleans using the Cleaning Pattern set in the previous step. Random Cleaning Pattern is best for carpet. Programmed Cleaning Pattern is best for bare oors.

• When the cleaning cycle is complete, DEEBOT returns to the Docking Station.

• Use the App to increase the suction power of the robot when in AUTO Cleaning Mode. Press in the App fro MAX suction power. Press to switch back to standard suction power. Enabling MAX suction power will consume more battery power.EN

3. Operating and Programming

Edge Cleaning Mode This mode is good for cleaning the edges and corners of a room. In Edge Cleaning Mode, DEEBOT cleans along a border (e.g. wall).

DEEBOT can be programmed weekly to clean multiple times per day at specic times using the ECOVACS App.

3.4 Programming the Robot

Spot Cleaning Mode (1-5 minutes) This mode is applicable for an area of highly concentrated dirt or dust. In Spot Cleaning Mode, DEEBOT focuses on a specic area to clean.

Empty the Reservoir and remove the Cleaning Cloth Plate before cleaning on carpet.

When using the mopping system, fold area rug edges under themselves so DEEBOT will avoid the rug.

After DEEBOT nishes mopping, empty any remaining water from the Reservoir.

Empty any remaining water from the Reservoir and remove the Cleaning Cloth Plate before charging DEEBOT.

Always keep the Reservoir installed when the robot is cleaning or charging.

3.5 Optional Mopping System

DEEBOT has an optional Mopping System using a Washable/Reusable Microber Cleaning Cloth and Cleaning Cloth Plate attached to a proprietary Reservoir. The washable/reusable Cleaning Cloth automatically damp mops the oor to a spotless clean.EN

Add Water into the Reservoir.

3. Operating and Programming

Attach Cleaning Cloth; Install the Cleaning Cloth Plate and the Reservoir.

Floor Cleaner Recommendation Try BotClean, a high-performance oor cleaner recommended by Ecovacs. Experience a premium cleaning performance, shine and unique scent.EN

3. Operating and Programming

Start Select the desired Cleaning Mode. DEEBOT sweeps, lifts, vacuums and mops in the selected mode.

2. Then ll the tank with water.

• The product is available on German and Spanish marketEN

3. Operating and Programming

The robot has 2 interchangeable suction options for your convenience. Main Brush Option: The best choice for deep cleaning with a combination of the Main Brush and strong suction. The Main Brush Option comes pre-installed in DEEBOT. Direct Suction Option: The best choice for daily cleaning with the Main Brush removed for direct suction. This Suction Option is specically designed to pick up hair without tangling.

3.6 Choosing a Suction Option

Install the Direct Suction Option Turn the robot over. Push both buttons on the Main Brush Option and remove the Main Brush Cover. Remove the Main Brush. Line up the Direct Suction Option tabs with the slots on the bottom of the robot. Press until the component clicks into place.EN

3. Operating and Programming

Install the Main Brush Option Turn the robot over. Push both buttons on the Direct Suction Option and remove Direct Suction Option. Insert the Main Brush into the bottom of the robot. Line up the Main Brush Cover tabs with the slots on the bottom of the robot. Press until the component clicks into place.EN

3. Operating and Programming

Status Indicator Light ashes twice and goes out once DEEBOT is powered ON. DEEBOT has low battery. Power ON the robot. Manually place the robot on the Docking Station and charge. One Beep Status Indicator Light ashes RED. Driving Wheel Malfunction Check Driving Wheels for tangled hair or debris and clean. Two Beeps Status Indicator Light ashes RED. Main Brush Malfunction Check Main Brush for tangled hair or debris and clean. Three Beeps Status Indicator Light ashes RED. Driving Wheel Malfunction Turn over the robot. Press Driving Wheels to check for a clicking sound. If they do not click, please contact Customer Service. DEEBOT gets into trouble while working and stops. Manually remove the obstacles and restart DEEBOT. Four Beeps Status Indicator Light ashes RED. Dust Bin Malfunction Remove the Dust Bin and re- install it properly. If the robot still emits the alarm, please contact Customer Service. Five Beeps Status Indicator Light ashes RED. Low Battery Manually place the robot on the Docking Station to charge. Six Beeps Status Indicator Light ashes RED. Side Brush Malfunction Check Side Brush for tangled hair or debris and clean. Seven Beeps Status Indicator Light ashes RED. Anti-Drop Sensor Malfunction Check Anti-Drop Sensors for dust and clean. Eight Beeps Status Indicator Light ashes RED. DEEBOT is powered OFF while charging. Power ON the robot. If DEEBOT detects a problem and needs your assistance, it emits alarm beeps or the Status Indicator Light illuminates.EN

Press the Release Button and pull to remove the Reservoir. Remove the Cleaning Cloth Plate and the Cleaning Cloth. Wash the Cleaning Cloth and lay at to dry.

Empty any remaining water from the Reservoir. Before performing cleaning and maintenance, power OFF DEEBOT and unplug the Docking Station. After DEEBOT nishes mopping, remove the Reservoir from DEEBOT, and maintain the Reservoir, the Cleaning Cloth and the Cleaning Cloth Plate immediately.

Open the robot’s Top Cover and remove the Dust Bin. Open the Dust Bin Cover and empty the Dust Bin. Remove the lters. Pat the High Efciency clean. Do not rinse the High Efciency Filter under water.

4.2 Dust Bin and Filters

Wipe the outside of the Reservoir with a dry cloth and lay at to dry. Avoid direct sunlight.EN

Rinse the Sponge Filter, Dust Bin and Filter Net under running water. Dry the Dust Bin and lters completely before reinstalling. Main Brush Turn the robot over. Push both buttons on the Main Brush Option and remove the Main Brush cover. Remove the Main Brush. Use the Multi-Function Cleaning Tool to cut off and remove any hair tangled around the Main Brush. Clean any tangled hair or debris from the Main Brush.

4.3 Main Brush, Direct Suction Option and Side Brushes

A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.

Direct Suction Option Wipe the Direct Suction Option clean with a dry cloth.EN

4.4 Other Components

Use the Multi-Function Cleaning Tool to cut off and remove any hair tangled around the Universal Wheel. Wipe the Bumper with the brush of the Multi- Function Cleaning Tool. Wipe the Anti-Drop Sensors with the brush of the Multi-Function Cleaning Tool to maintain their effectiveness.

Cleaning the Side Brushes Remove the Side Brushes. Remove any hair or debris tangled around the Side Brushes with the provided Multi-Function Cleaning Tool, and wipe their slots with a clean cloth.EN

Wipe the robot’s Charging Contacts and Docking Stations Pins with a dry cloth to maintain their effectiveness.

4.5 Regular Maintenance

Note: ECOVACS manufactures various replacement parts and assemblies. Please contact Customer Service for more information on replacement parts. To keep DEEBOT running at peak performance, perform the maintenance and replacement according to the following frequency. A multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges. Robot Part Maintenance Frequency Replacement Frequency Cleaning Cloth After each use Every 50 washings Dust Bin/Reservoir/ Cleaning Cloth Plate After each use / Side brush Once every 2 weeks Every 3-6 months Main Brush Once per week Every 6-12 months Sponge Filter/ High Efciency Filter Once per week (twice per week with pets in home) Every 4-6 months Universal Wheel Anti-Drop Sensors Bumper Charging Contacts Docking Station Pins Once per week /EN

Please use this chart to troubleshoot common problems using DEEBOT. No. Malfunction Possible Causes Solutions

DEEBOT will not charge. DEEBOT is not powered ON. Move the robot’s Power Switch to the ON position. DEEBOT has not made a connection with the Docking Station. Be sure that the robot’s Charging Contacts have made a connection with the Docking Station Pins. You may move the robot manually to make the connection if necessary. Docking Station is unplugged while DEEBOT is powered ON, which causes battery consumption. Plug in the Docking Station and ensure DEEBOT is powered ON. Keep DEEBOT on the Docking Station to make sure it has full battery to work at any time. The battery is completely discharged. Re-activate the battery. Place DEEBOT on the Docking Station by hand, remove after charging for 3 minutes, repeat 3 times; then charge normally.

DEEBOT cannot return to the Docking Station. The Docking Station is not placed properly. Refer to section 3.2 to place the Docking Station properly.

DEEBOT gets into trouble while working and stops. DEEBOT is tangled with something on the oor (electrical cords, drooping curtains, area rug fringe etc.). DEEBOT will try various ways to get itself out of trouble. If it is unsuccessful, check the Side Brushes and remove anything tangled around the Side Brushes, or manually remove the obstacles and restart.

DEEBOT returns to the Docking Station before it nishes cleaning. When battery power gets low, DEEBOT automatically switches to Return to Charger Mode and returns to the Docking Station to recharge itself. This is normal. No solution necessary. Working time varies according to oor surface, room complexity and the selected Cleaning Mode. This is normal. No solution necessary.

No. Malfunction Possible Causes Solutions

DEEBOT will not clean automatically at scheduled time. Intelligent Scheduling or Time Scheduling function is cancelled. Please refer to section 3.4 for details. DEEBOT is powered OFF. Power ON DEEBOT. The robot’s battery is low. Keep DEEBOT powered ON and on the Docking Station to make sure it has full battery to work at any time. The robot’s Suction Intake is blocked and/or its components are tangled with debris. Turn the robot’s power OFF, clean the Dust Bin and invert the robot. Clean the robot’s Suction Intake and Side Brushes.

DEEBOT misses cleaning area. The cleaning area needs tidying up. Please remove small objects from the oor, and tidy up the cleaning area before DEEBOT starts cleaning.

Remote Control failure (effective control range of Remote Control is 5m (16'). The batteries in the Remote Control need to be replaced. Replace with new batteries making sure they are installed correctly. DEEBOT is powered OFF or the robot’s battery is low. Make sure DEEBOT is powered ON and fully charged. The infrared signal cannot be transmitted because the Infrared Emitter on Remote Control or the Infrared Receiver on DEEBOT is dirty. Use clean dry cloth to wipe the Infrared Emitter on Remote Control and the Infrared Receiver on DEEBOT. There is other equipment interfering with the infrared signal to DEEBOT. Avoid using the Remote Control near other equipment using infrared signals.

The water is not coming out of the Reservoir when DEEBOT is mopping. The Magnet on the Cleaning Cloth Plate comes off. Please contact Customer Service. The Reservoir runs out of water. Add water into the Reservoir. The water outlets on the bottom of DEEBOT are clogged. Check the water outlets on the bottom and clean.
