GETTING STARTED

❖ Activate Bluetooth connection on iPad or tablet.
Pair DKN Run
❖ Activate DKN Run App on your tablet.
✿ Press CONNECT, select DKN Run (password 0000).

◆ Press SET USER DATA.

❖ Create or Select User profile

✿ Landing page: select work-out.

◆ Start work-out.

AFTER WORK-OUT:

Press Home to LANDING PAGE.
◆ Press BACK (3x), press EXIT
- Deactivate Bluetooth Connection to clear console.

• Press Home to LANDING PAGE.
• Press BACK (3x), exit APP on the tablet.
• Deactivate Bluetooth Connection on iPad to clear the training console.

DKN iWorld

Available on the App Store

GETTING STARTED

❖ Activate Bluetooth connection on iPad or tablet
✿ Pair DKN iTrainer (password 0000)
❖ Activate DKN iWorld App on your tablet

Log in

❖ Select favourite, or create your own route.

Press start

◆ Toggle between Map, Streetview or Satellite

Post update

Log file

iPad mini

DKN Supports:iPad 2, 3, 4iPadANDROID 4.0, 10', 1280 x 800 pixels

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG Inc.Not all Bluetooth features may be supported by compatible Bluetooth enabled devices.DKN is not responsible for the operation5 nor the functioning of Bluetooth accessories in connection to this machine.

"Made for iPod," "Made for iPhone," and "Made for iPad" means that an Electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards.Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.iPad, iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

Google Play is a trademark of Google Inc.Google, Android and the Google Logo or registered trademarks of Google Inc.

Garantía - Warranty - Garantie - Garantie - Garancia - Garanzia - Garantie - Garantia - Éyúñon

This DKN product is designed for residential use only.

DKN warrants this product to be free from defects in material at the time of the product's tender of delivery. This 'Carry-in' Limited Warranty applies for a period of two (2) years, beginning on the date mentioned on your product invoice or proof of purchase of product sold through the DKN Authorized Dealer Network to the original retail purchaser and authenticated by proof of purchase from a retailer a product sold by an authorized DKN dealer.

This Limited Warranty is not transferable and does not cover normal wear and tear (including, but not limited to, damage and wear to batteries, springs, bearings, running mats, hydraulic systems, ropes, belts, pulleys, power shocks, drive belts and other non-durable parts, etc...).

This Limited Warranty is void if the product is damaged by accident, unreasonable use, improper service, failure to follow instructions provided, modification from its original state, or other causes determined not arising out of defects in material, the consequences of improper treatment, bad installation, wrong assembly or tampering of the parts by incorrect assembly, improper use of the machine (eg. too heavy load in time, weight etc...), problems caused by lack of maintenance, deviations of the standard machine, such as light vibrations or noise, and in case of semi-professional, professional and commercial use (inter alia in sports schools, physio, companies, etc...).

Transport charges, travel charges for technicians, and possible trader and/or workshop charges are excluded from this warranty, and will be at the sole cost of the owner. The liability of the manufacturer under this Limited Warranty shall not include any liability for direct, indirect, or consequential damages resulting from any defect nor the use of this machine.

Before you start training on your DKN platform, please read the instructions carefully.

Be sure to keep the instructions for information, in case of repair and for spare part delivery.

This exerciser has been tested up to a max. body weight of 120 kg/260 lbs.
▶ Follow carefully the different steps of the assembly instructions.
▶ Use only original parts as delivered.
Before starting the assembly, be sure to check if delivery is complete by using the included parts-list.
For assembly use only suitable tools and ask for assistance with assembly if necessary.
Place the exerciser on an even, non-slippery surface. Because of possible corrosion, the usage of any exerciser in moist areas is not recommended.
▶ Check before the first training and every 1-2 months that all connecting elements are tight fitting and are in the correct condition.
Replace defective components immediately and/or keep the equipment out of use until repair.
For repairs, use only original spare parts.
▶ In case of repair please ask your dealer for advice
▶ Avoid the use of aggressive detergents when cleaning.
▶ Ensure that training starts only after correct assembly and inspection.
For all adjustable parts be aware of the maximum positions to which they can be adjusted/tightened to.
This exerciser is designed for adults. Please ensure that children use the exerciser only under the supervision of an adult.
▶ Ensure that those present are aware of possible hazards, e. g. movable parts during training.
▶ Warning: incorrect/excessive training can cause health injuries.
▶ Please follow the advice for correct training as detailed in training instructions.

Consult your physician before starting with any exercise programme. He can advise on the kind of training and which impact is suitable.

The owner's manual is only for customers' reference.
The supplier can not guarantee for mistakes occurring due to translation or change in technical specification of the product.

All data displayed are approximate guidance and cannot be used in any medical application.

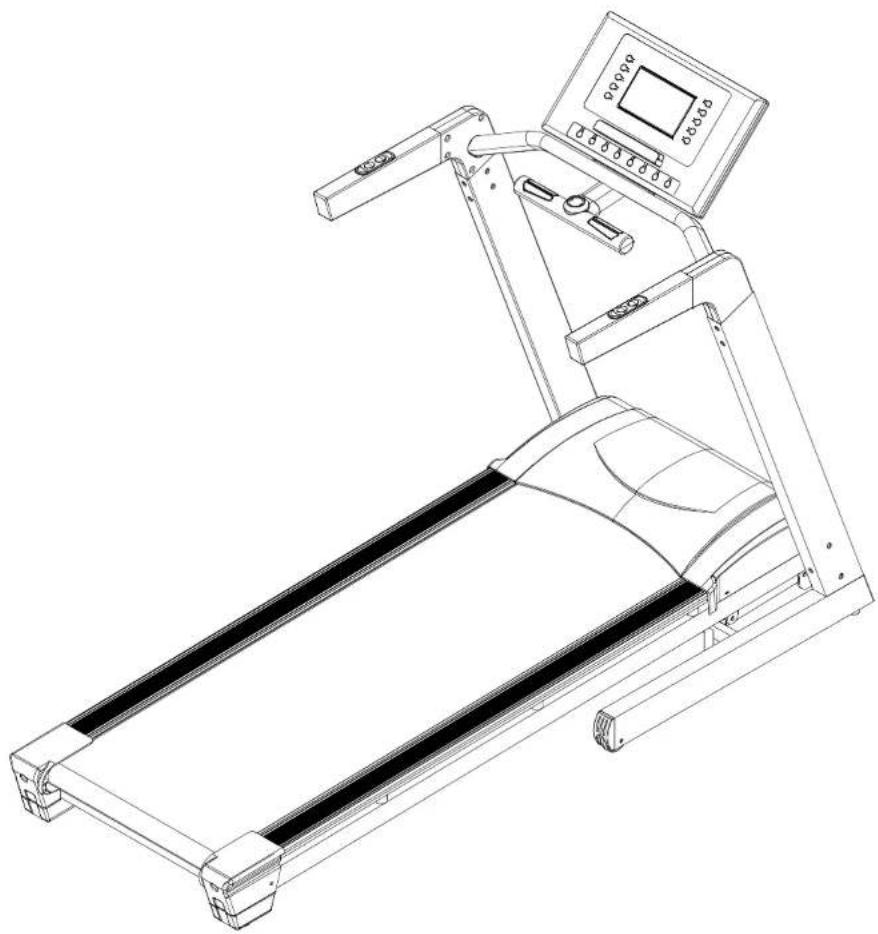

Technical diagram of a treadmill with labeled parts and motion indicators

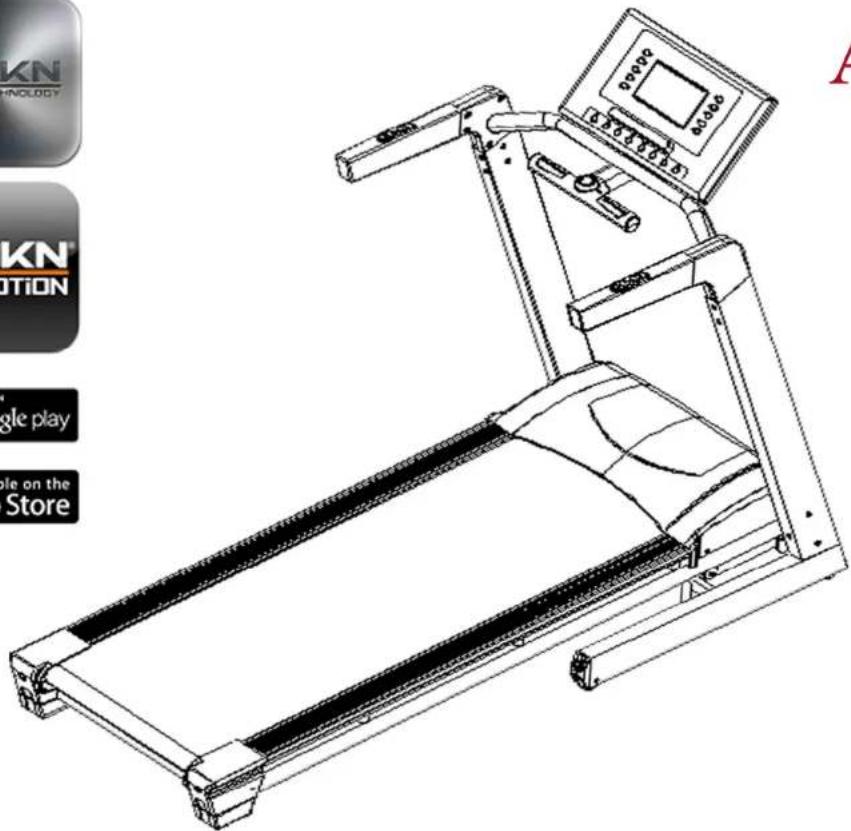

Line drawing of a standard treadmill with control panel and display (no text or symbols)

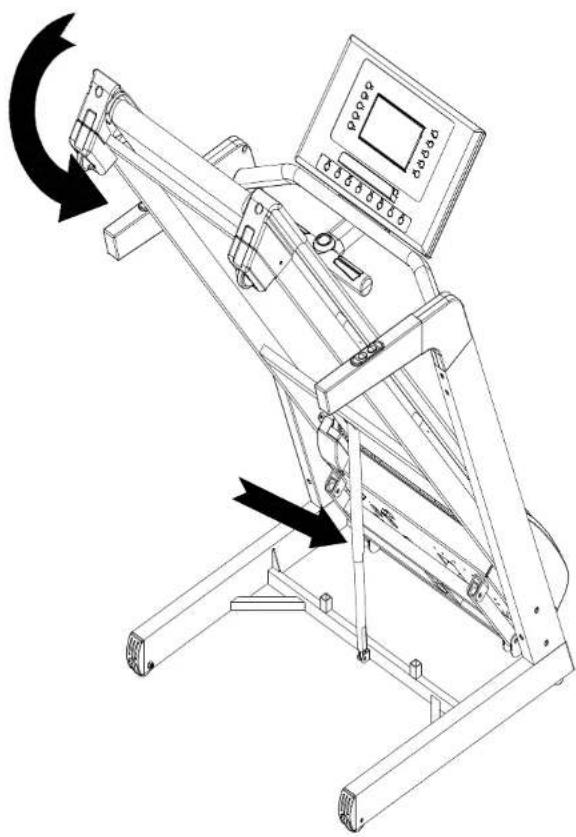

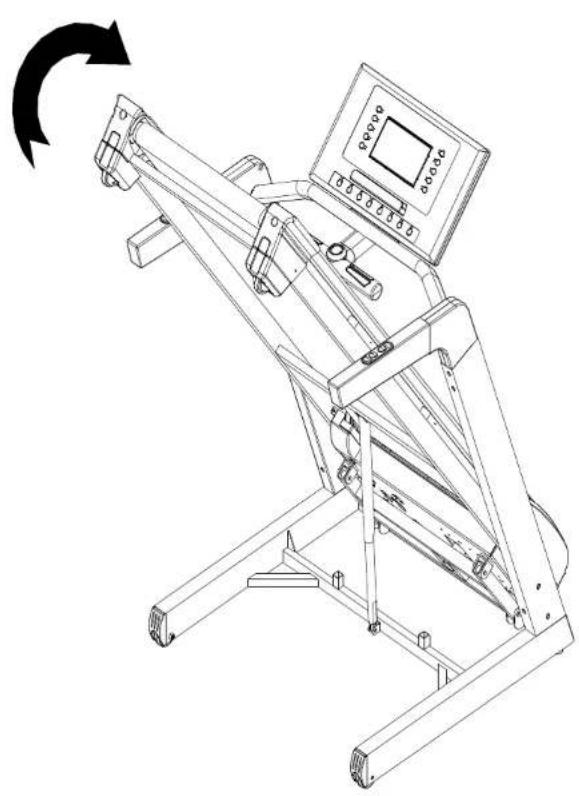

Fold

◇

Unfold

Line drawing of a mechanical device with a control panel and rotating arrow (no text or symbols)

Technical line drawing of a mechanical device with directional arrows indicating motion or rotation (no text or symbols present)

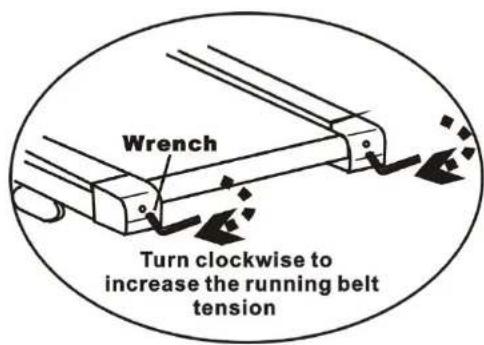

Posicion cinta - Belt adjustment - Ajustement de la bande de course Afstellen van het looptapijt- Ustar o tapete - Regullerung des Rollteppichs - Натяжение полотна

Wrench Turn clockwise to increase the running belt tension

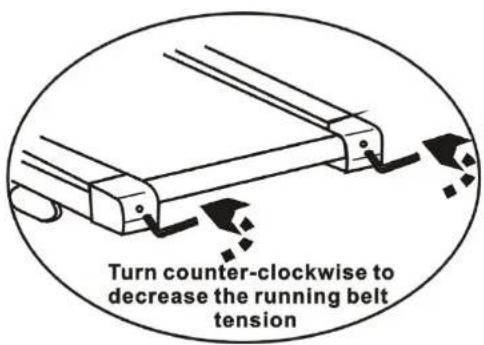

Turn counter-clockwise to decrease the running belt tension

! Note : The treadmill should be placed on a level surface. If the treadmill is not level, the belt will continuously track to the low side of the treadmill.

1. Belt adjustment bolts are located at the rear of the treadmill, as shown above.
2. Belt moving (tracking) to the right: Start the treadmill and set at 4 kph. Using an allen key wrench, turn the right adjustment bolt clockwise 1/4 of a turn. Continue adjustments at 1/4 of a turn until belt returns to the center. Continue to run the treadmill for a short period of time monitoring the belt movement to ensure you have not made an over adjustment.
3. Belt moving (tracking) to the left: Start the treadmill and set at 4 kph. Using an allen key wrench, turn the right adjustment bolt clockwise 1/4 of a turn. Continue adjustments at 1/4 of a turn until the belt returns to the center. Continue to run the treadmill for a short period of time monitoring the belt movement to ensure you have not made over adjustment.

Line drawing of a treadmill with control panel and motion arrow (no text or symbols)

Line drawing of a treadmill with control panel and inset showing spray bottle dispersion (no text or symbols)

At least twice a year remove the motor cover and vacuum inside.

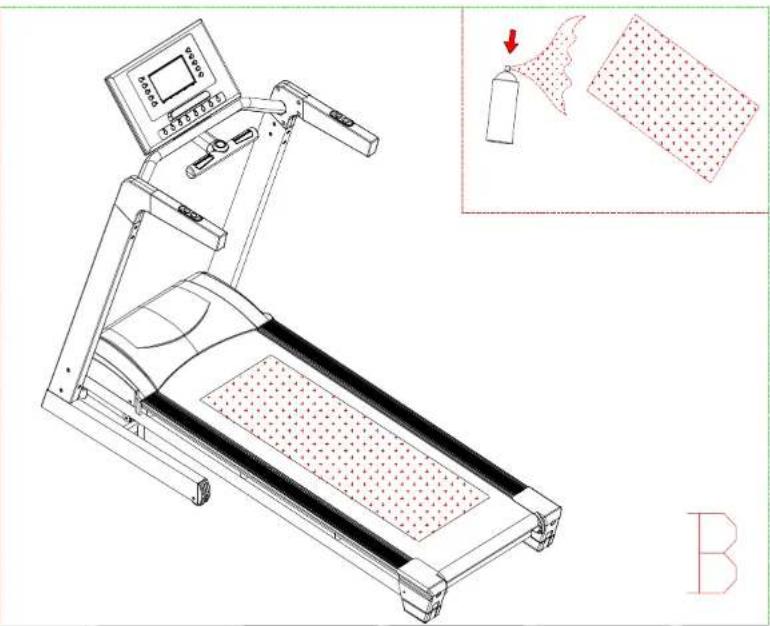

This Treadmill's walking belt and deck are equipped with a pre-lubricated, low maintenance deck system. The belt versus deck friction may play a major role in the function and life of your Treadmill, thus requiring periodic lubrication. We recommend a periodic inspection and annual lubrication of the deck.

Always hold onto the hand rails when getting on and off the treadmill. Place feet on foot rails (not on the tread) of the treadmill before starting. Turn on treadmill and set at slow position before stepping on. Adjust the speed slowly to avoid sudden surge in speed. Always unplug the power cord before performing the maintenance and adjustment procedures described in this manual. At least once a year remove the motor cover and vacuum inside. Servicing other than the procedures in this manual should be performed by authorized service representative only.

OKN ONK 12 9 7 5 3 IN LINE 88:88 88:88 88:88 64 64 64 64 64 64 PVD PVD PVD PVD PVD PVD PVD PVD PVD PVD PVD PVD PVD PVD PVD PVD PVD PVD PVD PVD PVD PVD PVD PVD PVD PVD PVD PVD PVD PVD PVD PVD PVD PVD PVP 14 12 10 8 6 5 SPEED

P heartbeat

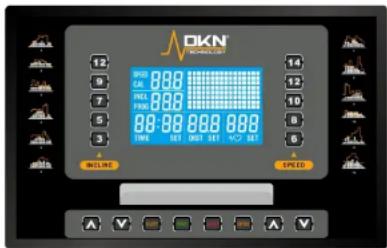

Operating Instructions Computer

OKN MORIOLY 12 9 8 7 6 5 4 3 12 14 12 10 8 6 5 4 3 BE 88.88 888.88 BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE BE FEE

Function keys

Start/stop: starting and stopping the belt.

Enter: confirming program or data.

Select: selecting program or data.

Speed ↑/↓: to adjust speed. Or set speed using the direct speed keys (1-20 km/h).

Incline ↑/↓: to adjust inclination level. Or set inclination using the direct incline keys (1-15)

General operation:

Please read carefully before using

Safety tips:

To start, turn on the power and attach the safety key to the monitor. Note that the machine does not work and no data will be displayed without the safety key attached. Please clip the other end of the safety key to the user before exercising to ensure the machine will stop in case the user accidentally runs off the treadmill. Should that happen, the safety key will be cut off the monitor and the treadmill will stop at once to avoid further injury.

Program selection:

There are 15 programs including: 1 manual, 12 preset courses, 1 user profile and 1 HR training course.

Pulse rate:

There are two ways to measure your heart rate. Hand-pulse sensors or chest belt. Hand-pulse sensor requires both hands to gently hold the hand-pulse sensors. There are 2 sensors and 2 pieces of metal part each sensor. Each hand must gently hold both metal pieces to trigger the HR measuring.

For HR training the use of a chest belt to measure pulse rate is compulsory.

Your computer is compatible with the optional DKN chest transmitter (ref 20073), for integrated wireless heart rate registration. Contact your dealer, or visit our website www.dkn-technology.com

Start-up

Press the power button.

Position the safety key into the on position.

Start-up screen:

Use ↑/↓ to select User 1 or 2, and press ENTER to confirm your setting (user data are stored).

Enter your personal data (gender, age, height and weight) using ↑/↓. Press ENTER to confirm your setting value.

$$ (1 = \text {♂}, 2 = \text {♀}) $$

Next select manual (press start) or select a program using SELECT button.

Manual menu

Quickstart mode:

Press START, use ↑/↓ buttons to adjust values. Matrix shows a 400 m running track. Adjust Speed and Incline using ↑/↓ buttons or the hot keys.

Program menu

Preset runs:

Use SELECT button to choose program, press ENTER to confirm selection.

Press ENTER to set time, use ↑/↓ buttons to adjust values, press ENTER to confirm.

Press START to begin exercising. Total runtime is set over 10 time segments.

User program:

Use SELECT button to choose UPr, press ENTER to confirm selection.

Use ↑/↓ buttons to program speed and incline for each segment, press ENTER to confirm.

Use ↑/↓ buttons to program total exercise time and distance, press ENTER and START.

HRC program:
(Chest belt transmitter compulsory)
Use SELECT button to choose HRC, press ENTER to confirm selection

Use ↑/↓ buttons to program target heart rate, press ENTER to confirm

Use ↑/↓ buttons to program total exercise time and press ENTER to confirm

Press START: the treadmill will run at 3 km/h for 2 minutes as warm-up: adjust elevation manually.

After this timeframe the computer will adjust speed with 0.5 km or incline with 1 step every 30 seconds till THR (+/- 10 BPM) is reached.

In case the THR is exceeded, the computer will automatically reduce speed and/or elevation until THR is reached again.

After the total exercise time elapsed, the treadmill will slow down to 3 km/h with decrements of 0.5 km/h every 10 seconds.

In case no pulse is received, display will show:

P ♥

read-out, and may not be used as guidance in any cardio-vascular related medical or paramedical program. If you have not been physically active for a long period of time and also to avoid health risks you should consult your general physician before starting to exercise.

All data displayed are approximate guidance and cannot be used in any medical application.

If you have not been physically active for a long period of time and also to avoid health risks you should consult your general physician before starting to exercise.

Heart rate displayed is an approximate

OKN TOMATO 12 9 7 5 3 14 12 10 8 6 NO. NO. NO. NO. NO. SHEC

OKN TOMATO 12 9 888 7 888 5 88-88 888 888 4 88 88 88 100 100 NO. NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO No NO. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. N SPEED

P heartbeat

OKN TOMATO 12 9 7 5 3 14 12 10 8 6 NO. NO. NO. NO. NO. SHEC

P heartbeat

P heartbeat

OKN TOMATO 12 9 888 7 888 5 88-88 888 888 3 88 88 88 100 100 NO. NO. NO. NO. NO. SPE.3

P heartbeat

P heartbeat

Abstract blue background with a grid of white squares, no text or symbols present.

POI
SPEED	2	5	5	4	4	6	4	2	3	4
INCLINE	1	2	3	4	6	5	6	6	2	1

Abstract geometric pattern with white squares on a blue background (no text or symbols)

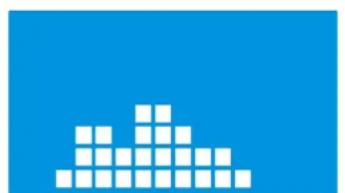

P02
SPEED	3	3	6	5	5	4	4	4	4	3
INCLINE	1	2	4	4	3	4	3	2	1	0

Blue background with a white grid of squares forming an abstract shape (no text or symbols)

P03
SPEED	3	3	4	4	5	5	5	6	6	4
INCLINE	3	6	3	5	1	3	5	1	3	1

Abstract geometric pattern composed of white squares on a blue background (no text or symbols)

P04
SPEED	2	4	6	8	7	8	6	2	3	2
INCLINE	4	5	5	2	5	4	7	8	2	0

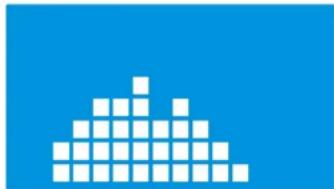

Blue background with a white pixelated geometric shape resembling a tower or pyramid (no text or symbols)

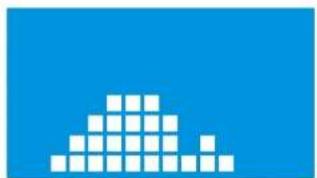

P05
SPEED	3	3	5	6	7	6	5	4	3	3
INCLINE	4	5	5	3	5	3	7	5	3	1

Abstract geometric pattern of white squares on a solid blue background (no text or symbols)

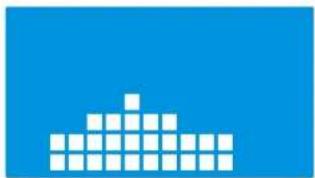

P06
SPEED	3	6	6	6	8	6	7	5	5	4
INCLINE	2	2	1	4	5	6	4	4	2	2

Abstract geometric pattern composed of white squares on a blue background (no text or symbols)

P07
SPEED	2	6	5	4	8	7	5	3	3	2
INCLINE	2	4	6	5	5	2	6	5	4	3

Abstract geometric pattern composed of white squares on a blue background (no text or symbols)

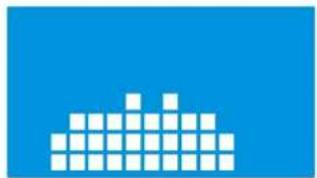

P08
SPEED	2	8	8	7	7	6	5	3	2	2
INCLINE	4	5	4	7	3	4	4	9	5	2

Abstract geometric pattern of white squares on a blue background (no text or symbols)

P09
SPEED	2	4	4	4	5	5	8	8	6	2
INCLINE	0	3	9	8	4	5	3	5	5	4

Blue background with a white pixelated pyramid shape in the bottom left corner (no text or symbols)

P10
SPEED	2	4	5	5	6	5	6	3	3	2
INCLINE	2	4	2	3	1	2	3	1	2	1

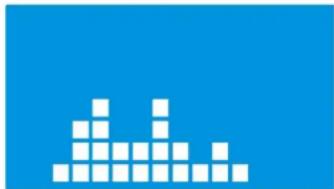

Abstract geometric pattern of white squares on a solid blue background (no text or symbols)

P11
SPEED	2	6	7	4	4	7	4	2	4	2
INCLINE	2	3	4	4	6	6	7	9	4	1

Abstract geometric pattern composed of white squares on a blue background (no text or symbols)

P12
SPEED	3	5	8	8	9	5	7	6	3	2
INCLINE	4	3	6	7	8	8	6	3	3	3

Code	Description Processing
E01	Communication error. The control board and computer are not communicating correctly.	The machine stops and goes into fault status, computer shows “E1”, and the alarm beeps three times. Possible causes: check all the connection points between the console and controller. Make sure all plugs are well connected. Check all the wires for damage. If this fails, change the connector wires.
E02	Abnormal voltage. Power or voltage situation that can cause damage to the motor drive circuit.	Start and stop fault status. The computer beeps 9 times and shows “E2”. Treadmill goes into the ready mode and restarts. Possible causes: low power or voltage, or faulty controller. Check all motor wires for correct connection.
E03	Speed sensor error.	Stops and go into fault status. Computer shows “E03”. Other areas show blank. After 10 seconds the machine will go into ready mode, and can be restarted.Possible causes: the computer is not receiving motor speed sensor feedback for more than 3 seconds: check sensor plug and motor connection wires. Check the controller.
E05	Over-current protection.	Stops and goes into fault status, computer shows “E05”. Other areas show blank. After 10 seconds the machine will go into ready mode, and can be restarted.Possible causes: system encounters overvoltage and goes to self-preservation. Moving parts may be blocked. Check and adjust the machine and restart. Check motor or controller for burning smell. If so, change motor and/or controller. Check whether the power voltage is too low or not to the standard and retest with the correct voltage.
E06	Controller self-check error.	Computer shows “E06”. Possible causes: the controller wires are not connected well, check and reconnect or change.
E08	EPROM (Data memory error)	Computer shows“E08”. Possible causes: the controller wires are not connected well, check and reconnect or change.

The owner's manual is only for customers' reference. The supplier can not guarantee for mistakes occurring due to translation or changes in technical specifications of the product.

ALL RIGHTS RESERVED ©/TM /DKN-Technology

www.DKN-Technology.com

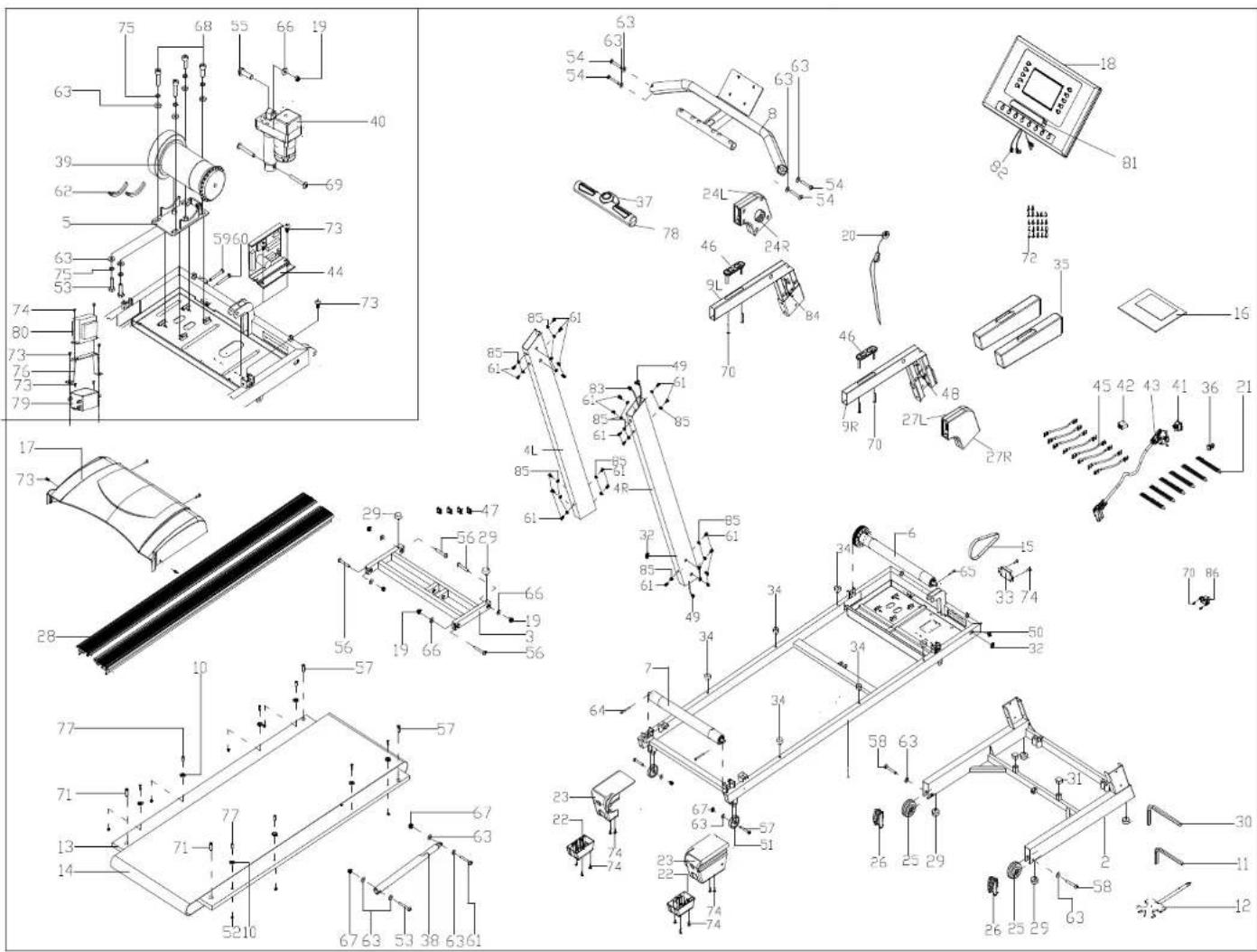

Technical schematic diagram of a device assembly with numbered components and labeled parts in Chinese

Nr	Description	Specs Qty
1	Main Frame	1
2	Base Frame		1
3	Incline frame		1
4	L/R	Upright	2
5	Motor		1
6	Front Roller		1
7	Rear Roller		1
8	Computer Bracket		1
9	L/R	Handle Bar frame	2
10	Bowl Washer		8
11	Hex Wrench		S5	1
12	Wrench	1
13	Running Board		1
14	Running Belt		1
15	Belt		200-J7	1
16	Computer PCB		1
17	Motor Cover		1
18	Computer Housing		1
19	Locknut		M10	6
20	Safety key		1
21	Cable Tie		6
22	Support		Left and Right	2
23	End Cap		Left and Right	2
24L/R		Handle Bar Cover	Left	2
25	Transport Wheels		9 × 62.5 × 23.5	2
26	End Cap		20*20	2
27L/R		Handle Bar Cover	Right	2
28	Siderail		36*79*1320	2
29	Adjusting Pad		35 × 15 (M6 × 10)	6

Nr	Description	Specs Qty
30	Hex Wrench	S6 1
31	Stopper		20*20	2
32	Annular Plug		12^ 18^ 24^9
33	Cap			1
34	Damper			6
35	Handle Bar Foam	2
36	Power switch			1
37	Cross Bar Cover Upper		310*65*31	1
38	Cylinder		F=35KG	2
39	DC-Motor			1
40	Incline Motor			1
41	Power Switch			1
42	Overload Fuse			1
43	Power Plug			2
44	Controller			1
45	Cable Connectors			8
46	Handlebar Key			2
47	End Cap		20*30*t1.5	4
48	Upper Computer Cable			1
49	Middle Computer Cable			1
50	Lower Computer Cable			1
51	Adjusting Wheel			2
52	Hex Nut		M5	8
53	Hex Bolt		M8*45	1
54	Hex Screw		M8*15	2
55	Hex Bolt		M10*45 1
56	Hex Screw		M10*45 4
57	Hex Screw		M8*35	2

Nr	Description	Specs Qty
58	Hex Screw		M8*50	2
59	Hex Screw		M8*85	1
60	Hex Screw		M8*75	1
61	Hex Screw		M10*15 22
62	Motor Cushion			2
63	Flat Washer		9^ 16^ 11.6	10
64	Hex Screw		M6*60	2
65	Hex Screw		M6*45	1
66	Flat Washer		11^ 20^ 12	6
67	Locknut		M8	6
68	Hex Screw		8*20	4
69	Hex Screw		M10*30	2
70	Self Tapping Screw		ST4*25	4
71	Cross Screw		M5*15	4
72	Cross Screw		ST4*15	25
73	Cross Screw		M5*10	18
74	Cross Screw		ST4*15	2
75	Spring Washer		8.1^ 12.3^ 12.1	6
76	Filter Frame			1
77	Cross Screw		M6*25	8
78	Cross Bar Cover Lower		310*65*31	1
79	Filter			1
80	Inductor			1
81	Book Rack			1
82	Upper Pulse Cable			1
83	Middle Pulse Cable			1
84	Lower Pulse Cable			1
85	Inner Washer			12
86	Power Cable Socket		1

DKN® TECHNOLOGY Reaching for better

Collage of seven black-and-white photos showing fitness and exercise activities: stationary bike, running exercise, smartwatch, person using exercise, and outdoor exercise (no visible text or symbols)

www.dkn-technology.com
