USER MANUAL Magnus 42 LEICA

Technical diagram of a mechanical device with labeled parts and annotations in Chinese

Technical diagram of a mechanical device with labeled parts and directional arrows indicating assembly or movement.

VORWORT

b c a MAGUS LS-MMA

Line drawing of a hand inserting a small component into a pipe fitting (no text or symbols)

Simple target symbol with concentric circles and a central dot (no text or labels)

Diagram of two mechanical components with red arrows indicating motion or rotation (no text or symbols)

Simple geometric diagram with concentric circles and a central crosshair (no text or symbols)

Diagram of two mechanical components with red arrows indicating rotation or movement (no text or symbols)

Simple concentric circle diagram with a single black dot at the center (no text or symbols)

Diagram of two mechanical components with a red circular highlight on their centers (no text or symbols)

Simple concentric circle diagram with a single black dot at the center (no text or symbols)

Diagram of two mechanical components with rotating parts and a highlighted section (no text or symbols)

Hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand holding a small cylindrical component, no text or symbols present

Throughout the world, the name Leica stands for premium quality, accurate precision mechanics, optimum reliability and long service life.

We wish you a lot of enjoyment and every success with your new Leica Magnus telescopic sight.

Your Leica Magnus telescopic sight is equipped with an outstanding optical system, which delivers a clear, bright and brilliant image even under the toughest conditions, ensuring a reliable reticule at all times. It is also easy to operate and functional.

To enable you to make the best possible use of this high performance telescopic sight's features, we recommend that you read these instructions before use.

Attention:

As with binoculars, avoid looking directly at bright sources of light when using your Leica Magnus telescopic sight, to prevent eye injury.

CONTENTS

Foreword 19

Designation of parts 20

Package contents 20

Disposal of electrical and electronic equipment ..... 21

Inserting and changing the batteries 22

Battery capacity display 23

Mounting 24

Diopter compensation 24

Changing the magnification 25

Parallax compensation 25

Elevation and lateral adjustment 26

"Zeroing" the tower scales 28

Using the illuminated reticle 29

Automatic shutdown 30

Maintenance / cleaning 30

Spare parts 32

Technical data 33

Leica on the Internet 34

Leica information service 34

Leica customer care 35

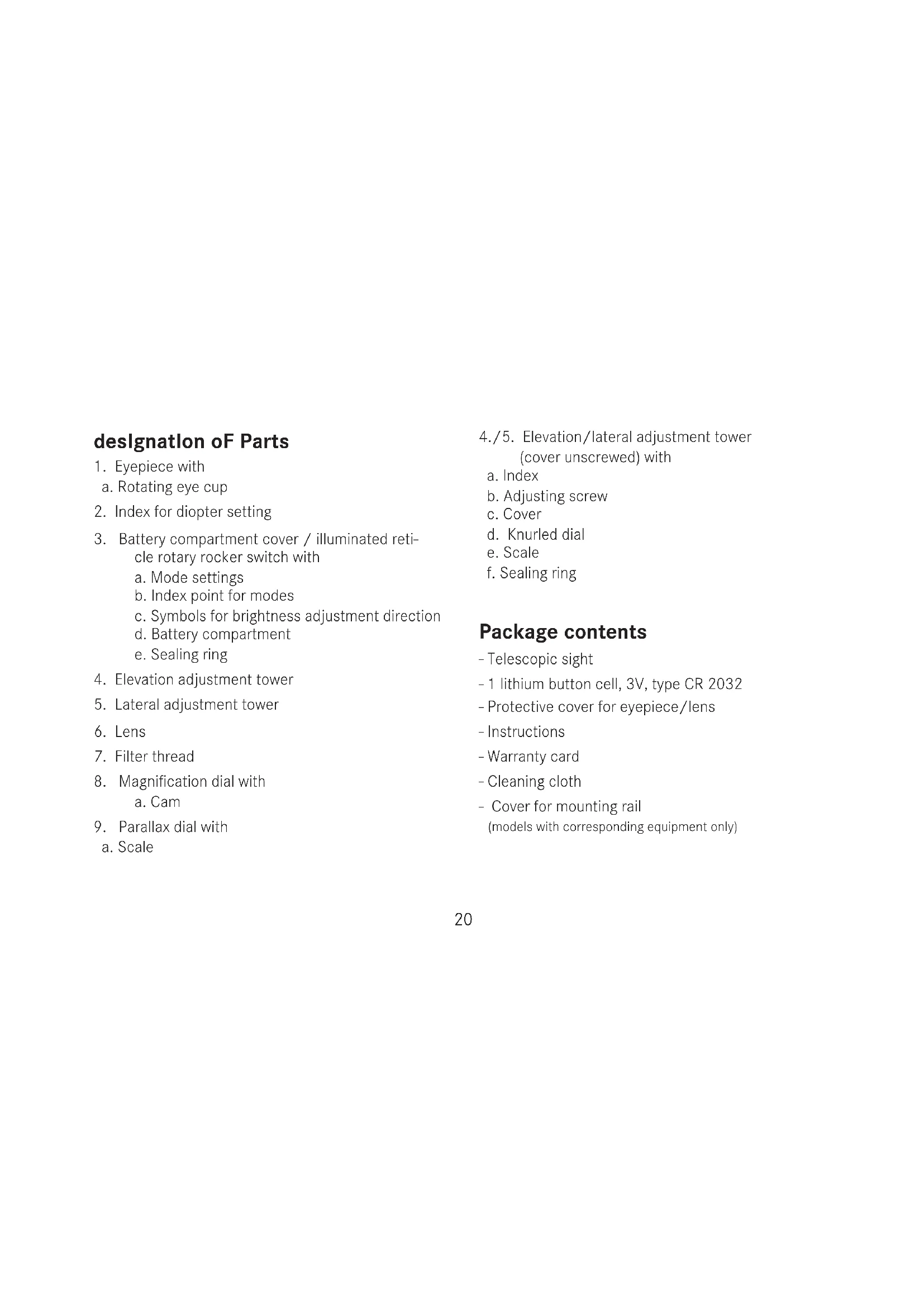

designation of Parts

1. Eyepiece with

a. Rotating eye cup

1. Index for diopter setting

2. Battery compartment cover / illuminated reticle rotary rocker switch with

a. Mode settings

b. Index point for modes

c. Symbols for brightness adjustment direction

d. Battery compartment

e. Sealing ring

1. Elevation adjustment tower

2. Lateral adjustment tower

3. Lens

4. Filter thread

5. Magnification dial with

a. Cam

1. Parallax dial with

a. Scale

4./5. Elevation/lateral adjustment tower (cover unscrewed) with

a. Index

b. Adjusting screw

c. Cover

d. Knurled dial

e. Scale

f. Sealing ring

Package contents

- Telescopic sight

- 1 lithium button cell, 3V, type CR 2032

- Protective cover for eyepiece/lens

- Instructions

- Warranty card

- Cleaning cloth

- Cover for mounting rail

(models with corresponding equipment only)

dIsPosal of electrical and electronic equIPment

(Applies within the EC, and for other European countries with segregated waste collection systems)

This device contains electrical and/or electronic components and should therefore not be disposed of in general household waste!

Instead it should be disposed of at a recycling collection point provided by the local authority. This costs you nothing.

If the device itself contains removable batteries or rechargeable batteries, these should first be removed and, if necessary, properly disposed of (refer to the specifications in the manual for your device).

Further information on this point is available at your local administration, your local waste collection company, or in the store where you purchased this device.

INSERTING AND CHANGING THE BATTERY

Leica telescopic sights with illuminated reticle are fitted with a 3 Volt lithium button cell, type CR 2032 to save energy.

Note:

The life of a battery depends not just on the usage profile but on many other factors and can therefore differ widely.

A MAGNUS 1.0-10mm

B M A B U S 1.5~10x8

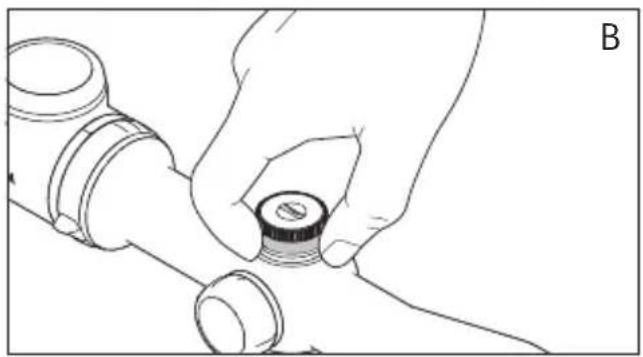

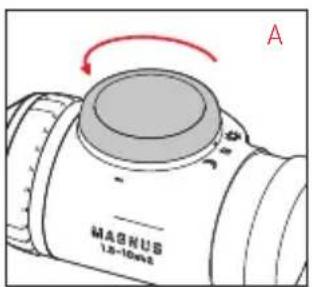

1. Open the cover (3) on the battery compartment (3d) by turning it anticlockwise (A).

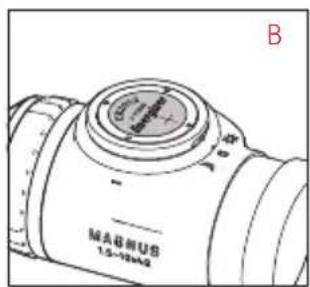

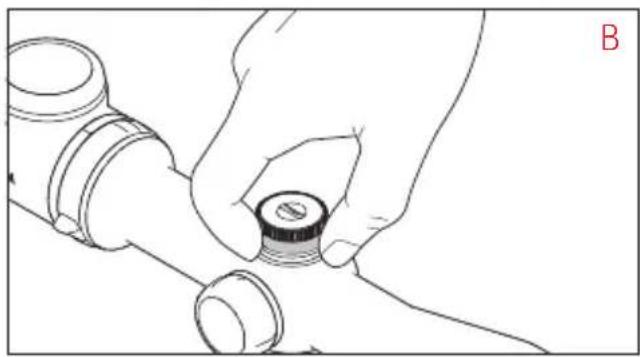

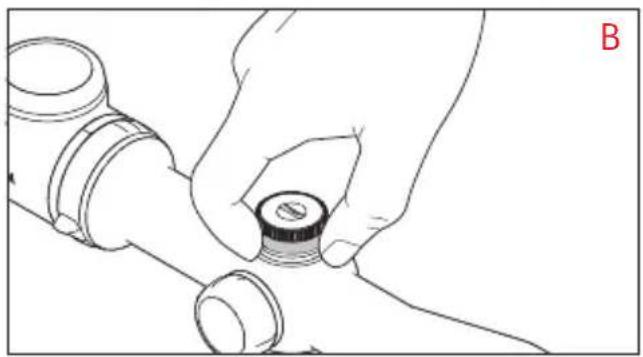

2. Insert the battery with the positive contact pointing upwards (B).
3. Close the cover again. To do this, turn it clockwise until you feel resistance from the rubber sealing ring (3e).

Important:

Do not exert force when closing the cover.

BATTERY CAPACITY DISPLAY

b c a MAGUS LS-MMA

The illuminated dot from the reticle is used for the display. The display appears for the first 10 s after turning on:

Capacity Display

Sufficient

Illuminated dot lit continuously

Low	Illuminated dot goes out
	regularly for a short time

Weak Illuminated point flashes evenly

Note:

• After the illuminated reticle is automatically turned off and back on (see p. 30), the display is not repeated.
- With the factory default settings, i.e. when the telescopic sight is delivered, this display is turned on. However, you can turn it off (see below).

Turning the capacity display on and off

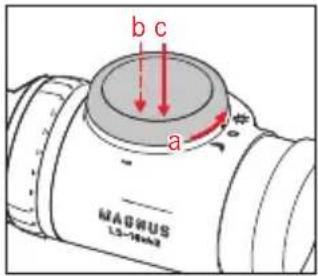

1. Set the rotary rocker switch (3) to day mode ("sun" setting) (a).
2. Use the rotary rocker switch to set the minimum brightness (see p. 29) and then release it (b).
3. Hold down the left of the rotary rocker switch for at least 20s (c).
4. The illuminated dot flashes to confirm your setting (for the first 10s after adjustment):

Status Display

On	Illuminated dot briefly lights up regularly

Off	Illuminated dot briefly lights up twice regularly

Note:

Your setting is retained both after manually turning the illuminated reticle off and on, and after changing the battery.

Mounting

The first requirement for perfect targeting is proper mounting of the telescopic sight on the weapon. There are a variety of different fittings available in specialist retailers for this purpose.

We recommend consulting a specialist workshop for advice on mounting, making sure that they achieve a flush and stress-free construction. The workshop should only use high quality components from well-known manufacturers for mounting, which offer the same quality as your Leica Magnus telescopic sight.

dloPter coMPensation

The diopter compensation allows you to adjust your Leica Magnus telescopic sight to your eye. To do this, turn the eye cup (1a) on the eyepiece (1) so that you can see the reticle with the maximum sharpness. To achieve the most accurate setting possible, we recommend

- pointing the telescopic sight at a neutral, light background, and

- first turning the eye cup all the way to the left, so that you can then turn it back from this position to the right until you find the best sharpness for the reticle. This method takes into account the accommodative capacity of the eye, thus ensuring an optimum setting.

changing the Magnification

To change the magnification, turn the dial (8) - to the right to reduce the magnification and to the left to increase it. The cam (8a) improves orientation in darkness: If it is pointing upwards, approximately the middle magnification is set.

ParallaX coMPensation

Leica Magnus telescopic sights up to a maximum magnification of 12x are calibrated to a range of 100 m without parallax, which means that you can simultaneously see the reticle and a target with perfect sharpness at this range.

Any variations in the point of impact due to the eye being not precisely centered are usually negligible.

At higher magnifications, however, these variations need to be taken into account. Therefore, telescopic sights with magnification ranges above 12x feature parallax compensation.

To use this feature, on the corresponding dial (9) for the tower on the left of the barrel until you can see the target with absolute sharpness. To ensure that the setting is as accurate as possible, we recommend always using the strongest magnification. An optimum setting is achieved when the reticle and image do not move against each other when you change the position of the eye relative to the eyepiece.

eleVatlon and lateral adjust-Ment

1. Mount the telescopic sight on the weapon (see p. 24).
2. Point the reticle and the weapon's running axis with the two adjusting towers at the selected zero-ing range (e.g. 100 m). This can be done using a laser cartridge, for example.
3. Fire a test shot to establish the point of impact. It is beneficial to fix the weapon in position on a shooting rest or sandbags.
4. Without changing the position of the weapon, adjust the reticle using the two adjusting towers (4/5) precisely to the target.

Line drawing of a hand inserting a small component into a pipe fitting (no text or symbols)

This is done using the two adjusting towers - (4) for the elevation, (5) for lateral, and in the same way in both cases:

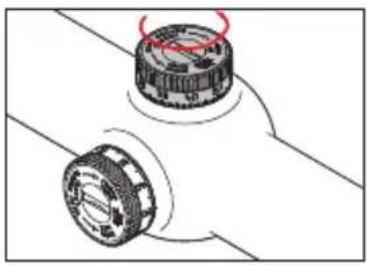

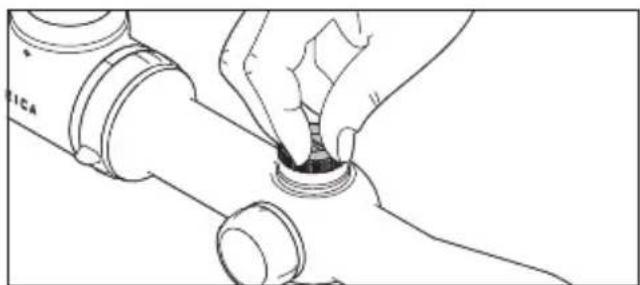

1. First unscrew the cover (4c/5c) anticlockwise. When the cover is removed, the knurled dial (4d/5d) is visible, along with the associated scale ring (4e/5e) and the corresponding index point (4a/5a).
2. Then make the settings with the knurled dial. The dial has very fine graduations, and a click corresponds to a variation in the point of impact of around 10 mm/ ^1/_3 MOA at 100 m (not taking account of ballistic conditions).

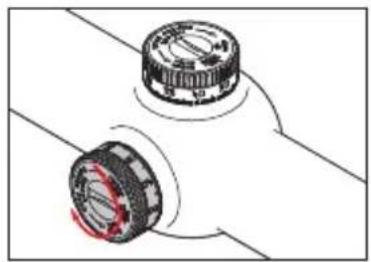

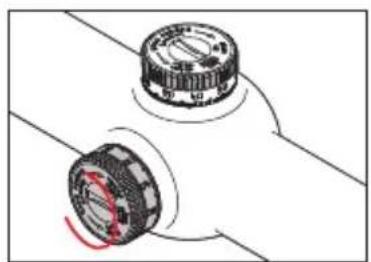

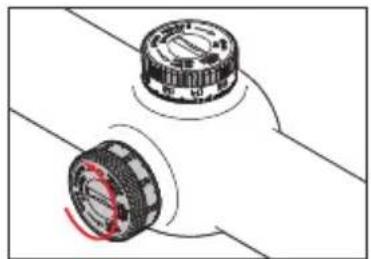

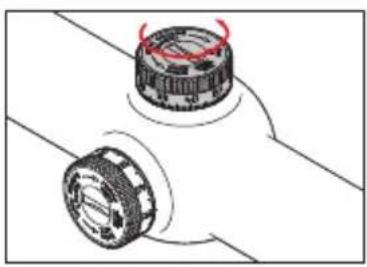

If the point of impact is high (high shot), turn the knurled dial (4d) anticlockwise,

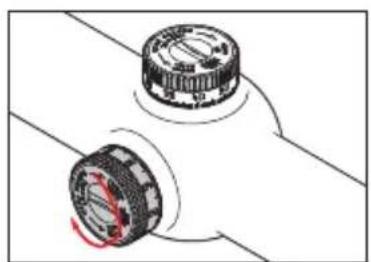

Make the lateral adjustments in the same way: If the point of impact is right (right shot), turn the knurled dial (5d) anticlockwise,

Simple target symbol with concentric circles and a central dot (no text or labels)

Diagram of two mechanical components with red arrows indicating motion or rotation (no text or symbols)

or turn clockwise for a low point of impact (low shot).

Simple geometric diagram with concentric circles and a single black dot at the center (no text or symbols)

Diagram of two mechanical components with a red circular highlight on their centers (no text or symbols)

or turn clockwise if the point of impact is left (left shot).

Simple concentric circle diagram with a central crosshair and a small black dot at the center (no text or symbols)

Diagram of two mechanical components with red arrows indicating motion or rotation (no text or symbols)

Simple concentric circle diagram with a single black dot at the center (no text or symbols)

Diagram of two mechanical components with rotating parts and a red-handled rotation indicator (no text or symbols)

"zerolng" the tower scales

(same procedure for both towers)

The process is initially the same as that described in the previous section (points 1 and 2).

Then,

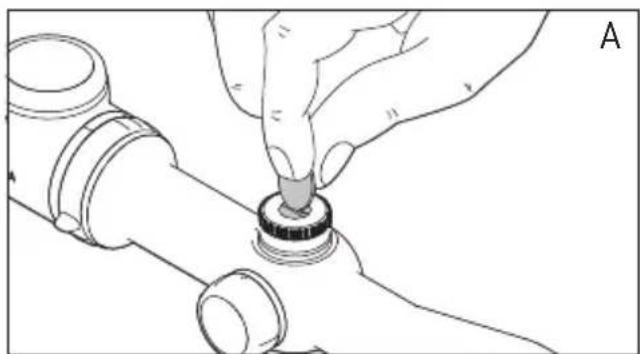

1. While holding the knurled dial (4d/5d), unscrew the adjusting screw (4b/5b) with a coin (A), and
2. Turn the scale dial (4e/5e) until the zero is lined up with the index point (4a/5a) (B).

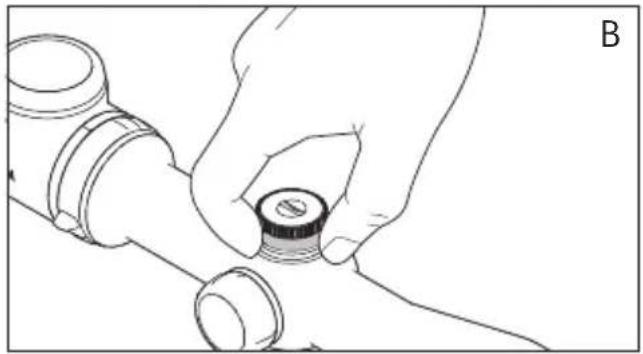

3. Finally, the setting is fixed by tightening the adjusting screw while holding the knurled dial (4d/5d)..

Once you have done this for both scale dials, you can reliably make the initial setting at the zeroing range after any kind of adjustment by returning to the 0 positions, without the need to remember or make a note of anything.

Hand inserting a small component into a pipe fitting (no text or symbols visible)

Line drawing of a hand holding a small cylindrical component, no text or symbols present

USING THE ILLUMINATED RETICLE

The illuminated element of Leica Magnus telescopic sights consists of a central illuminated dot for all reticle types.

Note:

Details of the different reticle types can be found at: http://de.leica-camera.com/sport_optics/rifle_scopes_magnus/Absehen/

MAGNUS 1.5-10mm

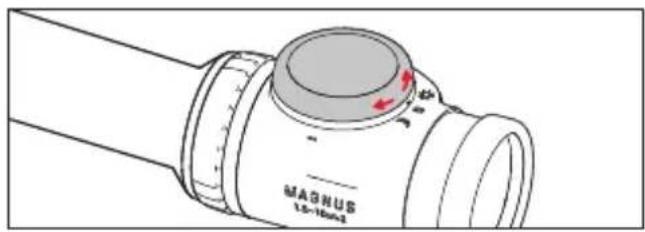

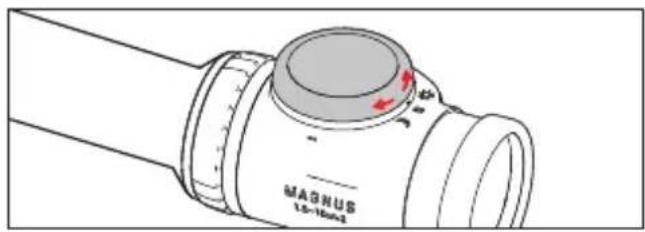

You can use the rotary rocker switch (3) to choose between three modes, indicated by corresponding markings:

Central switch position = Off "Moon" setting = Night mode "Sun" setting = Day mode

研磨切割U型 1.5~20mm

Day and night mode differ in terms of the brightness adjusting ranges for the illuminated dot. In both modes, you can adjust the brightness in 60 increments to the conditions or use or your own preferences.

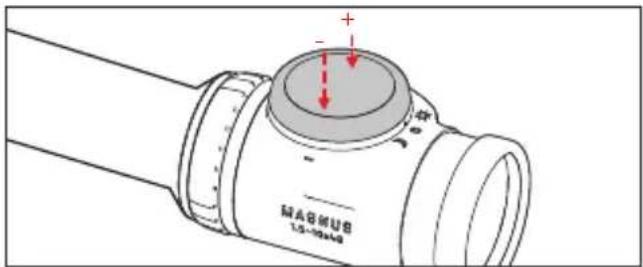

This is also done using the rotary rocker switch: Pressing to the left reduces the brightness, pressing to the right increases it. Press once for a single increment or hold down to increment continuously.

Note:

Your settings are retained even after turning off and on again.

autoMatlc shutdown

Regardless of the selected mode, the illuminated reticle is deactivated automatically to conserve the battery in various situations, which correspond to not being used when hunting:

• If the telescopic sight is not moved for longer than 3 minutes (for example in a hide)
• If the telescopic sight is tilted to the side by more than 45^ (for example when the weapon is laid down temporarily)
• If the telescopic sight is tilted more than around 80^ upwards or around 65^ downwards or is vertical (for example when shouldering the weapon). As soon as these conditions no longer apply, the illuminated dot is reactivated with the brightness set previously.

Maintenance / cleaning

Your Leica Magnus telescopic sight does not require any special maintenance. Coarse dirt particles, such as sand, should be removed with a fine hair brush or blown away. Marks such as fingerprints on the front lens and eyepiece lenses can be cleaned with a damp cloth and then wiped off with a soft, clean leather or dust-free cloth. Do not exert heavy pressure when wiping highly soiled lens surfaces. Although the coating is highly abrasion resistant, it can be damaged by sand or salt crystals.

The housing should only be cleaned with a moist leather cloth. Using dry cloths brings a risk of static charge.

Alcohol and other chemical solutions must not be used to clean the optical system or the housing.

Important:

• Make sure you protect your telescopic sight from impacts.
• Store your telescopic sight in a well ventilated, dry and cool location, particularly to prevent the formation of fungus in humid climates.
• Leica telescopic sights are water tight to a depth of 4m (0.4 bar). This is the case if the seals are perfect, which is guaranteed if the covers on the elevation and lateral adjustment and the battery compartment cover (3/4c/5c) are screwed tightly against the respective seals (3e/4f/5f). Make sure that these seals are undamaged. If they are damaged, they should be replaced immediately.
• Do not attempt to dismantle the product. Repairs should be carried out exclusively by Leica Customer Care centers.
• In addition to the type designation, every Leica telescopic sight has its “personal” serial number. Note this number in your documentation for security.

sPare Parts

If you should require any spare parts for your Leica telescopic sight, e.g. screw-on cap, seals or covers, please contact our Customer Care department (see p. 35 for address) or the Leica office in your country (see warranty card for addresses).

TECHNICAL DATA

Leica Magnus models 1 - 6.3	^1 × 24^2 1.5	10	^1 × 42^2 2.4	16	^1 × 56^2
Exit pupil 12.4 - 3.8 mm 12.4 - 4.2 mm	12.4 - 3.5 mm
Field of vision at max./min. 6.5 /43.2 m Magnification (m/100 m)	4.1 / 26 m 2.6 /17 m
Parallax adjustment 100 m 100 m 50 m	-∞, adjustable
Exit pupil longitudinal distance 90 mm
Coating Aqua DuraTM
Transmission factor	TD/TN ≥91 %
Diopter compensation	- 4/+3 dpt.
Reticle adjustment distance per click	Approx. 10mm ( ^1/_3 MOA) per click / 100 m
Point of impact adjustment range	200 x 140 cm	150 x 140 cm		150 x 140 cm
Center tube diameter	30 mm, Zeiss internal rail
Filter thread, lens side	-	M46 x 0.75 mm		M58 x 0.75 mm
Water tightness	To 4 m, nitrogen filled
Housing material	Aluminum
Reticle illumination	Illuminated dot, turned on and off, choice of day and night mode,brightness adjustable in 60 increments for each, automatic shutdown and activation
Length	272 mm	317 mm		360 mm
Weight	570 g	620 g		785 g

^1 Magnification

^2 Lens diameter

lelca on the Internet

Current information about products, newly introduced products, events and the Leica company is available on our homepage on the Internet at:

http://www.leica-camera.de

lelca InForMatlon serVIce

The Leica information service can provide you with an answer to any technical application questions relating to the Leica range either in writing, on the telephone or by e-mail.

Leica Camera AG

Information Service

PO Box 1180

D-35599 Solms

Leica AG's customer care centre, or the repair service of the Leica national offices, is available to assist you in maintaining your Leica equipment or in case of damage.

Leica Camera AG

Customer Care

B MABUS 1.5~19mm

coMPensation dloPtrlque

Line drawing of a hand inserting a small component into a pipe fitting (no text or symbols)

Simple target symbol with concentric circles and a central crosshair (no text or labels)

Diagram of two mechanical components with red arrows indicating motion or rotation (no text or symbols)

Simple geometric diagram with concentric circles and a central crosshair (no text or symbols)

Diagram of two mechanical components with red arrows indicating rotation or movement (no text or symbols)

Simple concentric circle diagram with a single black dot at the center (no text or symbols)

Diagram of two mechanical components with a red circular highlight on their centers (no text or symbols)

Simple concentric circle diagram with a single black dot at the center (no text or symbols)

Diagram of two mechanical components with rotating parts, no text or symbols present

Hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand holding a small cylindrical component, no text or symbols present

UTILISATION DU RETICULE LUMINEUX

Position intermédiaire = Hors tension Position "Lune" = Mode Nuit Position "Soleil" = Mode Jour

研磨切割U型 1.5~20mm

Line drawing of a hand inserting a small component into a pipe fitting (no text or symbols)

Simple target symbol with concentric circles and a central crosshair (no text or labels)

Diagram of two mechanical components with red arrows indicating motion or rotation (no text or symbols)

Simple geometric diagram with concentric circles and a central crosshair (no text or symbols)

Diagram of two mechanical components with red arrows indicating motion or rotation (no text or symbols)

Simple concentric circle diagram with a single black dot at the center (no text or symbols)

Diagram of two mechanical components with a red circular highlight on their centers (no text or symbols)

Simple concentric circle diagram with a single black dot at the center (no text or symbols)

Diagram of two mechanical components with rotating parts, no text or symbols present

torenschaal "nullen"

Hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand holding a small mechanical component (no text or symbols)

Line drawing of a hand inserting a small component into a pipe fitting (no text or symbols)

Simple target symbol with concentric circles and a central crosshair (no text or labels)

Diagram of two mechanical components with red arrows indicating motion or rotation (no text or symbols)

Simple geometric diagram with concentric circles and a central crosshair (no text or symbols)

Diagram of two mechanical components with red arrows indicating rotation or movement (no text or symbols)

Simple geometric diagram with concentric circles and a central dot (no text or symbols)

Diagram of two mechanical components with a red circular highlight on their centers (no text or symbols)

Simple concentric circle diagram with a single black dot at the center (no text or symbols)

Diagram of two mechanical components with rotating parts, no text or symbols present

Hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand holding a small cylindrical component, no text or symbols present

IMPIEGO DEL RETICOLO DI ACCENSIONE

B MABUS 1.5~19mm

Line drawing of a hand inserting a small component into a pipe fitting (no text or symbols)

Simple target symbol with concentric circles and a central crosshair (no text or labels)

Diagram of two mechanical components with red arrows indicating rotation or movement (no text or symbols)

Simple geometric diagram with concentric circles and a central crosshair (no text or symbols)

Diagram of two mechanical components with red arrows indicating rotation or movement (no text or symbols)

Simple concentric circle diagram with a single black dot at the center (no text or symbols)

Diagram of two mechanical components with a red circular highlight on their centers (no text or symbols)

Simple concentric circle diagram with a single black dot at the center (no text or symbols)

Diagram of two mechanical components with rotating parts, no text or symbols present

Hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand holding a small cylindrical component, no text or symbols present

Line drawing of a hand inserting a small component into a pipe fitting (no text or symbols)

Simple target symbol with concentric circles and a central crosshair (no text or labels)

Diagram of two mechanical components with red arrows indicating motion or rotation (no text or symbols)

ved lavtliggende treffpunktposisjon, medurs.

Simple concentric circle diagram with a single black dot at the center (no text or symbols)

Diagram of two mechanical components with a red circular highlight on their centers (no text or symbols)

dersom treffpunktet ligger til venstre, dreies det medurs.

Simple geometric diagram with concentric circles and a central crosshair (no text or symbols)

Diagram of two mechanical components with red arrows indicating rotation or movement (no text or symbols)

Simple concentric circle diagram with a single black dot at the center (no text or symbols)

Diagram of two mechanical components with rotating parts, no text or symbols present

117117117

«nullIng» aV tÅrnskalaene

Hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand holding a small cylindrical component, no text or symbols present

BRUK AV LYSPUNKTTRÅDKORS

Trådkorset i Leica Magnus kikkertsikter har et lyspunkt i midten, dette gjelder for alle typer trådkors.

Merk:

Detaljer for de forskjellige typer trådkors finner du på: http://de.leica-camera.com/sport_optics/rifle_sco-pes_magnus/Absehen/

MAGNUS 1.5-10mm

b c a MAGUS LS-MMA

Line drawing of a hand adjusting a small component on a pipe fitting (no text or symbols)

Simple concentric circle diagram with a black dot at the center (no text or symbols)

Diagram of two mechanical components with rotating parts, no text or symbols present

Simple concentric circle diagram with a single black dot at the center (no text or symbols)

Diagram of two mechanical components with a red circular mark indicating rotation (no text or symbols)

Simple concentric circle diagram with crosshair lines and a small black dot at the center (no text or symbols)

Mechanical assembly diagram showing two rotating components with red motion arrows (no text or symbols)

Simple concentric circle diagram with a single black dot at the center (no text or symbols)

Diagram of two mechanical components with no visible text or symbols

135135135

タワー目盛りの「ゼロ設定」

(やり方は二つのタワーとも同じです)

Hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand holding a small mechanical component (no text or symbols)

発光鏡内目盛りの使用

Line drawing of a hand adjusting a small component on a pipe fitting (no text or symbols)

Simple target symbol with concentric circles and a central dot (no text or labels)

Diagram of two mechanical components with red arrows indicating rotation or movement (no text or symbols)

Simple geometric diagram with concentric circles and a central dot, no text or symbols present.

Diagram of two mechanical components with red arrows indicating rotation or movement (no text or symbols)

Simple concentric circle diagram with a central dot and crosshairs (no text or symbols)

Diagram of two mechanical components with a red circular highlight on their centers (no text or symbols)

Simple concentric circle diagram with a single black dot at the center (no text or symbols)

Diagram of two mechanical components with rotating parts and a red-handled mechanism (no text or symbols)

Hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand holding a small cylindrical component, no text or symbols present
