USER MANUAL Fountain Active Fiap
LightFountain ACTIVE
GB Operating Instructions
FR Notice d'emploi
NL Gebruiksaanwijzing
ES Instrucciones de uso
PT Instruções de uso
IT Istruzioni d'uso
DK Bruksanvisning
NO Bruksanvisning
SE Instruktionsbok
LightFountain ACTIVE


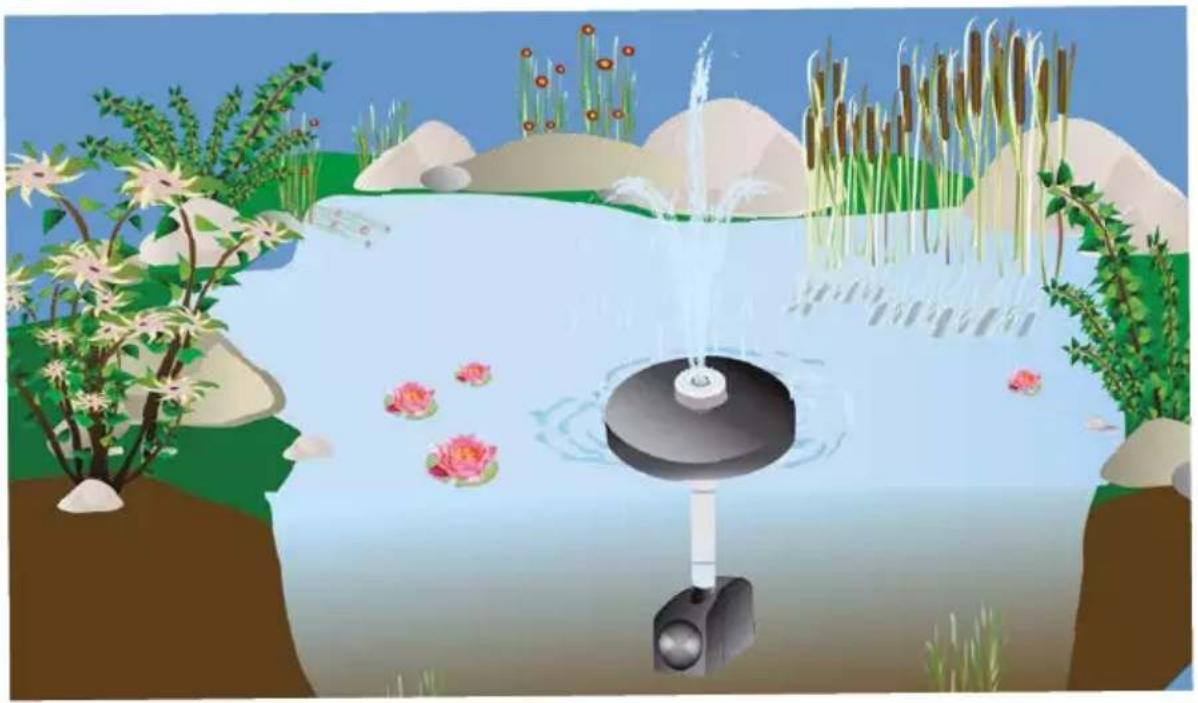

Illustration of a pond with a central fountain, surrounded by flowers and reeds under a blue sky (no text or symbols)


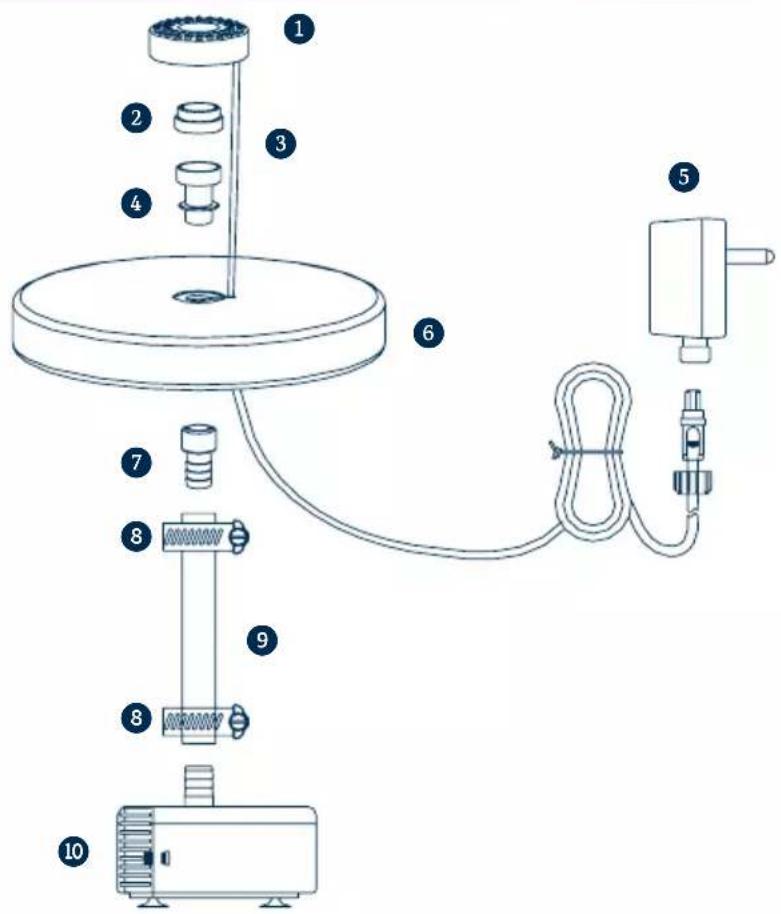

Labeled diagram of a mechanical device with numbered components for identificationLightFountain ACTIVE
LightFountain ACTIVE
REPARATUR
LightFountain ACTIVE
NOTES ON THIS MANUAL
Welcome to FIAP GmbH.
With the purchase of the product LightFountain ACTIVE you have made a very good choice. Before using the device for the first time, read the operating instructions carefully and familiarize yourself with the product. All work on and with this device may only be carried out in accordance with these operating instructions. It is essential to observe the safety instructions for correct and safe use. Keep these operating instructions in a safe place. If you change hands, please pass on the operating instructions.
INTENDED USE
LightFountain ACTIVE, hereinafter referred to as device, may only be used for circulating ponds and for decorative purposes in ornamental waters. The device may only be used in fresh water. All other parts from the scope of delivery may only be used in this context. The device may only be operated within the permissible temperature range between +5 °C and +35 °C. The area of application is for ponds and water basins with and without fish stock. The device must not be operated:
In swimming ponds, without water flow, when frost is expected, not in contact with chemicals, food, highly flammable or explosive substances.
IMPROPER USE
It can occur in the event of improper use and improper handling
This device poses a risk to people. In the event of improper use, our liability and the general operating permit expire.
CE DECLARATION
In terms of the EC directive EMC directive (2014/30 / EU) and the low voltage directive (2014/35 / EU) we declare conformity.
The following harmonized standards were applied:
EN 60335-1: 2002 + A1 + A11 + A12, EN 60335-2-41: 2003 + A1, EN 55014-2, EN
61000-3-2, EN 61000-3-3, EN 50366: 2003
SAFETY INSTRUCTIONS
This device can be used by children aged 8 years and over and by persons with reduced physical, sensory or mental capabilities or a lack of experience and knowledge, provided they are supervised or have been instructed in the safe use of the device and understand the resulting dangers.
Children are not allowed to play with the device. Cleaning and user maintenance should not be carried out by children without supervision. It is essential to observe the safety instructions for correct and safe use. Please keep these instructions in a safe place. If the owner changes, please pass on the instructions.
LightFountain ACTIVE
All work with this device may only be carried out in accordance with these instructions. The combination of water and electricity can lead to serious danger to life and limb if it is not connected properly or handled improperly. Only operate the device when there are no people in the water! Before reaching into the water, always pull out the mains plug of all devices in the water. Compare the electrical data of the power supply with the type plate on the packaging or on the device. Make sure that the device is protected by a residual current device with a rated residual current of maximum 30 mA. Only operate the device from a properly installed socket. Keep the power plug and all connection points dry! Lay the connection cable in a protected manner so that damage is impossible. Only use cables, installations, adapters, extension or connection cables with protective contact that are approved for outdoor use. Do not carry or pull the device by the connecting cable! The device must not be operated if the cable or housing is defective! If the power cord of the device is damaged, the device must be disposed of; it is no longer possible to replace the power cord. If the cable is damaged, the device must be disposed of. Electrical installations on garden ponds must comply with international and national installation regulations. Never open the housing of the device or its associated parts unless this is expressly stated in the instructions for use.
Never make technical changes to the device, this leads to the immediate expiry of all warranty and guarantee claims. Use only original spare parts and accessories. Have repairs carried out only by authorized customer service centers.
Never operate the device without water flowing through it! Never convey liquids other than water!
If you have any questions or problems, please contact a qualified electrician for your own safety!
SAFETY INFORMATION LED
Caution, LED light: do not look into the LED light beam! Do not look at it directly or with optical instruments!
SETTING UP AND COMMISSIONING
Attention! Never operate the device without a pre-filter and without water flow!
The device is only to be positioned and operated horizontally on the water surface. The submersible pump included in the scope of delivery must be installed below the surface of the water (submerged). Establish the hose connection and fix it with a hose clamp. The device switches on automatically as soon as you have established the power connection.
CLEANING AND MAINTENANCE
Before each cleaning and maintenance, make sure that the device is switched off and disconnected from the power source.
The filter housing and the barrel unit must be cleaned at regular intervals. The cleaning interval depends heavily on the degree of soiling. The degree of pollution can vary significantly from water to water. First open the filter basket and take out the pump motor. To clean the rotor and the internal parts, also remove the corresponding screws and pull off the cover of the motor housing. The rotor can then easily be pulled out of the liner and cleaned. Do not use any sharp-edged objects such as Steel brushes, use a soft sponge instead. Stubborn dirt such as The best way to remove limescale deposits is with premiumcare PUMP CLEANSER pump cleaner. If there is sufficient flow, the pump is cooled by the water. Always make sure that the pump works against as little resistance as possible. If the flow rate is reduced (e.g. hose diameter too small, ball valve in the line, delivery height too high, contamination, etc.) the operating temperature rises significantly. From 55 degrees Celsius, more lime is deposited on the pump motor. In the worst case, this layer of lime becomes so thick that the rotor runs very stiffly, jams and the motor burns out. Damage caused by soiling and calcification is excluded from the guarantee. The user has to properly maintain and clean the pump depending on the amount of dirt and limescale. After cleaning, reassemble the pump in reverse order.
Observe the relevant product videos on the subject of cleaning and maintenance in our
Youtube channel: https://www.youtube.com/user/FIAPGmbH
WEAR PARTS
The pump must not run dry. The dry run leads to rapid wear and tear and damages the pump in the long term. Use in polluted water with solids and particles also leads to premature wear and has a negative impact on the service life of the pump. Algae or others Plants that wrap around the filter basket and can quickly clog it lead to reduced water flow and increased wear. We recommend operating the device exclusively in bodies of water without plants, or to ensure that no plants can be sucked in. Wear parts are excluded from the guarantee. Appropriate cleaning and care reduce wear and tear on the device.
REPAIR
If the cables or the housing are damaged, the motor cannot be repaired and must therefore be replaced. The running unit (rotor + impeller) is available separately as a spare part.
If you have any questions or problems, please contact a qualified electrician or your specialist dealer for your own safety.
LightFountain ACTIVE
STORAGE
If frost is expected, the device must be taken out of service and dismantled. First clean the device as described under Cleaning and Maintenance. The device can be stored dry or wet. If the device is to be stored dry, it is important that all components, including the internal engine parts, are completely dry. Set when stored wet
The cleaned pump in a container filled with fresh tap water.
Make sure that the container is set up frost-free.
DISPOSAL
The device must be disposed of in accordance with national legal regulations. This device must not be disposed of as domestic waste. Make the device unusable by cutting the cable and dispose of it via the return system provided.
If the device contains light sources, they must be disposed of using the return system provided for this purpose.
Ask your dealer.
LightFountain ACTIVE
REMARQUES SUR CE MANUEL
LightFountain ACTIVE
LightFountain ACTIVE
ESPACE DE RANGEMENT
LightFountain ACTIVE
OPMERKINGEN BIJ DEZE HANDLEIDING
LightFountain ACTIVE
LightFountain ACTIVE
OPSLAG
LightFountain ACTIVE
NOTAS SOBRE ESTE MANUAL
LightFountain ACTIVE
LightFountain ACTIVE
ALMACENAMIENTO
LightFountain ACTIVE
NOTAS DESTE MANUAL
LightFountain ACTIVE
LightFountain ACTIVE
ARMAZENAMENTO
LightFountain ACTIVE
NOTE SU QUESTO MANUALE
Benvenuti in FIAP GmbH.
LightFountain ACTIVE
LightFountain ACTIVE
CONSERVAZIONE
LightFountain ACTIVE
BEMÄERKNINGER OM DENNE MANUEL
LightFountain ACTIVE
LightFountain ACTIVE
OPBEVARING
LightFountain ACTIVE
MERKNADER PÅ DENNE HÅNDBOKEN
LightFountain ACTIVE
LightFountain ACTIVE
OPPBEVARING
LightFountain ACTIVE
ANMÄRKNINGAR PÅ DENNA MANUAL
LightFountain ACTIVE
LightFountain ACTIVE
LAGRING
LightFountain ACTIVE
TÄMÄN KÄSIKIRJAN HUOMAUTUKSET
LightFountain ACTIVE
TURVALLISUUSTIEDOT LED
LightFountain ACTIVE
VARASTOINTI
LightFountain ACTIVE
MEGJEGYZÉSEK A KÉZIKÖNYVBEN
LightFountain ACTIVE
LightFountain ACTIVE
TÁROLÁS
LightFountain ACTIVE
LightFountain ACTIVE
LightFountain ACTIVE
PRZECHOWYWANIE
LightFountain ACTIVE
POZNÁMKY K TÉTO NÁVODU
LightFountain ACTIVE
LightFountain ACTIVE
ÚLOŽNÝ PROSTOR
LightFountain ACTIVE
NOTE PENTRU ACEST MANUAL
Bine ați venit la FIAP GmbH.
LightFountain ACTIVE
LightFountain ACTIVE
DEPOZITARE
LightFountain ACTIVE
LightFountain ACTIVE
LightFountain ACTIVE
СЪХРАНЕНИЕ
LightFountain ACTIVE
MEGJEGYZÉSEK A KÉZIKÖNYVBEN
LightFountain ACTIVE
LightFountain ACTIVE
TÁROLÁS
LightFountain ACTIVE
LightFountain ACTIVE
LightFountain ACTIVE
МЕСТО ХРАНЕНИЯ
LightFountain ACTIVE
BU KILAVUZDAKİ NOTLAR
LightFountain ACTIVE
LightFountain ACTIVE
DEPOLAMA
LightFountain ACTIVE
LightFountain ACTIVE
LightFountain ACTIVE
ΑΠΟΘΗΚΕΥΣΗ
FIAP GmbH
Jakob - Oswald - Str. 16
92289 Ursensollen
GERMANY
49 9628 9213-0
