USER MANUAL CNS 125 F STIEBEL ELTRON

BEDIENUNG UND INSTALLATION OPERATION AND INSTALLATION UTILISATION ET INSTALLATION BEDIENING EN INSTALLATIE OPERACION E INSTALACION OBSŁUGA I INSTALACJA OBSLUHA A INSTALACE ΘΚΝΥΑΤΑΝΑ ΜΟΤΑχ

WANDKONVEKTOR | WALL MOUNTED CONVECTOR HEATER | CONVECTEUR MURAL | WANDCONVECTOR | CONVECTOR DE PARED | KONWEKTOR WISZACY | NASTENNY KONVEKTOR | HACTEHBI KOHBEKTOP

1. General information 12
   1.1 Document information 12
   1.2 Key to symbols 12
2. Safety
   2.1 Intended use 13
   2.2 Safety information 13
   2.3 CE designation 14
   2.4 Test symbols 14
   3.Appliance description 14
3. Operation 14
   4.1 Description of the user interface 14
   4.2 Frost protection 14
   4.3 Limiting the temperature controller 15
   4.4 Shutting down 15
4. Cleaning, care and maintenance 15
   6.What to do if ... 15

INSTALLATION

1. Safety 16
   7.1 General safety instructions 16
   7.2 Instructions, standards and regulations 16
   8.Appliance description 16
   8.1 Standard delivery 16
2. Installation 16
   9.1 Installation with wall mounting bracket 16
   9.2 Installation with feet 17
   9.3 Power supply 17
3. Troubleshooting 17
   11.Appliance handover 17
4. Specification 18
   12.1 Dimensions of wall mounted version 18
   12.2 Dimensions of mobile floorstanding version 18
   12.3 Specification table 19

ENVIRONMENT AND RECYCLING

CUSTOMER SERVICE AND WARRANTY

1. General information

1.1 Document information

Read these instructions carefully before using the appliance and retain them for future reference. Pass on the instructions to any new users.

1.2 Key to symbols

1.2.1 Layout of safety information

Safety information comprises a warning symbol, a keyword and a text giving information. Safety information is printed on a grey background.

Example:

DANGER Electrocution Install the appliance in such a way that control equipment...

1 Symbol (see chapter on warning symbols/symbols)
2 Keyword (see chapter on keywords)
3 Description (see chapter on warning symbols/symbols)
4 Information text

1.2.2 Keywords

KEYWORD Description
DANGER	The keyword DANGER indicates information which must be observed, otherwise serious injury or death will result.
WARNING	The keyword WARNING indicates information that must be observed, otherwise serious injury or death may result.
CAUTION	The keyword CAUTION indicates information that must be observed, otherwise relatively serious or light injuries may result.

1.2.3 Warning symbols/symbols

Warning symbol	Description
	Injury
	Electrocution
	Burns or scalding
	Other situations
	Fire
	Never cover the appliance
	Appliance disposal

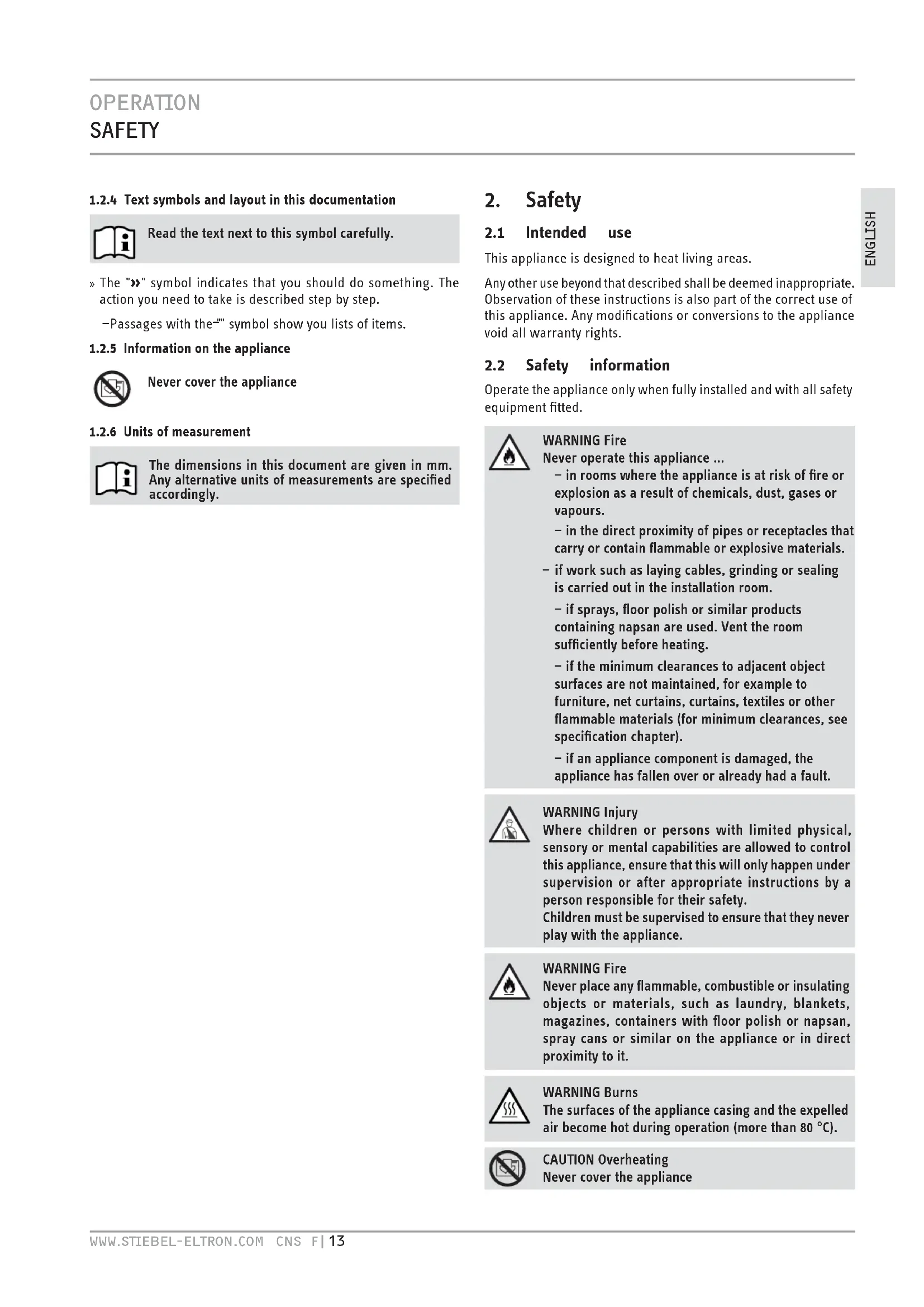

1.2.4 Text symbols and layout in this documentation

Read the text next to this symbol carefully.

» The "»" symbol indicates that you should do something. The action you need to take is described step by step.

Passages with the symbol show you lists of items.

1.2.5 Information on the appliance

Never cover the appliance

1.2.6 Units of measurement

The dimensions in this document are given in mm. Any alternative units of measurements are specified accordingly.

2. Safety

2.1 Intended use

This appliance is designed to heat living areas.

Any other use beyond that described shall be deemed inappropriate. Observation of these instructions is also part of the correct use of this appliance. Any modifications or conversions to the appliance void all warranty rights.

2.2 Safety information

Operate the appliance only when fully installed and with all safety equipment fitted.

WARNING Fire

Never operate this appliance ...

• in rooms where the appliance is at risk of fire or explosion as a result of chemicals, dust, gases or vapours.

• in the direct proximity of pipes or receptacles that carry or contain flammable or explosive materials.

• if work such as laying cables, grinding or sealing is carried out in the installation room.

• if sprays, floor polish or similar products containing napsan are used. Vent the room sufficiently before heating.

• if the minimum clearances to adjacent object surfaces are not maintained, for example to furniture, net curtains, curtains, textiles or other flammable materials (for minimum clearances, see specification chapter).

• if an appliance component is damaged, the appliance has fallen over or already had a fault.

WARNING Injury

Where children or persons with limited physical, sensory or mental capabilities are allowed to control this appliance, ensure that this will only happen under supervision or after appropriate instructions by a person responsible for their safety.

Children must be supervised to ensure that they never play with the appliance.

WARNING Fire

Never place any flammable, combustible or insulating objects or materials, such as laundry, blankets, magazines, containers with floor polish or napsan, spray cans or similar on the appliance or in direct proximity to it.

WARNING Burns

The surfaces of the appliance casing and the expelled air become hot during operation (more than 80^ ).

CAUTION Overheating

Never cover the appliance

Never step on the appliance.

When using the mobile floorstanding unit, observe the following:

• Never cover the power cable with a carpet or rug. Route the power cable away from walkways to prevent anyone tripping over the cable or knocking the appliance over.

• Avoid using an extension cable. If this is unavoidable, only use an undamaged extension cable with a sufficient cable cross-section for the full appliance output, as well as undamaged plugs or coupler plugs and adequate protective measures.

• Position the appliance on a solid base. On a soft base, the appliance can tip over or the air apertures can become blocked.

• Never move or carry the appliance by pulling on the power cable.

• If you use the appliance as a floorstanding unit, never install it in the bathroom, in similarly damp rooms or outside.

2.3 CE designation

The CE designation shows that the appliance meets all essential requirements according to the:

Electromagnetic Compatibility Directive

-Low Voltage Directive

2.4 Test symbols

See type plate.

The type plate is located on the right on the exterior of the appliance.

3. Appliance description

The appliance is an electric direct heater and can be used as a wall mounted appliance or alternatively as a mobile floorstanding appliance with feet attached.

The appliance is suitable as a full heating system in bathrooms, for example, or for use between seasons and as a booster heater in smaller rooms, such as hobby and guest rooms.

The air in the appliance is heated by a heating element and expelled via natural convection through the air outlet grille at the top. Cool room air flows in through the apertures at the bottom of the appliance.

After mounting the appliance to the wall or attaching the feet, and making the electrical connection via the mains plug, the appliance is ready for operation.

4. Operation

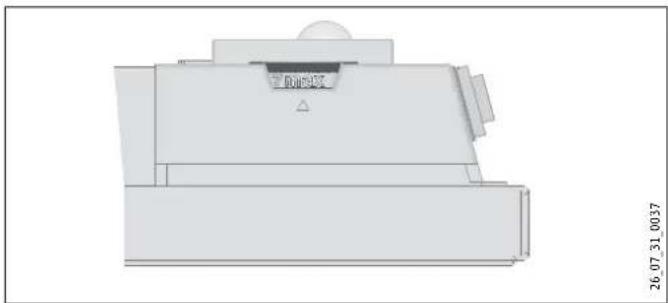

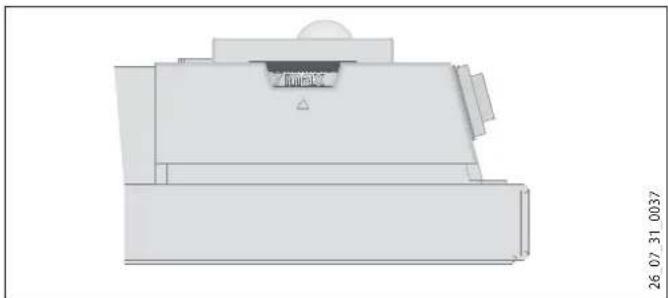

4.1 Description of the user interface

Switch the appliance ON via the switch on the r.h. side of the appliance.
Set the required room temperature via the continuously variable temperature selector (for temperatures see specification chapter).

As soon as the selected room temperature is reached, it is constantly maintained at this selected temperature through periodic heating (the output of the appliance must correspond at least to the required heat demand of the room).

If several appliances are installed in a single room, the setting at the temperature selector on each appliance can be different.

To avoid excessive power consumption when windows are open, you should stop the appliance while venting.

4.2 Frost protection

Turn the temperature selector as far to the right as possible. In this position, the temperature controller switches on the heating element automatically if the room temperature drops below the frost protection temperature.

4.3 Limiting the temperature controller

Using the two pins fitted to the back of the control casing, you can fix the temperature controller at a certain setting or limit the temperature setting range.

Break out the pins.

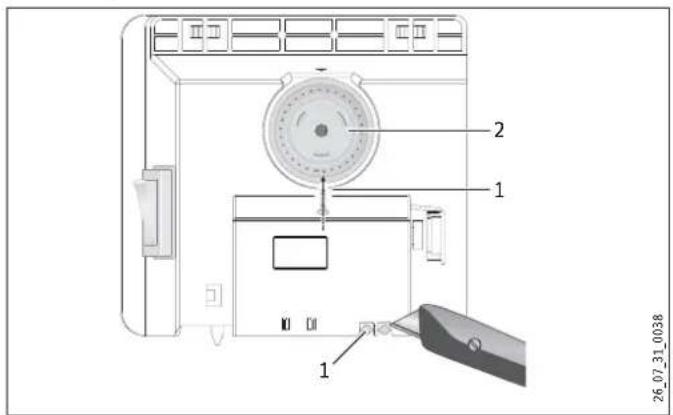

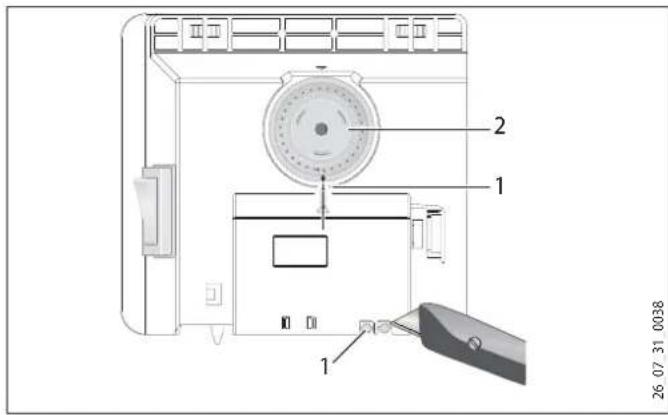

To fix the selected temperature, push a pin into the hole opposite (see diagram).

1 Pin
2 Temperature selector

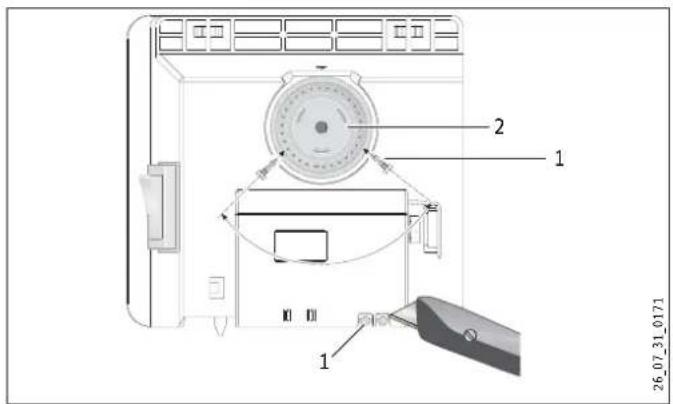

To limit the temperature setting range, set the minimum and maximum values at the temperature selector, and push a pin for each into the slightly offset hole opposite (see diagram).

1 Pin
2 Temperature selector

4.4 Shutting down

Move the switch on the right of the appliance to OFF.

5. Cleaning, care and maintenance

If a pale brownish discolouration appears on the appliance casing, wipe this off as soon as possible with a damp cloth. Clean the appliance when cold with ordinary cleaning products. Avoid abrasive or corrosive cleaning products.

CAUTION Fire

Never spray cleaning spray into the air slot.

Ensure that no moisture can enter the appliance.

As part of regular maintenance, we recommend also having the control components checked. The safety and control components should be checked by a contractor no more than ten years after commissioning.

6. What to do if ...

... the appliance does not heat up:

Check the temperature set at the appliance and the MCB/fuse in your fuse box.

The appliance has a safety temperature controller that shuts the appliance down if it overheats. After the cause has been removed (for example air outlet or inlet apertures covered) and the appliance has cooled down for a few minutes, operation starts again.

If you cannot remedy the fault, contact your contractor. To facilitate and speed up your enquiry, please provide the number on the type plate (no.XXXXXXXX - XXXX - XXXXX):

7. Safety

Only qualified contractors should carry out the maintenance and repair of this appliance.

7.1 General safety instructions

We guarantee trouble-free function and operational reliability only if the original accessories and spare parts intended for the appliance are used.

DANGER Electrocution

If you mount the appliance on the wall, do so in such a way that control equipment cannot be touched by a person in the bath or shower.

CAUTION

Only fit the wall mounted appliance to a vertical wall that is temperature-resistant to at least 85^ .
- Observe the minimum clearances to adjacent object surfaces (for minimum clearances see specification chapter).
- Never install the appliance directly below a wall socket.
- Ensure that the power cable is not in contact with any appliance components.

7.2 Instructions, standards and regulations

Observe all applicable national and regional regulations and instructions.

Observe the Building and Garage Regulations [or local regulations].

8. Appliance description

8.1 Standard delivery

• Wall mounting bracket (hooked into the appliance)

-Feet
-One-way Screws

9. Installation

9.1 Installation with wall mounting bracket

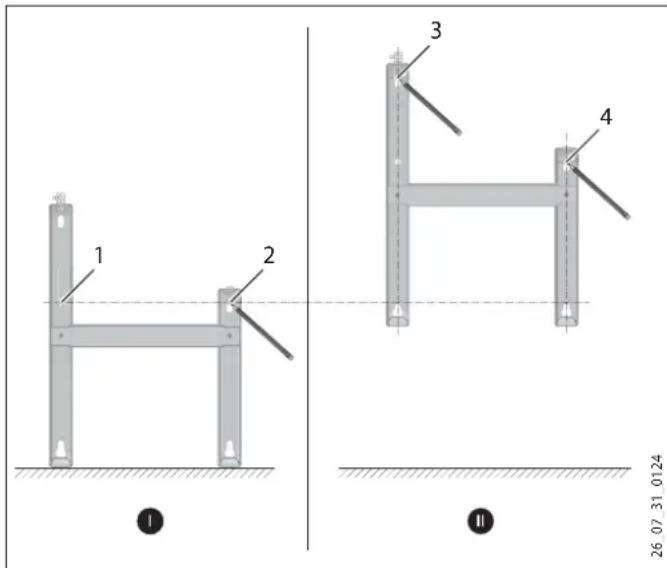

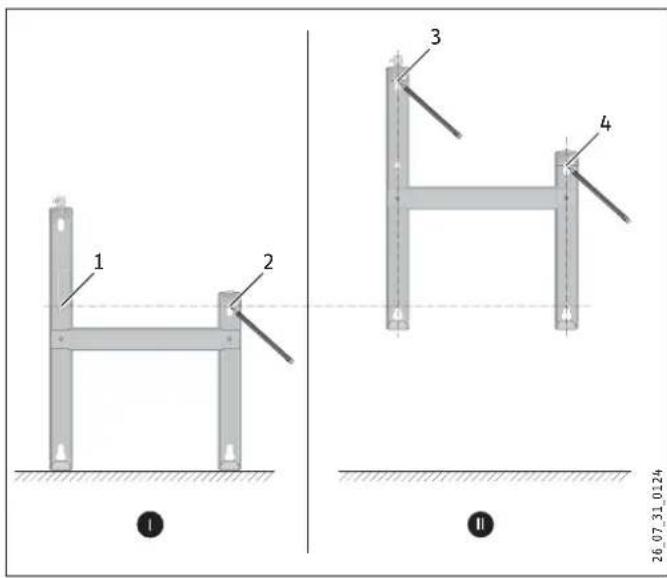

9.1.1 Installing the wall mounting bracket

You can also use the wall mounting bracket as a template for wall mounting; this ensures the required floor clearance.

» Unhook the wall mounting bracket.
» Place the centred wall mounting bracket level on the ground and mark holes 1 and 2.

Lift up the wall mounting bracket so that its lower holes match up with the markings you have just made on the installation wall.
» Mark holes 3 and 4 on the installation wall.

Drill holes at all four markings. Secure the wall mounting bracket with suitable materials (screws, rawl plugs) depending on the type of wall. With the vertical slots, you can compensate for an offset fixing hole.

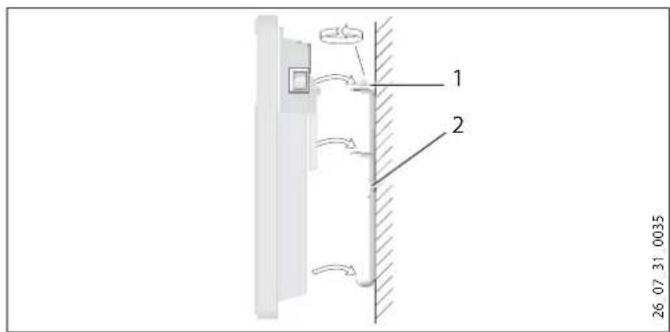

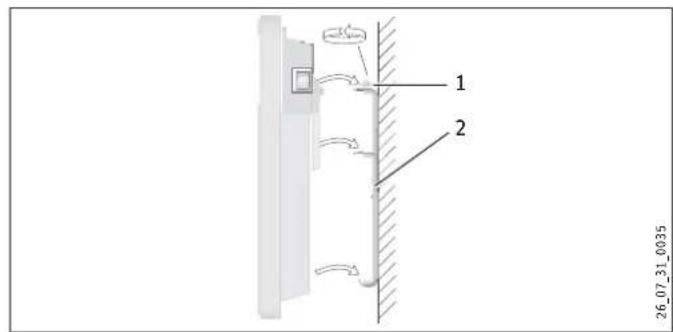

9.1.2 Appliance installation

Hook the appliance by its slots in the back of the appliance on to all four tabs of the wall mounting bracket simultaneously.
Push the appliance to latch it in position.
Turn the locking bolt in the wall mounting bracket fully clockwise; this locks the appliance in place.
Push the safety cap onto the locking bolt to prevent it from loosening.

1 Locking bolt 2 Wall mounting bracket

1 Appliance 2 Safety cap 3 Locking bolt

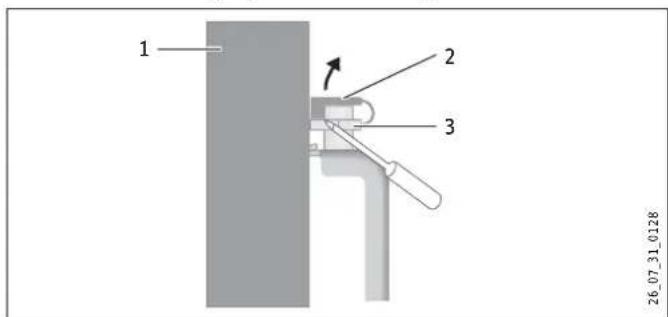

9.1.3 Dismounting the appliance

» Remove the safety cap from the locking bolt.

1 Appliance 2 Safety cap 3 Locking bolt

» Undo the locking bolt on the wall mounting bracket.

Lift the appliance up slightly and pull it forwards and away from the wall mounting bracket.

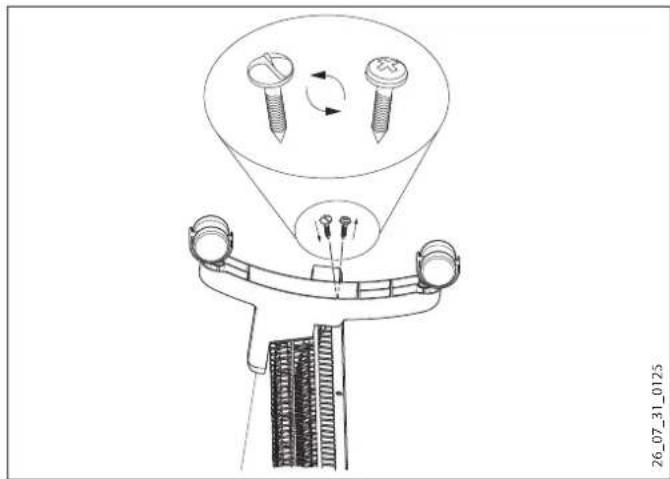

9.2 Installation with feet

» Unhook the wall mounting bracket.

Only remove both external left and right screws at the bottom of the appliance.
Fit the feet to the bottom of the appliance in such a way that they are inserted into the recess at the back of the appliance.

9.3 Power supply

Ensure the on-site supply cable has an adequate cross-section.
Ensure that a socket is installed at a distance of at least 10 cm from the side of the appliance.

10. Troubleshooting

The power cable must only be replaced by a contractor using our original spare parts.

11. Appliance handover

Explain the functions of the appliance to the user. Draw special attention to the safety information. Hand the operating and installation instructions to the user.

12. Specification

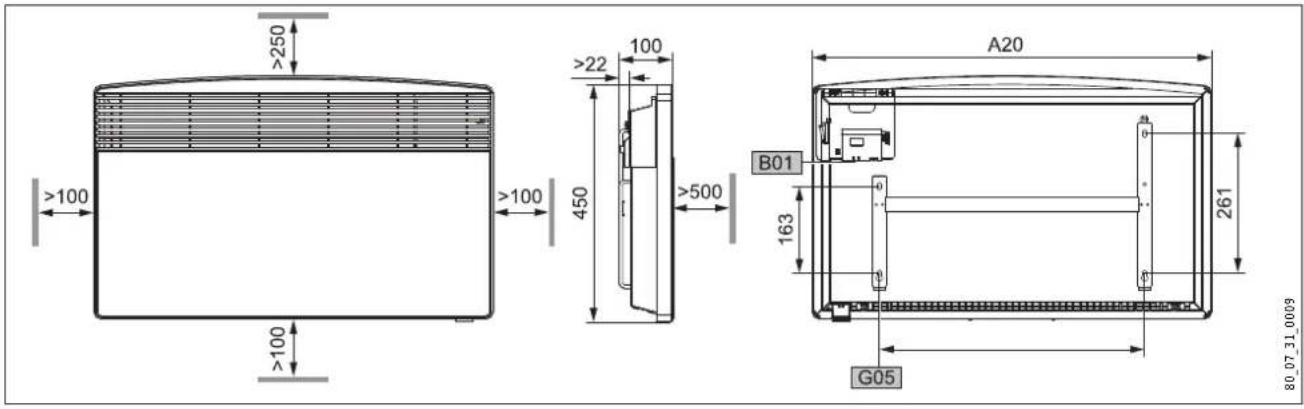

12.1 Dimensions of wall mounted version

CNS 75 F CNS 100 F CNS 125 F CNS 150 F CNS 175 F CNS 200 F CNS 250 F

A10 Appliance Height mm 450
A20	Appliance	Width	mm	445	445	590	590	740	740	890
A30	Appliance	Depth	mm				100
A50	Appliance	Minimum top clearance	mm				250
A51	Appliance	Minimum bottom clearance	mm				100
A52	Appliance	Minimum r.h. clearance	mm				100
A53	Appliance	Minimum l.h. clearance	mm				100
A54	Appliance	Minimum front clearance	mm				500
A55	Appliance	Minimum rear clearance	mm				22
B01	Electrical cable entry
G05	Wall mounting bracket	Hole spacing	mm	195	195	343	343	491	491	639

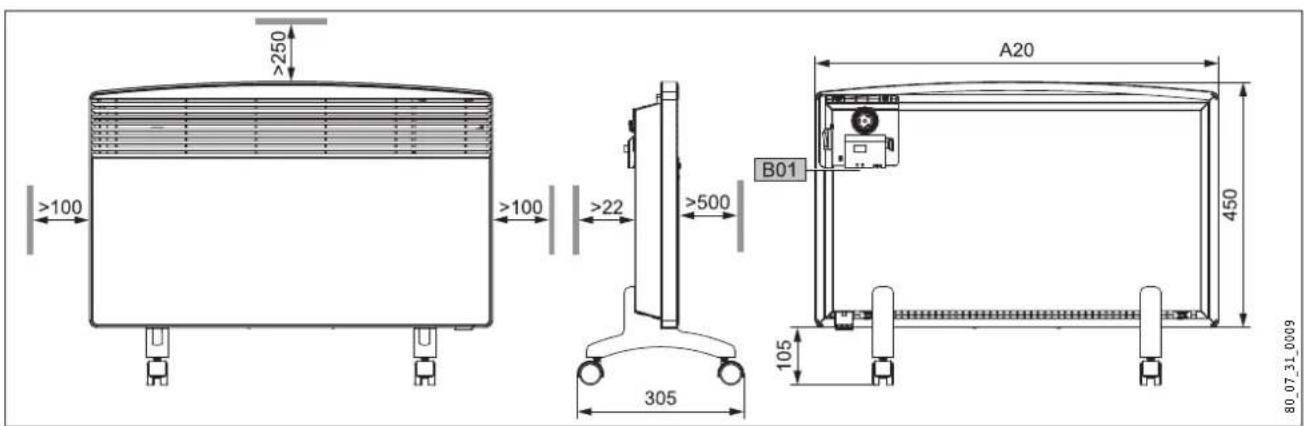

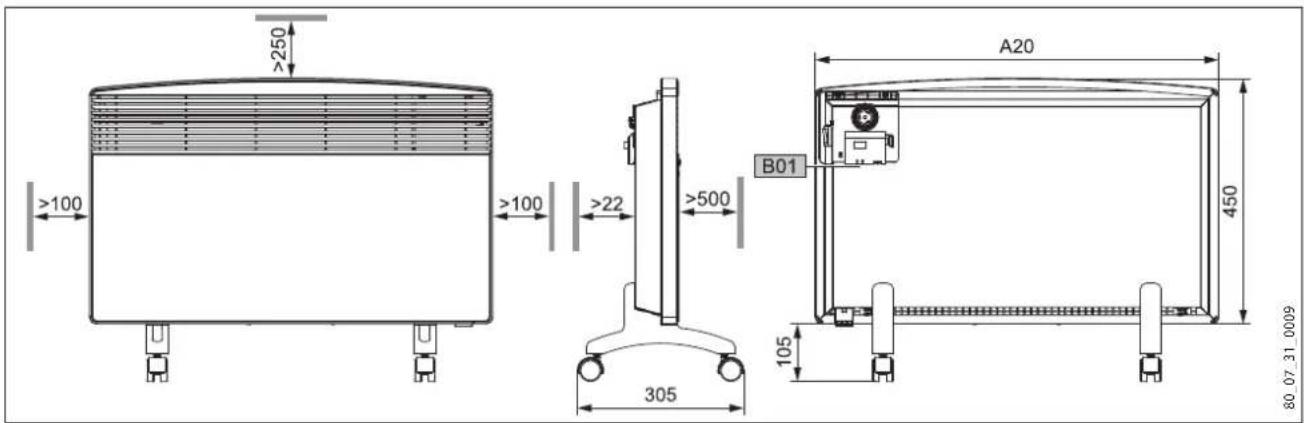

12.2 Dimensions of mobile floorstanding version

			CNS 75 F	CNS 100 F	CNS 125 F	CNS 150 F	CNS 175 F	CNS 200 F	CNS 250 F
A10	Appliance	Height	mm			450
A13	Appliance	Height of adjustable feet	mm			105
A20	Appliance	Width	mm	445	445	590	590	740	740
A30	Appliance	Depth	mm			305
A50	Appliance	Minimum top clearance	mm			250
A52	Appliance	Minimum r.h. clearance	mm			100
A53	Appliance	Minimum l.h. clearance	mm			100
A54	Appliance	Minimum front clearance	mm			500
A55	Appliance	Minimum rear clearance	mm			22
B01	Electrical cable entry

12.3 Specification table

Model
Type		CNS 75 F	CNS 100 F	CNS 125 F	CNS 150 F	CNS 175 F	CNS 200 F	CNS 250 F
Part number		229789	229790	229791	229792	229793	229794	229795
Operating details
Output	kW	0.75	1.0	1.25	1.5	1.75	2.0	2.5
Power connection		1/N ~ 230 V	1/N ~ 230 V	1/N ~ 230 V	1/N ~ 230 V	1/N ~ 230 V	1/N ~ 230 V	1/N ~ 230 V
Temperature setting range	~ °C	6 ... 30	6 ... 30	6 ... 30	6 ... 30	6 ... 30	6 ... 30	6 ... 30
Frost protection	~ °C	6	6	6	6	6	6	6
Safety class		II	II	II	II	II	II	II
Protection IP 24, splash-proof		X	X	X	X	X	X	X
Dimensions and weights
Weight	kg	4.6	4.6	6.0	6.0	7.2	7.2	8.4

Guarantee

For guarantees please refer to the respective terms and conditions of supply for your country.

The installation, electrical connection and first operation of this appliance should be carried out by a qualified

The company does not accept liability for failure of any goods supplied which have not been installed and ope-cordance with the manufacturer's instructions.

Environment and recycling

Please help us to protect the environment by disposing of the packaging in accordance with the national regulations for waste processing.

UTILISATION 21

1.1 CbeHnO pyKOBOCTBe

IpepeHauanom 3Kcnnyaataunn BHNMaTeNbHO npouHTaTe daHHe pyKOBOCTBO n COxpaHnte ero.Ipn Heo6xOIMocTn nepeaTe Hactouee pyKOBOCTBO cneDyUoemy NOnb3OBaTeHIO.

1.2 3haueHne cMMBOJIOB

1.2.1 Konctpykun - yka3aHne no 6e3onacHocTu

Yka3aHnno 6e3oNaChOCTn BkNIOuHO Tce6 npedynpeDntelbHbI cnMBOJ, CnHaNbHoe CNOBO n TeKCT yKa3aHn. Yka3aHn no 6e3oNaChOCTn npBedeHb Ha cepom fOhe.

Ppumep:

ONACHOCTb nopaxeHn 3neKtpnueeckm TOkOM YctahOBNT np6op TaK, TTO6bl nua, npHHMaIOUne BaHHy nn dyu, He MORnn DotPOHyTBcA DO KOMMyTnpuyoux H perynpyuOxN yCTpoiCTB.

4

1 CmBOJ (cm. rnaBy «IpeDynpTeiNbHbIe CmBOJIb/CMBOJIb)
2 CnHaHbHoe cNoBO (cm. nABy «CnHaHbHbIe cNoBa»)
3 06o3haueHHe (cm. rnaBy «PpeynpeiTeNbHbIe CnMBOJIb/ CNMBOJIb»)
4 TeKCTyka3aHn

1.2.2 CnHaJIbHbIe cIOBa

IcnoJb3yIte np60p TOnbKO B NoJIHOCTbIO CO6paHHOM BnDe n C yCTaHOBJIeHHbIMN 3aUINTHbIMN yCTPOINCTBaMNI.

IPEUYIPXEKDEHNEOBO3ropaHHe nCnoB3yTe np6op ...

B NOMeueHnax, Ige n3-3a Hauuynx XmMuecknx BeueCTb, nblln, ra3OB nnnapoB ectb ONaCHOCTb BOCnnaMeHeHHN NlB3pbIbA;
B HENOCpeCTBeHHo6IIN3OCTOnOT MarNCTpanei IIN EMKocTeI DnTpaHCnpOpTupOBKn IIN XpaHEnHraTopUChN IN B3pbIBOONacbIx MaTePnaNoB;
-ecnB nomeeHnn, rye yctanobJeH np6op, npoBOJrTaKne pa6Otbl, KaK yKnlaKa, WnΦOBka, repMeTu3aun;
-ecnBnomeuehen BedyTcpa6oTbI CnCnObl3OBaHHeM 6eH3nHa, cnpeeB, MaCTNK DnI NOOB NnA ananorunhbx Beuectb. Xopowo npoBeTpntb nomeueHne nepeed harpeBom;
- npn npbeBbIeHm MmHmMaJIbHbIX pacCTOHH nO nobepxHOctTe TAKnx OBeKTOB, KaK, HApnpMep, Me6enb, 3aHaBeCKn, WToPbN TKAHN nn npoue BOCnnaMeHIOUeNCs MaTepnaJIbl (MmHmMaJIbHbIe pacCTOHH NOnCaHbI B rJaBe «TexHnueckne daHbIe»);
- npn noBpeKdEHH KOHCTpykTNBHO 3JeMeHTa npn6opa, naDeHH npn6opa nnn HapyuweHH erpa6oTbl.

PPEyIPEKDEHNEoTpaBmax

UnpaBHeHne np6Opom DeTbMn nn LncaMn C orpaHueHHbIMn fN3uYeCKmN, ceHCOPhbIMn UymCTBeHHbIMn cNoC6HoCTAmn DOJXHO npocxOAnTb Toblko NOD npncmOTpmn nn nocne COoTBcTcByUoIero NHCTpyKtaxa, npOBedeHHoro Iuom, OTBeauOuIm 3a ux 6e3onacHoctb. He donyckaTe, uTo6bl Detn 6alOBaNNcb cn np6Opom!

PPEyPPEKDEHNEo Bo3ropaHn

3anpeaetcpa3Meaatb ropoune, Bocnnaemehoounecra nn Tennon30nnpuyounie npedmetblnn MaTePnAbI, KaHapmep, OeKda, OdeJana, KypHaJIb, EMKoCTN C MaCTNKoN nn 6eH3nHom, fNaKoHbCo cnpeeM nT.I. Ha np6ope nnB H enocpeDCTBeHHO6n30ctn OT hero.

PPEyIPEKDEHNEo6oxorax

PobepxHocTn np60pa n BbIXoAun n3 Hero BO3dyx npn pa60Te HarpeBaIOTc (Bblwe 80°C).

OCTOPOXHO - neperpeB

He hakpbBaTb npn6op.

He hactynatb npn6op.

Pn nCnoB3OBaHnn nepeBnXHoro HanoBHorO yctpOcTBA HxNHO yuTbIBaTb CneDyUoee:

• Henb3a HaKpbBaTb KOBpOM nI I NOOBKOM coeHNHtBbHbI Ka6eb. PpOKlaDbBaIte coeHNHtBbHbI Ka6eb TaK, YTO6bl OH He nonadacn PoHn uNCKIOUcAcb BePOrTHOCTb HAcTyNaHnHa Ka6eb IIN OnpOKuMbAHn np6opa.

• NcknoHTe nCNoB3OBaHne yDnHHTeJ. Pn HEO6XoDMOCTN HyKHO nCNoB3OBaTb TOnbKO HENOBpeKdEHhB yDnHHTeJb C DOCTaTOHbIM ceHHeM Ka6J, c paCteTom Ha NOHyO MOuHocTb np6opa, a TaKke HENOBpeKdEHHyO BUNKy nn CoeINHeHn, pN DoCTaTOH0 3ΦΦeKTHBbIX MEPax 3auNTbl.

• YctahOBHTb npn6Op Ha npouHyIO nobepxHocTb. Ecnn OCHOBaHHe HENpOuHoe, np6Op MoKet ONpOKnHyTBcA, nI6o MOryT 6bITb nepeKpbITb BO3dyuHbIe OTBepCTnI.

• HnB KOem cnyahe Heh63cDnurTaHnn nepehoCHT npu6Op,6epac3a ceTeBOH uHyp.

• PnncnoB3OBAHnn np6opa B kaueCTBe HanoBHOY yCTaHOBKn erO HeNb3paCNoJaRaTb B BaHHoN KOMHaTe NnnaHAnOruHbIX BnaxKbIX NOMeUeHNx, a TaKke Ha OTKpbITOM BO3dyXe.

3HaK CE

3HaK CE cBnTeIbCTByET, yTo np6Op COOTBeTCTByET BcEM OCHOBHbIM Tpe6OBAHnM:

-ДирекТиВа 06 3лeКТрмогнTHоь COBmecTnMOCTN

-ДирекиваEC no HN3KOBOLTHOMy O6OpyOBOAHIO

2.3 3NaKTexHnueckoro KOHTpon

Cm.3aBODckyToTa6nUcy

3aBODsKa Ta6nUka HaxoDITcH cHApyKc Cnpaba Ha np6ope.

3. Onincanhe npnbopa

DaHHbI npn6op RaBnaTeCA 3neKtpnueckm yCTpoNCTBOM, OcUyecTbHIOUm npraMoHarpeB, mOKeT NOBBeuINBaTbCk K CTHe IIN Jx eYCTaHaBnBaTbCn Ha NOny (KaK nepeDbXHOI BapNaHT) C cytAHOBKO ONOp.

Pnp6op npedha3aueh nnonhoro oborpeba nnB kaheCTBe yctahOBKn dnn pomexkytoHoro nn dononHntelbHoro

06orpbeHa6oBbIINX NOMEueHn, HApPmep, IIO6nteBcknx Mactepcknx IN KOMHaT dIra roCTeN.

Bo3dyx B np6ope HarpeBaetc3a cuet HarpeBaTeIbHoro 3JemeHTa N BblnycKaETcB npocece eCTeBHHO KOHBekUIM uepe3 BblnyckHyIO peWetKy. UpeepacnoNoXKeHHbIe B HnKHeu actn np6opora OTBepctna NoCTynae TnpoxnaHbI BO3dyx.

Iocne 3akpenenne Ha cteHe nn ero yctahOBKe Ha onopbln nodklueyHn K 3neKtpnuyecko ceTu C nOMOuB BuNKnp60p rotOB Ka6ote.

4. 3Kcnpnyataua

4.1 OnucaHne naHn ynpabHeHna

Pn6op BkIOaETcC nOMObBbIKIOaTeIe C npaBOI CTOpHbI.
»UctahOBHTe HxKHyTo Tempepatpy NomeeHnna (CTyneHauTO) C NOMOsbIpyKnpeekJIOueHnna TempepatpybI (3NaueHnna TempepatpybIpuBedeHb B rJaBe «TexHnueckne daHhbie»).

No DocnHexHn yctahOBHeHHo TemnepaTpyb B nomeeHn OHa noDpeKnaeTaHa NoCTOAnHom ypOBHe 6laorapy BpemHOMy HarpBy (MoNocThb oBpEba npbOpa npu 3Tom DOnkha COOTBeCTBOBaT TeNNONOTpe6neHIO nomeeHn).

Pn HauHn B nomeueHN HeckoBkx np6opOB nonoKeHn peryIaTOPOB TempepaTybHa KaJdOM n3 Hux MOrYt 6bTb pa3NHybIM.

Bo n36ekhaHne BbICOKO NOtpe6JIeHnI 3JIeKtpo3Heprnn npu6op CJeNyET BbIKIOHaTb Ha Bpem npOBeTpBaHn.

4.2 3aunTa oT 3amep3aHn

Ipepebcn pereyraTOp TemnepaTpyb B npaboe KpaHnee noLoxHeHne. B TaKOM noLoxKeHHN TeMpOerpyAToP abTomatueckn BKIOUaET peKIM o6oRpeBa,ecNI TemnepaTypaB NOMEseHHN naaet HNXe TemnepaTpybl dJI 3aunTbI OT 3amep3aHH.

4.3 OrpauHueHne peryIaTopa TempeaTypbl

C nomooubO o6oNX cTePxHHe, pacnoJoxKeHHbIX Ha TbIbHO CTopoHE KOpNyCa KOMMyTaunOHOro annapata, MOXHO 3aOKCuPoBaTb NOJoxKeHne peryIaTopa Tempeatpybl nn 3aDaTb IJa TEMpeatpybl onpeJeHHbe npedeJIb.

CTepKHNn3BNeueb cynnnneM.
Длдфнкаин yctahOBnEHH TeMnepaTpybI HxKHO BCTaBtB OdINH CTepXeHb B npOTNBONIOJXHOe OTBepCTne (CM. pnc.).

1 CTepeKeHb
2 Perynatop Temnepaotypb

Дусановпграич Temпатурно рпеда на ручkeperултopa Temперatypeby yctahabnbaiaTc COOTBeCTBHeHOMINHMaJIbHOe n MaKcIMaJIbHOe 3HaueHHe, a CTePxeHb BCTaBLaTcCOOTBeCTBeHHO B npOTUBONIOJXHoe OTBepCTHe HeCKoJIbKOДальш (CM.pnc.).

1 CTepeKeHb
2 PerynTop Tempeatypbl

4.4 BbIBoI n3 3Kcnnyatauun

»YcTaHOBnTb nepeKlOuateIb Ha npIbope B noIoXeHne «BbIKIOUeHO» (AUS).

OCTOPOXHO-BO3MOxHO BO3ropaHne He paCnblTb YnCTaun cnpeB na3b BbInyCKHO peWetKn.

He donyckaute nonadaHn BnaHn BHytpb np6opa.

IpnperynapHom yxode pekomehnyetc TaKke npobepaTb opraHbI npabLeHn n perynipOBKn. He no3dhee cem uepe3 10 Iet nocne nepBBO BBOda B kcnlyatauio npedoxpaHntbHbI yeCtpoiCTBa, opraHbI npabLHeHn n perynipOBKn doJXh6bl T npobepeHbI cneuaJIInCTOM.

6. YTo DeLaTb,ecnI ...

...npnbop He HaraepBaetc:

PpOBepuB yCTaHOBLeHHyIO Tempepaty nn npEdoxpaHnte b domaHeN 3NeKTPocetn.

B npnbope yctahOBlen 3aunThbI peryIaTOp TemnepaTypbI, KOtOpbI OTKnIOUaET erO npI neperpeBe. Nocne yctpaHEnn npuHHI (HaNPmep, nepeKpbITN BblNyCKHO rIN BnyCKHO OTBepCTNA) np6Op ONrTa HauHnaeT pa6OtaTb Nocne nepnoDa OCTbIBAHN B TeueHne HeCKoJIbKxMHyT.

Ecn yctpaHntb HencnpaBHOCTb cAmocToTbHO He ydaetc,TO HxKHO Bbl3BaTb CneuaAIncTa.ДЯ Oka3aHnI NyuweN 6bICTpoi NOMOUs COo6UnTe emy Homep yCTpoiCTBa, yka3aHHbI Ha MapKnipOBouHOn Ta6nUKe (N XXXXX-XXXX-XXXXXX):

7. TexHnka 6e3oNaChOCTn

Texnueckoe 6cnykubahne npmoHT npnbopa doJkhbl npon3bodntcbraTobko KBaHnHnnpoBaHHbIM CneuaanCTOM.

7.1 06uye yka3aHnno TeXnKe 6e3oNaChocTu

Mb rapaHTnpyem 6e3ynpeHyu pa60Ty yctpoiCTBa n 6e3oNaCHOCTb 3KcNlyaTaun ToIbKO npn nCNoNb3OBAHn OpuRHaHbHorO DOnONHtEnbHorO o6OpyDoBaHn n OpuRHaJIbHbIX 3aNuaCTeN.

ONACHOCTb npaKeHHaJIeKtpueckm TOKOM Pn moTaxe Ha CTHe yCTaHOBHTb np6Op TaK, 106bl nUca, npHnMaIOuNe BaHHy nn dyu, He MOrnn DoTPOHyTBcA DO KOMMyTpUoUnx n perynpuyuux yCTpoiCTB.

OCTOPOXHO

• YctaHaBnBaHte HAcTeHHbI np6Op TOnbKO Ha BepTnKaJIbHOI CTeHE C TepMOCTOIOKOCtBu He MeHee 85^
  -Co6nOdaIte MNHmAlNbHbIe paCCToHnIaIO NOBepXHOCTe COCEdHIX OBeKTOB(MNHMaJIbHbIe paCCTOHNrONcAhnBIB rnaBe《TexHnueckne daHHbIe》).
• He yctaHaBnBaIte npu6Op HEnocpeCTBeHNO nOHaCTeHHo p03eTKoN.
  -He donyckaTe KacaHn CoeHNHTbHbIM npoBODm DeTaeN npu6opa.

7.2 PpeDnncanHn, HopMbI n noLoXeHHa

Heo6xoJIMO co6IoudaTb BCE haonohBhble n pernohaBhle npedncaHn noctaHObnHeH.

Cneyuetco6nqdaTbHaunohhBhieCTpontbHbIe npedncaHna.

8. OnscaHne np6opa

8.1 O6bem nocTabKn

-HaTeHHbKpOnHtEIn (npKpeIeTcK np60py)
-Hoxx
- Odnopa3ObIe BnHTbl

9. MoHTaJx

9.1 MoHTaK c HacteHHbIM KPOHtTeiHOM

9.1.1 MoHTaX HAcTeHnHO KoPoHtTeHnHa

HacteHHbKnKpOHHTeH TaKke MoXHO NcNoB3OBaTb B KaueCTBe 7a6nOHa npK pKeNneHm K CTeHe - OH oecneuBaet HeoXoMyIO BvCOTy NaI NOBepxHOctbIO nOla.

》OtceINITb HacteHHb KPOHHTeH.
» YctaHOBt b HAcTeHHbI KPOHtTeH, OpiEHTnpoBaHHbI NO CEHTpy, Ropu3OHTaJIbHO Ha IOn I pa3MeTtB OTBepCTnB ToKax 1 n 2.
》POnHrTb HAcTeHHbI KPOHHTeIH BBePx HAcToIbKO, YTO6bl HxKHe OTBepCTnB HEM COBnaJann C pa3MeTKamn Ha CteHe, PpeHa3NaueHHo JnMa MONTaKa.
» Pa3MeNTb OTBepCTn8 3 n 4 Ha cTeHe, npedHa3HaueHHOJ dIa MOHTaJa.

PpocBepnntb OTBepTna BO Bcex 4 HameueHHbx Toqkax. 3aKpeHnTb HaceHHbI KPOHHTeIH NIOXODAUM KpeNEXHBIM MaTePnAton (BnHTAmu, IIO6eJIaM) C yUeTOM OCO6EHHOCTe CTHebl. bIarOdaR BPtKaJbHbIM pOdoJIbHbIM na3am MOxHO KOMneHCupoBaT NorpeWHOCTn CbePleHn.

9.1.2 MoNTaX npu6opa

Повьситbpnp6op，npoDEBчep3 npneMhble npope3n C TblbHON CTOPOHbl np6Opa OndHOpeMeHHO BCE YeTbipe Ra3bUka HacteHHORO KPOHHTeHa.
PnKataB npu6op nla qkaun.
ПовернтуnpedoxphaNTeHbHnWtntHacteHHoro KpoHHTeHaNoYacOBOnCTpeNKeDoynopa,Bpe3yNbTaTe Yero npon3oJETKncauqnaKpenneHnA.
PnjkaTb 3aunThbI KOJNaQK K 3aHnpauOeMy 6oNtY, YTo6bl OH 6oJbSe He npOBopaUbaIcra O6paTHO.

1PepdoxpaHnteBbHbIuTnΦT
2 HacteHHbIK KpoHHTeH

1 Pnp6op
2 3aunTHbIKoNnaQOK
3 3anpaoun6oT

9.1.3 Demontax npu6opa

CHATb 3aunTHbI KOJINaUOK c 3aIIpaIOJero 6oNTa.

1Пибор
2 3aunTHbI KOJNaYOK
3 3anpaiouou 6oT

»OTBepHyTb npedoxpaHntbHbI uTnΦT Ha HAcTeHHOM KpoHwTeHHe.
Cnerka npnoHnB np6op n ChrB ero uepe3 nepeC HacteHHoro KpOHTeHa.

9.2 YctaHOBka Ha onope

» OTuENITb HAcTeHHbI KPOHHTeINH.

Ha ochobaHn np6opa Heo6xoJMo ydaNTb TOnbko Dba BHeuHX BNHTa.

COOTBETCTBEHNO yCTaHOBNTb HOXKN B HNXKHeu qactn npi6opa TaK, YTO6bl OHN BOUIN C3aDn pnp6opa B BbEMky.
» 3aKpeINITb HOKKN, 3aTAYHb INX BbIbepHyTbIM NBUHTaM.

PpKpenTe HOKK np6opa npnlaeraembIMOdHopa3OBbIMu BHTAMU,3aTAHTE ux do ynopa.

9.3 3neKtponoknloueHne

Co ctopohb3aka3uKa doljxhen 6bItb o6ecneueh coeHNHTenbHbI npoBc C NOXOJUM nonepyHbIM ceehnem.
HyXHO NO3a6OTbCROTom, YTO6bHa paCCToHn He MeHee 10cmOT6OKOBONOBepxHOCTn np6opa 6bIa yCTAHOBHeHa po3eTKa.

ONACHOCTb npaXeHHN 3NeKtpnueckm TOKOM! Bce pa6oTbI NO yCTAHOBnEHIO 3NeKtpnuecknx coeHNHeH N MOHTaKy Heo6xOJMo npON3BODNTB B COOTBeTCTBn C nHCTpyKUnei.

ONACHOCTb npaKeHn 3neKtpuyeckm TOKOM! Pnp6op dOnJKeH paccenTbC c cetbO c nOmoBIO pa3dEJIooIero yAcTKa pa3Mepom He MeHee 3 MM Ha BCex NOnIocax.

ONACHOCTb npaxeHnna 3neKtpnueckm TOKOM! MoTAX co ctaunohapno npoloxHHbIM coedHNTbHbIM npOBODm He donyckaetc.

CneNyET yuHTbIbTa TaHHbIe Ha 3aBOcKo Ta6nue. HanpXeHne cTe NdoJXHO COBnaTa b Cyka3aHHbIM Ha Ta6nue.

10. YcTpaHne HEnoJaOK

Pn Heo6xOaUMocTn 3aMeHbI npOBoJa nNoKKnUeHn K cTeN o6paauTecb TOnbKO K CneuHaNCTy. 3aMeHa pa3peWeHa ToJbKO C nCnoB3OBaHNem OpurnHaJIbHbIX DeTaJe HaWero npoun3BOdCTBa.

12.2 Pa3Mepbl nepeBnXhBix BapnaHTOB Ha cToiKe

HenpuHMaIOTcI npTeH3nIO HeuCnpaBHOCTM,

BO3HNKWM BCNECTBNE HenpaBnblHOH

yctaHOBKn n 3Kcnnyataaun npu6opa.

Okpykaioa cpea n Btopcbipbe

MbInpocIMBaUeROCoDeIECTBnB3aUHTeOKpyXaHOJIeI

Cpebl. Bblbpaacbbar ynaKOBky, co6nloaTe npabuna

pepepaotkn OTXoIOB, yCTaHOBJIeHHbIe B BaWei CTpaHe.

Deutsch

Unit 12 Stadium Court | Stadium Road

Bromborough | Wirral | CH62 3RP

Tel. [phone] | Fax [phone]

[e-mail]

www.stiebel-eltron.co.uk

Hungary

STIEBEL ELTRON Kft.

Nihon Stiebel Co. Ltd.

Ebara building 3F | 2-9-3 Hamamatsu-cho

Minato-ku | Tokyo 105-0013

Tel. [phone] | Fax [phone]

[e-mail]

Netherlands

STIEBEL ELTRON Nederland B.V.

Daviottenweg 36

5222 BH 's-Hertogenbosch

Tel. [phone] | Fax [phone]

Urzhumskaya street, 4. | 129343 Moscow

Tel. [phone] | Fax [phone]

[e-mail]

www.stiebel-eltron.ru

Slovakia

TATRAMAT - ohrievace vody, s.r.o.

Hlavna 1 | 058 01 Poprad

Tel. [phone] | Fax [phone]

[e-mail]

www.stiebel-eltron.sk

Sweden

STENERGY

Vasagatan 14 | 545 30 Toreboda

Sales:

Tel. [phone] | [e-mail]

Technique & Service:

Tel. [phone] | [e-mail]

www.stiebel-eltron.se

Switzerland

STIEBEL ELTRON AG

United States of America

STIEBEL ELTRON Inc.

17 West Street | West Hatfield, MA 01088

Tel. [phone] | Fax [phone]

[e-mail]

www.stiebel-eltron-usa.com
