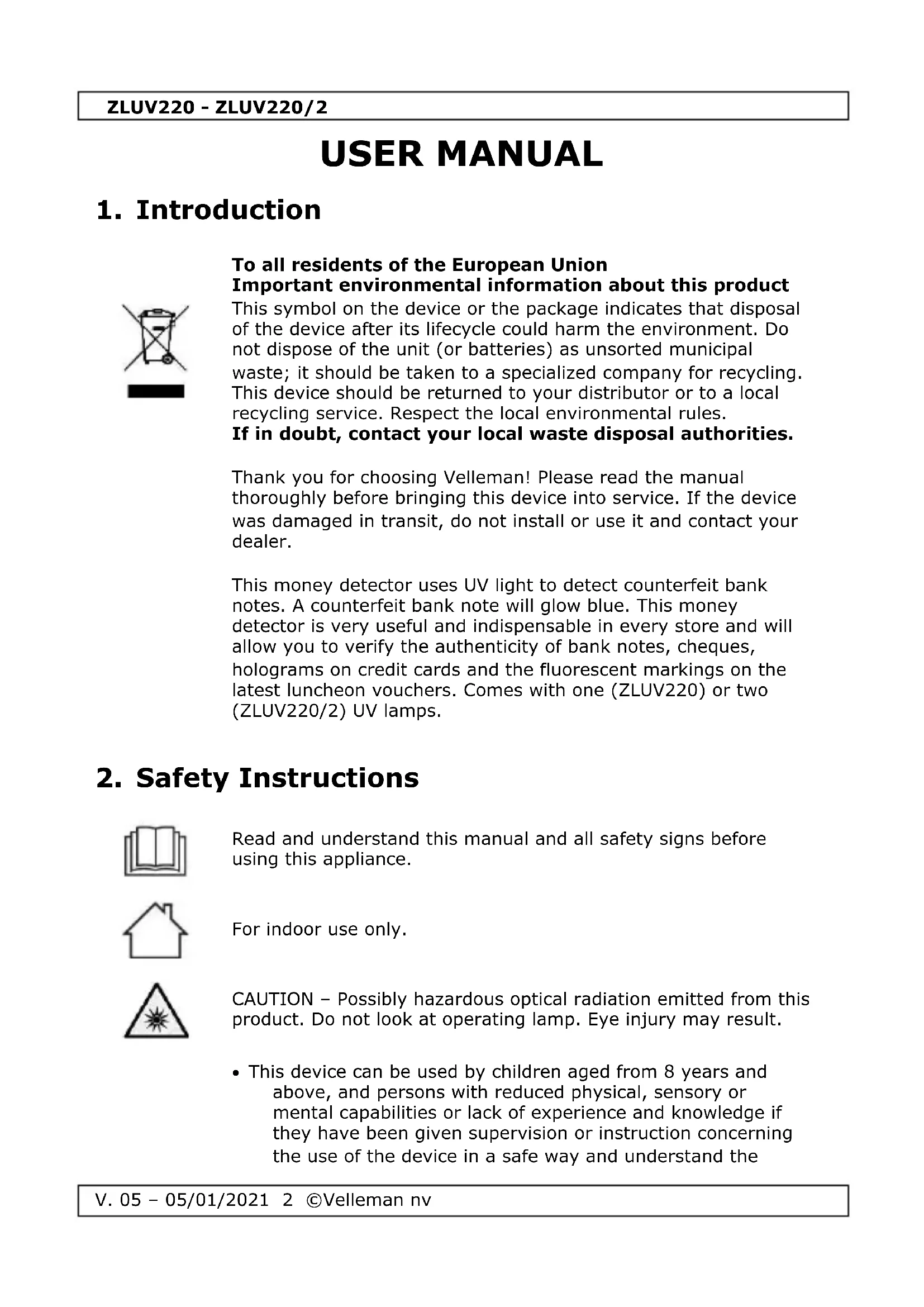

USER MANUAL ZLUV2202 VELLEMAN

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules. If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

This money detector uses UV light to detect counterfeit bank notes. A counterfeit bank note will glow blue. This money detector is very useful and indispensable in every store and will allow you to verify the authenticity of bank notes, cheques, holograms on credit cards and the fluorescent markings on the latest luncheon vouchers. Comes with one (ZLUV220) or two (ZLUV220/2) UV lamps.

2. Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

For indoor use only.

CAUTION - Possibly hazardous optical radiation emitted from this product. Do not look at operating lamp. Eye injury may result.

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the

hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.

• If the power cord of this device is damaged, it shall be exclusively replaced by the manufacturer, service agent or a similar qualified person in order to avoid hazard.
• Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

3. General Guidelines

• Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) - of any nature (financial, physical...) arising from the possession, use or failure of this product.
• Keep this manual for future reference.

4. Operation

Switch on the money detector.

Bank notes with UV-sensitive markings:

Place the bank note under the UV light of the detector. The UV-sensitive markings will appear.

Bank notes with non UV-sensitive markings:

• Place the bank note under the UV light of the detector. No UV-sensitive marking will appear and the bank note's texture will not change. No watermark will be visible.
• The holographic indicia will be visible on the front of the bank note but not on the back.

Most counterfeit bank notes:

• Place the bank note under the UV light of the detector. The counterfeit bank note will immediately glow blue. The watermark will not be visible, unlike the holographic indicia which will be highly visible, both on the front and on the back of the bank note.
• All counterfeit bank notes are fluorescent. If in doubt, verify the watermark: it must be very clear with well-defined colours. A bank note which is not too used must feel crisp and be slightly rough on the prints. The bank note must not be limp, shiny or waxy.

WARNING

This money detector has a black plastic housing and features one (ZLUV220) or two (ZLUV220/2) blue UV lamps. Do not place the detector at eyes height to prevent eye damage. Each lamp has a lifetime of 2,000 to 4,000 hours.

5. Replacing a UV Lamp

1. Disconnect the detector from the mains.
2. Unscrew the screws holding the lamp support.
3. Twist the lamp slightly and carefully in order to dislodge the lamp.
4. Replace the lamp with an exact type of lamp.
5. Insert the new lamp. Carefully turn the lamp to click in place.
6. Reinstall the support and fix with the screws.

6. Care and Maintenance

Occasionally wipe with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.

7. Technical Specifications

power supply. 230 V\~, 50 Hz

rated current. 0.09 A

input current 0.083 A

dimensions

ZLUV220. 163× 128× 65mm

ZLUV220/2. 270× 115× 105mm

spare lamps

ZLUV220 1x4WUVlamp (order code LAMP04TBL)

ZLUV220/2 2x6WUVlamp (order code LAMP06TBL)

ideal ambient temperature. 0-35 °C

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

nominate stroom. 0.09 A

ingangsstroom 0.083 A

afmetingen

ZLUV220 163 x 128 x 65 mm

ZLUV220/2. 270× 115× 105mm

reservelamp

ZLUV220 1 x uv-lamp van 4 W (bestelcode LAMP04TBL)

ZLUV220/2 .... 2 x uv-lamp van 6 W (bestelcode LAMP06TBL)

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

Not covered by warranty:

• all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;

• consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

• flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....:

• flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;

• damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);

• damage resulting from an inappropriate packing and shipping of the article;

• all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

• Repairs occurring after warranty expiration are subject to shipping costs.

• The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
