USER MANUAL RS 1 TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Front cover page (first page) Assembly page 1/32

TEAM RS 1 230V~(7.2 V d.c.) Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. 2 TEAM RS 1 070228

Fax [phone] Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. 3 TEAM RS 1 070228

3. Tubes of the broomstick (x 3)

7. Charging pilot light

8. Body of the sweeper

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. 4 TEAM RS 1 070228

Fax [phone] Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. 5 TEAM RS 1 070228

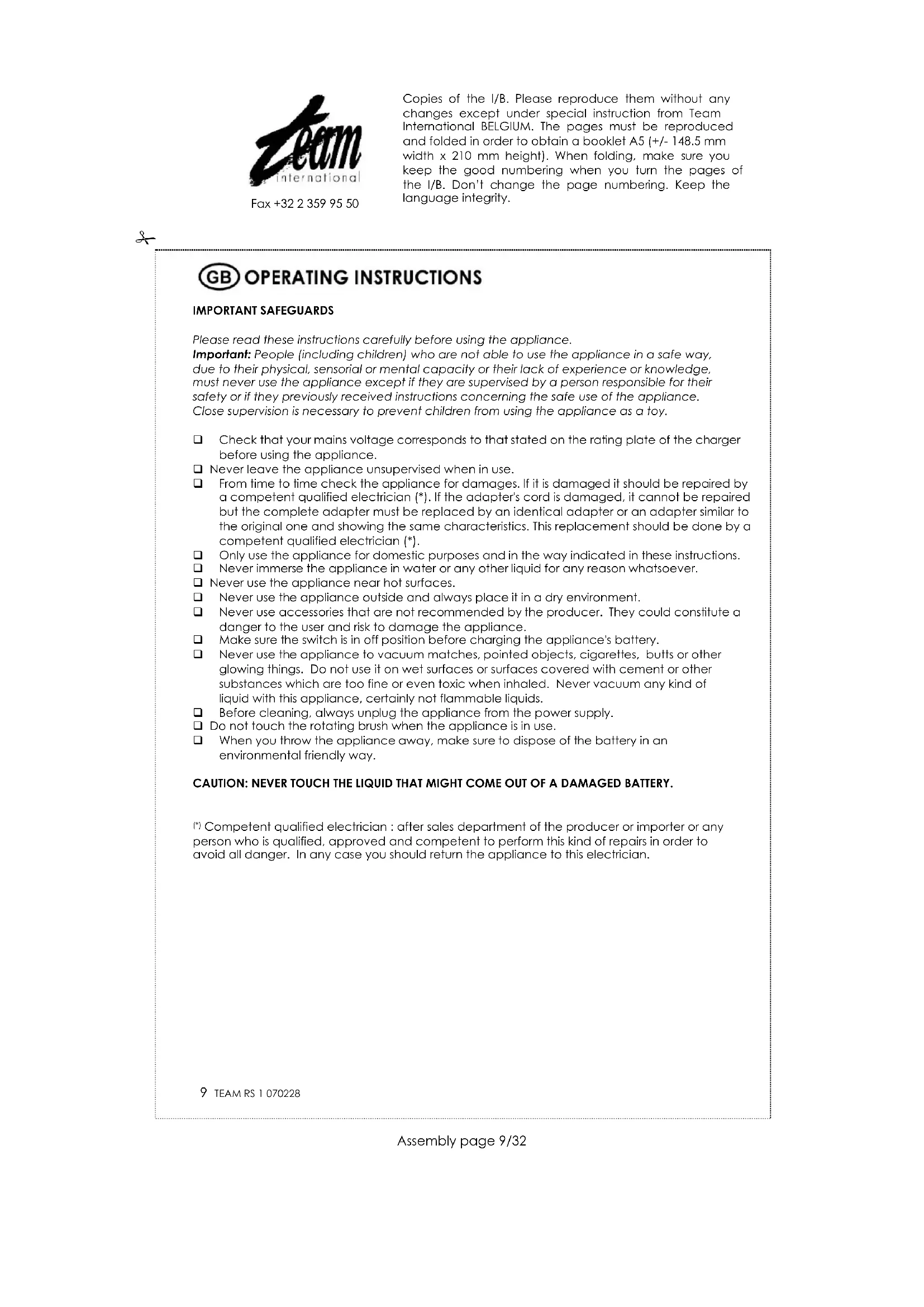

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance. Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy. Check that your mains voltage corresponds to that stated on the rating plate of the charger before using the appliance. Never leave the appliance unsupervised when in use. From time to time check the appliance for damages. If it is damaged it should be repaired by a competent qualified electrician (*). If the adapter's cord is damaged, it cannot be repaired but the complete adapter must be replaced by an identical adapter or an adapter similar to the original one and showing the same characteristics. This replacement should be done by a competent qualified electrician (*). Only use the appliance for domestic purposes and in the way indicated in these instructions. Never immerse the appliance in water or any other liquid for any reason whatsoever. Never use the appliance near hot surfaces. Never use the appliance outside and always place it in a dry environment. Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Make sure the switch is in off position before charging the appliance's battery. Never use the appliance to vacuum matches, pointed objects, cigarettes, butts or other glowing things. Do not use it on wet surfaces or surfaces covered with cement or other substances which are too fine or even toxic when inhaled. Never vacuum any kind of liquid with this appliance, certainly not flammable liquids. Before cleaning, always unplug the appliance from the power supply. Do not touch the rotating brush when the appliance is in use. When you throw the appliance away, make sure to dispose of the battery in an environmental friendly way. CAUTION: NEVER TOUCH THE LIQUID THAT MIGHT COME OUT OF A DAMAGED BATTERY.

Competent qualified electrician : after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. 10 TEAM RS 1 070228

Your appliance is delivered with an adaptor, and if you have to replace it, we advise you to call in for the nearest customer service or, in case of emergency, to pay attention to the following characteristics: - Voltage: make sure to respect the voltage of the country you are using the appliance in. - Voltage supplied: 9Vdc - Current intensity: 300mA We do not accept any liability for damages resulting from non-observance of this paragraph CHARGING PROCESS Do not charge your appliance if the room temperature is below 0°C or above 40°C. Never charge your appliance more than 20 hours. We advise you to charge your appliance fully (about 8 to 10 hours) before the first use and to let it discharge itself regularly afterwards in order to increase the battery's lifespan. When you do not use the appliance for a long time, it is perfectly normal that the battery discharges itself. Insert the adapter's end into the unit, then plug into an electrical outlet. The charging indicator on top of the appliance illuminates. If you use another adapter than the one supplied, make sure it possesses the same characteristics as mentioned above. ASSEMBLY Put the main body of the sweeper on the floor. Insert the connection nozzle in the opening foreseen for that purpose on the body of the appliance (Fig. 1, p. 4). Assemble the tubes and attach the handle to the upper end of the tubes (Fig. 2, p. 4). Insert the other lower end of the tubes to the connection nozzle. The appliance is now ready for use.

USE OF THE APPLIANCE

Make sure the dust collector is installed properly in the main body before switching on the appliance. Check the dust level of the dust collector before each use and if it is full, empty it before use. Hold the appliance by the handle and switch it on by pressing the on/off switch with your hand of foot (Fig. 3, p. 4). To switch off the appliance, press the switch again. Thanks to the 360° swivel system of the connection nozzle of the appliance, you can reach even the places that are hard to reach. If you want to, you can also use only one part of the tube, as the handle can be attached to any of the tube parts. This will allow cleaning places that are hard to reach (e.g. under a bed). MAINTENANCE Put the switch in OFF position and unplug the appliance from its charger before starting any maintenance operation. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. 11 TEAM RS 1 070228

Fax [phone] Dust collector Remove the dust collector by sliding it out of the appliance (Fig. 4, p 4). Empty it. If necessary, clean it with lukewarm water. Dry it thoroughly. Rotating brush Turn the appliance upside down and remove the transparent plastic protective cover of the brush by pressing simultaneously at both sides of the cover (Fig. 5, p. 4). Remove the hair and other dust clogged onto the brush. Put the protective cover back on the brush. To do so, make sure the pins on the main body fit into the holes of the cover and press until you hear a clicking sound. BEFORE DISPOSAL The sweeper is equipped with a Ni-Cd battery. When you decide to dispose of the appliance, remove the battery first in order to protect the environment. To do so, first unplug the appliance. Then turn it upside down and unscrew the cover of the battery compartment (indicated with a cross on Fig. 6, p.4). Open the cover with a screwdriver acting as a lever. Cut the threads that connect the battery to the appliance and remove the battery. Dispose of the battery in an environmental friendly way by bringing it to a container foreseen for this purpose (please contact the local authority) or by bringing it back to the vendor. Never throw it away with the regular household refuse. TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION The appliance does not work The battery is discharged The plug does not supply any energy The appliance needs repair Charge the battery Check if the fuse hasn't melted Contact a competent qualified service (*) The appliance does not sweep The dust collector is full The battery is discharged Empty the dust collector Charge the battery The rotary brush does not work any longer Dirt is clogged in the brush Remove hairs and other dust particles clogged in the brush Dust is coming out of the appliance The dust collector is full The appliance is inclined Empty the dust collector Put the appliance on a flat surface

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. 12 TEAM RS 1 070228
