PD916ST - Vacuum Cleaner ELECTROLUX - Free user manual and instructions

Product type	Canister vacuum cleaner with bag
Brand	Electrolux
Model	PD916ST (PureD9)
Bag capacity	S-bag dust bag (Ultra Long Performance recommended)
Motor filter	Washable motor filter (blue frame) or disposable (green frame)
Exhaust air filter	Washable exhaust air filter (blue frame) or disposable (green frame)
Power control	Manual (rotary), remote control (handle), or AUTO (R models)
Included accessories	FlowMotion nozzle, AeroPro Turbo turbo nozzle, AeroPro Mini turbo nozzle, ParkettoPro parquet brush, FlexProPlus ultra-slim nozzle, Extra-long crevice tool, 3-in-1 accessory
Nozzle with LED lighting	Optional (FlowMotion LED nozzle)
Remote control on handle	Yes, with CR1632 lithium battery
Bag full indicator	Yes, indicator light (red = bag full or clogged)
Filter indicator	Yes, indicator light (red = filter needs replacement or cleaning)
Cord length	Approximately 8 meters (estimate)
Operating range	Approximately 9 meters (cord + hose)
Weight	Approximately 6.5 kg (estimate)
Dimensions (L x W x H)	Approximately 45 x 30 x 25 cm (estimate)
Storage system	Horizontal and vertical parking (storage clip)
Floor types	Carpet, hard floor, parquet, upholstery
Noise level	Not specified (estimate: 75-80 dB(A))
Power consumption	Not specified (estimate: 800-1200 W)
Warranty	Standard Electrolux (parts and labor according to terms)

Frequently Asked Questions - PD916ST ELECTROLUX

How to change the s-bag dust bag?

Pull the S-BAG button to open the compartment. Pull the support handle to remove the s-bag. Press the release button to discard the bag. Insert a new s-bag by engaging the collar into the support, then push the support into place. Close the cover. If the indicator remains red, check that the bag is properly installed.

How to clean or replace the exhaust air filter?

Press the FILTER button to open the grille. Check the frame color: green = replace with a new one, blue = washable. For a washable filter, rinse the dirty side with lukewarm water (no detergent), tap to remove excess water, repeat 4 times. Let dry for 24 hours at room temperature before reinstalling. Replace the washable filter at least once a year.

What to do if the vacuum does not start?

Check that the cord is plugged in and the outlet works. Check that the fuse hasn't blown. Ensure the remote control battery (if applicable) is not dead. If nothing works, contact an authorized Electrolux service center.

How to adjust the suction power?

On manual models (P), turn the rotary power control on the vacuum or use the airflow adjustment on the handle. On models with remote control (Q, R), press the +/- buttons on the handle. The R model has an AUTO mode that automatically adjusts power according to floor type.

How to use the FlowMotion LED nozzle?

The nozzle is used like a regular nozzle. The front light turns on automatically after a few seconds of movement and turns off if the nozzle remains still. To replace the batteries (2 AA), open the compartment on the nozzle when the light flashes.

How to clean the turbo nozzle?

Detach the turbo nozzle from the tube. Use scissors to cut threads or hair tangled in the rotating brush. Then clean with the hose handle. Do not immerse the turbo nozzle in water.

What accessories are available and what are they used for?

The 3-in-1 accessory combines a furniture brush, a small crevice tool for textiles, and a long crevice tool for narrow spaces. The FlowMotion nozzle is suitable for all floors. The turbo nozzle is ideal for carpets and pet hair. The mini turbo nozzle for upholstery. The ParkettoPro brush for hard floors. The FlexProPlus for hard-to-reach areas. The extra-long crevice tool for high areas.

How to replace the remote control batteries?

When the red light on the handle turns on and the remote no longer responds, open the battery compartment (often under the handle) and replace the battery with a CR1632 lithium battery. Observe polarity. Dispose of the old battery at a collection point.

The vacuum stops during use: what to do?

Unplug the appliance and let it cool for 30 minutes. Check that the nozzle, tube, hose, and filters are not blocked. If the problem persists, contact an authorized Electrolux service center.

How to maintain and store the vacuum?

Store the vacuum in a dry place. Use the parking positions (on the side or underneath) to carry or store while paused. Clean filters regularly and replace the bag when the indicator is red. Never pull the cord to move the appliance. Repairs should be done by a qualified professional.

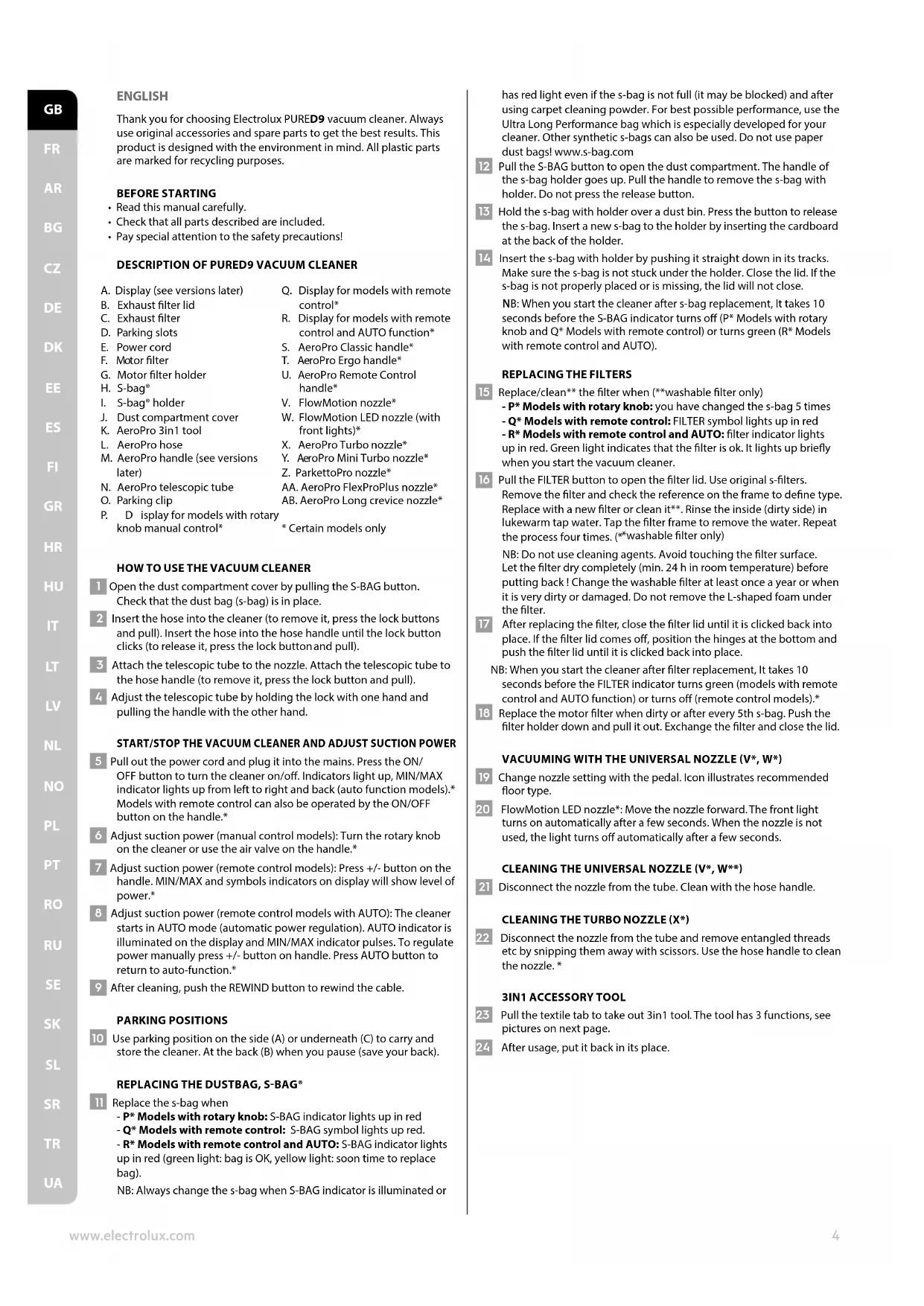

USER MANUAL PD916ST ELECTROLUX

Thank you for choosing Electrolux PURED9 vacuum cleaner. Always use original accessories and spare parts to get the best results. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

BEFORE STARTING

• Read this manual carefully.
• Check that all parts described are included.
• Pay special attention to the safety precautions!

DESCRIPTION OF PURED9 VACUUM CLEANER

A. Display (see versions later)

B. Exhaust filter lid

C. Exhaust filter

D. Parking slots

E. Power cord

F. Motor filter

G. Motor filter holder

H. S-bag

I. S-bag° holder

J. Dust compartment cover

K. AeroPro 3in1 tool

L. AeroPro hose

M. AeroPro handle (see versions later)

N. AeroPro telescopic tube

O. Parking clip

P. D isplay for models with rotary knob manual control*

Q. Display for models with remote control
R. Display for models with remote control and AUTO function
S. AeroPro Classic handle
T. AeroPro Ergo handle
U. AeroPro Remote Control handle
V. FlowMotion nozzle
W. FlowMotion LED nozzle (with front lights)
X. AeroPro Turbo nozzle
Y. AeroPro Mini Turbo nozzle
Z. ParketoPro nozzle
AA.AeroPro FlexProPlus nozzle*
AB. AeroPro Long crevice nozzle*

• Certain models only

HOW TO USE THE VACUUM CLEANER

1 Open the dust compartment cover by pulling the S-BAG button. Check that the dust bag (s-bag) is in place.
2 Insert the hose into the cleaner (to remove it, press the lock buttons and pull). Insert the hose into the hose handle until the lock button clicks (to release it, press the lock button and pull).
3 Attach the telescopic tube to the nozzle. Attach the telescopic tube to the hose handle (to remove it, press the lock button and pull).
4 Adjust the telescopic tube by holding the lock with one hand and pulling the handle with the other hand.

START/STOP THE VACUUM CLEANER AND ADJUST SUCTION POWER

5 Pull out the power cord and plug it into the mains. Press the ON/OFF button to turn the cleaner on/off. Indicators light up, MIN/MAX indicator lights up from left to right and back (auto function models). Models with remote control can also be operated by the ON/OFF button on the handle.
6 Adjust suction power (manual control models): Turn the rotary knob on the cleaner or use the air valve on the handle.
7 Adjust suction power (remote control models): Press +/- button on the handle. MIN/MAX and symbols indicators on display will show level of power.
8 Adjust suction power (remote control models with AUTO): The cleaner starts in AUTO mode (automatic power regulation). AUTO indicator is illuminated on the display and MIN/MAX indicator pulses. To regulate power manually press +/- button on handle. Press AUTO button to return to auto-function.*
9 After cleaning, push the REWIND button to rewind the cable.

PARKING POSITIONS

10 Use parking position on the side (A) or underneath (C) to carry and store the cleaner. At the back (B) when you pause (save your back).

REPLACING THE DUSTBAG, S-BAG

11 Replace the s-bag when

• P* Models with rotary knob: S-BAG indicator lights up in red
• Q* Models with remote control: S-BAG symbol lights up red.
• R* Models with remote control and AUTO: S-BAG indicator lights up in red (green light: bag is OK, yellow light: soon time to replace bag).
  NB: Always change the s-bag when S-BAG indicator is illuminated or

has red light even if the s-bag is not full (it may be blocked) and after using carpet cleaning powder. For best possible performance, use the Ultra Long Performance bag which is especially developed for your cleaner. Other synthetic s-bags can also be used. Do not use paper dust bags! www.s-bag.com

12 Pull the S-BAG button to open the dust compartment. The handle of the s-bag holder goes up. Pull the handle to remove the s-bag with holder. Do not press the release button.
Hold the s-bag with holder over a dust bin. Press the button to release the s-bag. Insert a new s-bag to the holder by inserting the cardboard at the back of the holder.
14 Insert the s-bag with holder by pushing it straight down in its tracks. Make sure the s-bag is not stuck under the holder. Close the lid. If the s-bag is not properly placed or is missing, the lid will not close.

NB: When you start the cleaner after s-bag replacement, It takes 10 seconds before the S-BAG indicator turns off (P Models with rotary knob and Q Models with remote control) or turns green (R* Models with remote control and AUTO).

REPLACING THE FILTERS

15 Replace/clean** the filter when (^** washable filter only)

• P* Models with rotary knob: you have changed the s-bag 5 times
• Q* Models with remote control: FILTER symbol lights up in red
• R^* Models with remote control and AUTO: filter indicator lights up in red. Green light indicates that the filter is ok. It lights up briefly when you start the vacuum cleaner.

16 Pull the FILTER button to open the filter lid. Use original s-filters.

Remove the filter and check the reference on the frame to define type. Replace with a new filter or clean it. Rinse the inside (dirty side) in lukewarm tap water. Tap the filter frame to remove the water. Repeat the process four times. (washable filter only)
NB: Do not use cleaning agents. Avoid touching the filter surface. Let the filter dry completely (min. 24 h in room temperature) before putting back! Change the washable filter at least once a year or when it is very dirty or damaged. Do not remove the L-shaped foam under the filter.
After replacing the filter, close the filter lid until it is clicked back into place. If the filter lid comes off, position the hinges at the bottom and push the filter lid until it is clicked back into place.

NB: When you start the cleaner after filter replacement, It takes 10 seconds before the FILTER indicator turns green (models with remote control and AUTO function) or turns off (remote control models).*

18 Replace the motor filter when dirty or after every 5th s-bag. Push the filter holder down and pull it out. Exchange the filter and close the lid.

VACUUMING WITH THE UNIVERSAL NOZZLE (V^*,W^*)

19 Change nozzle setting with the pedal. Icon illustrates recommended floor type.
20 FlowMotion LED nozzle*: Move the nozzle forward. The front light turns on automatically after a few seconds. When the nozzle is not used, the light turns off automatically after a few seconds.

CLEANING THE UNIVERSAL NOZZLE (V^*,W^**)

21 Disconnect the nozzle from the tube. Clean with the hose handle.

CLEANING THE TURBO NOZZLE (X^*)

22 Disconnect the nozzle from the tube and remove entangled threads etc by snipping them away with scissors. Use the hose handle to clean the nozzle. *

3IN1 ACCESSORY TOOL

23 Pull the textile tab to take out 3in1 tool. The tool has 3 functions, see pictures on next page.
24 After usage, put it back in its place.

CHANGING THE BATTERIES*

25 Nozzle with front lights: Change batteries when front lights start blinking fast. Use 2 AA batteries.
26 Handle with remote control: Change battery when light indicator turns red or is not responding when pressing any button. Use only batteries type LITHIUM CR1632.

NB: Remove the batteries from the product before scrapping. Follow your country's rules for collection of batteries and electrical products.

Enjoy a great cleaning experience with PURED9!

Electrolux reserves the right to change products, information and specifications without notice.

TIPS ON HOW TO GET THE BEST RESULTS

NOZZLE/ACCESSORY USE FOR: NOZZLE/ACCESSORY USE FOR:
K. 3in1 accessory tool*1 2 3	3 tools in 1:1. Dusting tool for hard surfaces(bookshelves, skirting boards etc).2. Upholstery tool for textiles(curtains, upholstery etc).3. Crevice tool for narrow spaces(behind radiators etc).	V. FlowMotion nozzle*W. FlowMotion LED nozzle(with front lights)*	Universal nozzle:- For all floor types, secures best dust pick up on both carpets and hard floors.- Change nozzle setting with the pedal.Icon will show recommended floor type.- Front light helps to detect dust and dirt in dark spaces (under furniture etc).FlowMotion LED only
X. Turbo nozzle* Carpet nozzle:	- Brushes and vacuums at the same time (best pick up of hair, fibres etc).- Brush roller is driven by the airflow of the vacuum cleaner.- Not suitable for carpets with very deep piles and long fringes, anti-slip carpets like door mats or water resistant carpets. Use universal nozzle instead.	Y. Mini Turbo nozzle* Upholstery nozzle:	- Brushes and vacuums at the same time (best pick up of hair, fibres etc).- For textile furniture, car seats, mattresses etc.- Brush roller is driven by the airflow of the vacuum cleaner.- Not suitable for carpets with very deep pile and long fringes as it can get stuck in the rotating brush roll.
Z. ParketoPro nozzle*	Hard floor nozzle:- For gentle cleaning of hard floor(parquet, wooden floor, tiles etc).- Best dust pick up on hard floor with crevice.	AA. FlexProPlus nozzle* Hardfloor nozzle:- For reach under/between furniture, corners and other obstacles.- Can easily turn 180 degrees for direct access to narrow spaces.
AB. Long crevice nozzle*	Extra long tool:- For areas hard to reach (top of shelves etc).- For narrow spaces (behind radiators, under car seats etc).
Models with manual power regulation-follow graphics on cleaner for optimal performance.		Models with AUTO-function automatically adjust the suction powerin order to give an optimal cleaning performance and comfort on every surface.For manual regulation, follow graphics for optimal performance.

TROUBLESHOOTING

PROBLEM SOLUTION
The vacuum cleaner does not start	·Check that the cable is connected to the mains. ·Check that the plug and cable are not damaged. ·Check for a blown fuse. ·Check if the battery indicator lamp in the remote control handle responds (certain models only).
The s-bag* indicator light is illuminated	·Check if the s-bag* is full or blocked. ·If you have already changed the s-bag*, change the motor filter.
The filter indicator light is illuminated (only at specific models)	Change, or wash (if washable), the exhaust filter.
The cleaner stops	The cleaner might be overheated: disconnect it from the mains; check if the nozzle, tube, hose or filters are blocked. Let the cleaner cool down for 30 minutes before plugging it in again. If the cleaner still does not work, contact an authorized Electrolux service centre.
Reduction of suction capacity versus normal	·Check if the s-bag is full or blocked. ·Check if the motor filter is clogged and needs changing. ·Check if nozzle is blocked and needs to be cleared. ·Check if hose is blocked by squeezing it gently. However, be careful in case the obstruction has been caused by glass or needles caught inside the hose. Note: The warranty does not cover any damage to the hose caused by cleaning it.
Water has been sucked into the vacuum cleaner	It will be necessary to replace the motor at an authorized Electrolux service centre. Damage to the motor caused by the penetration of water is not covered by the warranty.
For any further problems, contact an authorized Electrolux service centre.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and maintenance shall not be made by children without supervision.

WARNING: Turbo nozzles* have a rotating brush where parts can get entrapped. Please use them with caution and only on intended surfaces. Please turn the vacuum cleaner off before removing entrapped parts or cleaning the brush.

Batteries must be removed from the remote control in the handle / LED lighted nozzle before scraping the product**.

*Certain models only.

**Information on how to remove the battery in the fold-out part section 25 and 26.

Always disconnect the plug from the mains before cleaning or maintaining the appliance or when removing the battery. The battery is to be disposed of safely.

If the cord is damaged, it must be replaced only by an authorized Electrolux service centre in order to avoid a hazard.

PURED9 should only be used for normal vacuuming indoors and in a domestic environment. Make sure the vacuum cleaner is stored in a dry place.

All service or repairs must be carried out by an authorized Electrolux service centre.

Packaging material, e.g. plastic bags should not be accessible to children to avoid suffocation.

Never use the vacuum cleaner:

In wet areas.

Close to flammable gases, etc.

When the product shows visible signs of damage.

On sharp objects or fluids.

When the floor nozzle shows visible signs of a damages.

On hot or cold cinders, lighted cigarette butts, etc.

On fine dust, for instance from plaster, concrete, flour, hot or cold ashes.

Do not leave the vacuum cleaner in direct sunlight.

Avoid exposing the vacuum cleaner to strong heat or freezing temperatures.

Never use the vacuum cleaner without its filters.

Do not try to touch the brush roll while the cleaner is switched on and the brush roll is turning.

When the wheels are blocked.

Power cord precautions

Check the plug and cord regularly. Never use the vacuum cleaner if the plug or cord is damaged.

Damage to the vacuum cleaner's cord is not covered by the warranty.

Never pull or lift the vacuum cleaner by the cord.

Using the vacuum cleaner in the above circumstances may cause serious personal injury or damage to the product. Such injury or damage is not covered by the warranty or by Electrolux.

SERVICING AND WARRANTY

All service or repairs must be carried out by an authorized Electrolux service centre.

Damage to the vacuum cleaner's cord is not covered by the warranty. Damage to the motor caused by; vacuuming liquid, immersing appliance in liquid or using appliance with a damaged hose and nozzle is not covered by the warranty.

Always use original s-bag dust bags suitable for this particular vacuum cleaner, see section 11. Damages caused to the cleaner by incorrect use of none-original dust bags is not covered by the warranty.

DISPOSAL

This symbol on the product indicates that this product contains a battery which shall not be disposed with normal household waste.

This symbol on the product or on its packaging indicates that the product may not be treated as household waste.

To recycle your product, please take it to an official collection point or to an Electrolux service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

Hereby, Electrolux Home Care and SDA, declares that the Vacuum Cleaner with radio equipment type HER2 and HER3 is in compliance with Directive 2014/53/EU.
