Dishwasher Eco Design Guide WEB_Dishwaser_Global_00_EN.indd 1 2021-04-09 12:01:11English2 Contents Contents Installation 3 Installation requirements 3 Before you start 4 Using Detergent 4 Using Rinse 9 Using Softener 12 Operations 14 Cycle overview 14 Energy, water saving tip 15 Cycle chart 16 Maintenance 23 Cleaning 23 Troubleshooting 27 Checkpoints 27 Information codes 30 WEB_Dishwaser_Global_00_EN.indd 2 2021-04-09 12:01:11English 3 Installation Installation Installation requirements To prevent a risk of re, electric shock, or personal injury, all wiring and grounding must be done by a qualied technician. Power supply

, 50 Hz branch circuit that is dedicated to the dishwasher.

• Power outlet with a maximum allowable current of 16 A (maximum 11 A for the dishwasher) WARNING

• Do not use an extension cord.

• Use only the power plug that comes with the dishwasher.

• After installation is complete, make sure the power plug is not bent or damaged. Grounding For permanent grounding, the dishwasher must be properly grounded to a grounded metal or permanent wiring system. The grounding conductor must be run with the circuit conductors and then connected to the grounding terminal or lead on the dishwasher. WARNING

• Do not connect the ground wire to plastic plumbing, gas lines, or hot water pipes. Improperly connected grounding conductors may cause electric shock.

• Do not modify the power plug of the dishwasher. If the power plug does not t the outlet, have a proper outlet installed by a qualied electrician. Water supply

• The water supply line must support water pressures between 0.04 and 1 MPa.

• Water temperatures must be lower than 60 °C.

• A stopcock with a 3/4” male thread must be installed on the water tap. To reduce a risk of leaks:

• Make sure water taps are easily accessible.

• Turn the water tap off when the dishwasher is not in use.

• Check for any leaks at the water hose ttings on a regular basis.

• To stop any leak, seal the water line connections and joints using Teon tape or sealing compound. Aqua Stop The Aqua Stop is an electrical component that is designed to prevent water leaks. The Aqua Stop is attached to the water hose and automatically cuts off the water ow in the event of damage to the hose. CAUTION

• Handle the Aqua Stop with care.

• Do not kink or twist the water hose connected to the Aqua Stop. If the Aqua Stop is damaged, shut off the water taps and unplug the power plug immediately. Then, contact a local Samsung customer centre or a qualied technician. Flooring

• Make sure the dishwasher is level using the height adjustable feet.

• When levelling is complete, check if the door opens and closes properly. WEB_Dishwaser_Global_00_EN.indd 3 2021-04-09 12:01:11English4 Before you start Before you start There are two types of dispenser as follows. Check the instructions for the right dispenser for your dishwasher. Type A Type B Using Detergent Detergent compartment All dishwasher cycles require detergent in the detergent compartment. Apply detergent as recommended for the selected cycle to ensure best performance. WARNING

• Do not place dishwasher detergent in your mouth. Avoid breathing in detergent fumes. Dishwasher detergent contains irritants and caustic chemicals that can induce respiratory conditions. If you have consumed dishwasher detergent or inhaled detergent fumes, seek medical attention immediately.

• Keep dishwasher detergent out of children’s reach. CAUTION

• Use dishwasher detergent only. Other types of detergent produce excessive foam, which may decrease the dishwasher’s performance or cause it to malfunction.

• The dishwasher may not wash well if there is not much detergent. For normally soiled items, we recommend 20-25 grams; however, this may differ depending on the detergent manufacturer, so please follow that manufacturer’s recommendations.

• We recommend 15-20 grams for DW5******** models. WEB_Dishwaser_Global_00_EN.indd 4 2021-04-09 12:01:11English 5 Before you start Filling the detergent - Type A

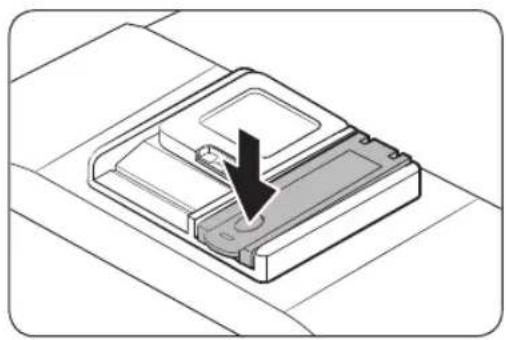

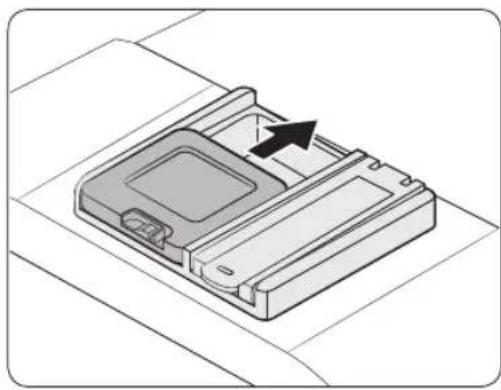

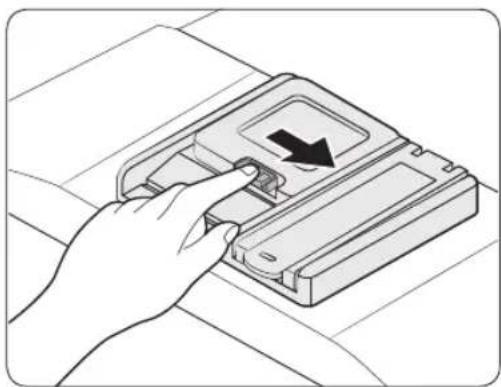

1. Open the detergent dispenser cap by

pushing the detergent dispenser catch to the right. NOTE The cap remains open at the end of a cycle.

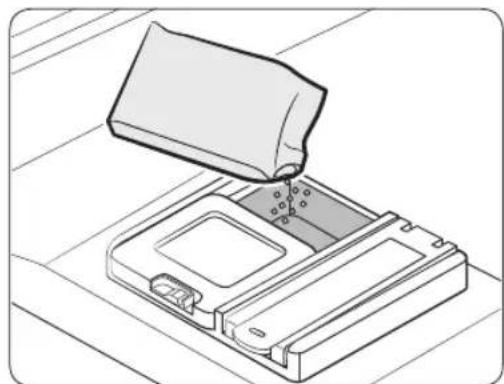

2. Add the recommended amount of

detergent to the main wash detergent compartment.

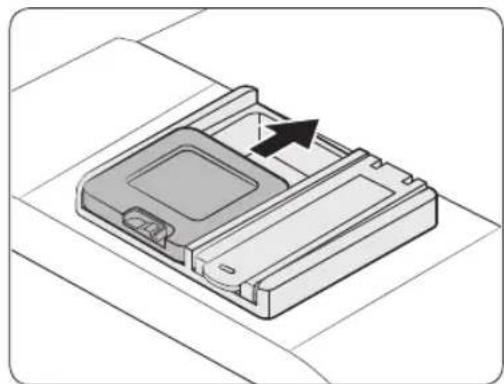

3. Close the lid by sliding it up.

small amount of detergent onto the door for better cleaning results. NOTE The additional detergent will activate during the pre-wash process. The cover opens automatically to dispense the detergent during the wash. WEB_Dishwaser_Global_00_EN.indd 6 2021-04-09 12:01:11English 7 Before you start - Type B

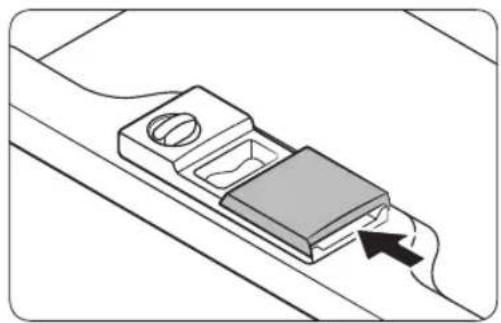

1. Open the detergent dispenser ap by

pushing the detergent dispenser release catch. NOTE The ap is always open at the end of a dishwashing cycle.

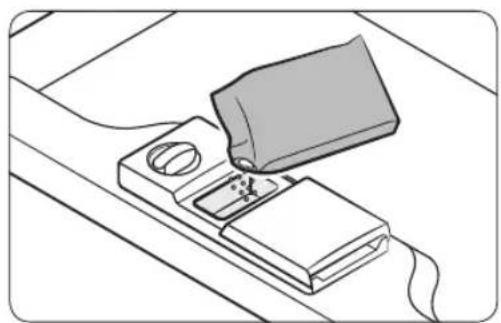

2. Add the recommended amount of

detergent to the main wash detergent compartment.

3. Close the ap by sliding it to the left

and then pressing it down. NOTE There is no separate button that is specic to using tablet detergents. WEB_Dishwaser_Global_00_EN.indd 7 2021-04-09 12:01:11English8 Before you start Before you start

4. If the items are heavily soiled, pour a

small amount of detergent onto the door for better cleaning results. NOTE The additional detergent will activate during the pre-wash process. The cover opens automatically to dispense the detergent during the wash. WEB_Dishwaser_Global_00_EN.indd 8 2021-04-09 12:01:12English 9 Before you start Using Rinse Rinse aid reservoir Rinse aid improves the drying performance of the dishwasher. When the Rinse Rell indicator lights up on the control panel, rell with rinse aid. Only use liquid rinse aid. Powdered rinse aid will clog the reservoir opening and cause the dishwasher to malfunction. CAUTION

• Do not apply any type of detergent to the rinse aid reservoir.

• Do not excessively ll the reservoir. Excessive rinse aid may overow during a cycle. Filling the rinse aid - Type A

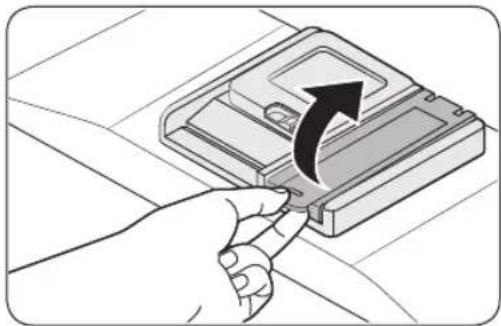

1. Open the rinse aid reservoir cap.

NOTE Adding rinse aid to tablet detergents will improve drying performance.

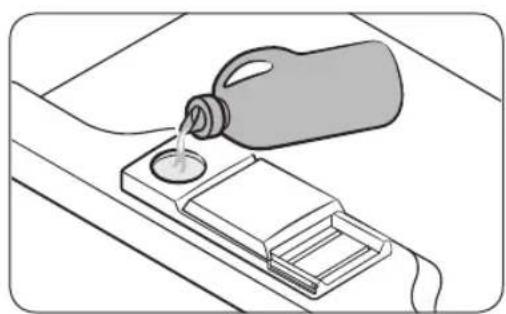

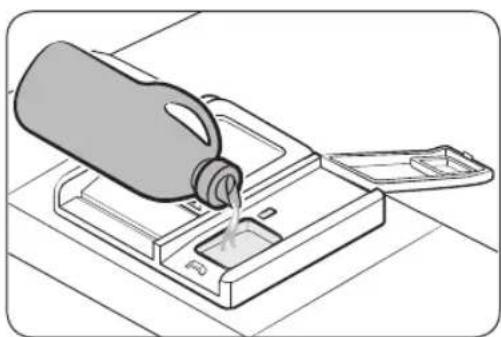

2. Fill the rinse aid reservoir with rinse aid.

CAUTION Do not ll the reservoir above the full level indicator. Excess rinse aid can overow during the wash cycle. WEB_Dishwaser_Global_00_EN.indd 9 2021-04-09 12:01:12English10 Before you start Before you start

3. Close the rinse aid reservoir cap.

Rinse aid setting You can change the amount of rinse aid applied during a cycle. The buttons used to enter the setting mode may vary depending on the model. Check the buttons for your model.

1. Press and hold the A button for ve seconds.

2. Press the B button to select the rinse aid level setting menu.

- The display shows the current setting. (Default setting: ‘d4’)

3. Press the A button to change the setting.

- You can select from d1-d5 (minimum-maximum)

4. Wait 5 seconds to save the setting.

• DW6*M5***BB / DW60M5070IB : A (Express)

• DW6*M5***F*/S*/U* models : A (Program)

1. Press and hold the A button for ve seconds.

2. Press the Delay Start button to enter the Rinse aid setting mode.

- The display shows the current setting.

3. Press the A button to select the amount of rinse aid you want.

- You can select from d1-d5 (minimum-maximum)

4. Wait 5 seconds to save the setting.

WEB_Dishwaser_Global_00_EN.indd 10 2021-04-09 12:01:12English 11 Before you start - Type B

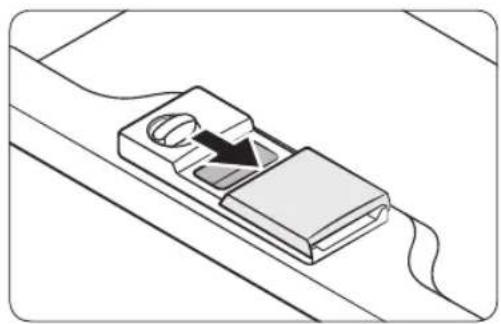

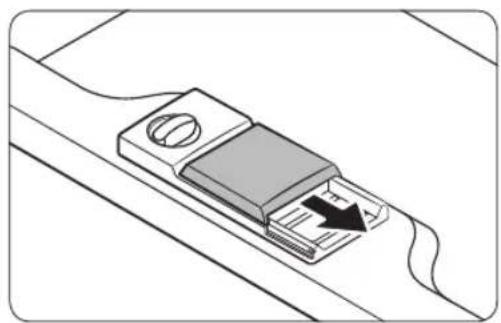

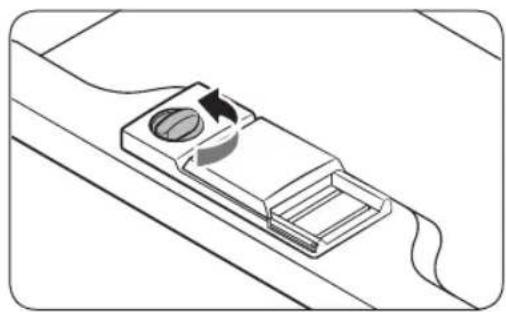

1. Remove the rinse aid reservoir cap by

rotating it counterclockwise. NOTE Adding rinse aid to tablet detergents will improve drying performance.

2. Fill the rinse aid reservoir with rinse aid.

NOTE Use the viewing port when lling the rinse aid reservoir. CAUTION Do not ll the reservoir above the full level indicator. Excess rinse aid can overow during the wash cycle.

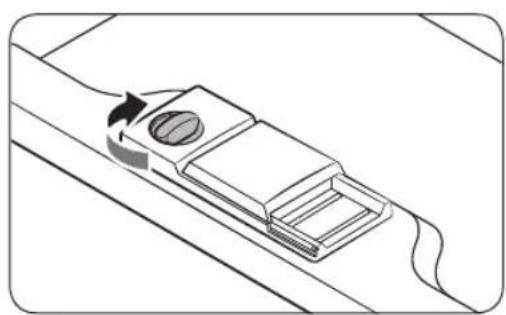

3. Turn the rinse aid indicator dial to a

number between 1 and 6. - The higher the number, the more rinse aid the dishwasher uses. - To improve the drying performance, select a higher level. - If there is discoloring on the dishes, switch to a lower level. - If you are unable to rotate the rinse aid dial easily, try using a coin.

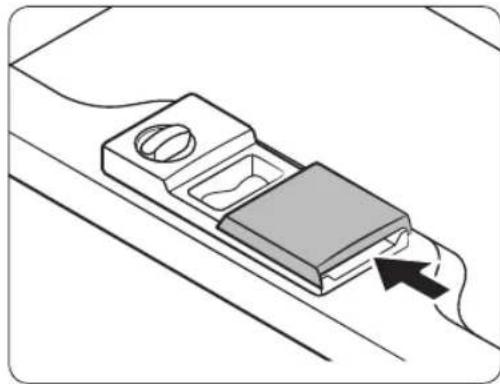

4. Close the rinse aid reservoir cap by

rotating it clockwise. WEB_Dishwaser_Global_00_EN.indd 11 2021-04-09 12:01:12English12 Before you start Before you start Using Softener Salt storage The water softener is designed to remove minerals from the water, which would have a detrimental or adverse effect on the operation of the appliance. We recommend using soft water for better results. Hard water contains impurities that can reduce the washing performance. You will need to soften the water if the supplied water is harder than

1.0 mmol/l (6 °d - German scale).

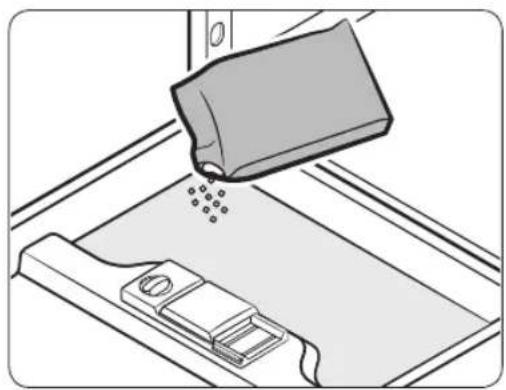

• To soften the water, you need dishwasher-specic salt and conguration of the water hardness level according to your area. For more information about the water hardness level in your area, contact your local water department.

• If the hardness level of the supplied water supply is unsteady, set the dishwasher to the highest measurement. For example, if the water hardness reading ranges from

6.7 mmol/l to 9.0 mmol/l, set the dishwasher to 9.0 mmol/l.

• The dishwasher’s default water hardness level is 3 (2.1-3.0 mmol/l). If this setting matches the water hardness level in your area, you do not need to change it. NOTE

• It is recommended that adjustments should be made in accordance with the following (or Manual) table.

• 1 fH (French degree) = 0.1 mmol/l

• Contact your local water board for information on the hardness of your water supply. WEB_Dishwaser_Global_00_EN.indd 12 2021-04-09 12:01:12English 13 Before you start NOTE How water softener regeneration works (ECO cycle with H3 level setting)

• Operates for about 2 minutes when drying starts and uses 2 L water, 0.0002 kWh energy

• Regenerates once every 5 cycles How to set the softener level The dishwasher is designed to allow for adjusting the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption so that the salt consumption could be set proceed as follows: The buttons used to enter the setting mode may vary depending on the model. Check the buttons for your model.

1. Press and hold the A button for ve seconds.

2. Press the Delay Start button to select the water hardness level setting menu.

- The display shows the current setting.

3. Press the A button to change the setting.

- You can select from H1-H6 (soft - hard)

4. Wait 5 seconds to save the setting.

• DW6*M****F*/S*/U* models : A (Program)

1. Press the A button for ve seconds to select the water hardness level setting menu.

- The display shows the current setting.

2. Press the A button to change the setting.

- You can select from H1-H6 (soft - hard)

3. Wait 5 seconds to save the setting.

WEB_Dishwaser_Global_00_EN.indd 13 2021-04-09 12:01:12English14 Operations Operations Cycle overview ECO * This cycle reduces power and water consumption, which is appropriate for normally soiled items AUTO / Auto wash This cycle detects the level of soil and automatically initiates the optimal cycle, which is appropriate for all levels of soiled items. Normal For normally soiled loads, such as pots, plates, glasses, and lightly soiled pans. Intensive Select this cycle for heavily soiled items. Delicate Select this cycle for lightly soiled, fragile items such as glasses. Express Normally soiled daily using items, with short cycle time. Quick / Quick wash Select this cycle to clean lightly soiled items in a short time. Pre Wash Cold water rinse for removing dirt before running another program. Extra Silence Select this cycle for more smooth and quiet washing. This cycle washes a little bit slower, but creates 2 decibels less noise than the ECO program. Self Clean Select this cycle to clean the inside of the dishwasher. Make sure the dishwasher is empty. The cycle used may vary depending on the model.

• The values for the ECO program have been obtained following the test standard EN 60436:2020. The values given for the other programs are indicative only. WEB_Dishwaser_Global_00_EN.indd 14 2021-04-09 12:01:12English 15 Operations Energy, water saving tip

• ECO programme is suitable to clean normally soiled tableware, that for this use, it is the most efcient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU ecodesign legislation (COMMISSION REGULATION (EU) 2019/2022).

• Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended. Use a knife, etc. to remove only large bits of food before loading.

• Water supplied can be up to 60 °C, and less power is consumed when hot water is connected.

• It’s better to ll the basket if possible but without overloading.

• To save water and energy, use the ECO cycle. ECO is the most efcient program when washing normally soiled items.

• Use an appropriate amount of detergent and rinse according to the manufacturer’s guidelines.

• Dishwasher use saves water compared to ordinary washing by hand.

• Ecodesign information can be found by going to www.samsung.com/support. To access the EPREL registration of the model :

1. Go to https://eprel.ec.europa.eu

2. Get the model identier from the energy label of the product and type it in the search

3. Energy Labelling information of the model is shown

(DW6*R707***/ DW6*R705***)

Energy consumption (kWh)

Energy consumption (kWh)

• Pre Wash : This cycle does not activate the Auto Door function nor the drying process. Continuous use of the Pre Wash cycle for an extended time is not recommended. This may reduce the performance of the water softener. ** Self Clean : Only for DW6*R707*/DW6*R705* models NOTE The power consumption and cycle time depends on the water temperature and/or load. WEB_Dishwaser_Global_00_EN.indd 17 2021-04-09 12:01:12English18 Operations Operations DW5*R407***/DW5*R406*** Cycle AUTO ECO Intensive Amount of food remains Very light to heavy Normal Heavy Cycle sequence Pre wash (45 °C) Main wash (45 °C- 55 °C) Rinse Hot rinse (65 °C) Dry End Main wash (50 °C) Rinse Hot rinse (50 °C) Dry End Pre wash (50 °C) Main wash (60 °C) Rinse Rinse Hot rinse (70 °C) Dry End Water consumption (L) 9.5-13

Energy consumption (kWh)

Energy consumption (kWh)

Energy consumption (kWh)

Cycle time (min) 125 60 20 NOTE The power consumption and cycle time depends on the water temperature and/or load. WEB_Dishwaser_Global_00_EN.indd 19 2021-04-09 12:01:12English20 Operations Operations DW6*M503***/DW6*M505***/DW60M5070IB Cycle Intensive Normal ECO Amount of food remains Heavy Normal Normal Cycle sequence Pre wash (50 °C) Main wash (60 °C) Rinse Rinse Hot rinse (70 °C) Dry End Pre wash (45 °C) Main wash (55 °C) Rinse Hot rinse (65 °C) Dry End Main wash (45 °C) Rinse Hot rinse (65 °C) Dry End Water consumption (L)

Energy consumption (kWh)

Energy consumption (kWh)

Cycle time (min.) 130 60 ** Delicate : Only for DW6*M505***/DW60M5070IB models NOTE The power consumption and cycle time depends on the water temperature and/or load. WEB_Dishwaser_Global_00_EN.indd 20 2021-04-09 12:01:13English 21 Operations DW6*M6031**/DW6*M605***/DW60M6070IB/DW6*M604*** Cycle Intensive Auto wash ECO Amount of food remains Heavy Normal Normal Cycle sequence Pre wash (50 °C) Main wash (60 °C) Rinse Rinse Hot rinse (70 °C) Dry End Pre wash (45 °C) Main wash (45- 55 °C) Rinse Hot rinse (65 °C) Dry End Pre wash Main wash (50 °C) Hot rinse (55 °C) Dry End Water consumption (L)

Energy consumption (kWh)

Energy consumption (kWh)

Cycle time (min) 60 15 130 WEB_Dishwaser_Global_00_EN.indd 21 2021-04-09 12:01:13English22 Operations Operations Cycle ** Quick wash Amount of food remains Light Cycle sequence Main wash (45 °C) Hot rinse (50 °C) Hot rinse (55 °C) End Water consumption (L)

Energy consumption (kWh)

Cycle time (min) 30 ** Quick wash : Only for DW6*M6031**/DW6*M605***/DW60M6070IB models Continuous use of the Quick Wash cycle for an extended time is not recommended. This may reduce the performance of the water softener. NOTE The power consumption and cycle time depends on the water temperature and/or load. WEB_Dishwaser_Global_00_EN.indd 22 2021-04-09 12:01:13English 23 Maintenance Maintenance Cleaning Keep the dishwasher clean to improve performance, reduce unnecessary repairs, and lengthen the lifecycle. Exterior Clean spills on the surface of the dishwasher immediately. Use a soft, damp cloth on the control panel to gently wipe away spills and dust. CAUTION

• Do not use benzene, wax, thinner, chlorine bleach, alcohol, or other chemical substances. These materials may discolour the surface of the dishwasher and cause stains.

• The dishwasher has electric parts inside. Do not spray water directly onto the dishwasher. Protect electrical components from water.

• For a stainless-steel door panel, use a stainless steel cleaner for home appliances and a clean, soft cloth. Interior Clean the interior of the dishwasher on a regular basis to remove any dirt or food particles. Wipe inside the dishwasher and inside the door with a wet dishcloth. CAUTION

• Do not remove the front seal (the long rubber seal enclosing the opening of the dishwasher). The seal keeps the inner side of the dishwasher sealed.

• Use a damp cloth to remove lime scale or grease deposits inside the dishwasher. Alternatively, apply some detergent, and then run an empty cycle using the highest rinse temperature. WEB_Dishwaser_Global_00_EN.indd 23 2021-04-09 12:01:13English24 Maintenance Maintenance Nozzles To prevent the nozzles from being clogged or if the nozzles are clogged, remove and clean each nozzle. Use caution when removing the nozzles as they may break. Upper nozzle

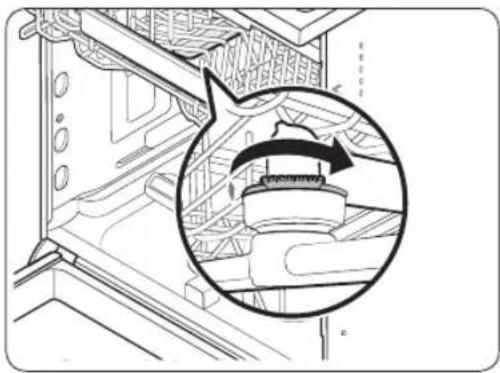

1. Open the door, and then pull out the

upper rack to reveal the upper nozzle.

2. Loosen and remove the nut, and then

3. Unclog and clean the nozzle.

4. Reinsert the nozzle, and then tighten the

5. Rotate the nozzle by hand to make sure

the nozzle is engaged correctly. Lower nozzle

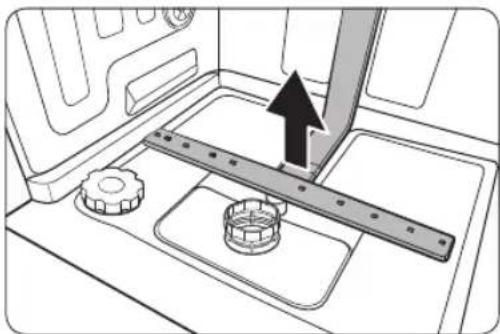

1. Open the door, and then pull out the

lower rack. The lower nozzle is visible on the bottom.

2. Unclog and clean the nozzle.

3. Reinsert the nozzle.

4. Rotate the nozzle by hand to make sure

the nozzle is engaged correctly. NOTE Depending on the models, actual parts may look differ from the gures. Internal Cleaning We recommend internal cleaning every month. You can use the Self Clean cycle (if available) or the Intensive cycle without putting in dishes. In some models with a notication feature, the LED may blink after 20-22 cycles. If your tap water is hard, you can prevent limescale inside the dishwasher by adding citric acid to the detergent when operating the dishwasher. WEB_Dishwaser_Global_00_EN.indd 24 2021-04-09 12:01:13English 25 Maintenance Filter We recommend cleaning the lter every month.

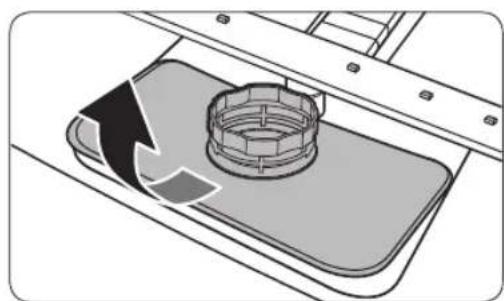

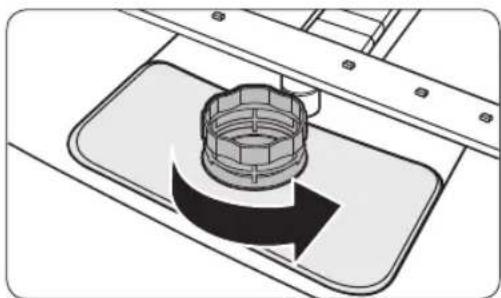

1. Open the door, and then remove the

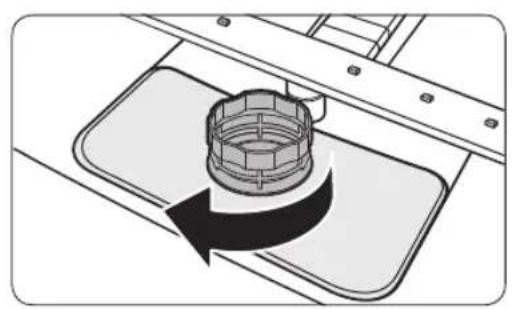

2. Turn the lter handle counterclockwise

to unlock the Coarse lter.

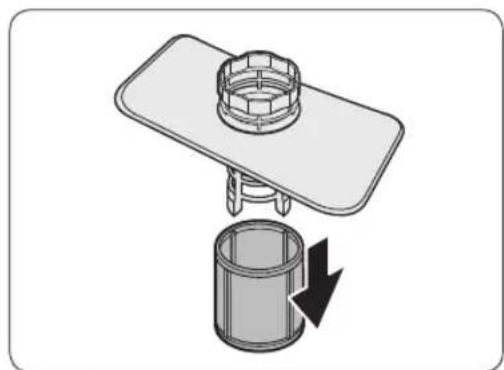

3. Remove the Coarse lter, and then the

cylindrical micro lter underneath. WEB_Dishwaser_Global_00_EN.indd 25 2021-04-09 12:01:13English26 Maintenance Maintenance

4. Remove any dirt and impurities from

the micro lter and the Coarse lter.

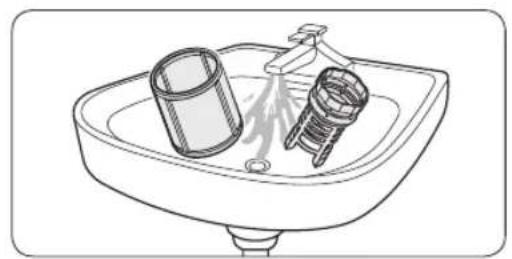

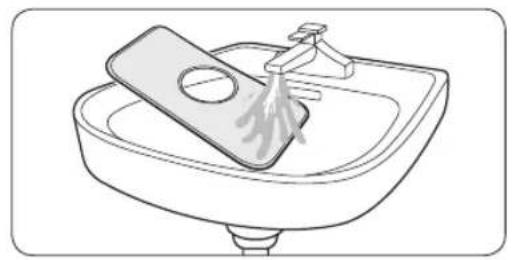

5. Rinse them with running water, and then

6. Reinsert the lter, and then the Coarse

7. Turn the lter handle clockwise to lock.

NOTE Depending on the models, actual parts may look differ from the gures. CAUTION Make sure the Coarse lter is closed properly. A loose cover can reduce the ltering performance. WEB_Dishwaser_Global_00_EN.indd 26 2021-04-09 12:01:13English 27 Troubleshooting Troubleshooting Checkpoints If you encounter an issue with the dishwasher, rst check the table below and try the suggestions. Following the repair by a non-authorised service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certied service provider will not be covered by the warranty. Symptom Possible cause Action The dishwasher does not start. The door is not completely closed.

• Make sure the door is latched and completely closed.

• Make sure the upper rack is properly joined with the nozzle.

• Make sure the upper rack is properly assembled. The power cord is not connected.

• Connect the power cord. Water is not being supplied.

• Make sure the water supply valve is open. The control panel is locked. • Deactivate the Control Lock. The dishwasher has bad odours. Water remains from the previous cycle.

• With the dishwasher empty, add detergent, and then run the Quick cycle. This is available only on applicable models. Water remains in the dishwasher after a cycle has nished. The drain hose is folded or clogged.

• Straighten and unclog the hose. WEB_Dishwaser_Global_00_EN.indd 27 2021-04-09 12:01:13English28 Troubleshooting Troubleshooting Symptom Possible cause Action Food remains on dishes. An incorrect cycle was selected.

• Select a cycle according to the soil level of the dishes as instructed in this manual. The lters are clogged or not correctly fastened.

• Make sure the lters are correctly fastened. An insufcient amount of detergent was used.

• Use the correct amount of detergent for each load. The water pressure is low.

• Make sure the pressure is between 0.04-1.0 MPa. The nozzles are clogged.

• Clean and unclog the nozzles. Dishes improperly loaded or overloaded.

• Arrange the dishes so they do not interfere with the nozzles and/or the detergent dispenser. The water is too hard.

• Check the salt rell indicator, and rell with dishwasher salt. Dishes are not dried well. There is no rinse aid in the dispenser, or not enough rinse aid was used.

• Check the rinse aid settings. Too many dishes are loaded.

• Overloading may reduce the drying performance. Load your dishes as recommended. Glasses and cups spilled water onto other dishes while being unloaded.

• Empty the lower rack rst, and then the upper rack. This will avoid water dripping from the upper rack onto the dishes in the lower rack. Multiple detergent tablets were used without selecting the Sanitize option.

• Select the Sanitize option or use rinse aid. WEB_Dishwaser_Global_00_EN.indd 28 2021-04-09 12:01:13English 29 Troubleshooting Symptom Possible cause Action The dishwasher is too noisy. The dishwasher makes a sound when the dispenser cover is open and the drain pump is operating.

• This is normal. The dishwasher is not level.

• Make sure the dishwasher is level. The nozzle bumps against the dishes, creating a chopping sound.

• Rearrange the dishes. Yellow or brown lm remains on dishes. Coffee and tea soils.

• Use a cycle with a higher temperature. Indicators do not light up. The power cord is not connected.

• Connect the power cord. The nozzles do not rotate smoothly. The nozzles are clogged with food particles.

• Clean the nozzles. A white coating remains on dishes. The water is too hard.

• Make sure the salt ll indicator and softener settings are correct according to the water hardness of your area.

• Make sure the salt storage cap is correctly fastened. Air bubbles and scratch marks are on the control panel. Air gets into the protective lm, causing EPS marks to remain.

• Remove the protective lm from the control panel. WEB_Dishwaser_Global_00_EN.indd 29 2021-04-09 12:01:13English30 Troubleshooting Troubleshooting Information codes If the dishwasher fails to operate, you may see an information code on the display. Check the table below and try the suggestions. Code Action

• Close the water supply valve. Go to your home’s circuit breaker panel, and set the dishwasher’s circuit breaker switch to off. Then, contact the installer to repair. If the issue continues, contact a local Samsung service centre.

• Check if the water supply valve is closed, if the water supply is suspended, or if the water inlet valve or line is frozen or clogged by foreign particles. If the issue continues, contact a local Samsung service centre.

• Abnormal communication between the main PCB and the sub PCB.

• If the problem continues, contact an authorised Samsung service centre.
