USER MANUAL HR2641 MAKITA

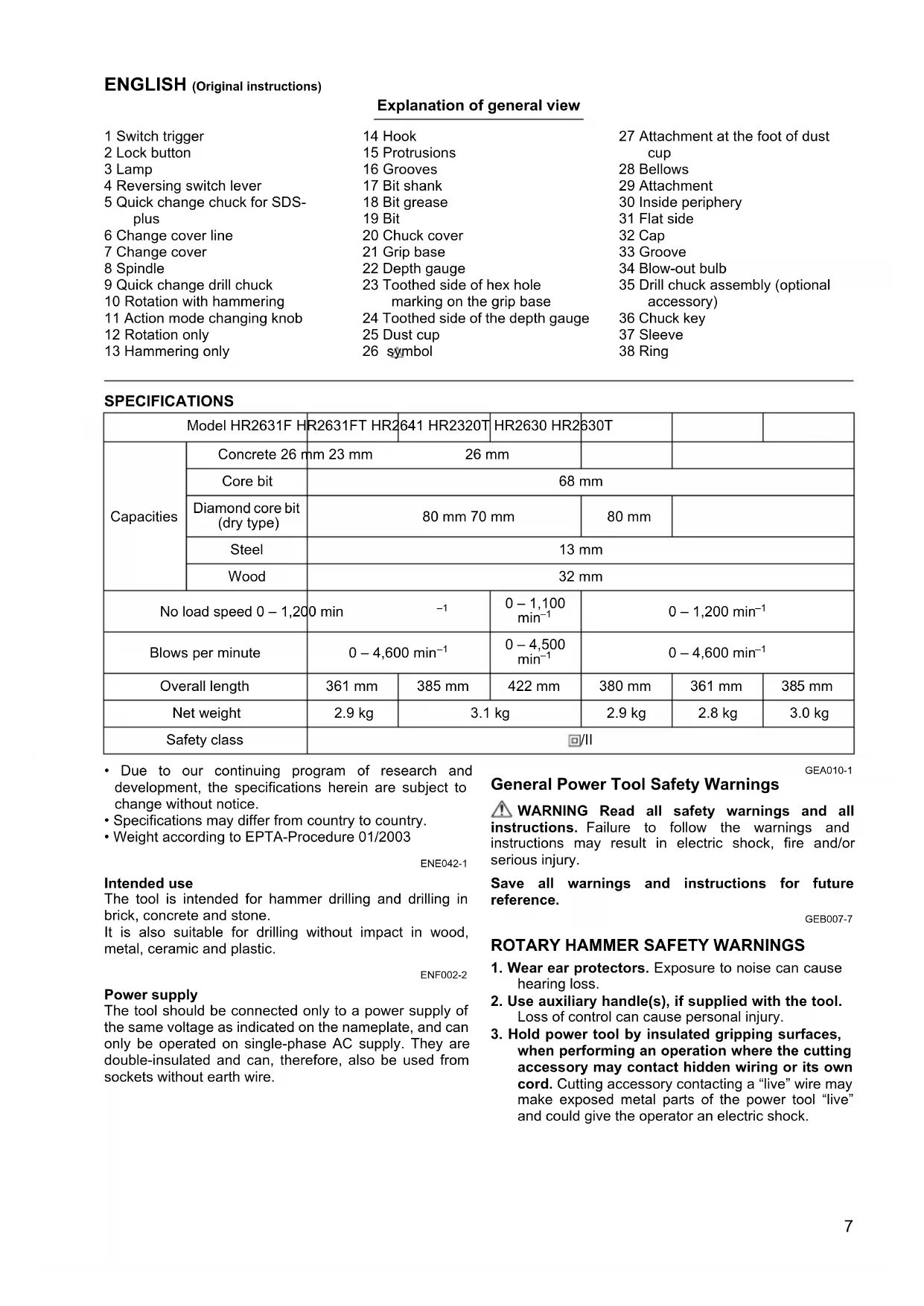

ENGLISH (Original instructions) Explanation of general view 1 Switch trigger 2 Lock button 3 Lamp 4 Reversing switch lever 5 Quick change chuck for SDS- plus 6 Change cover line 7 Change cover 8 Spindle 9 Quick change drill chuck 10 Rotation with hammering 11 Action mode changing knob 12 Rotation only 13 Hammering only 14 Hook 15 Protrusions 16 Grooves 17 Bit shank 18 Bit grease 19 Bit 20 Chuck cover 21 Grip base 22 Depth gauge 23 Toothed side of hex hole marking on the grip base 24 Toothed side of the depth gauge 25 Dust cup 26 symbol 27 Attachment at the foot of dust cup 28 Bellows 29 Attachment 30 Inside periphery 31 Flat side 32 Cap 33 Groove 34 Blow-out bulb 35 Drill chuck assembly (optional accessory) 36 Chuck key 37 Sleeve 38 Ring SPECIFICATIONS

Due to our continuing program of research and development, the specifications herein are subject to change without notice.

Specifications may differ from country to country.

Weight according to EPTA-Procedure 01/2003 ENE042-1 Intended use The tool is intended for hammer drilling and drilling in brick, concrete and stone. It is also suitable for drilling without impact in wood, metal, ceramic and plastic. ENF002-2 Power supply The tool should be connected only to a power supply of the same voltage as indicated on the nameplate, and can only be operated on single-phase AC supply. They are double-insulated and can, therefore, also be used from sockets without earth wire. GEA010-1 General Power Tool Safety Warnings WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. GEB007-7

ROTARY HAMMER SAFETY WARNINGS

1. Wear ear protectors. Exposure to noise can cause

2. Use auxiliary handle(s), if supplied with the tool.

Loss of control can cause personal injury.

3. Hold power tool by insulated gripping surfaces,

when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock. Model HR2631F HR2631FT HR2641 HR2320T HR2630 HR2630T Capacities Concrete 26 mm 23 mm 26 mm Core bit 68 mm Diamond core bit (dry type) 80 mm 70 mm 80 mm Steel 13 mm Wood 32 mm No load speed 0 – 1,200 min

and/or face shield. Ordinary eye or sun glasses are NOT safety glasses. It is also highly recommended that you wear a dust mask and thickly padded gloves.

5. Be sure the bit is secured in place before

6. Under normal operation, the tool is designed to

produce vibration. The screws can come loose easily, causing a breakdown or accident. Check tightness of screws carefully before operation.

7. In cold weather or when the tool has not been

used for a long time, let the tool warm up for a while by operating it under no load. This will loosen up the lubrication. Without proper warm- up, hammering operation is difficult.

8. Always be sure you have a firm footing.

Be sure no one is below when using the tool in high locations.

9. Hold the tool firmly with both hands.

10. Keep hands away from moving parts.

11. Do not leave the tool running. Operate the tool

only when hand-held.

12. Do not point the tool at any one in the area when

operating. The bit could fly out and injure someone seriously.

13. Do not touch the bit or parts close to the bit

immediately after operation; they may be extremely hot and could burn your skin.

14. Some material contains chemicals which may be

toxic. Take caution to prevent dust inhalation and skin contact. Follow material supplier safety data. SAVE THESE INSTRUCTIONS.

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. FUNCTIONAL DESCRIPTION CAUTION:

Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool. Switch action (Fig. 1 & 2) CAUTION:

Before plugging in the tool, always check to see that the switch trigger actuates properly and returns to the “OFF” position when released. To start the tool, simply pull the switch trigger. Tool speed is increased by increasing pressure on the switch trigger. Release the switch trigger to stop. For continuous operation, pull the switch trigger, push in the lock button and then release the switch trigger. To stop the tool from the locked position, pull the switch trigger fully, then release it. Lighting up the lamps (Fig. 3) For Model HR2631F, HR2631FT CAUTION:

Do not look in the light or see the source of light directly. To turn on the lamp, pull the trigger. Release the trigger to turn it off. NOTE:

Use a dry cloth to wipe the dirt off the lens of lamp. Be careful not to scratch the lens of lamp, or it may lower the illumination.

Do not use thinner or gasoline to clean the lamp. Such solvents may damage it. Reversing switch action (Fig. 4 & 5) CAUTION:

Always check the direction of rotation before operation.

Use the reversing switch only after the tool comes to a complete stop. Changing the direction of rotation before the tool stops may damage the tool. For Model HR2631F, HR2631FT, HR2320T, HR2630, HR2630T CAUTION:

If the switch trigger can not be depressed, check to see that the reversing switch is fully set to position (A side) or (B side). This tool has a reversing switch to change the direction of rotation. Move the reversing switch lever to the position (A side) for clockwise rotation or to the position (B side) for counterclockwise rotation. For Model HR2641 NOTE:

When you operate the tool in counterclockwise rotation, the switch trigger is pulled only halfway and the tool runs at half speed. For counterclockwise rotation, you cannot push in the lock button. This tool has a reversing switch to change the direction of rotation. Move the reversing switch lever to the position (A side) for clockwise rotation or the position (B side) for counterclockwise rotation. Changing the quick change chuck for SDS-plus For Model HR2631FT, HR2320T, HR2630T The quick change chuck for SDS-plus can be easily exchanged for the quick change drill chuck. Removing the quick change chuck for SDS-plus (Fig. 6) CAUTION:

Before removing the quick change chuck for SDS-plus, always remove the bit. Grasp the change cover of the quick change chuck for SDS-plus and turn in the direction of the arrow until the change cover line moves from the symbol to the symbol. Pull forcefully in the direction of the arrow. Attaching the quick change drill chuck (Fig. 7) Check the line of the quick change drill chuck shows the symbol. Grasp the change cover of the quick change drill chuck and set the line to the symbol. Place the quick change drill chuck on the spindle of the tool.9 Grasp the change cover of the quick change drill chuck and turn the change cover line to the symbol until a click can clearly be heard. Selecting action mode CAUTION:

Do not rotate the action mode changing knob when the tool is running. The tool will be damaged.

To avoid rapid wear on the mode change mechanism, be sure that the action mode changing knob is always positively located in one of the three action mode positions. Rotation with hammering (Fig. 8) For drilling in concrete, masonry, etc., rotate the action mode changing knob to the symbol. Use a tungsten- carbide tipped bit. Rotation only (Fig. 9) For drilling in wood, metal or plastic materials, rotate the action mode changing knob to the m symbol. Use a twist drill bit or wood bit. Hammering only (Fig. 10) For chipping, scaling or demolition operations, rotate the action mode changing knob to the g symbol. Use a bull point, cold chisel, scaling chisel, etc. Torque limiter CAUTION:

As soon as the torque limiter actuates, switch off the tool immediately. This will help prevent premature wear of the tool.

Bits such as hole saw, which tend to pinch or catch easily in the hole, are not appropriate for this tool. This is because they will cause the torque limiter to actuate too frequently. The torque limiter will actuate when a certain torque level is reached. The motor will disengage from the output shaft. When this happens, the bit will stop turning. Hook (Fig. 11) For Model HR2641 CAUTION:

Never hook the tool at high location or on potentially unstable surface. The hook is convenient for hanging the tool temporarily. To use the hook, simply lift up hook until it snaps into the open position. When not in use, always lower hook until it snaps into the closed position. ASSEMBLY CAUTION:

Always be sure that the tool is switched off and unplugged before carrying out any work on the tool. Side grip (auxiliary handle) (Fig. 12) CAUTION:

Always use the side grip to ensure operating safety. Install the side grip so that the protrusions on the grip fit in between the grooves on the tool barrel. Then tighten the grip by turning clockwise at the desired position. It may be swung 360° so as to be secured at any position. Bit grease Coat the bit shank head beforehand with a small amount of bit grease (about 0.5 – 1 g). This chuck lubrication assures smooth action and longer service life. Installing or removing the bit Clean the bit shank and apply bit grease before installing the bit. (Fig. 13) Insert the bit into the tool. Turn the bit and push it in until it engages. (Fig. 14) After installing, always make sure that the bit is securely held in place by trying to pull it out. To remove the bit, pull the chuck cover down all the way and pull the bit out. (Fig. 15) Bit angle (when chipping, scaling or demolishing) The bit can be secured at the desired angle. To change the bit angle, rotate the action mode changing knob to the O symbol. Turn the bit to the desired angle. (Fig. 16) Rotate the action mode changing knob to the g symbol. (Fig. 17) Then make sure that the bit is securely held in place by turning it slightly. Depth gauge The depth gauge is convenient for drilling holes of uniform depth. (Fig. 18) Press the lock button on the grip base in the direction of arrow shown in the figure and with the lock button being pressed insert the depth gauge into the hex. hole in the grip base. (Fig. 19) At this time, the depth gauge needs to be inserted so that its toothed side is directed to the toothed side of hex hole marking on the grip base as shown in the figure. (Fig. 20) Adjust the depth gauge to the desired depth by moving it back and forth while pressing the lock button. After the adjustment, release the lock button to lock the depth gauge. (Fig. 21) NOTE:

Inserting the depth gauge with its toothed side not directed to the toothed side of hex hole marking on the grip base as shown in the figure does not allow the depth gauge to be locked. Dust cup (optional accessory) (Fig. 22) Use the dust cup to prevent dust from falling over the tool and on yourself when performing overhead drilling operations. Attach the dust cup to the bit as shown in the figure. The size of bits which the dust cup can be attached to is as follows.

There is another type of dust cup (optional accessory) which helps you prevent dust from falling over the tool and on yourself when performing overhead drilling operations. Bit diameter Dust cup 5 6 mm – 14.5 mm Dust cup 9 12 mm – 16 mm10 Installing or removing the dust cup (optional accessory) Before installing the dust cup, remove the bit from the tool if installed on the tool. Install the dust cup (optional accessory) on the tool so that the symbol on the dust cup is aligned with the grooves in the tool. (Fig. 23) To remove the dust cup, pull the chuck cover in the direction as shown in the figure and with the chuck cover pulled take the bit out of the tool. (Fig. 24) And then grab the attachment at the foot of dust cup and take it out. (Fig. 25) NOTE:

When installing or removing the dust cup, the cap may come off the dust cup. At that time, proceed as follows. Remove the bellows from the attachment and fit the cap from the side shown in the figure with its flat side facing upward so that the groove in the cap fits in the inside periphery of the attachment. Finally, mount the bellows that has been removed. (Fig. 26, 27 & 28) NOTE:

If you connect a vacuum cleaner to your hammer, cleaner operations can be performed. Dust cap needs to be removed from the dust cup before the connection. (Fig. 29) OPERATION CAUTION:

Always use the side grip (auxiliary handle) and firmly hold the tool by both side grip and switch handle during operations. Hammer drilling operation (Fig. 30) CAUTION:

There is tremendous and sudden twisting force exerted on the tool/bit at the time of hole break-through, when the hole becomes clogged with chips and particles, or when striking reinforcing rods embedded in the concrete. Always use the side grip (auxiliary handle) and firmly hold the tool by both side grip and switch handle during operations. Failure to do so may result in the loss of control of the tool and potentially severe injury. Set the action mode changing knob to the symbol. Position the bit at the desired location for the hole, then pull the switch trigger. Do not force the tool. Light pressure gives best results. Keep the tool in position and prevent it from slipping away from the hole. Do not apply more pressure when the hole becomes clogged with chips or particles. Instead, run the tool at an idle, then remove the bit partially from the hole. By repeating this several times, the hole will be cleaned out and normal drilling may be resumed. NOTE:

Eccentricity in the bit rotation may occur while operating the tool with no load. The tool automatically centers itself during operation. This does not affect the drilling precision. Blow-out bulb (optional accessory) (Fig. 31) After drilling the hole, use the blow-out bulb to clean the dust out of the hole. Chipping/Scaling/Demolition (Fig. 32) Set the action mode changing knob to the g symbol. Hold the tool firmly with both hands. Turn the tool on and apply slight pressure on the tool so that the tool will not bounce around, uncontrolled. Pressing very hard on the tool will not increase the efficiency. Drilling in wood or metal CAUTION:

Never use “rotation with hammering” when the quick change drill chuck is installed on the tool. The quick change drill chuck may be damaged. Also, the drill chuck will come off when reversing the tool.

Pressing excessively on the tool will not speed up the drilling. In fact, this excessive pressure will only serve to damage the tip of your bit, decrease the tool performance and shorten the service life of the tool.

There is a tremendous twisting force exerted on the tool/bit at the time of hole breakthrough. Hold the tool firmly and exert care when the bit begins to break through the workpiece.

A stuck bit can be removed simply by setting the reversing switch to reverse rotation in order to back out. However, the tool may back out abruptly if you do not hold it firmly.

Always secure small workpieces in a vise or similar hold-down device. Set the action mode changing knob to the m symbol. You can drill up to 13 mm diameter in metal and up to 32 mm diameter in wood. For Model HR2631F, HR2641, HR2630 Use the drill chuck assembly (optional accessory). When installing it, refer to “Installing or removing the bit” described on the previous page. (Fig. 33) To install the bit, place it in the chuck as far as it will go. Tighten the chuck by hand. Place the chuck key in each of the three holes and tighten clockwise. Be sure to tighten all three chuck holes evenly. To remove the bit, turn the chuck key counterclockwise in just one hole, then loosen the chuck by hand. (Fig. 34) For Model HR2631FT, HR2320T, HR2630T Use the quick change drill chuck as standard equipment. When installing it, refer to “changing the quick change chuck for SDS-plus” described on the previous page. (Fig. 35 & 36) Hold the ring and turn the sleeve counterclockwise to open the chuck jaws. Place the bit in the chuck as far as it will go. Hold the ring firmly and turn the sleeve clockwise to tighten the chuck. To remove the bit, hold the ring and turn the sleeve counterclockwise. (Fig. 37) Diamond core drilling CAUTION:

If performing diamond core drilling operations using “rotation with hammering” action, the diamond core bit may be damaged. When performing diamond core drilling operations, always set the change lever to the m position to use “rotation only” action.11 Operation when using the dust cup (optional accessory) (Fig. 38) Operate the tool with the dust cup against the ceiling surface. NOTE:

The dust cup (optional accessory) is intended only for drilling in the ceramic workpiece such as concrete and mortar. Do not use the tool with the dust cup when drilling in metal or similar. Using the dust cup for drilling in the metal may damage the dust cup due to the heat produced by small metal dust or similar.

Empty the dust cup before removing a drill bit.

When using the dust cup, make sure that the dust cap is mounted on it securely. MAINTENANCE CAUTION:

Always be sure that the tool is switched off and unplugged before attempting to perform inspection or maintenance.

Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, carbon brush inspection and replacement, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts. OPTIONAL ACCESSORIES CAUTION:

These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

Plastic carrying case

Keyless drill chuck NOTE

Some items in the list may be included in the tool package as standard accessories. They may differ from country to country. ENG905-1 Noise The typical A-weighted noise level determined according to EN60745: Model HR2631F, HR2631FT, HR2641 Sound pressure level (L

): 90 dB (A) Sound power level (L

): 91 dB (A) Sound power level (L

): 102 dB (A) Uncertainty (K): 3 dB (A) Wear ear protection ENG900-1 Vibration The vibration total value (tri-axial vector sum) determined according to EN60745: Model HR2631F Work mode: hammer drilling into concrete Vibration emission (a h, HD ): 12.0 m/s

Work mode: chiselling function with side grip Vibration emission (a h, Cheq ): 9.0 m/s
