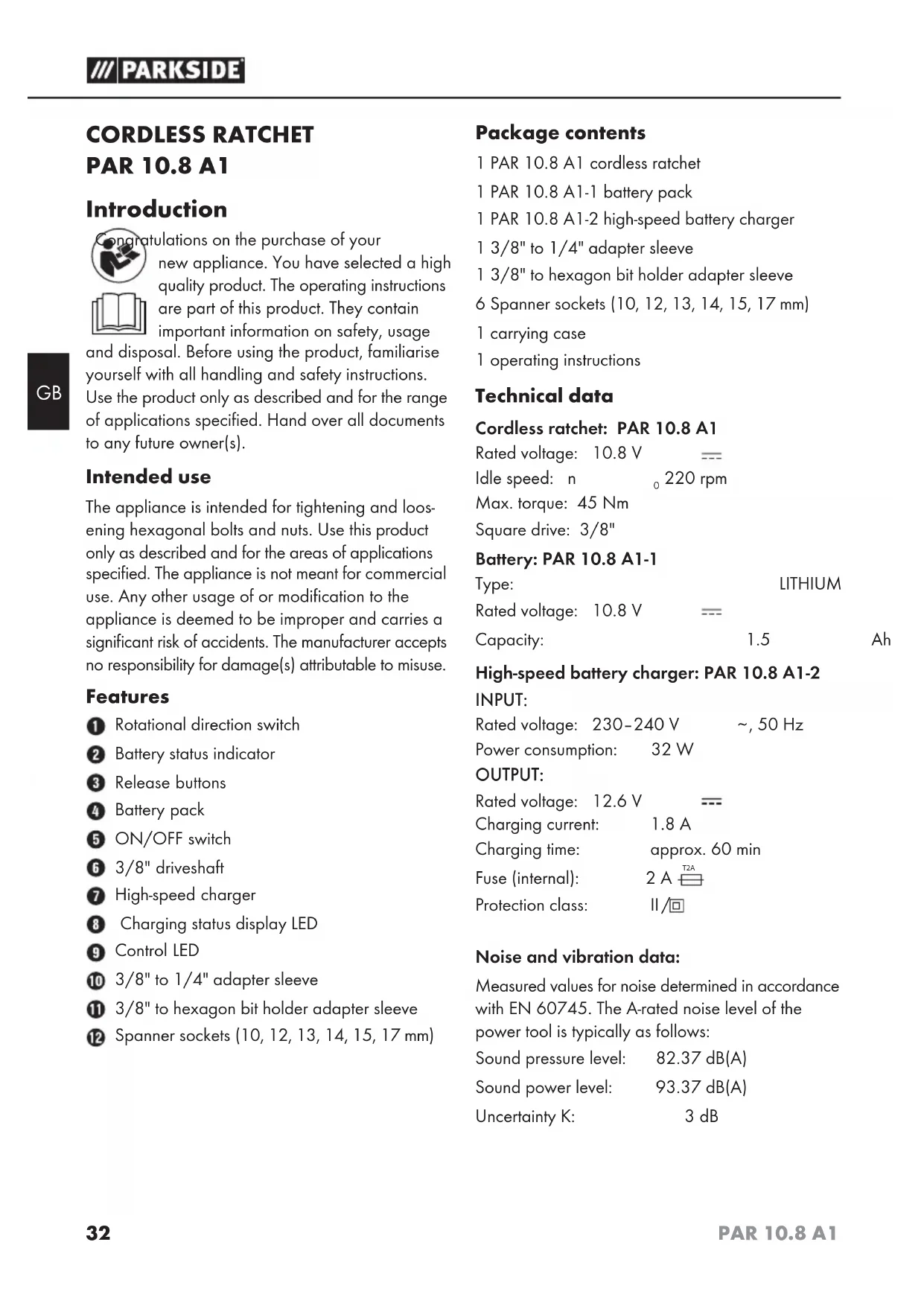

CORDLESS RATCHET PAR 10.8 A1

Introduction

tulations on the purchase of your

new appliance. You have selected a high quality product. The operating instructions are part of this product. They contain important information on safety, usage

and disposal. Before using the product, familiarise yourself with all handling and safety instructions.

Use the product only as described and for the range of applications specified. Hand over all documents to any future owner(s).

Intended use

The appliance is intended for tightening and loosening hexagonal bolts and nuts. Use this product only as described and for the areas of applications specified. The appliance is not meant for commercial use. Any other usage of or modification to the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) attributable to misuse.

Features

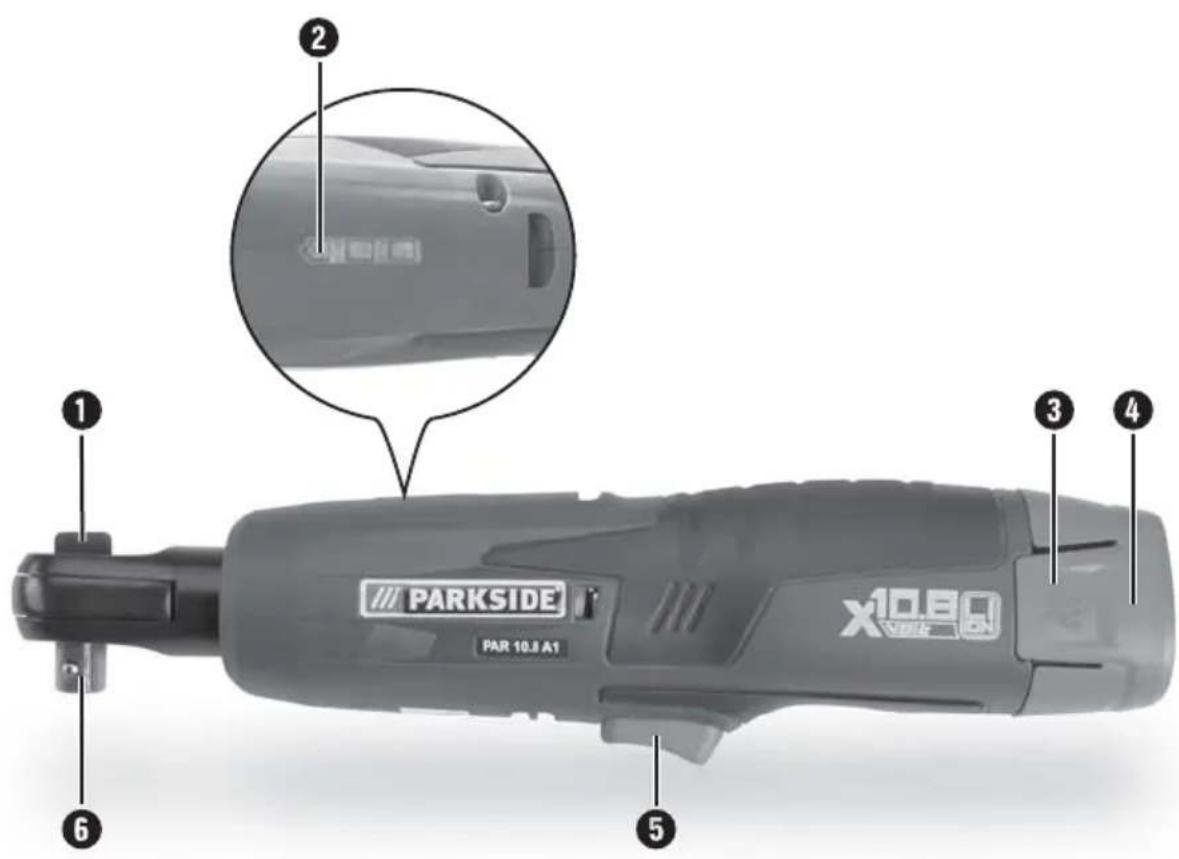

1 Rotational direction switch
② Battery status indicator
3 Release buttons
4 Battery pack
5 ON/OFF switch
6 3/8" driveshaft

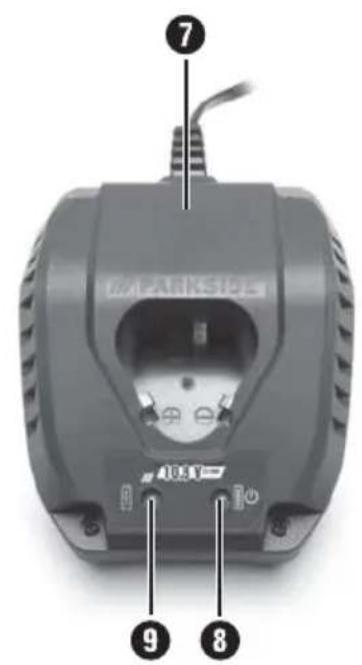

7 High-speed charger
8 Charging status display LED
9 Control LED

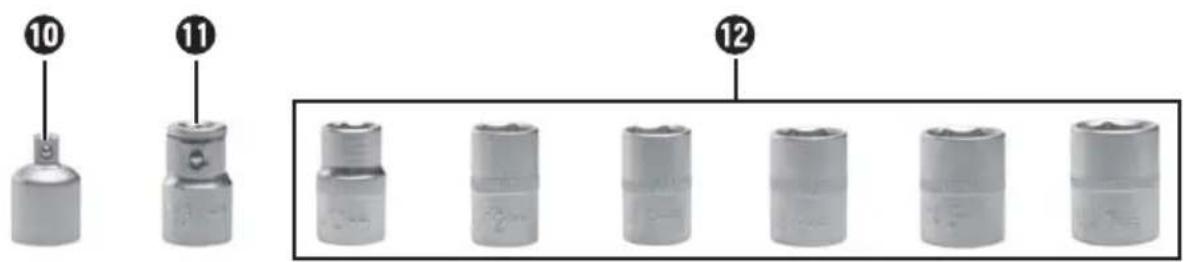

10 3/8" to 1/4" adapter sleeve
11 3/8" to hexagon bit holder adapter sleeve
12 Spanner sockets (10, 12, 13, 14, 15, 17 mm)

Package contents

1 PAR 10.8 A1 cordless ratchet
1 PAR 10.8 A1-1 battery pack
1 PAR 10.8 A1-2 high-speed battery charger
1 3/8" to 1/4" adapter sleeve
1 3/8" to hexagon bit holder adapter sleeve
6 Spanner sockets (10, 12, 13, 14, 15, 17 mm)
1 carrying case
1 operating instructions

Technical data

Cordless ratchet: PAR 10.8 A1

Rated voltage: 10.8 V

Idle speed: n 220 rpm

Max. torque: 45 Nm

Square drive: 3/8"

Battery: PAR 10.8 A1-1

Type: LITHIUM

Rated voltage: 10.8 V ---

Capacity: 1.5 Ah

High-speed battery charger: PAR 10.8 A1-2 INPUT:

Rated voltage: 230-240 V \~, 50 Hz

Power consumption: 32 W

OUTPUT:

Rated voltage: 12.6 V ---

Charging current: 1.8 A

Charging time: approx. 60 min

Fuse (internal): 2 A T2A

Protection class: II/回

Noise and vibration data:

Measured values for noise determined in accordance with EN 60745. The A-rated noise level of the power tool is typically as follows:

Sound pressure level: 82.37 dB(A)

Sound power level: 93.37 dB(A)

Uncertainty K: 3 dB

Vibration values (vector total of three directions) determined in accordance with EN 60745

Work mode: Vibration emission value

$$ \alpha_ {h} = 2. 3 9 0 \mathrm{m} / \mathrm{s} ^ {2} $$

$$ \text { Uncertainty } K = 1. 5 \mathrm{m} / \mathrm{s} ^ {2} $$

ear protection!

NOTE

The vibration level specified in these instructions has been measured in accordance with the standardised measuring procedure specified in EN 60745 and can be used to make equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate.

WARNING!

The vibration level varies in accordance with the use of the power tool and may be higher than the value specified in these instructions in some cases. There is a risk of underestimation of the vibration load if the power tool is used regularly in this manner. Try to keep the vibration load as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

eral Power Tool Safety Warnings

WARNING!

▶ Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure that the power tool has been switched off before you connect it to the power supply and / or the battery, pick it up or carry it. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use a power tool whose switch is defective. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5. Use and handling of the cordless electrical power tool

a) Charge a rechargeable battery unit using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used.

b) Only the rechargeable battery units supplied are to be used with the power tools. The use of other rechargeable battery units may lead to the danger of injury or fire.

c) When they are not being used, store rechargeable battery units away from paperclips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in in heat damage or fire.

d) Fluid may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.

CAUTION! RISK OF EXPLOSION!

Never charge non-rechargeable batteries!

t the rechargeable battery from heat, for example from continuous solar irradiation, fire, water and moisture. There is a risk of explosion.

6. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety guidelines for battery chargers

This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Children must not use the appliance as a plaything. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

This charger is suitable for indoor use only.

WARNING!

■ Never operate the charger with a damaged power cord or power plug. Damaged power cords can result in danger to life due to electric shock.

Appliance-specific safety guidelines for cordless ratchets

■ Hold the appliance using the insulated handle areas if you are carry out any work during which the attached tool could contact hidden power cables. Contact with a live cable may also cause metal parts of the appliance to become live and may result in an electric shock.
- Secure the workpiece. A workpiece securely held by a clamping device or vice is much safer than one held in your hand.
- Hold the power tool firmly. High reaction moments can occur for short periods while tightening and loosening bolts.

■ Switch the power off immediately if the tool being used blocks. Always be prepared for high reaction moments which can cause kickback.
■ While maintenance the appliance, always remove the battery pack of the appliance. This prevents the power tool from starting up unintentionally.
■ CAUTION, POWER CABLES! DANGER!

Ensure that you are not likely to contact power, gas or water supply lines when you are working with the power tool.

Original accessories/auxiliary equipment

■ Use only the additional equipment and accessories specified in the operating instructions. Using attachments or accessory tools other than those recommended in the operating instructions can lead to a risk of injury.

Before first use

Removing/charging/inserting the battery pack

NOTE

The battery is supplied partially charged. Before first use, charge the battery in the charger for at least 1 hour. This guarantees full battery power. You can charge the lithium-ion battery at any time without shortening its service life. Interrupting the charging process does not damage the battery.

CAUTION!

▶ Always unplug the appliance before you remove the battery pack from or connect the battery pack to the charger.
■ Never charge the battery pack when the ambient temperature is below 10^ C or above 40^ C.
To remove the battery pack, press the release button ③ and pull the battery pack ④ out of the appliance.
◆ Insert the battery pack ④ into the high-speed charger ⑦
◆ Insert the mains plug into the mains power socket. The control LED ⑨ will light up red.
The green charging status indicator LED shows you when the charging process is complete and the battery pack 4 ready for operation.
◆ Insert the battery pack④ back into the appliance.
■ Never recharge a battery pack again immediately after rapid charging. This could overcharge the battery pack, thus reducing the lifespan of the battery and charger.
You should always switch the high-speed charger off for at least 15 minutes between successive charging processes. Simply disconnect the power plug from the mains power socket.

Checking the battery charge level

If the appliance is switched on, the status or residual power is displayed as follows in the battery status indicator ②:

RED/ORANGE/GREEN = maximum charge/performance

RED/ORANGE = medium charge/performance

RED = low charge - charge the battery

Using the adapter sleeve

The cordless ratchet is fitted with a 3/8" drive shaft 6.

If you wish to use spanner sockets with a 1/4" socket, push the adapter sleeve onto the drive shaft before use.

If you wish to use bit inserts, push the adapter sleeve 11 onto the drive shaft 6 before use.

Initial use

Switching on and off

Switching on:

◆ To start the appliance, press the ON/OFF switch 5nd keep it pressed in.

Switching off:

◆ Release the appliance's ON/OFF switch ^5 to switch off the appliance.

Changing the direction of rotation

You can change the ratchet rotation direction by turning the rotation direction switch ①b the left or right.

Maintenance and cleaning

NING! RISK OF INJURY! Always switch the appliance off and remove the battery before carrying out any work on the appliance.

The cordless ratchet is maintenance-free.

■ The appliance must always be kept clean, dry and free from oil or grease.

■ Never allow liquids to get into the appliance.

■ Use a soft, dry cloth to clean the housing. Never use petrol, solvents or cleansers which can damage plastic.

If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The optimum storage climate is cool and dry.

NOTE

▶ You can order spare parts using our service hotline.

Warranty

You are provided a 3-year warranty on this appliance, valid from the date of purchase. This appliance has been manufactured with care and inspected meticulously prior to delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact your Customer Service unit by telephone. This is the only way to guarantee free return of your merchandise.

The warranty only covers claims for material and manufacturing defects, not for damage sustained during carriage, components subject to wear and tear or damage to fragile components such as switches or batteries. This appliance is intended solely for private use and not for commercial purposes.

The warranty shall be deemed void in the case of misuse or improper handling, use of force or modifications which have not not carried out by one of our authorised Service centres. Your statutory rights are not restricted by this warranty.

The warranty period is not extended in consequence of repairs carried out under the warranty. This also applies to replaced and repaired components. Any damage or defects present at the time of purchase must be reported immediately after unpacking, but no later than two days after the date of purchase. Repairs carried out after expiry of the warranty period shall be subject to charge.

Service

WARNING!

▶ Have the power tool repaired by the Service centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.

▶ Always ensure that the power plug or the mains cable is replaced only by the manufacturer of the appliance or by an approved customer service provider. This will ensure that the safety of the appliance is maintained.

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 110045

Hotline availability:

Monday to Friday 08:00 - 20:00 (CET)

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Disposal

ckaging is made from environmen- tally friendly material and can be disposed of at your local recycling plant.

dispose of power tools in your normal household waste!

European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environmentally compatible manner.

dispose of batteries in your normal domestic waste!

Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Take the battery pack and/or appliance to a nearby collection facility.

Please consult your local authorities regarding suitable disposal of worn out power tools/battery packs.

Translation of the original Conformity Declaration

We, KOMPERNASS HANDELS GMBH, documents officer: Mr. Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:

Machinery Directive (2006/42/EC)

EC Low Voltage Directive (2006/95/EC)

EMC (Electromagnetic Compatibility) (2004/108/EC)

RoHS Directive (2011/65/EU)

Applied harmonised standards:

EN 60745-1:2009+A11

EN 60745-2-2:2010

EN 55014-1:2006+A1+A2

EN 55014-2:1997+A1+A2

EN 60335-2-29:2004+A2:10

EN 62233:2008

EN 60335-1:2012+A11:14

EN 61000-3-2:2006+A1:2009+A2:2009

EN 61000-3-3:2013

Type/appliance designation:

PAR 10.8 A1 cordless ratchet

Year of manufacture: 02 - 2015

Serial number: IAN 110045

Bochum, 02/02/2015

Seddy Fussel

Semi Uguzlu

- Quality Manager -

The right to effect technical changes in the context of further development is reserved.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND / GERMANY

www.kompernass.com
