Product Type	Indoor air temperature and humidity sensor with display
Brand	Homematic IP
Model	HmIPSTHD
Dimensions (without frame)	55 x 55 x 23.5 mm
Dimensions (with frame)	86 x 86 x 25 mm
Power supply	2 x 1.5 V LR03/Micro/AAA batteries
Battery life	2 years (typical)
Power consumption	20 mA max.
Protection rating	IP20
Ambient temperature	5 to 35 °C
Radio frequency band	868.0 – 868.6 MHz / 869.4 – 869.65 MHz
Max. radio transmission power	10 dBm
Radio range (open field)	180 m
Main functions	Temperature and humidity measurement, LCD display, radio transmission, open window detection, low battery indication
Display	LCD screen with temperature, humidity and symbols (open window, battery, radio)
Mounting	On wall (adhesive or screws) or on flush-mounted box, compatible with frames from multiple manufacturers
Package contents	Sensor, interchangeable frame, mounting plate, 2 adhesive strips, 2 screws, 2 wall plugs, 2 batteries, instruction manual
Maintenance and cleaning	Clean with a soft, dry or slightly damp cloth (warm water), without solvent
Safety	Do not open, do not expose to moisture, do not dispose of batteries in fire, observe polarity
Repairability	Simple battery replacement, factory reset possible, no special maintenance required

Frequently Asked Questions - HmIPSTHD Homematic IP

How to install the Homematic IP temperature and humidity sensor?

Attach the mounting plate to the wall using the adhesive strips or screws provided. Snap on the interchangeable frame, then insert the sensor into the frame ensuring the locking tabs engage.

How to pair the sensor with the Homematic IP app?

Open the app, select 'Device learning'. Remove the insulating strip from the battery compartment or briefly press the system button. The device appears in the app; confirm by entering the last 4 digits of the SGTIN number or scanning the QR code.

What do the LED flashes mean?

A long green light confirms a successful operation, red indicates a failure. An orange flash means radio transmission. An orange flash after a green or red message indicates low battery. Refer to the code table in the manual.

How to replace the sensor batteries?

Remove the sensor from the frame by grasping it by the sides. Turn it over and replace both batteries with new LR03/Micro/AAA batteries, observing polarity. Reinsert the sensor until the tabs click into place.

Can the sensor be mounted on a flush-mounted box?

Yes, use the holes on the mounting plate to fix it on a flush-mounted box or installation box. Ensure no bare wires are present inside the box.

How to restore factory settings?

Remove the sensor from the frame, take out one battery, reinsert it while holding the system button for 4 seconds until rapid orange flashing. Release, press again for 4 seconds until green light, then release. The device restarts.

What is the radio range of the sensor?

The typical range in open field is 180 meters. In buildings, it may be reduced due to obstacles and interference.

Can the sensor be integrated with other systems?

It works exclusively with the Homematic IP system via the HmIP radio protocol. It can be used with the Homematic IP app or a CCU3.

How to clean the sensor?

Use a soft, dry, lint-free cloth. For stubborn dirt, slightly dampen the cloth with warm water. Never use solvents or abrasives.

What to do if the LED flashes red?

A red flash indicates a failed operation or that the duty cycle limit is reached. Wait an hour and try again. If the problem persists, check that the receiver is reachable and free of defects.

USER MANUAL HmIPSTHD Homematic IP

EN Installation and operating manual

Line drawing of a hand inserting a device into a wall-mounted panel (no text or symbols)

Abbildung 3

Line drawing of a hand pressing a button on an electrical wall socket (no text or symbols)

Abbildung 4

Diagram of a mechanical or electrical component with labeled pins and internal components, including arrows and dots indicating movement or assembly.

Abbildung 7

Line drawing of hands inserting a device into a wall-mounted case (no text or symbols)

Abbildung 8

Hand holding a battery pack with arrows indicating direction of movement (no text or symbols)

Abbildung 9

1 Package contents....16
2 Information about this manual....16
3 Hazard information ....16
4 Function and device overview....17
5 General system information ....18
6 Start-up....18

6.1 Pairing 18
6.2 Installation....19

6.2.1 Adhesive strip mounting 19
6.2.2 Screw mounting....20
6.2.3 Mounting on flush-mounted boxes....21
6.2.4 Installation in multiple combinations 22

7 Changing the batteries 22
8 Troubleshooting....23

8.1 Low battery 23
8.2 Command not confirmed 23
8.3 Duty Cycle 23
8.4 Error codes and flashing sequences 24

9 Restoring factory settings 25
10 Maintenance and cleaning....25
11 General information about radio operation 26
12 Disposal.... 26
13 Technical specifications....27

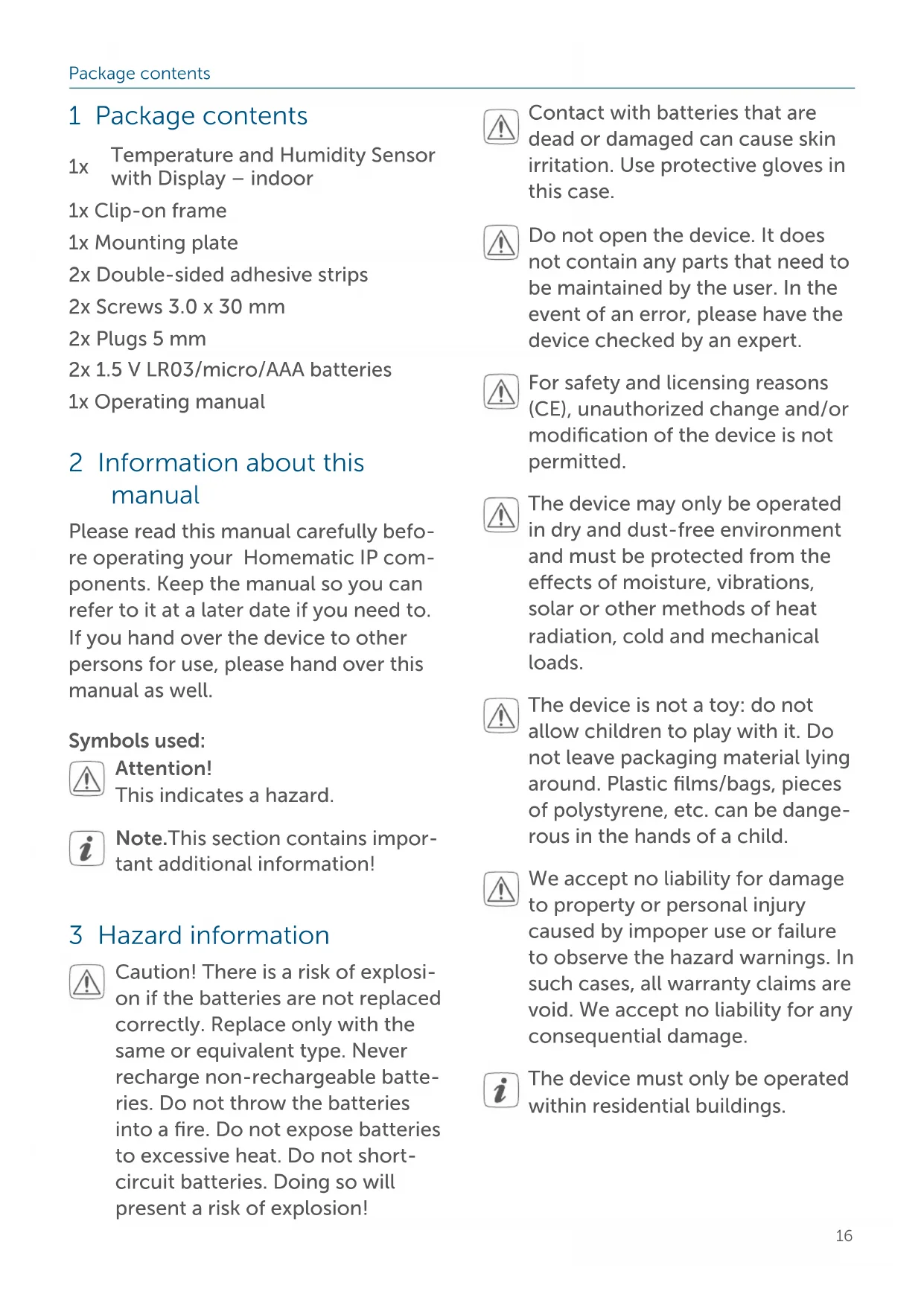

1 Package contents

1x Temperature and Humidity Sensor with Display – indoor
1x Clip-on frame
1x Mounting plate
2x Double-sided adhesive strips
2x Screws 3.0 x 30 mm
2x Plugs 5 mm
2x 1.5 V LR03/micro/AAA batteries
1x Operating manual

2 Information about this manual

Please read this manual carefully before operating your Homematic IP components. Keep the manual so you can refer to it at a later date if you need to. If you hand over the device to other persons for use, please hand over this manual as well.

Symbols used:

Attention!

This indicates a hazard.

Note. This section contains important additional information!

3 Hazard information

Caution! There is a risk of explosion if the batteries are not replaced correctly. Replace only with the same or equivalent type. Never recharge non-rechargeable batteries. Do not throw the batteries into a fire. Do not expose batteries to excessive heat. Do not short-circuit batteries. Doing so will present a risk of explosion!

Contact with batteries that are dead or damaged can cause skin irritation. Use protective gloves in this case.

Do not open the device. It does not contain any parts that need to be maintained by the user. In the event of an error, please have the device checked by an expert.

For safety and licensing reasons (CE), unauthorized change and/or modification of the device is not permitted.

The device may only be operated in dry and dust-free environment and must be protected from the effects of moisture, vibrations, solar or other methods of heat radiation, cold and mechanical loads.

The device is not a toy: do not allow children to play with it. Do not leave packaging material lying around. Plastic films/bags, pieces of polystyrene, etc. can be dangerous in the hands of a child.

We accept no liability for damage to property or personal injury caused by improper use or failure to observe the hazard warnings. In such cases, all warranty claims are void. We accept no liability for any consequential damage.

The device must only be operated within residential buildings.

Using the device for any purpose other than that described in this operating manual does not fall within the scope of intended use and will invalidate any warranty or liability.

4 Function and device overview

The Homematic IP Temperature and Humidity Sensor with Display – indoor measures the temperature and humidity in the room. The measured values are shown on the integrated LC display. You can select between the temperature and humidity. Both values can also be displayed alternately. In addition, the measured values are transferred cyclically to the Homematic IP Access Point as well as to the app and help to regulate the room climate. Take a look at the homescreen of the app and you will be informed about the room temperature as well as the current humidity of the corresponding room. Via the display and the app, the current measured values as well as open windows, empty batteries and radio communication errors are indicated. Thanks to the radio communication and battery operation, the device is highly flexible where mounting and selecting a mounting location are concerned. The device is mounted and removed very easily with the supplied clip-on frame using screws or adhesive strips. It is compatible with a number of different surfaces including furniture, brick walls, tiles or glass. It is also possible to integrate the temperature and humidity sensor into existing switches of leading manufacturers.

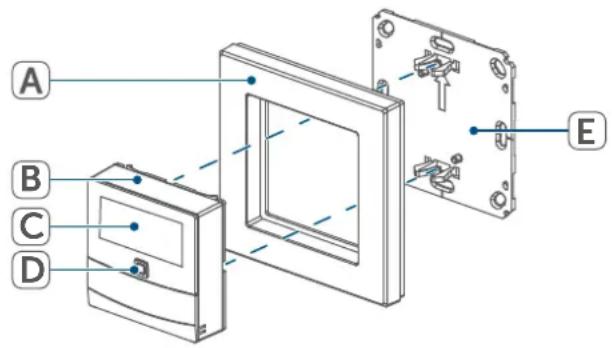

Device overview:

(A) Clip-on frame
(B) Sensor (electronic unit)
(C) Display
(D) System button (pairing button and LED)
(E) Mounting plate

A B C D E

Figure 1

Display overview:

°C Actual temperature
% Humidity
Open window symbol
Battery symbol
Radio transmission

88.8°C %

Figure 2

5 General system information

This device is part of the Homematic IP smart home system and works with the Homematic IP radio protocol. All devices of the system can be configured comfortably and individually with the Homematic IP smartphone app. Alternatively, you can operate the Homematic IP devices via the Homematic Central Control Unit CCU3 or in connection with various partner solutions. The available functions provided by the system in combination with other components are described in the Homematic IP User Guide. All current technical documents and updates are provided at www.homematic-ip.com.

6 Start-up

6.1 Pairing

Please read this entire section before starting the pairing procedure.

First set up your Homematic IP Access Point via the Homematic IP app to enable operation of other Homematic IP devices within your system. For further information, please refer to the operating manual of the Access Point.

For more information on teaching and setting up the wall thermostat using a CCU3, please refer to the WebUI manual on our homepage at www.homematic-ip.com.

To integrate the temperature and humidity sensor into your system and enable it to communicate with other Homematic IP devices, you must pair the device to your Homematic IP Access Pointfirst.

To pair the temperature and humidity sensor, please proceed as follows:

• Open the Homematic IP app on your smartphone.
• Select the menu item "Pair device".

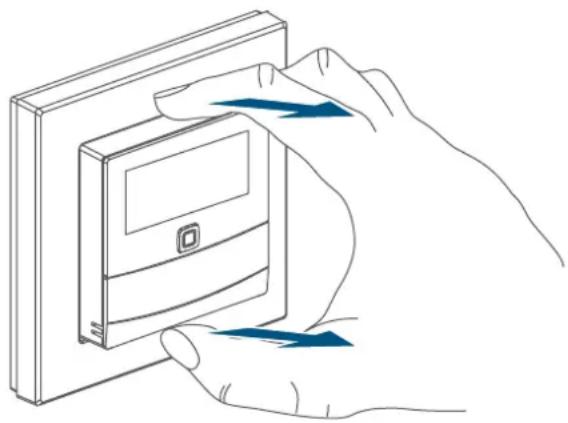

• To remove the sensor (B) from the frame, take hold of the sides of the sensor and pull it out.

Line drawing of a hand inserting a device into a wall-mounted panel (no text or symbols)

Figure 3

• Turn over the sensor.
• Remove the insulation strip from the battery compartment. Pairing mode remains activated for 3 minutes.

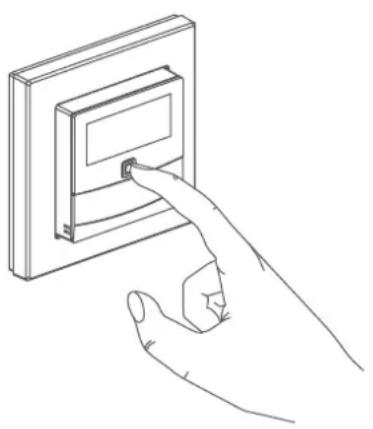

You can manually start the pair mode for another 3 minutes by pressing the system button (D) shortly.

Line drawing of a hand inserting a small component into an electrical outlet (no text or symbols)

Figure 4 Your device will automatically appear in the Homematic IP App.

• To confirm, please enter the last four digits of the device number (SGTIN) in your app or scan the QR code. Therefore, please see the sticker supplied or attached to the device.
• Please wait until pairing is completed.
• If pairing was successful, the LED lights up green. The device is now ready for use.
• If the LED lights up red, please try again.
• Please select in which application you want to use the device.
• Allocate the device to a room and give the device a name.

6.2 Installation

Please read this entire section before starting to mount the device.

You can use the supplied clip-on frame (A) to mount the temperature and humidity sensor or easily integrate it into an existing switch (see „6.2.4 Installation in multiple combinations“ on page 22).

If you want to mount the temperature and humidity sensor with the supplied clip-on frame, you can use

• the supplied double-sided adhesive strips or
• the supplied screws
  to fix it to a wall.

You can also mount the temperature and humidity sensor on a flush-mounting box.

6.2.1 Adhesive strip mounting

For mounting the assembled device with adhesive strips, please proceed as follows:

- Choose a site for installation.

Make sure that the mounting surface is smooth, solid, non-disturbed, free of dust, grease and solvents and not too cold to ensure ong-time adherence.

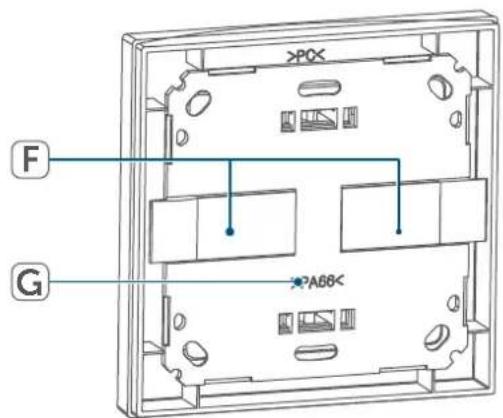

- Fix the adhesive strips (F) on the back side of the mounting plate (G) in the provided area. You should be able to read the letters on the back side.

F G APOX A68

Figure 5

• Remove the protective film from the adhesive strips.
• Press the assembled temperature and humidity sensor with the back side to the wall in the position where it should subsequently be attached.

6.2.2 Screw mounting

For mounting the temperature and humidity sensor with the supplied screws, please proceed as follows:

- Choose a site for installation.

Make sure that no electricity or similar lines run in the wall at this location!

- Position the mounting plate (G) on the desired site on the wall. Make sure that the arrow on the mounting plate is pointing upwards.

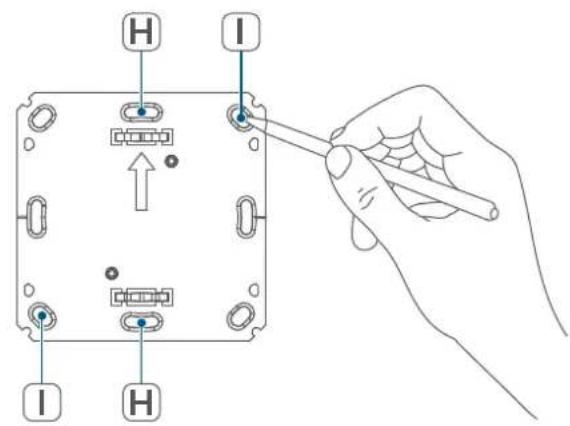

- Use a pen to mark the positions of bore holes (I) (diagonally opposite) in the mounting plate on the wall.

H I I H

Figure 6

• Now drill the bore holes.

If you are working with a stone wall, drill the marked two 5 mm holes and insert the plugs supplied. If you are working with a wooden wall, you can pre-drill 1.5 mm holes to make screws easier to insert.

- Use the supplied screws and plugs (J) to fasten the mounting plate to the wall.

Diagram of a device panel with labeled connectors and directional arrows indicating movement or orientation.

Figure 7

- Attach the clip-on frame (A) to the mounting plate.

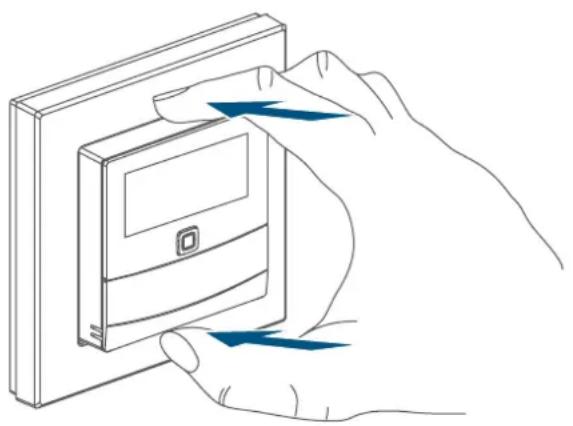

- Place the sensor (B) back into the frame. Make sure that the clips on the mounting plate latch into the openings on the sensor.

Line drawing of a hand inserting a device into a wall-mounted panel (no text or symbols)

Figure 8

6.2.3 Mounting on flush-mounted boxes

You can mount the temperature and humidity sensor on flush-mounting/installation boxes using the holes (H). ( see figure).

If the device is mounted to a flush-mounting box, there may be no open conductor ends.

If changes or works have to be made on the house installation (e.g. extension, bypass of switch-or socket inserts) or the low-voltage distribution for mounting or installing the device, the following safety instruction must be considered:

Please note! Only to be installed by persons with the relevant electro-technical knowledge and experience!*

Incorrect installation can endanger

• your own life,
• and the lives of other users of the electrical system.

Incorrect installation also means that you are running the risk of serious damage to property, e.g. because of a fire. You may be personally liable in the event of injuries or damage to property.

Consult an electrician!

*Specialist knowledge required for installation:

The following specialist knowledge is particularly important during installation:

• The "5 safety rules" to be used: Disconnect from mains; Safeguard from switching on again; Check that system is deenergised; Earth and short circuit; Cover or cordon off neighbouring live parts;
• Select suitable tool, measuring equipment and, if necessary, personal safety equipment;
• Evaluation of measuring results;
• Selection of electrical installation material for safeguarding shut-off conditions;
  • IP protection types;
  • Installation of electrical installation material;
• Type of supply network (TN system, IT system, TT system) and the resulting connecting conditions (classical zero balancing, protective earthing, required additional measures etc.).

6.2.4 Installation in multiple combinations

You can mount the temperature and humidity sensor with the attachment frame (A) provided or use it with 55 mm frames of other manufacturers as well as integrate the electronic unit (B) into a multi-gang frame. You can flexibly fix the mounting plate (G) to the wall using adhesive strips or screws. For mounting with multiple combinations, make sure that the mounting plate of the temperature and humidity sensor is seamlessly aligned to the already fixed mounting plate/retaining ring.

The temperature and humidity sensor is designed to fit into 55 mm frames supplied by the following manufacturers:

Manufacturer	Frame
Berker S.1, B.1,	B.3, B.7 glass
ELSO Joy
GIRA	System 55, Standard 55, E2, E22, Event, Esprit
merten	1-M, Atelier-M, M-Smart,M-Arc, M-Star,M-Plan
JUNG	A 500, AS 500, A plus, A creation

7 Changing the batteries

If an empty battery is displayed via the app or the device (see „8.4 Error codes and flashing sequences“ on page 24), replace the used batteries by two new LR03/micro/AAA batteries. You must observe the correct battery polarity.

To replace the batteries of the temperature and humidity sensor, please proceed as follows:

- Once mounted, the sensor can easily be pulled out of the frame (A) or removed from the mounting plate (D). To remove the sensor (B) from the frame, take hold of the sides of the sensor and pull it out. (→see figure). You do not need to open the device.

• Turn the sensor over to remove the batteries.

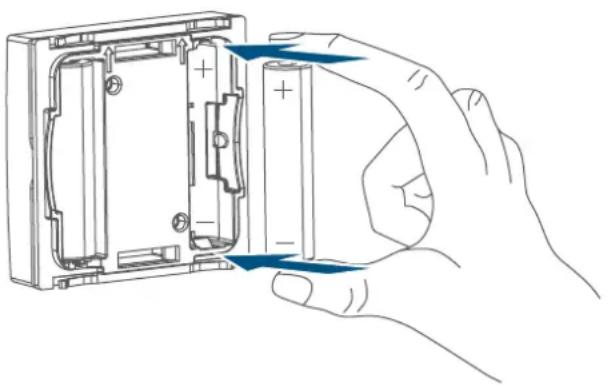

• Insert two new 1.5 V LR03/micro/batteries into the battery compartment, making sure that you insert them the right way round.

Illustration of hands installing a battery pack into a housing (no text or symbols)

Figure 9

• Put the sensor back into the frame. Make sure that the clips on the mounting plate latch into the openings on the sensor.
• Please pay attention to the flashing signals of the device LED while inserting the batteries (see „8.4 Error codes and flashing sequences“ on page 24).

Once the batteries have been inserted, the temperature and humidity sensor will perform a self-test/restart (approx. 2 seconds). Afterwards, initialisation is carried out. The LED test display will indicate that initialisation is complete by lighting up orange and green.

8 Troubleshooting

8.1 Low battery

Provided that the voltage value permits it, the temperature and humidity sensor will remain ready for operation also if the battery voltage is low. Depending on the particular load, it may be possible to send transmissions again repeatedly, once the batteries have been allowed a brief recovery period. If the voltage drops too far during transmission, this will be displayed on the device or via the Homematic IP app (see „8.4 Error codes and flashing sequences“ on page 24). In this case, replace the empty batteries by two new batteries (see „7 Changing the batteries“ on page 22).

8.2 Command not confirmed

If at least one receiver does not confirm a command, the device LED lights up red at the end of the failed trans-

mission process. The failed transmission may be caused by radio interference (see „11 General information about radio operation“ on page 26).

This may be caused by the following:

• Receiver cannot be reached.
• Receiver is unable to execute the command (load failure, mechanical blockade, etc.).
• Receiver is defective.

8.3 Duty Cycle

The duty cycle is a legally regulated limit of the transmission time of devices in the 868 MHz range. The aim of this regulation is to safeguard the operation of all devices working in the 868 MHz range.

In the 868 MHz frequency range we use, the maximum transmission time of any device is 1% of an hour (i.e. 36 seconds in an hour). Devices must cease transmission when they reach the 1% limit until this time restriction comes to an end. Homematic IP devices are designed and produced with 100% conformity to this regulation.

During normal operation, the duty cycle is not usually reached. However, repeated and radio-intensive pair processes mean that it may be reached in isolated instances during start-up or initial installation of a system. If the duty cycle is exceeded, this is indicated by one long flashing of the device LED, and may manifest itself in the device temporarily working incorrectly. The device starts working correctly again after a short period (max. 1 hour).

8.4 Error codes and flashing sequences

Flashing code Meaning Solution
Short orange flashing	Radio transmission/attempting to transmit/data transmission	Wait until the transmission is completed.
1x long green lighting Transmission confirmed		You can continue operation.
1x long red lighting Transmission failed		Please try again (see „8.2 Command not confirmed" on page 23).
Short orange lighting (after green or red confirmation)	Batteries empty	Replace the batteries of the device (see „7 Changing the batteries" on page 22).
Short orange flashing (every 10 s)	Pair mode active	Please enter the last four numbers of the device serial number to confirm (see „6.1 Pairing" on page 18).
1x long red lighting	Transmission failed or duty cycle limit is reached	Please try again (see „8.2 Command not confirmed" on page 23) or (see „8.3 Duty Cycle" on page 23).
6x long red flashing Device	defective	Please see your app for error message or contact your retailer.
1x orange and 1 x green lighting (after inserting batteries)	Test display	Once the test display has stopped, you can continue.

9 Restoring factory settings

The factory settings of the device can be restored. If you do this, you will lose all your settings.

To restore the factory settings of the temperature and humidity sensor please proceed as follows:

• To remove the sensor (B) from the frame, take hold of the sides of the sensor and pull it out. (→see figure).
• Remove one battery.
• Insert the battery ensuring that the polarity is correct while pressing ( see figure) and holding down the system button (D) for 4s at the same time, until the LED will quickly start flashing orange ( see figure).
• Release the system button again.
• Press and hold down the system button again for 4 seconds, until the status LED lights up green.
• Release the system button to finish the procedure.

The device will perform a restart.

10 Maintenance and cleaning

The device does not require you to carry out any maintenance other than replacing the battery when necessary. Enlist the help of an expert to carry out any maintenance or repairs.

Clean the device using a soft, lint-free cloth that is clean and dry. You may dampen the cloth a little with lukewarm water in order to remove more stubborn marks. Do not use any detergents containing solvents, as they could corrode the plastic housing and label.

11 General information about radio operation

Radio transmission is performed on a non-exclusive transmission path, which means that there is a possibility of interference occurring. Interference can also be caused by switching operations, electrical motors or defective electrical devices.

The range of transmission within buildings can differ greatly from that available in the open air. Besides the transmitting power and the reception characteristics of the receiver, environmental factors such as humidity in the vicinity have an important role to play, as do on-site structural/screening conditions.

eQ-3 AG, Maiburger Straße 29, 26789 Leer, Germany hereby declares that the radio equipment type Homematic IP HmIP-STHD, HmIP-STHD-A is compliant with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.homematic-ip.com

12 Disposal

Instructions for disposal

This symbol means that the device and the batteries or accumulators must not be disposed of with household waste, the residual waste bin or the yellow bin or yellow bag. For the protection of health and the environment, you must take the product, all electronic parts included in the scope of delivery, and the batteries to a

municipal collection point for old electrical and electronic equipment to ensure their correct disposal. Distributors of electrical and electronic equipment or batteries must also take back obsolete equipment or batteries free of charge.

By disposing of it separately, you are making a valuable contribution to the reuse, recycling and other methods of recovery of old devices and old batteries.

You must separate any old batteries and accumulators of old electrical and electronic devices from the old device if they are not enclosed by the old device before handing it over to a collection point and to dispose of them separately at the local collection points. Please also remember that you, the end user, are responsible for deleting personal data on any old electrical and electronic equipment before disposing of it.

Information about conformity

The CE mark is a free trademark that is intended exclusively for the authorities and does not imply any assurance of properties.

For technical support, please contact your retailer.

13 Technical specifications

Device short description: HmIP-STHD, HmIP-STHD-A

Supply voltage: 2x 1.5 V LR03/micro/AAA

Current consumption: 20 mA max.

Battery life: 2 years (typ.)

Degree of protection: IP20

Ambient temperature: 5 to 35 °C

Dimensions (W x H x D):

Without frame: 55 x 55 x 23.5 mm

Including frame: 86 x 86 x 25 mm

Weight: 65 g (including batteries)

Radio frequency band: 868.0 - 868.6 MHz

869.4 - 869.65 MHz

Maximum radiated power: 10 dBm

Receiver category: SRD category 2

Typ. open area RF range: 180 m

Duty cycle: < 1 % per h/< 10 % per h

Method of operation: Type 1

Degree of pollution: 2

Subject to technical changes.

Table des matières

Line drawing of hands inserting a CD into a wall-mounted device (no text or symbols)

Figure 3

Line drawing of a hand inserting a small component into a wall-mounted device (no text or symbols)

Figure 4

F G >POX >AB8C

Figure 5

Diagram showing a hand holding a pen inserted into a device panel with labeled ports H and I, indicating a switch or adjustment.

Figure 6

Diagram of a device panel with labeled connectors and mounting points, showing directional arrows and component layout.

Figure 7

Line drawing of a hand inserting a device into a wall-mounted panel (no text or symbols)

Figure 8

Line drawing of hands installing a battery component into a housing (no text or symbols)

Figure 9

Poids : 65 g (piles comprises)

Line drawing of hands installing a CD-ROM into a wall-mounted device (no text or symbols)

Figura 3

Line drawing of a hand inserting a small component into a wall-mounted panel (no text or symbols)

Figura 4

F G >P0X >A88

Figura 5

Diagram of a device panel with labeled connectors and directional arrows indicating movement or force

Figura 7

Line drawing of a hand inserting a device into a wall-mounted panel (no text or symbols)

Figura 8

Hand holding a battery pack with arrows indicating direction of movement (no text or symbols)

Figura 9

Line drawing of a hand inserting a CD into a wall-mounted device (no text or symbols)

Figura 3

Line drawing of a hand inserting a small component into a wall-mounted device (no text or symbols)

Figura 4

F G >P0X >PAB6C

Figura 5

Diagram showing a hand inserting pins into an electronic device with labels H and I, indicating a component or connection.

Figura 6

Diagram of a device panel with labeled connectors and directional arrows indicating movement or orientation.

Figura 7

Line drawing of hands installing a wall-mounted device with blue arrows indicating motion (no text or symbols)

Figura 8

Line drawing of hands assembling a battery pack with arrows indicating direction (no text or symbols)

Figura 9

Dimensioni (L x A x P):

Line drawing of a hand inserting a device into a wall-mounted panel (no text or symbols)

Afbeelding 3

Line drawing of a hand inserting a small component into an electrical wall socket (no text or symbols)

Afbeelding 4

F G >P0X >P0B

Afbeelding 5

Diagram of a device panel with labeled connectors and mounting points, showing directional arrows and component layout.

Afbeelding 7

Line drawing of hands inserting a CD into a wall-mounted device (no text or symbols)

Afbeelding 8

Illustration of hands installing a battery component into a housing (no text or symbols)

Afbeelding 9

Free download of the Homematic IPapp!

Blue QR code image, scannable for digital content retrieval

Download on the

App Store

Blue QR code image, scannable for digital content retrieval

GET IT ON

Google Play

Bevollmächtigter des Herstellers: Manufacturer's authorised representative

eQ-3 AG

Maiburger Straße 29

26789 Leer / GERMANY

www.eQ-3.de
