Operating Instructions WMV Plus

Inserting the Battery:

Remove the battery cover and insert a new battery (9V DC alkaline block battery). Make sure you connect the poles correctly. When the low battery alert appears in the display window appears, the battery must be replaced with a new one. When disposing of used batteries, please observe your local legal stipulations.

Stud locator

1. Turn the selector switch left to 14 , to select the function > stud locator.

1. Set the device on the wall. Push and hold the on button 15 (either on the side or front) and wait until the LCD-display shows 00 , which indicates that the calibration is complete and the device is ready to use.

1. Move the device slowly and evenly sideways.

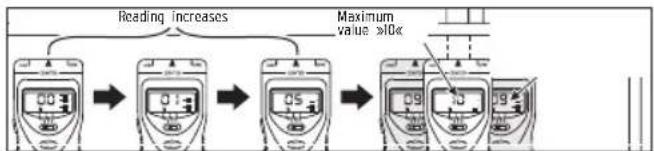

1. Keep moving the detector across the surface until the numbers in the display go up, i.e. 01, 02, 03..., which should be accompanied by a signal tone that speeds up. Stop moving when the numeric values on the display drop again.

1. Move the detector back slowly until the registered value shows the highest number again. Then release the on button 15

1. Mark the location with a pencil.

WMV Plus Operating Instructions

NOTES:

1. The device is not suitable for use on walls or ceilings that are insulated with elements containing metallic fibres or on slab walls and surfaces with thick plastering.
2. It is important to check the location of the stud again through, other readings.
3. The object detected inside the wall can also possibly be an electrical wire, a pipe or something else. For this reason, you should use extreme caution when drilling, sawing or hammering nails since you could hit a pipe or electrical wire. For safety's sake, take other readings in the metal and alternating current modes.
4. Keep your hand away from the device when it is in operation, in order to prevent interference and inaccurate readings.

Detecting Metal

1. Turn the selector switch to the right to 14 to select the function metal

1. Set the device on the wall. Press and hold the on button 15 (either on the side or on the front) and wait until the LCD-display reads 00 , which signals that the calibration is complete and the device is ready to use.

1. Move the device slowly and evenly sideways.

1. Keep moving the detector across the surface until the numbers in the display go up, i.e. 01, 02, 03..., which should be accompanied by a sign tone that speeds up. Stop moving when the numeric values on the display drop again.

Operating Instructions WMV Plus

1. Move the detector back slowly until the registered value shows the highest number again. Then release the on button 15

1. Mark the location with a pencil.

NOTES:

1. The device is not suitable for use on walls or ceilings that are insulated with elements containing metallic fibres or on slab walls and surfaces with thick plastering.
2. The device cannot detect water pipes made of plastics.
3. Electrical wires in insulator pipes made of PVC or metal will be displayed as Metal
4. The depth to which the device can detect metal depends on the type of the material and the size of the object. Larger objects can be detected at greater depths.

Detecting Alternating Current

1. Turn the selector switch to 14 in the middle position, to select the alternating current function.

1. Hold the detector way from the test object and other sources of electricity. Press and hold the on button 15 (either on the side or on the front) and wait until the LCD-display reads 00 , which signals that the calibration is complete and the device is ready to use.

1. the device over the test object, such as electrical outlets, plugs, wires, etc. Increasing numbers in the display i.e. 01, 02, 03... and a more rapid signal tone indicate alternating current. Watch the location of the sensor range

Reduction of sensitivity through repeated calibration

Proceed as in steps 1 and 2 of the particular detector function.

Move the device slowly and evenly sidewise until the numbers in the display go up.

If you are already very close to the object the display - can appear, accompanied by a blinking bar graphic «. If you want to more closely specify the location of the object, you can re-calibrate it by releasing the on button 15 and pressing it again. Wait until the LCD display shows 00 (the sensitivity is reduced).

Keep moving the device slowly in the same direction as before. The display will begin to increase from 00 to higher values until the device has determined the exact position of the object. If needed, this re-calibration can be used multiple times.

Technical Data:

• Power supply: 9 V direct current, alkaline-block-battery (not included)

• Max. detection depth (this can vary depending on composition of the wall and size of the object):

a) Wood: up to 40 mm

b) Alterating current: ca. 30-50 mm (at 230 VAC)

c) Metal: ca. 50-80 mm

• Deactivation: deactivates immediately when the «on« button is released.

C

Disposal

Please dispose of your used electronic devices in an environmentally friendly manner!

Electronic devices do not belong in your household waste. compliant with European Guideline 2002/96/EG concerning

Electrical and Electronic Devices, used electronic devices must be collected separately and taken to a facility for environmentally sound recycling. You can find out about your options for disposing of your used electronic devices from your community or city government.

Improper disposal of batteries can harm the environment! Batteries do not belong in your household waste. They can contain poisonous heavy metals and are subject to treatment as dous waste. For this reason, please take your used batteries to local collection site.

c) Metal: 50-80 mm aprox.

c) Metal: aprox. 50-80 mm

• Desactivacao: Desactivacao imediata ao libertar a tecla de commando.

C

Remoçao

CokpaueHne yBCTBNTelbHOCTn HeoHOKpaTHOJ KaIb6pOBKo

PpOuIntecb KAK npn WARE 1 n 2 COOTBETCTBYIOUeN OyHKcIN ONpeJeHnM MeCToNOJIOKeHn.

MeIeHNO DnraTe DeTeKTop n3 CToPOhB B CToPOHy, Do Tex nop, noKa yKa3aHHbI pe3yIbTat N3MepEnHa CHoBA He NaHET NOHMaTbcS.

EcnBbHaxoNTecb yHe OueHb 6n3Ko K o6beKtU, MoKeT NOBtCByBEOMJIeHne » - «, B cOnpOBoXJdeHn MraIooJero IInHeHoro rpaΦnKa». EcnBbXOTHe OnpedEnItb MeCTO o6BeKta eIe 6nHexe, Bbl MoKeTe CHOBa KaINbPOBaTb YcTPOJCTBO OCBO6OJdeHnEM N HaKaTHEm KlaBnHn UypaBNeHna, 15 . IIOdoXdTe, noka He NoaBHTcYBeOMJIeHn CND OoO (Tenepb YvBCTBntelbHOCTb ChnKeHa).

IocTeHNO DnurAte yctpoiCTBO DaIbwe B TOM JHe HnpaBHeHH, KaK npaHbwe. Pe3yIbTa NaHnHaet YBeNnBuTbcr OTo 00 Do 6OJIe BblcOKoro napametpa, Do Tex nop, noka yctpoiCTBO TOUHO He onpeDEnIO ToHyIO no3nIO o6BeKta. B clyuae Heo6xOIMOCtN, daHHa OBHeHHa KaIIb6pOBka MoKeT HeoDHOKpATHO pImMeHrTcR.

TexHnueckne daHHbIe:

• Pa6oyee HanpJKeHne: 9 B noCToHHoe HanpJKeHne, 6IoUHa8 6aTape8 Alkaline (He BXoDHT B o6bEm nocTabOK)

• MaKc. rIy6nHa paCNo3HabAHnA (no-pa3Homy, B 3aBncmOCTn OT CBOIcTbA CTeHbI n BeInuHbI oBeKeTa):

a)Древсану:do 40 MM

b) Nepemehhoe HapnjaKeHne: npImepHo 30-50 MM (npn 230 VAC)

c)MetaJIJI: npImepH0 50-80 MM

• OTKIIOUeHHe: HEmeJleHHoe OTKIOUeHHe, KaK ToJIbKO Bbl OTNcTINn KnaBnWy ynpaBLeHn.

Ytuln3aun

3neKtponp60pbI Bbl6paCbIBaIOT B COOTBeTCTBUN C yCIOBnAMN OKpykaIoSei cpebl!

3JnKtpoPn6OpbI He OTHocTcK DomaWHeMy Mycopy. Cornacho EbponeckOu npKeTnBE 2002 / 96 / EC o cTapbIX 3JnKtpnuecknx np6opax, n3pacxOdoBaHhble 3JnKtpoPn6OpbI DOJIHHbI CObnpaTbcr OTdJIbHO u 6bITb NODBepRHyTbI NOBtOPHOMy IcNOJIb3OBAHnIO B COOTBetCTBnC OKpykaUoSeI cpeOn. Bbl y3Haete BO3MOJHoCTN O6 yTuIN3aun OTXoOB OTCnyKBwero yCTpOietBa B BaWeM KOMMyHaJIbHOM ynpabLeHHn Hnn MyHnUnaJIntTe.

WMV Plus INctpyKunno 3Kcnnyataa

Batape He OTHOCrKa EKeJHBeHOMy DomaHemy Mycopy. OHN MOryt CoepKaat JIOBnTbe TAgKeIbI MeTaJIbI N NOJLeKaT 06pa6oTke CneOToXoDob. IOnToMy OTaIte N3pacxOdoBaHHbIe AKKymJaTOpHbIe Batape Ha OObecTBHeHHbI pyHKT c6opa Mycopa.
