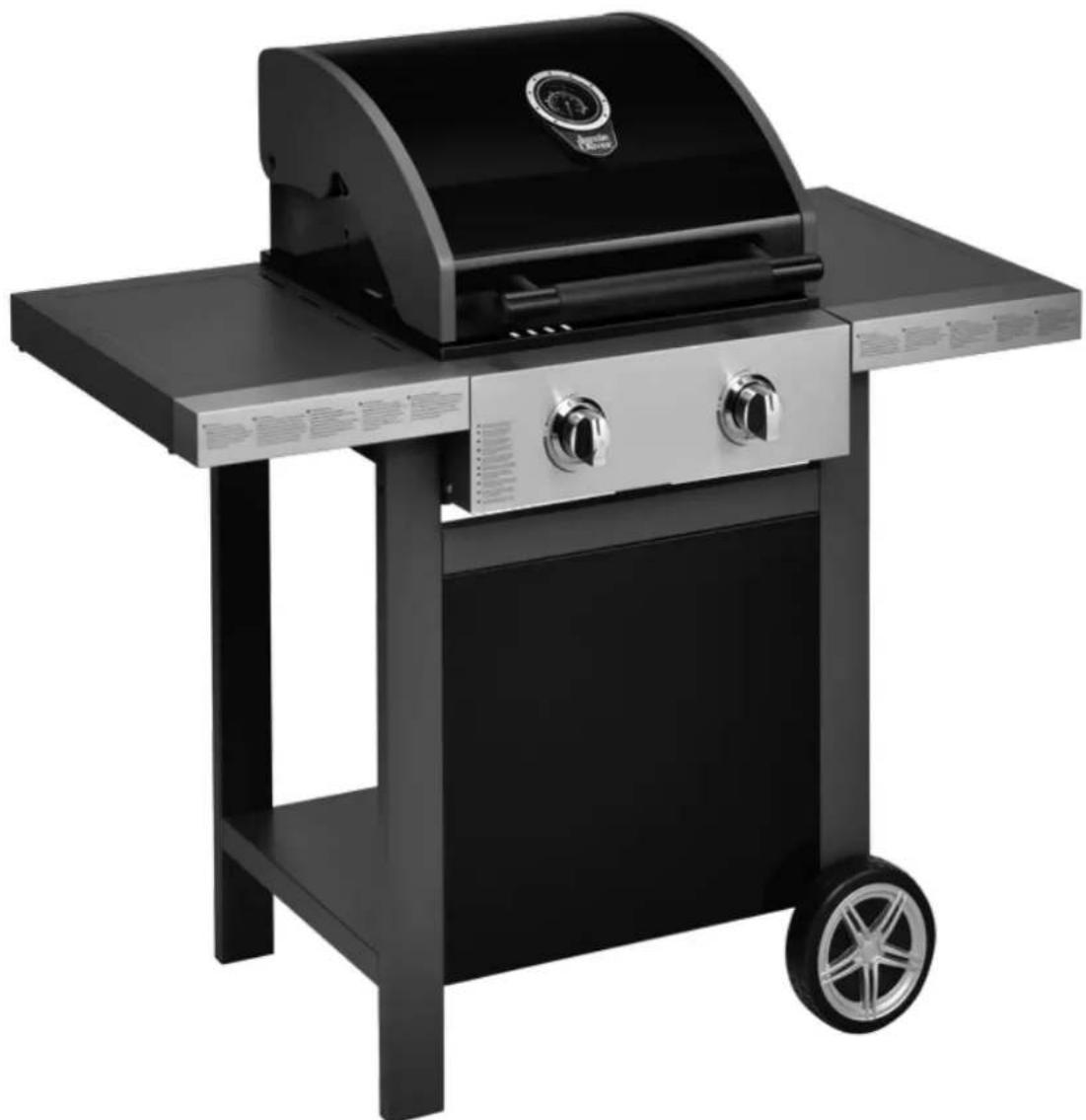

Home 2 - Barbecue Jamie Oliver - Free user manual and instructions

Product Type	Gas Barbecue
Brand	Jamie Oliver
Model	Home 2
Number of Main Burners	2
Side Burner	Yes
Gas Type	Butane, Propane, LPG Mixtures
Gas Pressure	28-30 / 37 / 30 / 50 mbar
Total Heat Output	7.2 kW (515 g/h)
Main Injector Diameter	0.92 mm / 0.92 mm / 0.82 mm / 0.88 mm
Ignition	Integrated Piezo and Manual (match)
Max. Gas Bottle Dimensions	Diameter 310 mm, Height 500 mm
Recommended Pan Diameter for Side Burner	180 - 220 mm
Use	Outdoor Only
Material	Painted steel, plastic parts
Cleaning	Soapy water, soft brush, mild detergent
Burner Warranty	10 years
Chassis Warranty	5 years
Grid Warranty	3 years
Ignition Warranty	2 years
Safety	Emergency shut-off on bottle, marked hot surfaces, wind guard cap
Destination Countries	BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, SK, SI, DK, EE, FI, HU, NL, NO, SE, RO, HR, TR, BG, IS, MT, AT, DE, PL

Frequently Asked Questions - Home 2 Jamie Oliver

What type of gas to use with the Jamie Oliver Home 2 barbecue?

Use butane (28-30 mbar), propane (37 mbar) or an LPG mixture (30, 37 or 50 mbar). Check the label on your bottle and the supplied regulator.

How to assemble the Home 2 barbecue?

Follow the supplied assembly manual. Connect the hose to the barbecue, then the regulator to the hose and the gas bottle. Ensure all connections are tight.

How to check for gas leaks before first use?

Prepare a soapy water solution (dish soap + water). Apply it to the connections and hose. If bubbles appear, there is a leak. Never use an open flame.

How to light the main burners?

Open the lid, turn the left burner knob to maximum (90°) while pressing. A click indicates ignition. Light the other burners from left to right. If ignition fails, wait 5 minutes before trying again.

What to do if a burner does not light?

Turn off the control knob and the bottle valve. Wait 5 minutes, then try again. If the problem persists, check the burner orifices with a pipe cleaner and contact your gas supplier.

How to clean the barbecue after use?

Let the grill bars burn for 15 minutes to reduce residue. Clean surfaces with a mild soapy water solution. For burners, use a soft brush or compressed air. Do not use oven cleaner.

Can I use the barbecue in windy weather?

Avoid using the barbecue if wind exceeds 2 m/s. Place the barbecue facing the wind to prevent flame blowbacks.

How to store the barbecue in winter?

Disconnect the gas bottle and store it outdoors in a ventilated area. Store the barbecue in a dry place, protected from dust.

What is the warranty on the Jamie Oliver Home 2 barbecue?

The warranty covers: 10 years on burner tubes, 5 years on chassis, 3 years on grid, 2 years on ignition, 1 year on other parts. Register online at www.jamieoliverbbq.com.

Where to find spare parts or technical support?

Visit www.jamieoliverbbq.com or contact the helpline service at Jamie Oliver BBQ, Einsteinweg 5, 3752 LW Bunschoten, Netherlands. Download the claim form if necessary.

USER MANUAL Home 2 Jamie Oliver

Description: Gas Barbecue Grill

Type of Gas: Butane, Propane, LPG

WARNING

FOR YOUR SAFETY

FOR OUTDOOR USE ONLY

(OUTSIDE ANY ENCLOSURE)

Read these instructions carefully and ensure that your barbecue is properly installed, assembled, maintained and serviced in accordance to these instructions. Failure to follow these instructions may result in serious bodily injury and/or property damage. If you have any questions concerning the assembly or operation of this barbecue, please consult your dealer, your gas supplier, the manufacturer, agent or check www.jamieoliverbbq.com for support.

Notes to the user:

"USE OUTDOORS ONLY".

"READ THE INSTRUCTIONS BEFORE USING THE BARBECUE".

"WARNING: ACCESSIBLE PARTS MAY BE VERY HOT. KEEP YOUNG CHILDREN AWAY."

"DO NOT MOVE THE BARBECUE DURING USE".

"TURN OFF THE GAS SUPPLY AT THE GAS CYLINDER AFTER USE."

TECHNICAL INFORMATION

MODEL NO.: HOME 2 (2)	burner)
DESCRIPTION: FOUR BURNERS WITH SIDE BURNER GAS BARBECUE GRILL
TOTAL HEAT INPUT:(ALL GAS CATEGORIES)	7.2kW (515g/h)		CE 0359-16PIN:0359CO1390
GAS CATEGORY:☐I	3+(28-30/37)			☐I3B/P(30)	☐I3B/P(50)	☐I3B/P(37)
TYPES OF GAS: Butane Propane LPG GAS	MIXTURES
GAS PRESSURE: 28-30 mbar 37 mbar 30 mbar 50mbar 37 mbar
INJECTOR SIZE main:	0.92 mm			0.92 mm	0.82 mm	0.88mm
USE OUTDOORS ONLY.READ THE INSTRUCTIONS BEFORE USING THE BARBECUE.WARNING: ACCESSIBLE PARTS MAY BE VERY HOT. KEEP YOUNG CHILDREN AWAY.THIS BARBECUE MUST BE KEPT AWAY FROM FLAMMABLE MATERIALS DURING USE. DO NOTMOVE THE BARBECUE DURING USE.TURNOFF THE GAS SUPPLY AT THE GAS CYLINDER AFTER USE.DONOT MODIFY THE BARBECUE OPEN OVEN HOOD BY SILICON SLEEVE ONLY. NEVER TOUCH THE METAL HANDLE OF THEAPPLIANCE WHILE COOKING AS IT IS VERY HOT.
Country of Destination:☐I3+(28-30/37)BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, SK, SI.☐I3B/P(30)BE, CY, DK, EE, FI,FR, HU, IT, LT, NL, NO, SE, SI, SK, RO, HR, TR, BG, IS, LU, MT, CZ.☐I3B/P(50)AT, CH, DE, SK, CZ.☐I3B/P(37)PL

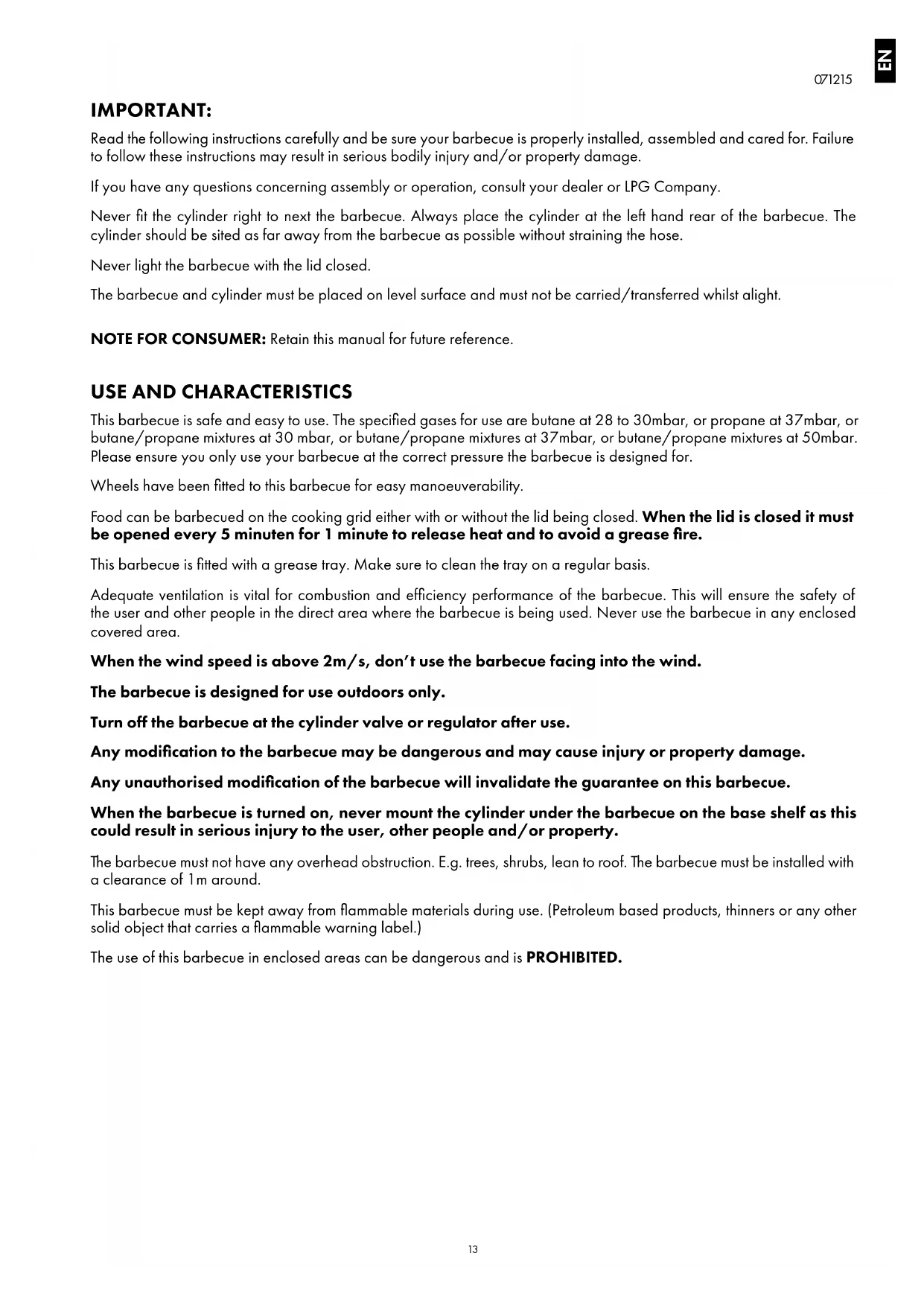

IMPORTANT:

Read the following instructions carefully and be sure your barbecue is properly installed, assembled and cared for. Failure to follow these instructions may result in serious bodily injury and/or property damage.

If you have any questions concerning assembly or operation, consult your dealer or LPG Company.

Never fit the cylinder right to next the barbecue. Always place the cylinder at the left hand rear of the barbecue. The cylinder should be sited as far away from the barbecue as possible without straining the hose.

Never light the barbecue with the lid closed.

The barbecue and cylinder must be placed on level surface and must not be carried/transferred whilst alight.

NOTE FOR CONSUMER: Retain this manual for future reference.

USE AND CHARACTERISTICS

This barbecue is safe and easy to use. The specified gases for use are butane at 28 to 30mbar, or propane at 37mbar, or butane/propane mixtures at 30 mbar, or butane/propane mixtures at 37mbar, or butane/propane mixtures at 50mbar. Please ensure you only use your barbecue at the correct pressure the barbecue is designed for.

Wheels have been fitted to this barbecue for easy manoeuvrability.

Food can be barbecued on the cooking grid either with or without the lid being closed. When the lid is closed it must be opened every 5 minuten for 1 minute to release heat and to avoid a grease fire.

This barbecue is fitted with a grease tray. Make sure to clean the tray on a regular basis.

Adequate ventilation is vital for combustion and efficiency performance of the barbecue. This will ensure the safety of the user and other people in the direct area where the barbecue is being used. Never use the barbecue in any enclosed covered area.

When the wind speed is above 2m / s , don't use the barbecue facing into the wind.

The barbecue is designed for use outdoors only.

Turn off the barbecue at the cylinder valve or regulator after use.

Any modification to the barbecue may be dangerous and may cause injury or property damage.

Any unauthorised modification of the barbecue will invalidate the guarantee on this barbecue.

When the barbecue is turned on, never mount the cylinder under the barbecue on the base shelf as this could result in serious injury to the user, other people and/or property.

The barbecue must not have any overhead obstruction. E.g. trees, shrubs, lean to roof. The barbecue must be installed with a clearance of 1m around.

This barbecue must be kept away from flammable materials during use. (Petroleum based products, thinners or any other solid object that carries a flammable warning label.)

The use of this barbecue in enclosed areas can be dangerous and is PROHIBITED.

INSTRUCTIONS FOR USE

Follow these instructions carefully to avoid seriously damaging your barbecue and causing injury to yourself and to property.

1. Assemble the barbecue following the assembly instructions carefully.
2. Connect the gas hose to the barbecue. Connect the regulator to the hose.
3. Connect the regulator to the cylinder valve following the regulator instructions supplied with the regulator.
4. Turn all of the control knobs to the 'O' position before turning on the gas supply to the barbecue.
5. Operate the regulator in accordance with the instructions supplied with the regulator.

Lighting Instructions: Main Burners

1. Open the lid before lighting.
2. Connect the gas cylinder to the barbecue following the instructions supplied with the regulator.
3. Turn all the control knobs to the 'O' position.
4. Turn ON the gas supply at the cylinder or regulator switch following the regulator connection and operating instructions. Check the cylinder to regulator connection and hose to barbecue hose inlet connection for leakage using soapy water. Any leakage will show as bubbles in the area of the leak. If a leak is found, do not use the barbecue. Consult your gas or barbecue supplier for advice.
5. To light the left hand burner, push down and turn the left burner control knob anti-clockwise to the 90^ position (full rate position). An audible click will be heard, this should light the burner. Check that the burner is alight. If the burner has not lit, repeat this process.
6. If the burner has not lit after two attempts, turn OFF the gas tap and wait 5 minutes before retying the ignition sequence.
7. When the burner has lit, the burner rate can be adjusted by pushing down and turning the knob anti-clockwise to any position between the full and low rate position.
8. Light the remaining burners from left to right in sequence.
9. To turn OFF the barbecue, turn the cylinder valve handle or regulator switch to the 'O' position by following the regulator instructions. Once the burners have extinguished turn all the control knobs to the 'O' position.
10. Turn OFF the gas supply at the cylinder or regulator switch.

Warning: If any burner fails to ignite, turn the control knob to the 'O' position (clockwise) and also turn the cylinder valve off. Wait five minutes before attempting to relight.

Side burner lighting instructions (If applicable):

1. Once the grill burner has been lit, the side burner can be lit by following the instructions below.
2. Open the side burner lid before lighting the side burner and turn the side burner control knob to the 'O' position.
3. Push down the side burner control knob and keep pressing whilst turning anti-clockwise to the full rate position, an audible click will be heard, this will light the burner. If the burner does not light, repeat this process.
4. If the burner has not lit after two attempts, turn OFF the gas tap, wait 5 minutes and then repeat step 3 in main burner lighting instructions.
5. When the burner has lit, the burner rate can be adjusted by pushing down and turning the knob anti-clockwise to any position between the full and low rate position.
6. To turn the barbecue side burner off, turn the cylinder valve or regulator switch to the 'O' position and then turn all of the control knobs on the barbecue clockwise to the 'O' position until the flames have been extinguished

Warning: If the burner fails to ignite, turn the control knob to the 'O' position (clockwise) and also turn the cylinder valve off. Wait five minutes before attempting to relight with ignition sequence.

MANUAL IGNITION

If necessary this barbecue can be lit manually.

Main Burners

1. Open the lid before lighting.
2. Light a 90mm barbecue match and hold close to the burner located on the far left of the barbecue.
3. Turn the left burner control knob to the full rate position. The burner will light from the match.
4. Once the left burner is lit, the burner next to it can be turned on.
5. Light remain burners from left to right.
6. When the burner has lit, the burner rate can be adjusted by push down and turn the knob anti-clockwise to any position between the full and low rate position.

Side burner (If applicable):

1. Open the lid before lighting.
2. If igniter fails to spark, use a match to light burner.

After use, close the gas supply by either turning OFF the switch on the regulator or turning OFF the cylinder valve.

In the event of light back whilst the barbecue is in use. Turn all the controls, cylinder valve and regulator switch to the 'O' position. Wait 5 minutes before attempting to relight the barbecue. If the problem persists after relighting, consult your gas dealer, or the store where you purchased the barbecue, or a qualified gas engineer for assistance or repair. Never try to fix the problem yourself as this could result in serious injury and/or property damage.

The recommended pot size to use on the side burner should be around 180 220mm

Clean the barbecue of excess fat, before storage, with a damp cloth using a mild detergent solution as the cleaning agent.

Store the barbecue in a clean dry environment.

Do not store your gas cylinder indoors. Store in a well ventilated area away from direct sunlight

CONNECTING THE GAS CYLINDER TO THE BARBECUE

This barbecue is only suitable for use with low-pressure butane or propane gas and fitted with the appropriate low-pressure regulator via a flexible hose. The hose should be secured to the regulator and the barbecue with hose clips/nut. This barbecue is set to operate a 28 mbar regulator with butane gas or a 37mbar regulator with propane gas or a regulator with butane/propane mixture at 37mbar or a regulator with butane/propane mixture at 50mbar or a regulator with butane/propane mixture at 30mbar. Use a suitable regulator certified to BSEN 16129. Please consult your LPG dealer for information regarding a suitable regulator for the gas cylinder.

BEFORE USE PLEASE CHECK FOR LEAKS

Never check for leaks with a naked flame, always use a soapy water solution

TO CHECK FOR LEAKS

Make 2-3 fluid ounces of leak detecting solution by mixing one part washing up liquid with 3 parts water. Ensure the control valve is off.

Connect the regulator to the cylinder and ON/OFF valve to the burner, ensure the connections are secure then turn ON to the gas.

Brush the soapy solution on to the hose and all joints. If bubbles appear you have a leak, which must be fixed before use.

Retest after fixing the fault. Turn off the gas at the cylinder after testing.

If the detected leak can not be fixed, do not attempt to fix the leak but consult your gas dealer.

REGULATOR AND HOSE

Use only regulators and hose approved for LPG at the above pressures (See Page 2). The life expectancy of the regulator is estimated at 10 years. It is recommended that the regulator is changed within 10 years of the date of manufacture.

The use of the wrong regulator or hose is unsafe; always check that you have the correct items before operating the barbecue.

The hose used must conform to the relevant standard for the country of use. The length of the hose must be 1.5 meters (maximum). A worn or damaged hose must be replaced. Ensure that the hose is not obstructed, kinked, or in contact with any part of the barbecue other than at its connection.

The hose should not be twisted or kinked when attached to the gas cylinder. No part of the hose should touch any part of the barbecue. Site the cylinder to the left hand side and behind the barbecue at the maximum distant permitted by the hose length.

STORAGE OF THE Barbecue

Storage of a barbecue indoors is only permissible if the cylinder is disconnected and removed from the barbecue. When the barbecue is not to be used for a period of time it should be stored in a dry dust free environment.

GAS CYLINDER

The maximum diameter and the maximum height of the cylinder is 310mm and 500mm as shown in (Fig.1).

Key

1: maximum diameter
2: maximum height

The gas cylinder should not be dropped or handled roughly! If the barbecue is not in use, the cylinder must be disconnected. Replace the protective cap on the cylinder after disconnecting the cylinder from the barbecue.

Cylinders must be stored outdoors in an upright position and out of the reach of children. The cylinder must never be stored where temperatures can reach over 50^ . Do not store the cylinder near flames, pilot lights or other sources of ignition. DO NOT SMOKE.

Pay attention when putting the cylinder to the cylinder hole, ensure the hose connected to the cylinder does not touch the hot surface-heat-resistant plate. Make sure the cylinder stays in place during operation. Never put a spare cylinder in the same cylinder enclosure. Never block access to the cylinder valve.

Warning: Shut off the gas cylinder if you smell gas.

CLEANING AND CARE

CAUTION: All cleaning and maintenance should be carried out when the barbecue is cool and with the fuel supply turned OFF at the gas cylinder.

CLEANING

"Burning off" the barbecue grill bars after every use (for approx 15 minutes) will keep excessive food residue to a minimum.

OUTSIDE SURFACE

Use mild detergent or baking soda and hot water solution. Non-abrasive scouring powder can be used on stubborn stains, then rinse with water.

If the inside surface of the barbecue lid has the appearance of peeling paint, baked on grease build up has turned to carbon and is flaking off. Clean thoroughly a strong hot soapy water. Rinse with water and allow to completely dry. NEVER USE OVEN CLEANER

INTERIOR OF BARBECUE BOTTOM

Remove residue using brush, scraper and/or cleaning pad then wash with a soapy water solution. Rinse with water and allow to dry.

PLASTIC SURFACES

Wash with a soft cloth and hot soapy water. Rinse with water. Do not use abrasive cleaners, degreasers or a concentrated barbecue cleaner on plastic parts.

COOKING GRID

Use mild soapy water. Non-abrasive scouring powder can be used on stubborn stains then rinse with water.

GREASE TRAY

Please do not open the grease tray during use.

When cleaning the grease tray, pull out the grease tray first.

We strongly recommend to use tin foil on the fat tray before each use. The tin foil must be removed and the fat tray must be cleaned after every grill session. Do not use your grill if the fat tray is filled over 1/3 . Make sure your grill is cooled down before you clean the fat tray.

CLEANING THE BURNER ASSEMBLY

Turn the gas OFF at the control knob and disconnect the cylinder.

Remove cooking grate and flame tamers when cold.

Clean the burner with a soft brush or blow clean with compressed air and wipe with a cloth.

Clean any clogged ports with a pipe cleaner or stiff wire (such as an opened paper clip).

Inspect burner for any damage (cracks or holes). If damage is found, replace with a new burner. Reinstall the burner, check to ensure that the gas valve orifices are correctly positioned and secured inside the burner inlet (venturi).

In some cases your barbecue will light back because of an insect crawling inside the burner venturi or a spider spinning its web inside the burner. This can be fixed by using a bottle brush inserted through the burner venturi and pushing through over the burner length. If condition persists consult your gas dealer.

SERVICING

Your gas barbecue should be serviced annually by a competent registered person.

MORE INFORMATION

Check for more information or instruction video's on our website jamieoliverbbq.com

Jamie Oliver

JAMIE OLIVER GAS BBQ GUARANTEE

In addition to the store guarantee from which this product was purchased, Jamie Oliver BBQ agrees that if any defect in materials or workmanship appears in the product within the given guarantee after the original date of customer purchase, it will issue replacement parts.

This applies only if the barbecue has been subject to:

a. Normal domestic use on domestic premises.
b. Has not been subject to alterations or repairs carried out by unauthorized persons.
c. Has been stored in dry conditions throughout the winter.
d. The barbecue has not been damaged.
e. There is a valid receipt as proof of purchase.
f. Registered for guarantee purposes as per the instructions.

Given guarantee per element of the gas barbecue;

Jamie Oliver burner tubes warranty 10 year
Jamie Oliver frame warranty 5 year
Jamie Oliver lid warranty 3 year
- Jamie Oliver grill warranty 3 year
- Jamie Oliver ignition warranty 2 year
- All remaining parts 1 year

This warranty does not cover:

a. Parts affected by rust, corrosion, oxidation or discoloration which may occur due to moisture or overheating.
b. Labour, or labour related charges.
c. Normal wear and tear and scratches or unblocking of pipes.
d. Negligent use or misuse of the product.
e. Use of the wrong fuel/gas.
f. Use, contrary to operating instructions included in the instruction manual.
g. Regulator, hose and clips.
h. Consumable parts eg: batteries (when applicable).

This warranty does not affect a customer's statutory rights in any way. The warranty is globally applicable

Jamie Oliver BBQ reserves the right to modify this product without notice. If the model is no longer available we will discuss an alternative replacement or settlement.

Only by registering within 30 days from date of purchase will the guarantee be valid for up to ten years for some parts. To benefit from the GUARANTEE register on-line on www.jamieoliverbbq.com, or complete the mandatory sections under REGISTER NOW on the separate sheet, and post to Jamie Oliver BBQ Registration.

To make a claim download the claim form from www.jamieoliverbbq.com, or write to Jamie Oliver BBQ Helpline, Einsteinweg 5, 3752 LW Bunschoten, PO Box 214, 3750 GE Bunschoten, The Netherlands. to receive a form.

The claim will require:

a. Legible copy of the purchase/sales receipt (showing purchase date, model name and store).
b. Barbecue model name & number.
c. Purchase date.
d. Store name & location / or other, eg: on-line.
e. Photographs of all the damaged parts listed in your claim.

Please keep this document in a safe place.

Jamie Oliver

N. NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN NNNN

.7bn nn, 7pnn nn ynnn no, nno nn nn nn

Nnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

.

pTnOoNnOoNnOoNnOoNnOoNnOoNnOoNnOoNnOoNnOoNnOoNnOoNnOoNnOoNnOoNnOoNnOoNnOoNnOoNnOoNnOoNnOoNnOoNnOoNnOoNnOo

y

D

73-1979 03 82-1979 03 73-1979/1979 03-1979/1979

nnnnnnnnnnnnnnnnnnnnn

npt 1 wab mpt 5 by nn mnob oyn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn

Jnnpnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

nnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

.

.

y

.111111111111111111111111111111

yabnabnnnnaaan nn anan nnnn nn npn, npnan nn np

.1N/10NN0vN,wnnnn

Pnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

1

Pnyn n, ynn, ynn by nn (y) . 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

mnnn nn nnnn nn nnnn

n nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nannn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nennn nn

:wnnnnabnnn nn

"naynnnn

"p 111111111111111111111111111

"pnnn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

"yynnn nn n

"an nnnn nn nnn

yT

					:牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牪牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牻牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牸牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牴牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牷牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牬牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牯牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牱牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰�ham牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牔牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牮牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牦牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰�HAMK3+28-30/37)
0359-16PIN:0359CO1390				(h/g515) Wk7.2	:牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牪牪牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牪牸牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牪牴牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牰牪牷牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牸牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牀牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牦牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牻牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牷牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牦牪牦牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牦牪牸牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牦牪牴牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牰牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牬牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牮牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牴牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牪牦牪牻牪牪牦牪牦牪牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牦牨 �
3B/P(37)	3B/P(50)	3B/P(30)	3B/P(37)	3B/P(37)	3B/P(37)
N 3B/P(37)	N 3B/P(50)	N 3B/P(30)	N 3B/P(37)	N 3B/P(37)	N 3B/P(37)
N 3B/P(37)	N 3B/P(50)	N 3B/P(30)	N 3B/P(37)	N 3B/P(37)	N 3B/P(37)
N 3B/P(37)	N 3B/P(50)	N 3B/P(37)	N 3B/P(37)	N 3B/P(37)	N 3B/P(37)
N 3B/P(37)	N 3B/P(50)	N 3B/P(37)	N 3B/P(37)	N 3B/P(37)	N 3B/P(37)
N 3A/P(37)	N 3A/P(50)	N 3A/P(37)	N 3A/P(37)	N 3A/P(37)	N 3A/P(37)
N 3A/P(37)	N 3A/P(50)	N 3A/P(37)	N 3A/P(37)	N 3A/P(37)	N 3A/P(37)
N 3A/P(37)	N 3A/P(50)	N 3A/P(37)

nT npTn

PNTNNTNNPNNNNN

D

pbnnnn
.
.
.
.155°

n nn nnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

nnonn

:（ybn）

1. pTn:

.

FFO-FFO-FFO-FFO-FFO-FFO-FFO-FFO-FFO-FFO-FFO-FFO-FFO-FFO-FFO-FFO-FFO-FFO-FFO-FFO-FFO-FFO-FFO-FFO-FFO-FFO-FFO-FFO-FFO-FFO-FFO-FFO-FFO-FFO-FFO

O' 00000000000000000000000000000000000000

y ynnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

n nn nnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

y

n 022 ty 081 nnnn nn nnnn nn nnnn

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

y

NNNNNNNNNNNNNNNNNNNNNNNNN

Pn nn nn

28 2

37 1979/1979 37 1979 1979 1979 1979 1979 1979 1979 1979 1979 1979 1979 1979 1979

BSEN 16129.

mNNTNNTNNN

nna nnn nnwnn,nnn nan naa nnnn bn

nT DNN pTa

n 3-2

n

ON FFO/NO-

wnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn

n nn nn nn nn nn nn nn nn nn

ynnn nn nnnn nn nnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

y

y

.

ED = 2AE

m

.17中

mnnn

#

y

ptnn

.

:nnny

4.

Wipn Tynnn n nn Nn nn nnn nnn nnn 5. 110, pT n nn nn nn .pT nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

n n nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

nannnnnnnnnnnn

.1111 8.

9.

0' 1

nnnnnnnnnnnnnnnnnnnnnnnnnnnnn (OFF) n 10.

wn non. bn nn nnnn (ynnn) O' nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

.

:（mnXyBnON）Tnynnpbnnn

. 1

.0' xyn bn ybn nn nnnn nn np 2

, 3.

.7nnn by n, pyn nn nn nn p

3 1n nnnn mpt 5 nn, nnn (OFF) nnnn np nnnn

ynnn nn npbn

5.

.7n

n 6.

mnnnny O' npnn nnnnnn nn nnnn

5nnn nn nnnn nn nnnn (nnnn) O' npnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

nynnn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

#

ONFF BY NNNN NNNN NNNN NNNN NNNN NNNN NNNN

1

"

n nn nnn

y 1

.

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

.mnnpb

pnnn nn

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

.

p'vobnvn

y

pnnn nnnnnnnnnnnnnnn

wann

y 1

.

.

wanbnnnp

.1nn nn nnnn nn (FFO) nn nn

.

y

(tnn pnn) npnn nnn npnn nn

by pT,nynn nn ynn npn.yn nyann npn, npn nn (pnn n np) npn npn

(1)

yannnnn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

yannnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

ynnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

n

.

jamieoliverbbq.com 1

777

ynnn .(2 y n) ny nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

ynnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

5.1 5n nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nannn nn nannn nn nannn nn nannn nn nannn nn nannn nn nannn nn nannn nn nannn nn nannn nn nannn nn nannn nn nannn nn nannn nn nannn nn nannn nn

Pn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn

P

Nn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

#

1 005-0013

N7Pn

1.

n2.

Nn nn nnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

n nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nannn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

10000000000000000000000000000000

Jamie Oliver

nnnnn

111111111111111111111111111111

.

DINON D'ENON P'ANON

A. n + 1

.口y

2.9nnn

.7.777N5

.

JNN

:an pnnn nn nnnn

yannnn

mnnn

noan by

by

·

·

:

n nn nnnn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

.

mnnn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

.

.

1902nynnnn nnnn nn

Jn

(wnn) nnnn nnnnn

.

y

.77n y n 1

mnnn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

mnnn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

nannnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

noitartsigeR nnnn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn

,nnn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn

by Einsteinweg 5, 3752 LW Bunschoten, PO Box 214, 3750 GE Bunschoten, The Netherland

.

yynnn

.（nnnnn nn nnnnnnnnnnnnn）nnn by npn nn nnnn nn nnnn

.

.777777

nnpnnnnnnnnnnnnnnnnnn

nnyana ownnn npnnn bnn

.

Jamie Oliver

GEBRUKSAANWIJZING VOOR DE GASBARBECUE EN GRILL

Hnkora He naneTe 6ap6ekIoTo, Korato KaanakbTe 3aTbopeH.

Bap6ekIto H 6ytNkata Tp8Ba Da ca noctabehn Ha paBHa nobbpxHocT He Tp8Ba da ce HocT/npehacrt, KOrato ca 3anaJIeHN.

3ABENEKKA 3A NOTPEBNTELI: 3ana3e HapbHnka 3a ynotpe6a 3a no-HataBHa cnpabKa.

XAPAKTEPHCTIKN N YNOTPEBA

C 6ap6ekto ce pa6otn 6e30anacno n lecho. Ra3oBeTe, c KOHTo MoKe Ja pa6OTn 6ap6ekIoTO, ca 6ytan npn 28 do 30 mbar, npoah npn 37 mbar, npoah-6ytaHOBn Cmecn npn 30 mbar, npoah-6ytaHOBn Cmecn npn 37 mbar nn npoah-6ytaHOBn Cmecn npn 50 mbar. YBepete ce, ye H3noJ3BaTe 6ap6ekIoTO ToHNo npn HaJIraHeTo, 3a Koeto e KOHCTpykTINBHO npedHa3HaueHo.

Bap6ekIoTo mMa MoHTnpaHH KOneIua 3a No-ForJaMa MaHeBpeHoCT.

XpaHATA MoKe Da Ce Neue Ha peWeTbUHATA Ckapa Ha 6ap6eKIOTo KaKTo C NoCTABEH, Taka H c MaxHat Kanak. Korato pa6oHTe C NoCTABEH KANAK, Toi Tp86Ba Da ce NOBUNa HA BCEKN 5 MInHyTHn I Da ce OCTABBnIHAT 1 MInHyTA, 3a da ce OcBO6OHN ToNINHATA n Da CE H36BerHe ONACHOCCTTA OT 3anaIbaHe Ha Ma3HHATA.

Bap6ekIto HMa TabuKa 3a OTTuHaHe Ha Ma3HHaTAt. NocHCTBaIe TaBnKata peoBHO.

Iodxoadaoto npoBertpeHne e ot cbuectbeHO 3a ropeHTo n efeKTNBocTtHa 6ap6eKIoTo. Toba ue rapaHTnpa 6e3onacHocTtHa noTppeHteJI Ha Xopata OKO MCTOTO, KbTeTo 6ap6ekIoTO ce H3non3Ba. Hnkora He paBOTeTe c 6ap6ekIoTO B 3aTBOpeHO nn NOKPnTO npocTpaHCTBO.

Korato ckopocTTHa BbTbae HAd 2 M/ceK., He n3non3BaIte 6ap6ekIOTo cpeuY BbTa.

Bap6ekIto e npedHa3HaueHo 3a pa6ota cmo Ha oTKpnto.

CneI ynoTpe6a n3KJIouyete 6ap6ekIoTO OT BEHTnla nn peryNaTopa Ha ra3OBata 6ytNka.

Bcako BnOn3MeHHe No 6ap6ekIto MoKe Da 6bde onacHo n da npuHH TeJeCha nobpeHa nn MaTePhaHn H uetn.

Bcako Hepa3peweHO BnOn3MeHHeHne 6ap6eKIOTo ue HApabn rapaunra HeBaHnHa.

Korato 6ap6ekIoto e BkIoueHo, HNKORA He cIaraiTe 6yTHnkata noa 6ap6ekIoto Ha nocTabkata, Tb' KATO TOBA MoKe Da DoBeDe Do TeXKO HapaHraBaHe Ha Notpe6nte, Ha Xopata OKOIO Hero n/nn MATEpHaIIHn Uetn.

PoctpaHCTBOTO Ha6ap6ekIOT Tp8Ba Da e CbOoDHO, HAp. Da Hma IbpBeta, Xpactn, cTpexn Ha NOKpNB a T.H. OTo BcNCHCTpaHn Ha 6ap6ekIOT Tp8Ba Da HMa 1 M CbOoDHO npoctpaHCTBO.

No Bpeme Ha ynoIpe6a 6ap6ekIoTo Tpa6Ba Da ce IbpXn daJeu ot 3anaHmM MaTePnaHn. (PeTpoHn npOdyKTn, pa3peiTeHn Hn dpYrN TBpDn PpeMeTH C npEynpeiTeH eTKeT, ye ca 3anaHmN.)

Ion3BaHETO Ha 6ap6ekIoTO B 3aTBopeHH NOMEuEHN MoKe Da e OnaCHO n e 3A6PAHEHO.

YKA3AHNЯ 3A PABOTA

CneBaIte yka3aHnraT BHNMaTeJIHo, 3a da H36eHete TeKko NOBpeXdaHe Ha 6ap6ekIoTo I npuHnRaHe Ha camohapaHaBe n MaTePnaHnIeTn.

1. Crno6eTe 6ap6ekIto, kato BnmaTeJHO cneBbATE yka3aHnra 3a crno6BaHe.
2. CbpxkTe Mapkyua 3a ra3 KbM 6ap6ekIto. CbpxkTe perylaTopa KbM Mapkyua.
3. Cbpxte perynatopa kmb BENTnHa 6ytnKata, kato cneBate yka3aHnra ot HapbHnKa Ha perylatopaa.
4. Ipei Da BkHouHTe NOaBaHeto Ha Ra3 KbM 6ap6ekIoTo, NoCTaBte BCnUKN BpbTKa 3a YnpabHeHne Ha no3nua
5. C perynatopa pa6oTeB cBoTBetCTBnE c yKa3aHnra oT hapbYnka Ha perynatopa.

3AIIBAHE HA BAPSEKIOTO

Yka3aHn 3a 3anaBaHe: InaBn ropeIkn

1. Ppei Da 3anaJIte ropeJIKHTe, OTbopete kanaka.
2. Cbpxe Ta3OBaTa 6ytnka KbM 6ap6ekIto, kato cneBbATE yka3aHnraTo t HapbUHnKa Ha peryNaTopa.
3. NocTabete BCnKn BpbTkN 3a ynpabJeHHe Ha no3nIa "O".
4. Bknoute noDaBaHTo Ha ra3 ot 6ytnkata nHn peryaTOpHn KIOU, KATO cneBate Cbbp3BaHTo Ha peryaTopa n Yka3aHaTa 3a pa6ota. NpOBepete 3a Teu Cbbp3BaHTo Ha 6ytnkata KbM peryaTopa n Cbbp3BaHTo Ha Mapkyua KbM uyepa Ha 6ap6ekIoto C nomoTa Ha canHyen Pa3TBop. Ako HMa Teu, ToJ ue Ce npoRn NoD fOpMaTa Ha Mexypeta B O6laactTa Ha Teu. Ako OTKpnHe TnKaKbB Teu, He H3noJ3BaIe 6ap6ekIoto. NtbpceTe Cbbet ot DoCTaBnKa Ha ra3 nHn TbProBeua Ha 6ap6ekIoto.
5. 3a da 3anaJnte JraBata ropeKka, 3abpTeTe, Kato eHOBpeMeHHO HATNCKate BpbTKata 3a ynpabJIeHHe Ha JRAbata ropeKa Ha 90^ o6paTHo Ha YacobHnKobata cTpeKka (no3uYn "OTBOpeHo DOKpa") Tp6Ba Da ce ue upaKaBaHe, npu Koeto ropeKkata da ce 3anaHn. PpOBepete daHn ropeKkata e 3anaIeHa. Ako ropeKkata He 3anaHn, nobTopete rophnte DeiCTBna.
6. Ako ropejkata He 3ana n CneI Dba ONTa, H3KnHcyTe KpaHcyTe Ha rA3Ta H3yakai Te 5 MmHyTH, npedn da noBtopnte NocneIOBATEJIHOCTTA O T DeIcTBn 3a 3ana IBAhe.
7. Korato ropekata 3ana, nlaMbkbT Moxe da ce perynipa 4pe3 aBbptahe c eHOBpeMeHHo HATNCKaHe HADONY Ha BpTkata o6patHO Ha YacOBHNKOBATA CTpeKa BB BC8Ka EHa NO3uJa - OT HAI-CINHO Do HAI-Cnabo OTBOpeHo.
8. 3anaene octaHannte ropeKn noCneoBatoHNO OT JARBO HADRCHO.
9. N3KIIoue 6ap6ekIOTo, 3aBbptTepePbKaTa Ha BeHTnla Ha 6ytNkata HnH peryIaTOpHn KJIouH Na No3nue "O" KATO CNEdBATE yka3aHnraTa OT HApBcHnka Ha peryIaTopa. Cnei Kato ropeIknite 3arachat, 3abbpTeTe BCnckn BpTkN 3a ynpabHeHne Ha no3nua "O".
   10.ИЗкlioуete noДаBaHeto Ha ra3 ot 6yTnIkata nIIN perynatopHnKIIou.

IpeynpekdeHne: Ako HAKo OT ropeKHTe He 3aapan, 3abptete BpTKata 3a ynpabHeHne Ha no3nue "O" (no NOCOKa Ha YacOBHKOBATA CTpeJIka) n 3aTbOpTe BEHTnla Ha 6yTNkata. IVaKaaiTe net MmHytn, npdi OTHOB da ONiTate Da a 3anaJnte.

Yka3aHn 3a 3anaIbAhe Ha ctpaHmHaTa ropeJka (ako e npnoXmo):

1. CnEi KaTo ropeKata Ha rPna Ce 3anaHn, cTpaHnHata ropeKa cbso MoKe da ce 3anaHn, KATO ce cneBAt daeHnte no-dony yka3aHn.
2. Otbopete KaNaKa Ha cTpaHnHaTa rOpelKa, npEa npHe TbNte KbM 3aAnBaHeto N, n 3aBbPTe BpTkata N 3a ynpabIeHne Ha no3uJra "O".
3. Kato hatckate haonly bptkata 3a ynpabneHne Ha ctpanuHata ropeka, 3abptete r o6paTHo Ha acobnKOBata cptekka do kpaHno OTbopeHa no3nua, Tp6Ba da ce ye upaKahe, npu Koeto ropekata da ce 3ana. Ako ropekata He 3ana, nobTopete rohpnte deictbn.
4. Ako ropekata He 3ana ncln Dba onnTa, H3KIOUeTe KpaHcTo Ha ra3Ta, H3aKaAte 5 MNHyTu n CneT TOBa NOBTOpe CTbNka 3 OT yKa3AHnra 3a 3anaIbAhe Ha rIabHata ropejka.
5. Korato ropekkata 3ana, nlaMbkbT MoKe da ce perynipa 3aBbptaHe c eHOBpeMeHHo HATNCKaHe HaDOJy Ha BpbTKATA o6pAto HA yacOBHNKOBaTa CTpeKa BB BCa Ka EHa No3uia - OT HAI-CnIHo Do HAI-Cna6o OTBOpeHo.
6. 3a da n3knHHTe cTpaHnHATA ropeIka Ha 6ap6ekIOTo, 3abptete BENTnHa 6yTHnkata Hn perynaTOpHHKIOH Ha no3nua "O" n Cnei TOBa 3abptete BCnckn BpBTK 3a ynpablnHe n o nocoka Ha qacobHKOBata cTpeIka Ha no3nua "O", DOKATO nIambuntE 3arachat.

IpeynpexdeHne: Ako ropeikata He 3anann, 3abptete BpbTKata 3a ynpablenHe Ha no3nue, O" (no yacobnkobata cTpeka) n cne ToBa 3atbopete BeHTnla Ha 6ytnkata. N3yaKaaiTe net MmHyt, npedn OTHOBO da ONiTate da 3analnte 4pe3 onncahata nopediua ot DeiCTBna.

PbYHO 3AIIBAHE

Pn Heo6xoDMOcT 6ap6eKIOTo MoKe da ce 3aapan pB4HO.

TnabHr ropeJkn

1. Ppei Da 3anaJnte ropEnKHTe, oTBopeTe Kanaka.
2. 3anaTe 90-MnHmMetpoBa Kn6pnteHa KneUka 3a 6ap6ekIO n 3aIpbXte B 6n3ocT do ropeKata, pa3noJoxeha Hau-BraBO Ha 6ap6ekIoTO.
3. 3abptete BpTkata 3a ynpabneHHe Ha IaBata ropeIka Ha no3nue "OTbopeHo dokpa". TpeIkata ue ce 3anaHn OT nIaMbka HA KnbpuTeHata KneYka.
4. Cne KaTo IaBata ropeJka 3anann, MoKe da Ce BKnHouN c6ceHaTa N.
5. 3anaene octaHnnte ropeKn B nocneObaTeHOCT OT IaBO HAnrCHO.
6. Korato ropekata 3apani, nIaMbkbT moKe da ce perynipa qpe3 3abpbTahe c eHOBpemHe HATnCKaHe Ha BpTkata o6patho Ha yacobHKOBATA CTpeKb Bbb BCka eo3u-OT HA-CINHO DO HA-Cla6O OTBOpeHo.

CtpaHnUHa ropeJka (ako e npnloXmO):

1. Ppei Da 3anaJIte ropeIKNITE, OTbopeTe KAnaKa.
2. Ako 3anaikata otkaxe da dae nckpa, H3noJ3BaIte K6pnt 3a 3anaIbaHe Ha ropeKata.

Cnei KaTO CbPHTe pa6Ota c 6ap6ekIOTo, H3KIOUeTe NOdaBaHTo Ha ra3, KATO 3aTbOpHTe HnN peryNaTOpHnKIOU, HnN BeHTnHa Ha 6yTNkata.

B cnyaHa otKoc Ha nIambnte no BpeMe Ha pa6oTa C 6ap6ekIoTo. 3abpTeTe BCNU KByTK 3a ynpabHeHne, BeHTnHa 6byNkata n perylatopnHa NIOuHa No3nua "O". N3yakaiTe net MInHyTn, npedn OTHOB Da ONHTate da 3anaHte 6ap6ekIoTO. Ako cnei Nobtophoto 3analbahe npo6nembl npoDbJxaba, Notpcete cbBET OT DOCTABnka Ha ra3 nn B MaRa3nHa,OTkbdeTo cte 3akynnn 6ap6ekIoTo, INN OT KBaINnHnpan HnHexep 3a CbEJeCTBne INn peMOnT. Hnkora He ce onNTBaIte da Kopnnpate npo6nema camn, TbN KATO TOBA MoKe da DoBeede Do TeXKO HapaHBAhe N/INN MATEPnAHH nietn.

PpeopbHTeHHTe pa3Meepn Ha cbda, KOTo Da ce H3NoJ3Ba 3a cTpaHHaTa ropeJa, ca 180-220 MM.

Ipei Da nphepe Te 6ap6ekto, noHCTe T O T n3nHATA Ma3HHa C BnaXHa Kbpna H Iek pa3TBop OT noHCTBaU npenapat.

CbxpaHbBaIte 6ap6eKIOTo Ha uNCTO n cyxo MxTO.

He cbxpaHraBaTe ra3OBaTa 6ytnIka Ha 3akpnto. CbxpaHraBaTe B npobetpmbo Macto, daJIeU ot npKa cIbHueBa CBETnHa.

CbP3BAHE HA ΓA3OBATA ΒYTNJIKA KbM BAPSEKIOTO

Bap6ekIoto e noDxOJaIO cAmo 3a ynoTpe6a c npOnAH-6ytAH NOHnCKO HAraHe Ie ChA6DeHO C noDxOJaI peryNAtop 3a Hncko HaJrAHe NocpeCTBOM TBKBABA Bpb3ka. MapkybT Tp8Ba Da ce 3akpenn KbM peryNatopa H ap6ekIoTo cbc ckob/raik. Bap6ekIoto e hactpoeho 3a pa6ota c peryNatop Ha HnlaRae 28 mbar 3a 6ytAH nn 37 mbar 3a npOnAH, nn 3a npOnAH-6ytAHOBn CmeCN npn 37 mbar, nn 50 mbar, nn 30 mbar. PON3BaHT noDxOJaI peryNatop, ceTnphiuipan no BSEN 16129. NotpcTe cBBet OT TbproBeua Ha npOnAH-6ytAH 3a INΦOpMaunr OTHOCHO noDxOJaI peryNatop 3a ra3OBA 6ytIIka.

ПЕДИ YПOTРБА, ПЮВЕРЕТЕ 3A TECHОBE

Hnkora He npobepraBaTe 3a TeOBe C OTKpnt nIaMbK, BnHarn non3BaTe canyhen pa3TBop

3A IPOBEPKA HA TEHOBE

PnroTBe 0ko 100 mpa3bop 3a OTkpnahe Ha teObe, kato cmecnte 1 aact npenapat 3a MneHe c 3 qactn Boda. YBepete ce, ye KOHTpOJIHHr TBeHTIe 3aTbOpEn.

Cbpxe peryaTopa KbM 6ytnkata n OTBapra/3atBapraue BENTn KbM ropelkata, yBepete ce, ye ca 3npaBO Cbp3AHN, cIeD KOETO BKIOUOte ra3Ta.

HaheceTe cYetKa canyHeH pa3TbOp nO mapkyu H BCnKc bEiHHeHn. Ako ce nOBaT MexypyeTa, 3NaHn HMa TeU, KOITTo Tpa6Ba Da ce onpabn, npden 6ap6eIto Da ce n3noJ3Ba.

Cne KaTO OTCpaHnTe Heu3npaBnOCTTa, npOBepTe OTHoBO 3a TeU. Cne npOBepKaTa H3KIOUcTe NOdaBaHeTo Ha rA3 OT 6yTNkata.

Ako yctahOBeHNrTe He MoKe Ja 6bJe onpaBHe, He ce ONHTBaIte NOBeHe Ra Ro peMOHTnPaTe, a NotbpcTe Cbbet OTOCTABHnKa Ha r3.

PEIYJIATOP IN MAPKyU

Ja ce n3non3BAT cAmo perynatopn H Mapkyu, oO6peHn 3a pa6ota c ra3 npn ropenocohnte haIraHn (BHXTe ctp.2).PpeBnHeHATA roHOCT 3a ekCnloataun Ha perynatopa e 10 roHH. PpenOpbUba ce perynatopbT da ce cmEHn cne10 roHH ot dataHa npOn3BOcTBOTO My.

YnoTpe6ata Ha HnnpabInen perylaTOp nn Mapky Cb3daba onacHoc; BnHa npoBepaTe daHn pa3nonarate c npabHHte apTKyI, npeI da 3anoHete pa6ota c 6ap6ekIoTo.

N3non3BaHnT mApKy Tp6Ba Da OTROBAP Ha CbOTBETHnCTAHdAp, BAnHe H CtpaHata Ha ynotpe6a. NbnxHnHa ha Mapkya Tp6Ba Da e 1,5 M (MaKcHmym). Korato ce nobpeHnn H3Hocn, MapkybT Tp6Ba Da 6bde CMeHeH. YBepTe ce, ye MapkybT He e 3anyweH, OrbHAT u He He ce Onpa Do HnKaKba Dpyra qact Ha 6ap6eKHTO, OCBeH npCbeHNHTeHHn Hsyeep.

MapkybT He Tp86Ba Da Ce ycKba Hn OfBA, Korato e Cbbp3An KbM rA3OBata 6yTHNka. HnkOaCT Ha Mapkya He Tp86Ba Da ce Onnpa Do qactHe Ha 6ap6ekIoTo. NocTabete 6yTHNKATA OT JABATA CTpHa 3aD 6ap6eKOto Ha MAKcHMaHOTo pa3CTOHHne, No3BOJeHO OT DJIKNHAta Ha Mapkya.

CbXPAHEHNE HABAPSEKIOTO

CbxpaHraBaHTo Ha 6ap6ekIoto Ha 3akpnto eOnyctnmo cAmO aKO 6ytNkatae OTBbP3aHa nOTdeneHa ot 6ap6ekIto. Korato 6ap6ekIoto Hma da ce Nsno13Ba npodbJnxTeiHo BpeMe, To Tp86Ba da ce cbxpaHraBa Ha cyxo n o6e3npaWeho MACTO.

T3OBA ByTNJIKA

MaKcHMaJIHHaT DnAmEtbp H MaKcHMaJIHata BnCOuHa Ha 6yTHIkata ca CbOTBeTHo 310 MM n 500 MM, KaKTo e NOKa3aHO Ha (ΦHr.1).

ΦnI.1

JIereHna

1:MaKcHmAnenDnAmetbP
2:MAKcIMaJIHa BnCOUHnA

Ta3OBaTa 6yTHnKa He Tp8Ba Da ce H3nycka Hnn MaHnynHp apy6o! Ako 6ap6eKIoTo He ce H3non3Ba, 6yTHnkata Tpr6Ba Da ce OTbPke. CmeHete npedna3Hata Kaanayka Ha 6yTHnkata, cneI Kato r OTbPkeTe ot 6ap6eKIoTo.

6ytnknte Tp86ba da ce cbxpaHbAT Ha OTkpHTo B n3npaBHeo NOJoxeHne, daneu ot Docbna Ha deca. 6ytnkata HnKora He Tp86ba da ce cbxpaHbHa MeCTa, KbTeTO TemnepaTpyata MoKe da HaDbNsi 50^. He cbxpaHbAte 6ytnkata B 6n3OcTdoOrh, NnIOTeh nnAmbk NnI dpYTHn3ToHnUHa nnAmbk. HE NYLWETE.

BHHMABaIte, KORATO Cbbp3BaTe Mapkyu KaBm 6yTnKata, YBepeTe ce, Ye Cbbp3aHnrt KaBm 6yTnKata Mapkyu He ce Onpa do ropeuata NOBbpXHOCT Ha TOnIOyCTOHyHBn Pnot. YBepeTe ce, Ye no Bpeme Ha paBoTa c 6ap6ekIoTo, 6yTnKata Ze octaHe HA MCTOTO cN. Hnkora He NoctabYnTe pe3epBHa 6yTnKa Do N3NON3BaHata B MOMeHTa. Hnkora He npenpeyBaIte DO BeHTnla Ha 6yTnKata.

Ppeynpekde: 3aTbopeTe ra3OBata 6yTHnka, ako donobte mnpH3Ma Ha ra3.

ПОЧИстваЕ И ГРУЖА

BHIMAHHE: NocntBaHTo H noDpBxKata Ha 6ap6ekIto Tpr6Ba da ce n3BbPwBa cMo KOrato To e H3ctnHaIO npn H3KnOyeNo DaBaHe Ha ra3 ot 6ytnkata.

ПОЧИСТBAHE

"Pperapareno" Ha pewetkata Ha rpna cnei Bcra ynotpe6a (3a npn6n3nteHIO 15 MNHyTH) CBexda do MNHNMyM xpaHHTENHTE octatbui no 6ap6ekIoTo.

BbHwHA NOBbPXHOCT

N3non3BaTe ⅢaIa, noHCTBaI npenapat IIN pa3TbO H ropea BODa n coda 6HKap6oHaT. 3a no-ynopHTte neHa MoKe da ce N3non3Ba Hea6pa3HBEN noHCTBaI npenapat Ha npax, KOITo CneI TOBa ce N3nAkaC B Oda.

Ako BbtpseHocCTHa KaNaka Ha 6ap6ekoto HMa BnD, ye 6oTa My ce 6eHn, TOBa O3Haayaba Ye HacnoeHnte Ma3HHn Ca CTahann Ha BbIeH n Ce IIOJr. NouHcTe TcIIOCTHO C MHorO ropeu canyHeH pa3TbOp. N3nnakHete C BOda n OCTaBeTe Da n3cbxHe HanblHo. HIKOTA HE IN3NOJ3BAITE PEPAPAT 3A NOUHCTBAHE HA FYPHN

BbTPEUHa DOJIHa YACT HA BAPSEKIOTO

OctaTbUHTe No 6ap6ekIOTc oTCTpaHBAc C YETKa, CTbprAka N/INn rpy6ata qact Ha rb6ata, cneI KOeTo 6ap6ekIOTc H3MnBa cbc canyHe pa3TBOp. N3nnakHete C BODa n OCTabete Da H3cbxhe.

ПЛACTMACOBN IOBbPxHOCTN

N3mHte c MeKa Kbpna n ropeu canyHe pa3TbOp. N3nlaKHeTe C Boda. 3a nlaCTMaCObHTe NOBbpxHOCTn He H3noJ3BaIte a6pa3HBn nouchTaBau npenapath, o6e3MaCInTeJI nn KOHcHTpAtn 3a noHCTBaH e 6ap6ekIoTO.

PEWETb4HA CKAPA

N3non3BaTe Mek canyHeH pa3TbOp. 3a ynpHTte neta MoKe Da N3non3BaTe Hea6pa3nBeH nouchTaU, npenapat Ha npax, KOITo CneToBc Ce H3nilakBa C Boda.

TABNYKA 3A MA3HINHA

He n3BaXaJaTe TaBnKata 3a Ma3HnHa No BpeMe Ha pa6Ota.

Korato peWnte da noHCTBaTe TabuKaTa 3a Ma3HnHa, npBPO n3BaTe.

IOnyHCTBAHE HA TOPEJIKNTE

3aTbOpTe nOdaBaHTo Ha ra3 OT BpbTkata 3a ynpabJIeHne I OTbPjKeTe 6yTHnkata.

MaxhepepeetbHaatackapaHkaany3nte,KORATOn3CTnHaT.

IouncTeTe ropeKata C MeKa yEtKa Hn npOyXaTe CbC CbCTe H B3dyx, N 36bpWte C Kbpna.

Iounctete 3anyueneHte yactnc BbXe Hnn TeI (Hanp.pa3BNT Klamep).

IpoBepTe ropeKata 3a eBeHTyaHn nobpei (nyKHaTHn nn dynKn). Ako otKpHeTe nobpei, 3ameHeTe c HOBa ropeKa. MoHTnpaTe ropeKata o6paTHo, npobepTe, 3a da BnIne daJn 7uuePte 3a ra3OBn BEHTnI ca npabHnHO pa3noJoxEHn 3dpabo 3akpeHn BbB BXOda Ha ropeKata.

B HЯКо снУан 6ap6eKIoTO MoKe Da nIaMHe No-CnHIO, NopaДи HЯKaKBO HaceKOMO, npOnb3ЯNo BvB BxOJa Ha ropeKkata HnN NaR, KoITo cI e onIe nayJnHa BbTpE B ropeKkata. Toba MoKe Da ce onpABu, KATO Ce BMbKHe YeTKa 3a 6yTnKn BvB BXOJa HA ropeKkata n Ce npokapa No zJIATA N bJxHnHa. Ako npo6JIembT npOdbJxaba, NotbpCte CbBet OT IOCTabHnKa Ha ra3.

OBCJNYKBAHE

Ta3OBOTO 6ap6ekIO Tp8Ba da ce o6cnyXba exeroaHO OT KOMnTeHTHO JInueH3npaHO JInue.

IOBUEHΦOPMAUHA

3a noBee uHOpMaunu BnKTe BnDeo HnCtpyKunHe Ha HauNya ye6caT jamieoliverbbq.com

Jamie Oliver

TAPAHUNA TAOBOTO BAPSEKIO

BdoNbHeHne KbM rapaunraHa MaRa3nHa, OTKbJeTo e 3akynen ypeDa, Jamie Oliver BBQ ce cbflacraBa da ocnhypnuactn 3a 3amHa B cnyau, ye ce noBn DeeKt B MATEpHana HIn B n3pa6oTkata npe3 rapaHnOHnnc pOK, KOHTO 3anOvBa da Teue ot datata Ha NpbROTO 3akynybahe OT KIneHT.

ToBa Baxn cAmO aKO 6ap6eKIOTo:

a. e n3no3BaHO 3a obuayHn DOMAKHCKn CEIN B DOMAsha o6ctaHOBAk.
b. He e 6nlo n3MeHAno nn peMoHTnpaHO oT HeOTOpn3npaHn Iua.
c. c b x p a h r a b a H a cy x npe3 z e nna 3 m m e n nepnoi.
d. He e noBpeNo.
e. HMa BaJIHnHa KAcOBA 6eJIeKka KATO OKa3aTeNCTBO 3a NOKyPkata.
f. e prrctpnpaHc cen non3BaHc Ha rapaunra Ta cbIaCHO daeHMe Yka3AHn.

Tapaunna no eJeMeHTn Ha ra3OBoto 6ap6ekio:

---

-「rapaun3paamkata Jamie Oliver - 5 rodnn
-「Tapaanua 3a kanaka Jamie Oliver - 3 roDHH
-「Fapanua 3a rpnna Jamie Oliver - 3 roDHH
-「Fapahnna 3a 3anaBaeHo Jamie Oliver - 2 roDHH
3a BCnHKn OCTaHaJIuACTn - 1 roDInHO

TapaanuTa He nokpna:

a. Yactn, 3acerHaTH oT pbXda, Kopo3na, OKncIeHne nn o6e3cBETBAHe, Koeto MoKe da ce nbJxHa Bnara nnperpBahe.
b. Tpyd nn pa3HocKn, Cbbp3aHn c noLoXKeH Tpyd.
c. O6nuaHNO H3HocBaHe n amOpTn3aun, dpaKoTHn nn OTnywBaHe Ha Tpb6nte.
d. He6peXHa ynoTepe6a nnn 3noynoTepe6a c npOdyKta.
e. Ynotpe6a Ha HenoDxOJaIIO rOpIBo/ra3.
f. Ynotpe6a B npoTHBopeyne C yka3aHnraTa 3a pa6ota, n3noxKeHN B HapbUHnKa 3a ynotpe6a.
g. Perynatop, Mapkyu cko6n.
h. KoHcyMaTHbH, HAp. 6aTeepn (aKo NMa Takaba onuHa).

IapahunraTn HNKaKBb HauHH He 3acra 3akOHOBte npaba Ha KHeHTa. IapahunraTa Baxn 3a ZenH CBRT.

Jamie Oliver BBQ 3ana3ba npaboto da npabn BINOHNMeHHe No npOdykTa, 6e3 da cbo6aBA 3a TOBa npeBapntHo. Ako moenbT Beue He E H aHnHyoc, ue ce o6cbdn anTephatNBtA My 3amHa nn ypeXdAe Ha rapaunra.

Tapaunetae e BaHnHa do Decet rOHN 3a HAKON qact camo aKO 6bJe pernctpnpaHa do 30 dHn ot daTata Ha 3akynybahe Ha 6ap6ekIoTo. 3a da ce Bb3non3Bate ot TAPAHLrTA, pernctpnpaTe ce OHnHa www.jameoliverbbq. com nn nonbnHete 3aBbJxHtENHte noIeta B qactTa REGISTER NOW Ha OTdEnen NcT n Ro n3npaTe Ha Jamie Oliver BBQ Registration.

3a da HanpaBnte peKnaMaun, cBanTe foOpMynap 3a peKnaMaun ot caTa www.jameoliverbbq.com, nHn nWete do Jamie Oliver BBQ Helpline, Einsteinweg 5, 3752 LW Bunschoten, PO Box 214, 3750 GE Bunschoten, The Netherlands, 3a da nonyute TaKbB.

3a peklaamayrae heo6xOIMO da npedoctabte cJeHNTe daHHN:
a. YettnBO konne OTeKacOBata 6eJekka 3a nokynkata (noka3Baua daTata Ha 3akynybahe, moena mara3nHa).
b. Moen HOMep Ha 6ap6ekioTo.
c.ДаТаHa3aknyBahe.
d. HanmeHOBaHHe n MeCtonoNoXeHHe Ha Mara3Ha n dp. dAHn, HAnp. OHnaH.
e. Chmkn Ha BCnKn NOBpeDeH yactn, KOnto cte ONncan B peKlamaujra Ta cn.

Ia3eTe TO3n DOKYMEnT Ha CNrpyHO MxCTO.

Jamie Oliver

NAVOD K POUZITI PRO
PLYNOV' GRIL

Popis: plynovy grill

Druh plynu: butan, propan, LPG

VAROVÁNÍ
PRO VASI BEZPEČNOST
POUZE K VENKOVINÍMU POUŽITÍ (VNE MISTNOSTÍ)

Gastype: Butan, propan, LPG

ADVARSEL

FOR DIN SIKKERHED

KUN TIL UENDØRS BRUG

(UDEN FOR ETHVERT INDELUKKE)

OPBEVARING AF APPARATET

GAASIGRILLI KASUTUSJUHISED

GAASIBALLOONI UHENDAMINE GRILLIGA

REGULAATOR JA VOOLIK

GAASIGRILLI GARANTII

IAPAKAAΩ ΕAEETE TIA DIAPPOES IPIN TH XPHSE

MnV eAeYxTe note yia diappoec xpnaiouoiwvtac yuunv foLyxa, npoiouoiite nava eva dialua oanovadac

EAEIXOZ IIA DIAPPOEZ

Etoiaote 60-90 ml ano dialua evtionioou diappowv2-3 avaeyuvotac eva poc anoppunavtkou npoc tia epn vepou. Bbaiwtheta otivai kleiotn n baibdae lyxou.

Suvdeoteovputhetaiou tne t n piAaN kai tn baiia ON/OFF t ne tv npotapi, ebaowte oiv aopaaic o ouvdoeckai ta ANOIE Tnv npoxn aepiou.

BouptoiTe to dialua anoppunavikou navw oTo laotixo kal oe oAeTic ouvdeoeic. Av eipavitouv quoaaiidec onpaivei otE exete ia diappon, no onoiia npenei va biopthetai npiv ano tn xpnon.

Enavaaβete tv EλeYxo apotou diopθωate to npoβλμα. Kλeiote tnv npoxn aepiou ano tn φiaŋ μετa tv EλeYxo.

Av npoei va biopw0ei n diappon n oioia avxveoate, nV npooaote va biopwoeTe n diappn o iioc, ououleuteite tov npountheut aepiou

PYOMIHTKAIAASTIXO

Xpnoie TPOUOTc kai aotia ta onoia exouv EYKPIe i yxipnue npaanaw moeic (B. oei 2). H diapkeia xponc tou pOHTN EkTjatai Ota 10 xpvia. SuioTOuVE va aAaleTe Tov puOHTN npiv oumnpwoov 10 xpvia ano nynpeounvia kataokuc.

H xipnq an afoocpuoitnnaoixou evai enikivouvn, eayeTe naVt oEeTe ta owot eapntmuata npiv xpnounoioe tyn pnoptapi.

To laotio to onoio xnoionoite npenei va eivai ooumuoppwon me to avtoiox npotuno yia tn xwa oou xpnoionoiteitai. To nkoctou laotiyou npenei va eivai (to meyto) 1,5 metpa. Eva oapuevo loatio no eva to onoio exei unootei cniie npenei va atikataotaote. Bebaowte ot to laotixo dev eunodietai, dev natietai n ouotpeetai kai de piokeetae peo hme onoiodhne tnc snt opapiac ekto an to onuio ouvdeoc.

To laotixo dev npenei va exei ouotpaei n natnthetai otav ouvdeetai e tn piain aepiou. Kaveva epoc tou laotiyou dev npenei va ayickei kaveva epoc tnc npotapiac. Tonoetne t n piain otnv apiotepn nleupa tnc npotapiac kai niow tnc, e tn meyiotn duvat anootaon nou emtpenei to unkoc tou laotixou.

ETNYHsH a p i a c Aepiou

EmnLeov TcEyyunong Tou kataotmuoc ano to onio ayopaoTke auto to npoiov, n Jamie Oliver BBQ ouuwpwvi ot av eupaviote oonoiDnote Eaattwa tow uikov n Tnc kataokueuc oto npoiov Evtoc Tc ouwqwnevnc nepiodou Eyyunong mTa tv apxikn qepounvia tnC ayopac ano tv neatn, taavikataotnoe ta avtioia xEaptnmuata.

AYTO IXYZEI MONO AN EXOYN THPHGEI TA EHE ΣXETIKA ME THN ΨHΣTAPIA:

a. Kavovikni oikakni xpno n e xpwoc katoikiac.
β. ev exouv vivei aaloiowoeic n emokvec ano m yekkpiéva atopa.
Y. Exi anothenkeutei oE oteyvO xwpa taT diapkeia Tou xeiipwva.
δ. H Ψησαρία δεν ἔχει Φιοστει καμμία Κημία.
ε. Ynαρχεινόμμη anοδειξη που τεκμηριωνει ην αγορα της.
σ. ExTe Eyypaepi oTo npoypaum ayyunonc ouuwpva ie tic obnytEc.

AIAPKEIA THEETYHNSIKAAGE EAPTHMA THS YHETAPIA AEPIOY:

EyyunonTovavntoataewvTovEotwJame Oliver 10 xpovia
Eyyunon Tou naiou Jamie Oliver 5xpvia
Eyyunon Tou Kaankiou Jamie Oliver 3 xpvia
Eyyunon tnc ynoptapidc Jamie Oliver 3 xpvia
Eyyunon tou ouotnmuatoc avaΦεηc Jamie Oliver 2 xpvovia
‘0la ta unoaiina eapntmuata 1xpovoC

AYTH H ERTYH2H DEN KANYTEI TA EHEs:

a. EApntmuata ta onia exouv unootei ooupia, diabpwon, oedwn anoxpwpatnoou mnpovv a opeliovtae uypaa n e unepepavon.
B. Epyaioec n xpewoeic oxetikc ie pyaioec.
y.KavoviknΦθopaKaIγδapaiata n anóφpaξη σωλnvv.
δ.Παραελησηκακηχροηtouπροίοντος.
ε. Xpnoj λaθoc kauoiou / aεpiou.

O. Xpnon avtiBentne tcs obnyies xpnono oiooei npexovta oEvxepidio xponc
Z. Tov puθμiστή, to λαοτιχο καλ τα κλιψάκία.
n. Avawoiua Eaaptmuata onwca nataapiec (otav unapxouv).

H napouoa eyyunon eev enpeaezle kavevav tro n to vovikakaiuata tou nlatn. Autn n eyyunon 1oxe iaykoguaia.

H Jamie Oliver BBQi to dikaiuva npoapiocei auto to pioov xwpic npoeioloin. Av auto to movteao dev ev iai nAeov diaeigo o aountnoue yia uvaalakri kn avikataotaon tou n uuaupowvia.

Móvo av éyypaéite oto nopoypauma éyunonc evtoc 30 nepaw ano tnv nepounvia ayopac tha ioxuie n yyunon yia mexip δeka xpovia yia kanoia εaptμata. ia va wpeλnθeite ano tvv EITYH∑H eyypaéite μeω diabiktuov otn oελida www.jameoliverbbq.com, n ouπλnpwvetet a unoxpewtika πδia katw ano tvtlo EITPAΦEITE TQPA otn xwiotn oελida ka otietale tn taxdpoukni ont dieuvon yyypaçnc tnc Jamie Oliver BBQ.

GRILA APAKŠDALAS IEKŠPUSE

Nonemiet paliekas, izmantojot suk, skapi un/vai svammi, pac tam nomazgajet ar ziepjedeni. Noskalojiet ar edeni un lauijet nozut.

PLASTMASAS VIRSMAS

Notiriet ar mikstu dranu un karstu ziepjudeni. Noskalojiet ar edeni. Neizmantojiet plastmasas dalam abrazivus tirisanas lidzeklus, attaukosanas lidzeklus vai koncentretus grilu tirisanas lidzeklus.

CEPSANAS REZGIS

Izmantojiet viegli ziepjudeni. Gruti nofiramiem traipiem var izmantot neabrazivu tirisanas pulveri un pec tam noskalot ar udeni.

TAUKVIELU PAPLATE

Type gass: Butan, propan, LPG

ADVARSEL

FOR DIN SIKKERHET

KUN TIL UTENDØRS BRUK

(IKKEI NOEN FORM FOR INNELUKKET ROM)

HAPYKHAR NOBEPXHOCTb

IcnoJb3yIte MraKoe MOUoOee cpeCTBO Hnn NnueBvIO CoY, a TaKke TOpRyIO BODy. Iy daneHHeNoaTINBBix nTeH IcnoJb3yIte Hea6pa3NBbIy NcTAAuN NopoWok, 3aTe mPOMouTe OunueHoe MeCTo BODoI.

EcnBHTpeHHra NOBepxHocTb KpbIshK 6ap6ekIO BblnAIT TAK, 6yTo C Hee OTCnAnBaetc Kpacka, 3TO 3HaHT, YTO HaneT Xnpa IporopEn n Teepb OTweNywnBaetc. TuaTeNbHO y6epnte erO KpeKNM rOpqHM BoHbIM pactBOPOMMbIa. Ipomoyte BOOn i daHte NOnHOCTbIO BBICOXHyTb. 3ANPEUCAETc NcNOJb3OBAtb CPeDCTBO JJIYUCTKN NEyEi.

BHYTPEHHJRA NOBEPXHOCTb HIXKHeYCACTN BAPSEKIO

YdaHTe OCTaTK C NMOUbIO UeTKN, CKpe6Ka H/HHN YHCTrauey6KN, 3aTeM npOMoIteMbJIbHbIM BOHNbIM pAcTBOpOM. IpomOHTe BOON I DaHTe BbICOXHyTb.

ПЛACTMACCOBBIE NOBEPXHOCTN

BbIMOnTe MArKO TKAHbIO HrOpAHHM MbIbHbIM pAcTBopOM. IpomOte BDOi. 3aPpeuaetc HcNoIb3OBaTb dIra OUnCTKn PnactMaCCOBbIX y3IOB a6pa3INBbIe YnCTaUne cpeCTBa, oBe3XnPbBAIOuNe cpeCTBa IIn KOHcHTpnpoBaHHOe cpeCTBO dIyNCTKn 6ap6ekIO.

PEWETKAДЛЯ TOTOBKN

IcnoJb3yIne BOHbIn pactBop MfKOroMbina. IyadJeHHa HenoatnBBix nTeHN cnoJb3yIne Hea6pa3HBbI YnCTraun npoWok, 3aTeM npomOte OuHHeHoe MeCTo BODoi.

IOnIOH JJI C6OPA KINPA

3anpeaaetcraotkpbBatb noDOnH Jla c6opa Knpa BO BpemnnoB0aHHa.

Bo Bpem ouhctkn no dona dna c6opa xnpa chayana n3BneKehte 3OT noDOnn 36ap6ekio.

OuHCTKA Y3JIa TOPEJIKN

BbIKIOHTe noauy ra3a c nOMooby pUKN ynpabIeHn IOTcoEHNHTe 6aIIIOH.

Korda 6ap6ekIO octbIHET, CHMHTpeWetky Ira rTOBKN n pacceKaTeHn PnaMeHN.

OuHCTHe rOpEnKy MArKoN uTeKoN HIn npOdyIte CXaTbIM BO3dYxOM, a 3aTe mPOTpHTe TKAHbIO.

Ipouchnte 3acopnbwnece oTbepctna epwnkom Ira qnctkn Tpy6ok nnn jecTKo npoboloko (hanpmepe, pacnpmaenhockpenko).

Ocmotnre ropeky Ha npemet nopekdeHnn (tpeunhbl nIyHKn). B cnyae o6napxehnnoBpckdne H3aMeHnte ropeky HOBO. YcTahOBHTe ropeKny 6bpatHO, y6eNTecb TOM, qTO OTBepCTNra3OBORo KlananaHa pacnonoKeHb

HadnHexaum 6pa30m Hn HnexHo 3akpenHehBo BnyckHom conne ropeikn (conlo Behtpy).

B HeKOTopbIX CnyaX Bb6poc PJIaMeHN B 6ap6ekIO MOxET PPOHCxoIHTb N3-3a TORO, YTO B CONIO RopeKN 3aON3No Hacekomoe Hn nn ONaIa NaYTHa. Yo6bl NcnpabNTb 3TO, HyXHO B3rTb epWNk dN8 6TyblNOK, BBecTN erO B CONIO RopeKN n npOTOLKnHyTB NO BcEINe RopeKN. Ecn npO6nema nocne 3TORO He Ncye3na, o6paTntecb K CBOemy NoCTABuNky r3a.

O6CJIyXKNBAHNE

O6cIyKINBAHHe r3OBoro 6ap6ekIO DoJxHO npoBOnTbCRABaIINΦnIpOBAHHbIM IInueH3nIpOBAHHbIM CneuHaHCTOM pa3 B rO.

BVKJIIOUHOДЛBAKOPNCTAHHNAIBOPI

(3A6OPOHReTbCBAKOPNCTOBYBATNB O6MEXEHOmy IPOCTOPI)

Ybaxho npouHTaIe zu hctpykui ta nepekoHaTeC B TOMy, 0oBawe 6ap6ekIO BCTAHOBHeO Ta 3i6paHO HaneKHM uHOM o6cnyroByetbcra Ta BNkopncTobyeTbcra 3riHNO 3 cIMn iHCTpykuiMn. HeDToPMaHHa ux BmOr Moxe npu3BecTu DO Baxkoi TpaBMn a6o MATEpianbHnx 36ntkIB. LooPiTaHb, nob'3aHnx 3i 36ipKOo a6o ekCnlyataueio cboRo 6ap6ekIO, 3BeptaTecrdo CBoro dInepa, noctaunbHnka ra3y, Bnpo6Hnka, areHt a6o do po3diny Support (Piidtpmka) Ha caaiTi www.jamieoliverbbq.com.

PnmitknIJI KOpNCTyBaUa

KIO BVITKAHN, 6yNO BnBNEHO, HEMOXJIHBO yCyHyTN, He HAMaTaeCBAIDPEMOHTyBATN O6NaDHaHHcAMOCTiHo, a 3BepHtbcra do noctayabHnka ra3y.

PERYJATOPI JIAH

BnKOpHCTOByIte IInwe Ti peryJATOP Ta WAnHn, Aki 6yno 3aTBePdxKeHO dIe 3piXeHOrO ra3y niH HabeEHMM BnIe 3HaueHHMa TcCKy (INB. c. 2). OuyBaHn TePMiH BnKOpHCTAHHpeYJATOPa CTAHOBHTb np6Nt3HO 10 pOKIB. PekomeHdyETbcra 3amHHTn peryJATOP do 3abepseHHu boro 10-piHORo nepIOy (BiDNI K NOUHaetbc 3 daTI BNTOBHeHH).

BnKOpunctaHHeHaleXHoTo peryIaTopa a6o 7aHaHa e He6e3neuHm; nepei noatkom BnKOpuctaHHa 6ap6ekIO o6OB'3KOBO nepebiPe, 0o BnKOpunctOByIOTbc npabHbHi KOMnoHEHTN.

UNaHr, 0BnKOpNCTOByETbC, MaE BiINOBiDAtn BmOram HaleJnx CTAnaptB KpaIHn BnKOpNCTaHH. IOBXHa WlaHra Mae cTahOBHTn 1,5 M (MaKcMym). 3HOWeHn a6o NooKOxHeH NlaHr Tpe6a 3AmHInr. PepeKaHteC, 0o WlaHr He 3aTtChEHn, He neperHytn i He TopKaetbC xOJHOi qactHn 6ap6ekIO, KpIM Micz 3'EdAHHn.

Iiuc niKIOeHn IaHa rO ra3OBoro 6aIHO npeKoHaTeC B TOMy, 0o IaHaHr He nepeKpyeHn i He neperytn. XoHa YactHa IaHa He NobHHa TopKaTHc 6ap6ekIO. YcTaHOblIOte 6aIOn libopyu i no3aHy Bid 6ap6ekIO Ha MAKmAbHi BiCTahi, kYy Do3BOJRe DOBXHa IaHa.

36EPIIAHHЯ BAPSEKIO

36epirAHn 6ap6ekIO B npHmIeHHI Do3BOJrEbCBA NKIOHO 3a yMOBn, IIO 6aIoh Bi'EDHAno Ta 3HTo 3 6ap6ekIO. RaIIO 6ap6ekIO He nAhyOtB BNOPICTOBYBAtn IpOTAROM 3hauHOrO Yacy, Horo Tpe6a 36epirATn B cyxomy Micu, de Hemae Nnny.

T3OBNBAJIOH

MaKcHMaJIbHHI diaMeTp i MaKcHMaJIbHa BnCota 6aNoHa cKnJaAdIOb BiINOBiHO 310 MM i 500 MM, kNOKa3aHO Ha (pnc. 1).

Pnc.1

YMOBHI NO3HaueHHA

1:MaKcHMaJIbHnДIaMeTp;
2:MAKCMAMJIbHA BNCOTA.

He MoxHa Bnyckatn 6aOn H yHkaTe Heo6epexKHO NOBdoXeHHra 3 6aOnHom. Kaio 6ap6ekIO He BHKOpNCBOYEtbcra, Tpe6a BiD eHATn 6aONH. Picra BiD'EDHAAHRA 6aONa H BiD 6ap6ekIO OJARHTb Ha 6aON 3axnCHN KOBNAK.

BaONH 36epiraotb HauBopi y BepTKaIbHOMy NonoXeHHI B Micu, HeIOcXHOMy dItei. 3a60pOHaETbc 36epiratn 6anoh B Micx, de Tempepatypa Moxe nepeBnuYbTu 50^ C. 3a60pOHaETbc 36epiratn 6anoh 6inBorHIO, nanbnKIB iHux dxkepen 3anaIIOBAHH. HE PAJNTN!

Pioa o3aWbHn 6aNoHa B OTbopi Ira 6aNoHIB 3BepHi8 OcO6NHy yBary Ha Te, 0o 6aOn He NOBHe H TOpKaTHCraPaoi Nobepxhi TnnoctiKoi nactHH. PepekohAtecB TOMy, 0o 6aOn NwathMeTbc HA Micci iD qac BVKnOpHCTAHn.3a6opOHaeTbcpaTaWbATn pe3aWobByBatn pe3epBn 6aOn y Tomy X Kopnyci/npmiiueHHi. 3a6opOHaeTbc 3axapauyBatndo KlananaHa 6aNoHa.

06epexho！Kkuo BiyuBaetbca 3anax r3y,3akpnTe ra3OBn 6aJoh.

OuHsEHnI OBCJyROBYAHNr

YBAI! Byb-ki pO6OTn 3 OunueHH Ta TexHIO O6cnyROyBaHH MaOTb BHKOHyBATNC, KOJI 6ap6ekIO OxIoJIO, a NOCTaAHNHa nINBa Ha ra3OBOMy 6aJHO Hi 3akpHTo.

OuHueHH

Po3xapHOBAHpewiK6ap6ekIO nicra KoxHO BnKOpCTaHH (npH6n3HO npotarom 15 xBnIH), 0o6 cnaHTN 3aHnK iXi, donomarae MHiImi3yBatn 3a6pydHeHH.

3OBHIshnI NOBEPXHJ

BnKOpHCTOByIe DnOuHcHn M'kN MnOuN 3aC6 a6o xapOBy coDy Ta rapABy BDOy. IyCyHeHH 3acTApIINx PnM MoXHa BnKOpHCTOByBaTH Hea6pa3NBn NopoWok dJry HsEHH, a NotIM npOMHT OuHcEHi Micr BOIO.

KIO BHTPIH NOBEPXH KPNK6ap6eko BnIaOe, Hi63 Hei BiIAPoByetbc4 ap6a, ce O3Naue, 0o HAnit Xnpy 3ropi i BiNnyuETbC. PeTeJbHO 3Mnnte ueH Hanit Miunm rapaH MInbHm po3HnHom. PpOMnTe BOIO TO daO3BOJIte NOBHCTIO BnCOxHyTN. 3ABOPOHReTbC BNKOPNUCTOBYBATN 3ACIB JIy UINUENH HNEY.

BHYTPIUSHI NOBEPXH HIXKboI YACTINH BAPSEKIO

Bnndt 3aHsKn 3a Donomoroio ttiK, cKepe6Ka Ta/a6o ry6Kn Ira YnueHHra, nicra zuoro BmHnTe MInbHM po3HOM. Ppomnte BDOIO Ta daite BncoxHytn.

ПЛACTMACOBI NOBEPXHI

BmHnTe 3a donomoroIO M'koI TKAHHH Ta rapyoro BODHOro po3HHy MNla. IpomnTe BOIOU. 3a6OpohReTbca BnKOpncTOByBatn dny uHHeHH pactmacOBHX KOMHOHTIB a6pa3HBH i 3acO6n dny uHHeHH, oBe3xHpOBAHI 3acO6n a60 koncHtpobAHn 3ac6 dny uHHeHH 6ap6eku.

PEWITKAДЛЯTORYBAHH

BnKOpHCTOByIte M'kN MnIbHn PO3uH. Iy yCyHeHH 3actapinix Pm MoxHa BnKOpHCTOByBaTH Hea6pa3NBn HnpoWOK dA qHsEHH, a Notim npomtn OuyuHcH Micra BDOIO.

ПДОНДЯЗИРАнгжИРУ

He binkpuBaTe nIDOn dIa 36npaHnaK npy niuac po60Tu 6ap6ekIO.

Ko Tpe6a ouhcntn iiooh Ira 36npahna Knpy, cnoatky BntrHtib ein iioh.

OuHueHHaJIbHnKA

BmKhitra3a donomoroio pykne KepybaHnTa BiaeHaHe 6anoh.

DouekaiTeca,doK6ap6eKO oxonoHe,i3HIMtB peWITky dIra roTyBaHH Ta po3cikay nonym'a.

OuHCTbTe nalbHnK 3a donomoroIO M'koI uTKn a6o npOdyte Horo CTncEHm NOBITpAm, a notim npOTpiB raHcyipKOIO.

KIO kICb OTBOpn 3a6HINcra, npOuHCTbTe IX HOpXHKOM dIg IIOJIbKn a6o XOpCTKm dIpOTom (HaPpIKlaD, po3npabJeHOIO cKpinkoio).

Ipebeipte naibHK ha nowkodxehn (TpiuHH, noprnnn Too). KIO BnaBneHO nowKOxehn, 3amHtB nabHK HOBM. YcTaHObITb naibHK Ha Micue, nepekoHaTeC, IO OTbOpn Ra3OBOrO KlanaHa HAnExHM YHOM po3taWBOHO Ta 3akpinHe BcepeHHi BnyckHoro conna naibHKa (conNo BeHTpyi).

Ihodi BnKND nonym' TpannaeTbcra chepe3 Te, 0oB conno naNbHnka notpanna KOMaxa a6o nabytnnn. Uo6 ycyHytn zu npobemy, yctabTe nojx dny nayok y conno naNbHnka ta npoTobxHitb horo no Bci doBXnHi naNbHnka. Kaio npobema 3anhaetbcra, 3BepHtbcra do CBOrO noCTaunbHnka ra3y.

OBCJNYROBYAHHH

Ta3oBe 6ap6ekIO MAe UOpOKy OBCnyROByBaTHcKBAJIΦIKOBaHm CneUianICTOM, IIO MAe BiINObIHy Niueh3IO.

ДОДATKOBA IHHOPMAЦЯ

UykaTe DoatKoby iHOpMauiO a6o HauaJIbHi Bideo Ha HauOMy caTI jamieoliverbbq.com.

Jamie Oliver

TAPAHTI HA T3OBE BAP6EKIO

Okpim rapaHTiB iD npodabu Bnpo6y, komnHiai Jamie Oliver BBQ noroJxyeTbcra HadaTH KOMnoHeHTn dAamHy BVnaKBy BnABLeHHy y Bnpo6i 6yNb-ax DeqekTIB, nob'3aAHnx i3 MATEpianAMn a60 BNROTOBHeHHM, npotrom 3a3HaueHoro TepmiHy rapaHTi (BiDnik nouHaetbcra 3 datn nepwoi nokynk).

TapaHTria die BnKJIIOUHO B HAcTyNHx BnIaKaX:

a. Bap6ekIO BnKOpHCTOByETbCBA No6ytI TaB KJINHX NOMEuKaHHx.
b. KoHCTpyKzia 6ap6ekIO He 3miHOBaIacra; 6ap6ekIO He peMOHTyBaIocr Oco6amn, rki He MAnI Do3BOJy Ha BHKOHHHa TAKnx po6it.
c. Bap6ekIOB3nMky 36epiranoCBycxomyMiCi.
d. Bap6ekIO He yUkoJKeHo.
e. Eiin chn yek, kni niTbepeKxye nokynk.
f. 6yno 3apeecpobao nOtpmaHra paHti, kOncaHO B uix iHctpykuiX.

TapaHTia, 1o Hadaetbc Ha OKpei By3Jn Ra3OBoro 6ap6ekIO

• TapaHTiHa Tpy6n nalbHnka Jamie Oliver 10 pokiv
• Tapaantir ha Kopnyc Jamie Oliver 5 pokib
• Tapaantria Ha Kpniuky Jamie Oliver 3 poki
• Tapaantir ha pewiKy Jamie Oliver 3 pOKN
• Tapahtia Ha cntemy 3anaioBaanHja Jamie Oliver 2 pokn
  Yci iHsi KOMNOHEHTN 1 pik

Lra rapantia He po3noBcdoxyetbcn Ha HactynHe

a. Detani, 6yno nowkokxeHo uepe3 ipxy, Koposi, OKncnOBaHHa 60 90 BtpaTHN KOJip yepe3 iIO BOJorH a6o HADmIPHO rtenla.
b. Tpydobi BntpaTH Ta BntpaTH, NOB'3aHl 3 BHKOHHaHm PO6IT.
c. Hopmalbhe 3HOWeHHra TnOpaHnnn a6o OUnWeHHaTpy6.
d. He6aJIe a6o HeHaleXHe BnKOpIcTaHHBnPo6y.
e. BnKOpHCTaHH HeHaJIexJHo nAnBa/ra3y.
f. He3daTHICTb DotpmyBATnC nID Yac BHKOpNCtAHH IHCtpyKui IcTOI NOci6HnKa.
g. PerynayTop, wnaHriXomyTH.
h. BntpaTHi MaTepiAn, HanpNkJa eIeMeHTn XNBHeHr (Kkuo Tpe6a).

Lra p aantir hi B ykomy pa3i He o6mexy e 3akohn npaba nokynu. Lra rapahtir iie Bycmy cbiti.

Komnaii Jamie Oliver BBQ 36epirae 3a co6oIO npabo 3mHOBATN Bpi6 6e3 nobIDOMHeHH. KaO ca Moedb 6yde 6Ibwe HeocTyHa, MPO3rHemOBapiaHTn 3amHn a60 BiDkoDyBaHH.

DecaHnipHa rapantia Ha deKa KOMnoHENT die BnKIOUHO 3a yMOBn peectpaui Bnpo6y npotrom 30 dHb BID datn npnd6aHH. 1oo6 coknctatncnpebaramn IAPAHTII, 3apectpynte Bnpi6 uepe3 iIepnet ha caHti www.jameoliverbbq. com a6o 3anobHt b o6OB'3kOBI nonpo3dny REGISTER NOW (3apectpybatn 3apa3) Ha OKpemomy apkywi Ta BiinpaBte Horo noToIO B cnX6y peectpaui Jamie Oliver BBQ Registration.

Lio6 noaTn npTeH3IO, 3aBaHTaxTe fOpMy npTeH3I 3 caTy www.jamieoliverbbq.com a6o HanuWitb y cnyx6y niTpMkn Jamie Oliver BBQ Helpline, Einsteinweg 5, 3752 LW Bunschoten, PO Box 214, 3750 GE Bunschoten, HidepnaHni, oio6 OTPMaTHn fOpMy.

Ppehen3ia Mae MicHTn Taky 06OB'3Koby iHOpMaio:

a. Yitka konia yeka, 0o niiTbePdxye npndanHn/npodax (Ma6yTH BnHO daty npndanHn, im' moJenI Ta H3By Maro3nHy).
b. Im'ra Homep moeJI 6ap6ekIO.
c.ДаТа npHd6aHHa.
d. Ha3Ba i aDpeca Mara3nHy/iHwe, HanpHKlaq iHTepHeT-aDpeca.
e. OTo3HIMKn BCix NOwKOxEHNX KOMNoHEHTIB, npo kI ndbC B npeTeH3ii.

36epiraTe uei DOkymeHT y 6e3neHOMy MiCi.

Visit Jamie's FQHanel on YouTube for great recipes

please go to www.jmieoliverbbq.com and register your barbecue to get up to 10 years guarantee
