304333 - LED work lamp Brandson - Free user manual and instructions

Technical Features	Details not available
Usage	Details not available
Maintenance and Repair	Details not available
Safety	Details not available
General Information	Details not available

Frequently Asked Questions - 304333 Brandson

How do I install the Brandson 304333 product?

To install the Brandson 304333 product, start by reading the provided user manual. Make sure you have all the necessary tools. Follow the installation steps indicated, ensuring you adhere to safety instructions.

What should I do if the product does not work?

If the product does not work, first check that the device is properly powered and all connections are secure. Try restarting it. If the problem persists, consult the manual for specific troubleshooting solutions.

Where can I find spare parts for the Brandson 304333?

Spare parts for the Brandson 304333 can be ordered directly from the manufacturer\'s website or from authorized dealers. Make sure to check the compatibility of the parts before purchasing.

How do I clean the product?

To clean the Brandson 304333 product, use a soft, damp cloth. Avoid harsh chemicals that could damage the surface. Make sure the device is unplugged before cleaning.

Is there a warranty for this product?

Yes, the Brandson 304333 product is generally covered by a limited warranty. Please consult the user manual or the manufacturer\'s website for more details on the duration and conditions of the warranty.

How do I proceed in case of product return?

To return the Brandson 304333 product, please contact your retailer\'s customer service to obtain a return authorization number. Make sure to send back the product in its original packaging, along with all accessories and documents.

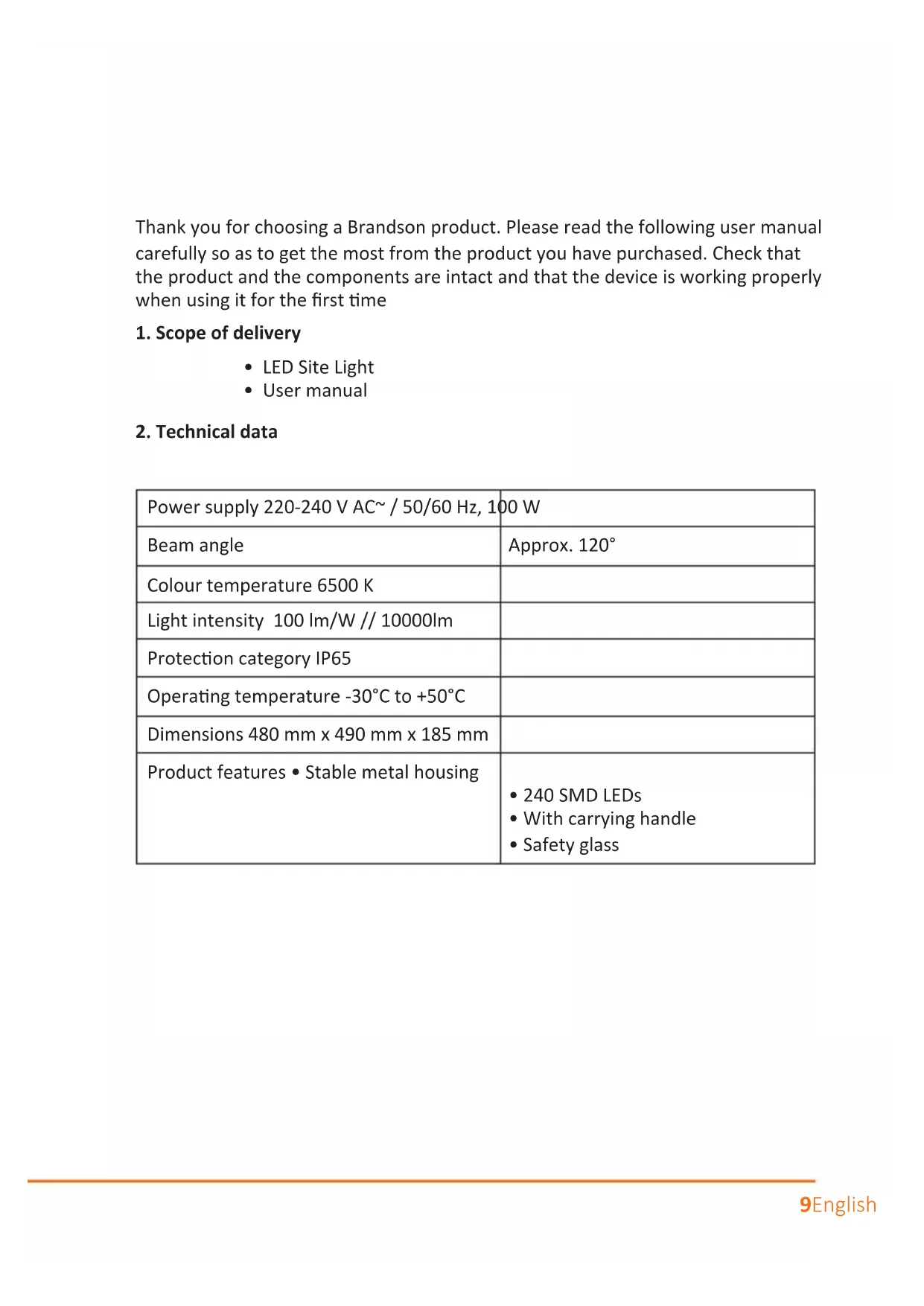

USER MANUAL 304333 Brandson

Thank you for choosing a Brandon product. Please read the following user manual carefully so as to get the most from the product you have purchased. Check that the product and the components are intact and that the device is working properly when using it for the first time

1. Scope of delivery

• LED Site Light
• User manual

2. Technical data

Power supply 220-240 V AC~ / 50/60 Hz, 100 W
Beam angle	Approx. 120°
Colour temperature 6500 K
Light intensity 100 lm/W // 10000lm
Protection category IP65
Operating temperature -30°C to +50°C
Dimensions 480 mm x 490 mm x 185 mm
Product features • Stable metal housing	• 240 SMD LEDs • With carrying handle • Safety glass

3. Important safety guidelines for this device

• Caution! Hot surface! Do not touch hot surfaces with your hand. There is a risk of burns!
• Keep the device away from easily flammable or highly flammable objects!
• Never point the LEDs at persons or animals. Do not look directly at the LEDs!

• Do not use the device without protective glass and stand!

• Always maintain a distance of at least 0.5m between the site light and the other objects!

• Do not use the device if the protective cover is broken!

• Suitable for indoor and outdoor use such as in tunnels, alleys, gardens, etc..!
• Aluminium die-cast housing with safety glass: The surface is provided with an electrostatic coating and is waterproof and dust-proof in accordance with IP65!

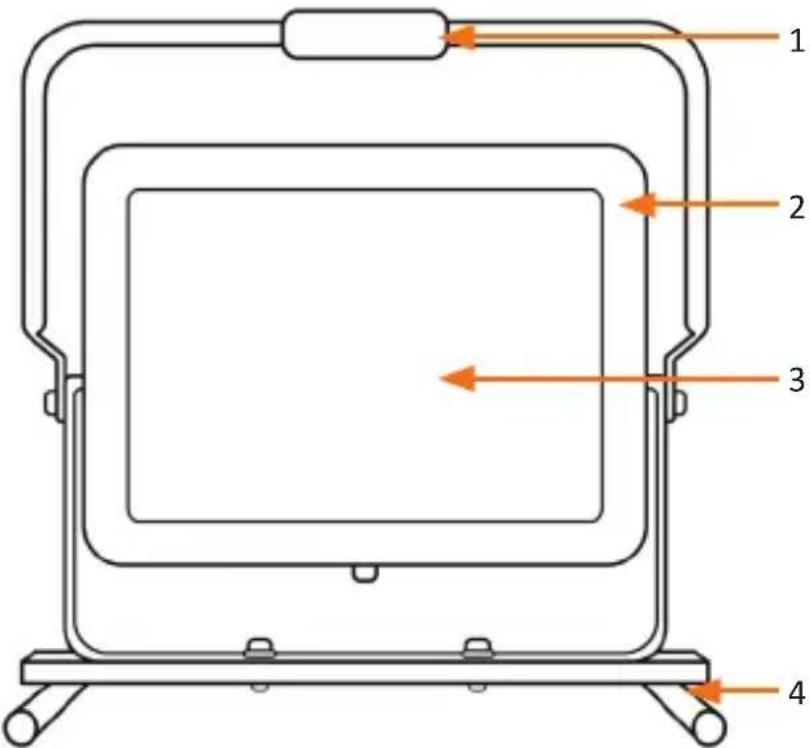

4. Product details

No. Description
1	Carrying handle
2	Housing
3	LED Panel
4	Stand

5. Initial use

Check that the product and the components are intact and that the device is working properly when using it for the first time. Take the device out of the package and remove all the packaging material.

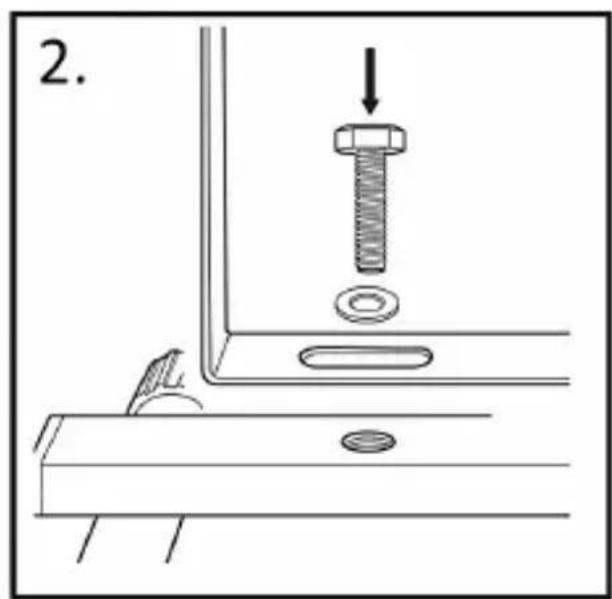

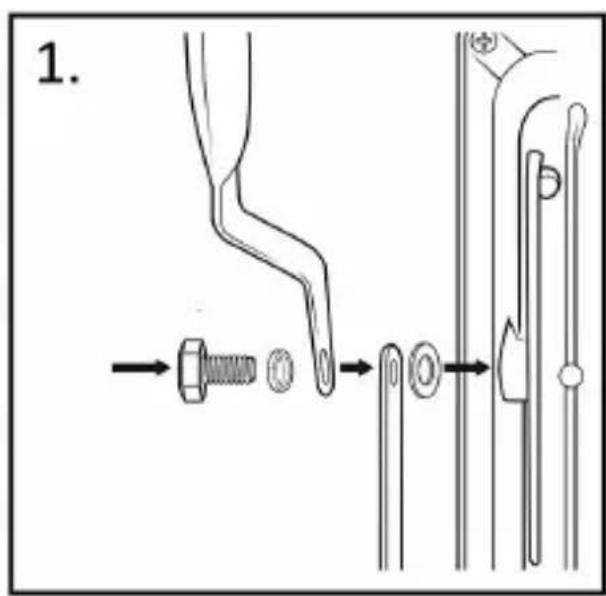

Mount the handle and stand to the housing as shown in the images below.

Connect the power cable of the site light to a properly installed socket. As soon as the device is connected to the socket, it is switched on.

Fety instructions and disclaimer

Check all the connections and wires regularly for damage. Do not operate the device if it is damaged. Keep it away from sharp objects and other potential dangers. Please do not try to open the device to carry out repairs or modifications by yourself. Avoid contact with the mains supply. The device does not carry current only when disconnected. Please do not short-circuit the product. Do not forget to disconnect the power cord when the device is not being used or during thunderstorms. Therefore, please use it only in dry surroundings. Protect it from continuous exposure to high humidity, water and snow.

Do not expose the device to high outdoor temperatures. Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it has been subject to impact or has been damaged in any other way. Please follow the local regulations and restrictions. Do not use the device for purposes other than those described in this manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims.

The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without prior intimation. The device should only be used by those who have read and understood this user manual.

7. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment.

According to the Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

WEEE directive: 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 304333/20200205NB040 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
