Product Type	Multi-functional rotary tool
Brand	Brandson
Model	303824
Power Supply	230 V AC, 50 Hz
Power Consumption	135 W
Rated Speed Range	10,000 - 32,000 min⁻¹
Collet Diameter (max)	3.2 mm
Max Accessory Diameter	32 mm
Sound Power Level (Lwa)	92 dB(A), K=3 dB(A)
Sound Pressure Level (Lpa)	81 dB(A), K=3 dB(A)
Vibration Level	8.3 m/s², K=1.5 m/s²
Speed Settings	6 levels (approx. 10,000 / 15,000 / 21,500 / 24,500 / 28,000 / 32,000 min⁻¹)
Included Accessories	Flexible shaft, collets (1.5-3.2 mm), wrenches, cutting wheels (24 mm, 32 mm), sandpapers, grinding stones, wire brushes, felt polishing wheels, drills, etc. (over 120 pieces)
Intended Use	Cutting, grinding, sanding, polishing, drilling, engraving on metal, stone, wood, plastic, painted surfaces
Safety Features	Spindle lock, double insulation, overheat protection, safety guidelines in manual
Maintenance	Replaceable carbon brushes, clean air vents, no solvents on plastic parts
Storage	Dry, ventilated area, out of reach of children
Compliance	CE, WEEE, 2006/42/EC, 2014/30/EU, 2014/35/EU, 2011/65/EU

Frequently Asked Questions - 303824 Brandson

How do I change the tool bit on the Brandson 303824?

Press the spindle locking button (14) and rotate the clamping nut (17) by hand until it locks. Keep the button pressed and use the supplied wrench to loosen the nut. Insert the new bit with the correct collet (1.5-3.2 mm), then tighten the nut clockwise.

What accessories are included with the 303824?

The set includes over 120 pieces: flexible shaft, collets, cutting wheels (24 mm and 32 mm), sandpapers, grinding stones, wire brushes, nylon brushes, felt polishing wheels, polishing paste, drills, and more. See the scope of delivery in the manual.

What is the maximum speed and how do I adjust it?

The speed ranges from 10,000 to 32,000 min⁻¹, adjustable via a 6-level speed switch. Level 1 is about 10,000, level 6 is 32,000. For polishing and grinding, use max 15,000 min⁻¹ to avoid damage.

Can I use the tool for drilling?

Yes, with the included drill bits (6 pieces), the tool can drill in wood, soft metal, plastic, and lightweight materials. Use appropriate speed and always secure the workpiece.

How do I replace the carbon brushes?

Unplug the tool. Open the carbon brush compartment (9) on the housing, remove old brushes and insert new ones, ensuring contacts are seated properly. Use only identical replacement brushes.

Is the tool suitable for cutting tiles or stone?

Yes, with the appropriate cutting wheels (e.g., 32 mm fiberglass reinforced), the tool can cut stone and metal. Always wear protective gear and follow safety instructions.

What safety precautions should I take?

Always wear ear protection, safety glasses, dust mask and gloves. Keep the work area ventilated, avoid contact with hidden wiring, and never use damaged accessories. Disconnect the tool before adjustments.

How do I clean and maintain the tool?

Keep air vents clean. Use a dry cloth to clean the housing; never use solvents on plastic parts. Regularly check carbon brushes and replace if worn. Store in a dry place.

What does the warranty cover?

Any repairs or modifications not carried out by the original supplier void warranty. The device complies with EU directives. Contact the service team for issues.

Where can I find the full user manual?

The manual is available for free download in PDF format on notice-facile.com. It includes detailed safety instructions, assembly, and operation procedures.

USER MANUAL 303824 Brandson

Table of contents

1. Deutsch .... 3
2. English 32

Technical line drawing of a mechanical device with a rotating shaft and housing, showing internal components and motion direction (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and component, showing motion direction (no text or symbols)

Warning! This device can be dangerous! Careless or improper use may result in injuries to yourself and others.

Please read all instructions carefully so that you understand how to operate the device and always know what you're doing.

Do not allow pedestrians or un-qualified persons to come close to the device.

Always wear ear protection, protective glasses, a dust mask and gloves.

Switch off the device! Always disconnect the plug from the outlet before adjusting or cleaning or if the device or mains cable is faulty.

Do not expose the device to rain. Do not keep it in the open and do not leave it in the rain.

IMPORTANT SAFETY GUIDELINES FOR THIS DE- VICE

Please read all the safety guidelines and instructions carefully! Not following the safety guidelines and instructions may result in electric shock, fire and/or serious injuries.

Retain all the safety guidelines and instructions for future reference. The term "Power tool" used in the following safety instructions refers to power tools with a mains cable or to cordless power tools without a mains cable.

Workplace safety

• Keep the work area adequately lit. Dirty or dark workplaces result in accidents.
• Do not operate power tools in potentially explosive surroundings, e.g., near flammable liquids, gases, etc.

Power tools may generate sparks, which can ignite flammable materials!

- Keep bystanders and children away when using the power tool. You could lose control of the tool if you get distracted.

Electrical safety

- The power tool plug has to fit into a properly installed socket. The plug should not be changed or modified. Never use adapters with earthed power tools. Proper plugs and sockets reduce the risk of electric shock.

- Avoid body contact with earthed surfaces such as heaters, refrigerators or pipes. There is a risk of electric shock.

- Keep power tools away from moisture and rain. The risk of electric shock increases if water gets into power tools!

- Do not misuse the cable under any circumstances! Never carry the power tool by its cable. Do not hang it by the cable or do not pull the cable to disconnect the plug from the socket. Keep the cable away from heat, oil and sharp edges or moving parts! Damaged or entangled cable increases the risk of electric shock!

- If you operate the power tool outdoors, always use an extension cable suitable for outdoors. Using a cable suitable for outdoors reduces the risk of electrical shock.

Personal safety

• Ensure that you are always alert. Be aware of what you are doing and use common sense when working. Do not use a power tool if you are under the influence of alcohol, drugs or medication, or are tired! Carelessness while using power tools may result in serious injuries.
• Always wear personal protective equipment and safety glasses when using the power tool. Wearing appropriate protective clothing, such as ear protection, safety glasses, safety shoes and helmet can reduce the risk of injuries, depending on the type and use of the power tool.
• Prevent the power tool from starting unintentionally. Always check whether the device is switched off before connecting it to the battery or the power supply, picking it up or carrying it. Accidents may occur if you keep your finger on the switch while carrying the tool or if you connect the power tool to the power supply when the tool is switched on.

• Remove any setting tools or wrench before switching on the power tool. Any tool or object left in a rotating part of the device may result in injuries.

• Always maintain a normal posture when using power tools and ensure that your footing is secure at all times and that you maintain your balance. This allows you to control the power tool better in unexpected situations.

• Always wear suitable clothing when using a power tool. Never wear loose clothing or jewellery. Keep your hair, clothing and gloves always away from moving parts.

This type of clothing or hair can get caught in moving parts!

- If connecting attachments for dust extractors and collectors are available, they should be properly mounted and used. The use of dust protection devices can reduce risks caused by dust.

Use and handling of power tools

• Never overload the power tool under any circumstances. Always use the appropriate power tool for your work. Working with the incorrect power tool reduces the safety considerably.
• Never use a power tool with a faulty switch. A device that cannot be switched on or off must absolutely be repaired and may not be used.

• Before changing the settings, the accessories on the power tool, or storing the device, it must be disconnected from the mains supply and/or the battery. These measures reduce the risk of the device switching on accidentally.

• Keep the unused power tool out of reach of children. Do not allow those who are not familiar with the usage instructions of the device to use it. Power tools are dangerous in the hands of inexperienced users.

• Maintain your power tools properly. Check your tool for misalignment, damage and other conditions that may affect the operation. In case it is damaged, have the power tool repaired by a specialist before using it again.
• Keep the cutting tools clean and sharp. Well maintained tools with sharp blades are less prone to damage, and are better to handle.
• Use the power tool, accessories and tool inserts in accordance with these instructions. Take the conditions and the work to be carried out into account.

General warning and safety instructions for grinding, sandpaper grinding, polishing, abrasive cutting or working with wire brushes

• This device has to be used as a sander, sandpaper grinder, polisher, power cutter, drill and as a milling machine. Note the warning and safety instructions as well as the instructions and data provided with the tool. If you do not follow the instructions given below, it may result in electric shock, fire and / or serious injury.

- Use only accessories provided and recommended by the manufacturer specifically for this power tool. Even if you can mount the accessories on your power tool, this does not guarantee safe use.

- The permissible speed of the tool has to be at least as high as the maximum speed specified on the power tool. Accessories that rotate faster than permitted may break and be flung around.

- Outer diameter and thickness of the accessories have to match the specifications of your power tool. Incorrectly dimensioned accessories can not be adequately shielded or controlled.

- Grinding wheels or rollers or other accessories have to match your power tool perfectly. Accessories that do not fit into the holder of the power tool rotate unevenly, vibrate heavily and can lead to loss of control.

- Wheels, cutting tools or other accessories mounted on the mandrel have to be fully inserted into the collet or chuck. If the mandrel is not sufficiently and properly clamped or if the tool bit juts out too far, the tool bit can come loose and be thrown out at high speed.

- Do not use damaged tool bits. Before using the tool bits such as grinding wheels, grinding rollers, check them each time for cracks and abrasion or excessive wear. Check wire brushes, e.g., for loose or broken wires. If the power tool or the tool bit falls down, check to see if it is damaged. Use an undamaged tool bit in case of doubt. Once you have checked and mounted the tool, keep yourself and anyone nearby away from the plane of the rotating device and allow the device to run at maximum speed for one minute. Damaged tool bits usually break during this testing time.

- Always wear personal protection gear. Depending on the application, full face protection, eye protection and / or safety glasses. If necessary and appropriate, wear dust mask, ear protection, protective gloves or special apron that protects you from small grinding and material particles. The eyes must be protected from foreign objects that are generated and dislodged by the various applications. Dust mask or breathing mask have to filter the generated dust. If you are exposed to loud noise for long durations, you may suffer hearing loss.

- Keep others at a safe distance from your work area. Anyone entering the work area has to wear personal protective gear. Broken tool bits or fragments of the workpiece can be thrown around and cause injuries even outside the immediate work area.

- Hold the tool using its insulated gripping surfaces only when carrying out work where the tool may come into contact with hidden wiring. Contact with live wires can cause current to flow through the metal parts of the power tool and result in an electrical shock.

• Always hold the power tool firmly when starting it. When ramping up to the maximum speed, the reaction torque of the motor may cause the device to twist. Therefore position your body and arms to absorb any possible kickback.
• If possible use clamps to fix the workpiece. Never hold a workpiece in one hand and the device in the other hand, while using the device. By clamping the workpieces, your hands are free for better control of the power tool. When cutting round workpieces, such as rod material or, pipes, they tend to roll away causing the tool bit to get jammed and it can be flung at you.
• Never put the power tool down before the tool bit stops completely. The rotating tool bit can come into contact with the counter, causing you to lose control of the power tool.

• Tighten the chuck or other fastening elements properly after replacing tool bits or after making settings on the device. Loose fastening elements may unexpectedly move and result in loss of control.

• Do not allow the power tool to run while carrying it. Your clothes may get caught by accidental contact with the rotating tool bit and the tool bit may injure you.

• Clean the air vents of your power tool regularly. The motor can attract dust into the housing and heavy accumulation of metal dust can pose electrical hazards.
• Do not use the power tool near flammable materials. Sparks can ignite these materials.
• Do not use tool bits that require liquid coolant. The use of water or other liquid coolants can result in electric shock.

Kickback and corresponding safety instructions

- Kickback is the reaction of a tool bit that gets jammed or blocked. Jamming or blocking of the tool bit causes it to stop abruptly. This in turn causes the uncontrolled power tool to be forced in the direction opposite to the tool bit's rotation at the blocked point. If, e.g., a grinding wheel is blocked in the workpiece, the edge of the grinding wheel which penetrates the workpiece, may get caught causing the grinding wheel break away and / or cause a kickback. Depending on the direction of rotation of the wheel, it either moves towards or away from the operator. The grinding wheel may also break in the process. Kickback is the result of using the

power tool in an incorrect or improper manner. Kickback can be avoided by taking appropriate precautions, as described below.

• Hold the power tool firmly and move your body and arms to a position where you can absorb the kickback forces. The operator can control kickback forces by taking suitable precautions.
• Work very carefully in areas with sharp edges and corners, etc. Prevent the tool bits from bouncing back from the workpiece and getting jammed. The rotating tool bit tends to get stuck at corners, sharp edges or when it bounces back. This can result in loss of control or kickback.

• Do not use serrated saw blades. Such saw blades can result in frequent kickback and loss of control over the power tool.

• Guide the tool bit always in the direction of the material in which the cutting edge leaves the material (corresponds to the direction in which the chips are thrown out). Guiding the power tool in the wrong direction may cause the tool bit to break out of the workpiece, which then pulls the power tool in this feed direction.

• Always clamp the workpiece firmly during use, especially when using cutting wheels. Even if there is a slight tilting in the groove, the tool bits may get jammed and cause kickback. When a cutting wheel gets jammed, it usually breaks. For example, if rotary files, milling tools get jammed, the tool bit can jump out of the groove and result in loss of control over the power tool.

Specific safety instructions for grinding and abrasive cutting

- Use only wheels approved for your power tool and for the recommended applications. Example: Never grind with the side face of a cutting wheel. Cutting wheels are intended for removing material with the edge of the wheel. A lateral force on the wheel can break it.

• For tapered and straight grinding pins with thread, use only undamaged mandrels of the correct size and length. Suitable mandrels reduce the possibility of breakage.
• Avoid blocking or excessive pressure on the cutting wheel. Do not make very deep cuts. Overloading the cutting wheel increases the load and the chances of jamming or blocking and thus increases the possibility of kickback or wheel breakage.
• Avoid using your hands and any other body parts in the area in front of and behind the rotating cutting wheel. If you move the cutting wheel in the work piece using your hands, the power tool along with the rotating wheel can be flung directly at you in case of kickback.

• If the cutting wheel is blocked or if you stop working, switch off the device and hold it until the cutting wheel stops turning completely. Never try to pull the running cutting wheel out of the cut. There is a risk of kickback. Identify and rectify the cause of the blockage.

• Never restart the power tool while it is still in the workpiece. Allow the cutting wheel to reach its maximum speed first before carefully continuing with the cutting work. Otherwise, the wheel can get jammed and break out of the workpiece or, for example, cause a kickback.

• Support plates and large workpieces to reduce the risk of kickback caused by a jammed cutting wheel. Large workpieces can bend due to their own weight. The workpiece has to be supported on both sides of the wheel as well as near the cutting line and at the edge.
• Be very careful when making "pocket cuts" in existing walls or other concealed areas. The cutting wheel may get into gas or water pipes as well as electrical wiring or other objects that cause a kickback, during cutting.

Specific safety instructions for grinding and abrasive cutting

- Note that the wire brush loses pieces of wire even during normal use. Do not overload the wires by applying excessive pressure. Pieces of wire that are flung out can very easily penetrate thin clothing and / or skin. Always wear protective clothing!

• Allow the wire brush to run at operating speed for at least one minute before use. Make sure that no one is in front of or in the same line as the brush during this time. Caution! Loose pieces of wire may be flung out during the run-in time.
• Point the rotating wire brush away from yourself. Danger of injury! When working with wire brushes, small particles and tiny pieces of wire may be flung out at high speed and penetrate through the skin.

Additional safety instructions

• Use appropriate suitable detectors to find hidden utility lines (e.g. water and gas lines or power lines), or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosions. Damaging a water line causes property damage by water.

• Always secure the workpiece adequately. A workpiece secured in place using a clamping device or vice is more secure than one held with your hand.

• The power tool is not suitable for stationary operation It should not be clamped, e.g., in a vice or mounted on a work bench and operated.

• Caution!: Always follow these safety guidelines! Familiarise yourself with the corresponding product! Not following and misusing the safety guidelines given in this manual may cause serious injuries!

Important safety instructions

• Do not machine materials containing asbestos!
  • Always wear a safety mask! Some dusts are considered harmful (sometimes even carcinogenic).
• Get the device repaired by qualified technician!
• Do not store the power tool in places where the temperature exceeds 50°C!

Ensure that you read and keep the safety instructions carefully!

Intended use

The power tool is intended for cutting metal and stone materials as well as for grinding, sand paper grinding and polishing of metal and painted surfaces without using water. In addition, the power tool is also suitable for drilling in wood, soft metal, plastic and lightweight materials, with appropriate accessories.

Thank you for choosing a Brandon product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Multi-functional tools
• Accessories
• Transport case

2. Transport case Accessories

Holder / Assembly

Number	Description
1 Flexible shaft, about 105 cm long
5 Collets [out of which one is in the device], (diameter 1.5-3.2 mm)
1 Wrench (drill chuck)
1 L-key (Allen key)

Cutting / separating

Number	Description
66 Cutting	wheels ( 24 mm)
5 Cutting	wheels ( 32 mm fibre glass)
3 Threaded mandrels (holders for cutting wheels)

Grinding

No. Description
60 Sand	paper (fine, medium, coarse): 3 x 20 pieces ø 20 mm
9 Grinding stones (with shaft)
12 Grinding wheels ø 20 mm
9 Grinding belts 12.5 mm inner diameter
8 Grinding belts 6.5 mm inner diameter
2 Mandrels for grinding belts (ø 12.5 and ø 6.5 mm; rubber adapter)
1 Rubber emery wheel ø 22.5 mm
1 Grinding stone
1 Flap wheel

Engraving

No Description

5 Diamond grinder

2 HSS milling tool

Polishing / Cleaning

No Description

1 Polishing paste

3 Wire brushes

3 Nylon brushes

6 Felt polishing wheels (1 tip, 5 wheels)

1 Threaded mandrel (holder for felt polishing wheels ø 3.2 mm)

Drilling

6 x drills

1. Technical data

Power supply 230 V AC 50 Hz
Power consumption 135 W
Sound power level (Lwa) 92 dB(A), K=3 dB(A)
Sound level (Lpa) 81 dB(A), K=3 dB(A)
Vibration level 8.3 m/s2, K=1.5 m/s2
Rated speed	10000 - 32000 min ^-1
Collet diameter	max. 3.2 mm
Max. outer diameter of accessories	32 mm

4. Product details

The figure of the following table is given on the 2nd page of this user manual.

Number Name
1 Mains plug
2 Handle
3 Cable strain relief
4 "On/Off" switch
5 Ventilation panel
6 Ventilation panel
7 Printed circuit board
8 Speed level switch
9 Carbon brushes
10 left side of the housing
11 Stator
12 Rotor
13 right side of the housing
14	Spindle locking button
15	Locking member
16	Tool holder on the chuck
17	Clamping nut
18	Screws

5. Initial use

Take the device out of the package and remove all the packaging material. Check if the product, the components and the accessories are intact and if the device is working properly when using it for the first time.

Remove any protective covers. Make sure that sensitive objects are not damaged once a tool bit is inserted. Make sure that the "On / off switch" is switched off and the speed switch is on the lowest setting.

When using the multi-functional tool, hold the device firmly to operate it properly. The multi-functional tool is now ready for use. Then insert the desired tool bit. To start the device, press the "On / Off switch" to position "A". Now select the desired speed carefully using the speed switch.

CAUTION!

• Do not cover the air vents or the intake opening!
• Certain dusts are considered carcinogenic. Always ensure that the work place has good ventilation. Follow the applicable local regulations regarding the machining of materials!
• Materials containing asbestos should only be machined by professionals!
• Avoid dust accumulation at the workplace. Dust can easily ignite.
• Always grip the device firmly! Ensure secure footing when using the device.

6. Tool bits

Do not use faulty or worn out tool bits under any circumstances as this can result in serious injuries and property damage.

Use only tested accessories from specialist shops for the power tool. Make sure that the accessories are approved for a rpm of 32000 and that the maximum outer diameter is 3.2 mm.

When mounting the tool bit, ensure that the shaft of the tool bit is firmly sitting in the tool holder on the chuck (16). If the shaft of the tool bit is not properly inserted into the tool holder, there is a possibility that the tool bit may come loose and get out of control.

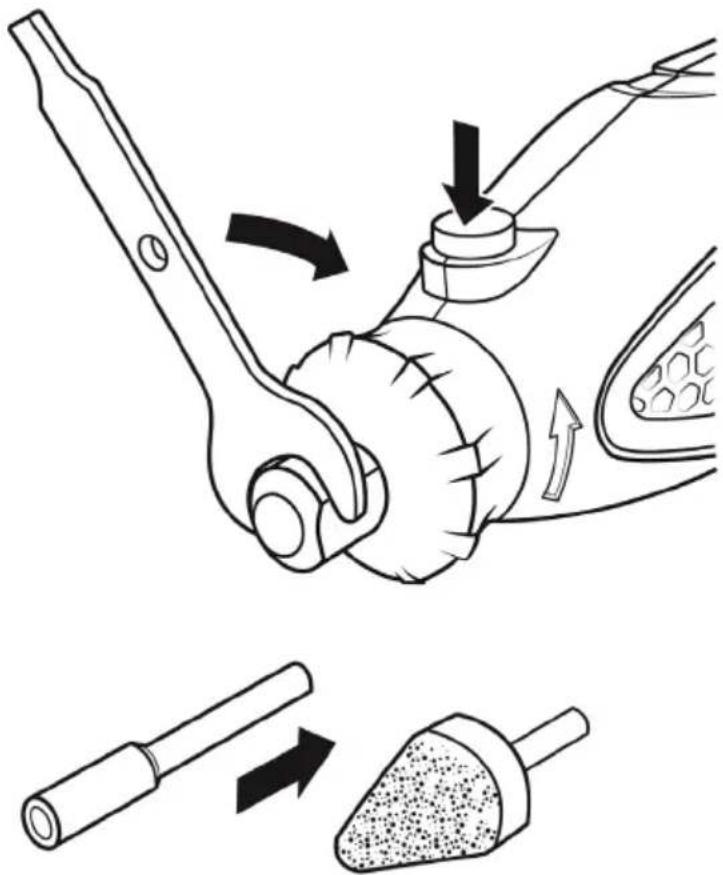

Mounting the tool bits

• Press the spindle locking button (14) and rotate the clamping nut (17) by hand until it blocked.
• Keep the spindle locking button (14) pressed and loosen the clamping nut (17) using the wrench.
• Insert the tool bit into the tool holder on the chuck (16). Caution! Make sure that you choose the collet with the appropriate inner diameter for your tool bit!
• Keep the spindle locking button (14) pressed and clamp the tool bit by tightening the clamping nut (17) clockwise using the wrench.

Dismantling the tool bits

Loosen the clamping nut (17) as described in the chapter "Mounting tool bits" and remove the tool bit from the device.

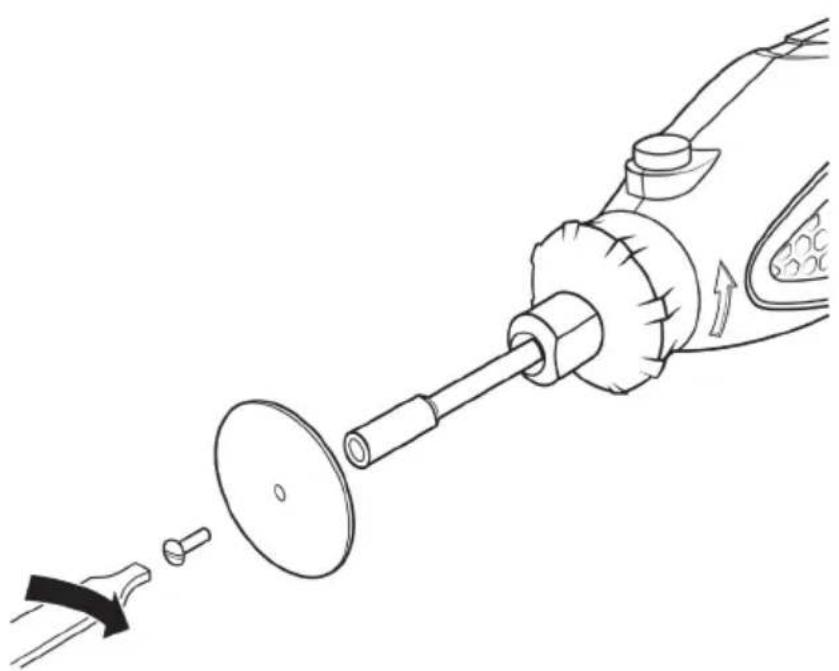

Mounting the wheel or grinding attachments

Technical line drawing of a mechanical device with a rotating shaft and component, showing motion direction (no text or symbols)

- The delivery includes various wheel or grinding attachments which you can use with the device. You need the retaining pin (2) to use these attachments.

- Insert the retaining pin (2) into the tool holder as described in the previous section.

- Keep the spindle locking button (14) pressed and remove the screw on the retaining pin (2) completely using a screwdriver or with the back side of the wrench.

- Place the desired wheel or grinding attachment on the retaining pin (2) and tighten the previously removed screws of the retaining pin.

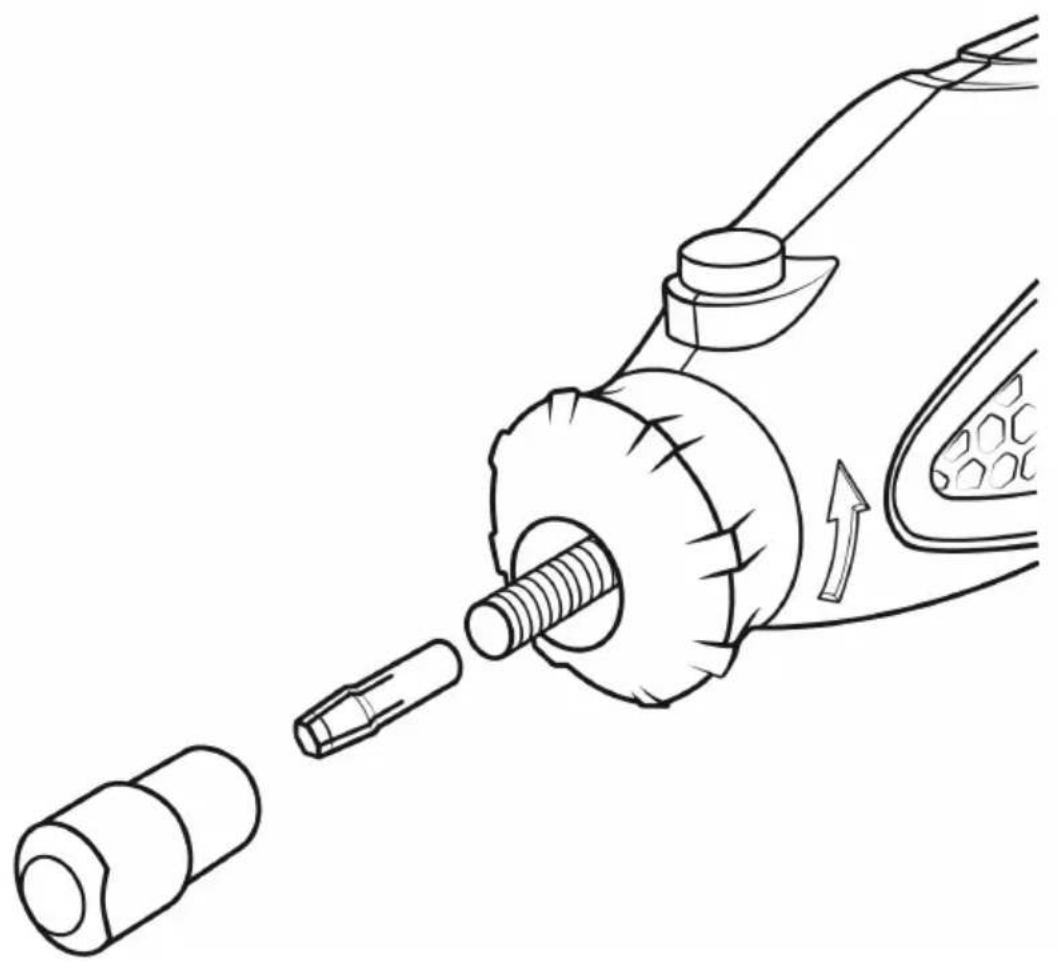

Changing the collet

Technical line drawing of a mechanical assembly with a tool and component, showing motion direction (no text or symbols)

• Press the spindle locking button (14) and rotate the clamping nut (17) by hand, until it is blocked.
• Keep the spindle lock pressed and loosen the clamping nut (17) using the wrench and then remove the clamping nut (17) along with the chuck (16).

• Then insert the new collet. Make sure you choose the correct size for the desired application.
• Slightly screw the clamping nut (17) including the new collet (16) using the wrench in clockwise direction.

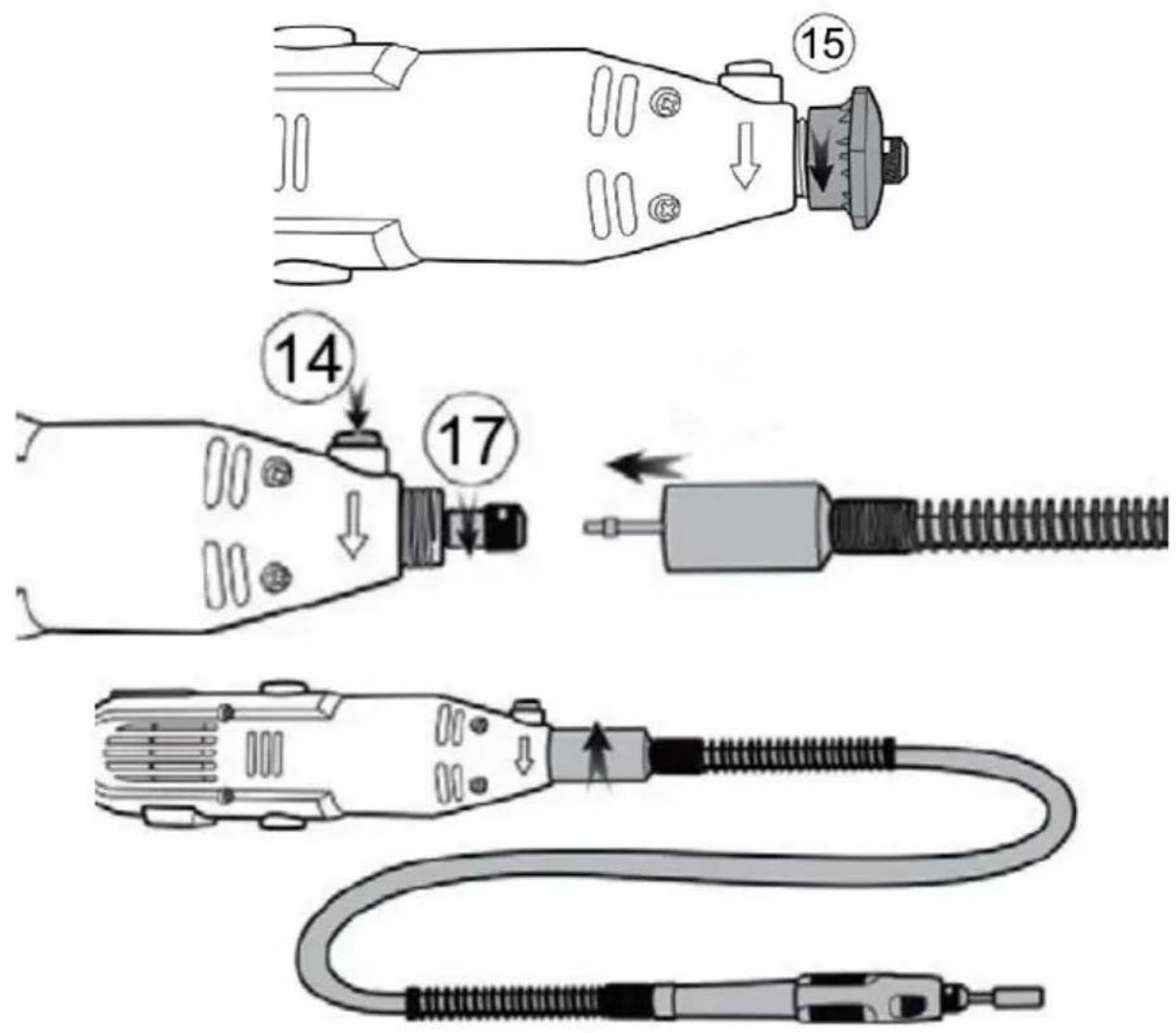

Mounting the screwdriver extender

1. Unscrew the dust cap (15).
2. Press the spindle locking button (14) and rotate the clamping nut (17) by hand until it blocked.
3. Mount the screwdriver extender and tighten it.
4. Then mount your desired attachments to the end of the screwdriver extender.

Note: The spindle locking button (14) does not work when the screw-driver extender is attached. To block the device and mount the tool bit, insert the supplied Allen key into the hole on the front of the screwdriver extender.

7. Usage

Hold the device firmly with both hands. Use the product only if you have completely read and understood the user manual and all the relevant safety instructions. Use it only for the intended purpose.

Selecting the speed

Level Speed
1 about 10000 min^-1
2 about 15000 min^-1
3 about 21500 min^-1
4 about 24500 min^-1
5 about 28000 min^-1
6 about 32000 min^-1

Find out about the special instructions. before machining the corresponding materials, for example, you should machine materials with a low melting point only at low speeds, otherwise there is a risk that the material may deform. Materials such as wood should be machined at high speeds.

Note: In order to avoid damage, it is recommended to use a maximum speed of approx. 15000 rpm for polishing, grinding and cleaning work.

Turning the device on and off

You can switch the device On (I position) or Off (0 position) using the "On / Off" switch.

8. Cleaning and Care

Avoid the use of solvents for cleaning plastic parts. Many plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use.

Always use clean cloths for cleaning to remove dirt, dust, oil, grease, etc. Never immerse the device in water!

Keep clean the power tool and the air vents clean to work in a better and safer manner.

Caution! Do not allow petrol, brake fluids, aggressive oils etc. to come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic parts, which can lead to serious injuries.

Replacing the carbon brushes

You have the option to replace the carbon brushes. For this purpose, open the upper or lower compartment of the carbon brushes (9) and remove it after switching off and disconnecting the device. Replace the carbon brushes and insert the new ones into the compartment.

In any case, make sure that the contacts of the carbon brushes are inserted properly, otherwise the device will not start!

9. Storage

Before storing the device, make sure that it has been cleaned. Store the device in a dry, well-ventilated place out of reach of children. Keep the device away from corrosive substances such as garden chemicals and salts.

CAUTION!

10. Safety instructions and disclaimer

Please do not try to open the device to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof. Please use it only in dry surroundings. Protect it from high humidity, water and snow.

Keep the device away from high temperatures.

Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual.

This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the device, which is not carried out by the original supplier will void any warranty and guarantee claims. The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without prior intimation.

11. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment.

According to the Electrical and Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

12. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by

weight.

The symbol of the crossed-out dustbin means that the battery may not be disposed of in household waste.

WEEE Guideline: 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 303824/20190809NB113 complies with the fundamental requirements and all other relevant stipulations of the guideline 2006/42/EC. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, https://www.ganzeinfach.de

Only for European countries

EC Declaration of compliance

WD-Plus GmbH declares that the following device:

Description of the device: Multi-functional tools

Model number / Type: 303824

of the European directives corresponds to: 2006/42/EC, 2014/30/EU, 2014/35/EU, 2011/65/EU

To ensure compliance, the applicable versions of the following standards / specifications were used at the time of issue: EN60745

The technical documentation in accordance with 2006/42 / EC 2014/30 / EU 2014/35 / EU 2011/65 / EU is available at:

WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, Germany

Hanover, 03/09/2019

We hope you enjoy your new product in every way!

If there is still something you're concerned about please feel free to let us know.

You're welcome to contact our service team at any time.
