Product Type	LED Work Lamp
Brand	Brandson
Model	303512
Voltage Supply	220-240V AC~, 50-60Hz
Power Consumption	100W
Light Source	140 SMD LEDs
Color Temperature	6500K (Daylight)
Luminous Efficacy	95 lm/W
Viewing Angle	120°
Protection Class	IP65 (Dust-tight and water-jet protected)
Working Temperature	-30°C to +50°C
Housing Material	Aluminum die-cast with electrostatic coating
Safety Glass	Yes
Carrying Handle	Yes
Dimensions (W x H x D)	400 x 400 x 70 mm
Weight	Not specified
Usage Environment	Indoor and outdoor (tunnel, alley, garden)
Installation	Plug and play; base with locking screw
Safety Features	Hot surface warning, keep 0.5m distance, do not look directly
Compliance	WEEE Directive 2012/19/EU, CE
Cleaning	Use a dry cloth; do not use water or solvents
Spare Parts / Repairability	No user-replaceable parts; repairs void warranty

Frequently Asked Questions - 303512 Brandson

How do I turn on the Brandson 303512 work lamp?

Simply plug the power cable into a correctly protected socket. The lamp will turn on immediately. There is no separate on/off switch.

Can I use this lamp outdoors?

Yes, the lamp has an IP65 protection rating, making it dust-tight and protected against water jets. It is suitable for outdoor use in tunnels, alleys, gardens, etc.

Is it safe to look directly at the LEDs?

No, never look directly at the LED light. It can cause eye damage. Always point the lamp away from people and animals.

What is the recommended distance to objects?

Keep a distance of at least 0.5 meters between the work light and other objects to prevent overheating or fire hazards.

Can I adjust the lamp angle?

Yes, use the screws on the left and right sides of the device to fix the work lamp at your desired angle. The base also has a locking/unlocking mechanism.

What should I do if the protective glass breaks?

Immediately stop using the lamp. Any further use is prohibited if the protective glass is shattered. Contact the manufacturer for replacement.

How do I clean the lamp?

Use a dry, soft cloth to clean the housing and glass. Do not use water, solvents, or abrasive cleaners as they may damage the coating or electronics.

Can I use an extension cord?

Yes, but ensure the extension cord is rated for at least 100W and is suitable for outdoor use if used outside. Avoid overloading.

What does IP65 mean?

IP65 means the lamp is completely protected against dust ingress (dust-tight) and protected against low-pressure water jets from any direction. It is suitable for wet or dusty environments.

Where can I download the user manual?

You can download the free user manual in PDF format from notice-facile.com. Search for Brandson 303512 or use the direct link on the product page.

USER MANUAL 303512 Brandson

Thank you for choosing a Brandon product. Please read the following user manual carefully so that you can enjoy your device for a long time. When starting up the device for the first time, check the integrity of the product or components and its function again.

1. Scope of Delivery

• LED Work lamp
• User manual

2. Technical Data

Voltage supply 220-240V AC~ / 50-60Hz, 100W
Viewing angle	approx. 120°
Colour temperature 6500K
Lumen intensity 95 lm/W
Protection class IP65
Working temperature -30°C up to +50°C
Dimensions (mm) 400mm x 400mm x 70mm
Product features • Sturdy metal housing	• 140 x SMD LEDs• With carrying handle• safety glass

3. Special safety instructions for this device

• Attention! Hot surface! Never touch hot surfaces with your hand. There is a danger of burning due to the hot surfaces!
• Keep the device away from combustible and flammable materials!
• Never point the LEDs at people or animals. Do not look directly at LED light!
• Never use the device without a protective glass or stand!

- Keep a distance of at least 0.5m between the work light and other objects!

• If a protective cover is shattered, any further use of the device is prohibited!
- Suitable for indoor and outdoor use such as tunnel, alley, garden, etc.!
- Aluminum die-cast housing with safety glass: The surface is equipped with an electrostatic coating. It is in accordance with IP65 waterproof and dust-free!

4. Start-up

When the device is put into operation for the first time, check the intactness of the product or components and their function again. Remove the device from its packaging and remove any packaging material. Plug the power cable into a correctly protected socket. As soon as the device is connected to the socket, it is switched on.

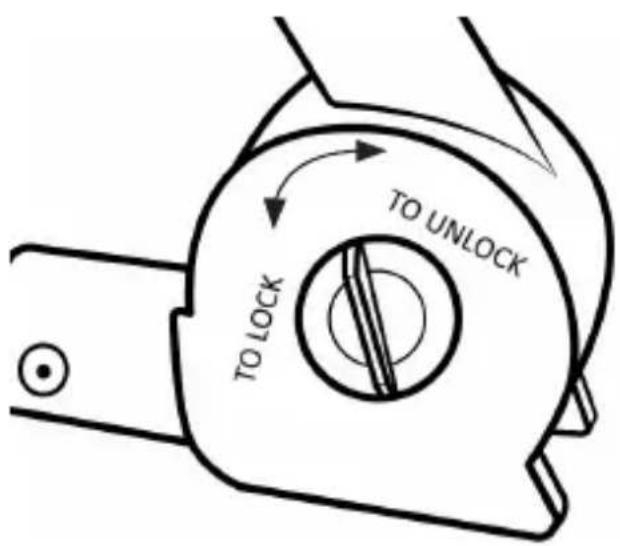

To fix the base, turn the screw on the base in the "To Lock" direction. To unlock the stand, turn it in the "To Unlock" direction.

With the screws on the left and right side of the device you can fix the work lamp.

5. Safety Instructions and Liability Disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

6. Disposal Instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE Directive: 2012/19/EU WEEE Register No: DE 67896761

WD Plus GmbH hereby declares that the device 303512/20190108NB098 complies with the essential requirements and other relevant regulations. A complete declaration of conformity is enclosed: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover, Germany
