gelangen. Manuelle Zeiteinstellung User can manually set the time of the temperature station by using the following steps:

WS 9900 - Instruction manual Features: The temperature station

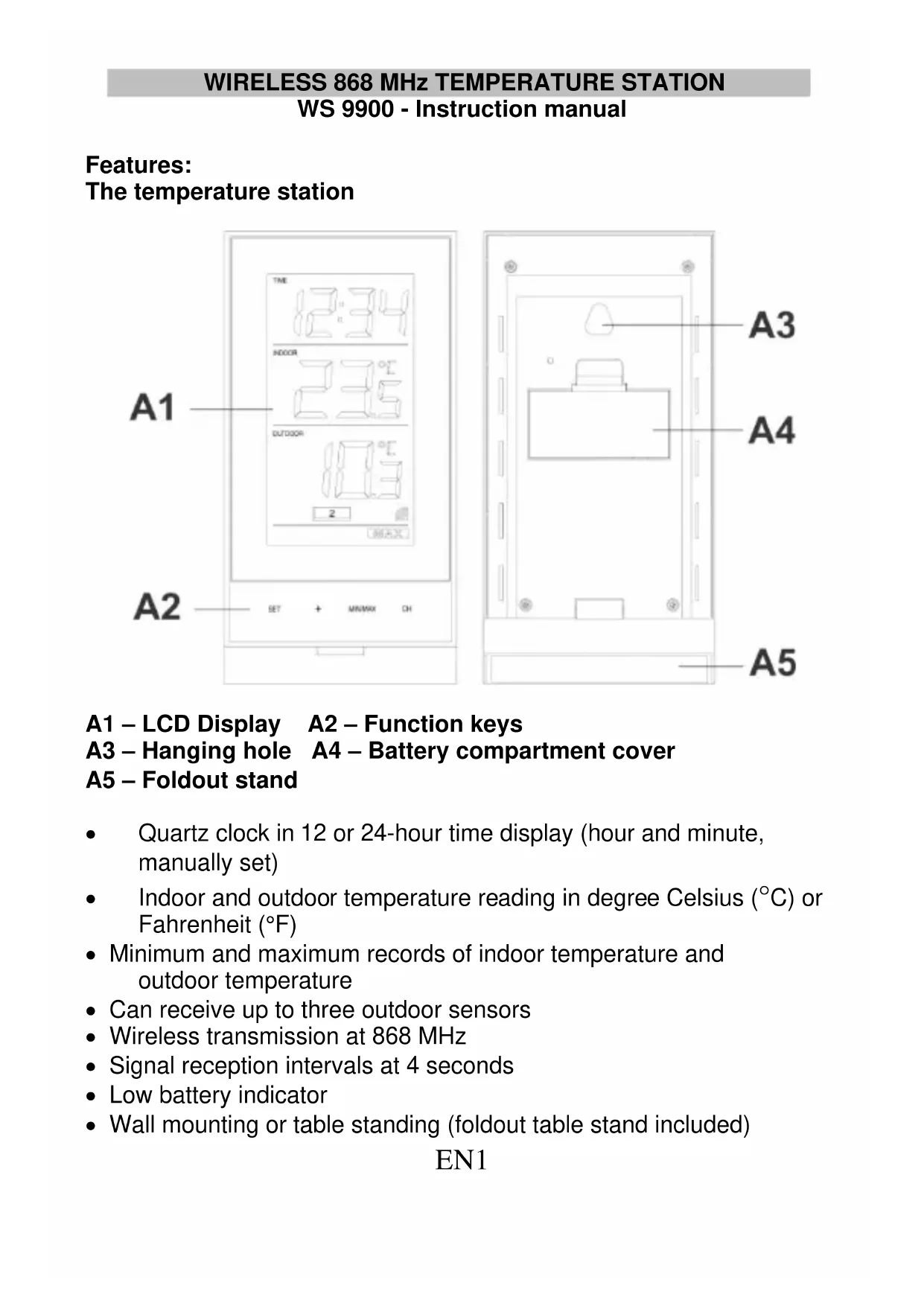

A1 – LCD Display A2 – Function keys A3 – Hanging hole A4 – Battery compartment cover A5 – Foldout stand Quartz clock in 12 or 24-hour time display (hour and minute, manually set) Indoor and outdoor temperature reading in degree Celsius (C) or Fahrenheit (°F) Minimum and maximum records of indoor temperature and outdoor temperature Can receive up to three outdoor sensors Wireless transmission at 868 MHz Signal reception intervals at 4 seconds Low battery indicator Wall mounting or table standing (foldout table stand included)EN2 The outdoor temperature sensor Remote transmission of outdoor temperature to Temperature Station by 868 MHz Shower proof casing Wall mounting case (mounting at a sheltered place. Avoid direct rain and sunshine) Setting up: When one sensor is used:

1. First, insert the batteries into the sensor (see “How to install and

replace batteries in the temperature sensor” below).

2. Within 30 seconds of powering up the sensor, insert the batteries

to the temperature station (see “How to install and replace batteries in the temperature station” below). Once the batteries are in place, all segments of the LCD will light up briefly. Then the indoor temperature and the time as 0:00 will be displayed. If they are not shown on LCD after 60 seconds, remove the batteries and wait for at least 60 seconds before reinserting them. Once the indoor data is displayed, user may proceed to the next step.

3. After the batteries are inserted, the temperature station will start

receiving data signal from the sensor.

4. The outdoor temperature should be displayed on the temperature

station. Also, the signal reception icon will be displayed. If this does not happen after 1 minute, the batteries will need to be removed from both units and reset from step 1.

5. In order to ensure sufficient 868 MHz transmission, the final

position between the temperature station and the sensor should not be more than 100 meters (see notes on “Positioning” and “868 MHz Reception”). When more than one sensor is used

1. User shall remove all the batteries from the temperature station

and sensors and wait 60 seconds if setting has been done with one sensor before.

2. Insert the batteries to the first sensor.

3. Within 30 seconds of powering up the first sensor, insert the

batteries to the temperature station. Once the batteries are in place, all segments of the LCD will light up briefly. Then the indoorEN3 temperature and the time as 0:00 will be displayed. If they are not shown in LCD after 60 seconds, remove the batteries and wait for at least 60 seconds before reinserting them.

4. The outdoor temperature from the first sensor (channel 1) should

be displayed on the temperature station. Also, the signal reception icon will be displayed. If this does not happen after 40 seconds, the batteries will need to be removed from both units and reset from step 1.

5. Insert the batteries to the second sensor immediate after (in 10

seconds after) inserting battery to the temperature station.

6. The outdoor temperature from the second sensor and the "channel

2" icon should then be displayed on the temperature station. If this does not happen after 40 seconds, the batteries will need to be removed from all the units and reset from step 1.

7. Insert the batteries to the third sensor immediate after (in 10

seconds after) inserting battery to the second sensor.

8. Then within 40 seconds, the channel 3 outdoor data from the third

sensor will be displayed and the channel icon will shift back to "1" once the third sensor is successfully received. If this is not happen, user shall restart the setting up from step 1.

Note: After the three sensors have been set up, user may need to check the readings displayed on the temperature station against those being shown on the sensor displays, in order to recognize on which channel each sensor is being presented. Important: Transmission problems will arise if the setting for additional sensors is not followed as described above. Should transmission problems occur, it is necessary to remove the batteries from all units and start again the set-up from step 1. How to install and replace batteries in the temperature station The temperature station uses 2 x AAA, IEC LR3, 1.5V batteries. When batteries will need to be replaced, the low battery icon will appear on the LCD. To install and replace the batteries, please follow the steps below:EN4

1. Lift up the battery compartment cover.

2. Insert batteries observing the correct polarity (see marking).

3. Replace compartment cover.

How to install and replace batteries in the temperature sensor The temperature sensor uses 2 x AA, IEC LR6, 1.5V batteries. When batteries will need to be replaced, the low battery icon will appear on the LCD of the Temperature Station. To install and replace the batteries, please follow the steps below:

1. Remove the battery compartment cover.

2. Insert the batteries, observing the correct polarity (see marking).

3. Replace the battery holder to the unit.

Note: In the event of changing batteries in any of the units, all units need to be reset by following the setup procedures. This is because a random security code is assigned by the sensor at start-up and this code must be received and stored by the Temperature Station in the first few minutes of power supplying. Battery change: It is recommended to replace the batteries in all units every 12 months to ensure optimum accuracy of these units.EN5 LCD screen and settings: B1 – Time B2 – Indoor temperature B3 – Outdoor temperature B4 – Viewed channel B5 – Signal reception icon* B6 – MIN/MAX icons

*When the signal is successfully received by the temperature station, this icon will be switched on. (If not successful, the icon will not be shown in LCD) So the user can easily see whether the last reception was successful (icon on) or not (icon off). On the other hand, the short blinking of the icon shows that a reception is being done now. For better distinctiveness the LCD screen is split into 3 sections displaying the information for time, indoor temperature, and outdoor temperature.

Section 2 – indoor temperature

Display of indoor temperature

Section 3 – outdoor temperature

Display of the outdoor temperature.

Sensor Low battery indicatorEN6 Function keys of temperature station: The Temperature Station has only four easy to use function keys.

C1 – SET key (Setting) Press and hold for about 3 seconds to enter the Manual setting mode. C2 – + key (Plus) To make adjustment for time setting. C3 – MIN/MAX key (Min/ Max temperature) Used to toggle between the minimum and maximum recorded readings of indoor & outdoor temperature. Press and hold to reset minimum and maximum record when min or max record is shown. C4 – CH key (Channel) To toggle between the Outdoor sensors 1, 2 and 3 (if more than 1 sensor is used) Manual setting: 12/24 hour time display setting and temperature unit (°C/°F) setting User may choose to display the time in 12-hour or 24-hour mode: Note: When the time display is set as 12-hour mode, the temperature unit will be fixed to F; when the time mode is in 24-hour, the temperature unit will be fixed to C.

1. In normal display mode, press and hold the set key for about 3

seconds. The "12h" or "24h" digit will be flashing.

2. Press the + key to set the desired time display mode.EN7

3. Press shortly the set key to advance to the MANUAL TIME

SETTING. Manual time setting User can manually set the time of the temperature station by using the following steps:

1. The hour digit of the time display will be flashing.

2. Press the + key to adjust the hour. Press and hold to allow fast

advancing. Press set key to confirm and go to the minute setting.

3. The minute digit will be flashing. Press the + key to adjust the

minute. Press and hold to allow fast advancing. Press set key once more to return to normal display. Viewing the minimum and maximum readings: User may view the minimum and maximum indoor temperature, minimum and maximum outdoor temperature data records by the following steps:

1. Press the min/max key once to view the minimum indoor

temperature, minimum outdoor temperature.

2. Press the min/max key once more to view the maximum indoor

temperature, maximum outdoor temperature. Resetting the minimum and maximum readings: User may reset the minimum and maximum temperature data to the current value by the following steps:

1. Press the min/max once to display the min data.

2. Press and hold the min/max key for about 3 seconds to reset all

the minimum/ maximum data to the current values in a single action.

3. Data of all outdoor and the indoor sensor will be reset at the

same time. Temperature sensor: The outdoor temperature is measured and transmitted to the temperature station every 4 seconds approximately. The range of the temperature sensor may be affected by the temperature. At cold temperatures, the transmitting distance may be decreased. Please bear this in mind when placing the sensor.EN8 868 MHz reception check The temperature station should receive the temperature data within few seconds after set-up. If the temperature data is not being received about 1 minute after setting up (the display shows “- - -” after consecutive failures in receiving signal for times), please check the following points:

1. The distance of the temperature station or sensor should be at

least 1.5 to 2 meters away from any interfering sources such as computer monitors or TV sets.

2. Avoid positioning the temperature station onto or in the immediate

proximity of metal window frames.

3. Using other electrical products such as headphones or speakers

operating on the same signal frequency (868MHz) may prevent correct signal transmission and reception.

4. Neighbors using electrical devices operating on the 868MHz

signal frequency can also cause interference. Note: When the 868MHz signal is received correctly, do not re-open the battery cover of either the sensor or temperature station, as the batteries may spring free from the contacts and force a false reset. Should this happen accidentally then reset all units (see Setting up above) otherwise transmission problems may occur. The transmission range is about 100 m from the sensor to the temperature station (in open space). However, this depends on the surrounding environment and interference levels. If no reception is possible despite the observation of these factors, all system units have to be reset (see Setting up). Low battery indicator Low battery indicators are displayed on the LCD when the batteries require changing. Positioning the temperature station: The temperature station comes attached with foldout table stand, which provides the option of table standing or wall mounting the unit. Before wall mounting, please check that the outdoor temperature values can be received from the desired locations. To wall mount:EN9

1. Fix a screw (not supplied) into the desired wall, leaving the head

extended out the by about 5mm.

2. Hang the temperature station onto the screw. Remember to

ensure that it locks into place before releasing. Positioning the temperature sensors: The sensor is supplied with a holder that may be attached to a wall with the two screws supplied. The sensor can also be position on a flat surface by securing the stand to the bottom to the Sensor. To wall mount:

1. Secure the bracket onto a desired wall using the screws and plastic

2. Clip the remote temperature sensor onto the bracket.

Note: Before permanently fixing the sensor wall base, place all units in the desired locations to check that the outdoor temperature reading is receivable. In event that the signal is not received, relocate the sensors or move them slightly as this may help the signal reception. Care and maintenance: Extreme temperatures, vibration and shock should be avoided as these may cause damage to the unit and give inaccurate forecasts and readings. When cleaning the display and casings, use a soft damp cloth only. Do not use solvents or scouring agents as they may mark the LCD and casings. Do not submerge the unit in water. Immediately remove all low powered batteries to avoid leakage and damage. Replace only with new batteries of the recommended type. Do not make any repair attempts to the unit. Return them to their original point of purchase for repair by a qualified engineer. Opening and tampering with the unit may invalidate their guarantee. Do not expose the units to extreme and sudden temperature changes, this may lead to rapid changes in forecasts and readings and thereby reduce their accuracy.EN10 Hereby, Technotrade declares that this product WS 9900 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and ROHS 2011/65/EC. The original EU declaration of conformity may be found at: www.technoline.de/doc/4029665099002 Specifications: Temperature measuring range Indoor: -9.9ºC to +59.9ºC with 0.1ºC resolution (“OF.L” displayed if outside this range) Outdoor: -39.9ºC to +59.9ºC with 0.1ºC resolution (“OF.L” displayed if outside this range) Indoor temperature checking interval: every 15-second Transmission frequency: 868 MHz Maximum transmission power: 13 dBm Outdoor data checking interval: every 4 second Power supply Temperature station: 2 x AAA, IEC LR3, 1.5V Outdoor temperature sensor: 2 x AA, IEC LR6, 1.5V Battery life cycle: approximately 12 months (Alkaline batteries recommended) Dimensions (L x W x H) Temperature station: 84 x 22.6 x 149 mm Outdoor temperature sensor: 38.2 x 21.2 x 128.3 mm Liability disclaimer: The electrical and electronic wastes contain hazardous substances. Disposal of electronic waste in wild country and/or in unauthorized grounds strongly damages the environment. Please contact your local or/and regional authorities to retrieve the addresses of legal dumping grounds with selective collection. All electronic instruments must from now on be recycled. User shall take an active part in the reuse, recycling and recovery of the electrical and electronic waste. The unrestricted disposal of electronic waste may do harm on public health and the quality of environment. As stated on the gift box and labeled on the product, reading the “User manual” is highly recommended for the benefit of the user.EN11 This product must however not be thrown in general rubbish collection points. The manufacturer and supplier cannot accept any responsibility for any incorrect readings and any consequences that occur should an inaccurate reading take place. This product is designed for use in the home only as indication of the temperature. This product is not to be used for medical purposes or for public information. The specifications of this product may change without prior notice. This product is not a toy. Keep out of the reach of children. No part of this manual may be reproduced without written authorization of the manufacturer. Environmental reception effects Same as all wireless devices, the reception of the station is maybe affected by the following circumstances: long transmitting distance among tall buildings inside concrete buildings near electrical appliances (computers, TV’s, etc) and metallic structures inside moving vehicles Place the station at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances. Keep in mind that the outdoor transmitter only has the optimal transmission range in open area with no obstructions. Each obstruction between the transmitter and the station (roof, walls, floors, ceilings, thick trees, etc.) will effectively cut the transmission range in half. Precautions The main unit is intended to be used only indoors, the sensor is intended for outdoor use. Do not subject the unit to excessive force or shock. Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity. Do not immerse in water. Avoid contact with any corrosive materials.EN12 Do not dispose this unit in a fire as it may explode. Do not open the inner back case or tamper with any components of this unit. Batteries safety warnings Use only alkaline batteries, not rechargeable batteries. Install batteries correctly by matching the polarities (+/-). Always replace a complete set of batteries. Never mix used and new batteries. Remove exhausted batteries immediately. Remove batteries when not in use. Do not recharge and do not dispose of batteries in fire as the batteries may explode. Ensure batteries are stored away from metal objects as contact may cause a short circuit. Avoid exposing batteries to extreme temperature or humidity or direct sunlight. Keep all batteries out of reach from children. They are a choking hazard. Use the product only for its intended purpose! Consideration of duty according to the battery law Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to bring back needed batteries to distributors and other collecting points! Consideration of duty according to the law of electrical devices This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection system.FR1 STATION DE TEMPÉRATURE SANS FIL 868 MHz WS 9900 - Mode d’emploi Caractéristiques : La station de température
