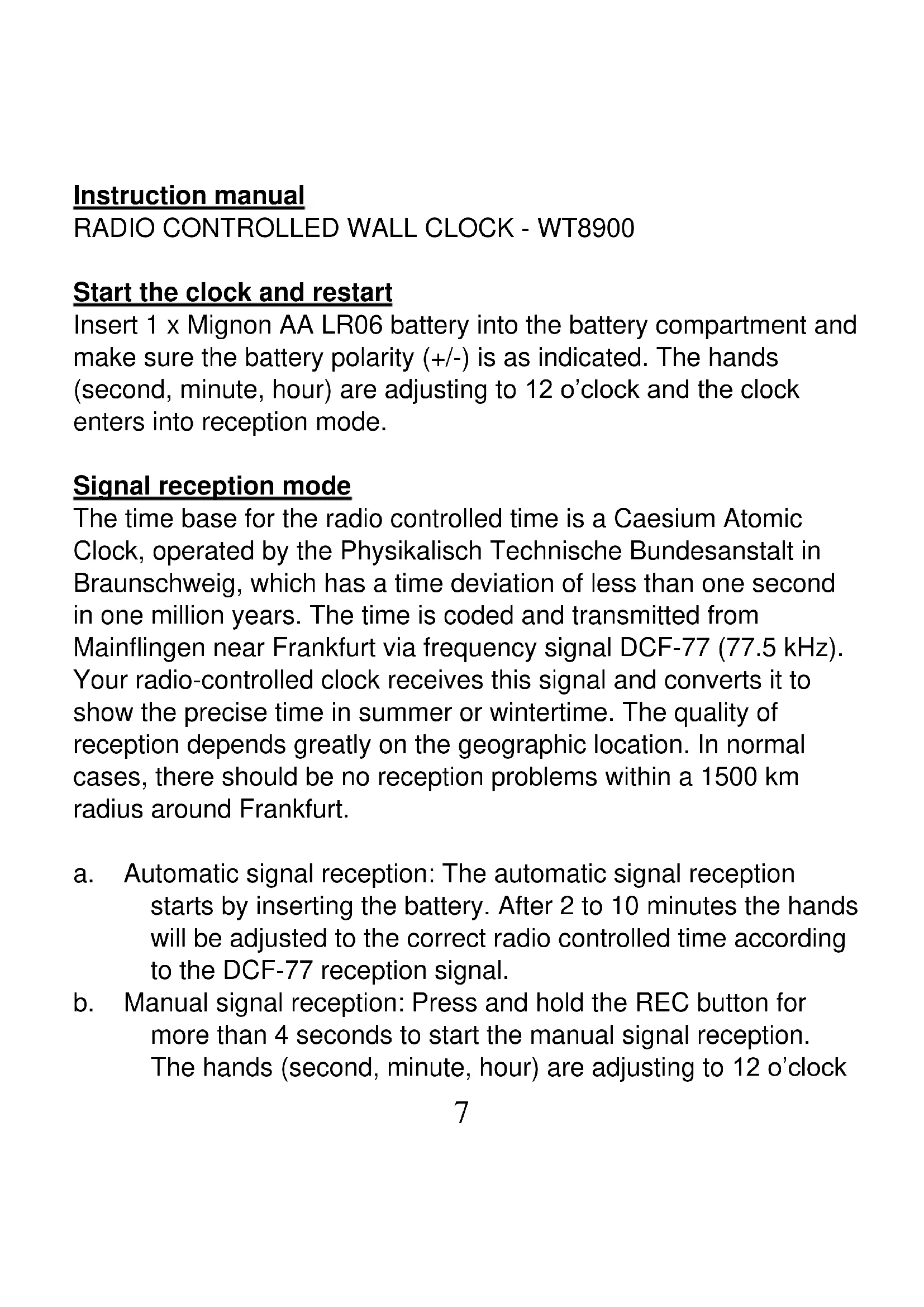

USER MANUAL WT 8900 Techno Line

Start the clock and restart Insert 1 x Mignon AA LR06 battery into the battery compartment and make sure the battery polarity (+/-) is as indicated. The hands (second, minute, hour) are adjusting to 12 o’clock and the clock enters into reception mode. Signal reception mode The time base for the radio controlled time is a Caesium Atomic Clock, operated by the Physikalisch Technische Bundesanstalt in Braunschweig, which has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainflingen near Frankfurt via frequency signal DCF-77 (77.5 kHz). Your radio-controlled clock receives this signal and converts it to show the precise time in summer or wintertime. The quality of reception depends greatly on the geographic location. In normal cases, there should be no reception problems within a 1500 km radius around Frankfurt. a. Automatic signal reception: The automatic signal reception starts by inserting the battery. After 2 to 10 minutes the hands will be adjusted to the correct radio controlled time according to the DCF-77 reception signal. b. Manual signal reception: Press and hold the REC button for more than 4 seconds to start the manual signal reception. The hands (second, minute, hour) are adjusting to 12 o’clock8 and the clock enters into reception mode. If the signal is successfully received, the hands adjust automatically to the correct radio controlled time. This procedure takes approximately 2 to 10 minutes. If the signal reception is failed, the clock continues working from the original time. After the next successful signal reception the time will be adjusted to the correct radio controlled time according to the DCF-77 reception signal. Environmental reception effects The clock obtains the accurate time with wireless technology. Same as all wireless devices, the reception can be affected by the following circumstances: long transmitting distance nearby mountains and valleys near freeway, railway, airports, high voltage cable etc. near construction site among tall buildings inside concrete buildings near electrical appliances (computers, TV’s, etc) and metallic structures inside moving vehicles Place the clock at a location with optimal signal, e.g. close to a window and away from metal surfaces or electrical appliances.9 Manual time setup (if no DCF-77 signal can be received) Press and hold the M.SET button for more than 4 seconds to start the manual time setting. The minute hand starts running forward. Hold the M.SET button pressed until the desired time is set. If you press the M.SET button briefly, the minute hand moves forward each time at each press by one minute. If the M.SET button is not pressed for longer than 8 seconds, the setting is considered complete. After the next successful signal reception the time will be adjusted to the correct radio controlled time according to the DCF-77 reception signal. Notes: Replace the battery after one year, to guarantee the correct function of the clock. Maintenance and repairs must be performed by an expert or a specialist workshop. If you have any questions which are not answered in this manual, please contact our Technical Advisory Service or an other specialist. Hereby, Technotrade declares that this product WT 8900 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and ROHS 2011/65/EC. The original EU declaration of conformity may be found at: www.technoline.de/doc/402966508900310 Precautions Do not subject the unit to excessive force or shock. Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity. Do not immerse in water. Avoid contact with any corrosive materials. Do not dispose this unit in a fire as it may explode. Do not open the inner back case or tamper with any components of this unit. Batteries safety warnings Use only alkaline batteries, not rechargeable batteries. Install batteries correctly by matching the polarities (+/-). Always replace a complete set of batteries. Never mix used and new batteries. Remove exhausted batteries immediately. Remove batteries when not in use. Do not recharge and do not dispose of batteries in fire as the batteries may explode. Ensure batteries are stored away from metal objects as contact may cause a short circuit. Avoid exposing batteries to extreme temperature or humidity or direct sunlight. Keep all batteries out of reach from children. They are a choking hazard. Use the product only for its intended purpose!11 Consideration of duty according to the battery law Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to bring back needed batteries to distributors and other collecting points! Consideration of duty according to the law of electrical devices This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection system.12 Manuel d’instruction
