WS8130 – INSTRUCTION MANUAL

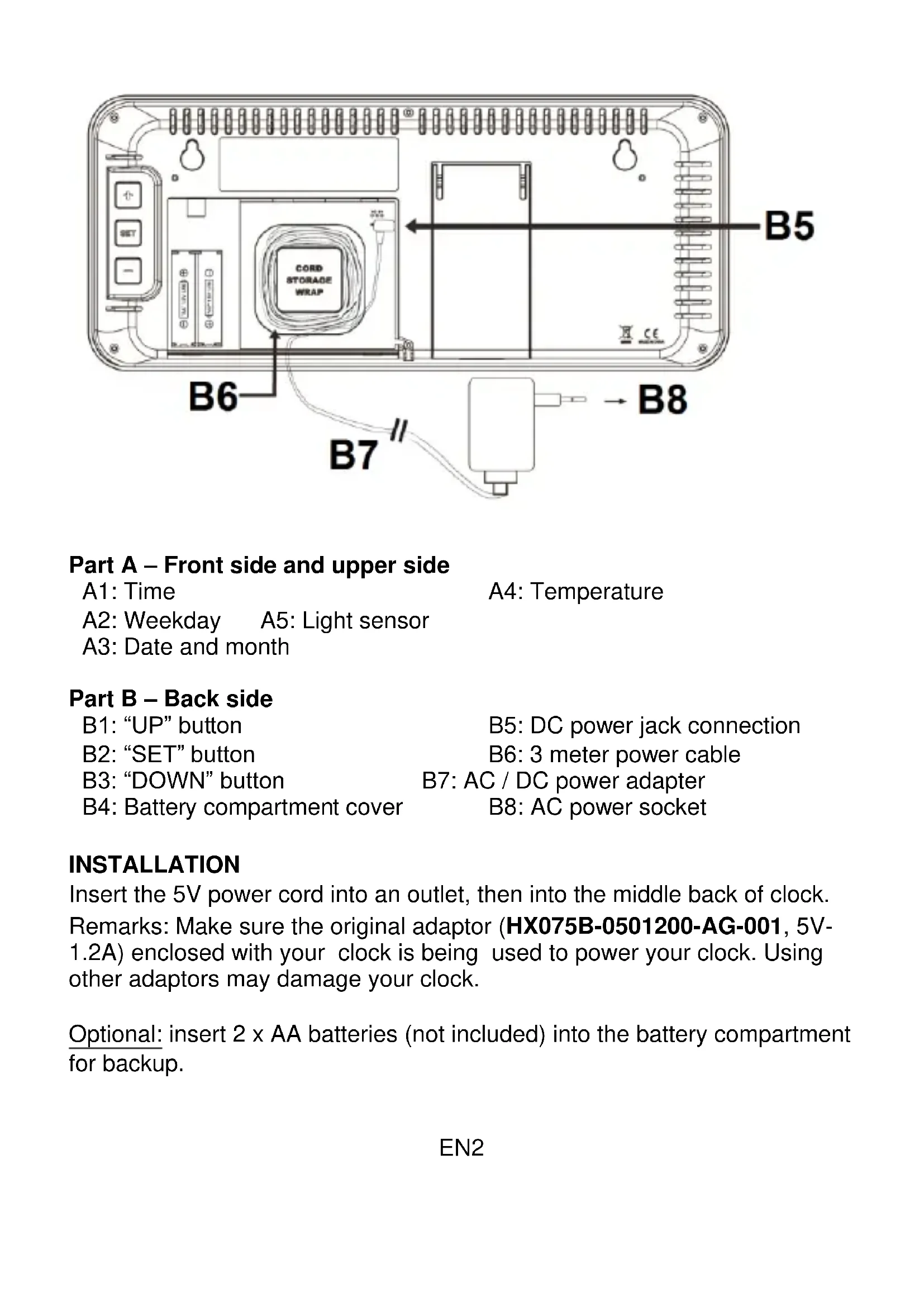

Part A – Front side and upper side A1: Time A4: Temperature A2: Weekday A5: Light sensor A3: Date and month Part B – Back side B1: “UP” button B5: DC power jack connection B2: “SET” button B6: 3 meter power cable B3: “DOWN” button B7: AC / DC power adapter B4: Battery compartment cover B8: AC power socket INSTALLATION Insert the 5V power cord into an outlet, then into the middle back of clock. Remarks: Make sure the original adaptor (HX075B-0501200-AG-001, 5V- 1.2A) enclosed with your clock is being used to power your clock. Using other adaptors may damage your clock. Optional: insert 2 x AA batteries (not included) into the battery compartment for backup.EN3 SETTINGS MENU Press the SET button to enter the setting mode and the setting order will start with the hour: Hour Minute ” 12/24 hour time display Year Month Date Language (English, German, French) Press the + or the – button to adjust values during setting mode. Hold the + or the – button to quickly adjust setting values. Press the SET button to confirm and move to next item or exit. Note: your clock will exit the settings menu when no further buttons are pressed for 10 seconds. TEMPERATURE DISPLAY The temperature shows on the lower right side in Celsius temperature.

AUTOMATIC LIGHT SENSOR

Your clock is equipped with an automatic light sensor at the top of the front case. The brightness of backlight will be adjusted to lower level when your room environment is dim. Note: Please keep your clock at least 60-cm distance away from any objects on top. TROUBLE SHOOTING If your clock displays wrong time or does not function properly, which maybe caused by electro-static discharge or other interference. Unplug the DC jack at the back of the unit, slide open the battery cover and take out the batteries. Then re-plug the DC jack and reinstall batteries by observing the correct +/- polarity. Your unit will be reset to default settings and you need to set it again.

CARE OF YOUR PRODUCT

Place your unit on a stable surface, away from sources of direct sunlight or excessive heat or moisture.EN4 Protect your furniture when placing your units on a natural wood and lacquered finish by using a cloth or protective material between it and the furniture. Clean your unit with a soft cloth moistened only with mild soap and water. Stronger agents such as Benzine, thinner or similar materials can damage the surface of the unit. Make sure the unit is unplugged before cleaning. If the unit is not to be used for a prolonged period, such as a month or longer, remove the batteries to prevent possible corrosion. Should the battery compartment become corroded or dirty, clean the compartment thoroughly and replace the batteries. Do not plug in any other AC/AC or AC/DC adaptor with incorrect specifications or voltage. Hereby, Technotrade declares that this product WS 8130 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and ROHS 2011/65/EC. The original EU declaration of conformity may be found at: www.technoline.de/doc/4029665281308 Precautions This unit is intended to be used only indoors. Do not subject the unit to excessive force or shock. Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity. Do not immerse in water. Avoid contact with any corrosive materials. Do not dispose this unit in a fire as it may explode. Do not open the inner back case or tamper with any components of this unit. Batteries safety warnings Use only alkaline batteries, not rechargeable batteries. Install batteries correctly by matching the polarities (+/-).EN5 Always replace a complete set of batteries. Never mix used and new batteries. Remove exhausted batteries immediately. Remove batteries when not in use. Do not recharge and do not dispose of batteries in fire as the batteries may explode. Ensure batteries are stored away from metal objects as contact may cause a short circuit. Avoid exposing batteries to extreme temperature or humidity or direct sunlight. Keep all batteries out of reach from children. They are a choking hazard. Use the product only for its intended purpose! Consideration of duty according to the battery law Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to bring back needed batteries to distributors and other collecting points! Consideration of duty according to the law of electrical devices This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection system.FR1
