USER MANUAL AW600 Winix

Line drawing of a white WINIX air fryer with lid and control panel (no text or symbols on body)

Thank you for purchasing this WINIX product

• Read and follow all safety rules and instructions before operating this equipment.
• Please keep this manual for future reference.

HumidiPür Triple Action Humidifier with PLASMAWAVE®

HumidiPür™ Model: AW600

Winix HumidiPür™ Triple Action Humidifier simultaneously humidifies and cleans the air. Featuring a 12 Liter per day humidification capacity and 3-Stage air purification with PlasmaWave® Technology.

PLASMAWAVE®

PlasmaWave® technology removes air pollutants resulting in cleaner fresher air.

Mist Humidifier

HumidiPür™ generates very fine and light mist to enhance consistent humidity level.

Auto Mode

WINIX's sensor detects room humidity level to control fan speed and optimize the humidity level.

CleanCel® Anti-Bacterial Coating

HumidiPür™ has been treated with CleanCel® antibacterial coating to prevent growth of bacteria in the water tank and cleaning discs.

Timer

The automatic Timer indicator is used to maintain efficiency throughout the lifetime of the product.

Auto Shut-Off

Automatically shuts off when the water bucket is Low.

Sleep Mode

Light sensor detects when the room is dark and adjusts the unit to Sleep Mode to reduce power consumption.

Table of Contents

Safety Instructions

Warning 3

Product Information

Unit Diagram 11

Control Panel/Display 12

Installation

Selecting a Location 13

Set-Up Instructions 14

Operation

Modes of Operations 15

Care and Maintenance 19

Troubleshooting

FAQ/Solutions 25

Product Specifications 27

Safety Instructions

WarningFollow these instructions to avoid any risk of personal injury, property damage, electrical shocks or fire hazard.	PROHIBITED
	DO NOT DISASSEMBLE
NoticeFailure to follow the safety instructions can lead to personal injury or property damage.	MUST FOLLOW
	Ground connection protecting from electrical shock

Warning

DON'T unplug the unit by pulling on it's power cord.

Illustration of a hand using a tool to test electrical components with a lightning bolt (no text or symbols)

DON'T bend or place heavy object on the power cord.

Cartoon illustration of a washing machine and a refrigerator with surprised faces (no text or symbols)

DON'T touch the plug with wet hands.

Safety warning illustration showing a hand washing a plug with a power outlet, no text present

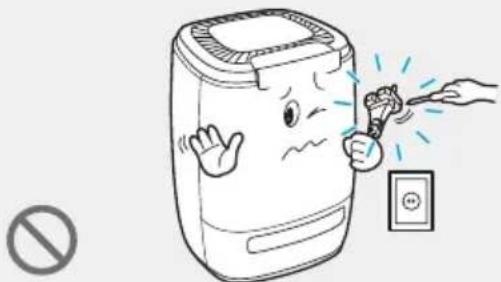

DON'T replace or modify power cord. If the power cord/plug is damaged, it must be replaced by the manufacturer or a qualified technician.

Cartoon illustration of a distressed appliance with a pointing hand and a power outlet, no text or symbols present.

Warning

DON'T plug multiple power plugs into an outlet. Plug directly into the wall.

Illustration of three electrical plugs with lightning bolts and a switch, no text or symbols present

DO unplug the HumidiPür™ when not in use to save on energy consumption.

Illustration of a smiling woman waving beside a large washing machine (no text or symbols present)

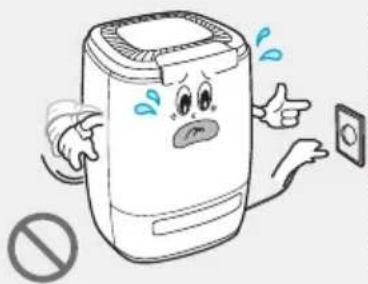

DON'T attempt to repair, alter or dissassemble the unit.

Cartoon illustration of a distressed washing machine with hands and expressive gestures (no text or symbols)

DO connect the power cord to only proper power outlet with a ground connection.

Cartoon illustration of a smiling rice cooker with a power outlet connected (no text or symbols)

DON'T plug power cord into loose or damaged electrical outlet. (This can lead to overheating or electrical shock)

Illustration of a plug plugged into a wall with lightning bolts indicating electrical instability (no text or symbols)

DON'T operate the unit if standing water is present.

Illustration showing a steaming appliance emitting smoke next to a cartoon refrigerator with a warning sign.

Safety Instructions

Note

DON'T operate HumidiPür™ on an uneven surface.

Cartoon illustration of a smiling rice cooker with arms and legs, standing beside a ruler (no text or symbols)

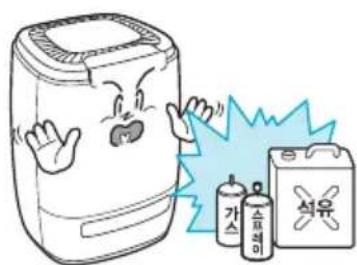

DON'T place the HumidiPür™ near flammable material (such as gas, aerosols, or benzene).

Cartoon illustration of a washing machine with angry expression, next to two labeled containers (가스 and 스프레이) and a blue explosion background (no text or symbols)

Attempt to change the bucket and refill with clean water every day.

Cartoon illustration of a smiling book character opening a water dispenser into a container (no text or symbols)

DON'T spray liquids directly into air washer.

Cartoon illustration of a distressed washing machine with water spray and hands (no text or symbols)

DON'T place the unit on an unstable place such as a table or a sink.

Cartoon illustration of a sad book character sitting on a desk with a backpack and a cloud, no text or symbols present.

DON'T pour water into the top of the air unit, place in water tank as directed.

Cartoon illustration of a hand pouring liquid into a washing machine with angry faces, no text or symbols present

Note

DO unplug the unit and contact your service dealer if the unit comes in contact with water.

Cartoon illustration of a washing machine character with a sad face and a blue water droplet, connected to an electrical outlet (no text or symbols)

DON'T remove the water tank if a child is nearby.

Illustration of a child cleaning a large trash bin with a crossed-out bag, no text or symbols present

DO unplug the unit and contact your service dealer if it is sunken under water.

Cartoon illustration of a smiling paper roll character standing on water with a prohibition symbol below (no text or symbols on the main figure)

DON'T insert ANYTHING into the air inlet or outlet.

Cartoon illustration of a child reacting to a ringing refrigerator with a toothbrush, no text or symbols present

DON'T install the unit in the place full of high humidity or dust.

Cartoon illustration of a distressed refrigerator with a sad face and open mouth, accompanied by a blue puddle and a prohibition symbol (no text or labels)

DON'T place anything around the unit to allow children to play or sit on.

Illustration of a child standing on stairs next to a smiling refrigerator with a sad face, no text or symbols present.

Safety Instructions

Note

DON'T disconnect the power cord during operation.

Cartoon illustration of a washing machine with facial expression and a switch, no text or symbols present

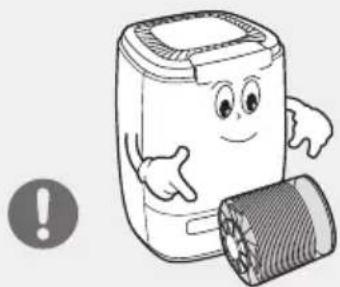

DO use the HumidiPür™ after assembling the Antimicrobial Disk.

Cartoon illustration of a smiling cylindrical device with arms and legs, next to a rolled-up cable (no text or symbols)

DON'T place hands or any body parts near the air outlet during operation.

Illustration of a hand cleaning a small appliance with a sad face and a 'no' symbol (no text or labels)

DO unplug the appliance during filling and cleaning.

Illustration of a hand using a power plug to switch inside an electrical outlet, with no text or symbols present.

DON'T insert anything into the air inlet or outlet.

Cartoon illustration of a smiling washing machine with hands and a hand holding a tool, no text or symbols present.

DON'T place the unit near curtains or other materials that can block the vents of the unit.

Illustration of a hand blowing air from a device with a warning sign (no text or symbols on the device itself)

DO unplug the unit and contact your service dealer if any irregular noise or smoke occurs.

Illustration of a washing machine with warning symbols and a magnified view showing a person using a device.

DON'T place the unit near a heat source.

Illustration showing a portable air conditioner and a hand gesture interacting with a water heater, with a prohibition symbol below.

DON'T strike or drop the unit.

Cartoon illustration of a smiling computer monitor character with stars and a prohibition symbol below (no text or symbols on the main subject)

Note

DON'T allow children to play on or near the unit.

Cartoon illustration of a child on a device with surprised expression, no text or symbols present

DON'T spray flammable liquids or gases into the unit.

Illustration of a washing machine with visible exhaust symbols and a spray can, accompanied by a prohibition sign.

DON'T install the unit under direct light.

Cartoon illustration of a washing machine with a surprised face and warning symbol (no text or labels)

DON'T use hot water in the water tank.

Illustration of a hand removing a paper into a machine with a blue warning symbol (no text or labels)

DON'T lift the unit by the top.

Cartoon illustration of a smiling mobile phone with hands giving thumbs up (no text or symbols)

DON'T place clothes and towels on top of air washer while operating.

Cartoon illustration of a distressed air purifier with steam rising, no text or symbols present

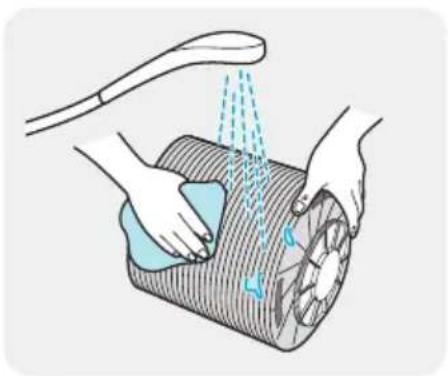

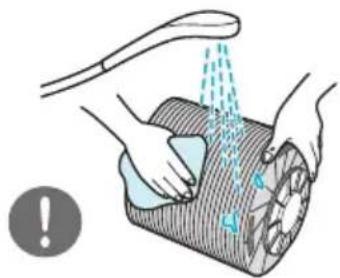

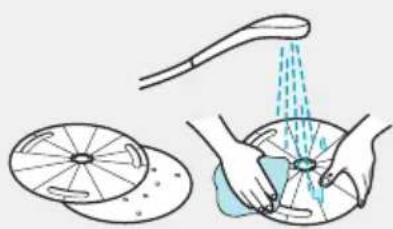

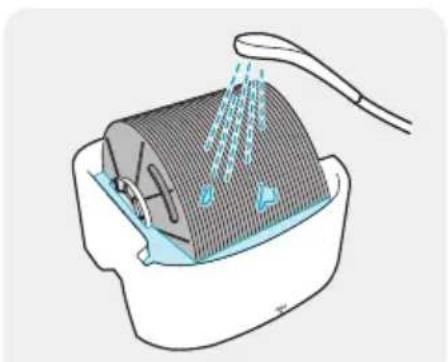

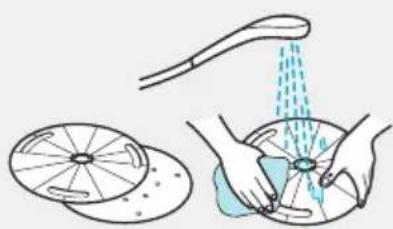

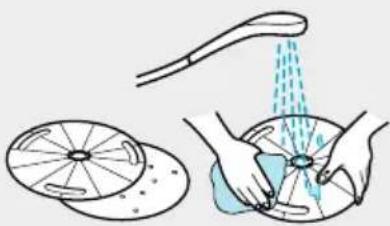

DO clean Antibacterial disk regularly with warm tap water and allow to air dry.

Illustration of hands cleaning a textured surface with a tool, no text or symbols present

DON'T use flammable material (such as benzene or alcohol) to clean the unit.

Cartoon illustration of a distressed washing machine with warning symbols (no text or labels)

DON'T spray liquids directly into HumidiPür™ during cleaning.

Cartoon illustration of a washing machine with a spray bottle emitting blue liquid, no text or symbols present

Safety Instructions

Note

DON'T install the unit near the wall or window.

Illustration of a washing machine emitting exhaust smoke, with a no-smoking symbol below (no text or labels)

DON'T operate the unit while insecticide is used.

禁电器

DON'T install the unit whose airflow outlet is facing the wall.

Cartoon illustration of a smiling refrigerator with a blue X symbol and a 'no' symbol below (no text or symbols on the refrigerator itself)

DON'T put the unit near burning cigarette or incense.

Cartoon illustration of a washing machine with sad face and open mouth, accompanied by a no-smoking symbol (no text or labels)

DON'T allow water to stay in the water tank for a long time while not in use.

Cartoon illustration of a distressed refrigerator with a blue X symbol inside, no text or symbols present

DON'T drink the water left in the water tank or give it to plants or animals.

Illustration of a hand pouring liquid into a container with a blue X mark, next to a potted plant (no text or symbols)

After cleaning, allow Antibacterial Discs, water tank, and pre-filter to air dry completely.

Cartoon illustration of a smiling refrigerator with a blue arrow inside, holding a grid and fan (no text or symbols)

DON'T operate the unit while water tank is damaged.

Cartoon illustration of a distressed washing machine with blue drops and a 'no' symbol (no text or labels)

DON'T put the unit near a microwave oven or TV.

Illustration of a cartoon refrigerator with a hand holding a window, accompanied by a warning symbol (no text or labels present)

Note

DON'T overfill the water tank.

Cartoon illustration of a distressed paper printer with a QR code and blue prohibition symbol (no text or labels)

DO dispose of the water to prevent it from freezing in cold weather.

Illustration of a hand washing a plastic container with water, accompanied by a thermometer and snowflake symbols (no text or labels)

DO unplug the unit and move its water tank when water is removed.

Cartoon illustration of a smiling computer with a battery and a magnifying glass, no text or symbols present.

DON'T put the unit near ceilings, walls, furniture, or electronic appliances.

Cartoon illustration of a washing machine with steam rising from its side, next to an open refrigerator and cabinet (no text or symbols)

DON'T lift the unit with water still in the water tank.

Cartoon illustration of a smiling cylindrical device with a blue X symbol, surrounded by expressive faces and a warning icon (no text or symbols on the device itself)

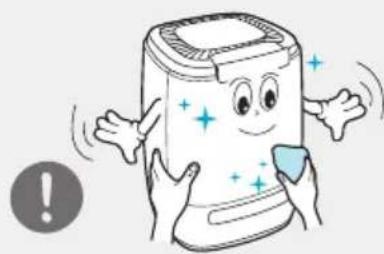

DO clean the air washer regularly, with a microfiber towel or any other clean wiping material.

Cartoon illustration of a smiling rice cooker with hands and sparkles, no text or symbols present

DON'T plug in if the power plug is touched with water.

Cartoon illustration of a smiling refrigerator with a face mask and a phone, no text or symbols present.

DON'T put magnet or metal material on the top of the unit.

Cartoon illustration of a distressed battery with a bandaged top and open lid, showing stress or discomfort (no text or symbols)

DO use clean tap water without detergent, soap, chemical compounds or hot water (over 40°C).

Cartoon illustration of a smiling water dispenser with a faucet and warning symbol (no text or labels)

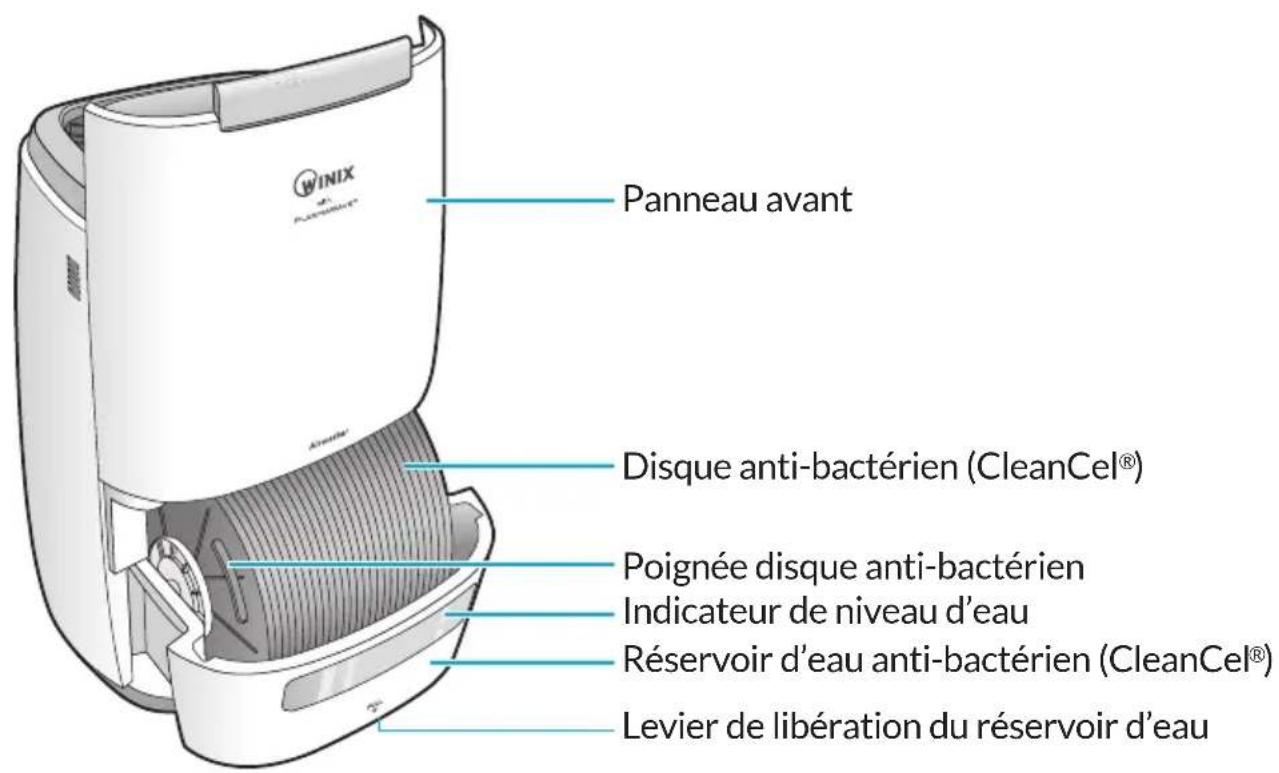

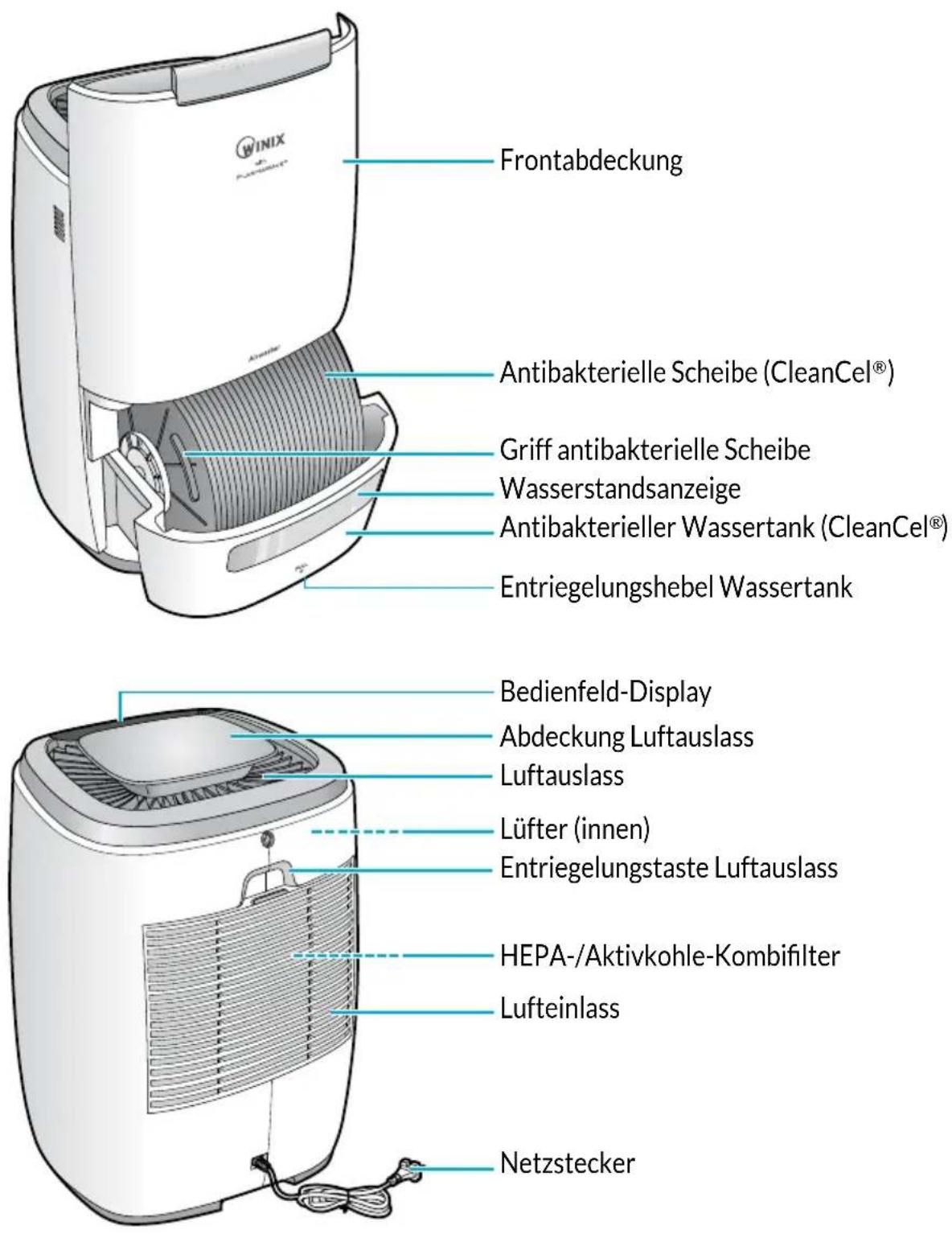

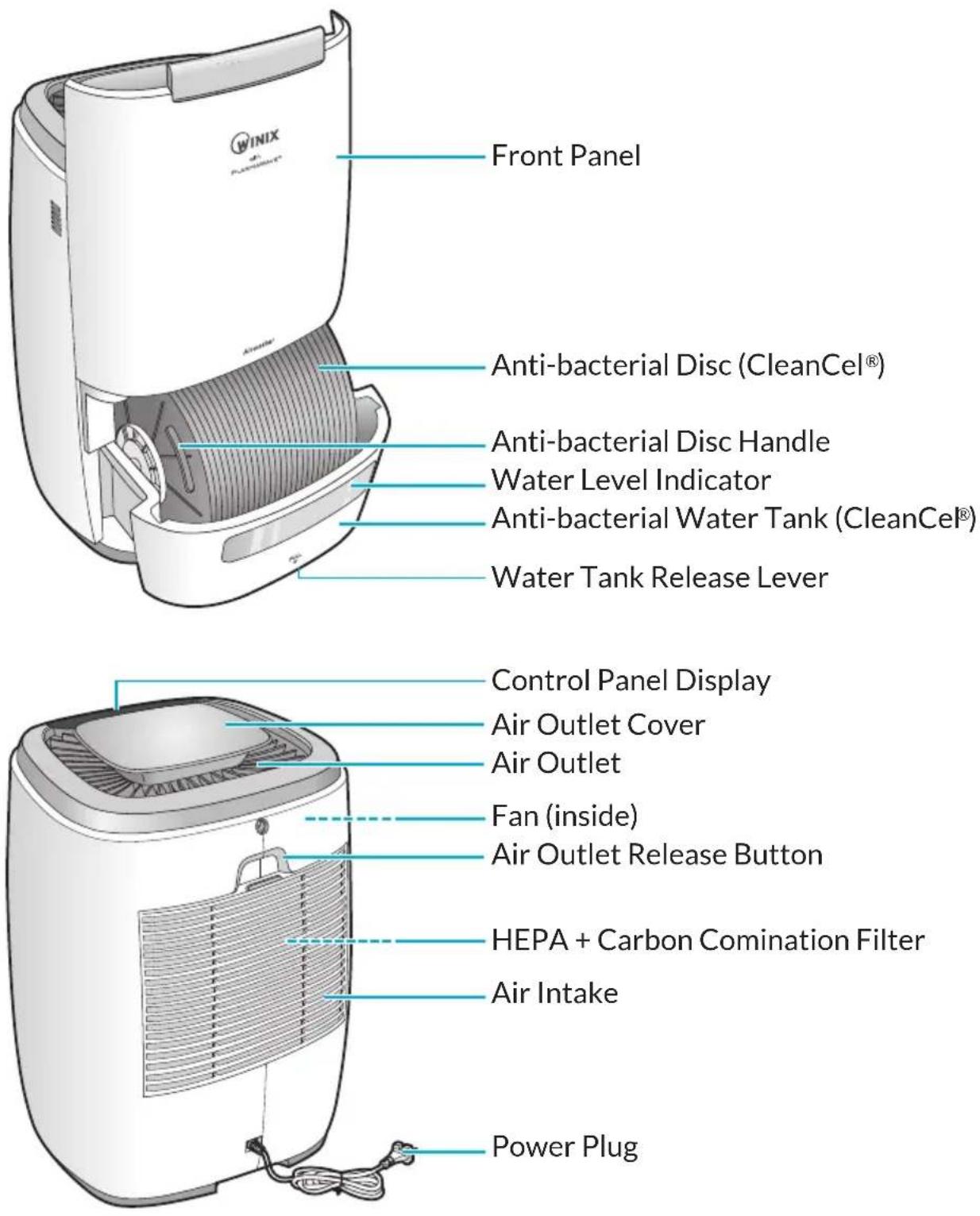

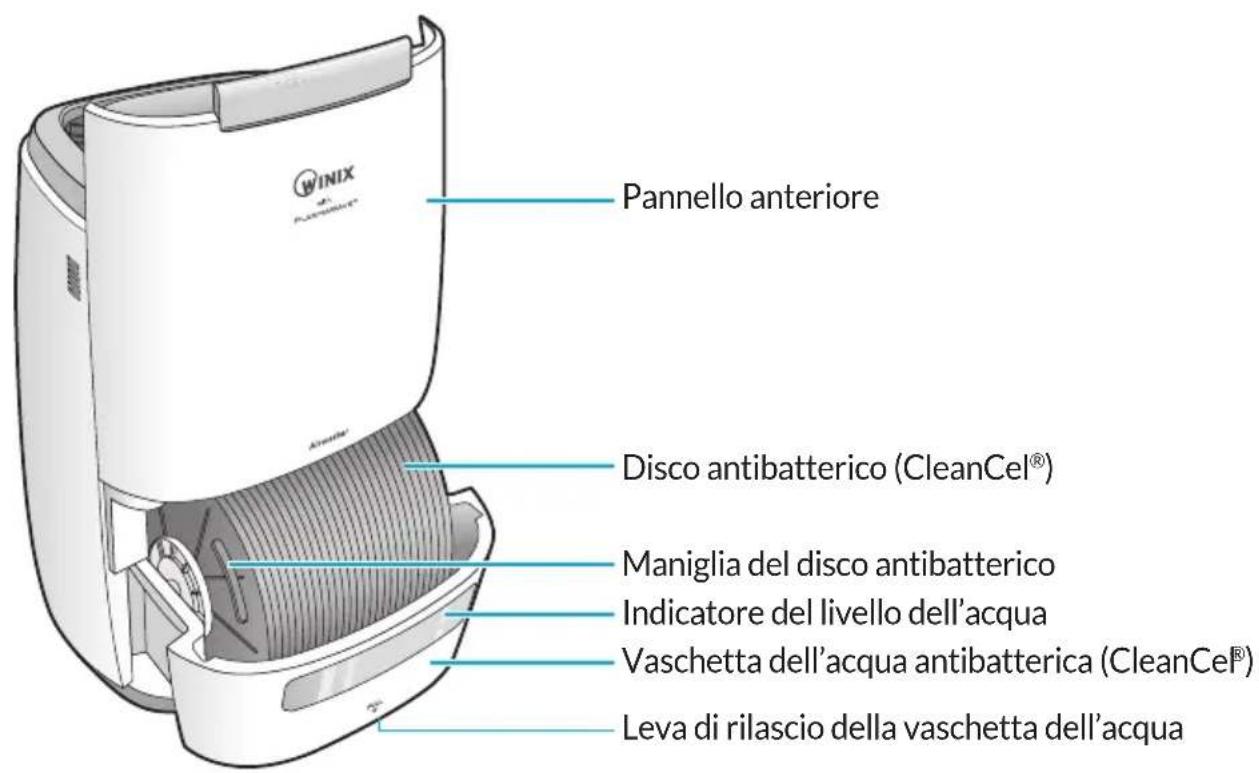

Product Diagram

WINIX Front Panel Anti-bacterial Disc (CleanCel®) Anti-bacterial Disc Handle Water Level Indicator Anti-bacterial Water Tank (CleanCel®) Water Tank Release Lever Control Panel Display Air Outlet Cover Air Outlet Fan (inside) Air Outlet Release Button HEPA + Carbon Comination Filter Air Intake Power Plug

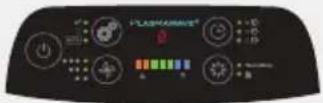

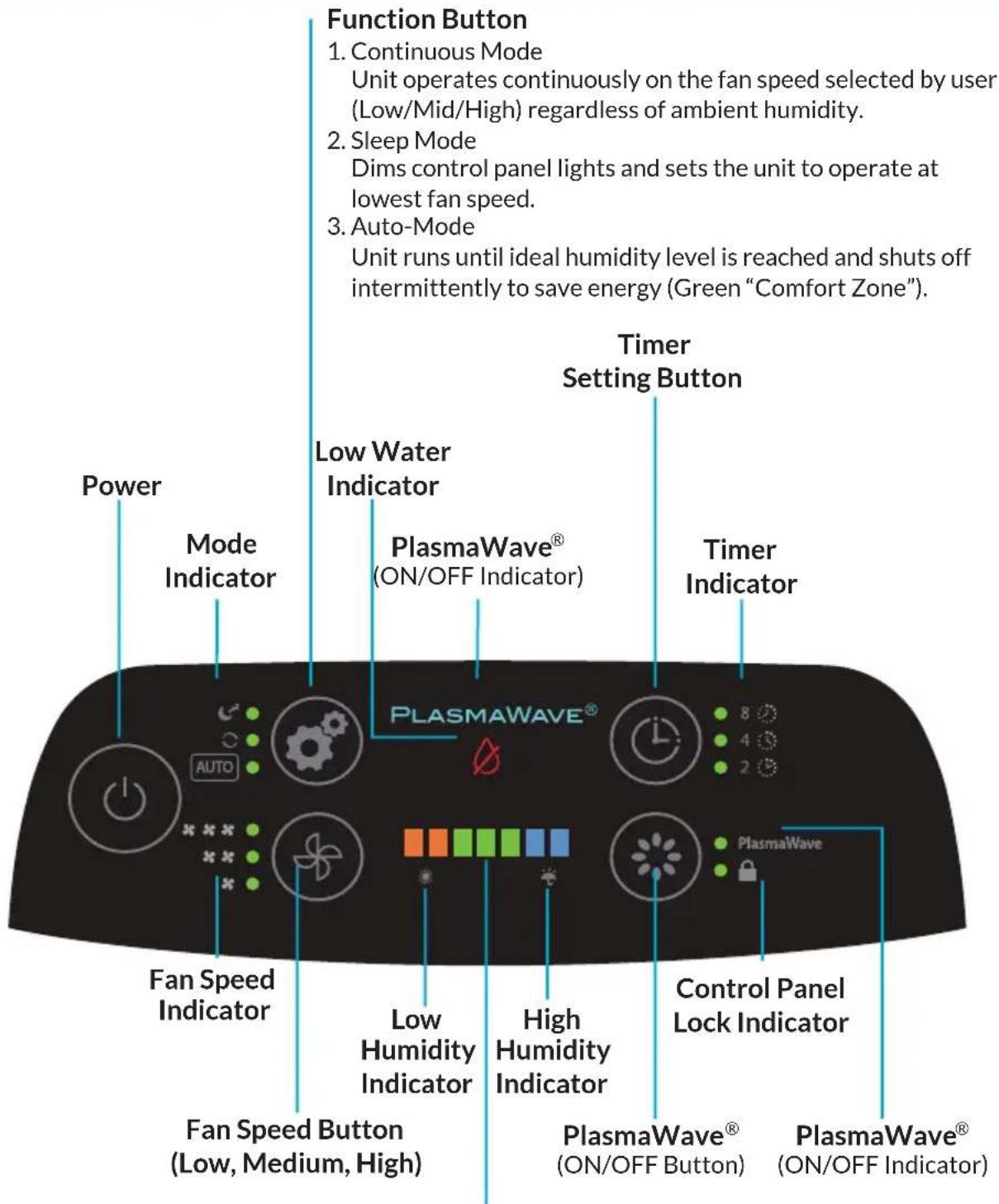

Control Panel

Function Button 1. Continuous Mode Unit operates continuously on the fan speed selected by user (Low/Mid/High) regardless of ambient humidity. 2. Sleep Mode Dims control panel lights and sets the unit to operate at lowest fan speed. 3. Auto-Mode Unit runs until ideal humidity level is reached and shuts off intermittently to save energy (Green "Comfort Zone"). Timer Setting Button Power Mode Indicator Low Water Indicator PlasmaWave® (ON/OFF Indicator) Timer Indicator PLASMAWAVE® Auto 8 4 2 Fan Speed Indicator Low Humidity Indicator High Humidity Indicator Control Panel Lock Indicator Fan Speed Button (Low, Medium, High) PlasmaWave® (ON/OFF Button) PlasmaWave® (ON/OFF Indicator)

Humidity Level Indicator

Displays humidity level, when desirable level of humidity levels are reached they will be displayed in the green "Comfort Zone"

Orange -> Low Humidity (Below 30% RH)

Blue -> High Humidity (61-70% RH)

Green -> Ideal Humidity (40-60% RH)

Installation

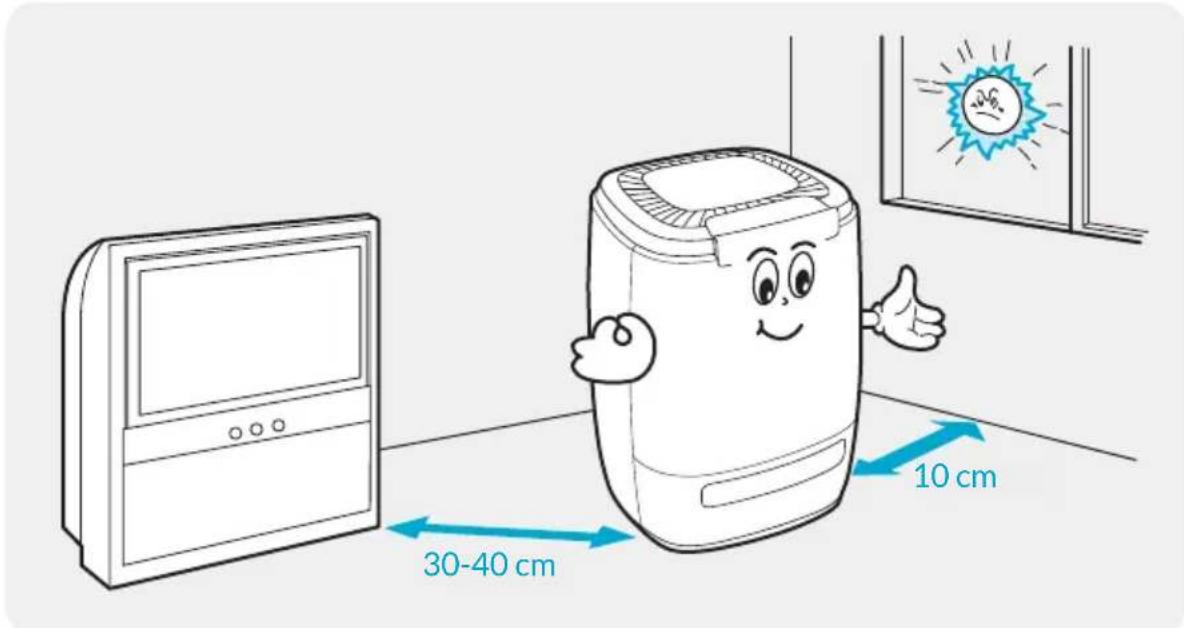

Selecting a Location

30-40 cm 10 cm

Do not install the unit under direct sunlight.

- Long Exposure to direct sunlight can cause defects.

HumidiPür™ must be installed and operated on an even surface.

- Vibrations and noise can occur on soft or non-flat surfaces.

Product must be installed approximately 10cm away from the wall and 30-40cm from other electronic appliances.

Before operating the HumidiPür™, remove any plastic bags and polyfoams from outside and inside the unit.

Operation

Set-Up Instructions

1. Slide water tank out, by using the release lever located below the water tank on the front of the unit.
2. Fill the water tank with cool tap water up to the indicator line on the inside of water tank.
3. Replace the water tank by sliding it back into the unit until you hear it click into place.
4. Gently slide down the front panel and make sure that it is seated properly and lines up correctly.

Simple line drawing of a container with a hand pressing down and a blue arrow indicating the action (no text or symbols)

Illustration of a washing machine with water flow diagram showing fluid path (no text or symbols)

Illustration of hands holding a container with a mesh inside, showing a blue arrow indicating direction (no text or symbols)

PASS

■ Make sure to unplug the power cord before filling the unit with water.
■ We recommend using filtered water to prolong the life of the product.
■ Use cautions when moving the unit filled with water.

Operation

Before Turning On

1 Plug the power cord into a power outlet.

Illustration of a plug inserted into an electrical outlet with a blue arrow indicating direction (no text or symbols)

2 Push the POWER button.

Icon of a hand pressing a circular button with a power symbol (no text or numbers)

3 The unit will start on AUTO MODE and the PlasmaWave® function will be ON.

AUTO

PlasmaWave

A soft buzzing or clicking sound may occur during operation; if this is uncomfortable, you can turn off the PlasmaWave® feature by using the PlasmaWave® ON/OFF button.

Auto Mode

1 Push FUNCTION button to select Auto Mode

AIR FLOW:

When ambient humidity is sensed at less that 60%, the unit will operate at “High” fan speed. When the ambient humidity is sensed at greater than 60% the unit will operate at “Low” fan speed.

CLEANING DISCS:

When ambient humidity is sensed at greater than 75% humidity the cleaning discs will stop spinning. When ambient humidity is sensed less than 60%, the disc, resumes to circulate.

Icon of two interlocking gears inside a circle (no text or symbols)

Continuous Mode

1 Push the FUNCTION button to select Continuous Mode.

• Continuous Mode Indicator will illuminate.
• The FUNCTION button will cycle the unit between the following: Auto -> Continuous -> Sleep

AUTO

Operation

Sleep Mode

1 Push the FUNCTION button to select Sleep Mode.

The MODE button will cycle the unit between the following:

Auto -> Continuous -> Sleep

z AUTO

2 During Sleep Mode the unit will set fan speed to lowest setting and the display will turn off, except for the low fan speed indicator.

AUTO

Adjust Fan Speed

- Push the FAN SPEED button to change the Fan Speed.

The FAN SPEED button will cycle the unit between the following:

Low -> Med -> High

Pure diagram of a propeller and star patterns on dark background (no text or symbols)

Adjust Timer

- Push TIMER button to set a timer.

- The TIMER button will cycle through the unit timer settings:

2 hours -> 4 hours -> 8 hours

8 4 2

PlasmaWave® Technology

During Humidification process

- Push PLASMAWAVE/LOCK button to operate PlasmaWave®.

- Use this button to turn PlasmaWave® function ON/OFF

During PlasmaWave® operation only

- Push PLASMAWAVE/LOCK button to operate PlasmaWave® while the unit OFF.

- Use this button to turn PlasmaWave® function ON/OFF without using the humidification function of the unit.

PlasmaWave

Lock Button

- Push PLASMAWAVE/LOCK button for more than 3 seconds to activate Lock.

PlasmaWave

Care & Maintenance

Emptying the Water Tank

1 Use the tab on the bottom of the water tank and gently slide it out to open.

2 Lift disc assembly by the antibacterial handle and carefully remove it.

Illustration of a hand inserting a plug into a device (no text or symbols visible)

Illustration of a hand placing a textured object into a container (no text or symbols)

3 Remove the used water left in the water tank and dispose of it in an appropriate manner. Refill water tank with clean water.

Illustration of a hand washing a basin with a blue liquid spill (no text or symbols)

4 Replace the water tank with a snap.

5 Gently slide down the front panel to close.

Illustration of hands holding a mesh device with a blue arrow indicating direction (no text or symbols)

Simple line drawing of a closed book with a blue arrow pointing to the cover (no text or symbols)

Be sure to change water frequently to ensure optimal functioning of the unit.
Be sure to replace the water tank correctly in order to ensure that the unit functions properly.

Cleaning Surface

- Clean the outside of the unit with a soft cloth and mild detergent. Wipe clean with a dry cloth.

Line drawing of hands holding a device with a blue tag (no text or symbols)

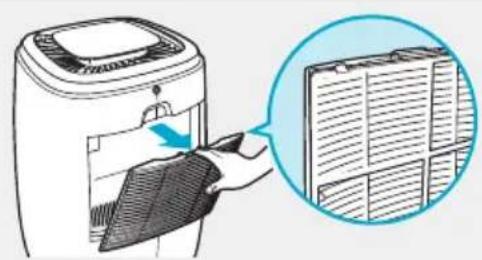

Cleaning Rear Air Intake Grille

Use the tab on the back cover grille. To clean the back cover grille rinse and pull up on the Combo Filter. lightly under warm water and air dry.

Illustration of a hand cleaning a microwave oven with a magnified inset showing the exterior wall structure (no text or symbols)

Illustration of hands cleaning a tray with a cloth and water droplet, no text or symbols present

After cleaning, and letting air dry, slide the HEPA + Carbon Filter back into it's original location and replace the back cover grille.

Illustration of a hand inserting a bag into a microwave oven with a blue arrow indicating the process (no text or symbols present)

Unplug the HumidiPür™ before performing any type of maintenance such as cleaning or disassembling.
Do NOT clean the top portion of the unit with water.
▶ Empty and unplug if not operating for more than 2 days.

Care & Maintenance

Cleaning Anti-bacterial Discs

I Be sure to clean the Anti-bacterial Discs once a week

- Clean Anti-bacterial Discs with warm tap water and a light detergent.

Illustration of hands cleaning a cylindrical object with a hose and water spray, no text or symbols present

1 Fill warm tap water with detergent in the water tank.

Illustration of a medical device with tubing and fluid flow indicators (no text or symbols)

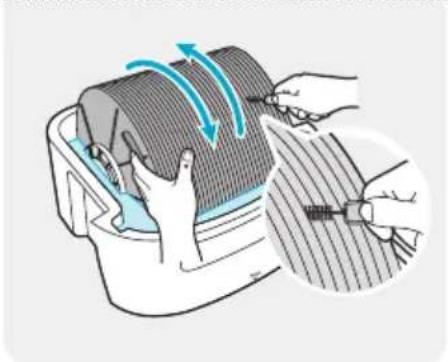

2 Clean inside of the cycled Anti-bacterial Discs thoroughly.

Illustration of hands cleaning a textured surface with blue arrows indicating motion (no text or symbols)

CleanCel® Anti-bacterial Cleaning Discs are dish washer safe and can be washed in temperatures no greater than 80°C

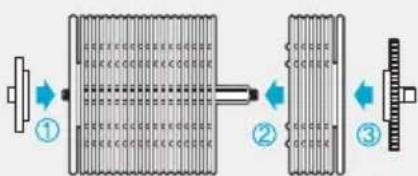

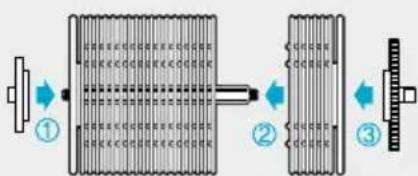

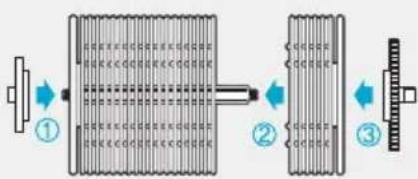

Gear Disc Disc Plate Axis (inside) Disc Saw Tooth Gear Disc Disc Plate

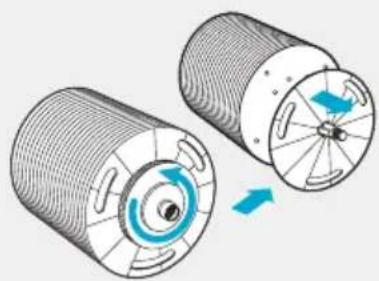

1 Turn Gear of the Antibacterial Disc counterclockwise, and pull the front of the Disc out, and separate axis from the rear Gear Disc, by turning it counterclockwise.
2 Rinse Antibacterial Disc with warm tap water and a mild detergent.
3 Clean the inside of water tank with a soft cloth and mild detergent.

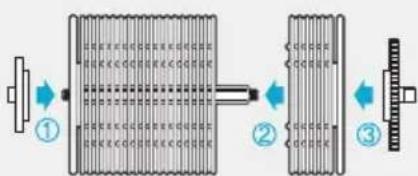

4 After cleaning, assemble the parts (Gear Disc, Discs, and Saw Tooth Gear Disc) in the opposite order.

Diagram of two cylindrical mechanical components with internal rotation arrows, no text or symbols present

Illustration showing hands washing a circular object with a hose and water droplet, no text or symbols present

Line drawing of a hand washing a small container with a blue cloth (no text or symbols)

Care & Maintenance

Cleaning Water Tank

1 Clean the inside of the water tank with a soft cloth and mild detergent.

Line drawing of a hand washing a basin with a blue cloth (no text or symbols)

2 Place CleanCel® Anti-bacterial Discs back into the water tank aligning with grooces and with handle laid flat.

Illustration of a hand placing a textured object into a container with a blue arrow indicating direction (no text or symbols)

3 Replace the Water Tank with a snap.

Illustration of hands inserting a mesh into a device (no text or symbols visible)

4 Gently slide down the front panel to close the unit. Make sure that it is seated properly and lines up correctly.

Simple line drawing of a closed wallet with a blue downward arrow indicating compression (no text or symbols)

Cleaning Inner Parts and Fan

1 Turn groove to open with a coin or flat tip screw driver, at the rear of the unit, and remove top cover.
2 Holding fan, turn fan cap clockwise.
3 Rinse fan and fan cap with warm tap water with detergent.

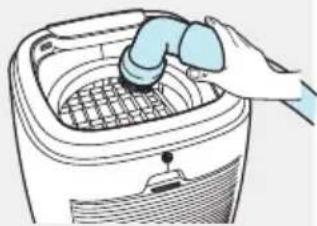

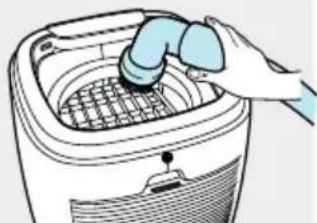

4 Remove dust near airflow inlet of the unit by using vacuum cleaner or soft brush.
5 After cleaning, replace fan and fan cap.

Illustration of a hand holding a device with a magnified view of the top panel (no text or symbols)

Diagram of a microwave oven with internal air vent and fan (no text or labels)

Illustration of hands washing clothes in a basin (no text or symbols)

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Diagram of a kitchen appliance with a lid and drain, showing a leaf being inserted (no text or symbols)

Care & Maintenance

Symptom	Check If: Solution:
HumidiPürTM does not turn on	Power cord is plugged in.Low Water Indicator light is on.Water is filled inside water tank.	Plug the power cord in.Fill the water tankMake sure the water tank is in place and filled correctly.
Auto Mode is not working	Power cord is plugged in.Auto Mode Indicator is on.	Unplug power cord and plug it back in.Push FUNCTION button to select Auto Mode.
Vibrates or makes noise	The unit is located on an uneven surface.	Move to an even surface.
Power cord is hot	Power cord is plugged in.	Unplug the power cord and contact customer support.
HumidiPürTM does not turn on	Water is ground water.Water is too cold or icy.Fan speed is on low level.	Change to tap water.Use 20°C to 25°C temperature water.Change to high fan speed.Push Plasma/Child Lock button for 3 seconds to turn OFF Child-Lock mode.
Function button is not working	Child-Lock mode is on.
Unpleasant odors are present	HumidiPürTM is being used where strong odors and/or dust is present	Replace the water in the water tank and change water more frequently.Clean water tank and CleanCel® Anti-bacterial Discs.
Water level indicator is on despite water level	Water is left inside the water tank.	Refill the water tank.

Specifications

Model No.	AW600
Power Supply	220-240 V- 50/60 Hz
Power Consumption	18W
Humdiifying Capacity	12 liters per day
Tank (Max/Full)	5 liters / 7 liters
Weight	8.5 kg
Dimensions	34.5 x 45 x 34.5

Notes

WINIX

This marking shown on the product or its literature. Indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal. Please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

HumidiPür™

Line drawing of a white industrial air purifier with a black cover and 'WINIX' logo on top (no text or symbols on body)

Illustration of a hand using a power tool to test electrical components (no text or symbols present)

Cartoon illustration of a washing machine and a refrigerator with expressive faces (no text or symbols)

Illustration of a hand washing a plug with a lightning bolt, showing fluid and electrical hazard (no text or symbols)

Illustration of a hand holding a small object near a device with a warning symbol and electrical outlet nearby

Avertissement

Electrical circuit diagram showing two plug connections with lightning bolts and a blue X-shaped symbol (no text or labels)

Illustration of a smiling electric water heater with a person celebrating (no text or symbols)

Cartoon illustration of a distressed washing machine with hands and blushing cheeks (no text or symbols)

Cartoon illustration of a smiling rice cooker with a power outlet connected (no text or symbols)

Illustration of a plug plugged into a wall with lightning bolts indicating electrical hazard (no text or symbols)

Illustration showing a steaming appliance emitting smoke next to a cartoon refrigerator with a warning sign.

Cartoon illustration of a smiling mobile phone character with arms and legs, standing next to a ruler and no text (no symbols or text present)

Cartoon illustration of a toilet with a water dispenser inside, showing a smiling face and a warning symbol (no text or labels)

Cartoon illustration of a distressed washing machine with water spray, no text or symbols present

Cartoon illustration of a smiling book character holding a backpack, with a no-smoking symbol nearby (no text or symbols on the main figure)

Cartoon illustration of a distressed washing machine with arms and legs, no text or symbols present

Remarque

Cartoon illustration of a distressed washing machine emitting steam from a power outlet (no text or symbols)

Illustration of a child cleaning a large paper with a surprised expression (no text or symbols)

Cartoon illustration of a distressed paper roll character wading through water (no text or symbols)

Cartoon illustration of a boy reacting to surprise from the phone screen (no text or symbols)

Cartoon illustration of a distressed washing machine with arms and legs, standing beside a blue puddle (no text or symbols)

Illustration of a child standing on a scale next to a distressed washing machine (no text or symbols)

Cartoon illustration of a distressed washing machine with a pointing hand and no text or symbols present

Cartoon illustration of a smiling rice cooker with arms and legs, next to a magnifying glass (no text or symbols)

Illustration of a hand washing a small appliance with a distressed face, no text or symbols present

Illustration of a hand using a power plug to switch inside an electrical outlet, with no text or symbols present.

Cartoon illustration of a smiling rice cooker with hands and a hand pin, no text or symbols present

Illustration of a hand spraying liquid into a refrigerator with a warning sign (no text or symbols on the refrigerator)

Illustration of a washing machine with warning symbols and a magnified view showing a hand holding a tool.

Illustration of a portable air conditioner and a handwashing device with a 'no' symbol (no text or labels)

Cartoon illustration of a distressed cylindrical device with stars and motion lines, no text or symbols present

Remarque

Cartoon illustration of a person on top of a distressed washing machine with a 'no' symbol below (no text or symbols on the main image)

Illustration of a washing machine with cartoon faces and a spray bottle, accompanied by a prohibition symbol.

Cartoon illustration of a washing machine with a smiling face and waving hand, next to a window showing a sun (no text or symbols)

Illustration of a hand washing a washing machine with a blue checkmark and no text or symbols present

Cartoon illustration of a smiling, anthropomorphic device with hands giving thumbs up and waving (no text or symbols)

Cartoon illustration of a distressed air conditioner with a thumbs-up gesture and a 'no' symbol (no text or symbols on the main image)

Illustration of hands cleaning a textured surface with a hose and spray, no text or symbols present

Cartoon illustration of a distressed refrigerator with angry expression, accompanied by smaller medicine bottles and boxes (no text or symbols)

Cartoon illustration of a washing machine with a spray bottle emitting blue liquid, accompanied by a warning symbol (no text or labels)

Cartoon illustration of a washing machine emitting blue smoke from a window, with no text or symbols present.

Cartoon illustration of a smiling refrigerator with a blue X symbol and a 'no' symbol below (no text or symbols on the refrigerator itself)

Cartoon illustration of a washing machine with sad face and open mouth, accompanied by a no-smoking symbol (no text or labels)

Cartoon illustration of a distressed refrigerator with a blue X symbol inside, no text or symbols present

Illustration showing a hand pouring liquid into a container and a potted plant with a blue X symbol (no text or symbols present)

Cartoon illustration of a smiling refrigerator with a blue arrow indicating airflow or ventilation (no text or symbols)

Cartoon illustration of a distressed refrigerator with steam and sweat drops, no text or symbols present

Illustration of a refrigerator with a smiling face and warning symbol (no text or labels)

Remarque

Cartoon illustration of a distressed paper printer with a blue filter inside, emitting exhaust smoke (no text or symbols)

Illustration of a hand washing a plastic container with water, accompanied by a thermometer and snowflake symbols (no text or labels)

Cartoon illustration of a smiling paper airplane with a magnifying glass, showing its open trunk and handle (no text or symbols present)

Cartoon illustration of a washing machine with steam rising, standing in front of a cabinet (no text or symbols)

Cartoon illustration of a smiling battery character with arms and legs, holding a blue X symbol, with an exclamation mark (no text or symbols on the character itself)

Cartoon illustration of a smiling rice cooker with hands and sparkles, no text or symbols present

Cartoon illustration of a smiling rice cooker with a face mask and a blue bandage, holding a toothbrush (no text or symbols)

Cartoon illustration of a smiling battery with a hand and warning symbol (no text or labels)

Cartoon illustration of a smiling refrigerator with a faucet and water drop symbol (no text or symbols)

Schéma du produit

(30-40 cm) (10 cm)

Simple line drawing of a hand pressing down on a device surface with a blue arrow indicating the action point (no text or symbols)

Illustration of a washing machine with water flow diagram showing down and up parts (no text or symbols)

Illustration of hands holding a container with a mesh inside, showing a blue arrow indicating direction (no text or symbols)

PASS ↓

Illustration of a plug inserted into an electrical outlet with a blue arrow indicating direction (no text or symbols)

Icon of a hand pressing a circular button with a power symbol (no text or numbers)

Icon of two interlocking gears inside a circle (no text or symbols)

Mode Continuous (continu)

Pure electrical circuit lines without any symbols

Hand gesture pointing at a clock icon with color-coded numeric values (8, 4, 2) on a dark background

Technologie PlasmaWave®

Diagram of a device's bottom panel with a hand pressing a button, showing no text or symbols.

Illustration of a hand holding a covered object inside a container (no text or symbols)

Illustration of a hand washing a rectangular basin with a blue liquid flowing out (no text or symbols)

Illustration of hands holding a device with a blue arrow indicating direction (no text or symbols)

Simple line drawing of a closed book with a blue downward arrow on the cover (no text or symbols)

Illustration of hands holding a small blue object on a device (no text or symbols visible)

Illustration of a hand cleaning a heater with a magnified inset showing the exterior panel (no text or symbols)

Illustration of hands cleaning a tray with a cloth and water droplet, no text or symbols present

Illustration of a hand inserting a device into a device with a blue arrow indicating the component (no text or symbols present)

Illustration of hands cleaning a cylindrical object with a hose, showing liquid spray and cleaning (no text or symbols)

Diagram of a medical device with tubing and internal components, no text or symbols present

Illustration of a hand using a tool to lift a textured material in a container, with no visible text or symbols.

Diagram of two cylindrical mechanical components with blue arrows indicating rotation or flow direction (no text or symbols)

Illustration of hands washing a circular object with a showerhead, showing water spray and a magnified view (no text or symbols)

Line drawing of a hand washing a small basin with blue filter bands (no text or symbols)

Line drawing of a hand washing a basin with a blue sponge (no text or symbols)

Illustration of a hand placing a mesh bag into a container with a blue arrow indicating compression (no text or symbols)

Illustration of hands holding a device with a blue arrow indicating direction (no text or symbols)

Illustration of a hand holding a device with a magnified view of the top panel (no text or symbols)

Line drawing of a microwave oven with a blue circular arrow indicating airflow direction (no text or symbols)

Illustration of hands washing a cup with a cloth (no text or symbols)

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Diagram of a kitchen appliance with a fan inside, showing a drop in the air (no text or symbols)

FAQ/Solutions

Line drawing of a white industrial air purifier with a black cover and 'WINIX' logo on top (no text or symbols on body)

Illustration of a hand using a power tool to test electrical shockwave (no text or symbols)

Cartoon illustration of a washing machine and a refrigerator with surprised faces (no text or symbols)

Safety warning illustration showing a hand holding a plug with a power outlet, indicating shock or overload.

Illustration of a cartoon device with a hand pointing to a light bulb, accompanied by a prohibition symbol and an electrical outlet.

Advertencia

Illustration of three electrical plugs with lightning bolts indicating resistance or shock (no text or symbols)

Illustration of a smiling refrigerator with a person waving nearby (no text or symbols)

Cartoon illustration of a distressed washing machine with hands and expressive gestures (no text or symbols)

Cartoon illustration of a smiling rice cooker with a power outlet connected (no text or symbols)

Illustration of a plug plugged into a wall with lightning bolts indicating electrical instability (no text or symbols)

Illustration showing a steaming appliance emitting smoke next to a crying refrigerator, with a blue X symbol indicating exhaust or noise.

Cartoon illustration of a sad, anthropomorphic device with arms and legs, standing beside a ruler (no text or symbols)

Cartoon illustration of a distressed washing machine with two batteries and a battery labeled '가스' (no text or symbols on main elements)

Cartoon illustration of a smiling book character opening a water dispenser into a container (no text or symbols)

Cartoon illustration of a distressed washing machine with water spray and hands (no text or symbols)

Cartoon illustration of a sad book character sitting on a desk with a bag and cloud, no text or symbols present

Cartoon illustration of a hand pouring liquid into a washing machine with angry expression (no text or symbols)

Nota

Cartoon illustration of a washing machine character with a sad face and a blue water droplet, connected to an electrical outlet (no text or symbols)

Illustration of a child cleaning a large bag with a (∅ symbol) on the left, no text or symbols present.

Cartoon illustration of a distressed paper towel character wading through water with a no-smoking symbol nearby (no text or labels)

Cartoon illustration of a child reacting to a ringing refrigerator with a toothbrush, no text or symbols present

Cartoon illustration of a distressed washing machine with a blue liquid and a 'no' symbol below (no text or labels)

Illustration of a child standing on stairs next to a distressed washing machine with a sad face, no text or symbols present.

Cartoon illustration of a distressed washing machine with expressive faces and a switch, accompanied by a prohibition symbol (no text or labels)

Cartoon illustration of a smiling rice cooker with a roll of contents, accompanied by an exclamation mark (no text or symbols on the diagram itself)

Illustration of a hand washing a small electronic device with a smiling face and open mouth, accompanied by a prohibition symbol (no text or labels)

Illustration of a hand inserting a plug into an electrical outlet with a blue arrow indicating force (no text or symbols)

Cartoon illustration of a smiling washing machine with hands and a hand holding a tool, no text or symbols present.

Illustration of a hand spraying liquid into a refrigerator with a warning sign (no text or symbols on the device itself)

Illustration of a washing machine with warning symbols and a magnified view showing a person using a device.

Illustration showing a portable air conditioner and a hand gesture interacting with a device, with a prohibition symbol below.

Cartoon illustration of a smiling computer with stars and a prohibition symbol below (no text or symbols on the device itself)

Nota

Cartoon illustration of a person on a large device with a 'no' symbol below (no text or symbols on the device itself)

Illustration of a washing machine with cartoon faces and a spray bottle nearby (no text or symbols)

Cartoon illustration of a washing machine with a warning sign and sun, no text present

Illustration showing a hand removing a toilet into a machine with a blue warning symbol and no text labels

Cartoon illustration of a smiling mobile phone with hands and a 'no' symbol (no text or symbols on the device itself)

Cartoon illustration of a distressed air conditioner with a thumbs-up gesture and a 'no' symbol (no text or symbols on the main image)

Illustration of hands cleaning a textured surface with a tool, no text or symbols present

Cartoon illustration of a distressed refrigerator with angry expression and a blue explosion effect (no text or symbols)

Illustration of a cartoon kitchen machine with a spray bottle and warning symbol (no text or labels)

Illustration of a hand washing a washing machine with blue airflow lines and a prohibition symbol below (no text or labels)

Cartoon illustration of a washing machine with a hand reaching out, emitting steam from a bag labeled '한국회' (no text on machine or bag)

Cartoon illustration of a smiling rice cooker with a blue X symbol crossed out, no text or symbols present.

Cartoon illustration of a distressed washing machine with a 'no' symbol nearby (no text or symbols on the main image)

Cartoon illustration of a distressed refrigerator with a blue X symbol inside, no text or symbols present

Illustration of a hand pouring liquid into a container with a blue X mark, next to a potted plant (no text or symbols)

Cartoon illustration of a smiling computer with a blue arrow inside, holding a grid and fan (no text or symbols)

Cartoon illustration of a distressed refrigerator with blue sweat drops and a 'no' symbol (no text or labels)

Illustration of a refrigerator with a hand holding a door, showing a warning symbol (no text or labels present)

Nota

Cartoon illustration of a distressed paper roll with a blue filter inside, showing no text or symbols.

Illustration of a hand washing a plastic container with water, accompanied by a thermometer and snowflake symbols (no text or labels)

Cartoon illustration of a smiling computer with a device and a warning symbol (no text or symbols present)

Cartoon illustration of a distressed refrigerator with steam rising from the front window, no text or symbols present

Cartoon illustration of a smiling cylindrical object with a blue X symbol, surrounded by expressive faces and a warning icon (no text or symbols on the object itself)

Cartoon illustration of a smiling rice cooker with hands and sparkles, no text or symbols present

Cartoon illustration of a smiling refrigerator with a blue face and a small screen, no text or symbols present.

Cartoon illustration of a distressed washing machine with blue filter and blue heat exclamation marks (no text or symbols)

Cartoon illustration of a smiling water dispenser with a faucet and warning symbol (no text or labels)

30-40 cm 4 inches

Illustration of a hand pressing down on a device component with a blue arrow indicating the press direction (no text or symbols present)

Illustration of a bathtub with a water tap and a mesh interior, showing fluid flow direction (no text or symbols)

Illustration of hands holding a mesh device with a blue arrow indicating direction (no text or symbols)

Gloss ↓

Illustration of a plug inserted into an electrical outlet with a blue arrow indicating direction (no text or symbols)

Icon of a hand pressing a circular button with a power symbol (no text or numbers)

Icon of two interlocking gears inside a circle (no text or symbols)

Modo Continuo

Pure diagram of a propeller inside a circle, with no text or symbols

Illustration of a hand pressing down on a device component with a blue arrow indicating the press direction (no text or symbols present)

Illustration of a hand holding a textured object inside a container (no text or symbols)

Illustration of a hand washing a plastic container with a blue liquid (no text or symbols)

Illustration of hands holding a device with a blue arrow indicating direction (no text or symbols)

GIRIE

Illustration of hands holding a small blue object on a device (no text or symbols visible)

Illustration of a hand inserting a filter into a device, with a magnified inset showing the grid structure (no text or symbols)

Illustration of hands cleaning a tray with a cloth and water droplets (no text or symbols)

Illustration of a hand inserting a mesh into a digital air purifier (no text or symbols)

Illustration of hands cleaning a cylindrical object with a hose, showing liquid spray and cleaning steps (no text or symbols)

Diagram of a medical device with tubing and fluid flow, no text or symbols present

Illustration of hands cleaning a textured surface with blue arrows indicating motion (no text or symbols)

Diagram of two cylindrical mechanical components with internal rotation arrows, no text or symbols present

Illustration showing hands washing a fan with a water droplet, no text or symbols present

Line drawing of a hand washing a blue object into a rectangular basin (no text or symbols)

Line drawing of a hand washing a basin with a blue cloth (no text or symbols)

Illustration of a hand placing a textured bag into a container with a blue arrow indicating downward motion (no text or symbols)

Illustration of hands holding a device with a blue arrow indicating direction (no text or symbols)

Simple line drawing of a closed wallet with a blue downward arrow indicating compression (no text or symbols)

Illustration of a hand holding a device with a magnified view of the top panel (no text or symbols)

Line drawing of a microwave oven with a blue circular arrow indicating airflow direction (no text or symbols)

Illustration of hands washing clothes in a basin (no text or symbols)

Illustration of a hand cleaning a microwave oven with a cloth (no text or symbols)

Diagram of a kitchen appliance with a fan inside, showing a drop in the air (no text or symbols)

Line drawing of a white industrial air purifier with 'WINIX' branding on top (no text or symbols beyond branding)

Illustration of a hand using a power tool to test electrical components (no text or symbols present)

Cartoon illustration of a washing machine and a refrigerator with surprised faces (no text or symbols)

Illustration of a hand washing a plug with a lightning bolt, showing water droplets and electrical circuit lines (no text or symbols)

Cartoon illustration of a distressed refrigerator with a hand pointing at a light bulb, next to an electrical outlet (no text or symbols)

Warnung

Electrical circuit diagram showing three connected plug terminals with lightning bolts (no text or symbols)

Illustration of a smiling baby and a woman reacting to the front view of a washing machine (no text or symbols present)

Cartoon illustration of a distressed washing machine with hands and expressive gestures (no text or symbols)

Cartoon illustration of a smiling rice cooker with a power outlet connected (no text or symbols)

Illustration of a plug plugged into a wall with lightning bolts indicating electrical instability (no text or symbols)

Illustration of a steaming appliance next to a refrigerant device with a blue X symbol (no text or symbols present)

Cartoon illustration of a distressed rice cooker with arms and legs, standing on a ruler (no text or symbols)

Cartoon illustration of a smiling book character opening a box with a drain, accompanied by an exclamation mark (no text or symbols on the main image)

Cartoon illustration of a distressed washing machine with water spray and no symbols (no text or labels)

Cartoon illustration of a distressed computer character sitting on a chair with a blue smokestack, no text or symbols present.

Cartoon illustration of a hand washing a washing machine with a blue brush, no text or symbols present

Hinweis

Cartoon illustration of a washing machine character with a sad expression, standing beside a power outlet (no text or symbols)

Illustration of a child washing clothes next to a washing machine, with no text or symbols present.

Cartoon illustration of a distressed paper cutter emerging from water, with no text or symbols present.

Cartoon illustration of a child reacting to a distressed refrigerator with a toothbrush, no text or symbols present

Cartoon illustration of a distressed refrigerator with arms and legs, showing a sad face and a blue puddle (no text or symbols)

Illustration of a child standing on stairs next to a distressed washing machine, with an exclamation mark in the corner (no text or symbols on the main image)

Cartoon illustration of a washing machine character with facial expression and expressive gesture, next to an open electrical outlet (no text or symbols)

Cartoon illustration of a smiling rice cooker with arms and legs, next to a broken screwdriver (no text or symbols)

Illustration of a hand washing a washing machine with a smiling face and open mouth, accompanied by a prohibition symbol (no text or labels)

Illustration of a hand using a power plug to switch inside an electrical outlet, with no text or symbols present.

Cartoon illustration of a hand holding a small object above a smiling device, with no text or symbols present.

Illustration of a hand washing a refrigerator with steam and a warning symbol (no text or labels)

Illustration of a washing machine with a warning sign and a magnified view showing a hand holding a small object.

Illustration of a portable air conditioner and a digital washing machine with facial expressions (no text or symbols)

Cartoon illustration of a distressed soap can character with stars and a prohibition symbol below (no text or symbols on the can)

Hinweis

Cartoon illustration of a person riding a distressed refrigerator with a 'no' symbol below (no text or symbols on the main image)

Illustration of a washing machine with a spray bottle emitting a spray, accompanied by a prohibition symbol and a dashed line indicating a spray nozzle.

Cartoon illustration of a washing machine with a surprised face and warning symbol (no text or labels)

Illustration of a hand removing a car into a washing machine with a blue warning symbol (no text or labels)

Cartoon illustration of a smiling mobile phone with hands and a thumbs-up gesture, no text or symbols present

Cartoon illustration of a distressed washing machine with steam rising, no text or symbols present

Illustration of hands cleaning a textured surface with a tool, no text or symbols present

Cartoon illustration of a distressed refrigerator with angry expression, accompanied by smaller bottles and a blue explosion (no text or symbols)

Cartoon illustration of a washing machine with a spray bottle emitting blue liquid, no text or symbols present

Cartoon illustration of a washing machine emitting exhaust smoke, with no text or symbols present.

Cartoon illustration of a food processor with a 'No Plastic Bottle' symbol, showing a frustrated character reacting to a water droplet labeled '新盛网'.

Cartoon illustration of a smiling refrigerator with a blue X symbol and a 'no' symbol below (no text or symbols on the refrigerator itself)

Cartoon illustration of a washing machine with a sad face and open mouth, accompanied by a no-smoking symbol (no text or labels)

Illustration of a hand pouring liquid into a container with a blue X symbol, next to a potted plant (no text or symbols)

Cartoon illustration of a smiling mobile phone with a blue arrow inside, holding a grid and folder (no text or symbols)

Cartoon illustration of a distressed refrigerator with a 'no' symbol below (no text or symbols on the refrigerator itself)

Illustration of a cartoon refrigerator with a warning sign and a warning triangle (no text or symbols on the refrigerator itself)

Hinweis

Cartoon illustration of a sad, anthropomorphic paper roll with a hand waving and exiting a container (no text or symbols)

Illustration of a hand washing a plastic container with water, accompanied by a thermometer and snowflake symbols (no text or labels)

Cartoon illustration of a smiling computer with a magnifying glass and a close-up of its screen (no text or symbols)

Cartoon illustration of a washing machine with steam rising from its side, next to an open refrigerator and cabinet (no text or symbols)

Cartoon illustration of a sad, anthropomorphic device with blue X-shaped gesture and exclamation mark (no text or symbols)

Cartoon illustration of a smiling rice cooker character with hands and sparkles, no text or symbols present

Cartoon illustration of a smiling rice cooker with a face and a blue cloth, emitting steam from its chimney (no text or symbols)

Cartoon illustration of a distressed washing machine with blue filter and expressive gesture (no text or symbols)

Cartoon illustration of a smiling water dispenser with a faucet and warning symbol (no text or labels)

Produktzeichnung

30-40 cm 40inches

Diagram of a hand pressing down on a device component with a blue arrow indicating the force (no text or symbols present)

Diagram of a washing machine with a drain outlet and water flow indicator (no text or symbols)

Illustration of hands holding a container with a blue arrow indicating direction (no text or symbols)

Gauss ↓

Illustration of a plug inserted into an electrical outlet with a blue arrow indicating direction (no text or symbols)

Icon of a hand pressing a circular button with a power symbol (no text or numbers)

Icon of two interlocking gears inside a circle (no text or symbols)

Pure electrical circuit lines without any symbols

Timer einstellen

Hand gesture pointing at a clock icon with color-coded numeric values (8, 4, 2) displayed on a dark background.

Hand pressing down of a device with a blue arrow indicating the action (no text or symbols present)

Illustration of a bag with a mesh cover and hands holding it (no text or symbols)

Illustration of a hand pouring liquid into a container (no text or symbols)

Illustration of hands holding a fan or scanner device with a blue arrow indicating rotation (no text or symbols present)

Simple line drawing of a closed book with a blue arrow pointing to the cover (no text or symbols)

Illustration of hands holding a small blue object on a device (no text or symbols visible)

Illustration of a hand cleaning a portable air conditioner with a magnified inset showing the exterior panel (no text or symbols)

Illustration of hands cleaning a tray with a tool, showing liquid level and angle measurement (no text or symbols)

Illustration of a hand inserting a bag into a washing machine (no text or symbols visible)

Illustration of hands cleaning a cylindrical object with a hose and water spray (no text or symbols)

Diagram of a medical device with tubing and fluid flow indicators (no text or symbols)

Illustration of hands cleaning a cylindrical object with blue arrows indicating motion, showing internal structure and surface texture (no text or symbols)

Two cylindrical mechanical components with blue arrows indicating rotation or movement, no text or symbols present.

Illustration showing hands washing a circular object with a hose, no text or symbols present

Line drawing of a hand washing a blue object into a rectangular basin (no text or symbols)

Wartung und Pflege

Line drawing of a hand washing a blue object into a rectangular basin (no text or symbols)

Illustration of a hand placing a mesh bag into a container with a blue arrow indicating direction (no text or symbols)

Illustration of hands holding a mesh device with a blue arrow indicating direction (no text or symbols)

Simple line drawing of a closed wallet with a blue downward arrow indicating compression (no text or symbols)

Illustration of a hand holding a device with a magnified view of the top panel (no text or symbols)

Diagram of a microwave oven with internal components and airflow direction arrows (no text or symbols)

Illustration of hands washing clothes in a basin (no text or symbols)

Illustration of a hand cleaning a kitchen appliance with a handle and mesh chamber (no text or symbols)

Diagram of a kitchen appliance with a handle and fan, showing internal components without any text or symbols.

Wartung und Pflege

Line drawing of a white industrial air purifier with a black cover and 'WINIX' logo on top (no text or symbols on body)

Illustration of a hand using a tool to test electrical components with a warning light (no text or symbols)

Cartoon illustration of a washing machine and a refrigerator with expressive faces (no text or symbols)

Illustration of a hand washing a plug with a lightning bolt, showing water droplets and electrical circuit lines (no text or symbols)

Cartoon illustration of a distressed refrigerator with a pointing light bulb and electrical outlet (no text or symbols)

Avvertenza

Electrical circuit diagram showing two sockets connected to power lines with lightning bolts (no text or symbols)

Illustration of a smiling refrigerator with a person celebrating (no text or symbols)

Cartoon illustration of a distressed washing machine with hands and blushing cheeks (no text or symbols)

Cartoon illustration of a smiling rice cooker with hands pointing at its electrical outlet (no text or symbols)

Illustration of a plug plugged into a wall with lightning bolts indicating electrical instability (no text or symbols)

Illustration of a steaming appliance next to a refrigerant device with a blue X symbol (no text or symbols present)

Cartoon illustration of a smiling rice cooker with arms and legs, standing beside a ruler (no text or symbols)

Cartoon illustration of a washing machine with angry expression, accompanied by a battery labeled '가스' and '스프레이', and a warning light.

Cartoon illustration of a smiling book character opening a water dispenser into a container (no text or symbols)

Cartoon illustration of a distressed washing machine with water spray and hands (no text or symbols)

Cartoon illustration of a smiling notebook character sitting on a desk with a bag and a blue object nearby (no text or symbols)

Cartoon illustration of a hand holding a tool above a smiling, angry-looking device (no text or symbols)

Nota

Cartoon illustration of a smiling washing machine emitting water from a power outlet, with no text or symbols present.

Illustration of a child cleaning a large bag with a (∅ symbol) on the left, no text or symbols present.

Cartoon illustration of a smiling paper roll character wading through water with a no-smoking symbol nearby (no text or labels)

Cartoon illustration of a child reacting to a ringing washing machine with a toothbrush, no text or symbols present

Cartoon illustration of a distressed soap can with a blue puddle, surrounded by people and a no-smoking symbol (no text or labels)

Illustration of a child standing on a platform next to a smiling refrigerator with a sad face, no text or symbols present.

Cartoon illustration of a distressed washing machine with a switch, no text or symbols present

Cartoon illustration of a smiling rice cooker with arms and legs, next to a rolled-up screwdriver (no text or symbols)

Illustration of a hand washing a small kitchen appliance with a smiling face, no text or symbols present

Hand inserting a plug into an electrical outlet with a blue arrow indicating direction (no text or symbols)

Cartoon illustration of a distressed washing machine with a hand holding a tool, no text or symbols present

Illustration of a hand cleaning a wall with a cartoon refrigerator and warning symbols (no text or labels)

Illustration of a washing machine with hand gesture and a close-up of a device (no text or symbols)

Illustration showing a device emitting heat from an air conditioner with a warning symbol below

Cartoon illustration of a distressed soap can character with stars and a prohibition symbol below (no text or symbols on the can)

Nota

Cartoon illustration of a child on a device with arms raised, surrounded by surprised faces and a 'no' symbol (no text or symbols present)

Illustration of a washing machine with visible facial features and a blue triangular spray bottle, accompanied by a prohibition symbol.

Cartoon illustration of a washing machine with a surprised face and warning symbol (no text or labels)

Illustration of a person using a toilet to clean air, showing no text or symbols on the diagram itself.

Cartoon illustration of a smiling, anthropomorphic device with thumbs and gestures, accompanied by a prohibition symbol (no text or labels)

Cartoon illustration of a smiling air fryer character with steam rising, giving a thumbs-up and waving (no text or symbols)

Illustration of hands cleaning a textured surface with a tool, no text or symbols present

Illustration of a cartoon refrigerator with a surprised face and two bottles beside it, accompanied by a warning symbol (no text present)

Cartoon illustration of a washing machine with a spray bottle emitting blue liquid, accompanied by a warning symbol (no text or labels)

Illustration of a cartoon air purifier with steam rising, no text or symbols present

Cartoon illustration of a washing machine with a hand gesture and a bag labeled '防爆' (protection), accompanied by a no-smoking symbol.

Cartoon illustration of a smiling device with a blue X symbol and a 'no' symbol below, no text or symbols present.

Cartoon illustration of a washing machine with facial expressions and a sink, accompanied by a no-smoking symbol (no text or labels)

Cartoon illustration of a distressed refrigerator with a blue X-shaped arrow indicating storage, and a no-smoking symbol below (no text or symbols on the main image)

Illustration showing a hand pouring liquid into a container and a potted plant with leaves, both without any text or symbols.

Cartoon illustration of a smiling computer with a blue arrow inside, holding a grid and a mesh container (no text or symbols)

Cartoon illustration of a distressed washing machine with blue drops and a 'no' symbol (no text or labels)

Illustration of a refrigerator with a cartoon character reacting to heat, no text or symbols present

Nota

Cartoon illustration of a distressed paper roll with a surprised expression, showing its open lid and handle (no text or symbols)

Illustration of a hand washing a plastic container with water, accompanied by a thermometer and snowflake symbols (no text or labels)

Cartoon illustration of a smiling refrigerator with a hand inserting a device into the drawer (no text or symbols)

Cartoon illustration of a distressed refrigerator with open refrigerator and cabinet, no text or symbols present

Cartoon illustration of a smiling cylindrical object with arms and legs, wearing a blue X symbol, surrounded by expressive gestures (no text or symbols present)

Cartoon illustration of a smiling rice cooker with hands and sparkles, no text or symbols present

Cartoon illustration of a smiling refrigerator with a blue cloth and a small appliance beside it (no text or symbols)

Cartoon illustration of a distressed washing machine with blue filter and expressive gesture (no text or symbols)

Cartoon illustration of a smiling water dispenser with a faucet and warning symbol (no text or labels)

Schema del prodotto

30-40 cm 4 inches

Simple line drawing of a hand pressing down on a device surface with a blue arrow indicating the press direction (no text or symbols)

Diagram of a water purifier with a pipe and water outlet, showing internal components (no text or symbols)

Illustration of hands holding a container with a mesh inside, showing a blue arrow indicating direction (no text or symbols)

PASS ↓

Illustration of a plug inserted into an electrical outlet with a blue arrow indicating direction (no text or symbols)

Icon of a hand pressing a button with a white circular power symbol (no text or numbers)

Pure electrical circuit lines without any symbols

Regolare il timer

Diagram of a device's base with a hand pressing a button, showing no text or symbols

Illustration of a hand holding a covered object inside a container (no text or symbols)

Illustration of a hand washing a plastic container with liquid flowing out (no text or symbols)

Illustration of hands holding a mesh device with a blue arrow indicating direction (no text or symbols)

Gross

Illustration of hands holding a device with a blue tag, no text or symbols present

Illustration of a hand inserting a device into a clean air filter array (no text or symbols)

Illustration of hands cleaning a tray with a cloth and water droplets (no text or symbols)

Illustration of a hand inserting a filter into a device (no text or symbols visible)

Illustration of hands cleaning a cylindrical object with a hose, showing liquid spray and blue filter (no text or symbols)

Illustration of a medical device with tubing and fluid flow, no text or symbols present

Illustration of hands cleaning a cylindrical object with blue arrows indicating motion, showing texture and hair (no text or symbols)

Diagram of two cylindrical mechanical components with blue arrows indicating rotation or movement, no text or symbols present.

Illustration of hands washing a circular object with a showerhead, showing water spray and a separate circular component (no text or symbols)

Line drawing of a hand washing a small basin with blue filter (no text or symbols)

Cura e manutenzione

Line drawing of a hand washing a basin with a blue sponge (no text or symbols)

Illustration of a hand placing a mesh bag into a container with a blue arrow indicating compression (no text or symbols)

Illustration of hands holding a device with a blue arrow indicating direction (no text or symbols)

Illustration of a hand holding a device with a magnified view of the top panel (no text or symbols)

Diagram of a microwave oven with internal cooling unit and fan (no text or labels)

Illustration of hands washing clothes in a basin (no text or symbols)

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Diagram of a kitchen appliance with a fan inside, showing a drop in the air (no text or symbols)

FAQ/Soluzioni

Line drawing of a white industrial air purifier with 'WINIX' branding on top (no text or symbols beyond branding)

Illustration of a hand using a power tool to test electrical components (no text or symbols present)

Cartoon illustration of a washing machine and a refrigerator with expressive faces (no text or symbols)

Illustration of a hand holding a plug with a warning symbol and lightning bolt, no text or labels present

Cartoon illustration of a distressed appliance with a hand pointing at it, emitting a light beam to its side, next to an electrical outlet (no text or symbols)

Waarschuwing

Illustration of three electrical plugs connected to a power outlet, with lightning bolts indicating resistance (no text or symbols)

Illustration of a smiling refrigerator with a person waving nearby (no text or symbols)

Cartoon illustration of a distressed washing machine with hands and blushing cheeks (no text or symbols)

Cartoon illustration of a smiling rice cooker with a power outlet connected (no text or symbols)

Illustration of a plug plugged into a wall with lightning bolts indicating electrical instability (no text or symbols)

Illustration of a steaming appliance emitting smoke next to a cartoon refrigerator with a blue X symbol (no text or symbols present)

Cartoon illustration of a distressed refrigerator with arms and legs, standing on a ruler (no text or symbols)

Cartoon illustration of a smiling rectangular device with a container filled with contents, no text or symbols present.

Cartoon illustration of a distressed washing machine with water spray and no symbols (no text or labels)

Cartoon illustration of a distressed computer character sitting on a chair with a 'no' symbol nearby (no text or symbols on the character itself)

Cartoon illustration of a washing machine with a hand spraying water, showing facial expression and no text or symbols

Opmerking

Cartoon illustration of a washing machine character with a sad expression, standing beside a power outlet (no text or symbols)

Illustration of a child cleaning a large bag with a crossed-out bag, next to a washing machine (no text or symbols)

Cartoon illustration of a character standing on water with a 'no' symbol below (no text or symbols present)

Cartoon illustration of a child running toward a distressed refrigerator with a 'no' symbol below (no text or symbols on the main image)

Cartoon illustration of a distressed washing machine with a blue puddle, surrounded by smaller debris (no text or symbols)

Cartoon illustration of a child standing on stairs next to a distressed washing machine, with an exclamation mark in the corner (no text or symbols on the main subjects)

Cartoon illustration of a washing machine character with facial expression and expressive gesture, next to an open electrical outlet (no text or symbols)

Cartoon illustration of a smiling rice cooker with a handle, next to an exclamation mark (no text or symbols on the diagram itself)

Illustration of a hand cleaning a small appliance with a smiling face and open mouth, accompanied by a prohibition symbol (no text or labels)

Illustration of a hand using a power plug to switch inside an electrical outlet, with no text or symbols present.

Cartoon illustration of a smiling refrigerator with hands and a hand holding a tool, no text or symbols present.

Illustration of a hand washing a refrigerator with a warning sign (no text or symbols on the refrigerator itself)

Illustration of a washing machine with a warning sign and a magnified view showing a hand holding a small object.

Illustration showing a fire extinguisher emitting heat to a water heater, with a warning symbol below.

Cartoon illustration of a smiling soap can character with stars and a prohibition symbol below (no text or symbols on the can)

Opmerking

Cartoon illustration of a person on a device with a 'no' symbol below, showing surprise or shock (no text or symbols present)

Illustration of a washing machine with a spray bottle emitting a blue triangular spray, accompanied by a prohibition symbol.

Cartoon illustration of a washing machine with a surprised face and warning symbol (no text or labels)

Illustration of a hand removing a QR code into a machine, no text or symbols present

Cartoon illustration of a smiling mobile phone with hands giving thumbs up (no text or symbols)

Cartoon illustration of a distressed air purifier with steam rising, no text or symbols present

Illustration of hands washing a rubber or cotton material with a showerhead, no text or symbols present

Cartoon illustration of a distressed washing machine with warning symbols (no text or labels)

Cartoon illustration of a washing machine with a spray bottle emitting blue liquid, no text or symbols present

Cartoon illustration of a washing machine emitting exhaust smoke, with a no-smoking symbol nearby (no text or labels)

Cartoon illustration of a washing machine with a hand and sound waves, emitting exhaust smoke, next to a bag labeled '防爆' (no text on device or background)

Cartoon illustration of a smiling refrigerator with a blue X symbol and a 'no' symbol below (no text or symbols on the refrigerator itself)

Cartoon illustration of a washing machine with facial expressions and a sink, accompanied by a no-smoking symbol (no text or labels)

Cartoon illustration of a distressed refrigerator with a blue X symbol inside, no text or symbols present

Illustration showing a hand pouring liquid into a container and a potted plant with leaves, both without any text or symbols.

Cartoon illustration of a smiling air conditioner with a blue arrow inside, holding a grid panel (no text or symbols)

Cartoon illustration of a distressed washing machine with blue drops and a 'no' symbol (no text or labels)

Illustration of a refrigerator with a hand holding a door, showing a warning symbol (no text or labels present)

Giet de watertank NOOIT te vol.

30-40 cm 40inches

Diagram of a hand pressing down on a device component with a blue arrow indicating the force (no text or symbols present)

Diagram of a washing machine with a drain outlet and water flow indicator (no text or symbols)

Illustration of hands holding a container with a blue arrow indicating direction (no text or symbols)

Gauss ↓

Illustration of a plug inserted into an electrical outlet with a blue arrow indicating direction (no text or symbols)

Icon of a hand pressing a circular button with a power symbol (no text or numbers)

Icon of two interlocking gears inside a circle (no text or symbols)

Continumodus

Pure electrical circuit lines without any symbols

De timer wijzigen

Hand gesture pointing at a clock icon with color-coded numeric values (8, 4, 2) displayed on a dark background.

PlasmaWave®-technologie

Hand pressing down of a device with a blue arrow indicating the action (no text or symbols present)

Illustration of a medical device with hands inserting or removing it (no text or symbols)

Illustration of a hand washing a rectangular basin with a blue liquid spill (no text or symbols)

Illustration of hands holding a mesh device with a blue arrow indicating rotation (no text or symbols)

Simple line drawing of a closed book with a blue arrow pointing to the cover (no text or symbols)

Illustration of hands holding a device with a blue tag, no text or symbols present

Illustration of a hand cleaning a kitchen appliance with a magnified inset showing the exterior wall structure (no text or symbols)

Illustration of hands cleaning a tray with a cloth and water droplets (no text or symbols)

Illustration of a microwave oven with a hand inserting a tray into the air (no text or symbols)

Illustration of hands cleaning a cylindrical object with a hose and water spray (no text or symbols)

Diagram of a medical device with tubing and fluid flow indicators (no text or symbols)

Illustration of hands cleaning a cylindrical object with blue arrows indicating motion, showing internal structure and surface texture (no text or symbols)

Two cylindrical mechanical components with internal rotation arrows, no text or symbols present

Illustration of hands washing a circular object with a hose, showing liquid droplets and a magnified view (no text or symbols)

Line drawing of a hand washing a blue object into a rectangular basin (no text or symbols)

Onderhoud

De watertank schoonmaken

Line drawing of a hand washing a blue object into a rectangular basin (no text or symbols)

Illustration of a hand placing a mesh bag into a container with a blue arrow indicating direction (no text or symbols)

Illustration of hands holding a mesh device with a blue arrow indicating direction (no text or symbols)

Gross

Illustration of a hand holding a device with a magnified view of the top panel (no text or symbols)

Diagram of a microwave oven with internal components and airflow direction arrows (no text or symbols)

Illustration of hands washing clothes in a basin (no text or symbols)

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Diagram of a kitchen appliance with a handle and fan, showing internal components without any text or symbols.

Onderhoud
