USER MANUAL D1 Plus 110 ABB

D1 2CSM258763R0621
D1 PLUS 2CSM257583R0621
D1 PLUS 24 2CSM256403R0621
D1 PLUS 110 2CSM258673R0621
D1 SYNCHRO 2CSM257493R0621
D2 2CSM256313R0621
D2 PLUS 2CSM277583H0621
D2 SYNCHRO 2CSM277363R0621

2CSM41021D6401

D1

D2

Digital time switch

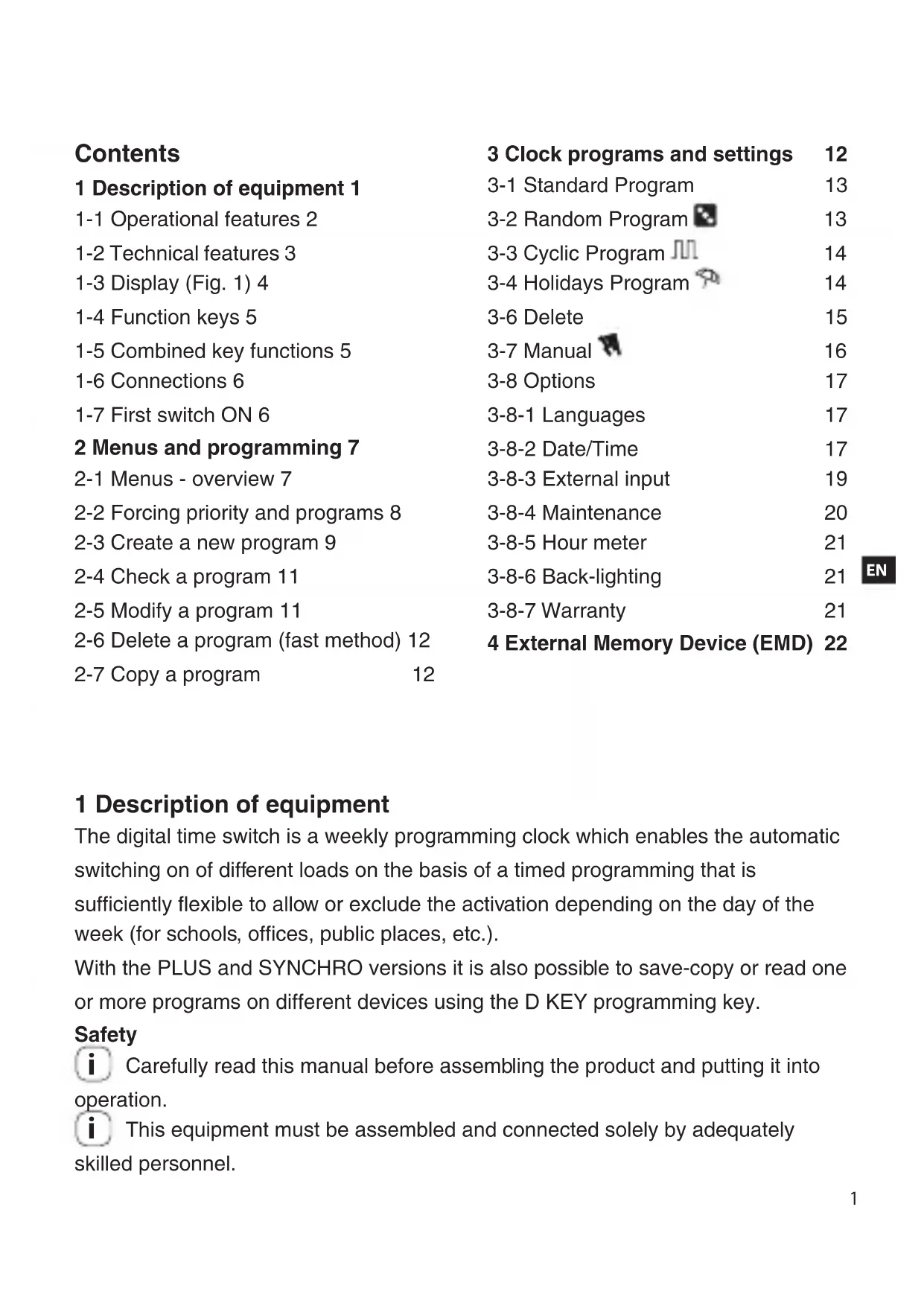

1 Description of equipment 1

1-1 Operational features 2

1-2 Technical features 3

1-3 Display (Fig. 1) 4

1-4 Function keys 5

1-5 Combined key functions 5

1-6 Connections 6

1-7 First switch ON 6

2 Menus and programming 7

2-1 Menus - overview 7

2-2 Forcing priority and programs 8

2-3 Create a new program 9

2-4 Check a program 11

2-5 Modify a program 11

2-6 Delete a program (fast method) 12

2-7 Copy a program 12

3 Clock programs and settings 12

3-1 Standard Program 13

3-2 Random Program 13

3-3 Cyclic Program 14

3-4 Holidays Program 14

3-6 Delete 15

3-7 Manual 16

3-8 Options 17

3-8-1 Languages 17

3-8-2 Date/Time 17

3-8-3 External input 19

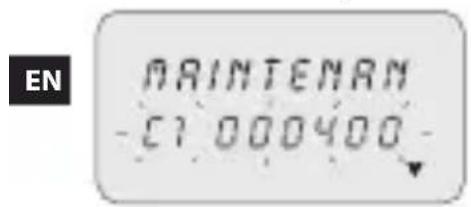

3-8-4 Maintenance 20

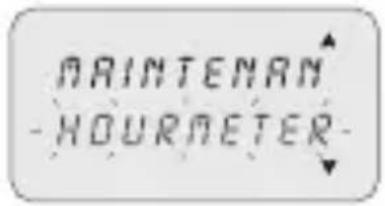

3-8-5 Hour meter 21

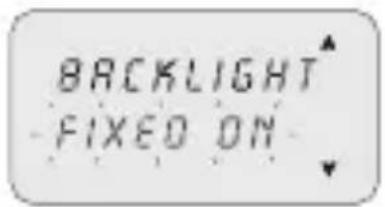

3-8-6 Back-lighting 21

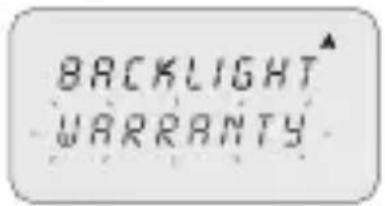

3-8-7 Warranty 21

4 External Memory Device (EMD) 22

1 Description of equipment

The digital time switch is a weekly programming clock which enables the automatic switching on of different loads on the basis of a timed programming that is sufficiently flexible to allow or exclude the activation depending on the day of the week (for schools, offices, public places, etc.).

With the PLUS and SYNCHRO versions it is also possible to save-copy or read one or more programs on different devices using the D KEY programming key.

Safety

i Carefully read this manual before assembling the product and putting it into operation.

This equipment must be assembled and connected solely by adequately skilled personnel.

The equipment contains a non-removable battery and it must not be disposed of as urban waste but recycled in order to protect the environment. Failure to

comply with the requirements of EU Directive 2006/66, and the national legislations for implementation of this Directive, for the disposal of products at the end of their service life, is punishable by law.

1-1 Operational features

Model (series)	D1 D1	Plus	D1 Synchro	D2 D2	Plus	D2 Synchro
Channels (circuits) 1 2
Programs which may be memorised	64
Special programs (Random, Cyclic, Holiday)	√
Weekly/annual time	√
External input	√	√		√	√
Manual forcing	√
External Memory Device EMD		√	√		√	√
GPS or DCF77 receiver (optional)			√			√

1-2 Technical features

Power supply voltage 230 V AC +/- 10%	110 V AC +/- 10% (D1 Plus 110)24 V AC / DC +/- 10% (D1 Plus 24)
Frequency 50-60 Hz
Protection rating IP20
Outlet type Potential-free relay exchange contact;N.O. contact = 16(10)A / 250V~ (limited current with Resistance for Zero Crossing of high value);N.C. contact = 16(2)A / 250V~N.O./N.C. contacts = 16(2)A / 250V~ (D1 Plus 24, D1 Plus 110)
Maximum AC output N.O. 16(10)A / N.C. 16(2)AN.O./N.C. 16(2) (D1 Plus 24, D1 Plus 110)
Operating temperature from -5°C to +55°C
Storage temperature from -10°C to +65°C
Absorption/Self-consumption 6.5 VA single channel / 7.8 VA twin channel
Cross-section of cables at terminals 1..6 mm2
CE standards LVD/EMC EN60730-2-7
Languages available on equipment Italian, English, German, French, Spanish, Swedish, Portuguese, Dutch, Russian, Polish, Greek
Backup in case of power failure 6 years from first switch on, guaranteed by lithium battery
Nominal pulse voltage	4kV
Operational precision + 0.5 sec/day at 25°C

EN

Maximum pilotable power
3000W 3000W 1100W			900W(125 μF)	7W - 23W (max.23 lamps)
Models D1 PLUS 24 - D1 PLUS 110
2300W 2300W 1000W			500W(70 μF)	7W - 23W (max.18 lamps)

1-3 Display (Fig. 1)

C1/C2	Channel 1/Channel 2 OFF/ Channel deactivated
	Manual forcing of channel ON / Channel active
	Random programs Cyclic programs
	Holidays icon Keyboard lock
	GPS or DCF77 signal reception indication		Scroll up
P88	Program no. selected P01-P64		Scroll down

i The striped bar on the display also shows:

Progress, ref. Fig.2 (e.g. deletion ref. subsection 3-6).

Display hours, ref. Fig.3.

The display shows alternately (for a few seconds) the date and the time and the programs or forcings set.

1-4 Function keys

	Enter main menu (from initial screen).Exit from any setting
	Scroll list upwards.Increase a numerical value or change a parameter.Hold down to display status of channel 1 until button is released (under normal operation).
	Scroll list downwards.Decrease a numerical value or change a parameter.Hold down to display status of channel 2 (twin channel models) until button is released (under normal operation).
	Confirm proposed setting.
	Reset equipment (NOTE: The programs and external input settings are not deleted).

1-5 Combined key functions

Function Combined keys
Lock / unlock keys (→)	2 secs.
Temporary manual forcing of channel 1 and 2 (ref. subsection 3-7).Alternate pressure to change it from TEMP ON to TEMP OFF.
Permanent manual forcing of channel 1 and 2 (ref. subsection 3-7).Press for 2 secs. to access PERM and alternate pressure to change it from PERM ON to PERM OFF.	2 secs.	2 secs.
Return to AUTO mode (if any manual forcing has been activated).	2 secs.	2 secs.

i It is necessary to be on the initial screen to carry out any of the above-mentioned functions

1-6 Connections

i Maximum distance for external input: 100 m.

Connection of single channel and twin channel models

Ref. Fig. 5-1 to Fig.5-3.

Connection of Synchro models

Single channel or twin channel Synchro models with GPS or DCF77 Antenna.

Ref. Fig. 6-1 to Fig.6-2.

1-7 First switch ON

The equipment is supplied without any settings.

1. Press RESET with a pointed object to unlock the equipment (ref. Fig.4).

Set following data:2.

LANGUAGES (ref. subsection 3-8-1).

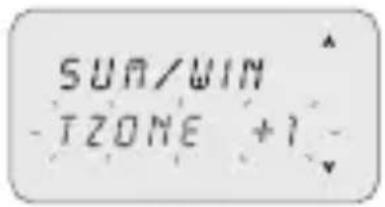

DATE/TIME (Year, Month, Day, Time, Time Zone (ref. subsection 3-8-2)).

If there is a power failure, the Date/Time is memorised, and the digital switch: disables relay(s), deactivates back-lighting, if active,

displays flashing date and time for 2 minutes, and then changes to stand-by mode (display switched OFF) storing all the programmed data, until the mains power supply is reconnected or until a button which restarts the counter for the stand-by mode is pressed for more than 1 sec.

2 Menus and programming

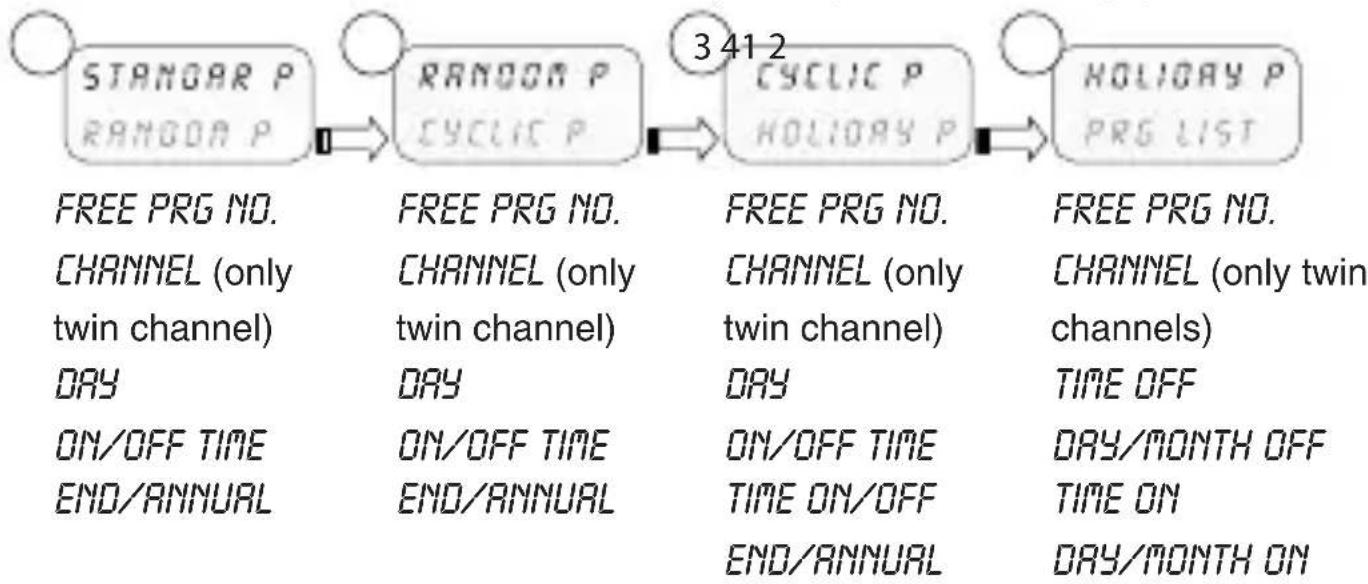

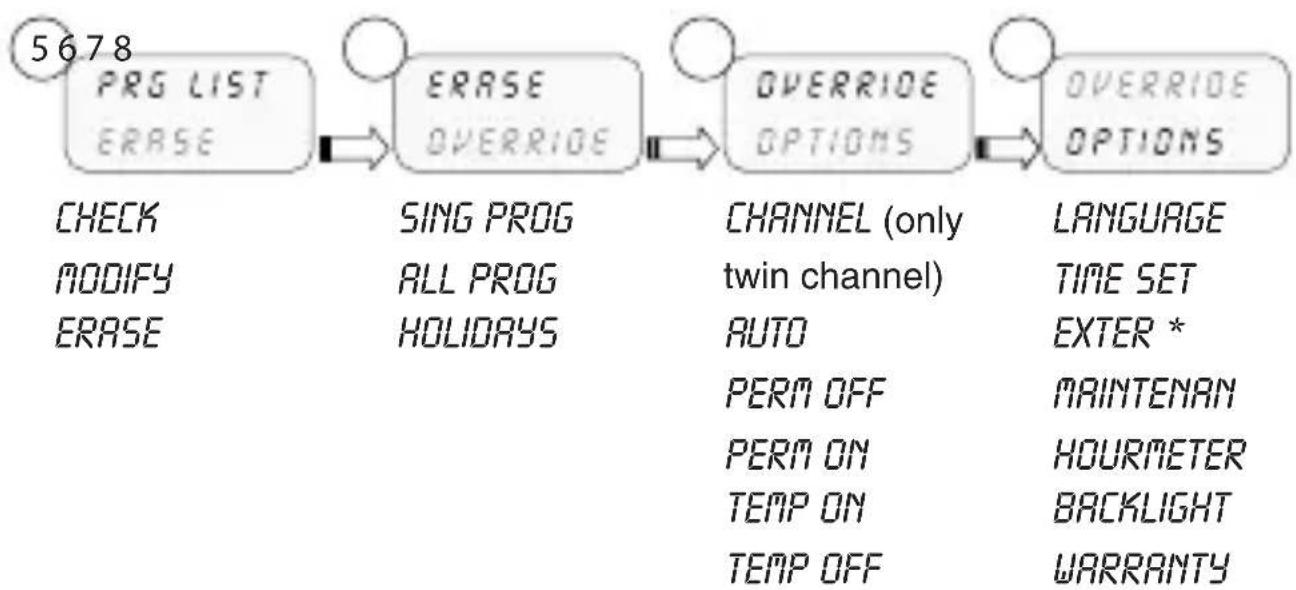

2-1 Menus - overview

The menus listed from 1 to 8 are in the sequence present in the equipment.

    A --> E["FREE PRG NO.\nCHANNEL (only twin channel)\nDAY\nON/OFF TIME\nEND/ANNUAL"]
    B --> F["FREE PRG NO.\nCHANNEL (only twin channel)\nDAY\nON/OFF TIME\nEND/ANNUAL"]
    C --> G["FREE PRG NO.\nCHANNEL (only twin channel)\nDAY\nON/OFF TIME\nTIME ON/OFF\nEND/ANNUAL"]
    D --> H["FREE PRG NO.\nCHANNEL (only twin channels)\nTIME OFF\nDAY/MONTH OFF\nTIME ON\nDAY/MONTH ON"]

* Excluding Synchro models.

Press1. MENU.

The first menu which may be selected appears (P Standard)»

Scroll the various menus using keys ▲▼.

Confirm desired menu with 3. OK.

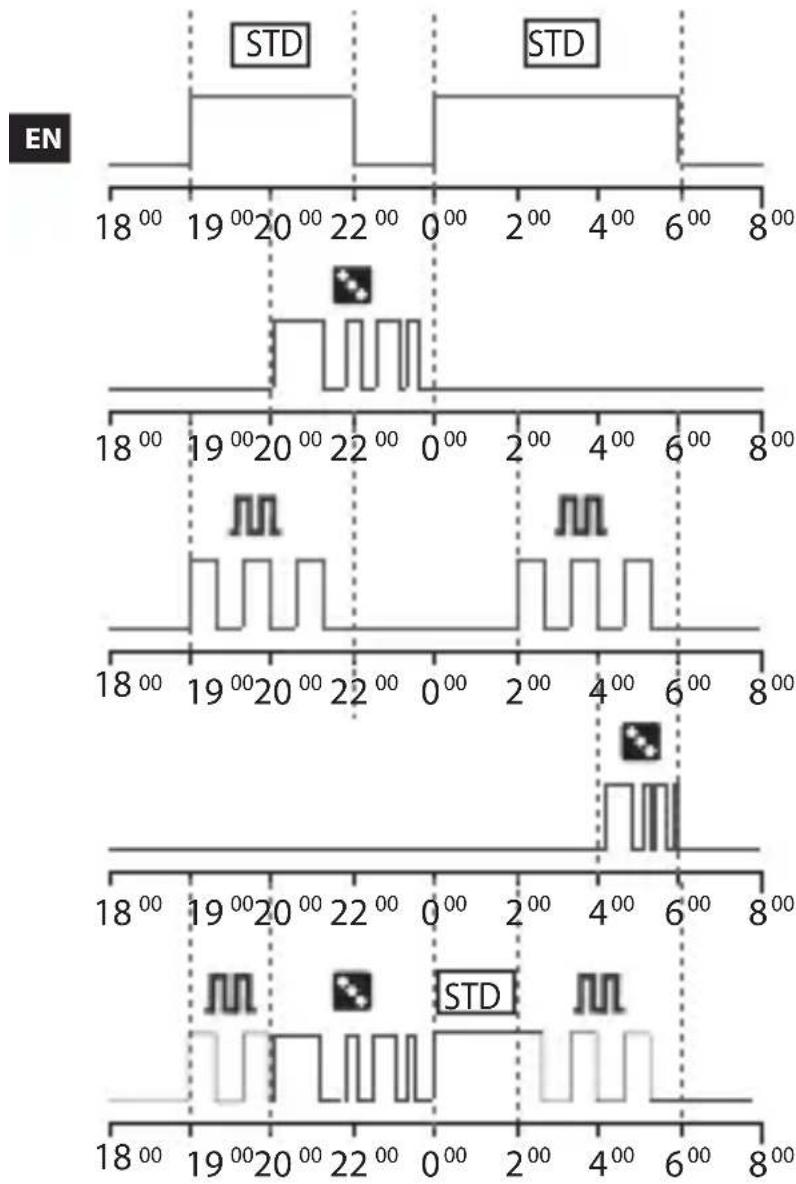

2-2 Forcing priority and programs

i A priority is assigned to every type of program, as shown alongside.
Take the priorities into consideration when various types of programs are programmed for the same period of time.

Highest priority

Manual forcing

External input

External Memory Device (EMD)

Holiday program

Cyclic/Random program

Standard program

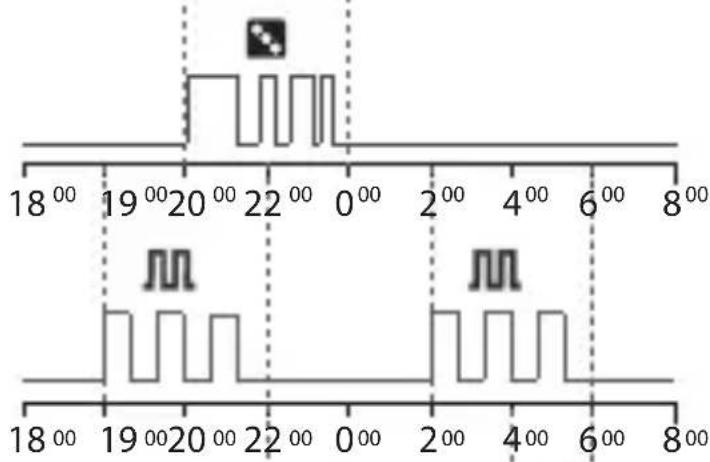

P01: Standard Program

ON 19:00 - OFF 22:00

P02: Standard Program

ON 00:00 - OFF 06:00

P03: Random Program

ON 20:00 - OFF 00:00

P04: Cyclic Program

ON 19:00 - OFF 22:00

P05: Cyclic Program

ON 02:00 - OFF 06:00

P06: Random Program

ON 04:00 - OFF 06:00

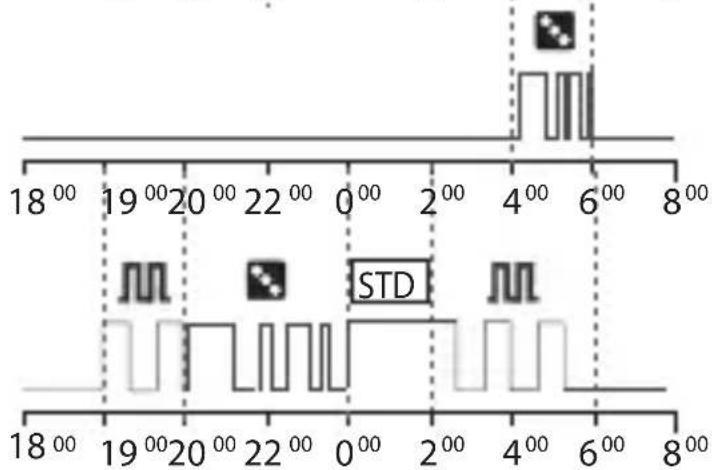

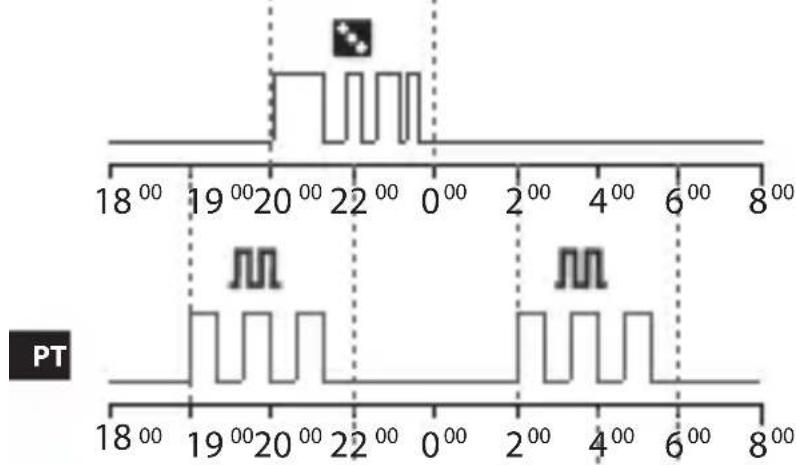

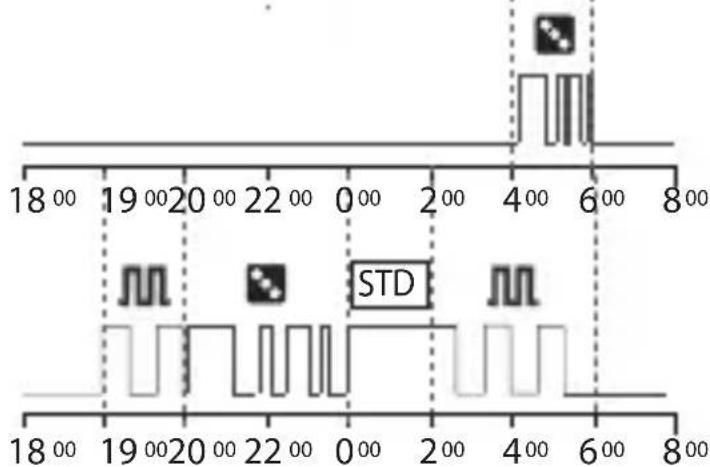

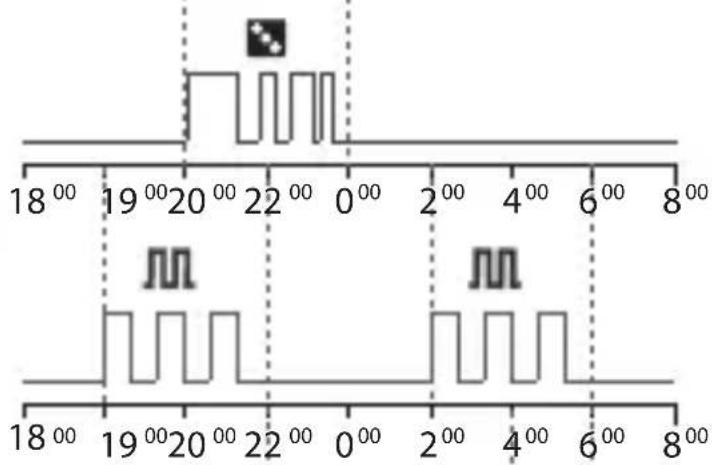

Behaviour of output load with programs from P01 to P06, according to the priorities.

2-3 Create a new program

Procedure valid for all types of programs Further settings are described in the individual programs.

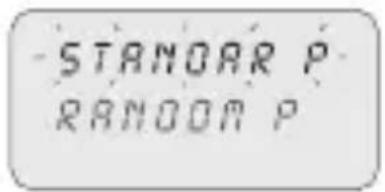

Selection of program type (e.g. with P Standard):

STANOR P RANDOM P

Press1. MENU.

Select program type using keys 2.

Press3. OK to confirm selection.

The number of free programs appears for 3 secs.»

The first program in the memory appears.»

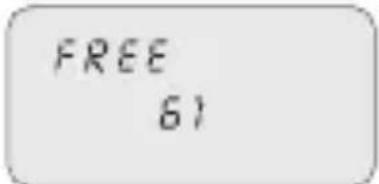

FREE 61

Press4. for 2 secs.

The display shows the first empty program.»

Press5. OK to confirm.

The program number is selected.»

Followed by channel setting.»

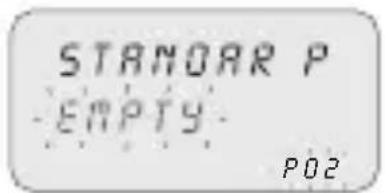

STANOR P EMPTY P02

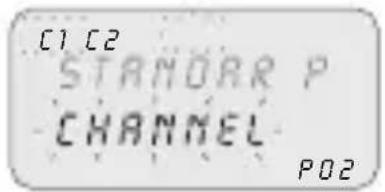

Select channel (only twin channel models)

C1 C2 STAMORP CHANNEL P02

Set channel (twin channel) using keys

C1/C2 or both flash.»

Press2. OK to confirm.

The channel is set.»

Followed by day setting.»

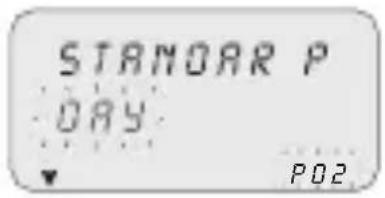

Set day

Select the day or group of days in which the program must be executed.

STAMOAR P DAY P02

Set the day or group of days using keys ▲.▼

The flashing arrow indicates the day or group of » days selected.

Press2. OK to confirm.

Followed by TIME/ON setting.»

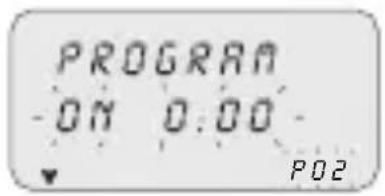

Set TIME/ON

PROGRAM ON 0:00 P02

Set program start time using keys A in the format hh/mm.

i Single pressure of keys moves field by minutes. Prolonged pressure of keys moves field by hours

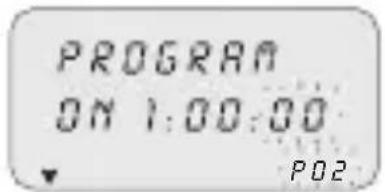

PROGRAM ON 1:00:00 P02

Press2. OK to confirm.

The seconds field appears.»

Set the seconds using keys 3.

Press4. OK to confirm.

The program start time has been set»

Followed by TIME/OFF setting.»

Set TIME/OFF

ON 1:00:00 OFF 8:00:00 P02

Set program end time using keys 1.

i Repeat operations as per TIME/ON.

Press2. OK to confirm.

The program end time has been set»

Press3. OK to confirm program end time.

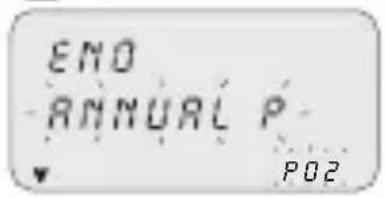

ENO ANNUAL P P02

Set ANNUAL PERIOD

Enables a defined period to be set, in which the program set up previously must be executed.

The period defined in the annual program is repeated cyclically every year.

ENO ANNUAL P PO2

Set the start and end of the period in the format 1. dd/mm/-- using keys▲▼.

Press2. OK to confirm every field. The annual period is set.»

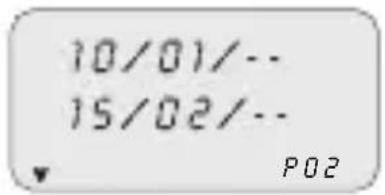

10/01/-- 15/02/-- P02

1. Press MENU to exit programming.

2-4 Check a program

Access desired program menus (STANDARD P, CYCLIC P...) by pressing MENU.

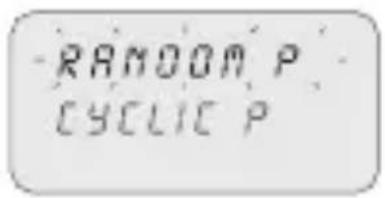

RANDOM P CYCLIC P

Select the program type from the menu (e.g. RAN-1.

DOM P) using keys ▲▼.

Press2. OK to confirm.

The programs of the same type in the memory » are displayed.

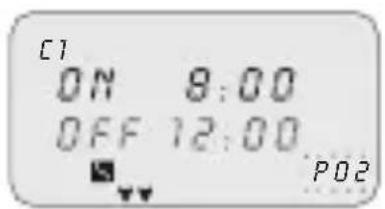

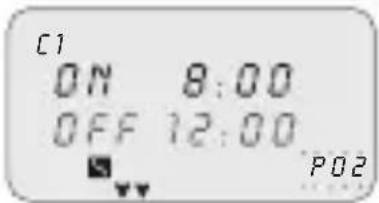

C1 ON 8:00 OFF 12:00 P02

Select the program to be checked using keys 3. The display shows the settings cyclically.»

2-5 Modify a program

1. Press OK to confirm program to be modified.

Set new values as described in subsection 2-3.2.

2-6 Delete a program (fast method)

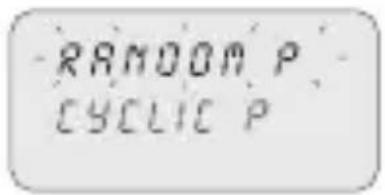

RANDOM P CYCLIC P

Select from the menu the program type to be deleted 1.

using keys ▲▼.

e.g. RANDOM P»

Press keys ▲ ▼ simultaneously for 2 secs.

The display shows "ERASE".»

Press3. OK to confirm.

The display shows "EMPTY".»

The program is deleted.»

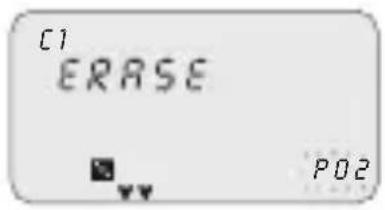

C1 ERASE P02

C1 RANDOM P EMPTY P02

EN

2-7 Copy a program

C1 ON 8:00 OFF 12:00 P02

Select from the menu the program type to be copied 1.

(e.g. RANDOM P) using keys ▲▼.

The program number flashes.»

Press2. OK for approx. 3 seconds

The program is copied in the first free position in » the memory.

The first modifiable data (channel) is displayed » flashing.

Modify data as described in subsection 2-3.3.

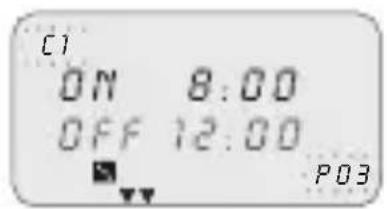

C1 ON 8:00 OFF 12:00 P03

i

2 programs with the same data cannot coexist!

3 Clock programs and settings

1. Press MENU to access available menus.

Scroll menus using keys 2. ▼ and press OK to confirm.

3-1 Standard Program

Enables a defined period of an ON and OFF cycle to be set up.

STANDARD P RANDOM P

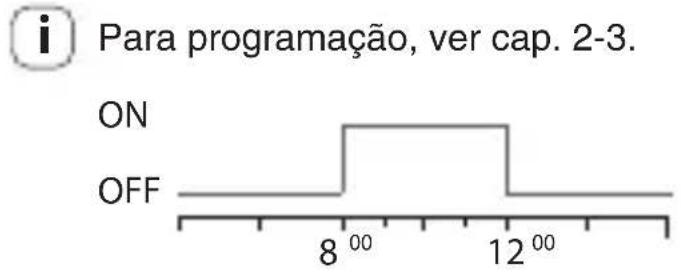

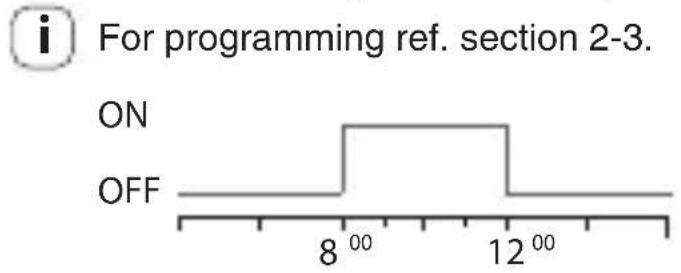

Example of set up from image:

Standard Program ON 8:00 - OFF 12:00.

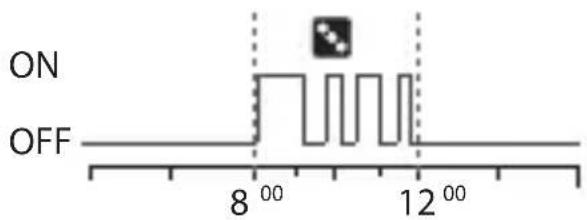

3-2 Random Program

Enables one or more channels to be activated and deactivated in a random manner within an established period.

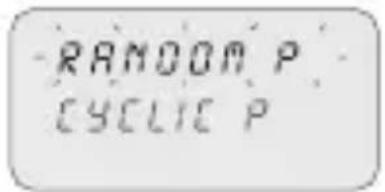

RAMOOM P CYCLIC P

For programming ref. section 2-3.

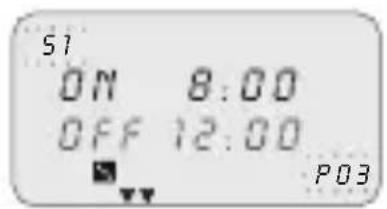

C1 ON 8:00 OFF 12:00 P02

ON OFF 8 00 12 00

Example of set up from image:

Random Program ON 8:00 - OFF 12:00.

3-3 Cyclic Program

Enables a series of pulses to be executed within a defined period.

The ON time and the OFF time may vary from 1 sec. up to 23:59:59 hours

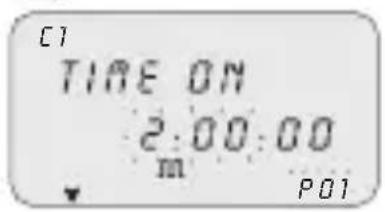

C1 TIME ON 2:00:00 m P01

For programming ref. section 2-3.

In addition, set the time of 1. TIME ON and TIME OFF using keys ▲▼.

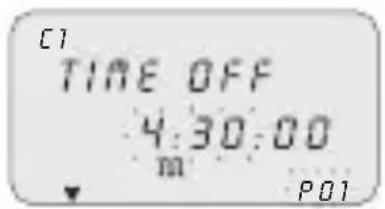

C1 TIME OFF 4:30:00 m P01

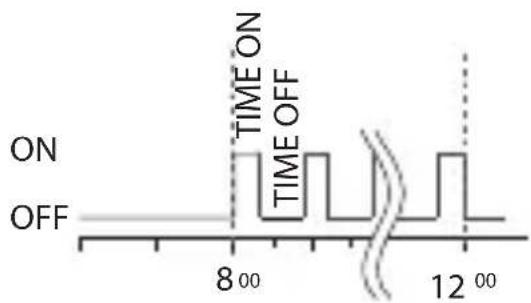

ON OFF 8 00 TIME ON TIME OFF 12 00

EN

Example of set up:

Cyclic Program ON 8:00 - OFF 12:00.

Timing of TIME ON 10 min and TIME OFF 15 min.

3-4 Holidays Program

This enables a period of suspension of the programs to be set, for example, for summer closing.

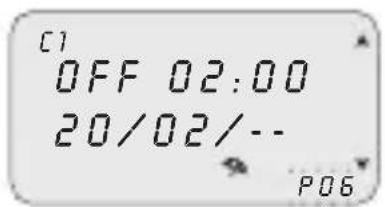

[1] OFF 02:00 20/02/-- P06

Select HOLIDAY P as described under subsection 1.2-3.

Set the suspension start time (OFF) using keys 2. ▼. Press3. OK to confirm.

[1] ON 06:00 15/04/-- P06

Set suspension start date using keys ▲▼ in format dd/mm/--.

Set the suspension end time and date (ON) as per 5. operations 2 to 4.

3-5 PRG List

This menu enables any program in the memory to be displayed, modified or deleted.

HOLIDARY P PRG LIST

FREE 61

C1 ON 8:00 OFF 12:00 P02

Scroll to "PRG LIST" using keys 1..

Press2. OK to confirm.

The number of free programs appears.»

The first program in the memory is displayed.»

Select the desired program using keys A.V.

i Ref. subsections 2-2 to 2-4 for details on checking, modifying or deleting data.

3-6 Delete

This menu enables different type of deletions to be made.

PRG LIST ERASE

Scroll to 1. ERASE using keys

Press2. OK to confirm.

The type of deletion in the sub-menu is accessed » (ref. table below).

Select deletion type using keys ▶.

Press3. OK to confirm deletion.

Press MENU to cancel deletion.

Sub-menu Function
SING PROG Delete single programs selected
ALL PROG	Delete all programsAll programs in the memory will be deleted!
HOLIDAY P	Delete all holiday programs

3-7 Manual

This enables the status of the outputs to be forced manually regardless of active program. Possible settings:

Forcing mode	Display symbol	Channel-Condition	Forcing function
AUTO C1		C2	No forcing on channel; management from program.
PERM		C1 OnC2 On	Permanent channel activated.
PERM		C1 OFFC2 OFF	Permanent channel de-activated.
TEMP		C1 OnC2 On	Channel activated until next program activity.
TEMP		C1 OFFC2 OFF	Channel de-activated until next program activity.

Activate a forcing

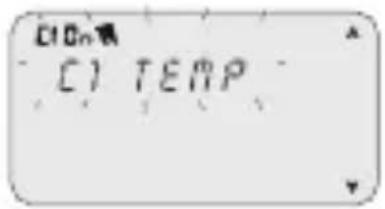

C10n C1 TEMP

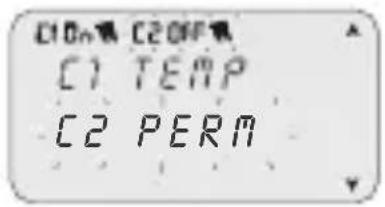

C10n C2OFF C1 TEMP C2 PERM

Select sub-menu "OVERRIDE" using keys A. .

Press2. OK to confirm.

Press combined keys (ref. subsection 1-6) to select 3. channel (only twin channel models).

The display shows information on channel(s) » (ref. table above).

Set type of forcing using keys 4.

Press5. OK to confirm selection.

It returns to the main screen.»

The display shows the type of forcing on the » channel.

De-activate a forcing

Press combined keys of the channel to be de-activated (ref. subsection 1-6) for 1. approx. 2 secs.

i Select "AUTO" mode to deactivate using the menu (ref. subsection "Activate a forcing").

3-8 Options

This enables various clock parameters to be set.

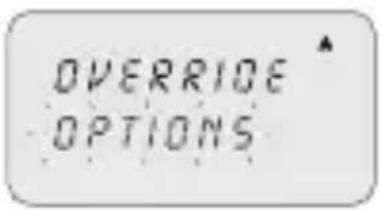

OVERRIDE OPTIONS

Select "OPTIONS" using keys ▲.

Press2. OK to confirm. The sub-menus follow.»

3-8-1 Languages

This enables the desired interface language to be set.

LANGUAGE TIME SET

Select the "LANGUAGE" sub-menu using keys A.

Press2. OK to confirm.

Select the desired language using keys 3.

Press4. OK to confirm.

ITALIANO ENGLISH

3-8-2 Date/Time

This enables the date and time of the equipment to be set.

i If the equipment is reset the date must be set again.

LANGUAGE TIME SET

Select "TIME SET"1. using keys.

Press2. OK to confirm.

Set YEAR, MONTH, DAY, HOUR, MINUTES, 3.

respectively, using keys ▲▼.

i Single pressure of keys moves field by minutes. Prolonged pressure of keys moves field by hours

Press4. OK to confirm.

Date and time are set.»

Followed by "SUM/WIN" setting.»

Summer/winter time change

SUM/WIN FIXED TZ

Select switching type using keys ▲.

Press2. OK to confirm.

Set values (ref. table) using keys ▲▼.

Press4. OK to confirm.

Possible selections on display	Summer switching Winter	switching
NONE	None None
EUROPE	Last Sunday in March Last	Sunday in October
USA	Second Sunday in March F	First Sunday in November
FREE TZ	Week/day (Sun.) freely programmed	Week/day (Sun.) freely programmed
FIXED TZ	Fixed date freely pro-grammed (e.g. 28/02)	Fixed date freely pro-grammed (e.g. 29/10)

Time Zone GPS (only GPS and DCF77 models)

Set the local time by adding/subtracting the number of hours with respect to GMT, the so-called T ZONE (e.g. Italy, T ZONE +1).

TIME SET GPS

i After setting TIME SET (ref. subsection 3-8-2). Select "GPS" using keys ▲▼.

Press2. OK to confirm.

Select the SUM/WIN mode (ref. previous table).3.

Set number of T ZONE hours using keys ▲▼.

Press5. OK to confirm.

The time change has been set. »

It returns to the main screen.»

SUM/WIN -TZONE +1

Time Zone DCF77 (only GPS and DCF77 models)

The receiver, on the contrary to the GPS, transmits the time with the summer/winter correction.

It is necessary to set the correct number of hours with respect to the Frankfurt position.

TIME SET OCFTT

Select "DCF77" using keys A.V.

Press2. OK to confirm.

Set the T ZONE number as described in the previous 3. operations from 4 to 5.

3-8-3 External input

This enables manual ON and OFF forcing functions to be executed from a remote position, (ref. section 3), by means of buttons or switches.

i Function not available for the SYNCHRO models (the “EXT INPUT” item is not available in the “OPTIONS” menu).

TIME SET EXT INPUT

Select the "EXT INPUT" sub-menu using keys A.

Press2. OK to confirm.

Select switching type (ref. table below) using keys 3.

Press4. OK to confirm.

i In order to deactivate settings made, repeat actions from 1 to 2.

Press OK to confirm "DEACTIVAT" selection.

Display selection	Channel C1 or C2 (twin channel)	Symbol Function External		control
PERM ON	OFF		Permanent forcing of channel on ON or OFF.
TEMP	-		Temporary forcing of the channel until the next switching of a program set previously.

Display selection	Channel C1 or C2 (twin channel)	Symbol Function External	control
TIMER ON	OFF		Forcing of a timed channel (e.g. stairway lighting control). Time may be set in format hh:mm:ss.

3-8-4 Maintenance

This enables a period of operation in ON to be set for each channel. After this period, the clock signals the need for an intervention with the message “C1 MAINT” or “C2 MAINT”, alternating with the current data.

EN MAINTENAM 01 000400

Select the "MAINTENAN" sub-menu using keys ▲.

C1 flashes.»

Select channel using keys ▲▼ (twin channel models).

Press3. OK to confirm.

Set number of hours using keys ▲.

Press5. OK to confirm.

i In order to modify or rest the values, follow instructions from 1 to 5.

Cancel maintenance notice

i Pressing the OK button on the main screen for 2 secs. eliminates the “MAINT” message shown on the display.

3-8-5 Hour meter

This enables the number of hours of the channels in the ON status to be displayed.

MAINTENAM - HOURMETER

Select the "HOURMETER" sub-menu using keys A.

Press2. OK to confirm.

Select channel using keys △.

The display shows the hours of operation.»

i Press keys ▲+ ▼ to zero.

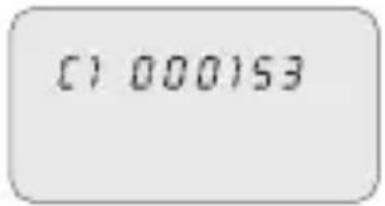

C1 000153

3-8-6 Back-lighting

This enables the display backlighting time to be set.

HOURRETER BACKLIGHT

Select the "BACKLIGHT" sub-menu using keys ▲.

Press2. OK to confirm.

Select using keys 3. between: FIXED ON,

FIXED OFF or TEMP 6SEC.

Press4. OK to confirm.

BACKLIGHT FIXED ON

3-8-7 Warranty

This enables the time since the putting into service of the clock to be displayed in days.

BACKLIGHT WARRANTY

Select the "WARRANTY" sub-menu using keys 1..

Press2. OK to confirm.

The display shows the time, as described above.»

i Counter may not be zeroed.

WARRANTY DAY 0054

4 External Memory Device (EMD)

The EMD is an external memory card, which is able to manage 64 programs, including the holidays.

The EMD is the D KEY programming key.

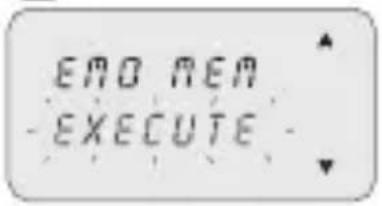

ENO MEN EXECUTE

Insert the EMD.1.

The display shows the memory management » menu

Select the desired sub-menu (ref. table) using keys 2.

Press3. OK to confirm every selection.

Sub-menu Function Notes
EXECUTE	Execute programs directly from EMD	The programs are executed only from EMD
SAVE->EMD	Save all clock memory on EMD	Overwrite all programs already present on EMD
LOAD<-EMD	Load all content from EMD on clock memory	Overwrite all programs present on clock
READ	Read programs from EMD Display only the programs present on EMD
HOLID->EMD	Load Holiday programs from clock to EMD	Overwrite all Holiday programs present on EMD
HOLID<-EMD	Load Holiday programs from EMD to clock	Overwrite all Holiday programs present on clock
ERASE	Delete programs present on EMD	Permanently delete all EMD memory

END MEN REPORT

1. Press MENU to exit.

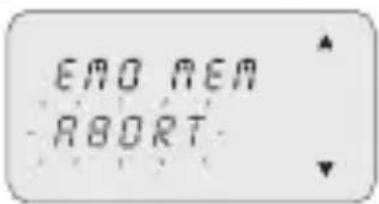

Press2. OK to confirm "ABORT" selection.

The EMD is excluded from the clock.»

The EMD memory is no longer recognised.» Withdraw the EMD.3.

Sommario

ON OFF 8 00 12 00

ON OFF 8 00 12 00

ON OFF 800 TEMPO ON TEMPO OFF 12 00

[1] OFF 02:00 20/02/-- P06

MANURALE OPZIONI

DATA/ORA OCFTT

EMO MEM -AMMULLARE

inhabilita el/los relé/s,

P STANOR P CASUAL

-P CASUAL P CICLICO

P STANOR P CASUAL

ON OFF 8 00 12 00

Programa Standar ON hora 8:00, OFF hora 12:00.

3-2 Programa Casual

ON OFF 8 00 12 00

C1 ON 8:00 OFF 12:00 P03

Programa Casual ON hora 8:00, OFF hora 12:00.

ON OFF TIEMPO ON TIEMPO OFF 8 00 12 00

DATA/HORA ZONE +1

DATA/HOR OCFTT

MANUTENC CUENTA H

3-3 Programme cyclique 80

3-4 Programme Congés 80

3-6 Suppression 81

3-7 Manuel 82

3-8 Options 83

3-8-1 Langues 83

3-8-2 Régul H 83

désactive le(s) relais,

P STANDAR P RANDOM

ON OFF 8 00 12 00

ON OFF 8 00 12 00

S1 ON 8:00 OFF 12:00 P03

3-3 Programme cyclique

57 On 52 Off S1 T E M P S2 P E R M

MANUEL OPTIONS

ETE/HIVER FIXE

GARANTIE JOUR 0064

DE

Höchste Priorität

ZUFALLS P ZYCLUS P

-ZUFALLS P ZYCLUS P

ON OFF 8 00 12 00

ZUFALLS P ZYCLUS P

ON OFF 8 00 12 00

K1 ON 8:00 OFF 12:00 P03

MANUEL OPTIONEN

BELEUCHT GARANTIE

ПРОГРАММА 00 1:00:00 P02

ON OFF 8 00 12 00

ON OFF 8 00 12 00

SV

Högsta prioritet

Manuell forcering

Extern input

Externt minne (EMD)

Semesterprogram

Cykel-/Slumpprogram

Standardprogram

P01: Standard program

ON 19:00 - OFF 22:00

P02: Standard program

ON 00:00 - OFF 06:00

P03: Slumpprogram

ON 20:00 - OFF 00:00

P04: Cykelprogram

ON 19:00 - OFF 22:00

P05: Cykelprogram

ON 02:00 - OFF 06:00

P06: Slumpprogram

ON 04:00 - OFF 06:00

RVSLUT ARLIGT P P02

AVSLUT ARLIGT P P02

3-1 Standard program

ON OFF 8 00 12 00

ON OFF 8 00 12 00

KIT On KIT TILLF

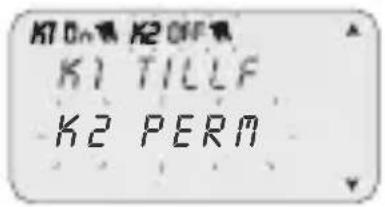

K1 On OK K2 Off K1 TILLF K2 PERM

Välj undermenyn "MANUELL" med knapparna A. Bekräfta med 2. OK.

MANUEL OPTIONER

Välj med knapparna A OPTIONER".

Bekräfta med 2. OK.

Undermenyerna visas.»

3-8-1 Språk

END RINNE VERKSTALL

Sätt i EMD-minnet.1.

ENO MINNE RV8RYT

ВКЛ OTK BP BKL BPTK 8 00 12 00

Maior prioridade

P STANOR P CASUAL

Premir a tecla 1. MENU.

Seleccionar o tipo de programa, utilizando as 2.

teclas ▲▼.

-P CASUAL P CICLICO

Seleccionar no menu o tipo de programa desejado 1. (p/ex. P Casual), utilizando as teclas ▲▼.

Confirmar com 2. OK.

P STANOR P CASUAL

ON OFF 8 00 12 00

Programa Casual ON hora 08:00, OFF hora 12:00.

ON OFF 800 TEMPO ON TEMPO OFF 1200

MANUAL OPCOES

ACERTO H FIXO

ACERT REL OCFTT

Seleccionar "DCF77", utilizando as teclas 1..

Confirmar com 2. OK.

MANUTENC C1 000400

Seleccionar o sub-menu "MANUTENC", utilizando 1. as teclas ▲▼.

MANUTENC CRONOMET

Seleccionar o sub-menu "CRONOMET", utilizando 1. as teclas ▲▼.

Confirmar com 2. OK.

Seleccionar o canal, utilizando as teclas 3.

C1 000153

P03: Random programma

ON 20:00 - OFF 00:00

P04: Cyclisch programma

ON 19:00 - OFF 22:00

P05: Cyclisch programma

ON 02:00 - OFF 06:00

P06: Random programma

ON 04:00 - OFF 06:00

STANDARD P RANDOM P

-RANDOM P CYCLUS P

RANDOM P CYCLUS P

-STANDARD P RANDOM P

ON OFF 8 00 12 00

ON OFF 8 00 12 00

ON OFF TJD ON TJD OFF 8 00 12 00

C10n 20 OFF K1 T E A P K2 P E R M

HAMORATIG OPTIES

200/WIN ZONE +1

Bevestig met5. OK.

» De verandering is ingesteld.

-P LOSOUY P CYKLIC

P LOSOWY P CYKLIC

ON OFF 8 00 12 00

P LOSOUY P CYKLIC

ON OFF 8 00 12 00

UST CZRSU GPS

UST CZRSU^ OCFTT

UST CZRSU ZEWN WEJ

POOSWIETL POOSU ON

3-8-7 Gwarancja
