Product Type	Built-in or freestanding dishwasher (not built-in)
Brand	Koenic
Model	KDW 60111 A2 FS
Capacity	14 place settings
Energy Class	A++
Annual Energy Consumption	265 kWh/year (based on 280 standard cycles)
Annual Water Consumption	3080 L/year (based on 280 standard cycles)
Energy Consumption per Cycle (ECO program)	0.93 kWh
Water Consumption per Cycle (ECO program)	11 L (approx.)
Duration of ECO Program	190 min
Noise Level	47 dB(A)
Drying Efficiency Class	A
Power Supply	220-240 V ~ 50 Hz, 1760-2100 W
Water Pressure	0.4 - 10 bar (0.04 - 1 MPa)
Wash Programs	Normal, Intensiv, ECO, 90 min, Rinse, Rapid
Special Functions	Extra dry, Half load, Delayed start (1-24 h), Child lock
Salt Dispenser	Yes, with hardness setting (H1-H6)
Rinse Aid Dispenser	Yes, adjustable to 6 levels
Load Type	Height-adjustable upper basket, lower basket with supports, adjustable cutlery tray
Filtration System	Self-cleaning filter (main filter, micro-filter, coarse mesh filter)
Spray Arms	Upper and lower spray arms removable for cleaning
Country of Origin	Not specified (manufactured for Imtron GmbH)

Frequently Asked Questions - KDW 60111 A2 FS Koenic

How do I adjust the water hardness on the Koenic KDW 60111 A2 FS dishwasher?

After turning on the appliance, close the door within 60 seconds. Press and hold the Start/Pause button for 5 seconds to enter setting mode. Then press the same button to select the hardness level (H1 to H6) corresponding to your water. The setting exits automatically after 5 seconds of inactivity.

How do I add salt to the salt container?

Remove the lower basket and unscrew the cap of the salt container. Before the first wash, first pour 1 liter of water into the container, then add about 1 kg of dishwasher salt using the supplied funnel. Screw the cap back on tightly. Start a program (preferably a quick one) immediately to avoid corrosion.

What should I do in case of error code E1 or E4?

Code E1 indicates a prolonged water intake time: check that the water tap is open, the inlet hose is not kinked, and water pressure is adequate. Code E4 indicates overflow: check for leaks at the hoses and door seal. If the problem persists, contact after-sales service.

Why is my dishes not dry after the cycle?

Several possible causes: rinse aid level is too low (increase it, default setting is 4), dishes are poorly loaded (do not overload, leave space), or extra drying was not activated. Wait a few minutes after the cycle ends before unloading for better drying.

Can I use 3-in-1 tablets?

Yes, the appliance accepts all-in-one tablets. Place the tablet in the main compartment. Adjust the salt and rinse aid settings if necessary based on your water hardness. For best results, fill the salt container and rinse aid reservoir even with tablets.

How do I activate the child lock?

During operation or after setting a delayed start, press and hold the Half load 1/2 and Delay start buttons simultaneously for 3 seconds. The lock indicator lights up. To deactivate, repeat the same key combination for 3 seconds.

Which program should I choose for very dirty dishes?

The Intensiv program is the most suitable. It includes a pre-wash at 50°C and a wash at 60°C with additional rinses. Duration is about 170-190 minutes. You can also enable the Extra dry option for enhanced drying.

How do I clean the dishwasher filters?

Turn the cap of the main filter counterclockwise and remove the entire assembly (coarse mesh filter, micro-filter, and main filter). Rinse each element under running water. Reassemble in reverse order ensuring proper engagement. Never operate the appliance without the filters in place.

Can I open the door during a cycle?

Yes, but with caution. If you open the door, the cycle will pause. Wait for the water jets to stop completely before opening wide. Add forgotten dishes, close the door, and press Start/Pause to resume. Avoid opening during hot wash to prevent burns.

What should I do if rust spots appear on cutlery?

Check that the cutlery is dishwasher-safe stainless steel. Ensure you have run a program after each salt refill to prevent grains from settling at the bottom. Also check that the salt container cap is tightly closed. If the problem persists, use a specific stain remover.

USER MANUAL KDW 60111 A2 FS Koenic

Freestanding Dlishwasher

KOW80-LA2F5

图C.14.10

2

图7-10

网

（一）股东登记方法

intell-Cartet

公司名称：浙江恒星科技有限公司

H2

C∈

1

(1)

1

1

1. 利用 m =

derlans 73-60

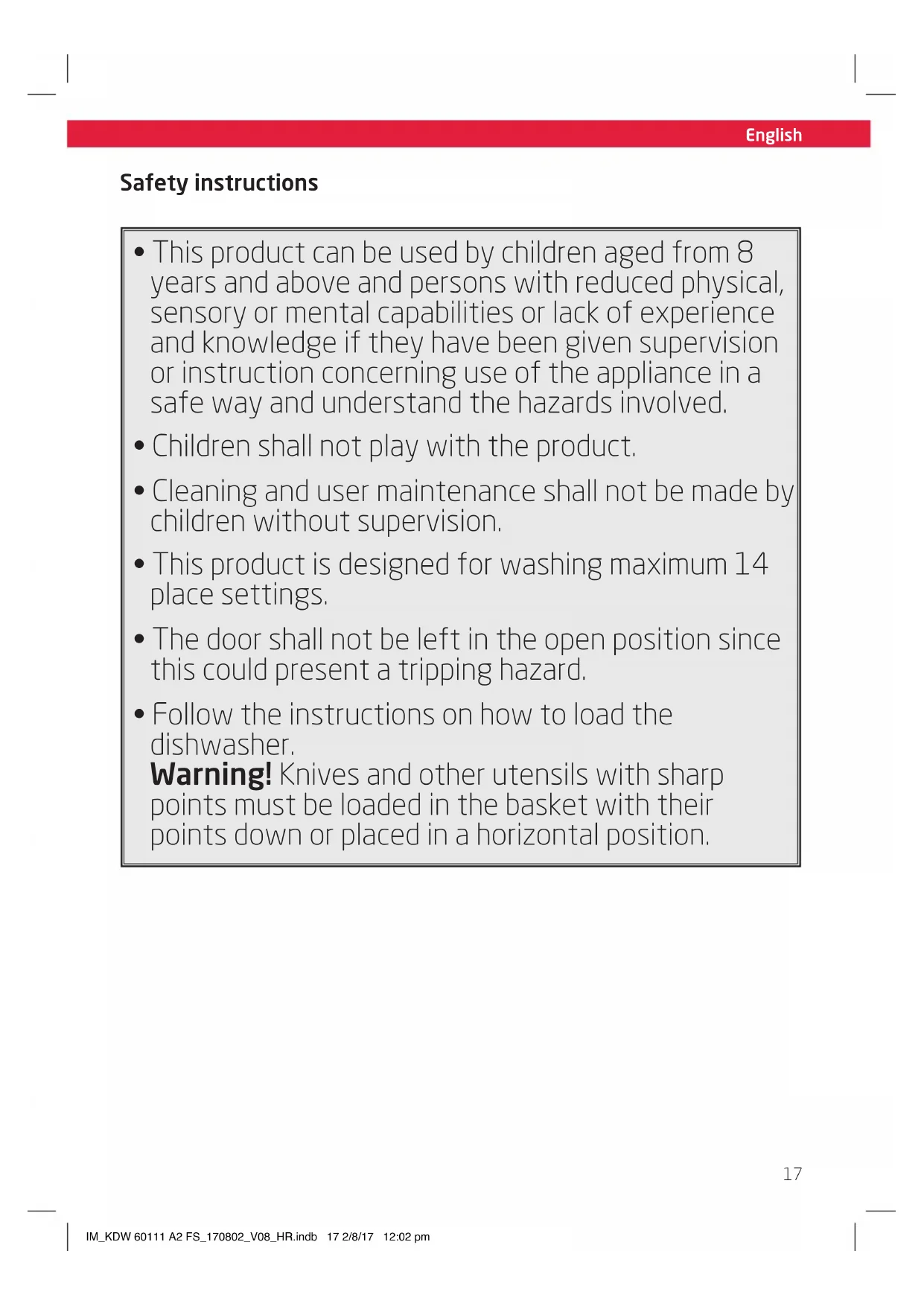

Sicherheitshinweise

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the product.
• Cleaning and user maintenance shall not be made by children without supervision.
• This product is designed for washing maximum 14 place settings.
• The door shall not be left in the open position since this could present a tripping hazard.
• Follow the instructions on how to load the dishwasher. Warning! Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

English

Safety instructions

• The product is designed for the preparation of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.
• The dishwasher has ventilation openings in the base. These openings must not be obstructed by a carpet.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Follow the instructions in the chapter Cleaning and Care.

Safety instructions

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the product.
• Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards. Never leave the product unsupervised while it is switched on.
• Never leave the product unsupervised while it is switched on.
• Do not under any circumstances attempt to repair the product yourself (e.g. damaged power cord, product has been dropped etc.). For servicing and repairs, please consult an authorised service agent.
  The mains voltage must match the information on the rating label of the product.
• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
• Only unplug from the power socket by the plug itself. Do not pull on the cord.
• Unplug the product ...
• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.

• Use this product in dry indoor areas only and never outdoors.
  This product is not intended for commercial use. It is designed for household use only.

• Follow the supplied instructions for installation.

• This product is connected to the water mains. Consider minimum and maximum permitted inlet water pressure, see chapter Technical Data. Consider all instructions about the installation of detachable hoses. Use new hose-sets for installation. Do not reuse old hose-sets.

English

Congratulations!

Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is only intended for cleaning dishes and cutlery which are dishwasher proof or suitable for dishwashers. Any other use may result in a damage of the product or injuries. This product is designed for household use only and not intended for commercial use. The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage in a way that does not meet the manufacturer's specified purpose.

Before first time use

Carefully remove the product and accessories from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE.

By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Content

1 x Dishwasher
1 x User manual
1 x Warranty card

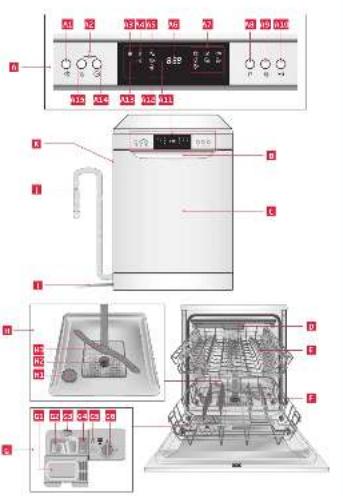

Part list

A Control panel

A1 On/off switch
A2 Child lock buttons
A3 Indicator lamp rinse aid
A4 Indicator lamp softener (salt)
A5 Water connection indicator
A6 Digital display
A7 Program display
A8 Program selection button P
A9 Extra dry button
A10 Start /Pause button
A11 Child lock indicator
A12 Extra dry indicator
A13 Half load indicator
A14 Timer button

A15 Half load button

B Handle
Door
Cutlery tray
Upper dish basket
Lower dish basket

G Fill compartment

Detergent tab/powder compartment

G1 Cover
G2 Compartment for main washing
G3 Lock
G4 Compartment for pre-washing

Rinse aid compartment

G5 Fill indicator
G6 Rinse aid container

H Inside

H1 Salt container
H2 water outlet with filter set
H3 Upper and lower spray arms

Backside

Power cord with plug
1 Waste water hose (pre-assembled)
K Hose for water inlet (pre-assembled)

Accessories

Funnel (not shown)

Installation

Note:

The dishwasher is equipped with power cord and plug. Before installation, make sure that a suitable wall outlet is available at the desired place of installation. Consider the dimension of the product for placing and installation.

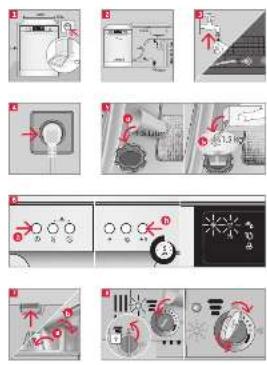

Fig.1 Place the dishwasher on an even, horizontal and steady surface.

Note:

The dishwasher is not intended to be built in.

Fig. 2 The dishwasher must be connected to a drainpipe.

• The hose is already connected to the waste water outlet. Cut the straps and unwind the hose.
• Connect the end to a drainpipe (Option A oder B). Be aware of the max. height of the outlet of drainage hose.

Note:

A suitable hose holder is available as optional accessories.

Fig. 3 Connect the water inlet to a tap water supply (3 / 4^ ) using the pre-assembled hose and make sure it is fastened tightly.

Note:

If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet might get blocked and damage the appliance.

Fig.4 Connect the power plug to the mains.

Preparation

Putting salt into the salt container

Fig. 5 Depending on your tap water hardness (hardness degree) use additional salt (water softener). Always consider instruction provided with the salt.

• Remove the basket and then unscrew and remove the cap from the salt container.
• Before first usage, add 1.5 lt. of water in the salt container of your machine.
• Place the end of the funnel (supplied) into the hole and pour in about 1.5kg of salt. It is normal for a small amount of water to come out of the salt container.
  After filling the container, screw the cap tightly back on in clockwise direction.
• Immediately after filling the salt into the salt container, a washing program should be started (rapid program suggested). Otherwise filter system, pump or other important parts of the machine may be damaged by salty water which would void the warranty.

Note:

Depending on how fully the salt dissolves, the salt warning light may still be on even though the salt container is filled.

English

Warning

Only use salt specifically designed for use in dishwashers! All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is he liable for any caused damages.
If there are spills of the salt, a soak or a rapid program should be run to remove the excess salt.
- Only fill with salt just before starting one of the complete washing programs. This will prevent any grains of salt or salty water, which may have been split, remaining at the bottom of the machine for any period of time, which may cause corrosion.
- The salt container must only be refilled when the salt warning light in the control panel comes on.

Adjusting salt consumption

Fig. 6 Activate the setup mode: Close the door within 60 seconds after power ON, press Start/Pause button and hold for 5 seconds, the machine will enter setting mode which is indicated by the alternatingly blinking indicator lights of and

Adjust level of salt consumption: Press the Start/Pause button to select the proper setting according to your local environment. Follow table below to find correct setting.

Water Hardness level		Setting
°dH1)	mmol/(2)
0-5 0-0.94 H1
6-11 1.0-2.0 H2
12-17 2.1-3.0 H3*
18-22 3.1-4.0 H4
23-34 4.1-6.0 H5
35-55 6.1-9.8 H6

The product will exit the setup mode automatically 5 seconds after last setting/operation of switch.

Note:

1 German degree of measurement for the water hardness
2) Millimol, international unit for water hardness
Factory setting Contact your local water board for information on the hardness of your water supply.

Adding detergent

Fig.7 The dispenser must be refilled before the start of each wash cycle.

For the correct amount follow the instructions provided with the detergent.

• Press release button. The lid springs open.
  Always add the detergent just before starting each wash cycle, otherwise it could get damp and will not dissolve properly.
  If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

Consider the difference of two compartments:

a) Compartment for detergent for main wash cycle.
b) Compartment for detergent for pre-wash cycle.

• Close and press the lid until it locks in place.

Note:

Only use detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.

Fill rinse aid dispenser

Fig. 8 Your dishwasher is designed to use liquid rinse aids which are released during the final rinse to prevent water from forming droplets on your dishes.

• Open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml .

To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
- Pour the rinse aid into the dispenser, being careful not to overfill.

Indicator Status
●	Full
◎	¾ full
◎	½ full
◎	¼ full
○	Empty

• Replace the cap by inserting it aligned with "open" arrow and turning it to the "closed" (right) arrow.

Note:

Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

• Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
  If the rinse aid dispenser is empty the rinse aid signal lamp will turn on red.

Adjust the rinse aid dispenser

The dosage can be adjusted in 6 levels. Default level is 4. This setting is a recommendation.

Note:

• Set the dosage level higher, if stains remain on the dishes.
• Set the dosage lower, if clouds or streaks remain on the dishes.
  Use a coin to change the setting.

English

Loading the dishwasher basket

Only clean dishes and cutlery which are dishwasher proof or suitable for dishwashers. Follow instructions of manufacturers.
- Scrape off any large amounts of leftover food. Soften remnants of burnt food e.g. in pans.
It is not necessary to rinse the dishes under running water.
- Place objects in the dishwasher in the following way:

• Items such as cups, glasses, pots/ pans, etc. face down.
• Curved items, or those with recesses, should be loaded at a slant so that water can run off.
• All utensils must be stacked in a secure way so they cannot tip over.
• All utensils must be placed in a way that the spray arms can rotated freely during washing.
• Arrange small dishes, e.g. lightweight and delicate items such as Saucers, cups, glasses, dessert bowls etc. in the upper basket
• Arrange large and heavy parts, such as plates, sheets, pots, bowls etc. in the lower basket.

Note:

Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

Warning

• Long bladed knives stored in an upright position are a potential hazard.
• Do not let any item extend through bottom.
  Always load sharp utensils with the sharp points down!
• Do not overload your dishwasher as this will impair the results.

Adjusting the upper basket

Fig. 9a In order to allow for more space in the upper or lower basket e.g. for taller pieces of crockery, you can load the upper basket in 2 positions. Pull up the upper basket to move it up. Push the handles on both sides to move the basked down.

Fig.9b Observe the general plan for placing dishes and cutlery into the basket. See table below for possible part designations.

1 Cups	2 Saucers
3 Glasses	4 Small serving bowl
5 Medium serving bowl	6 Large bowl
7 Dinner plates	8 Dessert dishes
9 Soup plates	10 Oval platter

Fig. 9c Additional supports can be popped up at the lower basket (I). Additional trays can be flapped down at the upper basket (II).

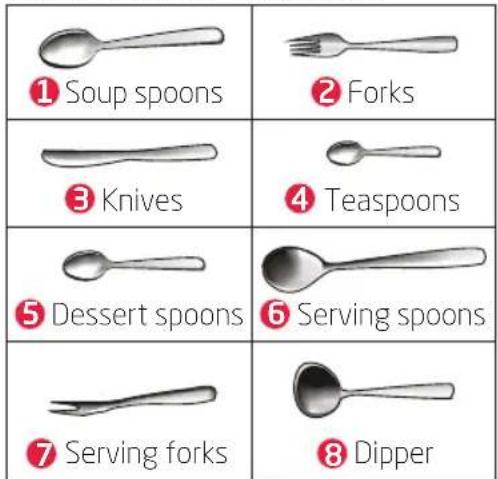

Fig. 10a Observe the plan for placing cutlery into the cutlery basket. See table below for possible part designations.

Fig. 10c The cutlery tray can be varied and adapted according to your needs.

I. standard position, both halves inclined
II. left side flat, right half inclined
III. both halves flat, right half increased
IV. left flat, right open, right half moved over the left half
V. left flat, right open, right half removed

Operation

Washing dishes

Fig. 11 Consider following steps to start the washing process:

1.Prepare dishwasher.
2. Load the dishwasher basket.
3. Add detergent or rinse aid.
4. Make sure the water-tap/water supply is open, the appliance is connected to the mains and the door is closed correctly.
5. Push Ein/Aus button to turn on the dishwasher and choose your program, referring to chapter Choosing

Program

If the dishwasher is not completely loaded, then you can additionally select the Half load mode. This mode allows you to save both water and electricity when using the bottom and top basket of your dishwasher. Press the half load button and the half load indicator lights up.

Note:

We recommend to use the half load function if the dishes are slightly soiled.
- Select the extra dry function if you want the dishes to be extra dry.
The functions half load and extra dry cannot be selected at once.
These modes can only be used with the program setting Intensive Normal

ECO, Glass and 90 min

English

1. Push Start/Pause button. To stop the process push the Start/Pause button again.

To start the rinsing process at a later time, press the timer button. Set the hours by which the start is to be delayed by pressing it several times. A 1-24 hours start time delay can be set. Then press the Start/Pause button. The dishwasher starts rinsing when the preset time has elapsed.

Note:

The program lights show the state of the dishwasher:

• Program light on: standby or pause.

• Program light blinking: washing process ongoing.

• When the working cycle has finished, an 8 second long beep is sounded.

• Turn off the appliance using the Ein/Aus button and shut off the water supply.

• Open the door of the dishwasher.

Warning

It is dangerous to open the door when washing, because the hot water may scald you.

• Wait a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot. They will also dry better.
• Unload the dishwasher.

Pausing the washing cycle

You can modify the washing program when the dishwasher has just been started. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water.

• Press Start/Pause button for more than three seconds to switch to stand by state.
• Change the program to the desired cycle setting.
• Press Start/Pause button again to continue washing process.

Note:

If you open the door during washing, the machine will pause. When you close the door and press the Start/Pause button, the machine will continue working after 10 seconds.

If you have forgotten some dishes you can pause a running process and add them, but make sure the detergent compartment has not already opened.
1. Open the door just a little to pause the washing process.
2. After the spray arms stop working, you can open the door completely.
3.Add forgotten dishes.
4. Close the door and press the Start/ Pause button again and the dishwasher will continue after 10 seconds.

Child lock

• The child lock can be activated when the dishwasher is running or started with the start time delay.
• Press the half full button 1 / 2 and the timer button simultaneously for 3 seconds. Now the dishwasher can only be switched off. To deactivate child lock, press the two buttons again for 3 seconds.

Fig. 12 Choosing program
Consider below table to choose the correct program according to your needs.

Program	Information and purpose	Description of cycle	Detergent Pre/ Main	Running time in min		Energy cons. in kWh		Water cons. in litre		Rinse aid
				121	212
Normal	For normally soiled loads such as pots, plates, Glasses and lightly soiled pans.	Pre-wash 45 °C Wash 55 °C Rinse Rinse 65 °CDrying	5/30 g (or 3 in 1)	180	185 1.3	1.4 15 1.5				★
Intensiv	For heavily soiled crockery, and normally soiled pots, pans, dishes, etc. with dried on leftovers.	Pre-wash 50 °C Wash 60 °C Rinse Rinse Rinse 65 °CDrying	5/30 g (or 3 in 1)	170 190	0.6 1.6	18.5 18.5				★
	For lightly soiled crockery and glass. Wash 40 °CRinse 60 °CDrying	5/30 g (or 3 in 1)	5/30 g (or 3 in 1)	130 150	0.9 1.14	4.5 14.5				★
ECO (*EN 50242)	This is the standard programme; It is suitable to clean normally soiled tableware and is the most efficient program in terms of its combined energy and water consumption for that type of tableware.	Pre-wash Wash 45 °C Rinse Rinse 65 °CDrying	5/30 g (or 3 in 1)	190 200	0.93 1.0	3 11 11				★
90°	For normally soiled loads that need extensive drying.	Wash 65 °CRinse 65 °CDrying	35 g 90	120 1.35	1.45 12.5	12.5				★
	To rinse dishes that will be washed later.	Prewash	-	15 n/a	0.02 n/a 4	n/a -
Rapid	A quick rinse for lightly soiled loads without drying.	Rinse 45 °CRinse 50 °CRinse 55 °C	25 g	30 n/a	0.75 n/a 1	1 n/a -

Index: 1: General / 2: Extra drying

English

Legal note:

• EN 50242: This program is the test cycle. The information for comparability test in accordance with EN 50242, is as following:

• Capacity: 14 setting

• Upper basket: top wheels on rail.
• Rinse aid setting: 6
• The power consumption of the: off-mode is 0.45 W

left-on

mode is 0.49 w

Left-on mode duration: Power will be cut off automatically after program finished for 30 minutes.

Cleaning and care

Warning

• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
  Clean the exterior surfaces of the product with a slightly damp cloth and dry them well. Make sure that no water enters the product interior (e.g. at the switches).
• Clean the edge around the door using a soft, warm and damp cloth only. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

Cleaning the filter cartridge

The filter prevents larger remnants of food or other objects from getting inside the pump. Inspect the filters for blocking every time after the dishwasher has been and clean it on a regular basis.

Fig.13 The filter system consists of a coarse filter, a flat (Main filter) and a micro filter (fine filter).

• Main filter A: Food and soil particles trapped by this filter are pulverized by a special jet on the spray arm and washed down to drain.
• Fine filter B: This filter holds soil and food residue in the sump area and prevents it from being spread over the dishes during wash cycle.
  Coarse filter C: Larger items, such as pieces of bones or glass that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and lift it up.

Disassemble and clean the filter according to the following steps:

• Turn the filter cap (filter C) counterclockwise and take out the whole filter cartridge.
  Take out filters B and C.
  Take out filter C.
• Wash filters under running water.
• Reassembling is done in reverse order. Make sure the filter cartridge is installed correctly.

Warning

Do not use the dishwasher without the filter system being properly installed.

Cleaning the spray arms

Fig.14 The spray arms can be easily removed for periodic cleaning of the nozzles. This prevents possible clogging.

• Grasp the middle of the spray arm, pull it upwards to remove it.
• Wash the arms under a jet of running water.
• Return them carefully to their seat and make sure that the spray arms are installed correctly and can turn freely.

Error codes

Code Meaning Possible causes
E1 Longer inlet time		·Faucets is not opened ·Water intake is restricted ·Water pressure is too low
E4	Overflow	·Some component of the dishwasher leaks

Troubleshooting

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer.

Problem Possible causes Solution
Product does not work	Interrupted power supply	Check the power supply
	Water pressure is too low	Check whether water supply is connected properly and water is turned on
	Dishwasher door is not properly closed	Ensure door is closed properly
Water is not pumped out of the dishwasher	Kink in drain hose Check	the drain hose
	Filter is clogged Check and clean the coarse filter
	Kitchen sink is clogged Check the kitchen sink is draining well or call a service agent for help
Sud in the tub • Improper detergent	Only use special dishwasher detergent	Spilled rinse aid
	• Wipe up rinse-aid spills
Sud tub interior	Detergent with colourant was used	Only use detergent without colourant
White film on inside surface	Hard water minerals	Regularly clean the interior with a damp sponge
Rust stains on cutlery	Cutlery are not corrosion resistant	Do not wash these items in dishwasher
	A programme was not run after refilling salt	Always run a quick programme after adding salt
	Softener lid is loose Check and tighten it
Knocking noise in the cabinet	Spray arm is knocking against an item in the basket	Interrupt the program and re-arrange the items
Rattling noise • Items of crockery are loose in the cabinet

English

Knocking noise in water pipes	• Caused by on-site installation or cross section of the piping	• This has no influence on the dishwasher function
Dishes are not clean	• Incorrectly loaded dishes	• Re-arrange the dishes
	• Spray arms are blocked
	• Not enough detergent • Add more detergent
	• Program was not powerful enough	• Choose another program
	• Filter is dirty or not inserted correctly	• Clean the filter and ensure it's fit in correctly
Cloudiness on glassware	• Too much detergent	• Use less detergent and choose shortest cycle for cleaning glasses
Black or grey marks on dishes	• Aluminum utensils have rubbed against dishes	• Use a mild abrasive cleaner
Detergent left in dispenser cups	• Detergent cups are blocked	• Re-arrange the dishes
Dishes are not drying • Improper loading
		• Rinse-aid level is too low •	Increase the rinse-aid level
		• Dishes removed too soon •	Do not removed the dishes immediately after washing.

Technical Data

Power consumption 1760 - 2100 W
Rated voltage / frequency 220 - 240 V ~	50 Hz
Water pressure (flow pressure) 0.4 - 10 bar (0.04 - 1 MPa)

This is a Dishwasher.
- Erp-testing was done according to EN50242:2008+A11, Directive(EU)1016/2010, Directive(EU)1059/2010.
- See website below for detailed technical information or ask your vendor for specification sheet. www.koenic-online.com.

Indicatore Status
●	Full
◎	¾ full
◎	½ full
◎	¼ full
○	Vuoto
