USER MANUAL KDW 6011-1 E FS Koenic

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are being supervised or have received instructions concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the product.
• Cleaning and user maintenance shall not be carried out by children without supervision.
• This product is designed for washing a maximum of 14 place settings.
• The door shall not be left in the open position since this could present a tripping hazard.
• Follow the instructions on how to load the dishwasher.

Warning! Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

English

Safety instructions

• The product is designed for the processing of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.
• The dishwasher has ventilation openings in the base. These openings must not be obstructed (e.g. by carpet).
• If the supply cord has been damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Follow the instructions in the chapter Cleaning and Care.

Safety instructions

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the product.
• Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
• Never leave the product unsupervised while it is switched on.
• Do not under any circumstances attempt to repair the product yourself (e.g. damaged power cord, product has been dropped during installation etc.). For servicing and repairs, please consult an authorised service agent.
• The mains voltage must match the information on the rating label of the product.
• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
• Only unplug from the power socket by the plug itself. Do not pull on the cord.
• Unplug the product ...
• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.
• Use this product in dry indoor areas only and never outdoors.
  This product is not intended for commercial use. It is designed for household use only.

• Follow the supplied instructions for installation.

• This product is connected to the water mains. Consider the minimum and maximum permitted inlet water pressure, see chapter Technical Data. Consider all instructions about the installation of detachable hoses. Use new hose-sets for installation. Do not reuse old hose-sets.

English

Congratulations!

Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is only intended for cleaning dishes and cutlery which are dishwasher proof or suitable for dishwashers. Any other use may result in a damage of the product or injuries. This product is designed for household use only and not intended for commercial use. The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage in a way that does not meet the manufacturer's specified purpose.

Before first time use

Carefully remove the product and accessories from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Warranty and spare parts

The warranty period of the product, as well as the applicable conditions of the warranty can be found in the warranty card provided with the product. The spare parts, which are listed in the corresponding ecodesign directive, can be obtained by contacting the customer service center, for a period of at least 7 years, respectively 10 years.

Disposal

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE.

By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Content

1 x Dishwasher
1 x User manual
1 x Warranty card

Controls and components

G Fill compartment

A Control panel
A1 On/off switch
A2 Child lock buttons
A3 Indicator lamp rinse aid
A4 Indicator lamp softener (salt)
A5 Water connection indicator
A6 Digital display
A7 Program display
A8 Program selection button P
A9 Extra dry button
A10 Start /Pause button
A11 Extra dry indicator
A12 Child lock indicator
A13 Half load indicator
A14 Timer button
A15 Half load button
B Handle
C Door
Cutlery tray
Upper dish basket
Lower dish basket

Detergent tab/powder compartment

G1 Cover
G2 Compartment for main washing
G3 Lock
G4 Compartment for pre-washing

Rinse aid compartment

G5 Fill indicator
G6 Rinse aid container

H Inside

H1 Salt container
H2 Water outlet with filter set
H3 Upper and lower spray arms

Backside

Power cord with plug
Waste water hose (pre-assembled)
K Hose for water inlet (pre-assembled)

Accessories

Funnel (not shown)

Installation

Note:

The dishwasher is equipped with power cord and plug. Before installation, make sure that a suitable wall outlet is available at the desired place of installation.

Consider the dimension of the product for placing and installation.

Fig. 1 Place the dishwasher on an even, horizontal and steady surface. Ensure, that the appliance is placed horizontally and is not tilted.

Note:

The dishwasher can be built in beneath a worktop.

Fig. 2 The dishwasher must be connected to a drainpipe.

• The hose is already connected to the waste water outlet. Cut the straps and unwind the hose.
• Connect the end to a drainpipe (Option A or B). Be aware of the max. height of the outlet of drainage hose. Ensure, that the hose is properly connected and sealed.

Note:

A suitable hose holder is available as optional accessories.

Fig. 3 Connect the water inlet to a tap water supply (3 / 4^ ) using the pre-assembled hose and make sure it is fastened tightly.

Note:

If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet might get blocked and damage the appliance.

Fig.4 Connect the power plug to the mains.

Note:

Before using the product for the first time, make sure, that all hydrophilic connections of the product are correctly sealed and connected to both the device as well as the water mains. Check all connections periodically to avoid possible leakage.

Installation beneath a worktop

If you want to place the dishwasher beneath a worktop, you can remove the upper cover plate. To do this, remove the two screws from the cover plate on the back of the dishwasher and remove the cover plate. The dishwasher height of 815mm now meets the standard height for built-in dishwashers.

Warning! Screw the two screws back into the corresponding holes.

Preparation

Filling salt into the salt container

Fig. 5 Depending on your tap water hardness (hardness degree) use additional salt (water softener). Always consider the instructions provided with the salt.

• Remove the basket and then unscrew and remove the cap from the salt container.
• Before first usage, add 1.5 lt. of water in the salt container of your machine.
• Place the end of the funnel (supplied) into the hole and pour in about 1.5kg of salt. It is normal for a small amount of water to come out of the salt container.

English

After filling the container, screw the cap tightly back on in clockwise direction.
- Immediately after filling salt into the salt container, a washing program must be started (rapid program suggested). Otherwise filter system, pump or other important parts of the machine may be damaged by salty water which would void the warranty.

Note:

Depending on how fully the salt dissolves, the salt warning light may still be on even though the salt container is filled.

Warning

• Only use salt specifically designed for use in dishwashers! All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt, the manufacturer does not give any warranty nor is he liable for any caused damages.
• If there are spills of the salt, a soak or a rapid program should be run to remove the excess salt.
• Only fill with salt just before starting one of the complete washing programs. This will prevent any grains of salt or salty water, which may have been spilt, remaining at the bottom of the machine for any period of time, which may cause corrosion.
• The salt container must only be refilled when the salt warning light in the control panel comes on.

Adjusting salt consumption

Fig. 6 Activate the setup mode: Close the door within 60 seconds after power ON, press the Program selection button P and hold it for 5 seconds. The machine will enter the setting mode which is indicated by the blinking indicator light of

Adjust the level of salt

consumption: Press the Program selection button P to select the proper setting according to your local environment. The setting will be shown on the display. Follow table below to find correct setting.

Water Hardness level		Setting
°dH 1)	mmol/l 2)
0-5 0-0.94 H1
6-11 1.0-2.0 H2
12-17 2.1-3.0 H3*
18-22 3.1-4.0 H4
23-34 4.1-6.0 H5
35-55 6.1-9.8 H6

The product will exit the setup mode automatically 5 seconds after last setting/operation of switch.

Note:

1 German degree of measurement for the water hardness
2 Millimol, international unit for water hardness
* Factory setting Contact your local water supplier for information on the hardness of your water supply.

English

Adding detergent

Fig. 7 The dispenser must be refilled before the start of each wash cycle.

For the correct amount follow the instructions provided with the detergent.

• Press the release button. The lid springs open.
  Always add the detergent just before starting each wash cycle, otherwise it could get damp and will not dissolve properly.
• If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

Consider the difference of the two compartments:

a) Compartment for detergent for the main wash cycle.

b) Compartment for detergent for the pre-wash cycle.

• Close and press the lid until it locks in place.

Note:

Only use detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.

Fill rinse aid dispenser

Fig. 8 Your dishwasher is designed to use liquid rinse aids which are released during the final rinse to prevent water from forming droplets on your dishes.

• Open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is approximately 110ml .

• To open the dispenser, turn the cap to the left towards the "open" arrow and lift it out.

• Pour the rinse aid into the dispenser, being careful not to overfill it.

Indicator Status
●	Full
◎	¾ full
◎	½ full
◎	¼ full
○	Empty

• Screw in the cap by inserting it aligned with the "open" arrow and turning it right towards the "closed".

Note:

Never fill the rinse aid dispenser with any other substances (e.g. dishwasher cleaning agent, liquid detergent). This would damage the appliance.

• Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
• If the rinse aid dispenser is empty the rinse aid signal lamp will turn on red.

Adjust the rinse aid dispenser

The dosage can be adjusted in 6 levels. Default level is 4. This setting is a recommendation.

Note:

• Set the dosage level higher, if stains remain on the dishes.
• Set the dosage lower, if clouds or streaks remain on the dishes.
• Use a coin to change the setting.

English

Loading the dishwasher basket

• Only clean dishes and cutlery which are dishwasher proof or suitable for dishwashers. Follow the instructions of manufacturers.
• Scrape off any large amounts of leftover food. Soften remnants of burnt-in food e.g. in pans.
  It is not necessary to rinse the dishes under running water.

• Place objects in the dishwasher in the following way:

• Items such as cups, glasses, pots/ pans, etc. face down.

• Curved items, or those with recesses, should be loaded at a slant so that water can run off.
• All utensils must be stacked in a secure way so they cannot tip over.
• All utensils must be placed in a way that the spray arms can rotated freely during washing.
• Arrange small dishes, e.g. lightweight and delicate items such as saucers, cups, glasses, dessert bowls etc. in the upper basket
• Arrange large and heavy parts, such as plates, pots, bowls etc. in the lower basket.

Note:

Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

Warning

• Long bladed knives stored in an upright position are a potential hazard.
• Do not let any item extend through bottom.
  Always load sharp utensils with the sharp points down!
• Do not overload your dishwasher as this will impair the results.

Adjusting the upper basket

Fig. 9a In order to allow for more space in the upper or lower basket e.g. for taller pieces of crockery, you can load the upper basket in 2 positions. Pull up the upper basket, by grapping it in the middle, to move it up. Push the handles on both sides to move the basked down.

Observe the general plan for placing dishes and cutlery into the basket. See table below for possible part designations.

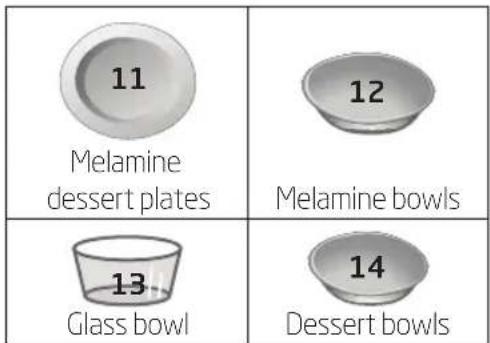

1 Cups	2 Saucers
3 Glasses	4 Mugs
5 Small pot	6 Oven pot
7 Dessert dishes	8 Dinner plates
9 Soup plates	10 Oval platter

Fig. 9b Additional supports can be popped up at the lower basket. Additional trays can be flapped down at the upper basket.

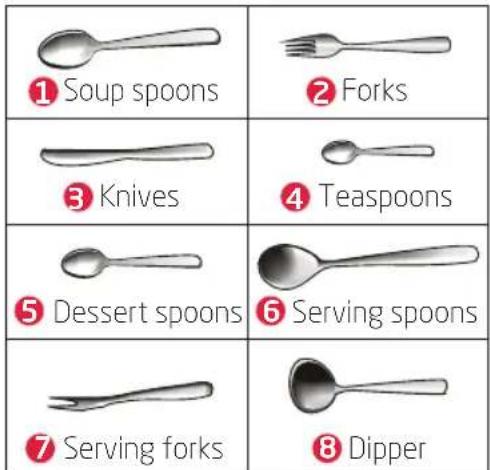

Fig. 10a Observe the plan for placing cutlery into the cutlery basket. See table below for possible part designations.

Fig. 10b The cutlery tray is modular and can be adapted according to your needs.

I. standard position, both halves inclined
II. left side flat, right half inclined
III. both halves flat, right half increased
IV. left flat, right open, right half moved over the left half
V. left flat, right open, right half removed

Operation

Washing dishes

Fig. 11 Consider the following steps to start the washing process:

1. Prepare the dishwasher. Load the dishwasher basket.
2. Add detergent or rinse aid. Make sure the water supply is open, the appliance is connected to the mains and the door is closed correctly.
3. Push the on/off switch to turn on the dishwasher.
4. Choose your program, referring to chapter Choosing Program. If the dishwasher is not completely loaded, then you can additionally select the half load mode. This mode allows you to save both water and electricity when using the bottom and top basket of your dishwasher. Press the half load button 1/2 and the half load indicator lights up.

Note:

We recommend to use the half load function if the dishes are slightly so
- Select the extra dry function if you want the dishes to be extra dry.
- The functions half load and extra dry cannot be selected at once.
These modes can only be used with the programs Intensive Universal ECO, Glass and 90 min.

1. Push the Start/Pause button. To stop the process push the Start/ Pause button again.

To start the rinsing process at a later time, press the timer button. Set the hours by which the start is to be delayed by pressing it several times. A 1-24 hours (1 hour steps) start time delay can be set. Then press the Start/Pause button. The dishwasher starts the program when the preset time has elapsed.

English

Note:

The program lights show the state of the dishwasher:

• Program light on: standby or pause.

• When the working cycle has finished, an 8 second long beep is going to sound.

• Turn off the appliance using the on/off switch and shut off the water supply.

• Open the door of the dishwasher.

Warning

It is dangerous to open the door during a running cycle, because the hot water may scald you.

• Wait a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot. They will also dry better.
• Unload the dishwasher.

Modify the washing program

You can modify the washing program when the dishwasher has just been started. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water.

• Press the Start/Pause button to switch to standby-by mode.
• Press the Programme selection button P for more than three seconds. Change the program to the desired cycle setting.
• Press the Start/Pause button again to continue the washing process.

Note:

If you open the door during washing, the machine will pause. When you close the door, the machine will continue working after 10 seconds.

Pause the rinsing process

• If you have forgotten some dishes you can pause a running program and add them, but make sure the detergent compartment has not already opened.

• Open the door just a little to pause the washing process.

• After the spray arms have come to rest, you can open the door completely.
• Add forgotten dishes.
• Close the door and the dishwasher will continue after 10 seconds.

Child lock

• The child lock can be activated when the dishwasher is running or has been started with the start time delay.
• Press the half full button 1/2 and the timer button simultaneously for 3 seconds. All keys of the dishwasher are locked and the corresponding indicator light 品 on. To deactivate child lock, press the two buttons again for 3 seconds.

Recommendations on the type of detergent

Consider below notes in order to improve the cleaning result, while reducing the energy consumption as well as environmental impact:

• Dose the detergent, salt based on the recommendations / requirements of the supplier, while considering the mass and soiling level of the tablewares.
• Do not mix different detergents and / salts.
• Do you use detergents that are based on solvents or corrosive ingredients.
• Avoid overdosing.

Attention: Wrong dosing of detergents, salts or other additives may damage the product.

Fig. 12 Program table

The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also shows various information about the programs.

Program	Information and purpose	Description Of Cycle	Detergent Pre/Main	Duration (min)	Energy cons. (Kwh)	Water cons. (L)	Rinse Aid
Intensive	For heaviest soiled crockery, and normally soiled pots, pans, dishes, etc. with dried on soiling.	Prewash (50°C) Wash (65°C) Rinse Rinse Rinse (65°C) Drying	4/18 g 1 or 2 pieces	205 1.621 17.8			★
Universal	For normally soiled loads such as pots, plates, Glasses and lightly soiled pans.	Prewash (45°C) Wash (55°C) Rinse Rinse (65°C) Drying	4/18 g 1 or 2 pieces	175 1.302 14.3			★
ECO (*EN60436)	This is the standard programme; It is suitable to clean normally soiled tableware and it is the most efficient program in terms of its combined energy and water consumption for that type of tableware.	Wash (45°C) Rinse Rinse (60°C) Drying 22 g	1 or 2 pieces	220 0.951 11.0			★
Glass	For lightly soiled croc-ery and glass.	Prewash Wash (50°C) Rinse Rinse (65°C) Drying	4/18 g 1 or 2 pieces	120 1.100 14.3			★
90'90 min	For lightly soiled loads that do not need excellent drying efficiency.	Wash (60°C) Rinse Rinse (65°C) Drying	22 g 1 piece	90 1.100 11.7			★
Rapid	A shorter wash for lightly soiled loads and quick wash.	Wash (50°C) Rinse Rinse (45°C)	20 g 1 piece	30 0.751 11.2 -
Soak	To rinse dishes that will be washed later.	Prewash	-	15 0.020 4.1 -

Note:

^ ECO: This program is suitable to clean normally soiled tableware and for this use, it is the most efficient program in terms of its combined energy and water consumption. It is used to assess the compliance with the EU ecodesign legislation.

Note: The values given for programs other than the ECO program are indicative only.

English

Cleaning and care

Warning

• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
• Clean the exterior surfaces of the product with a slightly damp cloth and dry them well. Make sure that no water enters the product interior (e.g. at the switches).
• Clean the edge around the door using a soft, warm and damp cloth only. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

Cleaning the filter cartridge

The filter prevents larger remnants of food or other objects from getting inside the pump. Inspect the filters for blockage every time the dishwasher has been used and clean it on a regular basis.

Fig.13 The filter system consists of a coarse filter, a flat (main filter) and a micro filter (fine filter).

• Main filter A: Food and soil particles trapped by this filter are pulverized by a special jet on the spray arm and washed down the drain.
• Fine filter B: This filter holds soil and food residue in the sump area and prevents it from being spread over the dishes during the washing.
• Coarse filter C: Larger items, such as pieces of bones or glass that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and lift it up.

Disassemble and clean the filter according to the following steps:

• Turn the filter cap (filter C) counterclockwise and take out the whole filter cartridge.
  Take out filters B and C.
• Wash filters under running water and remove any residues or objects.
• Reassembling is done in reverse order. Make sure the filter cartridge is installed correctly.

Warning

Do not use the dishwasher without the filter system being properly installed.

Cleaning the spray arms

Fig. 14 The spray arms can be easily removed for periodic cleaning of the nozzles (approximately once per month). This prevents possible clogging.

• Grasp the middle of the spray arm, pull it upwards to remove it.
• Wash the arms under a jet of running water.
• Return them carefully to their seat and make sure that the spray arms are installed correctly and can turn freely.

Dscaling

Descending is not necessary if the detergent is dosed correctly. If you want to descale the drum, proceed according to the descending agent manufacturer's instructions. You can obtain suitable descending agents from retailers.

Error codes

Code Meaning Possible causes
E1 Longer inlet time.	•Faucet is not opened, or water intake is restricted,or water pressure is too low.
E3 Not reaching required temperature. •Malfunction of heating element.
E4 Overflow. •Some element of the dishwasher leaks.
Ed	Failure of communication between main PCB with display PCB.	•Open circuit or break wiring for the communication.

When an ERROR code appears, please contact the customer service. The respective hotlines are noted in the provided warranty card.

Troubleshooting

If there are any problems during operation, please refer to the following table. If the problems cannot be solved as indicated under Solution or if spare parts for self-repair are necessary, please contact the service center. The respective hotlines are noted in the warranty card, provided with this product. Please note, that improper self-repair can lead to hazards as well as avoidance of the warranty and should be refrained from, if in doubt.

Problem Possible causes Solution
Product does not work • Inte ructed power supply • Check the water pressure is too low • Check whether water supply is connected properly and water is turned on
• Dishwasher door is not properly closed	• Ensure, that the door is closed properly
Water is not pumped out of the dishwasher	• Kink in drain hose • Check the drain hose
	• Filter is clogged • Check and clean the coarse filter
	• Kitchen sink is clogged • Check the kitchen sink is draining well or call a service agent for help
Sud in the tub • Improper detergent • Only use special dishwasher detergent
		• Spilled rinse aid	• Wipe up rinse-aid spills
Sud in the interior	• Detergent with colourant was used	• Only use detergent without colourant
White film on inside surface	• Hard water minerals	• Regularly clean the interior with a damp sponge

English

Problem Possible causes Solution
Rust stains on cutlery • Cutlery are not corrosion resistant		• Do not wash these items in dishwasher
		• A programme was not run after refilling salt	• Always run a quick programme after adding salt
		• Softener lid is loose • Check and tighten it
Knocking noise in the cabinet	• Spray arm is knocking against an item in the basket	• Interrupt the program and re-arrange the items
Rattling noise • Items of crockery are loose in the cabinet
Knocking noise in water pipes	• Caused by on-site installation or cross section of the piping	• This has no influence on the dishwasher function
Dishes are not clean • Incorrectly loaded dishes • Re-arrange the dishes
Cloudiness on glassware • Too much detergent • Use less detergent and choose shortest cycle for cleaning glasses
Black or grey marks on dishes	• Aluminum utensils have rubbed against dishes	• Use a mild abrasive cleaner
Detergent left in dispenser cups	• Detergent dispenser is blocked	• Re-arrange the dishes
Dishes are not drying • Improper loading
		• Rinse-aid level is too low • Increase the rinse-aid level
		• Dishes removed too soon • Do not removed the dishes immediately after washing.

Technical Data

Power consumption	1760 - 2100 W
Rated voltage / frequency	220 - 240 V ~ 50 Hz
Water pressure (flow pressure)	0.4 - 10 bar (0.04 - 1 MPa)
Water temperature	Cold

Notes concerning the energy- and water consumption of the dishwasher

The eco program is suitable for cleaning normally soiled dishes. It is the most efficient program for this purpose in terms of combined energy and water consumption and is used to assess compliance with the EU ecodesign legislation.
- By loading the domestic dishwasher up to the capacity specified by the manufacturer, energy and water can be saved. Arrange the dishes correctly as described in the loading plans in these instructions. Improper loading causes inefficient dish-washing and possibly malfunctions.
- Manual pre-washing of the dishes leads to higher water and energy consumption and is not recommended.
- Washing dishes in a household dishwasher generally uses less energy and water than washing by hand, provided the household dishwasher is used in accordance with the manufacturer's instructions.
- Values for the program duration as well as the energy and water consumption of all programs that include an operating cycle can be found in the corresponding tables in these instructions.
- Observe the information on proper installation (including horizontal alignment, connection to the power supply, cold water connections) in these instructions.
- Use of cleaning agents, salt and other additives must be carried out properly. Incorrect dosage leads to increased environmental pollution and possibly damage to the device.
- Before each use, remove all foreign objects from the household dishwasher.
- Regular cleaning and compliance with the optimal cleaning intervals and measures to prevent limescale deposits, are important. Please refer to the chapter on Cleaning and care.
- Regular control of the filters and the optimal cleaning intervals are important. Please refer to the chapter on Cleaning and care.

Espanol

Indicatore Status
●	Piano
◎	¾ piano
◎	½ piano
◎	¼ piano
○	Vuoto
