USER MANUAL KDW 6041 D FI Koenic

Diagram illustrating a mechanical assembly or folding process with labeled steps and directional arrows indicating movement.

Geschirrspulen Washing dishes

Programmezahl

Spröhame reinigen Clearing sprawlats

Übr. den 100 kreditgeschäften ausgewert, von 2016 an die europäte Produktdotsbank (EPBL) ausgarten, in der informationen Zeit das Postel geschäft durch den Gesamt oder die Postel bezeichnung oder die EPBL für ein erwartigterhalb 335932 und 300 molyticumschafts- und des 100 m/s wird zum Energien über den direkt zu den Postel normatoren zu gelangen.
Use the link links to access European countries to access the European country (HALL) in its more recent context. The product was used in a current condition that the HALL method has been 335932 as well as the (4-occas on the energy label to access the model information).
Use a reference helps importable europaeut para proceder a la case de darlas para fabricar biosurales (BPLC), en que se guarda não intermedir sobre el producto. Toclos o inero de registral BPE, 335932 o suscens slobidario (J) de la plug intermedir a que a suje a continua a del pug.
Sufonds le temps sur le campus pour conduits la base de dominant des produits européens (45-61), dans attuée vous trouverne plus d'immérations de somant corporate, Suisse, en ménior de navigation BP 38. 335932 sur d'une sur le production sur l'efficat de chargé que sur la action d'intérimente du modèle.
10.1.2013. 1.3.1. Pro###p##s ## #### # ### #### #### #### #### #### ####
Gebruik de la hortopieerde se europeus l'em toegang zich de Europese poen in bilanzierte BEREITs, höge. Opelac##### in het met, over- al potaat. Voor het 376EL regiatoren en 335932 in tot aan OF zoals (believe geabel, om toegang het, met, met, met, met, met) dat aligen.

Fully Integrated Dishwasher

×75*5041.0

图 C.14.18 2016.4.1

20.1.1.1

Furles instructions

12 F:te d'empa

1. 2017年1月1日

HIPC 104, 2023-06-19

Exterior view of a modern office appliance with front panel and side door (no visible text or symbols)

Reduction and Components / Control panel and components 8:88

Installation 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Befülling des Saltbanks /Filling the salt container Salzumenge einstellen /Adjusting the salt consumption Spalmitel-reb�ulen /Filling soligent Kuruparumenge einstellen /Filling the red-air dropper Observe magnetiken und selective Befülling /Adjusting upper backrest and efficient loading

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have received instructions concerning the use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the product.
• Cleaning and user maintenance shall not be carried out by children without supervision.
• This product is designed for washing a maximum of 14 place settings.
• The door shall not be left in the open position since this could present a tripping hazard.
• Follow the instructions on how to load the dishwasher.
  Warning! Knives and other utensils with sharp points must be loaded in the basket with their points facing down or placed in a horizontal position.

English

Safety instructions

• The product is designed for the processing of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.
• The dishwasher has ventilation openings in the base. These openings must not be obstructed.
• If the supply cord has been damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid hazards.
• Follow the instructions in the chapter Cleaning and Care.

Safety instructions

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the product.
• Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
• Never leave the product unsupervised while it is switched on.
• Do not under any circumstances attempt to repair the product yourself (e.g. damaged power cord, product has been dropped during installation etc.). For servicing and repairs, please consult an authorised service agent.
• The mains voltage must match the information on the rating label of the product.
• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
• Only unplug from the power socket by the plug itself. Do not pull on the cord.
• Unplug the product ...
• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.
• Use this product in dry indoor areas only and never outdoors.
• This product is not intended for commercial use. It is designed for household use only.
• Follow the supplied instructions for installation.

- This product is connected to the water mains. Consider the minimum and maximum permitted inlet water pressure, see chapter Technical Data. Consider all instructions about the installation of detachable hose-sets. Use new hose-sets for installation. Do not reuse old hose-sets.

English

Congratulations!

Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is only intended for cleaning dishes and cutlery which are dishwasher proof or suitable for dishwashers. Any other use may result in damages to the product or injuries. This product is designed for household use only and not intended for commercial use.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

Before first time use

Carefully remove the product and accessories from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions.

Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Warranty and spare parts

The warranty period of the product, as well as the applicable conditions of the warranty can be found in the warranty card provided with the product. The spare parts, which are listed in the corresponding ecodesign directive, can be obtained by contacting the customer service center, for a period of at least 7 years, respectively 10 years.

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE.

By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Content

1 x Dishwasher

1 x User manual

1 x Warranty card

Controls and Components

A Control panel

A1 On/off switch

A2 Program selection button P

A3 Auto door opener

A4 Rinse zone selection button

A5 Timer button

A6 Digital display

A7 Rinse aid indicator

A8 Softener (salt) indicator

A9 Water connection indicator

A10 Program display

A11 Rinse zone indicators

B Handle

C Door

D Cutlery tray

€ Upper dish basket

F Lower dish basket

G Fill compartment

Detergent tab/powder compartment

G1 Cover

G2 Compartment for main washing

G3 Lock

G4 Compartment for pre-washing

Rinse aid compartment

G5 Fill indicator

G6 Rinse aid container

H Inside

H1 Salt container

H2 Water outlet with filter set

H3 Upper and lower spray arms

Backside

Power cord with plug

J Waste water hose (pre-assembled)

K Hose for water inlet (pre-assembled)

Accessories

Funnel (not shown)

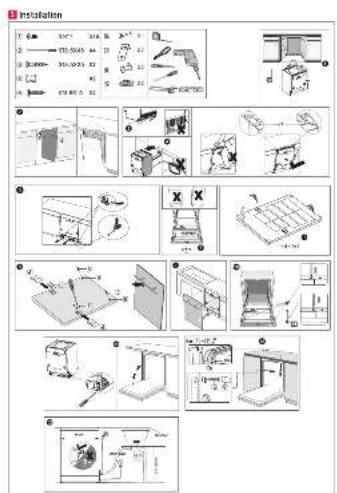

Installation

Fig. 1 The dishwasher must be installed in sufficient proximity of a suitable water, sewage and electrical connection.

Caution

After unpacking open the door and remove all transport protections from the baskets and spray arms. Ensure that the spray arms can rotate freely.

Note:

Please check the included mounting material, brackets, screws and Velcro strip for attaching the decorative panel, etc.

① Observe the installation dimensions.

- A location near the sink is recommended to allow for an easier connection of the dishwasher to water and sewage connections - At the back of one or both lateral cupboards, recesses of size 80 × 100 ~mm must be fitted for water, sewage and electrical connection (A).

If the dishwasher is installed in a corner, a minimum clearance of 50 mm between the opened door and surrounding cabinets must be respected. Note the dimensions, holes and cutouts of the decorative plate.

2 Fasten the condensation strip below the worktop. Make sure that it closes with the front edge of the countertop.

3 Make sure that the power cord and the water inlet and outlet are not under tension and that they are not bent. Make sure that the water connection is properly sealed and tightened to prevent leakage.

4 Lay the drain hose without pulling and kinking. Do not force the dishwasher under the worktop, move it only by hand.

5 Place the dishwasher in its final position. The dishwasher must be placed in an absolutely level installation position.

- The rear stands can be adjusted in height by turning the middle Phillips screw (Pos. A). Please refer to the figure next to the screw (UP: rear is raised, DOWN: rear is lowered). - The front feet can be adjusted by turning them by hand. - Check the horizontal stand with a spirit level on horizontal or vertical surfaces in the interior of the dishwasher and the door.

6 Make sure that the dishwasher is placed levelled and does not tilt.

⑦ Mark the holes for the retaining plates and sleeves on the decorative plate and pre-drill.

8 Fix the sleeves at the top and the retaining plates at the bottom of the decor panel.

9 Now place the decor panel on the matching recesses on the door and attach it to the door of the dishwasher.

10 Remove the 4 screws inside of the door. Screw the supplied 4 long screws through the door and fasten the decorative plate.

The springs of the dishwasher door were pre-set at the factory.

• After installation of the decorative plate, the spring force of the door may have to be adjusted.

- Twist the adjusting screws on both sides to increase/decrease the spring force. Please refer to the illustration next to the screws.

- The spring force is adjusted correctly when the fully opened door remains in a horizontal position and can be moved up all the way by slightly pulling on it.

English

12 The dishwasher must be fastened with screws in the mounting position.

Wood Countertop: Insert the mounting bracket on top of the cut-outs. Now screw the mounting bracket to the underside of the countertop.

Natural stone countertop: Remove the plastic caps of the side walls of the dishwasher (with the door open). Fasten the dishwasher laterally with the screws through the openings of the cabinets left and right from the dishwasher.

13 The dishwasher must be connected to a drainpipe.

1. The hose is already connected to the waste water outlet at the back of the device. Cut the straps and unwind the hose.

2. Connect the end to a drainpipe. Consider the max. height of the outlet of the drainage hose. Make sure that it is sealed and properly fastened.

Note:

A suitable hose holder is available as an optional accessory in common DIY stores.

Connect the water inlet to a tap water supply (3/4") using the pre-assembled hose and make sure it is sealed and fastened tightly.

Note:

• If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that it is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet gets clogged and the appliance is damaged.
• The dishwasher can be connected to a warm water supply up to 40°C.

Connect the power plug to the mains.

Note:

Before using the product for the first time, make sure, that all hydrophilic connections of the product are correctly sealed and connected to both the device as well as the water mains. Check all connections periodically to avoid possible leakage.

Preparation

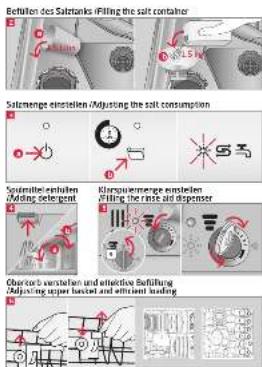

Filling salt into the salt container

Fig. 2 Depending on your tap water hardness (hardness degree) use additional salt (water softener). Always consider the instructions provided with the salt.

• Remove the basket and then unscrew and remove the cap from the salt container.
• Before first usage, pour 1.5 lt. of water into the salt container of your machine.
• Place the end of the funnel (supplied) into the hole and pour in about 1.5 kg of salt. It is normal for a small amount of water to come out of the salt container.
  • After filling the container, screw the cap tight by turning it clockwise.
• Immediately after filling the salt into the salt container, a washing program must be started (rapid program suggested). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water which will void the warranty.
• If the salt container is empty, the softener (salt) indicator light turns on.

Note:

Depending on how fast/fully the salt dissolves, the salt warning light may still be on even though the salt container is filled.

Warning

• Only use salt specifically designed for use in dishwashers! All other types of salt, not specifically designed for use in a dishwasher, especially table salt, will damage the dishwasher. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any caused damages.
• If salt has been spilled, a soak or a rapid program must be run to remove the excess salt.
• Only fill in salt right before starting one of the complete washing programs. This will prevent any grains of salt or salty water, which may have been spilled, from remaining on the bottom of the machine for any period of time, which may cause corrosion.
• The salt container must only be refilled when the salt warning light in the control panel comes on.

Adjusting the salt consumption

Fig. 3 Activate the setup mode: Switch on the dishwasher with the on/off switch and push and hold the program button P for approx. 6 seconds. The machine will enter the setting mode which is indicated by the blinking indicator light of S.

Adjusting the level of salt consumption: Press the program button P to select the proper setting according to your local environment. The setting will be shown on the display. Follow the table below to find the correct setting.

Water Hardness level		Setting
^^1)	mmol/ I^2)
0-5 0-0.94 H1
6-11 1.0-2.0 H2
12-17 2.1-3.0 H3*
18-22 3.1-4.0 H4
23-34 4.1-6.0 H5
35-55 6.1-9.8 H6

The product will exit the setup mode automatically, 5 seconds after the last setting/operation of the switch.

Note:

^1) German measurement for the degree of water hardness
2) Millimol, international unit for water hardness
*) Factory setting
Contact your local water board for information on the hardness of your water supply.

English

Adding detergent

Fig. 4 The dispenser must be refilled before the start of each wash cycle.

For the correct amount follow the instructions provided with the detergent.

• Press the release button. The lid springs open.
  • Always add the detergent just before starting each wash cycle, otherwise it could get damp and will not dissolve properly.
• If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

Consider the difference of the two compartments:

a) Compartment for detergent for main wash cycle.
b) Compartment for detergent for pre-wash cycle.

- Close the lid and press it down until it locks in place.

Note:

Only use detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.

Filling the rinse aid dispenser

Fig. 5 Your dishwasher is designed to use liquid rinse aids which are released during the final rinse to prevent water from forming droplets on your dishes.

- Open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110 ml.

• To open the dispenser, turn the cap towards the "open" (left) arrow and lift it up
• Pour the rinse aid into the dispenser, being careful not to overfill it.

Indicator Status
	Full
	34 full
	12 full
	14 full
	Empty

- Seal the cap by inserting it aligned with the "open" arrow and turning it towards the "closed" (right) arrow.

Note:

Never fill the rinse aid dispenser with any other substances (e.g. dishwasher cleaning agent, liquid detergent). This would damage the appliance.

• Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
• If the rinse aid dispenser is empty the rinse aid signal lamp ✦ will turn on red.

Adjust the rinse aid dosage

The dosage can be adjusted in 6 levels. Default level is 4. This setting is a recommendation.

Note:

• Set the dosage level higher, if stains remain on the dishes.
• Decrease the dosage if clouds or streaks remain on the dishes.
• Use a coin to change the setting.

Loading the dishwasher basket

• Only insert dishes and cutlery which are dishwasher proof or suitable for dishwashers. Follow the instructions of manufacturers.
• Scrape off any large amounts of leftover food. Soften remnants of burnt-in food e.g. in pans. It is not necessary to rinse the dishes under running water.

• Place objects in the dishwasher in the following way:

• Items such as cups, glasses, pots/ pans, face down.

• Curved items, or those with recesses, should be loaded at a slant so that water can run off.
• All utensils must be stacked securely to prevent them from tipping over.
• All utensils must be placed in a way, that the spray arms can rotate freely during washing.
• Arrange small dishes in the upper basket, e.g. lightweight and delicate items such as saucers, cups, glasses, dessert bowls etc.
• Arrange large and heavy parts in the lower basket, such as plates, platters, pots, bowls etc.

Note:

Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

Warning

• Long bladed knives stored in an upright position are a potential hazard.
• Do not let any item extend through the bottom of the basket.
  • Always load sharp utensils with the sharp points facing down!
• Do not overload your dishwasher as this will impair the results.

Adjusting the upper basket

Fig. 6a In order to create more space in the upper or lower basket to make room for taller pieces of crockery, you can load the upper basket in 2 positions. Pull up the upper basket to move it up. Push the handles on both sides to move the basked down.

Fig. 6b Observe the general plan for placing dishes and cutlery into the basket. See table below for part designations.

Cups	Saucers
Glasses	Mugs

Oven pot

Small pot

Dinner plates

Dessert dishes

Oval platter

Soup plates

Melamine bowls

Melamine dessert plates

Glass bowl
Dessert bowls

Additional supports can be popped up at the lower basket (I).

Additional trays can be lowered at the upper basket (II).

English

Fig. 7a Observe the plan for placing cutlery into the cutlery basket. See table below for possible part designations.

① Soup spoons ② Forks ③ Knives ④ Teaspoons ⑤ Dessert spoons ⑥ Serving spoons ⑦ Serving forks ⑧ Soup ladle

Fig. 7b The cutlery tray is modular and can be adapted according to your needs.

B I. standard position, both halves inclined
B II. left side flat, right half inclined
B III. both halves flat, right half raised
B IV. left flat, right open, right half moved over the left half
B V. left flat, right open, right half removed

Operation

Washing dishes

Fig. 8 Consider the following steps to start the washing process:

1. Prepare dishwasher. Load the dishwasher basket.
2. Add detergent or rinse aid. Make sure the water-tap/water supply is open and the appliance is connected to the mains.
3. Push the on/off switch for approx. 1 second to turn on the dishwasher.
4. Choose your program by referring to chapter Choosing Program.

Note:

If only one basket is used you can switch off the unused rinsing zone.

Press the rinse zone selection button 🎋 to select the desired rinse zone. Observe the indicators

If you have selected automatic door opening, natural drying is improved. After the wash cycle, the door opens automatically and steam and moisture can escape.

The corresponding indicator light

lights up. This function is available as a standard function for all programs and can be deactivated by pressing the

corresponding key

1. Close the door to start dishwashing.

2. When water is running, the water connection indicator light ➡ turns on.

3. Open the door to pause the dishwashing process.

4. To start the washing process at a later time, press the timer button and by pressing it several times set the hours by which the start is to be delayed. 1-24 hours start time delay (one hour intervals) can be set. Close the door. The dishwasher starts the washing cycle when the preset time has elapsed.

Note:

The program lights show the state of the dishwasher:

- Program light on: standby or pause.

1. When the washing cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop.

- Open the door of the dishwasher.

- Turn off the appliance using the on/off button and shut off the water supply.

Warning

It is dangerous to open the door during an ongoing cycle, because the hot water may scald you.

- Wait a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot. They will also dry better.

- Unload the dishwasher.

Modify the washing program

You can change the washing program when the dishwasher has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water.

• Open the door and the dishwasher will pause.
• Press the programme selection button P for more than three seconds. Change the program to the desired cycle setting.
• Close the door to continue the washing process.

Note:

If you open the door during an ongoing cycle, the machine will pause. When you close the door, the machine will continue working after 10 seconds.

Pausing the washing cycle

• If you forgot a dish you can pause the running program and add it, but make sure the detergent compartment has not already opened.
• Open the door a little to pause the washing process.
• After the spray arms have come to a halt, you can open the door completely.
• Add forgotten dishes.
• Close the door and the dishwasher will continue.

Recommendations on the type of detergent

Consider below notes in order to improve the cleaning result, while reducing the energy consumption as well as environmental impact:

• Dose the detergent, salt based on the recommendations / requirements of the supplier, while considering the mass and soiling level of the tablewares.
• Do not mix different detergents and salts.
• Do you use detergents that as based on solvents or corrosive ingredients.
• Avoid overdosing.

Warning

Wrong dosing of detergents, salts or other additives may damage the product.

English

Program table

The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also shows various information about the programs.

Program	Information and purpose	Description of cycle	Detergent Pre/Main	Running time in min	Energy cons. in kWh	Water cons. in litre	Rinse aid
Auto	For normally to heavily soiled loads	Pre-wash 45°C Wash 55-65°C Rinse Rinse Rinse 50-55°C Drying	4/18g 1 or 2 pcs.	85-150	1050-1.551	10.6-1.9	★
Intensive	For heaviest soiled crockery, and normally soiled pots, pans, dishes, etc. with dried on soiling.	Pre-wash 50°C Wash 65°C Rinse Rinse Rinse 60°C Drying	4/18g 1 or 2 pcs.	205	1.651	16.5	★
Universal	For normally soiled loads such as pots, plates, glasses and lightly soiled pans.	Pre-wash 45°C Wash 55°C Rinse Rinse Rinse Rinse 60°C Drying	4/18g 1 or 2 pcs.	175	1.451	16.5	★
ECO (*EN60436)	This is the standard programme; It is suitable to clean normally soiled tableware and it is the most efficient program in terms of its combined energy and water consumption for that type of tableware.	Wash 50°C Rinse Rinse 50°C Drying	4/18g 1 or 2 pcs.	198	0.849	10.0	★
Glass	For lightly soiled crockery and glass.	Pre-wash 40°C Wash 50°C Rinse Rinse 50°C Drying	4/18g 1 or 2 pcs.	120	0.902	13.5	★
90 min.	For lightly soiled loads that do not need excellent drying efficiency.	Wash 55°C Rinse Rinse 50°C Drying	22g 1 pc.	90	0.891	10.3
[DYW] Rapid	A shorter wash for lightly soiled loads and quick wash.	Wash 40°C Rinse 40°C Rinse 55°C	12g 1 pc.	30	0.781	11.0	-

: Rinse aid can be used.

Note:

* ECO: This program is suitable to clean normally soiled tableware and for this use, it is the most efficient program in terms of its combined energy and water consumption. It is used to assess the compliance with the EU ecodesign legislation.

Note: The values given for programs other than the ECO program are indicative only.

Cleaning and care

Warning

• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
• Clean the exterior surfaces of the product with a slightly damp cloth and dry them well. Make sure that no water enters the product interior (e.g. at the buttons).
• Clean the edge around the door using a soft, warm and damp cloth only. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

Cleaning the filter assembly

The filter prevents larger remnants of food or other objects from entering the pump. Inspect the filters for blockage every time the dishwasher has been used.

Fig. 10 The filter system consists of a coarse filter, a flat (main filter) and a micro filter (fine filter).

• Main filter A: Food and soil particles trapped by this filter are pulverized by a special jet on the spray arm and washed down to drain.
• Fine filter B: This filter holds soil and food residue in the sump area and prevents it from being spread out over the dishes during a wash cycle.
• Coarse filter C: Larger items, such as pieces of bones or glass that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and lift it up.

Disassemble and clean the filter according to the following steps:

• Turn the filter cap (filter C) counterclockwise and take out the whole filter assembly.
  • Take out filters B and C.
• Wash the filters under running water and remove any residues and foreign objects.
• Reassembling is done in reverse order. Make sure the filter system is installed correctly.

Warning

Do not use the dishwasher if the filter system is not installed.

Cleaning the spray arms

Fig.11 To prevent possible clogging, the spray arms can be easily removed for periodic cleaning of the nozzles (approximately once per month). This prevents possible clogging.
- Grasp the middle of the spray arm, pull it upwards / downwards to remove it.
- Wash the arms under a jet of running water.
- Return them carefully to their seat and make sure that the spray arms are installed correctly and can turn freely.

Descaling

Descaling is not necessary if the detergent is dosed correctly. If you want to descale the dishwasher, proceed according to the descaling agent manufacturer's instructions. You can obtain suitable descaling agents from retailers.

English

Error codes

Code Meaning Possible causes
E1 Longer inlet time		Faucets not openedWater intake is restrictedWater pressure is too low
E3	Does not reach the required temperature	Heating element failure
E4 Overflow Some component of the dishwasher leaks
E8	Failure of the orientation of the distributary valve	Open circuit or broken distributary valve
Ed	Failure of communication between main PCB and display PCB.	Open circuit or broken wiring

When an ERROR code appears, please contact the customer service. The respective hotlines are noted in the provided warranty card.

Troubleshooting

If there are any problems during operation, please refer to the following table. If the problems cannot be solved as indicated under Solution or if spare parts for self-repair are necessary, please contact the service center. The respective hotlines are noted in the warranty card, provided with this product. Please note, that improper self-repair can lead to hazards as well as voidance of the warranty and should be refrained from, if in doubt.

Problem Possible causes Solution
Product does not work • Interrupted power supply • Check the power supply
Dishwasher door is not closed properly		• Ensure that the door is properly closed
Water is not pumped out of the dishwasher	• Kink in drain hose • Check the drain hose
	• Filter is clogged • Check and clean the filter
	• Kitchen sink is clogged • Check whether the kitchen sink is draining well or call a service agent for help
Sud in the tub • Improper detergent	• Only use special dishwasher detergent
	• Spilled rinse aid	• Wipe up rinse-aid spills
Stained tub interior	• Detergent with colourant was used	• Only use detergent without colourant
Problem Possible causes Solution
White film on inside surface •	Hard water minerals • Clean the interior with a damp sponge regularly
Rust stains on cutlery • Cutlery	not corrosion resistant	• Do not wash these items in dishwasher
	• A programme was not run after refilling salt	• Always run a quick programme after adding salt
	• Softener lid is loose • Check and tighten it
Knocking noise in the cabinet •	Spray arm is knocking against an item in the basket	• Interrupt the program and re-arrange the items
Rattling noise • Items of crockery	are loose in the cabinet
Knocking noise in water pipes	• Caused by on-site installation or cross section of the piping	• This has no influence on the dishwasher function
Dishes are not clean enough •	Dishes not loaded correctly • Re-arrange the dishes
	• Spray arms are blocked
	• Not enough detergent • Add more detergent
	• Program was not powerful enough	• Choose another program
	• Filter is dirty or not correctly inserted	• Clean the filter and ensure it is assembled correctly
Cloudiness on glassware • Too much detergent • Use less detergent and choose shortest cycle for cleaning glasses
Black or grey marks on dishes •	Aluminum utensils have rubbed against dishes	• Use a mild abrasive cleaner
Detergent left in dispenser	• Detergent dispenser is blocked	• Re-arrange the dishes to avoid blockage
Dishes are not drying	• Improper loading	• Change the detergent or fill in some rinse aid
	• Rinse-aid level is too low	• Increase the rinse-aid level
	• Dishes removed too soon	• Do not removed the dishes immediately after washing.

English

Technical Data

Power consumption 1760 - 2100 W

Rated voltage / frequency 220 - 240 V ~ 50 Hz

Water pressure (flow pressure) 0.4 - 10 bar (0.04 - 1 MPa)

Water temperature Cold and warm (max. 40°C)

Notes concerning the energy- and water consumption of the dishwasher

• The eco program is suitable for cleaning normally soiled dishes. It is the most efficient program for this purpose in terms of combined energy and water consumption and is used to assess compliance with the EU ecodesign legislation.
• By loading the domestic dishwasher up to the capacity specified by the manufacturer, energy and water can be saved. Arrange the dishes correctly as described in the loading plans in these instructions. Improper loading causes inefficient dish-washing and possibly malfunctions.
• Manual pre-washing of the dishes leads to higher water and energy consumption and is not recommended.
• Washing dishes in a household dishwasher generally uses less energy and water than washing by hand, provided the household dishwasher is used in accordance with the manufacturer's instructions.

• Values for the program duration as well as the energy and water consumption of all programs that include an operating cycle can be found in the corresponding tables in these instructions.

• Observe the information on proper installation (including horizontal alignment, connection to the power supply, water connections) in these instructions.

• Use of cleaning agents, salt and other additives must be carried out properly. Incorrect dosage leads to increased environmental pollution and possibly damage to the device.
• Before each use, remove all foreign objects from the household dishwasher.
• Regular cleaning and compliance with the optimal cleaning intervals and measures to prevent limescale deposits, are important. Please refer to the chapter on Cleaning and care.
• Regular control of the filters and the optimal cleaning intervals are important. Please refer to the chapter on Cleaning and care.
