Product Type	Freestanding compact dishwasher
Brand	Koenic
Model	KDW 122 G
Capacity	2 place settings
Water Tank Capacity	5.0 L (integrated)
Power Consumption	730 - 860 W
Rated Voltage / Frequency	220 - 240 V ~ 50 Hz
Water Pressure (flow)	0.4 - 10 bar (0.04 - 1 MPa)
Water Temperature	Cold
Wash Programs	ECO, P2, Rapid, Glass, Warm Fruit Wash, Cold Fruit Wash, Baby Bottles
Additional Functions	Storage, Extra Dry, Timer (1-24h delay)
Control Panel	Digital display with push buttons (On/Off, Program, Function, Timer, Start/Pause)
Indicators	Storage, Extra Dry, Water Connection, Salt, Wash Function, Baby Bottle, Steam Adding
Filter System	Coarse filter, Main filter, Fine filter
Salt Consumption Settings	H1 to H6 (adjustable)
Detergent Dispenser	For powder or tabs (10g per cycle)
Safety Features	Child safety (supervision required), door open hazard warning
Installation	Freestanding, not built-in; water connection (3/4") or manual filling
Included Accessories	Baby bottle tray, fruit basket, funnel
Warranty	As per warranty card provided with product
Spare Parts Availability	Minimum 7 years, some parts up to 10 years

Frequently Asked Questions - KDW 122 G Koenic

How do I adjust the salt consumption setting?

Activate setup mode within 60 seconds of turning on the dishwasher with the door closed. Press and hold the Program selection key (P) for 5 seconds until the preset salt setting (default H3) blinks. Press P repeatedly to select the appropriate setting (H1 to H6) based on your water hardness. The machine exits setup mode automatically after 5 seconds.

What should I do if the dishwasher does not start?

Check the power supply (plug, circuit breaker). Ensure the door is properly closed. Verify that the water supply is connected and turned on (or water tank is full). If using a delayed start, confirm the timer is set correctly. If the problem persists, refer to the troubleshooting section or contact service.

How do I clean the filters?

Turn the filter cap (fine filter B) counterclockwise and remove the entire filter assembly. Separate the coarse filter, main filter, and micro filter. Rinse them under running water, removing any residues. Reassemble in reverse order, ensuring the filter cartridge is installed correctly. Do not operate the dishwasher without filters properly installed.

Can I use regular table salt instead of dishwasher salt?

No, only use salt specifically designed for dishwashers. Table salt or other types will damage the water softener and void the warranty. Always fill salt just before starting a complete wash program to avoid corrosion.

How do I set a delayed start?

After selecting a program, press the timer button (⏻) repeatedly to set the desired delay in one-hour increments (1 to 24 hours). Then press the Start/Pause button. The dishwasher will begin the program once the set time has elapsed.

What do the error codes mean?

Common codes: E1 (longer inlet time – flow meter, drain valve, or pump failure), E3 (not reaching required temperature – heating tube or thermistor anomaly), E4 (overflow – leakage), E0 (communication anomaly). For all errors, contact customer service if the issue persists.

How do I descale the dishwasher?

Descaling is not necessary if detergent is dosed correctly. If required, use a suitable descaling agent and follow the manufacturer's instructions. Obtain descaling agents from retailers.

Can I open the door during a wash cycle?

Yes, but it is dangerous because hot water may scald you. Press Start/Pause to pause the cycle, wait for spray arms to stop, then open the door carefully. After adding or removing dishes, close the door and press Start/Pause again to resume. Avoid opening when detergent has already dissolved.

What type of detergent should I use?

Use only detergent specifically made for dishwashers (powder, tablets, or pods). Do not use fluid rinse aids as the dishwasher is designed for combi products. Follow the dosage instructions on the detergent packaging. Overdosing can damage the appliance.

How do I connect the water supply?

You can connect the dishwasher to a 3/4" tap using the provided hose. Ensure the connection is tight. Alternatively, you can fill the water tank manually (capacity 5.0 L) via the water tank opening. Fill only clear tap water, never detergent. If water pipes are new, let water run until clear to avoid blockages.

USER MANUAL KDW 122 G Koenic

1. Die den 100000000000000000000000000000000000000000000000000000000000000000000000000000
   31 Use the ink http article can compare to access their top view record database. 2021, 1, www.hua.com.cn (http://www.hua.com.cn) and the journal's special type model of a registered number 348428 or a model identifier, which can be found on the site of the research team will contact the website as available in https://on-china.org/

Exterior view of a modern kitchen appliance with digital display and control buttons (no visible text or symbols)

Deutsch 3:10

|march| / 1

一

-

10.25.27.28.29.30.31.32.33.34.35.36.37.38.39.40.

2011.06.03 人:4 件

Sicherheitshinweise

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have been instructed concerning the use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the product.
• Cleaning and user maintenance shall not be carried out by children without supervision.
• This product is designed for washing a maximum of 2 settings.
• The door shall not be left in the open position since this could present a hazard for injuries.
• Follow the instructions on how to load the dishwasher.

Warning! Knives and other utensils with sharp points must be loaded in the basket with the sharp points facing down or placed in a horizontal position.

Safety instructions

• The product is designed for the processing of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.
• The dishwasher has ventilation openings in the base. These openings must not be obstructed.
• If the supply cord has been damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid hazards.
• Follow the instructions in the chapter Cleaning and Care.

Safety instructions

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the product.
• Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
• Never leave the product unsupervised while it is switched on.
• Do not under any circumstances attempt to repair the product yourself (e.g. damaged power cord, product has been dropped during installation etc.). For servicing and repairs, please consult an authorised service agent.
• The mains voltage must match the information on the rating label of the product.
• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
• Only unplug from the power socket by the plug itself. Do not pull on the cord.
• Unplug the product ...
• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.
• Use this product in dry indoor areas only and never outdoors.
• This product is not intended for commercial use. It is designed for household use only.
• Follow the supplied instructions for installation.

- This product can be connected to the water mains. If the product is directly connected to the water mains, consider the minimum and maximum permitted inlet water pressure, see chapter Technical Data. Consider all instructions about the installation of detachable hose-sets. Use new hose-sets for installation. Do not reuse old hose-sets.

English

Congratulations!

Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is only intended for cleaning dishes and cutlery which are dishwasher proof or suitable for dishwashers and fruits.

Any other use may result in a damage of the product or injuries. This product is designed for household use only and not intended for commercial use.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage in a way that does not meet the manufacturer's specified purpose.

Before first time use

Carefully remove the product and accessories from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Warranty and spare parts

The warranty period of the product, as well as the applicable conditions of the warranty can be found in the warranty card provided with the product. The spare parts, which are listed in the corresponding ecodesign directive, can be obtained by contacting the customer service center, for a period of at least 7 years, respectively 10 years.

Disposal

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE.

By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Content

1 x Dishwasher

1 x User manual

1 x Warranty card

Controls and Components

A Control panel

A1 On/off switch

A2 Program selection key P

A3 Function selection key F

A4 Timer button

A5 Indicator Storage

A6 Indicator Extra dry

A7 Display

A8 Time display

A9 Water connection indicator

A10 Indicator softener (salt)

All Indicator washing function

A12 Indicator baby bottle/dishes function

A13 Indicator steam adding

A14 Start/Pause button

B Door

C Handle

D Water tank opening

€ Dish basket

F Cutlery tray

G Detergent tab/powder compartment

H Upper spray arm

Salt tank

Lower spray arm

K Water outlet with filter element

Back

L Water connection

M Power cord with power plug

N Wastewater connection

Accessories

0 Baby bottle tray

P Fruit basket

Q Funnel

Installation

Note:

The dishwasher is equipped with a power cord and plug. Make sure that a suitable wall outlet is available at the desired place.

Fig. 1 Place the dishwasher on an even, horizontal and steady surface. Consider the dimensions of the product.

Note:

The dishwasher is not intended to be built in.

Fig. 2 Ensure a leakage-free drain.

• Attach the drain hose to the drain outlet on the back of the appliance.
• Use a screwdriver to properly tighten the screw of the clamp. Ensure, that the connection is properly fastend and sealed and doesn't leak.
• Place the drain hose in a sink, a floor drain or similar. If necessary attach the drain hose with cable ties, suction cups or similar.
• Ensure that the outlet hose descents to enable the proper flow of waste water.

Fig. 3 Connect the water inlet to a tap water supply (3/4") using the provided hose and make sure it is fastened tightly.

Note:

If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet might get blocked and damage the appliance.

If there is no water connection, you can alternatively fill water by hand into the water tank opening. The capacity of the integrated water tank is 5.0 liters. When enough water has been added, a quick beep sounds and the water connection indicator turns off. Water must be refilled before each washing sequence.

Note:

Fill only clear tap water into the water tank opening. Never fill detergent or other additives in the water tank.

Fig. 4 Connect the power plug to the mains.

Preparation

Filling salt into the salt container

Fig. 5 Depending on your tap water hardness (hardness degree) use additional salt (water softener). Always consider the instructions provided with the salt.

• Remove the basket and then unscrew and remove the cap from the salt container.
• Before first usage, pour 1 liter of water in the salt container of your machine.
• Place the end of the funnel (supplied) into the hole and pour in about 0.13 kg of salt. It is normal for a small amount of water to come out of the salt container.
  • After filling the container, screw the cap tightly back on in clockwise direction.
• Immediately after filling the salt into the salt container, a washing program must be started (rapid program suggested). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water which would void the warranty.

English

Note:

Depending on how fully the salt dissolves, the salt warning light may still be on even though the salt container is filled.

Warning

• Only use salt specifically designed for use in dishwashers! All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is he liable for any caused damages.
• If there are spills of the salt, a soak or a rapid program must be run to remove the excess salt.
• Only fill with salt just before starting one of the complete washing programs. This will prevent any grains of salt or salty water, which may have been spilt, remaining at the bottom of the machine for any period of time, which may cause corrosion.
• The salt container must only be refilled when the salt warning light in the control panel comes on.

Adjusting salt consumption

Fig. 6 Activate the setup mode: The setting mode must be activated within 60 seconds after switching the product on and with the door closed. Press the program selection key P and hold it for 5 seconds, the machine will enter the setup mode which is indicated by the blinking preset salt setting HX (default: H3).

Adjust level of salt consumption:

Press the program selection key P to select the proper setting according to your local environment. Follow table below to find the correct setting.

Water Hardness level		Setting
ircdH1)	mmol/ I2)
0-5 0-0.94 H1
6-11 1.0-2.0 H2
12-17 2.1-3.0 H3*
18-22 3.1-4.0 H4
23-34 4.1-6.0 H5
35-55 6.1-9.8 H6

The product will exit the setup mode automatically 5 seconds after the last setting/operation.

Note:

1) German degree of measurement for the water hardness
2) Millimol, international unit for water hardness
*) Factory setting
Contact your local water board for information on the hardness of your water supply.

Adding detergent

Fig. 7 The dispenser must be refilled before the start of each wash cycle.

For the correct amount follow the instructions provided with the detergent.

• Always add the detergent powder just before starting each wash cycle, otherwise it could get damp and will not dissolve properly.

Note:

Only use detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.

Loading the dishwasher basket

• Only clean dishes and cutlery which are dishwasher proof or suitable for dishwashers. Follow the instructions of the manufacturers.
• Scrape off any large amounts of leftover food. Soften remnants of burnt food e.g. in pans.
• It is not necessary to rinse the dishes under running water.

• Place objects in the dishwasher in the following way:

• Items such as cups, glasses, pots/ pans, etc. face down.

• Curved items, or those with recesses, should be loaded at a slant so that water can run off.
• All utensils must be stacked in a secure way so they cannot tip over.
• All utensils must be placed in a way that the spray arms can rotate freely during washing.

Note:

Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

Warning

• Long bladed knives stored in an upright position are a potential hazard.
• Do not let any item extend through the bottom of the basket.
• Do not overload your dishwasher as this will impair the results.

Plate holder

Fig. 8 Fold up the plate holders.
Fig. 9 Observe the general plan for placing dishes and cutlery into the basket.

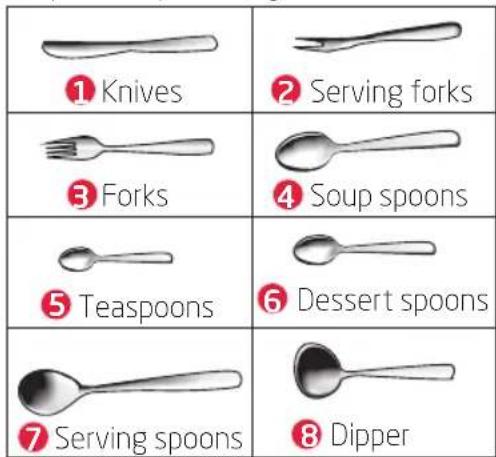

Fig. 10 Observe the plan for placing cutlery into the cutlery basket. See table below for possible part designations.

Fig. 11 The cutlery tray can be removed.

English

Operation

Washing dishes

Fig. 12 Consider below steps to start the washing process:

1. Prepare dishwasher.
2. Load the dishwasher basket.
3. Add detergent or rinse aid.
4. Make sure the water-tap/water supply is open or the water tank is full, the appliance is connected to the mains and the door is closed correctly.
5. Push the on/off switch to turn on the dishwasher and choose your program, referring to chapter

Choosing Program.

Note:

• Select the extra dry function if you want the dishes to be extra dry.

• Select "Storage" function to keep the internal environment of the machine dry and ventilated.

• Push the Start/Pause button. To stop the process push the Start/Pause button again.

To start the rinsing process at a later time, press the timer ⏻ button. Set the hours by which the start is to be delayed by pressing it several times. A 1-24 hours start time delay can be set in one hour intervals. Then press the

Start/Pause button. The dishwasher starts the program when the preset time has elapsed.

1. When the working cycle has finished, an 8 seconds long beep sounds.

2. Turn off the appliance using the On/off switch and shut off the water supply.

3. Open the door of the dishwasher.

Warning

It is dangerous to open the door when washing, because the hot water may scald you.

- Wait a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot. They will also dry better.

- Unload the dishwasher.

Modify the washing program

You can modify the washing program when the dishwasher has just been started. Otherwise, the detergent may have already been dissolved, and the appliance may have already drained the wash water.

• Press the Start/Pause button to switch to standby state.
• Press the Programme selection button P for more than three seconds. Change the program to the desired cycle setting.
• Press the Start/Pause button again to continue the washing process.

Note:

If you open the door during washing, the machine will pause. When you close the door, the machine will continue working after 10 seconds.

Pause the washing process

If you have forgotten some dishes you can pause a running process and add them, but make sure the detergent hasn't already dissolved.

1. Push the Start/Pause button.
2. After the spray arms have come to rest, you can open the door completely.
3. Add forgotten dishes.
4. Push the Start/Pause button again to continue the washing process.

Recommendations on the type of detergent

Consider below notes in order to improve the cleaning result, while reducing the energy consumption as well as environmental impact:

• Dose the detergent, salt based on the recommendations / requirements of the supplier, while considering the mass and soiling level of the tablewares.
• Do not mix different detergents and / salts
• Do you use detergents that are based on solvents or corrosive ingredients
• Avoid overdosing

Caution: An incorrect dosage of detergent, salt and other additives can damage the product and impair its correct function.

Note:

The dishwasher is not intended to be used with fluid rinse aids. Use combi products.

English

Fig. 13 Program table

The table below shows which programs are best for the levels of food residue on the dishes and how much detergent is needed. It also shows various information about the programs.

Program Information and purpose		Description of the cycle	Detergent Pre/Main	Running time in min	Energy cons. in kWh	Water cons. in litre
P1 ECO (*EN 60436)	This is the standard program, it is suitable to clean normally soiled tableware and it is the most efficient program in terms of its combined energy and water consumption for that type of tableware.	Wash (55°C) Rinse Rinse (68°C) Drying	10g 160	0.425 5.0
P2	For lightly soiled loads that do not need excellent drying efficiency.	Wash (50°C) Rinse Rinse (65°C) Drying	10g 60	0.400 5.0
P3 Rapid	A shorter wash for lightly soiled loads and quick wash without drying	Wash (45°C) Rinse Rinse (55°C)	10g 29	0.350 5.0
P4 Glass	For lightly soiled loads and glass	Wash (50°C) Rinse Rinse (65°C) Drying	10g 85	0.400 5.0
Warm fruit wash	Washing fruits: for fruit of a certain size, such as apple, grape, jujube. Not suitable for fruits with a weak surface	Wash (36°C) Rinse	A little soda powder	12	0.150 5.0
Cold fruit wash	Washing fruits: for fruits with a weak surface, such as strawberries	Rinse	-6 0.01	0 5.0
Baby bottles	For baby bottles and dishes	Wash (69°C) Rinse Rinse (70°C) Drying	10g 115	0.500 5.0

Note:

* ECO: This program is suitable to clean normally soiled tableware and for this use, it is the most efficient program in terms of its combined energy and water consumption. It is used to assess the compliance with the EU ecodesign legislation.

Note:

The values given for programs other than the ECO program are indicative only.

Cleaning and care

Warning

• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
• Clean the exterior surfaces of the product with a slightly damp cloth and dry them well. Make sure that no water enters the product interior (e.g. at the display).
• Clean the edge around the door using a soft, warm and damp cloth only. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

Cleaning the filter cartridge

The filter prevents larger remnants of food or other objects from getting inside the pump. Inspect the filters for blocking every time after the dishwasher has been used and clean it on a regular basis.

Fig. 14 The filter system consists of a coarse filter, a flat (Main filter) and a micro filter (fine filter).

• Main filter A: Food and soil particles trapped by this filter are pulverized by a special jet on the spray arm and washed down into the drain.
• Fine filter B: This filter holds soil and food residue in the sump area and prevents it from being spread over the dishes during wash cycle.

Disassemble and clean the filter according to the following steps:

• Turn the filter cap (filter B) counterclockwise and take out the whole filter assembly.
  • Take out filters.
• Wash filters under running water and remove any residues and foreign objects.
• Reassembling is done in reverse order. Make sure the filter cartridge is installed correctly.

Warning

Do not use the dishwasher without the filter system being properly installed.

Cleaning the spray arm

Fig. 15 The spray arm can be easily removed for periodic cleaning of the nozzles. This prevents possible clogging.
- Grasp the middle of the spray arm, pull it upwards to remove it.
- Wash the arm under a jet of running water.
- Return it carefully to its seat and make sure that the spray arm is installed correctly and can turn freely.

Descaling

Descaling is not necessary if the detergent is dosed correctly. If you want to descale the product, proceed according to the descaling agent manufacturer's instructions. You can obtain suitable descaling agents from retailers.

English

Error codes

Code	Meaning Possible causes
E1	Longer inlet time	Flow meter, drain valve or pump failure. Contact the customer service.
E3	Not reaching required temperature	Heating tube or thermistor anomaly. Contact the customer service.
E4	Overflow Some component of the dishwasher leaks.
E0	Communication anomaly Contact the customer service.

When an ERROR code appears and the issues cannot be resolved, please contact the customer service. The respective hotlines are noted in the provided warranty card.

Troubleshooting

If there are any problems during operation, please refer to the following table. If the problems cannot be solved as indicated under Solution or if spare parts for self-repair are necessary, please contact the service center. The respective hotlines are noted in the warranty card, provided with this product. Please note, that improper self-repair can lead to hazards as well as voidance of the warranty and should be refrained from, if in doubt.

Problem Possible causes Solution
Product does not work • Interrupted power supply • Check the power supply
		• Water pressure is too low • Check whether water supply is connected properly and water is turned on
		• Dishwasher door is not properly closed • Ensure door is closed properly
Water is not pumped out of the dishwasher	• Kink in drain hose • Check the drain hose
	• Filter is clogged • Check and clean the coarse filter
	• Kitchen sink is clogged • Check whether the kitchen sink is draining well or call a service agent for help
Rust stains on cutlery • Cutlery are not corrosion resistant		• Do not wash these items in dishwasher
		• A programme was not run after refilling salt • Always run a quick programme after adding salt
		• Softener lid is loose • Check and tighten it
Knocking noise in the cabinet • Spray arm is knocking against an item in the basket		• Interrupt the program and re-arrange the items
Rattling noise	• Items of crockery are loose in the cabinet
Knocking noise in water pipes	• Caused by on- site installation or cross section of the piping	• This has no influence on the dishwasher function
Dishes are not clean • Incorrectly loaded dishes • Re-arrange the dishes
Cloudiness on glassware • Too much detergent • Use less detergent and choose shortest cycle for cleaning glasses
Black or grey marks on dishes • Aluminum utensils have rubbed against dishes		• Use a mild abrasive cleaner
Dishes are not drying • Improper loading • Re-arrange the dishes
		• Dishes removed too soon • Do not removed the dishes immediately after washing,

Technical Data

Power consumption 730 - 860 W
Rated voltage / frequency 220 - 240 V ~	50 Hz
Water pressure (flow pressure) 0.4 - 10 bar (0.04 - 1 MPa)
Water temperature Cold

• This is a Dishwasher.
• See website below for detailed technical information or ask your vendor for specification sheet.
www.koenic-online.com.

English

Notes concerning the energy- and water consumption of the dishwasher

• The eco program is suitable for cleaning normally soiled dishes. It is the most efficient program for this purpose in terms of the combined energy and water consumption and is used to assess compliance with the EU ecodesign legislation.
• By loading the domestic dishwasher up to the capacity specified by the manufacturer, energy and water can be saved. Arrange the dishes correctly as described in the loading plans in these instructions. Improper loading causes inefficient dish-washing and possibly malfunctions.
• Manual pre-washing of the dishes leads to higher water and energy consumption and is not recommended.
• Washing dishes in a household dishwasher generally uses less energy and water than washing by hand, provided the household dishwasher is used in accordance with the manufacturer's instructions.
• Values for the program duration as well as the energy and water consumption of all programs that include an operating cycle can be found in the corresponding tables in these instructions.
• Observe the information on proper installation (including horizontal alignment, connection to the power supply, cold water connections) in these instructions.
• Use of cleaning agents, salt and other additives must be carried out properly. Incorrect dosage leads to increased environmental pollution and possibly damage to the device.
• Before each use, remove all foreign objects from the household dishwasher.
• Regular cleaning and compliance with the optimal cleaning intervals and measures to prevent limescale deposits, are important. Please refer to the chapter on Cleaning and care.
• Regular control of the filters and the optimal cleaning intervals are important. Please refer to the chapter on Cleaning and care.
