USER MANUAL PDP6011E PROGRESS

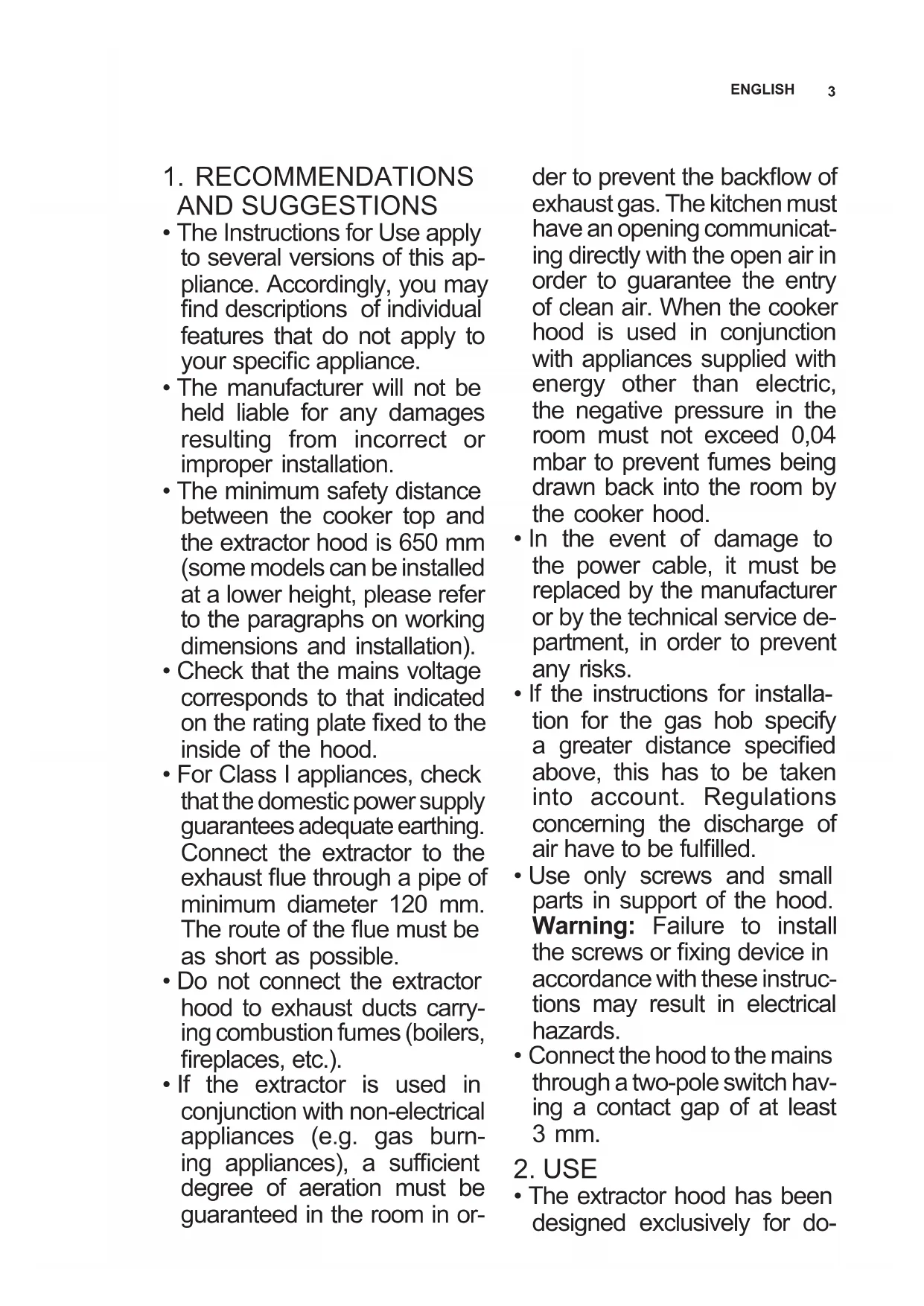

• The Instructions for Use apply to several versions of this ap- pliance. Accordingly, you may nd descriptions of individual features that do not apply to your specic appliance.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.

• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).

• Check that the mains voltage corresponds to that indicated on the rating plate xed to the inside of the hood.

• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust ue through a pipe of minimum diameter 120 mm. The route of the ue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carry- ing combustion fumes (boilers, replaces, etc.).

• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burn- ing appliances), a sufcient degree of aeration must be guaranteed in the room in or- der to prevent the backow of exhaust gas. The kitchen must have an opening communicat- ing directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service de- partment, in order to prevent any risks.

• If the instructions for installa- tion for the gas hob specify a greater distance specied above, this has to be taken into account. Regulations concerning the discharge of air have to be fullled.

• Use only screws and small parts in support of the hood.

Warning: Failure to install

the screws or xing device in accordance with these instruc- tions may result in electrical hazards.

• Connect the hood to the mains through a two-pole switch hav- ing a contact gap of at least 3 mm.

• The extractor hood has been designed exclusively for do-4 www.electrolux.com mestic use to eliminate kitchen smells.

• Never use the hood for pur- poses other than for which it has been designed.

• Never leave high naked ames under the hood when it is in operation.

• Adjust the ame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.

• Deep fat fryers must be con- tinuously monitored during use: overheated oil can burst into ames.

• Do not ambè under the range hood; risk of re.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervi- sion or instruction concerning use of the appliance in a safe way and understand the haz- ards involved. Children shall not play with the appliance. Cleaning and user mainte- nance shall not be made by children without supervision.

• “CAUTION: Accessible parts may become hot when used with cooking appliances.”

• The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collec- tion point for the recycling of electrical and electronic equip- ment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city ofce, your household waste disposal service or the shop where you purchased the product.

• Switch off or unplug the ap- pliance from the mains sup- ply before carrying out any maintenance work.

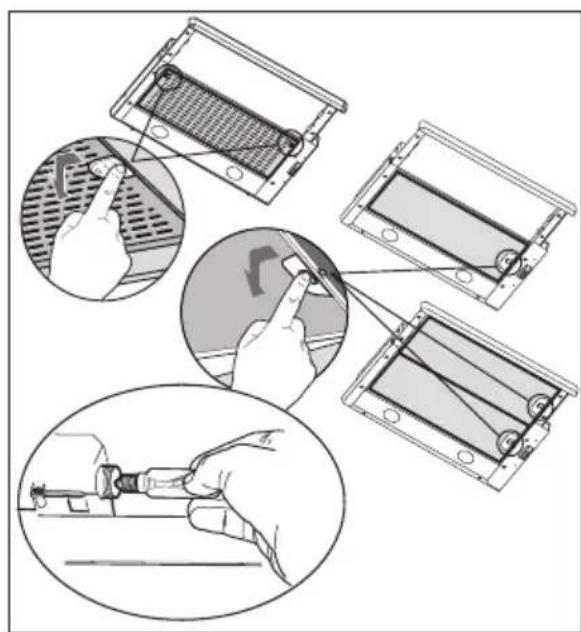

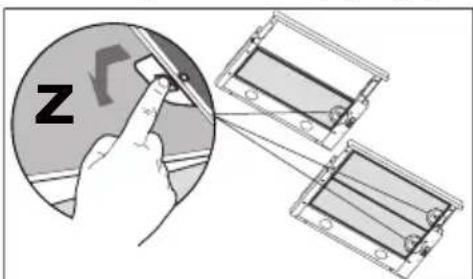

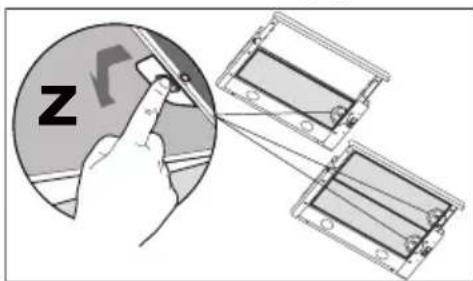

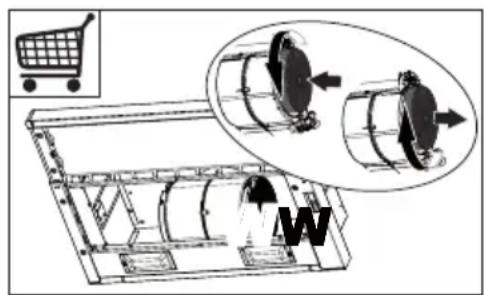

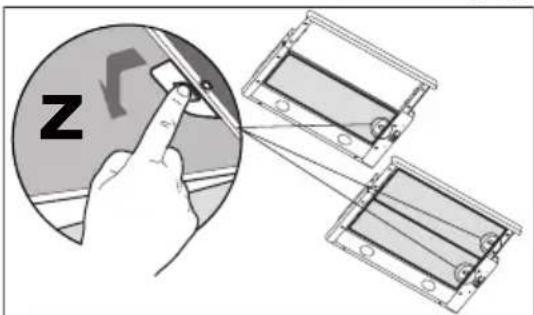

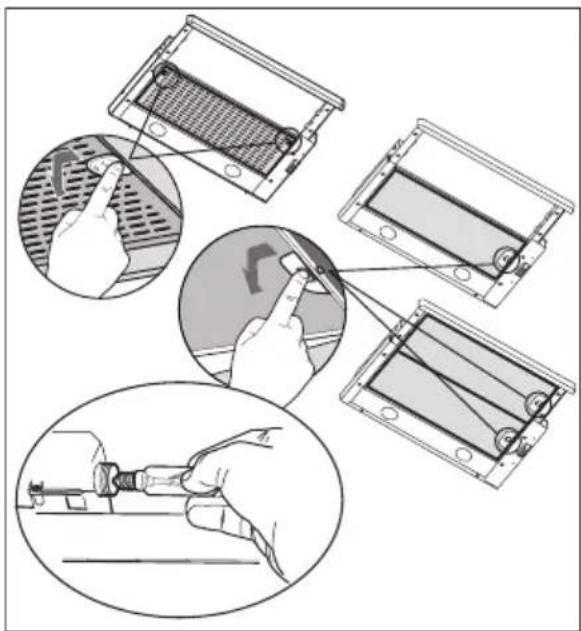

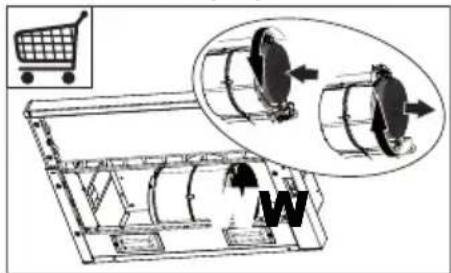

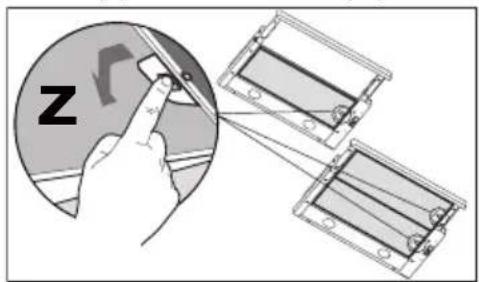

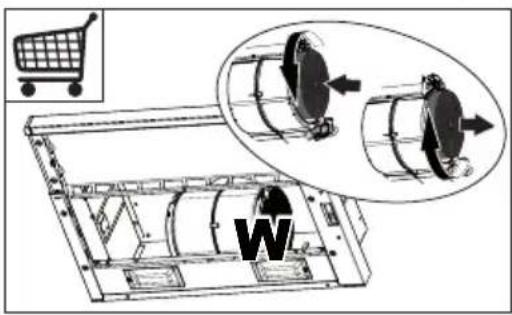

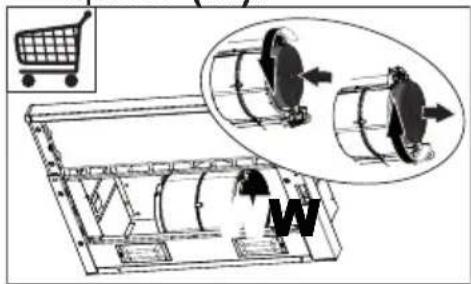

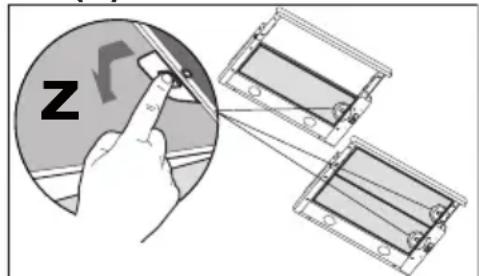

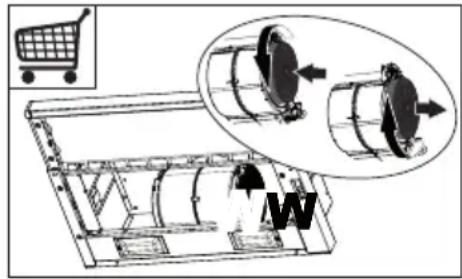

• Clean and/or replace the Fil- ters after the specied time period (Fire hazard). - The Activated charcoal lter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for par- ticularly heavy usage (W). WW5 ENGLISH - The Grease lters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

• Clean the hood using a damp cloth and a neutral liquid de- tergent.

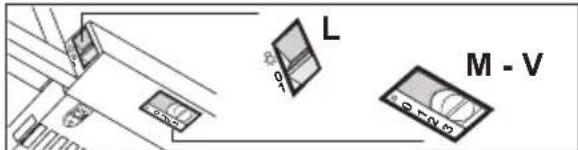

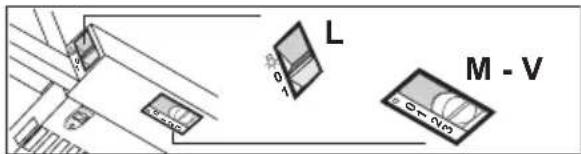

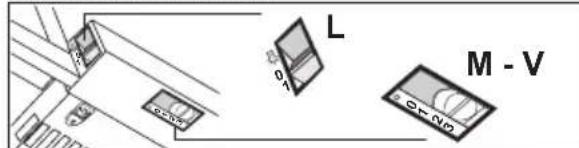

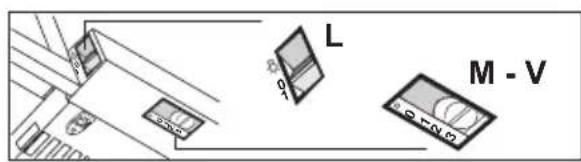

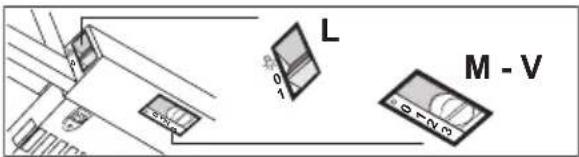

L Light Switches the lighting system on and off V Speed Sets the operating speed of the extractor:

1. Low speed, used for a continuous and

silent air change in the presence of light cooking vapour.

2. Medium speed, suitable for most

operating conditions given the optimum treated air ow/noise level ratio.

3. Maximum speed, used for eliminating

the highest cooking vapour emission, including long periods.
