PV1651 - Iron SOLAC - Free user manual and instructions

Product Type	Travel Iron
Brand	Solac
Model	PV1651
Voltage	Dual-voltage selector (110-240V)
Soleplate	Non-stick
Functions	Dry ironing, steam ironing, steam burst, vertical ironing
Handle	Foldable (folding button)
Indicator Light	Yes (indicates heating up)
Water Tank	With MAX level indication
Safety	Hot surfaces, unplug before filling, do not leave unattended
Maintenance	Clean with damp cloth, regular descaling
Recommended Water	Distilled or low-limescale water
Usage	Domestic, for travel
Standards	Compliant with EU directives (low voltage, EMC, WEEE, etc.)

Frequently Asked Questions - PV1651 SOLAC

How to fill the water tank?

Open the filling spout cover (B), pour water up to the MAX level (Fig.1), then close the cover tightly before using the iron.

How to select the electrical voltage?

Use the voltage selector (E) to choose the position corresponding to your outlet voltage (110V or 240V). Make sure it matches before plugging in the appliance (Fig.2).

How to activate steam ironing?

Fill the water tank, set the thermostat (G) to a temperature suitable for steam (at least silk/wool position), then operate the steam regulator (F). Wait for the indicator light to turn off.

How to do dry ironing?

For dry ironing, only use the temperature setting without operating the steam regulator. Make sure the water tank is empty or the regulator is set to off.

How to use the steam burst function?

Press the steam burst button (A) to produce a powerful steam jet. Wait a few seconds between each press. Do not apply more than three consecutive bursts for better steam quality.

How to iron vertically?

Select the maximum temperature, hold the iron vertically a few centimeters from the fabric (except for cotton and linen where you can touch), then press the steam button (A) while moving the iron downwards.

How to clean the iron?

Unplug and allow to cool completely. Clean the soleplate and body with a damp cloth and a little mild detergent. Do not use abrasive products, solvents, or acids. Never immerse in water.

How to descale the appliance?

Use a specific descaling product for irons, available in specialty stores. The frequency depends on water hardness: every 6 weeks if very hard, every 12 weeks if hard. Avoid vinegar.

What water to use?

It is recommended to use distilled water or water low in calcium minerals. Avoid very hard tap water to limit deposits.

How to fold the handle?

Press the foldable handle button (H) to fold the handle for easy storage. Press again to unfold it.

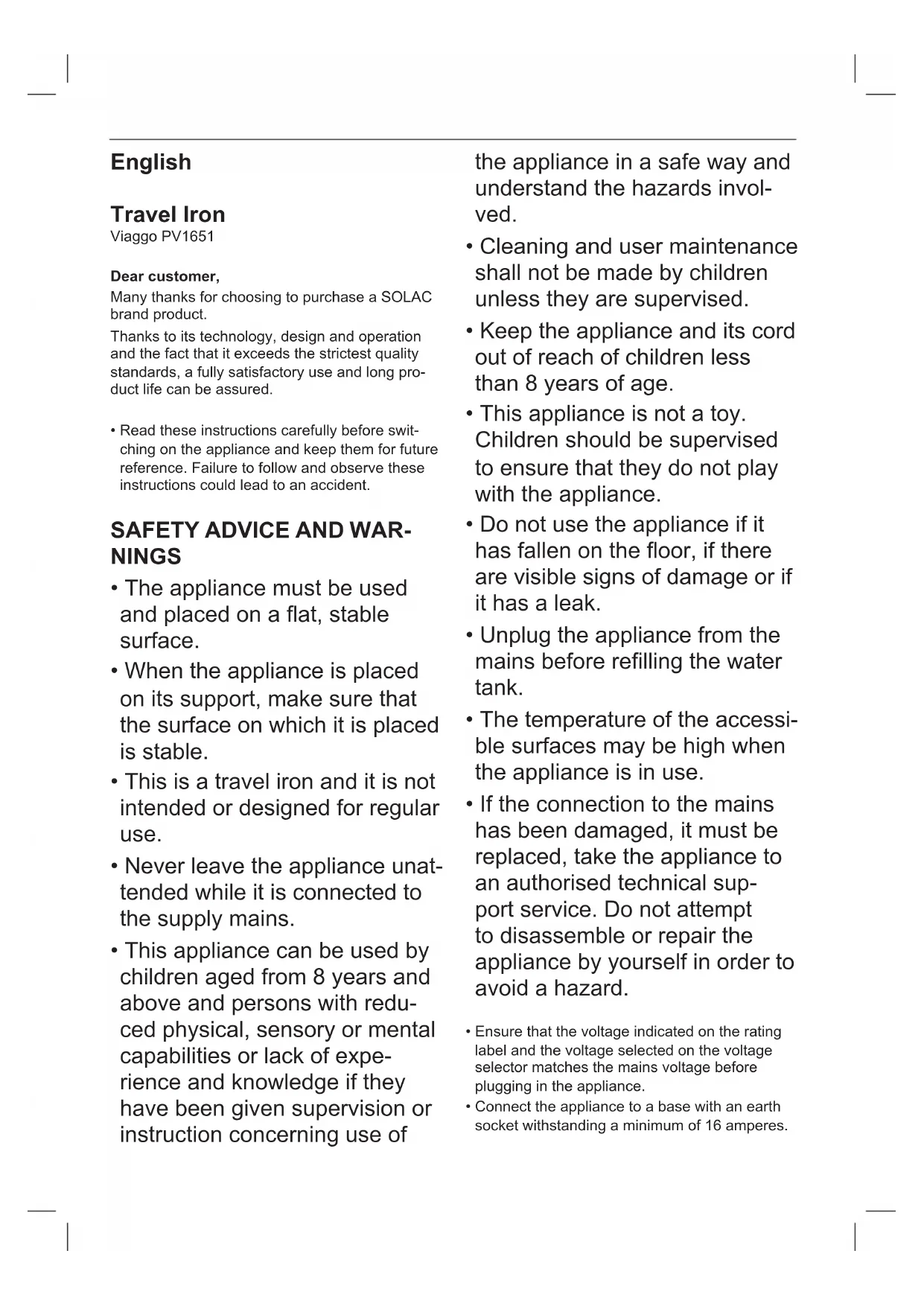

USER MANUAL PV1651 SOLAC

Many thanks for choosing to purchase a SOLAC brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

• Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

SAFETY ADVICE AND WARNINGS

• The appliance must be used and placed on a flat, stable surface.
• When the appliance is placed on its support, make sure that the surface on which it is placed is stable.
• This is a travel iron and it is not intended or designed for regular use.
• Never leave the appliance unattended while it is connected to the supply mains.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of

the appliance in a safe way and understand the hazards involved.

• Cleaning and user maintenance shall not be made by children unless they are supervised.
• Keep the appliance and its cord out of reach of children less than 8 years of age.
• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Unplug the appliance from the mains before refilling the water tank.
• The temperature of the accessible surfaces may be high when the appliance is in use.

• If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.

• Ensure that the voltage indicated on the rating label and the voltage selected on the voltage selector matches the mains voltage before plugging in the appliance.

• Connect the appliance to a base with an earth socket withstanding a minimum of 16 amperes.

• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.

• Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
• Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
• Do not allow the power cord to hang or to come into contact with the hot surfaces of the appliance.
• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
• Do not touch the plug with wet hands.
• Do not use the appliance if the cable or plug is damaged.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not touch the heated parts of the appliance, as it may cause serious burns.

USE AND CARE:

• Fully unroll the appliance's power cable before each use.
• Use the appliance handle, to catch it or move it.
  To keep the non-stick treatment in good condition, do not use metal or pointed utensils on it.
• Respect the MAX level indicator. (Fig.1).
• Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
• This appliance is for household use only, not professional, industrial use.
• Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.
• Do not store or transport the appliance if it is still hot.
• Keeping the iron in its housing support at maximum temperature for too long time, may cause its colour change, which will not affect the correct working order of the appliance.
• For a correct operation, keep the soleplate in proper conditions does not operate over metal objects (ironing board metal parts, buttons, zips etc.).

• It is advisable to use distilled water, especially if the water in your area contains clay or if it is "hard" (containing lime or magnesium).

• Check that the lid is closed properly before starting the appliance.

• Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.
• Never rest the appliance into a surface while in use.
• Do not use the appliance on any part of the body of a person or animal.
• Do not use the appliance with pets or animals.
• Turn the thermostat control to the minimum (MIN) setting. This does not mean that the iron is switched off permanently.

SERVICE:

• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

DESCRIPTION

A Steam blast button
B Filling spout
C soleplate
D Pilot light
E Dual voltage selector
F Steam regulator
G Steam flow and temperature regulator
H Foldable handle button

INSTRUCTIONS FOR USE

BEFORE USE:

• Remove the appliance's protective film.
• Ensure that the selected tension on the voltage selector coincides with the tension of the mains.
• To eliminate the smell given off by the appliance when used for the first time, it is recommended to have it on at full power for 2 hours in a well-ventilated room.
  Prepare the appliance according to the function you wish to use.

VOLTAGE SELECTOR:

• The appliance has a voltage selector control, situate the selector according to the type of voltage available in the mains where the appliance is to be connected. (Fig.2).

FILLING WITH WATER:

• It is essential to have filled the deposit with water to be able to work with steam.
• Open water inlet lid.
• Fill the deposit taking care to observe the MAX

level (Fig.1).

• Close water inlet lid.

USE:

• Unroll the cable completely before plugging it in.
• Connect the appliance to the mains.
• Slide the thermostat control to the desired temperature position.
  The pilot light (D) comes on.
• Do not use temperatures higher than those indicated on the garments to be treated.
• Temperature for synthetic fibres (Polyester, Nylon...).
• • Temperature for silk and wool.
• Temperature for cotton. (Minimum temperature for steam ironing)
• Max Temperature for linen.
• If garment has various kinds of fibres, select the temperature for the fibre that requires the lowest temperature. (For example, select the temperature for polyester for an article made out of 60% polyester and 40% cotton).
• Wait until the pilot light has gone out which will indicate that the appliance has reached an adequate temperature.
• During the appliance's use the pilot light will come on and off automatically, indicating the heating elements are working, and therefore maintaining the desired temperature.

DRY IRONING:

• The appliance has an option to dry ironing (without steam). To use this option turns on only the iron switch.
• Selector (F) in steam position on

STEAM IRONING:

• It is possible to iron with steam whenever the deposit is filled with water and the adequate temperature is selected.
• Selector (F) in steam position off

FORDABLE HANDLE:

• By pressing the button (H) the handle is folded for an easy storage, pressing to close and open.

STEAM BLAST:

• This function proportions extra steam for eliminating wrinkles.

• Press the steam blast button (A). Wait a few seconds until vapour penetrates the fibres of the garment before pushing the button again. For optimum steam quality, do not apply more than three successive blasts.

• The steam blast button has to be pressed repeatedly to release the first shot.

VERTICAL STEAMING:

• It is possible to iron hanging curtains, items of clothing on his hanger, etc. To do so, follow the instructions:
• Select the maximum temperature of the iron, while turning the temperature regulator of the iron in a clockwise direction.
• Move the iron in a top to bottom direction while pressing the steam control (A). Important: for cotton and linen, it's recommended to put the iron base in contact with the material. For other more delicate fibres, it's recommended to keep the iron base at some centimetres of distance.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Select the minimum position (MIN) using the thermostat control.
• Unplug the appliance from the mains.
• Remove the water from the inside of the appliance.
  Clean the appliance.

PRACTICAL RECOMMENDATIONS:

• Classify the garments into groups by ironing temperature. The appliance heats up more quickly than it cools down, therefore, to avoid accidents, minimise energy consumption and optimise time, it is advisable to start off ironing items that require lower temperatures and progress to those that need higher temperatures.
• Pure wool fabrics (100%) can be ironed with the iron set to steam. Select a high steam temperature and place a cotton cloth between the iron's metal surface and the garment.

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.

HOW TO DEAL WITH LIME SCALE INCRUSTATIONS:

• For the appliance to work correctly it should be kept free of limescale or magnesium incrustations caused by the use of hard water.
• To avoid this kind of problem it is advisable to use distilled water.
• To prevent this kind of problem, we recommend the use of water with low lime or magnesium mineralisation.
  However, if it is not possible to use the kind of water recommended above, you should periodically remove the limescale from the appliance:
• Every 6 weeks if the water is "very hard".
• Every 12 weeks if the water is "hard".
• To do so, we recommend the use of the specific product for this kind of appliance, which can be found in specialised shops and authorised technical services.
• A specific anti-lime scale product should be used on this kind of product.
• Homemade solutions are not recommended in the decaling of this appliance, such as the use of vinegar.

ANOMALIES AND REPAIR

Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

FOR EU PRODUCT VERSIONS AND/OR IN CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

This symbol means that surface could to get hot during the use

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.
