USER MANUAL SSML 1000 A1 SILVERCREST

Operating instructions

NL BE

BLENDER

Gebruiksaanwijizing

ES

BATIDORA DEVASO

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Content

Introduction 20

Intended use 20

Package contents 20

Description of the appliance 21

Technical data 21

Safety instructions 22

Unpacking 24

Setting up 24

Operation 25

Fitting and filling the blender 25

Selecting the speed setting 26

Filling while in use 26

Removing the blender 27

Useful tips 27

Recipes 28

Banana shake 28

Vanilla shake 28

Cappucino shake 28

Tropical mix 28

Nut nougat shake 29

Carrot shake 29

Blackcurrant mix 29

Hawaii shake 29

Fruity pineapple and strawberry mix 30

Andalusian cold soup (gazpacho) 30

Cleaning 31

Cleaning the blender 31

Cleaning the motor block 33

After cleaning 33

Storage 33

Disposal 33

Kompernass Handels GmbH warranty 34

Service 35

Importer 35

Introduction

Congratulations on the purchase of your new appliance.

You have selected a high-quality product. These operating instructions are a part of this product. They contain important information on safety, usage and disposal.

Before using the product, familiarise yourself with all operating and safety instructions. Use the product only as described and only for the specified areas of application. In addition, pass these documents on, together with the product, to any future owner.

Intended use

This appliance is intended exclusively for...

■ mixing, puréeing and stirring foods as well as crushing ice cubes,
- use exclusively in normal domestic amounts and only for private use in a domestic environment in dry rooms.

This appliance is not intended for ...

the chopping of hard foodstuffs, such as nuts, seeds, large kernels or stalks,
the processing of materials that are not foodstuffs,
■ commercial or industrial use,
for use in damp environments or outdoors,
■ processing hot/boiling liquids.

Use only the accessories and spare parts that are specified for this appliance. Other parts may not be adequately suitable or safe!

Package contents

After unpacking, check to ensure all items are available. The package contains:

• Motor block, with power cable and plug
• Blender, with permanently assembled cutting blades
  Lid
• Measuring cap
• Operating instructions

Description of the appliance

1 Measuring cap
Lid
3 Blender
Cutting blades
Light element
Switch
Motor block
8 Cable retainer
Scale

Technical data

Nominal voltage 220-240 V ~, 50 Hz
Nominal power consumption	1000 W
Max. capacity 1.75 litres
Protection class	II/☑
CO time 3 Minuten
	All of the parts of this appliance that come into contact with food are food-safe.

The CO time (continuous operation time) is the amount of time an appliance can be operated without the motor overheating and becoming damaged. When the specified CO time has been reached, the appliance must be switched off until the motor has cooled down to room temperature.

Safety instructions

• Ensure that the appliance, the power cable and the power plug are never immersed in water or other liquids.
• Use the appliance only in dry rooms; never use it outdoors or in damp environments.
• Ensure that the power cable never becomes wet or damp during operation. Route the power cable in such a way that it cannot become trapped or damaged in any way.
• Arrange for defective power plugs and/or cables to be replaced as soon as possible by a qualified technician or by our Customer Service Department to avoid the risk of injury.
  Always remove the plug from the power socket after use. Switching off the appliance is not sufficient because the appliance receives power as long as the power plug is connected to the socket.
• Check to ensure that the appliance is in a serviceable condition before use. The appliance may not be used if there are any visible signs of damage, especially to the motor block and the glass blender.
• Remove the plug from the socket immediately if you notice unexpected smells or noises coming from the appliance while it is in use or if there is an evident malfunction.

WARNING! RISK OF INJURY!

• NEVER insert your hand or fingers into the blender, especially when it is in use. The cutting blades are extremely sharp!
  DO NOT remove the lid when the appliance is in operation. If you do, pieces of food could be thrown out at high speeds!
  To ensure you can react immediately in the event of danger, never leave the appliance running unattended.

WARNING! RISK OF INJURY!

• Do not insert cutlery items or mixing tools into the blender while the appliance is in use. There is a considerable risk of injury if these come into contact with the swiftly rotating cutting blades!
  Children should be supervised to ensure that they do not play with the appliance.
• Never use the appliance for purposes other than those described in these instructions.
  Risk of injury if appliance is misused.
  The appliance should always be disconnected from the mains when not supervised and before assembly, disassembly or cleaning.
  This appliance is not to be used by children.
  The appliance and its mains cable must be kept away from children.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning safe use of the appliance, and if they are aware of the potential risks.
  Do not allow children to play with the appliance.
• Be careful when handling the appliance. The cutting blades are extremely sharp!
  Take care when emptying the blender! The cutting blades are extremely sharp!
• Take care when cleaning the appliance! The cutting blades are extremely sharp!
• Switch the appliance off and disconnect the plug from the power supply before changing accessories or getting hold of parts that move during operation.

WARNING! RISK OF INJURY!

Always make sure that the blender is switched off before removing the jug from the motor block!
- Use the blender only with the supplied motor block!

CAUTION! MATERIAL DAMAGE!

• Do not use the appliance in direct sunlight or near any heat-generating appliances.
• NEVER fill the blender with boiling liquids or other foods! Allow these to cool to a lukewarm temperature. Otherwise, the appliance could overheat and/or the glass of the blender could crack!
• NEVER operate the appliance when it is empty, i.e. without ingredients in the blender attachment.

Unpacking

■ Remove all packaging materials or protective films from the appliance. Retain the packaging, so that you can store the appliance safely or send it by post, e.g. if it needs to be repaired.
Before using the appliance, check that it is free of damage; check also that the power cable and plug as well as all accessories and appliance parts are undamaged.
Clean all components carefully before using the appliance for the first time (see "Cleaning").

Setting up

Once all components have been cleaned as described in the section "Cleaning":

Position the appliance so that, ...

that the mains cable passes through the recess at the rear of the appli
the power plug is immediately accessible, so that it can be quickly withdrawn in the event of danger.
that it is stable and not liable to slip, and so that the sucker feet can attach firmly and the appliance cannot tip over due to vibration.
- that the mains cable is not in the working area and thus does not present a risk of being inadvertently snagged and tipping the appliance over.

Operation

WARNING!

The motor switches itself off as soon as the blender 3 is removed from the motor block 7. It is thus possible to overlook the fact that the appliance is still switched on. The motor will then start unexpectedly as soon as the blender 3 is replaced on it: Therefore:

• Do not insert the power plug into the wall socket until the blender 3 is filled and mounted with its lid fitted and closed.
  Before fitting the blender, always check to see that the appliance is switched off or that the power plug has been removed.
  Before removing the blender 3, switch the appliance off, remove the power plug and wait for the motor to stop turning.

Fitting and filling the blender

1) Rotate the blender 3 anticlockwise until the arrow under the blender handle is located above the position. Remove the blender 3 from the motor block 7 in a vertical, upward motion.

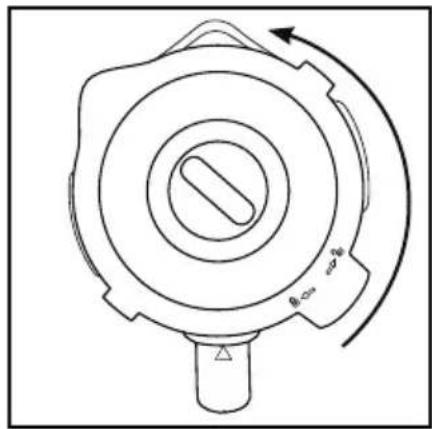

2) Remove the lid ② by rotating it anticlockwise towards position (see Fig 1) until you can pull it upwards.
3) Fill the blender ③.

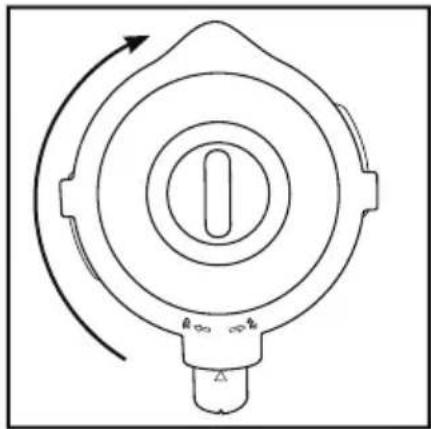

4) Press the lid ② firmly down onto the blender ③. Close the lid ② by turning it clockwise to position until it audibly engages (see Fig. 2). Ensure that the pouring spout on the blender ③ is closed.

Fig.1 Fig.2

5) Place the measuring cap ① in the opening in the lid and close it by turning it clockwise.

6) Place the filled and closed blender 3 on the motor block 7. To do this, use the recesses on the motor block 7 and ensure that the arrow on the blender is pointing to the symbol while doing so. Turn the blender 3 clockwise to position until it audibly engages. The motor cannot start until the blender 3 is fitted flush.

Selecting the speed setting

Once the blender 3 is filled and sitting completely closed on the motor block 7, you can switch on the appliance. If the appliance is switched on the light element 5 on the top edge of the housing illuminates blue.

Set the switch 6 to...

Level 1-3

for liquids or soft foodstuffs, for mixing, blending and stirring

Level 3-5

for more solid foods or for chopping

Level Ice Crush/Clean

for short, powerful impulse operation, e.g. for crushing ice cubes or when cleaning. To prevent overloading the motor, the switch 6 does not lock in this position. Therefore, hold the switch 6 in this position for short periods only.

NOTE

• Fill the blender ③ with a maximum of 180g of ice cubes. Otherwise, the ice cubes will not be crushed optimally.

Filling while in use

WARNING!

If you want to add additional foods during operation, use only the measuring cap ① provided for this purpose.
Do NOT open the lid ②. Pieces of food could be thrown out at high speeds!
- Do not insert cutlery items or mixing tools into the blender ③ while the appliance is in use. There is a considerable risk of injury if these come into contact with the swiftly rotating cutting blades ④!

To add more food while the appliance is in use, ...

1) Turn the measuring cap ① anticlockwise and remove it.
2) Add the ingredients.
3) Afterwards, replace the measuring cap ① into the lid opening and secure it by turning it clockwise.

Removing the blender

Once you have finished processing the food in the attachment:

1) Always start by setting switch 6 to the off position ("0") and pulling out the mains plug.

2) Wait until the motor has come to a complete standstill before lifting the blender 3 off the motor block 7. Rotate the blender 3 anticlockwise until the arrow under the blender handle is located above the position. Remove the blender 3 from the motor block 7 in a vertical, upward motion.

Useful tips

To achieve the best results when pureeing firm ingredients, add small amounts one after the other into the blender 3 rather than a single large portion.
■ When processing firm ingredients, cut them into small pieces (2-3 cm).
■ When mixing liquid ingredients, start off with a small amount of liquid. Gradually add more liquids to the mixture through the measuring cap.
The appliance can be stabilised by placing your hand on top of the closed blender during operation.
■ When stirring firm or very viscous foods, it can be helpful to use the level Ice Crush/Clean to avoid a blocking of the cutting blades 4.

NOTE

• Do not use the appliance to grind crystals of cooking salt, refined sugar or white sugar. For example, to make powdered sugar.

Recipes

Banana shake

2banganas
- approx. 2 tbsp. sugar (depending on the ripeness of the bananas and personal taste)
12 milk
- 1 dash of lemon juice

Peel the bananas and liquidise them at level 2. Gradually add the milk, then the sugar and the lemon juice. Keep mixing everything until you have a smooth and uniform liquid. Serve the shake chilled.

Vanilla shake

• 1/4 | milk
• 250 g vanilla ice cream
• 125 ml ice cubes
  1 1/2 tsp. sugar

Crush the ice cubes using the level Ice Crush/Clean. Place the remaining ingredients into the mixer. Mix everything at Level 2 until the liquid has a smooth consistency.

Cappucino shake

• 65 ml cold espresso (or a very strong coffee)
• 65 ml milk
  15 g sugar
• 65 ml vanilla ice cream
  100 mlice cubes

Crush the ice cubes using the level Ice Crush/Clean. Add the espresso, milk and sugar. Mix everything together at level 2 until the sugar has dissolved. Finally, add the vanilla ice cream and then briefly mix everything together at level 1.

Tropical mix

• 125 ml pineapple juice
• 60 ml papaya juice
• 50 ml orange juice
  · 12 small tin of peaches with juice
• 125 mlice cubes

Crush the ice cubes using the level Ice Crush/Clean. Place all ingredients into the mixer and blend them together at level 3.

Nut nogat shake

• 1/2 | milk
• 200 g nut nogat spread
• 1 scoop of vanilla ice cream
• 50 ml cream

Add all the ingredients to the blender and mix at level 3 until everything is evenly blended together.

Carrot shake

• 300 ml apple juice
• 500 ml carrot juice
• 4 tbsp. cooking oil (wheat germ oil or rapeseed oil)
• 4 tbsp. of lemon juice
• Powdered ginger
  Pepper

Add the apple juice, cooking oil and lemon juice into the blender and mix everything together at level 2. Then add the carrot juice and mix everything together at level 2. To finish, add the powdered ginger and pepper to taste.

Blackcurrant mix

2 tsp. honey
2 bananas
· 1 / 4 buttermilk
- 1/4 | blackcurrant juice

Place all ingredients into the mixer and blend them together at level 3.

Hawaii shake

• 4 bananas
• 1 / 4 pineapple juice
  12 milk
  2 tbsp. honey
  14 | rum

Peel the bananas and liquidise them at level 2. Then add the other ingredients and mix everything together at level 1.

Fruity pineapple and strawberry mix

• 250 ml pineapple juice
• 200g strawberries
• 300 ml apple juice
  4 ice cubes

Crush the ice cubes using the level Ice Crush/Clean. Wash the strawberries and remove the green parts. Liquidise them at level 2. Then add the other ingredients and mix everything together at level 1.

Andalusian cold soup (gazpacho)

· 1 / 2 cucumber
1 large tomato
1 green pepper
1 / 2 onion
1 garlic clove
· 1 / 2 white bread roll
1/2 tsp. salt
1 tsp. red wine vinegar
1 tbsp. olive oil

Cut the vegetables into pieces approx. 2 cm in size. Start by adding the first the tomatoes and then the cucumber to the blender. Liquidise them at level 3. Add the remaining ingredients and then liquidise/blend them all together at level 3 until a smooth soup is created. Serve the soup with bread.

NOTE

These recipes are provided subject to change. All ingredients and preparation information are guiding values. Adapt these recipe suggestions based on your personal experience.

NOTE

In cases of lactose intolerance, we recommend you use a lactose-free milk. Keep in mind, however, that lactose-free milk is a little sweeter.

Cleaning

RISK OF ELECTRIC SHOCK!

Before starting to clean the blender and its components:

• Ensure that the motor is switched off and the power plug removed from the socket.

Do not immerse the motor block ⑦ in water or other liquids. This could result in you receiving a fatal electric shock and cause damage to the appliance.

• Never open the housing of the appliance. Otherwise, there is a risk of a fatal electric shock.

WARNING! RISK OF INJURY!

• Never disassemble the cutting blades ④ and never reach into the blender 3 . The cutting blades 4 are extremely sharp!

CAUTION - PROPERTY DAMAGE!

• Do not use solvents or abrasive cleaners on the plastic surfaces, they could be damaged by them.

Cleaning the blender

To prevent injuring yourself on the cutting blades ④ , clean the blender ③ only with a long-handled washing-up brush.
In a case of stubborn soiling, the blender 3 can also be cleaned in a dishwasher. To do this, always remove the blender 3, as described later.
Clean the lid 2 and the measuring cap 1 in a dishwasher or with the normal washing up.

If you clean the blender directly after use, you can often achieve a satisfactory and hygienic level of cleaning by doing the following:

Fill the blender with 750ml of water and add a few drops of mild detergent. Close the lid and fit the blender onto the motor block. Insert the plug into a mains power socket and activate the Ice Crush/Clean operation a few times, so that the cutting blades churn through the water at full speed.

Afterwards, rinse out the blender with lots of clean water to ensure that all detergent residues have been removed.

If this does not remove the soiling, you can separate the lower plastic part of the blender (with the cutting blades) from the the glass part of the blender:

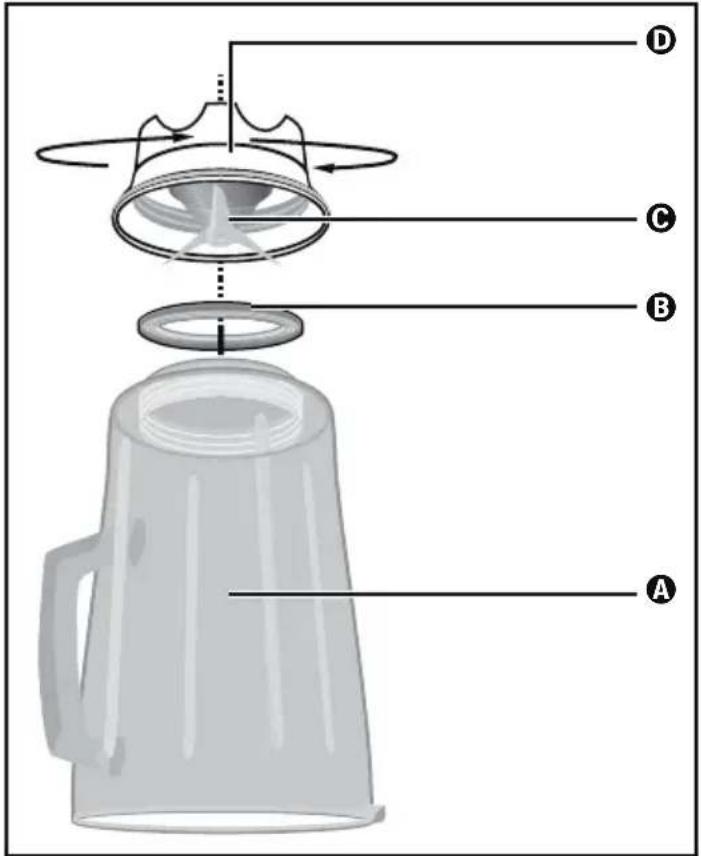

Fig. 3

A Glass element
Sealing ring
Cuttingblade
D Plastic element

1) Remove the blender 3 from the motor block 7. To ensure improved stability, remove the lid 2 by rotating it anticlockwise towards position (see Fig 1) until you can pull it upwards.

2) Turn the appliance upside down and turn the plastic part D of the blender 3 anticlockwise so that it can be removed from the glass part A of the blender 3 (see Fig. 3).

WARNING! RISK OF INJURY!

Always handle the blades carefully. They are very sharp. Risk of injury!

3) Clean both parts thoroughly in a mild soap solution or in the dishwasher.
4) Clean the sealing ring in mild soap solution and rinse it off with clean water to finish.

5) Dry all parts thoroughly before reassembling them.

6) Refit the plastic element D of the blender 3 onto the glass element A. Ensure that the sealing ring B is correctly fitted.

Cleaning the motor block

1) Use a dry or no more than slightly moistened cloth to clean the plastic surfaces.

2) When cleaning, always check that the contact switch in the fitting for the blender 3 is not blocked by soiling residues. If you cannot dislodge any blockages with the corner of a piece of paper, make contact with Customer Services. Do not use any hard objects, these could damage the contact switch.

3) Remove any possible residues on the underside of the motor block with a dry cloth or a stiff-bristled brush only. Ensure that nothing can get in through the ventilation openings of the appliance.

After cleaning

Allow all parts to dry well before reassembling and reusing the liquidiser.

Storage

1) If you do not intend to use the blender for an extended period, clean it thoroughly (see chapter "Cleaning").

2) Wrap the power cable around the cable retainer 8 on the base of the motor block 7.

3) Store the blender in a cool and dry location.

Disposal

Do not dispose of the appliance in your normal domestic waste. This product is subject to the European guideline 2012/19/EU.

Dispose of the appliance via an approved waste disposal company or your municipal waste disposal facility. Please observe applicable regulations. Please contact your waste disposal facility if you are in any doubt.

The packaging is made from environmentally-friendly material and can be disposed off at your local recycling plant.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.
You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 290940

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Sommaire

Introduction 38

Chere cliente, cher client,

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoudsopgave

Inleiding 56

WAARSCHUWING! LETSELGEVAAR!

WAARSCHUWING! LETSELGEVAAR!

WAARSCHUWING! LETSELGEVAAR!

WAARSCHUWING! LETSELGEVAAR!

WAARSCHUWING! LETSELGEVAAR!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Obsah

Uvod. 74

Ucel pouziti 74

Obsah baleni 74

Popis pristroje 75

Technické udaje 75

Bezpečnost 76

Vybaleni 78

Umisteni 78

Obsluha 79

Naplneni a montaz mixovacho nastavce 79

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

NEMECKO

www.kompernass.com

Indices

Introduccion 92

Characteristicas techniques

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Indices

Introducao 110

Cocktail tropical 118

Batido deavela 119

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com
