USER MANUAL Baby Kangoo RB205 Rimax

MANUEL D'INSTRUCTIONS

MANUAL DE INSTRUÇÉS

Índice

1. Important Notes 2
2. Overview of baby Monitor 3
3. Installation Instructions 4-7
4. Operation instructions.. 8

Power Switch. 8-9
Volume Control. 10
Shooting/Recording. 10
Memory card. 10
Dialogue Function. 10
Feeding Alert. 11
Zoom In/Out. 11
View Video through TV. 11
Night Light/Night Vision. 11

1. Operating Menu 12

Alert Ringtone [ ] 12
Screen Display [ ] 12
Lullabies [ ] 13
Voice Sensor Detection [ ]............13
Temperature [ ] 13
Language [ ] 13
SDBrowse[ ]14
Time Set [ ] 14

1. Pairing/Newly-added Camcorder System 14-16
2. Troubleshooting 16-17

Important Notes

Before using the Digital video monitor system, please read this User Manual very carefully and keep it properly for future reference. Incorrect use of the product may cause damage to the product or cause body injuries.

Please keep the transformer and wires away from the children.
Please be careful to protect the transformer and wires to avoid tearing or man-made damage.
Please avoid danger of suffocation caused by children playing with the wires.
Please use the recommended transformer for the products, the use of other substandard transformers may lead to mechanical damage.
Please ensure that the transformer voltage rating matches the requirements of relevant countries and regions.
Do not put the monitor into the bedding, drawer, or cover it with a cloth.
Do not wet the monitor or immerse it into water or other liquids.
Do not place the monitor outdoors or at open space, or expose it to hot places such as heaters, stove, etc..
Do not dismount the unit. This can cause damage to the internal parts.

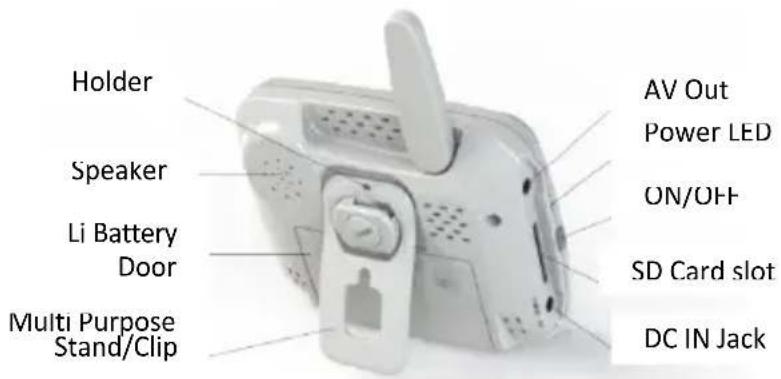

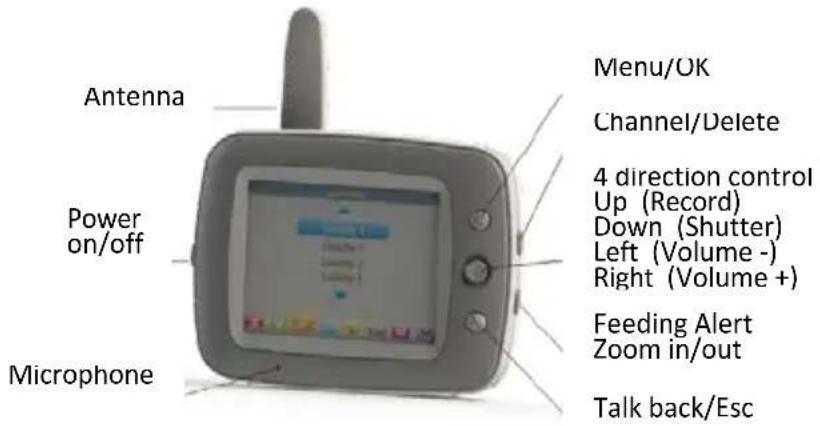

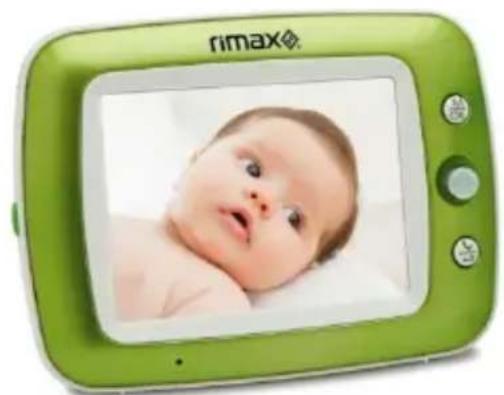

Overview of monitor unit

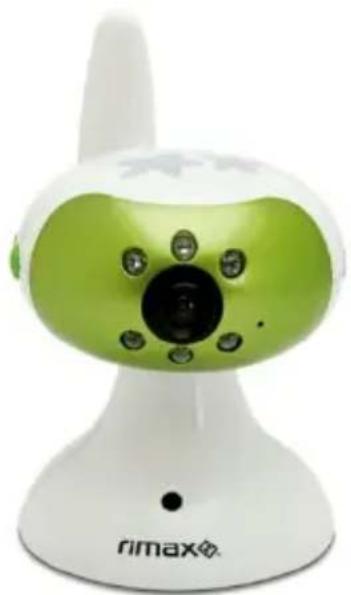

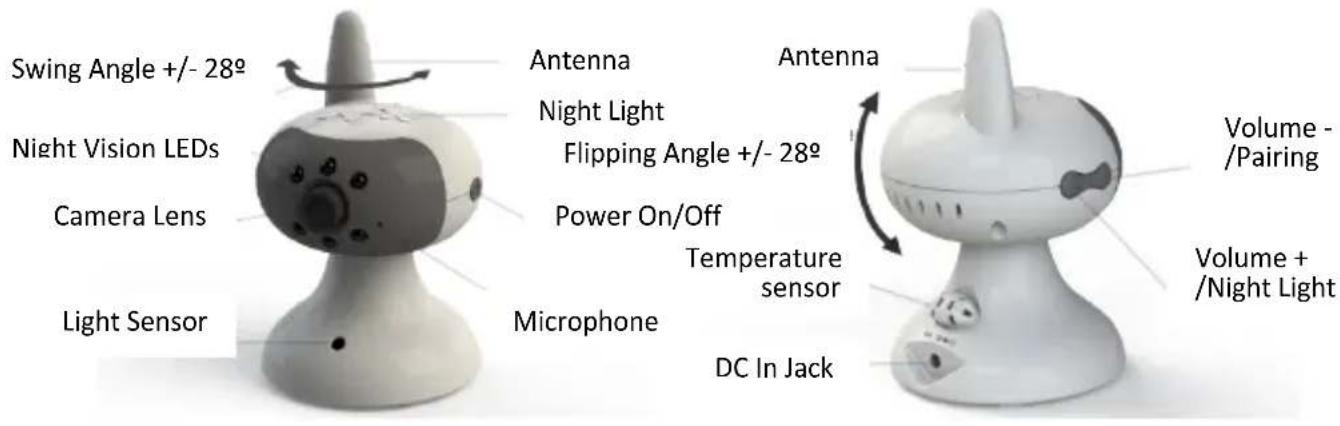

Overview of camera unit

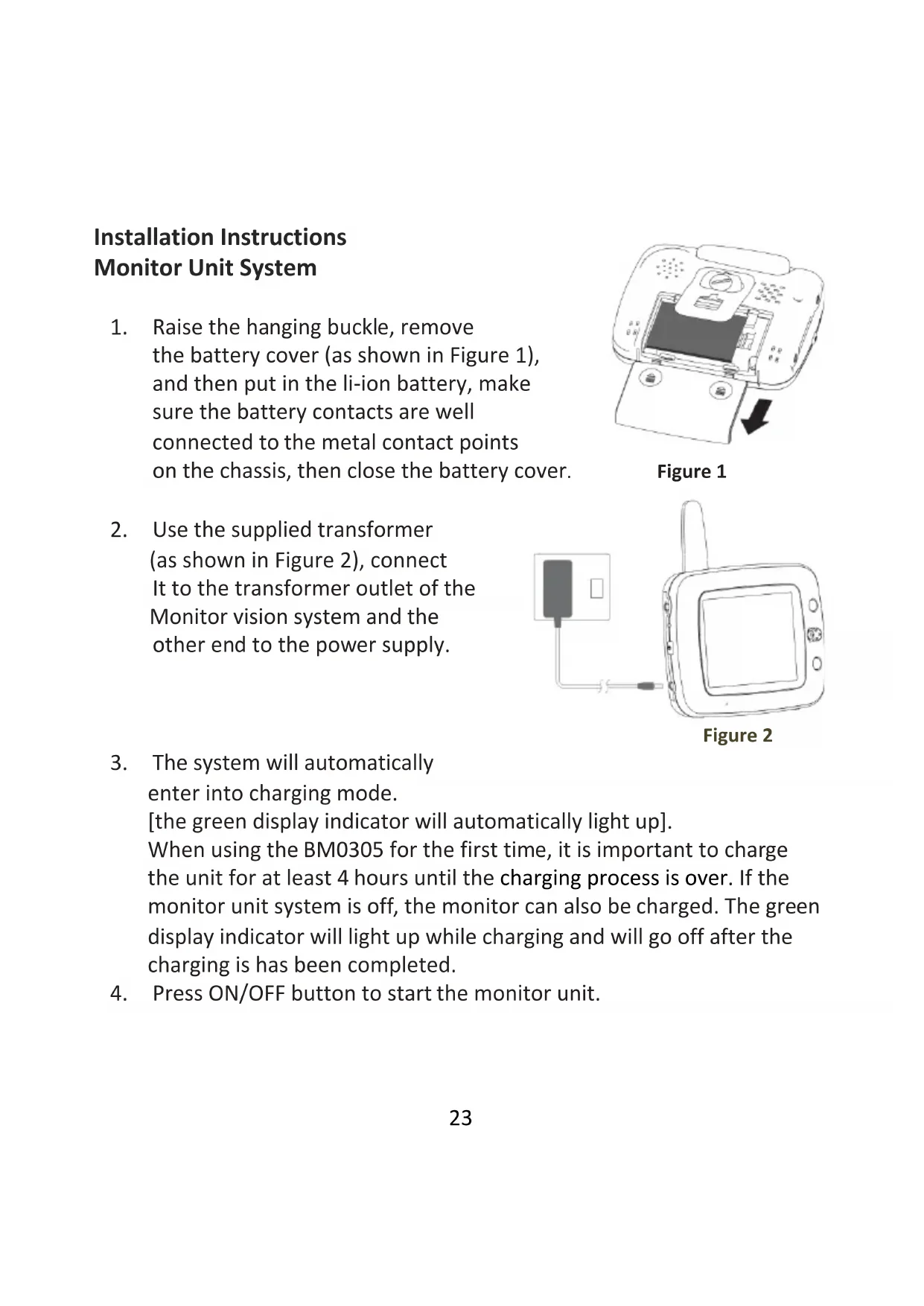

Installation Instructions Monitor Unit System

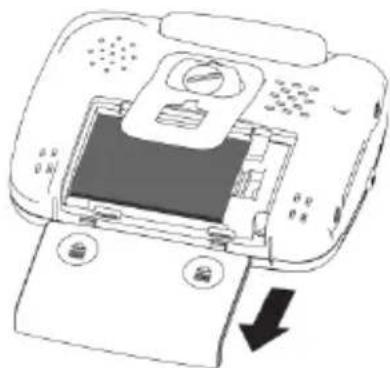

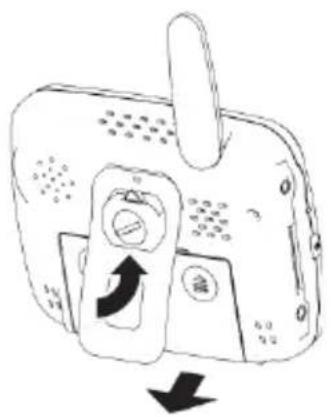

1. Raise the hanging buckle, remove the battery cover (as shown in Figure 1), and then put in the li-ion battery, make sure the battery contacts are well connected to the metal contact points on the chassis, then close the battery cover.

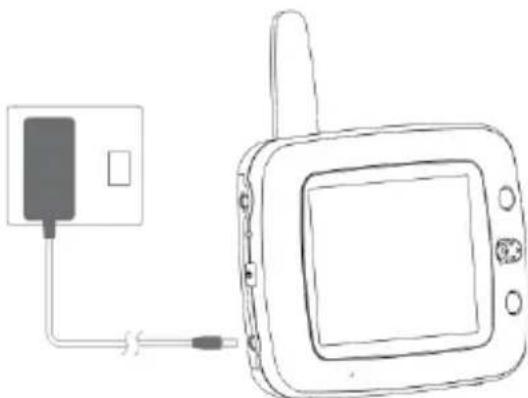

2. Use the supplied transformer (as shown in Figure 2), connect It to the transformer outlet of the Monitor vision system and the other end to the power supply.

Figure 1

Figure 2

1. The system will automatically

enter into charging mode.

[the green display indicator will automatically light up].

When using the BM0305 for the first time, it is important to charge the unit for at least 4 hours until the charging process is over. If the monitor unit system is off, the monitor can also be charged. The green display indicator will light up while charging and will go off after the charging is has been completed.

1. Press ON/OFF button to start the monitor unit.

Placement Type

Raise the hanging buckle (as shown in Figure 3) and then rotate the lock to fix it.

Installation Instructions Camera Unit System

1. Connect one end of the transformer to the camera unit system (as shown in Figure 4) and connect the other end of the transformer to the power supply.
2. Press ON/OFF button to start the camera unit system.

Figure3

Figure 4

Placement Type

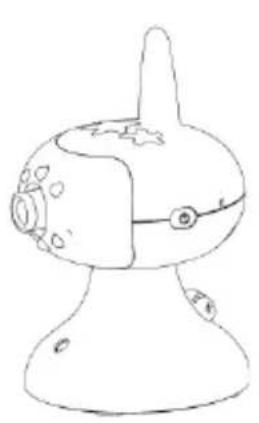

Stand Type:

The stand can be placed on 4 angles (i.e., front, rear, right and left), adjust the desired angle and position.

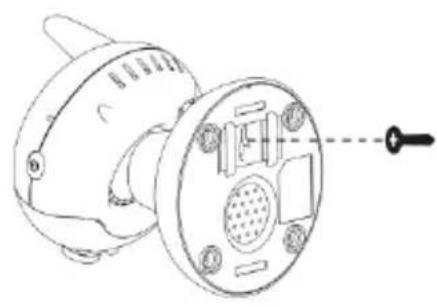

Wall Mount Type:

Fix a screw into the wall and leave a distance about 9mm away from the wall. Hang the camera unit system.

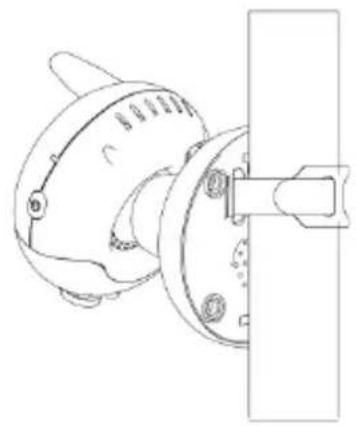

Magic Belt Type:

Put the magic belt through the camera unit system base and tie it to the cylinder.

(Note: it cannot be tied to the crib).

Stand Type

Magic Belt Type

Wall Mount Type

Installation Instruction

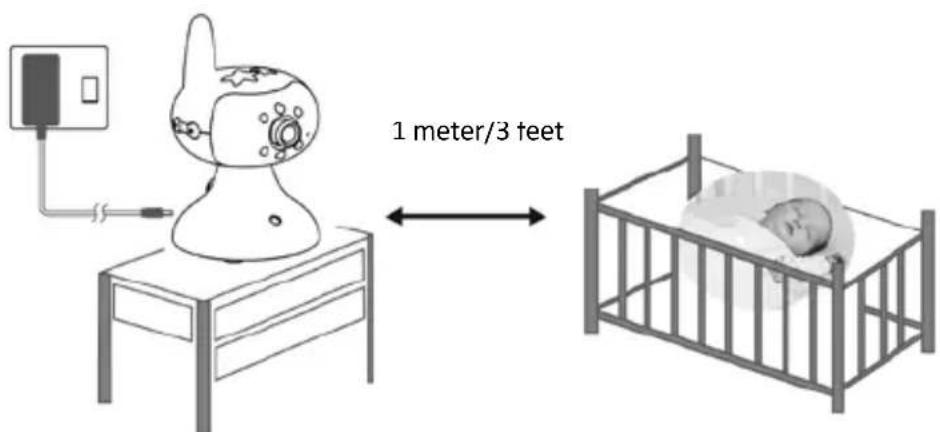

Regardless the stand type, wall mount type or magic belt type, it must be kept 1m away from the crib (as shown above).

[Note: Please keep the camera unit system, transformer and wires away from the children].

Technical Specifications

Monitor Unit Camera Unit
Display	3.45" TFT LCD Panel Resolution 240x320	Frequency	2.4GHz Wireless transmission
Frequency	2.4 GHz wireless transmission	Night version	6 IR LEDs
Signal rang	Up to 250 Meters in open area	Image sensor	Color CMOS sensor Power, Volume control, Pairing, Light on/off
Image sensor	Color CMOS sensor 2-Way Voice
Intercom	Transmission	Temperature	Built-in Temperature sensor
VOX	Built in microphone	Lullabies	Preset Lullabies
Microphone	NTSC/PAL	Mood light	Blue color
AV out	Support up to 4GB (not included)	Microphone	Built in Microphone
SD card	Feeding	Mounting	Velcro system or wall mount
Alert indicator	Low Battery	A/C Power	DC 6V 800mA
	Temperature signal range	Dimension	8.1X12.5x8.4cm
	Support 4 Cameras	Weight	130g
Expandability	Rechargeable	Operational	0 °C to 40 °C
Battery	Lithium battery
A/C Power	DC 6V 800mA
Dimension	12.1 x 9.2 x 3.7 cm
Weight	170g
Note: Specification Subject to change without notice

Operation Instructions

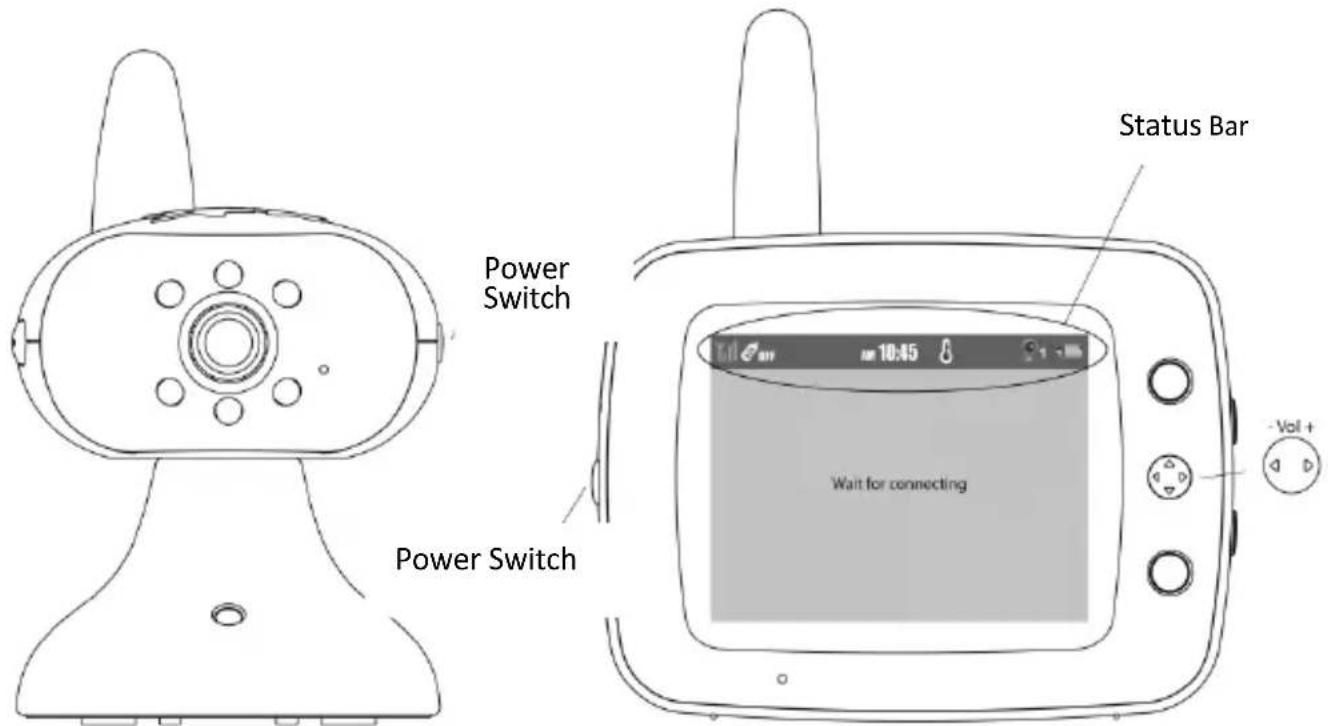

Power Switch

1. Press and hold three second the power switch [ ] to start the monitor unit system. The power indicator (green) will light up.
2. Start the camera unit system, press and hold three second the power switch [ ], The power indicator (green) will light up to indicate the unit is now on.
3. Once the monitor unit system is on, the iCore logo screen will appear and the system will automatically enter into monitoring status mode. The status bar as shown in Figure 6 will appear on the display screen.

Figure 5
Figure 6

Note: The Feeding alert option is set to OFF [ OFF ] as shown on the above picture (figure 6). The viewing camera Channel N° is set to [ ] as shown on the above (figure 6). If in the case Channel 1 does not appear, press the [ ] located on the side of the display screen to select Channel 1, The BM0305 is set to the above factory default settings.

1. To turn off the monitor unit system, simply press the ON/OFF button for approximately four seconds. To turn off the camera unit system, simply press the ON/OFF button for approximately two seconds.

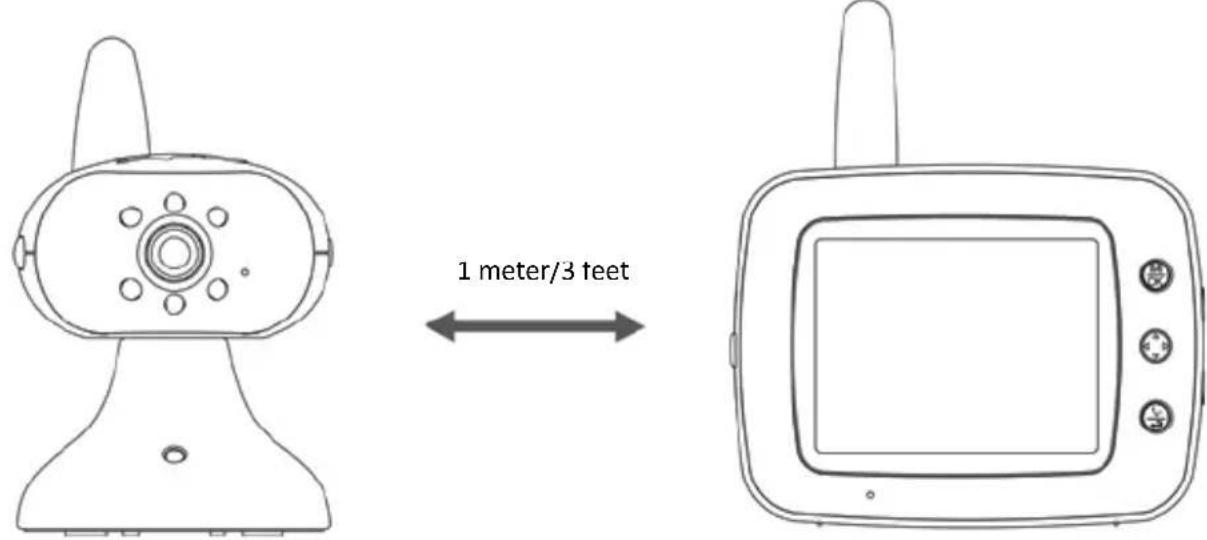

2. The monitor unit system should be placed at least 1m away from the camera unit system. In the case the Monitor and the camera are too close to each other, a "BeBe" sound will be heard. (The BM0305 is designed to perform normal situations as the camera and Monitor should be placed in 2 different rooms).

Figure 7

Volume Control

Push [ ] button located on the left side of the monitor unit to adjust the volume control.

Push on right to increase the volume. Push on left to decrease the volume. The display indicates the sound volume level.

Shooting/Recording

Under connecting between Parent unit and baby unit, Push [ ] button located on the left side of the monitor.

Push on DOWN to snap photo.

Push on UP to record video, Push on UP again to stop recording.

The display indicates the icon of shooting and recording.

To take photo or record video under Zoom in status ( see page 11 )

Memory card

• You cannot shoot or record without a SD card.
• It must be formatted before first use in other device.
• The SD card support up to 4GB in BM0305.
  The icon [100] will appear on status bar when memory card is full.

Talk Back Function

Press and hold the talk back function [ ] located at the left of the monitor unit. Speak to the microphone and release the talk back function button to receive the other side's response. Adjust the sound volume to an appropriate level.

Press the [ ] button located on the left side of the camera unit system to adjust the sound volume from the receiver.

Feeding Alert

Press the [ ] button located at the left of the monitor unit system. Select the desired time you wish the unit to buzz. The following options are available: from 30 minutes to 4 hours with intervals of 30 min. Press OFF to deactivate the Feeding alert. The monitor will automatically buzz once the time has elapsed.

Press any button on the monitor unit system to stop the alarm. If no button is pressed, the feeding alert will repeat for 3 times with an interval of 3 minutes.

Zoom In/Out

Press and hold the [ ] button located at the left of the monitor unit to magnify the icon [ ] will appear on the status bar. Push [ ] to set the appropriate position for monitoring, Press and hold three second the [ M ] button to lock the position and the icon [ ] will appear on the status. In this circumstance, you can snap photo or video recording.

Press and hold the [ ] button again to exit Zoom in.

View Video through TV

Connect a standard AV cable into the AV out socket on the side of the parent unit and into the AV input of the TV.

AV cable is an optional accessory (Not included).

Night Light/Night Vision

Press and hold [ ] button on the camera unit for approximately 3 seconds to On or Off the night light function.

The night vision function can sense the surrounding environment of the camera unit and automatically start the monitoring. The monitoring is available even under full darkness.

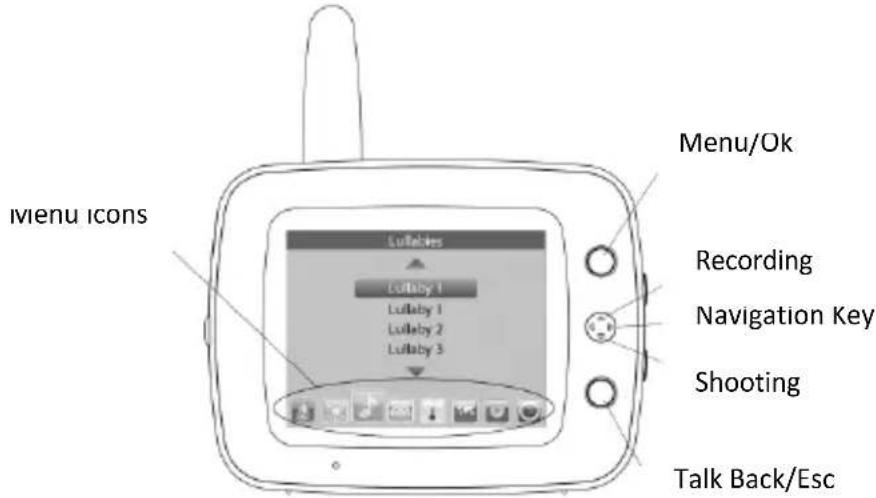

Operating Menu

Press [M] button to enter into the operation menu interface (as shown below):

Alert Ringtone [ ]

Press [M] button to enter into alert ringtone:

Low battery alert: Select ON/OFF

No network connection alert. Select ON/OFF

Screen-Display [ ]

Brightness Adjustment: press [M OK] button to select levels 1-5 to adjust the brightness.

LCD Sleep Mode: press [M OK ] button to set sleep time options such as Keep On, 10 seconds, 20 seconds, 30 seconds, 1 minute and 3 minutes.

Picture Mode: press [M OK] button to set the options, the standard mode can be used under normal ambient light in the room and the Vivid mode can be used if an indoor ambient lights is strong.

Lullabies [ ]

Press [ OK ] button to enter into the Lullabies menu to play 8 different lullabies. These can be played once, repeated, stopped or played in order. Once the lullaby starts to play, you can decrease the volume to 0 on the monitor so this way the lullaby will only play from the camera and where the baby is located.

Voice Sensor Detection [ ]

The sound sensor can detect the ambient sound volume around the camera unit. Push [ ] button to select the sound volume sensing degrees (low, medium and high or off).

The BM0305 has a built-in VOX function which after entering into the standby mode for energy saving, the monitor unit system will turn off the screen display. Meanwhile, the VOX function will automatically start to detect the ambient sound volume around the camera unit. If in the case the camera detects any sound, the monitor will automatically switch on and display the image. If VOX is set to [off] this function will be disabled.

Temperature [ ]

Press Scale to select Fahrenheit / Celsius. Press the min/max to set the temperature parameters. When the temperature reaches the max or mintemperatures, the monitor will automatically alert. To off the temperature control, simply select Alert Off.

Language [ ]

Enter into the language menu and push [ ] button to select the desired language.

SDBrowse[ ]

Press [ ] button to enter into play mode, Push [ ] button to start playback about current photograph or movie, the icons [ ] or [ ] will appear on the status bar.

The [ ] button located at the left of the monitor unit to delete the photograph display the image or highlight on screen.

To delete all files, press [M] button to enter into delete all file mode, Once deleted, photographs cannot be recovered.

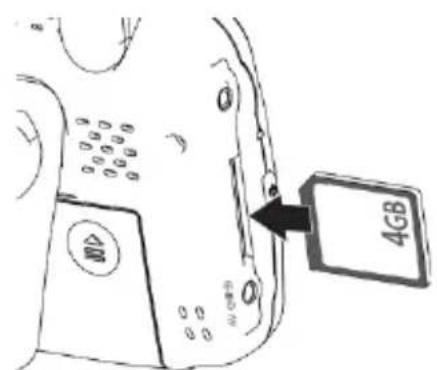

Insert the memory card

Holding the memory card as shown at right, slide it in until it clicks into place.

Note: Inserting memory cards upside down or Backwards could damage the camera or the card, check to be sure the card is in the correct orientation.

(SD card not included)

Time Set [O]

Press [M] button to high light the digital, Push [ ] button to set the date, month, year and time. Push [ ] button to adjust digital. Press [M] button to save and exit the time setting.

Pairing / Newly-added Camera unit System

Note: The monitor unit system and camera unit system have been paired when they are delivered from the factory. Under normal circumstances, it is not recommended to re-pair them.

The system can support up to 4 camera units. The operations for adding a camera unit system are as follows:

1. Turn off the monitor unit and the camera unit.
2. Press and hold [ ], meanwhile, press the ON/OFF button. The pairing list screen will appear as follows:

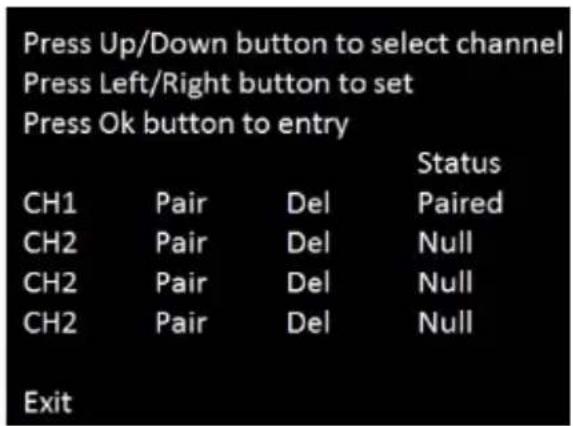

1. Press [ ] and [ ] buttons located at the right side of the camera unit at the same time for 2 seconds and release after the indicator lights up.

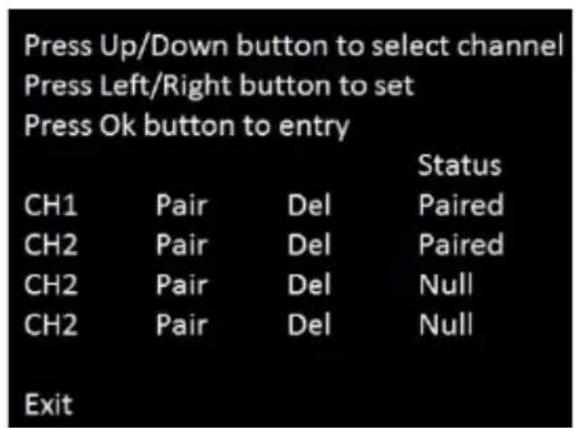

2. Push the [ ] button to select Ch2 and Pair, press [MOK] The following screen will appear:

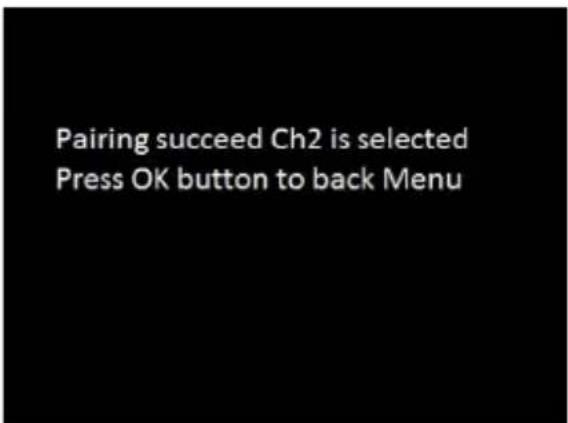

Press [ OK ] again, Ch2 Paired will appear in the monitor screen. This means that the CH2 has been successfully paired. See below picture:

To select the EXIT and press [ ] once more to return to the screen of the monitor unit.

1. Repeat steps 1-4 to pair Ch3 and Ch4.

Troubleshooting

If you are not getting any signal at all:

Make sure the camera and the monitor are turned on.
Make sure the power plugs are pushed all the way in.
Check that the channel on the camera and the monitor are set to the same number.

Recording or shooting does not work:

Insert SD card in SD card slot
Unlock the SD card

If you have seen the opening screen, but nothing appears afterwards.

Please check if your Camera unit is turned on. The green Power LED will light up and indicate the system is on.

Make sure the Camera unit and Monitor Unit are within the appropriate range of each other. For trouble shooting purpose, you should remove all the obstacles between the two devices. Try a shorter distance.

Please remove the battery and unplug the A/C adapter. Wait for 10 minutes.
Plug the A/C adapter back to the Monitor Unit and retry to power on the Monitor Unit.
If all above steps fail, you are advised to pair the Monitor Unit and Camera Unit.
Please following the steps mentioned in Pairing/New Added Camera Unit.

If you would like to return to the default settings, press and hold [ 12 ], meanwhile press on/off, and then press [M]. The setting will be restored.

FCC Statement

WARNING: Modifications not authorized by the manufacturer may void user's authority to operate this device.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio / TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference
2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment complies with FCC Radiation Exposure Limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body.

Declaration of Conformity

This device fulfils the requirements stipulated in the EU directive: 1999/5/EC directive. Conformity with the above mentioned directive is confirmed by the CE mark on the device.

To view the complete Declaration of Conformity, please refer to the free download available on our web site www.electronicaflamagas.com
