USER MANUAL Baby Kangoo RB203G Rimax

1. Important Notes 15
2. Overview of Baby Monitor 16
   3.Installation Instructions 17-19
3. Operating Instructions 20

Power Switch 20
Volume Control 21
Dialogue Function 21
Feeding Alert 21
Zoom In /Out 21
Night Light/ Night Vision 22
Operating Menu 22
Alert Ringtone 22
Screen Display 22
Lullabies 23
Sound Sensor Detection 23
Temperature [ ] 23
Language[ ] 23
Exit 23
Pairing/Newly-added Camcorder System 23
5.Troubleshooting 25
6. Statement of Compliance 25

User Manual

EN

Baby Kangoo RB203

1. Important Notes

Before using the Digital Vision Baby Monitor, please read this User Manual very carefully and keep it properly for future reference. Incorrect use of the product may cause damage to the product or cause body injuries.

• Please keep the transformer and wires away from the children.
• Please be careful to protect the transformer and wires to avoid tearing or man-made damage.
• Please avoid danger of suffocation caused by children playing with the wires.
• Please use the recommended transformer for the products, the use of other substandard transformers may lead to mechanical damage.
• Please ensure that the transformer voltage rating matches the requirements of relevant countries and regions.
• Do not put the monitor into the bedding, drawer, or cover it with a cloth.
• Do not wet the monitor or immerse it into water or other liquids.
• Do not place the monitor outdoors or at open space, or expose it to hot places such as heaters, stove, etc..
• Do not dismount the unit. This can cause damage to the internal parts and will automatically invalidate the warranty.

User Manual

EN

Baby Kangoo RB203

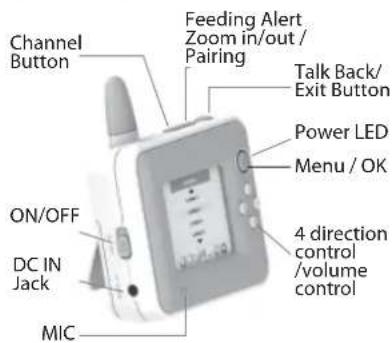

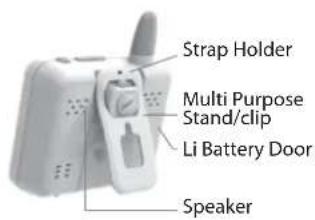

2. Overview of monitor unit

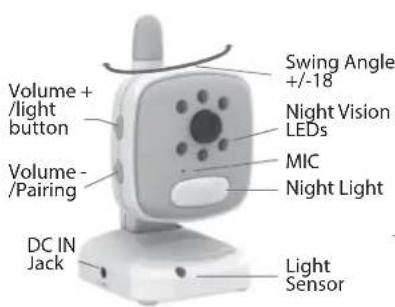

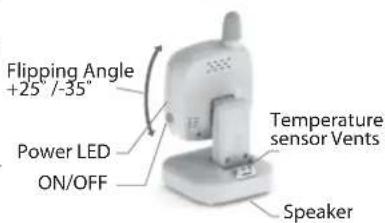

Overview of camera unit

User Manual

EN

Baby Kangoo RB203

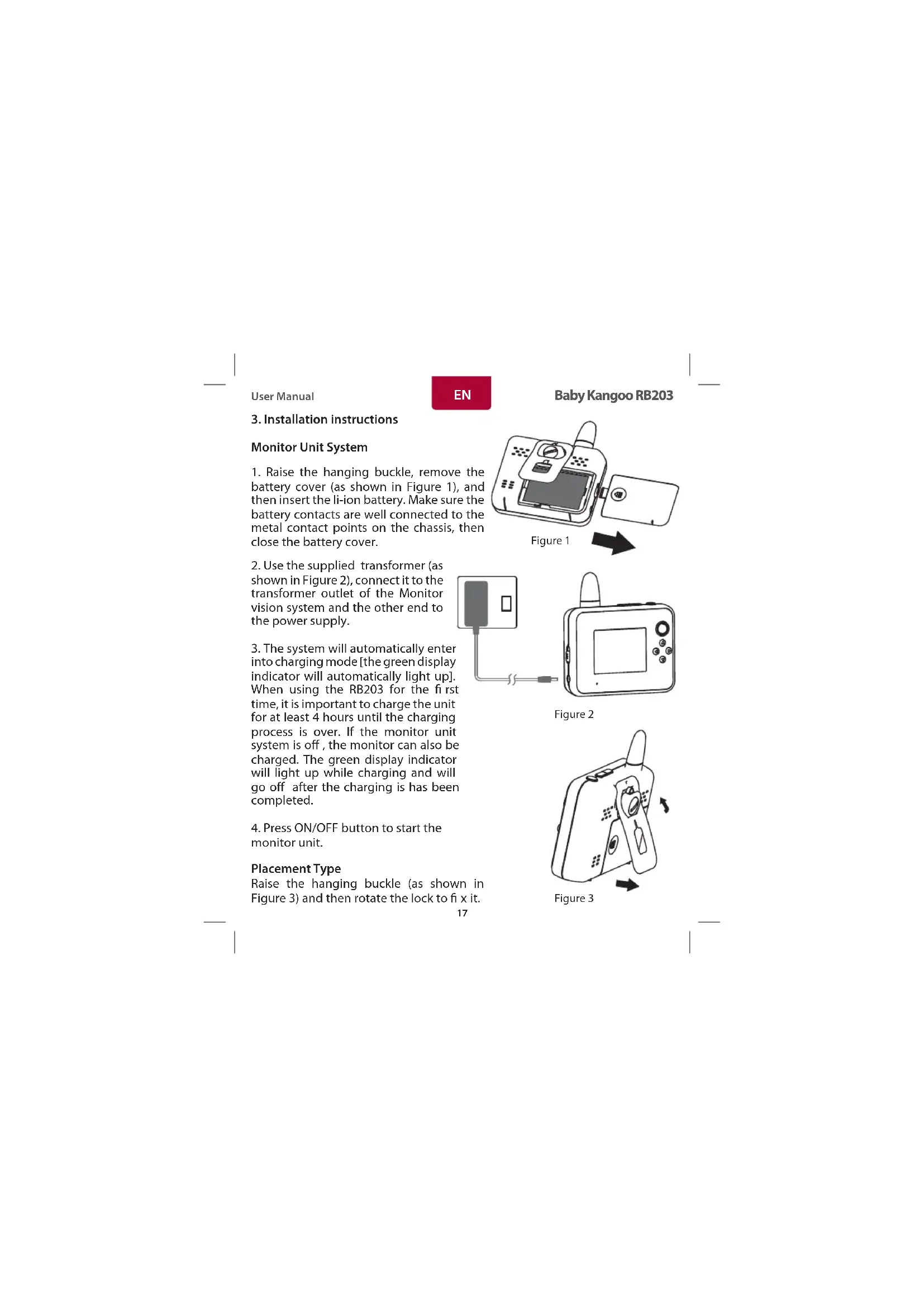

3. Installation instructions

Monitor Unit System

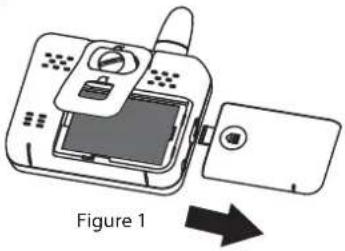

1. Raise the hanging buckle, remove the battery cover (as shown in Figure 1), and then insert the li-ion battery. Make sure the battery contacts are well connected to the metal contact points on the chassis, then close the battery cover.
2. Use the supplied transformer (as shown in Figure 2), connect it to the transformer outlet of the Monitor vision system and the other end to the power supply.
3. The system will automatically enter into charging mode [the green display indicator will automatically light up]. When using the RB203 for the first time, it is important to charge the unit for at least 4 hours until the charging process is over. If the monitor unit system is off, the monitor can also be charged. The green display indicator will light up while charging and will go off after the charging is has been completed.
4. Press ON/OFF button to start the monitor unit.

Placement Type

Raise the hanging buckle (as shown in Figure 3) and then rotate the lock to fi x it.

Figure 2
Figure 3

User Manual

EN

Baby Kangoo RB203

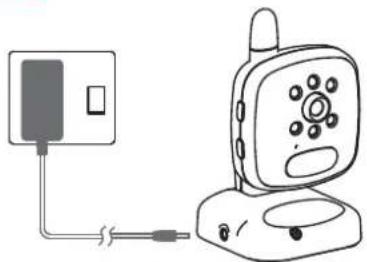

Camera Unit System

1. Connect one end of the transformer to the camera unit system (as shown in Figure 4) and connect the other end of the transformer to the power supply.
2. Press ON/OFF button to start the camera unit system.

Figure 4

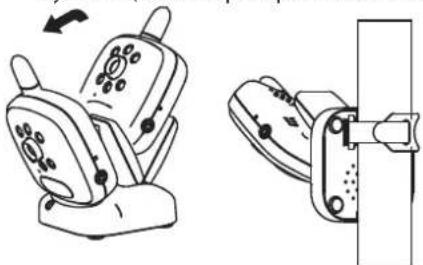

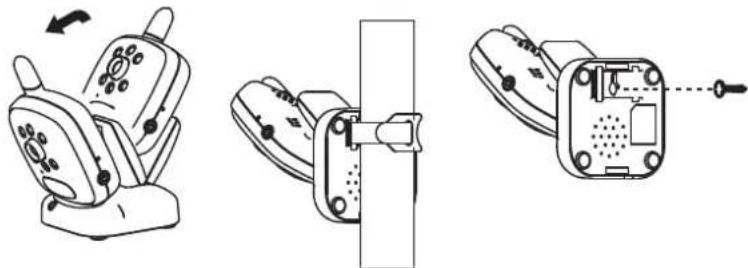

Placement Type

Stand Type: The stand can be placed on 4 angles (i.e., front, rear, right and left). adjust the desired angle and position.

Wall Mount Type: Fix a screw into the wall and leave a distance of about 8-9 mm away from the wall. Hang the camera unit system.

Velcro Type: Put the velcro belt through the camera unit system base and tie it to the cylinder (Note: it cannot be tied to the crib).

Stand type Velcro belt type Wall mount type

Regardless the stand type, wall mount type or magic belt type, it must be kept 1m away from the crib (as shown above).

(Note: Please keep the camcorder system, transformer and wires away from the children).

Technical Specifications

Monitor Unit Camera Unit
Display 2.4" Panel Resolution 240x320 Frequency 24 GHz Wireless transmission 6 IR LEDs		transmission
Frequency 2.4 GHz wireless transmission Night verson 6 IR LEDs
Signal range Up to 300 Meters in open area Image sensor Color CMOS sensor		sensor Color CMOS sensor
Image sensor Color CMOS sensor Switches Power, Volume control		Pairing, Light on/off
Intercom VOX	2-Way Voice Transmission	Temperature
Microphone	Built in microphone	Lullabies
Alert indicator	Feeding Low Battery Temperature signal range	Mood light
Expandability	Support 4 Cameras	Microphone
Battery	Rechargeable Lithium battery	Mounting:
A/C Power	DC 6V 800 mA	A/C Power: DC 6V 800 mA
Dimension 9.7 x 10.4 x 3.8 cm Dimension		7.0 x 12.8 x 7.2 cm
Weight 137 g	Weight	120 g

• Specifications subject to change without notice.

User Manual

Baby Kangoo RB203

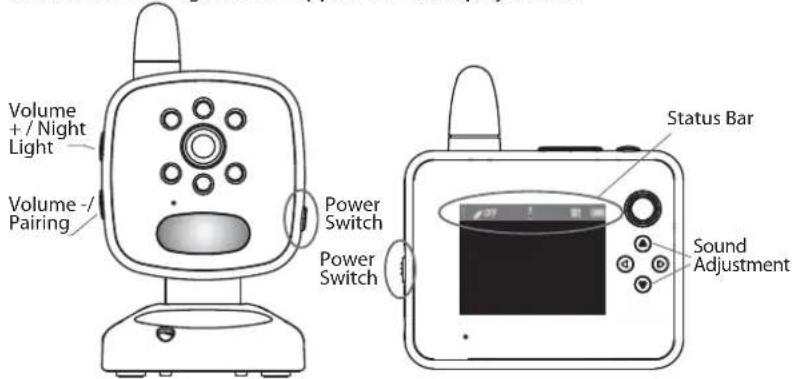

4. Operation Instructions Power Switch

1. Press the power switch ON/OFF to start the monitor unit system. The power indicator (green) will light up.
2. Start the camera unit system, press the power switch . The power indicator (green) will light up to indicate the unit is now on.
3. Once the monitor unit system is on, the Rimax logo screen will appear and the system will automatically enter into monitoring status mode. The status bar as shown in Figure 6 will appear on the display screen.

Figure 5 Figure 6

Note: The Feeding alert option is set to OFF [OFF] as shown on the above picture (fi gure 6). The viewing camera Channel No is set to [ ] as shown on the above (fi gure 6). If in the case Channel 1 does not appear, press the located on the top of the display screen to select Channel 1. The RB203 is set to the above factory default settings.

1. To turn off the monitor unit system, simply press the ON/OFF button. To turn off the camera unit system, simply press the ON/OFF button for approximately two seconds.

User Manual

Baby Kangoo RB203

1. The monitor unit system should be placed at least 1m away from the camera unit system. In the case the Monitor and the camera are too close to each other, a "BeBe" sound will be heard. (The BM0903 is designed to perform normal situations as the camera and Monitor should be placed in 2 different rooms

Figure 7

Volume Control

Press [O] button located on the left side of the monitor unit to adjust the volume control.

Press [O] to increase the volume. Press [O] to decrease the volume. The display indicates the sound volume level.

Talk back Function

Press and hold the talk back function located at the top of the monitor unit. Speak to the microphone and release the talk back function button to receive the other side's response. Adjust the sound volume to an appropriate level. Press the [ ] button located on the left side of the camera unit system to adjust the sound volume from the receiver.

Feeding Alert

Press the [ ] button located at the top of the monitor unit system. Select the desired time you wish the unit to buzz. The following options are available: from 30 minutes to 4 hours with intervals of 30min . Press OFF to deactivate the Feeding alert. The monitor will automatically buzz once the time has elapsed. Press any button on the monitor unit system to stop the alarm. If no button is pressed, the feeding alert will repeat for 3 times with an interval of 3 minutes.

Zoom In/Out

Press and hold the [ ] button located at the top of the monitor unit to expand the image. [ ] will appear on the status bar. Press [ ] to set the appropriate position for monitoring.

User Manual

Baby Kangoo RB203

Night Light/Night Vision

Press and hold [0] button on the camera unit for approximately 3 seconds to On or Off the night light function. The night vision function can sense the surrounding environment of the camera unit and automatically start the monitoring. The monitoring is available even under full darkness.

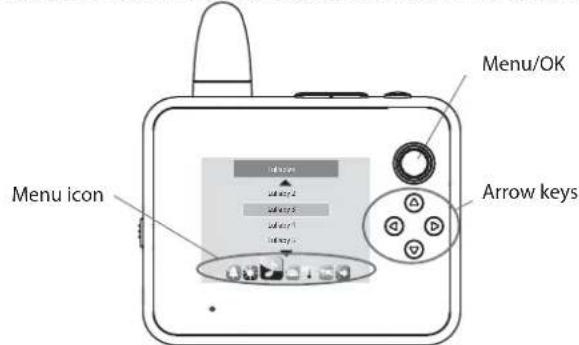

Operating Menu

Press [O] button to enter into the operation menu interface (as shown below):

Alert Ringtone [ ]

Press [O] to enter into alert ringtone:

• Low battery alert: Select ON/OFF

• No network connection alert. Select ON/OFF

Screen Display [ ]

• Brightness Adjustment: press [O] button and select [3]. Press [O] button again. You can choose 1-5 to adjust the brightness.
• LCD Sleep Mode: press [O] button to set sleep time options such as Keep On, 10 seconds, 30 seconds, 1 minute and 3 minutes

The RB203 has a built-in VOX function which after entering into the standby mode for energy saving, the monitor unit system will turn off the screen display. Meanwhile, the VOX function will automatically start to detect the ambient sound volume around the camera unit. If in the case the camera detects any sound, the monitor will automatically switch on and display the image. If VOX is set to [off] this function will be disabled.

User Manual

Baby Kangoo RB203

Lullabies [ ]

Press [O] and select the [icon to access the menu of lullabies to play 8 different songs. These can be played once, repeated, stopped or played in order. Once the lullaby starts to play, you can decrease the volume to 0 on the monitor so this way the lullaby will only play from the camera and where the baby is located.

Voice Sensor Detection [ ]

The sound sensor can detect the ambient sound volume around the camera unit.

Press [O] to select the sound volume sensing degrees (low, medium and high / or off).

Temperature[ ]

Press Scale to select Fahrenheit / Celsius. Press the min/max to set the temperature parameters. When the temperature reaches the max or min temperatures, the monitor will automatically alert. To off the temperature control, simply select Alert Off.

Language [ ]

Enter into the language menu and press [O] to select the desired language.

Exit

Press [ ] Exit to come out from the main menu.

Press [O] to select Yes or No to exit.

Press [O] to directly exit and return to the monitoring screen.

Pairing/Newly-added Camera unit System

Note: The monitor unit system and camera unit system have been paired when they are delivered from the factory. Under normal circumstances, it is not recommended to re-pair them.

The system can support up to 4 camera units. The operations for adding a camera unit system are as follows:

1. Turn off the monitor unit and the camera unit.

User Manual

Baby Kangoo RB203

1. Press and hold [O] meanwhile, push the ON/OFF button. The pairing list screen will appear as follows:

1. Press [O] and [O] buttons located at the right side of the camera unit at the same time for 2 seconds and release after the indicator lights up.
2. Press the arrow keys to select Ch2 and Pair, press [M], the following screen will appear:

Press again, Ch2 Paired will appear in the monitor screen. This means that the CH2 has been successfully paired. See below picture:

Press EXIT and press [M] once more to return to the screen of the monitor unit.

1. Repeat steps 1-4 to pair Ch3 and Ch4.

User Manual

Baby Kangoo RB203

5. Troubleshooting

If you are not getting any signal at all:

• Make sure the camera and the monitor are turned on.
• Make sure the power plugs are pushed all the way in.
• Check that the channel on the camera and the monitor are set to the same number.

If you have seen the opening screen, but nothing appears afterwards.

• Please check if your Camera unit is turned on. The green Power LED will light up and indicate the system is on.
• Make sure the Camera unit and Monitor Unit are within the appropriate range of each other. For trouble shooting purpose, you should remove all the obstacles between the two devices. Try a shorter distance.
• Please remove the battery and unplug the A/C adapter. Wait for 10 minutes.
• Plug the A/C adapter back to the Monitor Unit and retry to power on the Monitor Unit.

If all above steps fail, you are advised to pair the Monitor Unit and Camera Unit.

• Please following the steps mentioned in Pairing/New Added Camera Unit.
• If you would like to return to the default settings, press and hold [O], meanwhile push on/off, and then press [O]. The setting will be restored.

6. Statement of Compliance

Flamagas S.A. hereby certifi es that the model Rimax Baby Kangoo RB203 complies with the basic requisites and other requirements of Directive 1999/5/EC.

A full copy of the statement of compliance can be found at:

www.electronicaflamagas.com
