USER MANUAL ISCD31 Ices

PRODUIT LASER DE CLASSE 1

E C R A N L C D TEMOIN D'ALIMENTATION TEMOIN FM STEREO

MODE OPERATOIRE DE LA RADIO

RECEPTION RADIO FM / FM STEREO

WAARSCHUWING:GEVAAR OP SCHOKKEN,NIET OPENEN

WAARSCHUWING LABEL TER KENNISGEVING VAN

STRALING

1. WARNING : Please refer the information on exterior bottom enclosure for electrical and safety information before installing or operating the apparatus.
2. WARNING : To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall not be placed on apparatus.
3. WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.
4. WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable.

1. Invisible laser radiation when open and interlocks defeated. Avoid exposure to beam of laser.

1. Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
2. No naked flame sources, such as lighted candles, should be placed on the apparatus.
3. Attention should be drawn to environmental aspects of battery disposal.
4. Use of the apparatus in moderate climates.
5. The rating and marking information are located at the bottom of the unit.
6. Excessive sound pressure from earphone and headphones can cause hearing loss.
7. The mains plug of unit should be obstructed or should be easily accessed during intended use.
8. To be completely disconnect the power input, the mains plug of apparatus shall be disconnected from the mains.
9. Warning: The excessive sound pressure from earphones and headphones can cause hearing loss.

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type

WARNING

TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

LIGHTING FLASH WITH ARROWHEAD SYMBOL - within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

EXCLAMATION POINT - within an equilateral triangle, is used to indicate that a specific component shall be replaced only by the component specified in that documentation for safety reason.

The following label has been affixed to the unit, listing the proper procedure for working with the laser beam:

CLASS 1 LASER PRODUCT LABEL -

This label is attached to the place as illustrated to inform that the apparatus contains a laser component.

WARNING LABEL INFORMING OF RADIATION -

This label is placed inside the unit. As shown in the illustration. To warn against further measures on the unit. The equipment contains a laser radiating laser rays according to the limit of laser product of class 1.

SAFETY INSTRUCTIONS

1. READ INSTRUCTIONS - All the safety and operating instructions should be read before the appliance is operated.
2. RETAIN INSTRUCTIONS - The safety and operating instruction should be retained for future reference.
3. HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to.
4. FOLLOW INSTRUCTIONS - All operating instructions should be followed.
5. WATER AND MOISTURE - The appliance should not be used near water, for example, near a bathtub, washbowl, .tnemesab tew a ni ro loop gnimmiw s,byrdnual ,knis nehcti
6. VENTILATION - The appliance should be situated so that its location or position does not interfere with its proper ventilation. Do not place on bed, sofa, rug or similar surface that may block the ventilation openings, in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
7. HEAT - The appliance should be situated away from heat sources such as radiators, stoves, or other appliances (including amplifiers) that produce heat.
8. POWER SOURCE - The appliance should be connected to power supply only of the type described in the operating instructions or as marked on the appliance.
9. POWER CORD PROTECTION - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them.
10. POWER LINES - An outdoor antenna should be located away from power lines.
11. OBJECT and LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
12. ESD WARNING - The display does not function properly or no reaction to operation of any the control may due to the electrostatic discharge. Switch off and unplug the set. Reconnect after a few seconds.
13. DAMAGE REQUIRING SERVICE - The appliance should be serviced by qualified service personnel when:

a. The power-supply cord or plug has been damaged.
b. Objects have fallen into, or liquid has been spilled into the appliance enclosure.
c. The appliance has been exposed to rain.
d. The appliance has been dropped, or the enclosure damaged.
e. The appliance does not appear to operate normally.

1. SERVICING - The user should not attempt to service the appliance beyond that described in the user operating instructions. All other servicing should be referred to qualified service personnel.

Notes:

a. Dirty or scratched CD may cause a skipping problem. Clean or replace the CD.
b. If an error display or malfunction occurs, disconnect the AC cord and remove all the batteries. Then turn the power back on.

BEFORE OPERATION

Notes: CONCERNING COMPACT DISCS.

Since dirty, damaged or warped discs may damage the appliance, care should be taken of the followings items:

a. Usable compact discs. Use only compact disc with the mark shown below.
b. CD compact disc only with digital audio signals.

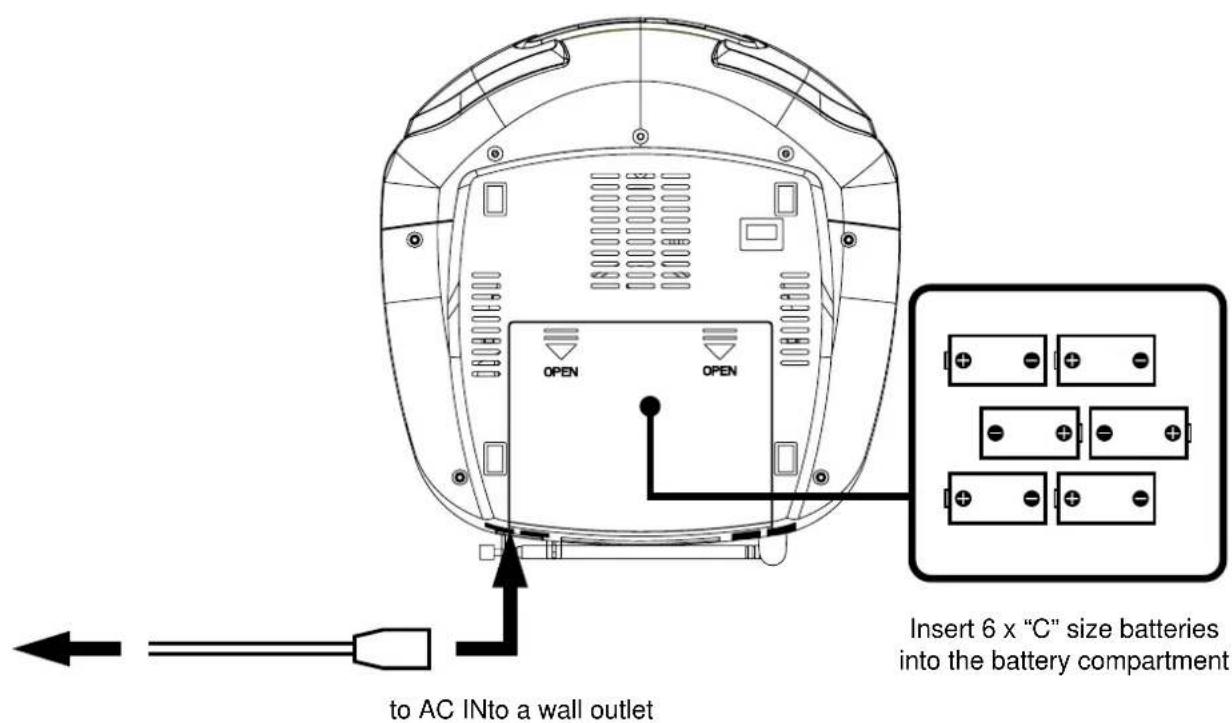

POWER SOURCES

AC POWER

You can power your portable system by plugging the detachable AC power cord into the AC inlet at the back of the unit and into a wall AC power outlet. Check that the rated voltage of your appliance matches your local voltage. Make sure that the AC power cord is fully inserted into the appliance.

BATTERY POWER

Insert 6 × "C" size batteries into the battery compartment. Be sure that the batteries are inserted correctly to avoid damage to the appliance. Always remove the batteries when appliance will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your set.

Notes:

• Use batteries of the same type. Never use different types of batteries together.
• To use the appliance with batteries, disconnect the AC power cord from it.

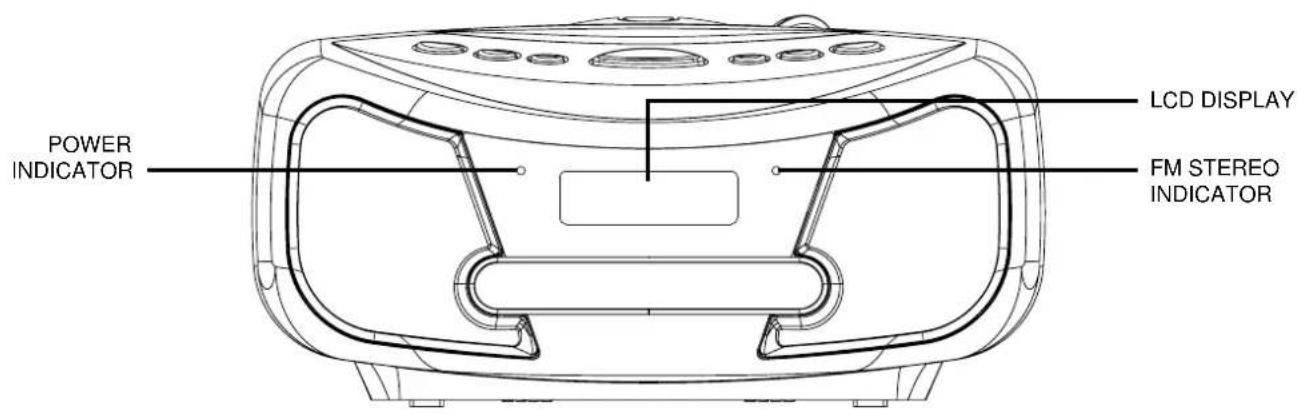

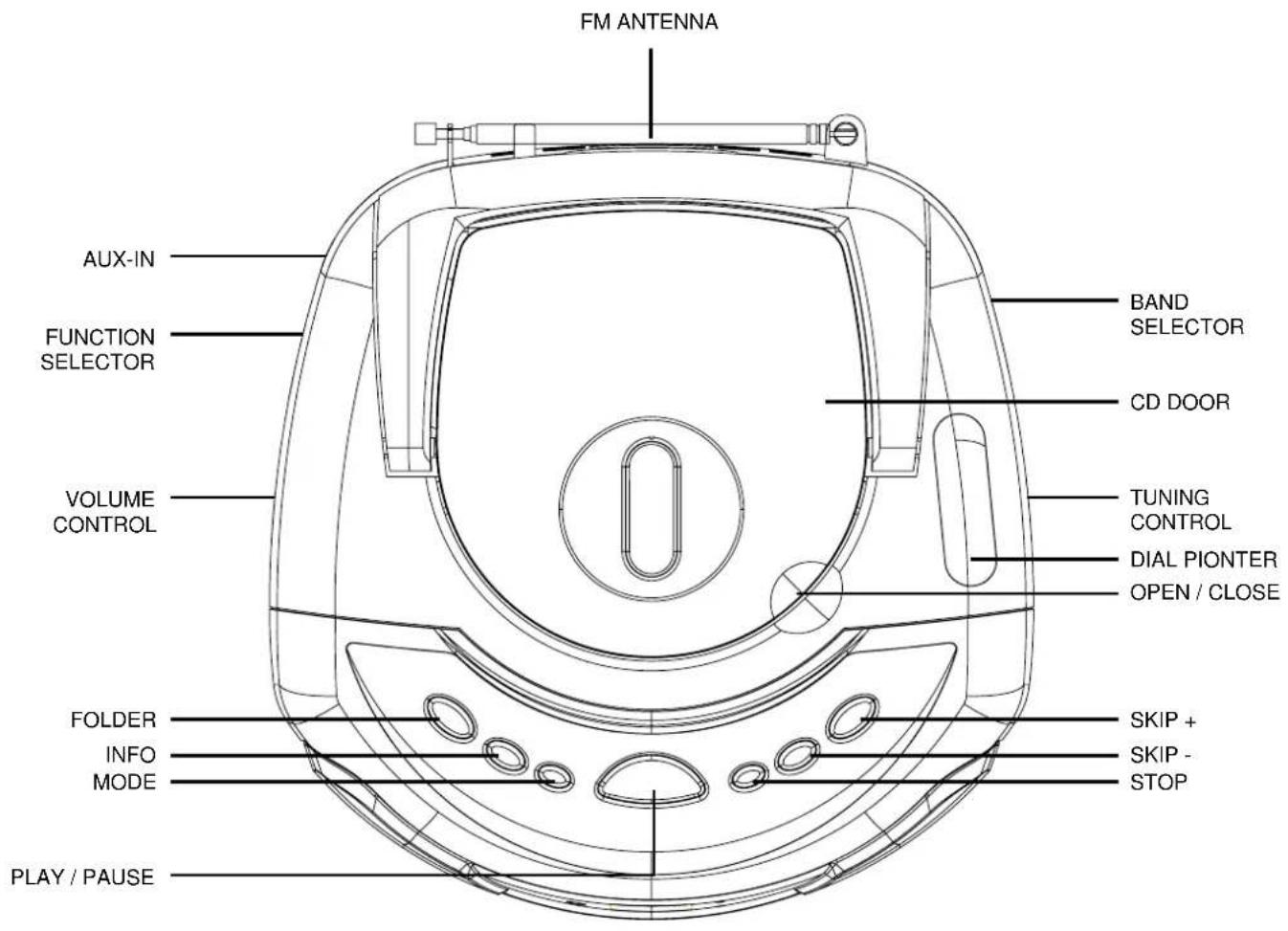

LOCATION OF CONTROL

RADIO OPERATION

GENERAL OPERATION

1. Set the "FUNCTION" selector to "RADIO" mode.
2. Select desired band by using the "BAND" selector.
3. Adjust radio frequency to your desired station by using the "TUNING" control.
4. Adjust the "VOLUME" control to the desired level.

FM / FM-STEREO RECEPTION

• Set the "BAND" selector to FM mode for MONO reception.
• Set the "BAND" selector to FM ST. mode for FM STEREO reception. The Stereo indicator light up to show FM ST. mode.

FOR BETTER RECEPTION

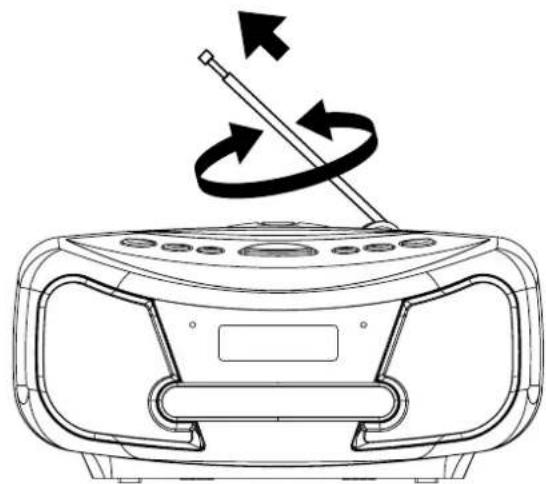

• Reorient the antenna for better reception.

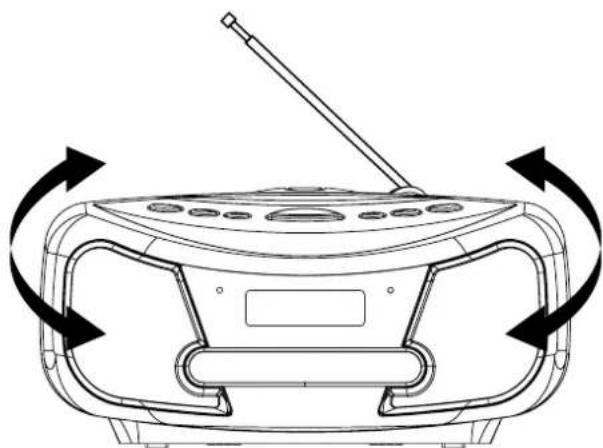

• Reorient the appliance to get better AM reception.

CD / MP3 OPERATION

GENERAL OPERATION

PLAY/PAUSE Pads to start playing CD / MP3 disc.

Press again to stop playing CD / MP3 operation temporarily.

Press again to resume playback.

SKIP+&

Press to go to the next track or back to the previous track.

SKIP - Press and hold while playing until you find the point of the sound.

STOP Press to stop all CD / MP3 operation.

PLAYBACK

1. Set the "FUNCTION" selector to "CD / MP3" mode.
2. Open the CD door and place a CD / MP3 disc with the labe I up in the CD compartment.
3. Close the CD door.
4. Focus search is performed if disc is inside.

For CD disc - Total number of tracks is read and appears on the display.

For MP3 disc - "MP3" appears on the display.

1. Press the "PLAY / PAUSE" button to start playing CD / MP3 disc.
2. Adjust the "VOLUME" control to the desired level.
3. Press the "PLAY / PAUSE" button again when you want to stop playback temporarily.
4. Press the "STOP" button when finished.

PROGRAM

Up to 20 tracks of CD disk, 99 tracks of MP3 disc can be programmed for disc play in any order. Be sure to press the "STOP" button before use.

1. Press the "MODE" button, the display will show "P01" and "MEMORY".
2. Press the "FOLDER" button to select folder. (For MP3 only, folder select function can only operate if disc store with at least 2 directories / files.)
3. Select desired track by using the "SKIP +" or "SKIP -" button.
4. Press the "MODE" button again to confirm desired track into the program memory.
5. Repeat step 2 to 4 to enter additional tracks into the program memory.
6. When all the desired tracks have programmed. Press the "PLAY / PAUSE" button to play the disc in the order you have programmed.
7. Press the "STOP" button twice to terminate programmed playback.

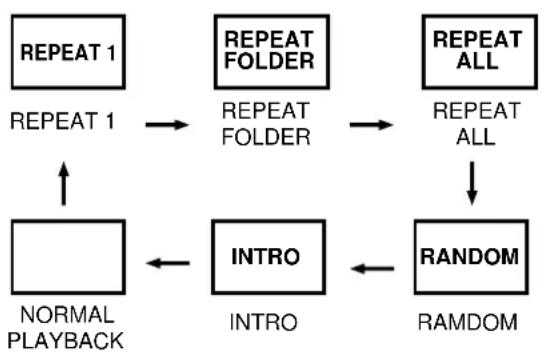

MODE

Press the "MODE" button during playing CD / MP3 disc, each press switches the repeat function as follows:

1-REPEAT 1
2 - REPEAT FOLDER ( For MP3 only )
3 - REPEAT ALL
4-RANDOM
5- INTRO
6-NORMAL PLAYBACK

AUX IN

Set the "FUNCTION" selector to "RADIO" or "CD / MP3" mode to listen to external audio devices connected through the 3.5mm Auxiliary Stereo Line-In jack.

1. Use a 3.5mm Male-to-Male Stereo cable to connect any external audio device with a 3.5mm Headphone to the AUX IN jack on the left side of the stereo.
2. Start playback on the external audio device. Adjust the volume on the audio device (do not set the volume too high to avoid distortion). You may also adjust the volume on the appliance.
3. To control playback function, use the controls provided by the external audio device.

If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)
