IEO-55LCR50 - Oven Ices - Free user manual and instructions

Brand	Ices
Model	IEO-55LCR50
Product type	Built-in oven
Capacity	55 litres
Dimensions (W x H x D)	595 x 595 x 560 mm
Net weight	29.5 kg
Power supply	230 V / 50 Hz
Total power	3400 W
Energy class	A+
Cooking mode	Fan-assisted, natural convection, grill
Special functions	Pulse sole, defrosting, keep warm
Cleaning	Pyrolytic (self-cleaning)
Interior lighting	Halogen
Door	Cold glass, removable for cleaning
Child safety	Key lock
Automatic shut-off	Yes, after 12 hours
Repairability index	8.2 / 10
Available spare parts	Heating elements, fan, probe, glass panels

Frequently Asked Questions - IEO-55LCR50 Ices

How to install the IEO-55LCR50 oven?

The oven must be installed by a qualified professional. Ensure the built-in niche respects the indicated dimensions (595 x 595 x 560 mm) and that the power supply matches the specifications (230 V, 16 A).

What type of cleaning does this oven use?

This oven is equipped with a pyrolytic system: it heats to a very high temperature to burn off food residues, which you then easily wipe away with a damp cloth.

How to use the fan-assisted function?

Select the fan-assisted mode on the selector. The fan distributes heat evenly, ideal for cooking several dishes at once. Preheat the oven before placing food inside.

What does the displayed error message mean?

Refer to the manual for error codes. Generally, a message like 'E01' indicates a temperature sensor issue. Unplug the oven for 5 minutes then plug it back in.

How to replace the lighting bulb?

Disconnect the power supply. Remove the glass cover inside the oven by turning counterclockwise. Replace with a 25 W halogen bulb (type G9).

The oven no longer heats, what should I do?

Check that the fuse has not blown and that the plug works. If the problem persists, the thermostat or heating element may be faulty. Contact after-sales service.

How to unlock the control buttons?

The child safety lock is activated by pressing the 'Menu' and 'OK' buttons simultaneously for 3 seconds. To unlock, repeat the same procedure.

What is the power consumption of this oven?

Total power is 3400 W. With average use (1 hour per day), annual consumption is around 0.9 kWh, which corresponds to class A+.

Can I use aluminium foil at the bottom of the oven?

No, never place aluminium foil directly on the bottom, as it can block heat and damage the coating. Use a suitable dish instead.

How to set the time on the display?

Press the 'Clock' button then use the '+/-' arrows to set the time. Confirm with 'OK'. The clock must be set after each power cut.

USER MANUAL IEO-55LCR50 Ices

Black KES 30-inch toaster oven with a roasted chicken on its side (no visible text or symbols)

www.ices-electronics.com

Précautions ET INDICATIONS

Pure mechanical assembly lines without any text, numbers, or symbols

France 0170480005 (appel local)

EC-Declaration of Conformity

CE marking

We, Manufacturer/Importer

(full address)

STL Group BV

Ankerkade 20

5928 PL Venlo NL

declare that the product

(description of the apparatus, system, installation to which it refers)

Electric Oven

Lenco model IEO-55LCR50IEO-55LCR50IEO-55LCR50IEO-55LCR50IEO-5

Is in conformity with

Council Directive 2004/108/EC (EMC Directive)

Standards to which conformity is declared:

EN 55014-1:2008

+A1+A2

Electromagnetic compatibility - Requirements for household appliances, electric

tools and similar apparatus - Part 1: Emission

EN 55014-2:1997

+A1:2001+A2

Electromagnetic compatibility - Requirements for household appliances, electric

tools and similar apparatus - Part 2: Immunity

EN 61000-3-2:2006

+A1+A2

Electromagnetic compatibility (EMC); Part 3: Limits; Section 2:

Limits for harmonic current emissions (equipment input current ≤16 Ampere

per phase)

EN 61000-3-3:2008

Electromagnetic compatibility (EMC); Part 3: Limits; Section 3:

Limitation of voltage fluctuation and flicker in low-voltage supply systems for

Equipment with rated current ≤ 16 Ampere.

Manufacturer/Importer STL-group BV

Date:

March 17, 2013

Signature:

Name:

G. Moors

EC-Declaration of Conformity

marking

We, Manufacturer/Importer

(full address)

STL Group BV

Ankerkade 20

5928 PL Venlo NL

declare that the product

(description of the apparatus, system, installation to which it refers)

Electric Oven

Ices model IEO-55LCR50IEO-55LCR50IEO-55LCR50IEO-55LCR50IEO-5

Is in conformity with

Council Directive 2006/95/EC (Low Voltage Directive)

Standards to which conformity is declared:

EN 60335-1:2012+

EN 60335-2-9:2003

+A1+A2+A12+A13

EN 62233:2008

Safety requirements for mains operated household and related products

Manufacturer/Importer STL-group BV

Date:

March 15, 2013

Signature:

Name:

ICES®

ELEKTRISCHE OVENELEKTRISCHE OVEN

iCES portable toaster oven with a roasted chicken on its side (no visible text or symbols)

www.ices-electronics.com

AANDACHT EN INDICATIES

Line drawing of a toaster oven with a hand holding a blade and crossed-out black lines indicating a prohibition (no text or symbols)

Illustration of a tray with a light bulb and radiating lines, no text or symbols present

Line drawing of a microwave oven with a black X-shaped prohibition symbol (no text or labels)

Line drawing of a microwave oven with a black X symbol crossed out (no text or symbols present)

Line drawings of five different household appliances or tools: a tool, a tool handle, a tray, a device, and a grater (no text or symbols present)

EC-Declaration of Conformity

CE marking

We, Manufacturer/Importer

(full address)

STL Group BV

Ankerkade 20

5928 PL Venlo NL

declare that the product

(description of the apparatus, system, installation to which it refers)

Electric Oven

Lenco model IEO-55LCR50IEO-55LCR50IEO-55LCR50IEO-55LCR50IEO-5

Is in conformity with

Council Directive 2004/108/EC (EMC Directive)

Standards to which conformity is declared:

EN 55014-1:2008

+A1+A2

Electromagnetic compatibility - Requirements for household appliances, electric

tools and similar apparatus - Part 1: Emission

EN 55014-2:1997

+A1:2001+A2

Electromagnetic compatibility - Requirements for household appliances, electric

tools and similar apparatus - Part 2: Immunity

EN 61000-3-2:2006

+A1+A2

Electromagnetic compatibility (EMC); Part 3: Limits; Section 2:

Limits for harmonic current emissions (equipment input current ≤16 Ampere

per phase)

EN 61000-3-3:2008

Electromagnetic compatibility (EMC); Part 3: Limits; Section 3:

Limitation of voltage fluctuation and flicker in low-voltage supply systems for

Equipment with rated current ≤ 16 Ampere.

Manufacturer/Importer STL-group BV

Date:

March 17, 2013

Signature:

Name:

G. Moors

EC-Declaration of Conformity

marking

We, Manufacturer/Importer

(full address)

STL Group BV

Ankerkade 20

5928 PL Venlo NL

declare that the product

(description of the apparatus, system, installation to which it refers)

Electric Oven

Ices model IEO-55LCR50IEO-55LCR50IEO-55LCR50IEO-55LCR50IEO-5

Is in conformity with

Council Directive 2006/95/EC (Low Voltage Directive)

Standards to which conformity is declared:

EN 60335-1:2012+

EN 60335-2-9:2003

+A1+A2+A12+A13

EN 62233:2008

Safety requirements for mains operated household and related products

Manufacturer/Importer STL-group BV

Date:

Signature:

Name:

March 15, 2013

iCES®

ELEKTROBACKOFEN

Bedienungsanleitung

Modellnr.:IEO-55LCR50IEO-55LCR50IEO-

Black iCES portable toaster oven with a roasted chicken on its side (no visible text or symbols)

www.ices-electronics.com

Illustration of a tray with a light bulb and radiating lines, no text or symbols present

Line drawing of a microwave oven with a hand crossed out, no text or symbols present

Pure mechanical component diagrams without any text, numbers, or symbols

Pure geometric diagram of a circle with internal curved lines and control points, no text or symbols present

Function Selector

Ober- & Unterhitze

+ Umluft

.Oberhitze

+ Umluft

Ober- & Unterhitze

Oberhitze

+

Grillfunktion

Ober- & Unterhitze

+

Line drawing of a microwave oven with open lid and front-mounted dish (no text or symbols)

abkühlen lassen.

Close-up of a black electrical plug with two circular holes, showing an open socket (no text or symbols visible)

Line drawing of a microwave oven with open lid and side-mounted stand (no text or symbols)

WARNUNG

EC-Declaration of Conformity

CE marking

We, Manufacturer/Importer

(full address)

STL Group BV

Ankerkade 20

5928 PL Venlo NL

declare that the product

(description of the apparatus, system, installation to which it refers)

Electric Oven

Lenco model IEO-55LCR50IEO-55LCR50IEO-55LCR50IEO-55LCR50IEO-5

Is in conformity with

Council Directive 2004/108/EC (EMC Directive)

Standards to which conformity is declared:

EN 55014-1:2008

+A1+A2

Electromagnetic compatibility - Requirements for household appliances, electric

tools and similar apparatus - Part 1: Emission

EN 55014-2:1997

+A1:2001+A2

Electromagnetic compatibility - Requirements for household appliances, electric

tools and similar apparatus - Part 2: Immunity

EN 61000-3-2:2006

+A1+A2

Electromagnetic compatibility (EMC); Part 3: Limits; Section 2:

Limits for harmonic current emissions (equipment input current ≤16 Ampere

per phase)

EN 61000-3-3:2008

Electromagnetic compatibility (EMC); Part 3: Limits; Section 3:

Limitation of voltage fluctuation and flicker in low-voltage supply systems for

Equipment with rated current ≤ 16 Ampere.

Manufacturer/Importer STL-group BV

Date:

March 17, 2013

Signature:

Name:

G. Moors

EC-Declaration of Conformity

marking

We, Manufacturer/Importer

(full address)

STL Group BV

Ankerkade 20

5928 PL Venlo NL

declare that the product

(description of the apparatus, system, installation to which it refers)

Electric Oven

Ices model IEO-55LCR50IEO-55LCR50IEO-55LCR50IEO-55LCR50IEO-5

Is in conformity with

Council Directive 2006/95/EC (Low Voltage Directive)

Standards to which conformity is declared:

EN 60335-1:2012+

EN 60335-2-9:2003

+A1+A2+A12+A13

EN 62233:2008

Safety requirements for mains operated household and related products

Manufacturer/Importer STL-group BV

Date:

Signature:

Name:

March 15, 2013

iCES®

ELECTRIC OVENELECTRIC OVEN

Instruction Manual Instruction Manual

Model Model-55LCR50

Black iCES portable toaster oven with a roasted chicken on its side (no visible text or symbols)

Thank you purchasing this electric oven. Please read this instruction manual carefully and follow the instructions. Please keep this instruction manual for future reference.

www.ices-electronics.com

ATTENTION AND INDICATION

※Before using, please read and follow the indication carefully

WARNING
This is a domestic electrical product, which must only be used for its intended purpose, in accordance with these instructions. This product should never be used in a commercial environment.
Domestic electrical products are not designed for use by children! Any child using a domestic electrical product should be closely supervised by a responsible adult to ensure all instructions and safety precautions are adhered to.
Before use, please check that whether the utensils and foods are suitable for use in ovens,
* DO NOT block oven air vents, if the vents blocked during operation, the oven may overheat!	The oven must be placed on a flat stable surface. The oven must have sufficient air flow. Allow 30cm of space on the top of oven, 10cm at back and on both sides.
	If the oven is positioned too close to a wall, the wall will be burned or stained. Be sure the curtain, etc., are not in contact with the appliance.
	Do not put anything between the bottom of the body and the surface on which it is placed. An object so placed could be burned

REMARKS

If the power cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid power hazard

WARNING
	AC power must be connected to a properly-wired outlet. Insert the plug completely into the socket; if it is not, it could become abnormally hot. Do not use an electric light outlet. Never connect multiple plugs to the same outlet. Do not immerse cord or plug in water.
	Do not wet the power cord nor handle the unit with wet hands. Always unplug the cord after use, or whenever the unit is to be left unattended. A malfunction could cause a fire while the plug is inserted into the outlet.
	When unplugging the cord, always take hold of the plug itself. Never pull on the cord. Doing so could break the wires inside the cord.
	Do not put anything on the oven while using it. The heat could cause deformation, cracking, etc.
	Do not place anything heavy on the open door. It may cause the falling of the appliance.
	Be careful! Not to burn yourself during use or immediately after use. The metal parts and glass window of the door become extremely hot during use. Be careful not to touch them when opening and closing the door.Always use the Tray Handle when inserting or removing the tray.Touching directly will cause severe burns.
	Do not apply water to the Glass Door during hot. It may cause the breakage of the glass.

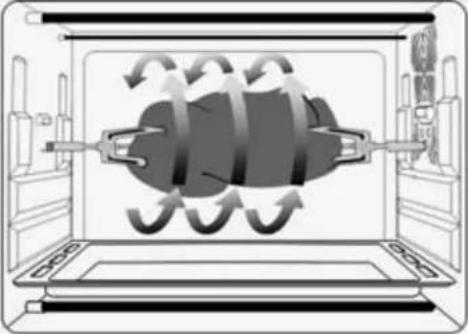

When cooking oil-splashing dishes such as roast chicken, it is recommended to put 2 sheets of aluminum foils on a tray in order to diminish oil splashing. Put one sheet on a tray. Then oil will drip to a gap between foils.
	Do not put anything on top / close to the heating elements (Upper and Lower), the food will scorch.Always put the Bake Tray to the Fourth Rack support to avoid the juice or crumb dropping to the heating element.
	Do not use any inflammable substance near an operating electrical appliance.Put the pressurized container and any other Flammable gases far away from the operating appliance. It may cause fire and explosion.

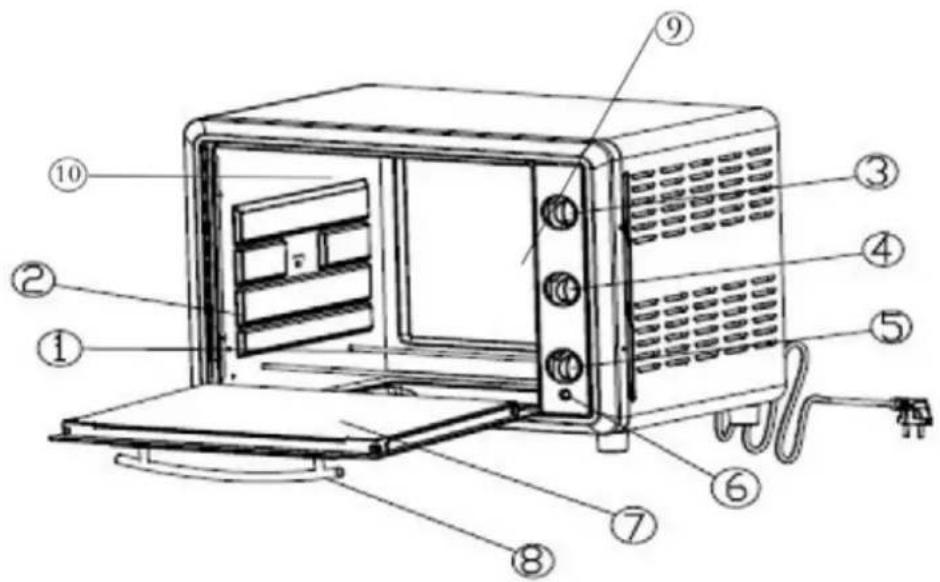

PARTS IDENTIFICATION

1.Heating Element	5.Timer	9.Lamp
2.Shelf Position	6.Glass Door	10.self-deoming cavitg
3.Temperature Control	7.Door Handle
4. Function Selector	8.Indicator Light

ACCESSORIES

Line drawings of five different household appliances or tools, including a tool, umbrella, tray, and grid (no text or symbols present)

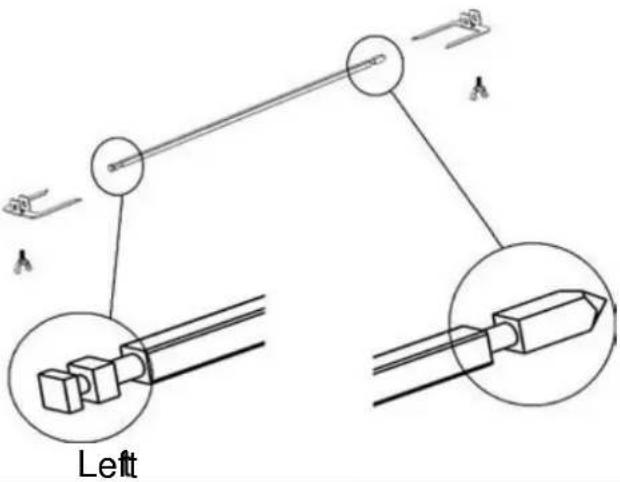

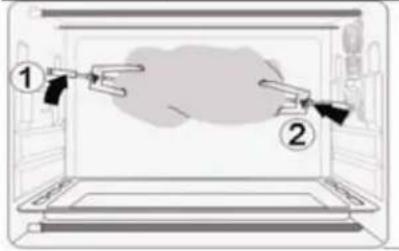

Rotisserie Forks

Rotisserie Handle

Bake Tray

Tray Handle

Wire Rack

BRIEF INSTRUCTION

1 Well inserted the plug to the correct Socket.

Close-up of a black electrical plug with three circular holes, showing an arrow indicating power or connection (no text or symbols)

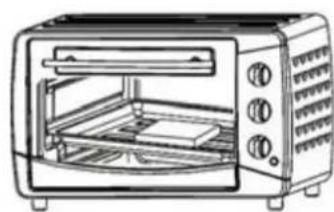

2 Put the food on the Wire Rack or Bake Tray or Rotisserie Forks, and then close the glass door.

Line drawing of a microwave oven with open lid and front outlets (no text or symbols)

3 Set the “Temperature Control” by turning clockwise to select the suitable temperature according to the dishes you are going to cook.

Temperature Control

5 Set the “Timer” to the number which indicates the cooking time (minutes). Now, the oven is working, beware of the HOT surface, and DO NOT open the glass door during cooking!

Timer

6 The oven will turn off automatically at the end of the selected time and a bell will ring. Please take out the food carefully and enjoy your food.

Line drawing of a microwave oven with open lid and control knobs (no text or symbols)

4 Set the "Function Selector" by turning clockwise to select the suitable heating function. "☐" indicated no function.

Pure geometric diagram of a circle with internal curved lines and control points (no text or symbols)

Function Selector

Upper & Lower Heating + Convection Function

Upper Heating + Convection Function

Upper & Lower Heating

Upper Heating + Rotisserie Function

Upper & Lower Heating + Convection & Rotisserie Function

7 Take off the plug after use, or whenever the unit is to be left unattended. Cool down before cleaning.

Close-up of a black electrical plug inserted into a white wall socket, with no visible text or symbols.

Bake Tray and Wire Rack
Food(For Ref. only) How to use Tray Handle
Bake Tray*Recommended to use it as crumb tray.	Roast Chicken Wings, Hamburg steak, Gratin, Cake, almost all other oven-cooked foods
Wire Rack	Baked potatoes, Dry food
Bake Tray and Wire Rack	For food which will drip, e.g. boiled fish, etc.

WARNING

Be careful when removing the hot liquids.

Rotisserie Function
Use with Rotisserie Forks	Install Rotisserie Forks
With this function, even baking will be provided.	Right
Install Rotisserie Forks	Remove Rotisserie Forks	Rotisserie Handle

Rack Support

You can adjust the Tray at 3 different positions according to the dishes you want to cook. For instance, when making macaroni gratin and you want to have the top part cooked the most, use the second or the second rack support.

Install the Rotisserie Forks to the rotisserie hole, and then put it to the rotisserie tray.

Use Rotisserie Handle to take out the Rotisserie Forks from the rotisserie tray, and then remove it from the rotisserie hole. CAUTION: Beware of HOT dripping oil!

Simple line drawing of a stylized object resembling a lamp or bracket (no text or symbols)

Please always use Rotisserie Handle to take out the Rotisserie Forks.

Convection Function

Diagram of a refrigerator interior with directional arrows indicating airflow or movement (no text or symbols)

Featured with a special convection function, strong and absolute cycling airflow by making the heating more complete. Original flavor can be kept.

WARNING

Be careful when removing the hot liquids.

There may be some smoke and burning smell at the first time, but this is not malfunction.

NOTE

If the inner cabinet is dirty, cooking may take slightly longer than usual.

BAKING REFERENCE OF COMMON FOOD (Reference Only)

Type Of Food	Temperature(°C)	Rack Support Time (MIN)
Bread 180	Third 9-13
Cake 180	Second 25-35
Fish 230	Second 10-15
Chicken/Duck	220-230	Second 30-45
Pancake	160	Top	7-10
Beef	230 Second	8-15
Egg/Peanut	125-150	Second	6-10
Hot Dog	200 Second	6-10
Hamburger	230 Second	10-14

METHOD OF CLEANING

	Take off the plug and all parts are totally cool down before cleaning.
	Wash the interior and exterior surface, tray, grid, and food fork with soft cotton (or sponge) with neutral cleaner when cleaning. Then wash with clean water. Do not use hard brush or any others to wash, so as not to scrape the interior surface of the oven, and to protect the tray, the net and the food fork.
	Do not use the toxic and abrasive cleaners such as gasoline, polishing powder, solvent.
	Take out the wire rack, put the mild cleaner or kitchen lotion to water, soak the wire rack into water, and then use the soft sponge for cleaning. Lastly, rinse thoroughly with clean water and dry it before storage.
	Take out the baking tray, put the mild cleaner or kitchen lotion to water, soak the baking tray into water, and then use the soft sponge for cleaning. Lastly, rinse thoroughly with clean water and dry it before storage.

Line drawing of a kitchen setup with a toaster, microwave, and bowl (no text or symbols)

Put the cleaning cloth into the clean water, take out and dry the cloth, then begin to use it to clean the outer and inner (including the window and heating element) of the unit. Lastly, dry the unit with a clean cloth. 7KH□FDYLW □LV□FRDWHG□Z LWK□VHOI□FOHDQLQJ□P DWHULDOV□7KLV□P DWHULDO□KDV□D□VSHFLDO□HQ] \ P H□Z KLFK□FDQ□GHFRP SRVH□WKH□RLO□P ROHFXOHV□7KXV□WKHUH□LV□QR□QHHG□WR□FOHDQ□LW□Z LWK□GXVWHU□FORWK□DIWHU□FRRNLQJ□□□□□

WARNING

• Use only recommended attachments.

• If this product stops working unexpectedly, switch off and unplug the product immediately. Seek professional advice before attempting to re-use the product.

• To avoid the risk of electrical shocks, DO NOT disassemble or attempt to repair appliance, but return it to your retailer or to one of our authorized service centres for examination and or repair.

SPECIAL WARNING

Caution: The temperature of the accessible surface may be high when the appliance is operation.

Important precautions

Please read carefully all these instructions

This appliance is not intended to be put in operation using an external timer or an external remote control system.

This appliance is not aimed to be used by persons (including children) whose physical, sensitive or mental abilities are reduced, or who don't have knowledge or experience of its use, unless they have been previously instructed about the use of this appliance, or are under surveillance of someone responsible for their safety.

This appliance can be used by children from 8 years old and the people with little experience or knowledge or whose physical, sensorial or mental abilities are reduced, if they have been trained and supervised regarding the safe use of this appliance and are aware of the risks. Children should not play with this appliance. The cleaning and maintenance by the user should not be made by children unless they are over 8 years old and under supervision.

Keep this appliance and the power cord away from children under 8 years old.

Your appliance was intended for domestic use only. It was not designed to be used in the following cases which are not covered by the warranty: -

• In kitchen spaces for the staff in shops, offices and other work environment,
• In farm houses
• By the guests in hotels, motels and other residential type environments,
• In environments such as Bed & Breakfasts.

If the power cable is damaged, it must be replaced by the producer, its support service center or persons with similar qualification so as to prevent any risk.

Service and support

For information: http://www.ices-electronics.com/

For support: http://icessupport.zendesk.com

ICES helpdesk:

Germany 0900-1520530 (Local charges)

The Netherlands 0900-23553626 (Local charges + 1ct P/min)

Belgium 02-6200115 (Local charges)

France 0170480005 (Local charges)

The helpdesk is accessible from Monday to Friday from 9 AM till 6 PM.

In case your device needs repair, our helpdesk will redirect you to your local dealer.

ICES offers service and warranty in accordance to European law, which means that in case of repair (both during and after the warranty period), you should contact your local dealer.

Please note: It is not possible to send products directly to ICES for repair.

Important note: If this unit will be opened, or accessed in any way by a non-official service center, the warranty expires immediately.

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries. In so doing, you will help to conserve natural resources and improve standards of environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive).

Products with the CE marking comply with the EMC Directive (2004/108/EC) and the Low Voltage Directive (2006/95/EC) issued by the Commission of the European Community.

®All rights reserved

EC-Declaration of Conformity

CE marking

We, Manufacturer/Importer

(full address)

STL Group BV

Ankerkade 20

5928 PL Venlo NL

declare that the product

(description of the apparatus, system, installation to which it refers)

Electric Oven

Lenco model IEO-55LCR50IEO-55LCR50IEO-55LCR50IEO-55LCR50IEO-5

Is in conformity with

Council Directive 2004/108/EC (EMC Directive)

Standards to which conformity is declared:

EN 55014-1:2008

+A1+A2

Electromagnetic compatibility - Requirements for household appliances, electric

tools and similar apparatus - Part 1: Emission

EN 55014-2:1997

+A1:2001+A2

Electromagnetic compatibility - Requirements for household appliances, electric

tools and similar apparatus - Part 2: Immunity

EN 61000-3-2:2006

+A1+A2

Electromagnetic compatibility (EMC); Part 3: Limits; Section 2:

Limits for harmonic current emissions (equipment input current ≤16 Ampere

per phase)

EN 61000-3-3:2008

Electromagnetic compatibility (EMC); Part 3: Limits; Section 3:

Limitation of voltage fluctuation and flicker in low-voltage supply systems for

Equipment with rated current ≤ 16 Ampere.

Manufacturer/Importer STL-group BV

Date:

March 17, 2013

Signature:

Name:

G. Moors

EC-Declaration of Conformity

marking

We, Manufacturer/Importer

(full address)

STL Group BV

Ankerkade 20

5928 PL Venlo NL

declare that the product

(description of the apparatus, system, installation to which it refers)

Electric Oven

Ices model IEO-55LCR50IEO-55LCR50IEO-55LCR50IEO-55LCR50IEO-5

Is in conformity with

Council Directive 2006/95/EC (Low Voltage Directive)

Standards to which conformity is declared:

EN 60335-1:2012+

EN 60335-2-9:2003

+A1+A2+A12+A13

EN 62233:2008

Safety requirements for mains operated household and related products

Manufacturer/Importer STL-group BV

Date:

March 15, 2013

Signature:

G.Moors

ICES®

HORNO ELÉCTRICOHORNO ELÉCTF

Black iCES portable toaster oven with a roasted chicken on its side (no visible text or symbols)

www.ices-electronics.com

ATENCIONES E INDICACIONES

Line drawing of a microwave oven with a double-headed black X mark indicating the open lid (no text or symbols)

Line drawing of a toaster oven with crossed-out wires (no text or symbols)

Illustration of a tray with a lid and radiating lines, emitting vapor or light (no text or symbols)

Simple line drawing of a microwave oven with a crossed-out black symbol (no text or labels)

Simple line drawing of a microwave oven with a crossed-out black X symbol (no text or labels)

Line drawings of five different mechanical or electrical components, including a lever, handle, plate, and grid (no text or symbols)

Close-up of a black electrical plug inserted into a white wall socket, with no visible text or symbols.

Line drawing of a microwave oven with front-mounted dish and control knobs (no text or symbols)

Pure geometric diagram of a sphere with internal curved lines and control points, no text or symbols present

cocinar.

Line drawing of a microwave oven with open lid and side-mounted stand (no text or symbols)

Simple line drawing of a stylized object resembling a lamp or lamp (no text or symbols)

Diagram of a refrigerator interior with directional arrows indicating airflow or movement (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

EC-Declaration of Conformity

CE marking

We, Manufacturer/Importer

(full address)

STL Group BV

Ankerkade 20

5928 PL Venlo NL

declare that the product

(description of the apparatus, system, installation to which it refers)

Electric Oven

Lenco model IEO-55LCR50IEO-55LCR50IEO-55LCR50IEO-55LCR50IEO-5

Is in conformity with

Council Directive 2004/108/EC (EMC Directive)

Standards to which conformity is declared:

EN 55014-1:2008

+A1+A2

Electromagnetic compatibility - Requirements for household appliances, electric

tools and similar apparatus - Part 1: Emission

EN 55014-2:1997

+A1:2001+A2

Electromagnetic compatibility - Requirements for household appliances, electric

tools and similar apparatus - Part 2: Immunity

EN 61000-3-2:2006

+A1+A2

Electromagnetic compatibility (EMC); Part 3: Limits; Section 2:

Limits for harmonic current emissions (equipment input current ≤16 Ampere

per phase)

EN 61000-3-3:2008

Electromagnetic compatibility (EMC); Part 3: Limits; Section 3:

Limitation of voltage fluctuation and flicker in low-voltage supply systems for

Equipment with rated current ≤ 16 Ampere.

Manufacturer/Importer STL-group BV

Date:

March 17, 2013

Signature:

Name:

G. Moors

EC-Declaration of Conformity

marking

We, Manufacturer/Importer

(full address)

STL Group BV

Ankerkade 20

5928 PL Venlo NL

declare that the product

(description of the apparatus, system, installation to which it refers)

Electric Oven

Ices model IEO-55LCR50IEO-55LCR50IEO-55LCR50IEO-55LCR50IEO-5

Is in conformity with

Council Directive 2006/95/EC (Low Voltage Directive)

Standards to which conformity is declared:

EN 60335-1:2012+

EN 60335-2-9:2003

+A1+A2+A12+A13

EN 62233:2008

Safety requirements for mains operated household and related products

Manufacturer/Importer STL-group BV

Date:

March 15, 2013

Signature:

G.Moors
