USER MANUAL Power Espresso 20 CECOTEC

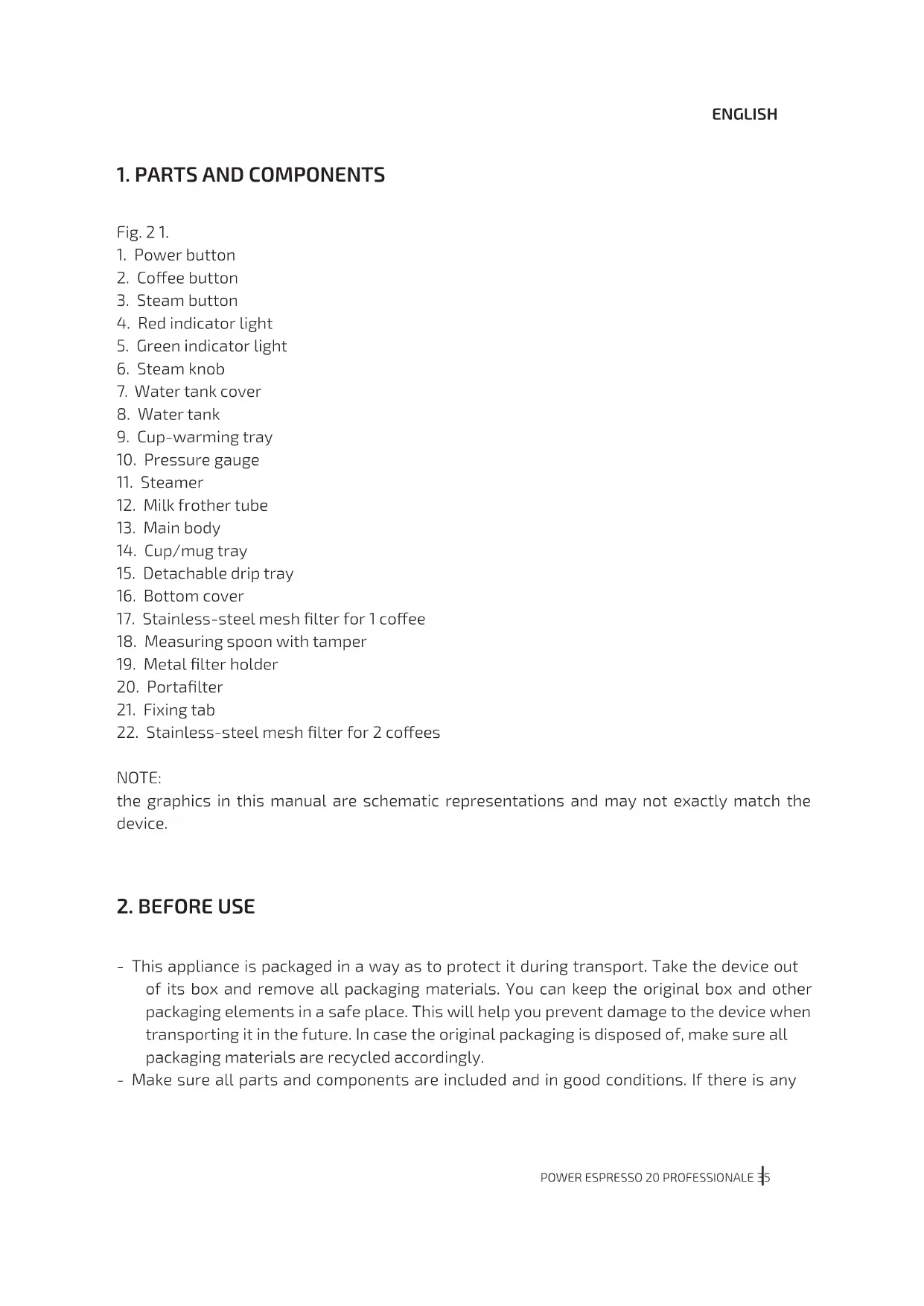

1. Parts and components 35

4. Cleaning and maintenance 38

7. Disposal of old electrical and electronic

8. Technical support and warranty 41

17. Stainless-steel mesh lter for 1 coee

18. Measuring spoon with tamper

22. Stainless-steel mesh lter for 2 coees

NOTE: the graphics in this manual are schematic representations and may not exactly match the device.

- This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly. - Make sure all parts and components are included and in good conditions. If there is anyPOWER ESPRESSO 20 PROFESSIONALE36 ENGLISH piece missing or in bad conditions, contact the Ocial Cecotec Technical Support Service immediately. Box content: - Coee machine - Stainless-steel mesh lter for 1 coee - Stainless-steel mesh lter for 2 coees - Measuring spoon with tamper - Portalter - Instruction manual First cleaning

Warning: clean the coee machine before using it for the rst time to remove all possible

manufacturing residues.

1. Pour water into the water tank, do not exceed the “MAX” mark, and place the water tank in

its correct position.

2. Place any of the stainless-steel mesh lters in the lter holder (without coee).

3. Place a cup on the cup/mug tray. Make sure the steam knob is turned completely clockwise.

4. Connect the power cord of the coee machine to the power supply and press the power

button. The red indicator light will light up indicating the machine is preheating.

5. Press the coee button for the pump to start pumping water. To stop this process, press

6. The red and green indicator lights will light up when the preheating process is nished.

7. Press the coee button for the machine to dispense water.

8. Once the machine has nished dispensing water, pour all the remaining water away and

clean all the containers thoroughly. Now, the machine is ready to be used.

Warning: when activating the pump for the rst time, the appliance may produce some noise

which will disappear after 20 seconds. This is because the machine is releasing air and is completely normal, it does not aect the operation.

Preheating - It is suggested to preheat the appliance, including the lter holder, lter, and cup, so the coee avour is not aected by cold parts.

1. Remove the detachable tank and open the tank cover to ll it with the desired amount of

water. Do not exceed the “MAX” mark in the tank. Place the tank correctly in the coee machine. 2. Insert a stainless-steel mesh lter into the lter holder, pull the xing tab backwards,POWER ESPRESSO 20 PROFESSIONALE 37 ENGLISH ensure that the lter holder tube is aligned with the groove in the appliance, insert the lter holder into the appliance, and nally release the xing tab.

3. Fix the portalter rmly in the coee machine by turning it counterclockwise to the Lock

4. Place a cup on the cup/mug tray.

5. Connect the machine to the power supply and make sure the steam knob is completely

6. Press the power button. The red indicator light will light up indicating the machine is

7. Press the coee button again to pump water, then press it once more to stop the function.

This process will pump water from the tank to the boiler. Espresso

1. Remove the lter holder by turning it clockwise. Add ground coee to the stainless-steel

lter with the measuring spoon (one spoon of ground coee can make about a cup of coee), then use the other end of the measuring spoon to press down the coee.

2. Pull the xing tab backwards, make sure the lter holder is aligned with the groove in the

appliance, insert the lter holder into the appliance, and release the xing tab. Fix it rmly in the coee machine by turning it clockwise to the “lock” position.

3. Pour out the hot water from the cup and place the hot cup on the cup tray.

4. Press the power button: the red indicator light will turn on. Once the red and green light

indicators turn steady on, press the coee button. The coee machine will start brewing coee.

5. Press the power button to stop when you have obtained the desired amount of coee.

The indicator lights will turn o and the machine will stop running.

Warning: do not leave the coee machine unattended during operation as some of the steps

require manual operation. Milk froth/Cappuccino

1. Prepare an espresso in a slightly longer glass. Make sure the steam knob is turned

completely clockwise.

2. Press the steam button and wait until the red and green indicators light up steady.

3. Fill a jug with about 100 grams of milk for each cappuccino to be prepared.

4. Turn the steam knob slowly counterclockwise: the milk frother will start producing steam.

5. Insert the milk frother into the milk by about 2 cm, froth milk while you move the container

6. Once you have frothed milk to your liking, turn the steam knob slowly all the way clockwise.

7. Pour the frothed milk into the previously brewed espresso. Sweeten to taste and if

desired, sprinkle the froth with a little cocoa powder.

8. To switch o the machine, press the power button.POWER ESPRESSO 20 PROFESSIONALE38

ENGLISH Note: - It is recommended to use whole milk for best-quality results. - Use a jug of 65-75 mm diameter and suciently tall. The volume of milk will be doubled when it is frothed. - For optimal milk froth results, use cold and whole milk. - Do not turn the steam knob quickly, milk could spill and cause burns. - Clean the steam outlet with a wet sponge immediately after use.

Warning: clean the steam outlet with a wet sponge immediately after use. Be careful not to burn

yourself! Then, remove the steamer and clean the duct interior part. It is also recommended to emit steam again to clean possible milk remaining inside the tube. Before brewing another coee, allow the machine to rest for 5 minutes. Heating up drinks - The steamer (without the milk frother) can be used to heat up beverages like hot chocolate, water, or tea.

1. Turn the steam knob completely counterclockwise and press the steam button, wait until

the red and green indicator lights turn on steady.

2. Remove the milk frother from the steamer.

3. Insert the steamer tube into the liquid to be heated. Turn the steam knob gently

anticlockwise to start producing steam.

4. When the required temperature is reached, turn the steam knob to the o position.

5. Press the steam button to stop steam from being released.

Note: the machine will automatically turn o after 25 minutes of no operation unless the power button is pressed.

4. CLEANING AND MAINTENANCE

- Turn the appliance o, unplug it from the power supply and allow it to cool down before cleaning or repairing it. - Use a soft, damp cloth to clean the surface of the device. - Do not use corrosive or abrasive cleaning agents or sponges when cleaning the machine as they may damage the surface. - Do not immerse the appliance or any of its non-removable parts in water. - Clean the water tank, drip tray, cup/mug tray, and other removable parts periodically and dry them before re-installing them. - Note: to clean the lter and lter holder, turn the lter holder counterclockwise, throw away all coee residue, and rinse with water.POWER ESPRESSO 20 PROFESSIONALE 39 ENGLISH Cleaning mineral deposits

1. Fill up the water tank with water and a descaler following the proportions indicated by

the descaler manufacturer.

2. Insert the portalter.

3. Press the power button and wait until the red and green indicators light up.

4. Press the coee button for the machine to dispense 2 cups of water. Then, press the

coee button again to close the pump and wait for 5 seconds.

5. Place the jug under the steamer and turn the steam knob completely counterclockwise

6. Press the coee button for the machine to dispense 2 cups of water. Then, press the

coee button again to close the pump and wait for 5 seconds.

7. Restart the coee machine and repeat these steps until there is no more water left in the

tank (at least 3 times).

8. Brew a coee with tap water up to the MAX mark, without coee powder, and repeat the

before steps until there is no more water in the tank (at least 3 times).

Problem Possible cause Possible solution Coee does not come out No water in tank. Add water. Coee grind is too ne. Grind medium-ground coee. There is too much coee in the lter. Fill lter with less coee. The coee machine is not switched on or connected. Connect the unit to a power supply and turn it on. Coee has been tamped/ compressed too much. Rell the lter basket with coee, do not tamp too much. Too little coee or too little pressure Mineral deposits in the coee machine. Perform a complete descaling. No water/steam There is no water in the water tank, or it is not installed properly. Fill the water tank and switch on the machine. The machine is not preheated. The machine needs to be preheated before coee can be brewed. Once the machine is preheated, the indicator light will turn on.POWER ESPRESSO 20 PROFESSIONALE40 ENGLISH Coee comes out around the edge of the portalter Portalter not rotated to full lock position. Rotate lter holder to full lock position. There is ground coee on the edge of the lter. Wipe o the rim. There is too much coee in the lter. Fill with less coee. Coee is too light Coee is not enough ground, or the grounds are not pressed enough. Replace the coee powder and atten it with the measuring spoon with tamper. No steam Te steamer is blocked. Use a ne wire to feed it through the duct and clean the steamer after each use. The steam knob is not set to the required position or preheating is not completed. Turn the steam knob to the steam position and wait for the preheating process to complete. If, after performing the above steps the coee machine allows some steam to escape, descale it. Coee is not brewed well Too much or too little coee powder. 1 cup of coee requires 1 coee spoon and must be pressed down. Coee powder cannot be too thick or too ne. Too thick coee cannot be completely extracted, too ne will aect the amount and quality of coee. The coee machine does not froth milk well The milk used is not suitable for this function. Use whole milk. The steam function was enabled before the indicator light turned on. Steam can only be released after the steam indicator light changes from ashing to steady light.POWER ESPRESSO 20 PROFESSIONALE 41 ENGLISH

6. TECHNICAL SPECIFICATIONS

Model: Power Espresso 20 Professionale Product reference: 01556 Power: 850 W Voltage and frequency: 220-240 V~, 50 Hz Technical specications may change without prior notication to improve product quality. Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the appliance and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities. Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries. Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations. It is recommended that repairs be carried out by qualied personnel. If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the ocial Cecotec Technical Support Service at +34 963 210 728.POWER ESPRESSO 20 PROFESSIONALE42 ENGLISH

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording, or similar) without the prior authorization of CECOTEC
