USER MANUAL TPU60501 BOSCH

1.7 State of California Proposition

65 Warnings................................8 2 Environmental protection and energy-saving ......................9

2.1 Disposal of packaging.................9

2.2 Saving energy.............................9

3 Installation and connection........9

3.1 Contents of package ...................9

3.2 Installing and connecting the

6.1 Preparing and cleaning the

6.3 Overview of water hardness

6.5 Performing initial start-up ..........18

7.1 Switching the appliance on or

7.3 doubleShot and tripleShot.........19

7.4 Slow Brew and Cold Brew.........20

7.5 Dispensing a coffee drink with

milk ...........................................20

7.6 Dispensing two cups at once.....20

9.1 Activating the child lock.............21

9.2 Deactivating the child lock.........21

10.1 Activating and deactivating

11.1 Saving beverages from the

beverage selection..................22

11.2 Saving the beverage in the

menu.......................................22

11.3 Changing beverage settings....22

11.4 Deleting a favorite ...................22

HomeConnect app .................23

12.2 Setting upHomeConnect .......23

12.3 HomeConnect settings...........23

13.1 Changing the basic settings ....25

13.2 Overview of the basic

14.4 Cleaning the drip tray and

16.2 Disposal of your old

and Open Source Software.....36

19 STATEMENT OF LIMITED

PRODUCT WARRANTY ..........36

19.1 What this warranty covers &

Who it applies to .....................37

19.2 Obtaining warranty service......37

19.3 How long the warranty lasts ....37

19.4 Repair/replace as your

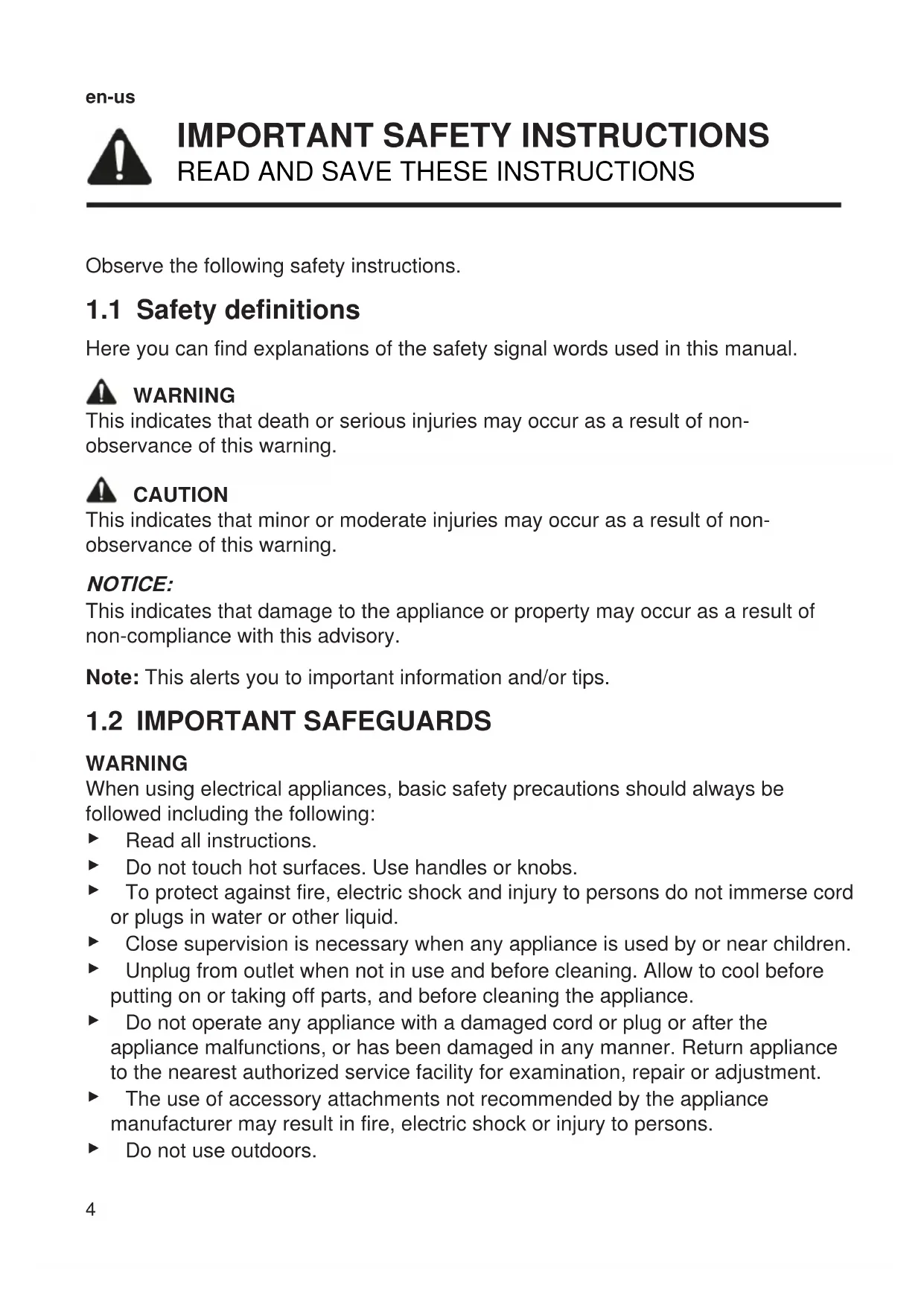

Observe the following safety instructions. 1.1 Safety definitions Here you can find explanations of the safety signal words used in this manual. WARNING This indicates that death or serious injuries may occur as a result of non- observance of this warning. CAUTION This indicates that minor or moderate injuries may occur as a result of non- observance of this warning. NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory. Note:This alerts you to important information and/or tips. 1.2 IMPORTANT SAFEGUARDS WARNING When using electrical appliances, basic safety precautions should always be followed including the following: ▶ Read all instructions. ▶ Do not touch hot surfaces. Use handles or knobs. ▶ To protect against fire, electric shock and injury to persons do not immerse cord or plugs in water or other liquid. ▶ Close supervision is necessary when any appliance is used by or near children. ▶ Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance. ▶ Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment. ▶ The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons. ▶ Do not use outdoors.

▶ Do not let cord hang over edge of table or counter, or touch hot surfaces. ▶ Do not place on or near a hot gas or electric burner, or in a heated oven. ▶ Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to ″off,″ then remove plug from wall outlet. ▶ Do not use appliance for other than intended use. ▶ Save these instructions. 1.3 General information ¡ Read this manual carefully. ¡ Keep the manual and the product information in a safe place for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.4 Intended use Only use this appliance: ¡ for preparing hot drinks. ¡ To make cold-brewed drinks. ¡ for normal household use and in enclosed spaces in a residential environment. ¡ up to an altitude of max. 6,560ft (2000m) above sea level. 1.5 Restrictive Use This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Do not let children play with the appliance. When children become old enough to use the appliance, it is the responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by qualified persons. Children should be supervised to ensure that they do not play with the appliance.

1.6 Safety instructions WARNING Children may pull packaging material over their heads, or wrap themselves up in it and suffocate. ▶ Keep packaging material away from children. ▶ Do not allow children to play with packaging material. Children may breathe in or swallow small parts, causing them to suffocate. ▶ Keep small parts away from children. ▶ Do not allow children to play with small parts. WARNING Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Connect the appliance to a power supply with alternating current only via a correctly installed socket outlet with grounding. ▶ The protective conductor system of the domestic electrical installation must be properly installed. If the appliance or the power cord is damaged, this is dangerous. ▶ Never operate a damaged appliance. ▶ Never operate an appliance with a cracked or broken surface. ▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the power outlet. ▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the breaker in the circuit breaker box. ▶ Call Customer Service. → Page35 Improper repairs are dangerous. ▶ Only original spare parts may be used to repair the appliance. ▶ If the power cord of this appliance becomes damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service, or an authorized service provider in order to prevent injury. An ingress of moisture may cause an electric shock. ▶ Never immerse the appliance or the power cord in water. ▶ Liquids must not be spilled on the appliance plug connection. ▶ Use the appliance in enclosed spaces only.

▶ Never expose the appliance to intense heat or humidity. ▶ Do not use any steam cleaners or high-pressure cleaners to clean the appliance. WARNING The appliance gets hot. ▶ Ventilate the appliance adequately. ▶ Never operate the appliance in a cupboard. It is dangerous to use an extended power cord and non-approved adapters. ▶ Do not use extension cords or multiple socket strips. ▶ Only use adapters and power cords approved by the manufacturer. ▶ If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted. WARNING Some parts of the appliance become very hot. ▶ Never touch hot appliance parts. ▶ Allow hot appliance parts to cool down before touching. WARNING Freshly prepared beverages are very hot. ▶ Let drinks cool down if necessary. ▶ Do not let escaping liquids or steam come into contact with your skin. A remote start via the HomeConnect app while the appliance is unattended may cause scalding to third parties. ▶ Do not reach under the beverage outlet when dispensing drinks. ▶ Keep persons, particularly children, away from the appliance. WARNING Improper use of the appliance may endanger the user. ▶ To avoid injuries, only use the appliance for its intended purpose. Trapped fingers when closing the appliance door. ▶ Be careful of your fingers when closing the appliance door. The grinder rotates. ▶ Never reach into the grinder.

WARNING The appliance contains permanent magnets. They may affect electronic implants, e.g. pacemakers or insulin pumps. ▶ Persons with electronic implants must stand at least 25.4" (10cm) away from the appliance. ▶ This minimum distance of 25.4" (10cm) must also be observed for the water tank, even when removed. WARNING During filtering there may be a slight increase in the potassium level, which is possibly not good for dialysis patients and people with kidney disease. ▶ Consult a doctor before use if you have kidney disease or follow a special potassium diet. Soiling on the appliance may be harmful to health. ▶ To ensure hygiene, follow the cleaning instructions for the appliance. Water from the hot water circuit can be harmful to health. ▶ Only ever use the appliance with fresh, cold, non-carbonated drinking water. 1.7 State of California Proposition 65 Warnings This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONSEnvironmental protection and energy-saving en-us Environmental protection and energy-saving 2 Environmental protec- tion and energy-saving Environmental protection and energy-saving 2.1 Disposal of packaging The packaging materials areenvironmentally compatible and canbe recycled.▶ Sort the individual components bytype and dispose of themseparately. 2.2 Saving energy If you follow these instructions, yourappliance will use less energy.Set the interval for automatic switch-off to the lowest value. If the appliance is not being used, itwill switch itself off earlier. "Basic settings", Page25Descale the appliance regularly. Limescale deposits increase theappliance's energy consumption.Installation and connection 3 Installation and connection Installation and connection 3.1 Contents of package After unpacking all the parts, check for any damage in transit and forcompleteness of delivery.Note:Different accessories are enclosed depending on the appliance model. Theaccessory is identified by a frame with a dashed line. A B C D F G

Fully automatic coffee machine

Milk inlet tube Depending on the appliancespecifications

Instructions for use

Water filter insertion tool Depending on the appliancespecificationsen-us Familiarizing yourself with your appliance

Milk container, glass

Depending on the appliance specifications 3.2 Installing and connecting the appliance NOTICE: Risk of damage to the appliance. If the appliance is not started up correctly, it may be damaged. ▶ Only use the appliance in frost-free rooms. ▶ If the appliance has been transported or stored below 32°F (0°C), wait 3hours at room temperature before starting it up. ▶ After plugging in, always wait approx.5seconds.

1. Place the appliance on a level,

water-resistant surface that is capable of bearing its weight.

2. Connect the appliance with the

electrical plug to a properly grounded wall outlet. Familiarizing yourself with your appliance 4 Familiarizing yourself with your appliance Familiarizing yourself with your appliance 4.1 Appliance Here you can find an overview of the parts of your appliance. Note:Individual details and colors may differ, depending on the appliance model.Familiarizing yourself with your appliance en-us

Depending on the appliance specifications

Rotary selector for grinding level adjustment

Brewing chamber door

Beverage dispenser cover

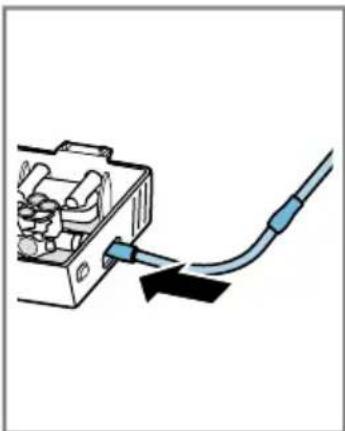

Milk inlet tube and suction pipe

Drip tray Depending on the appliancespecifications 4.2 Control elements Here is an overview of the controlelements for your appliance. Touch fields Here is an overview of the symbolsthat are permanently visible on theappliance.Switch the appliance on or off. Dispense two cups.Open or exit the machinecare cycles. Touch display The touch display functions both as adisplay and a control element. Fa- voritesSelect saved beverageswith personal settings.

Page22 Classics Select standard beverages.coffee-WorldYou can choose morebeverages from theHome Connect app (widerselection).Cup warmer is switched on.Appliance is connected toHomeConnect.Note:When the appliance is switchedon, you have additional operatingoptions with relevant displays andmessages, e.g. beverage settings.Set strength.Set capacity.Set coffee to milk ratio.Set aroma.Set temperature.Accessories 5 Accessories AccessoriesOnly use original accessories. These are designed especially for your appliance.Accessories Retail Customer ServiceMilk container, glass TCZ8008US 17008476Accessories smallappliancesTCZ7003US 12008246Cleaning tablets TCZ8001US 00312423Descaling tablets TCZ8002US 00312422Before using for the first time en-us

Accessories Retail Customer Service Care set TCZ8004US 00312421 Before using for the first time 6 Before using for the first time Before using for the first time Prepare the appliance for use. 6.1 Preparing and cleaning the appliance Clean the appliance and the individual parts. NOTICE: Unsuitable beans can block up the grinder. ▶ Only use pure, roasted bean mixes that are suitable for use in fully automatic coffee or espresso machines. ▶ Do not use coated coffee beans. ▶ Do not use caramelized coffee beans. ▶ Do not use oily coffee beans. ▶ Do not use coffee beans that have been treated with additives containing sugar. ▶ Do not add ground coffee.

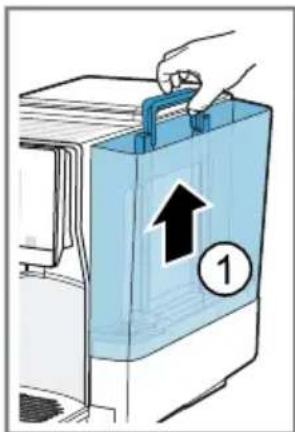

1. Remove the water tank .‒ Press the locking mechanism of

the brewing chamber cover and remove the brewing chamber cover .

2. Remove the membrane.en-us Before using for the first time

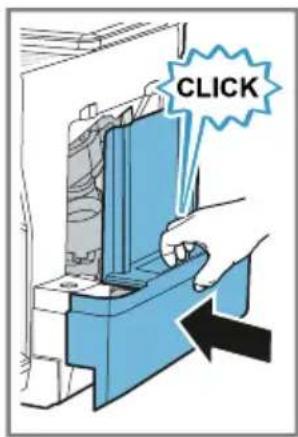

3. Insert the brewing chamber door, let

it click it into place and insert the water tank.

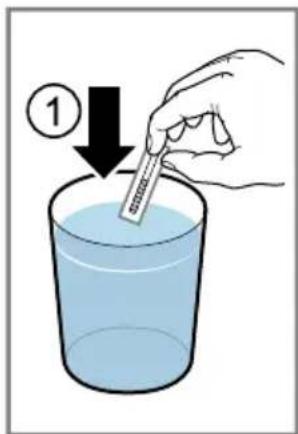

4. Briefly dip the test strip in tap water

and leave to drain off. ‒ Wait for one minute . ‒ Read the water hardness value off the test strip .

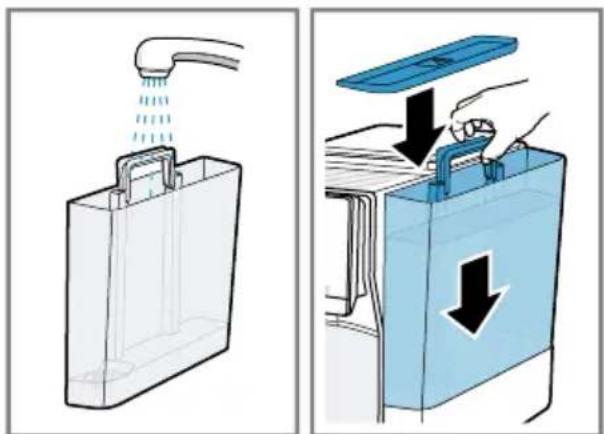

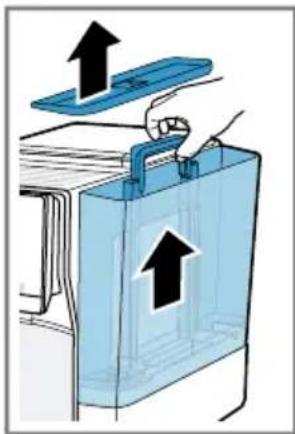

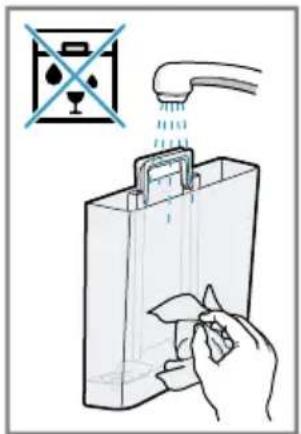

5. Open the lid and take out the water

tank by the handle. ‒ Clean the water tank and lid.

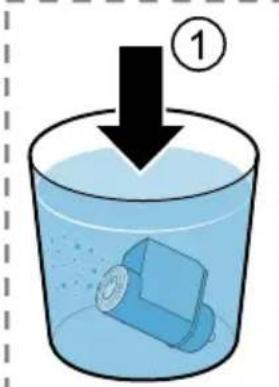

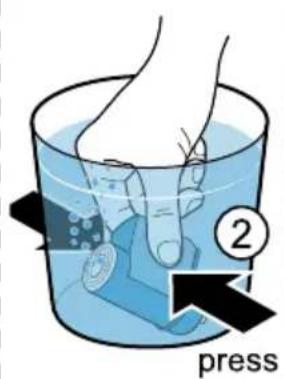

6. Immerse the water filter in a glass of

water with the opening facing up and press the sides together lightly until no more air bubbles rise to the surface.

"Water filter", Page17Before using for the first time en-us

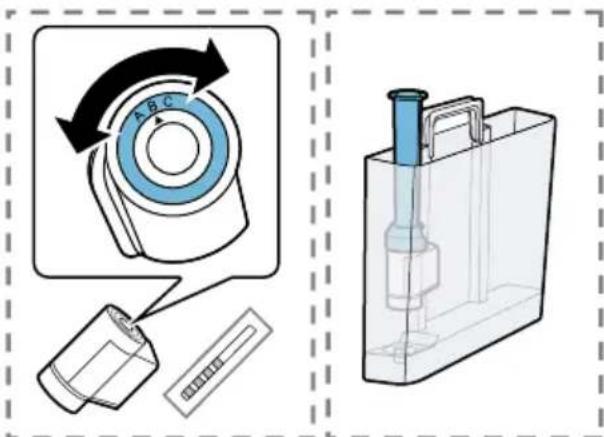

7. Set the correct water hardness

value on the aroma ring of the water filter. ‒ Press the water filter firmly into the water tank.

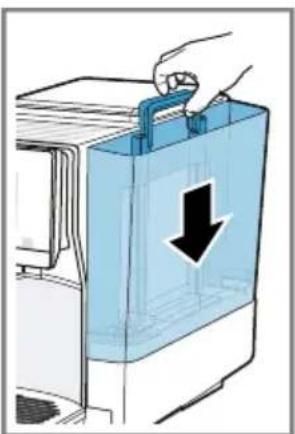

8. Fill the water tank with water up to

the max marking and insert.

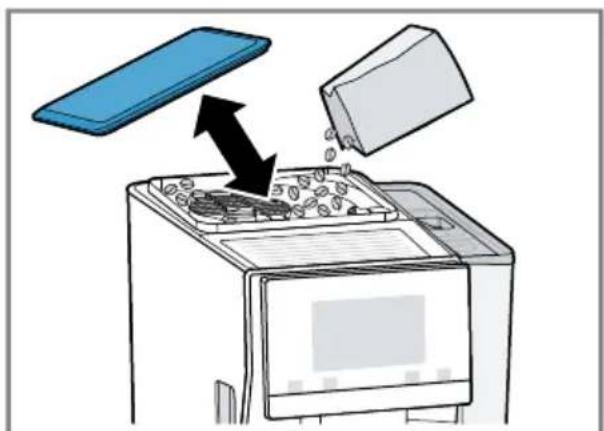

9. Open the aroma lid and add coffee

beans. 10.Push the beverage dispenser down completely. ‒ Press the locking button on the beverage dispenser and remove its cover . 11.Remove the milk system and dismantle it into its components.en-us Before using for the first time

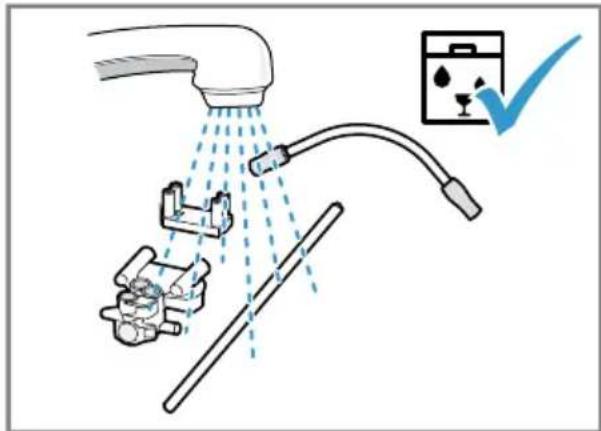

12.Clean the components with dishwashing detergent and a soft cloth. ‒ Rinse all components with clean water and dry. 13.Assemble the components of the milk system. 14.Insert the milk system in the cover of the beverage dispenser. 15.Hook in the cover of the beverage dispenser at the bottom and snap it in at the top. 16.Connect a carton of milk to the milk inlet tube and the suction pipe. Note:Fill the water tank with fresh, cold, non-carbonated drinking water every day. Tip:To keep the coffee beans at their best, store them in a sealed container in a cool place. You can keep the coffee beans in the bean container for several days without them losing their aroma. 6.2 Checking the water hard- ness It is important to set the right water hardness so your appliance indicates in good time that it needs descaling. You can use the enclosed test strip to check the water hardness or ask your local water company.

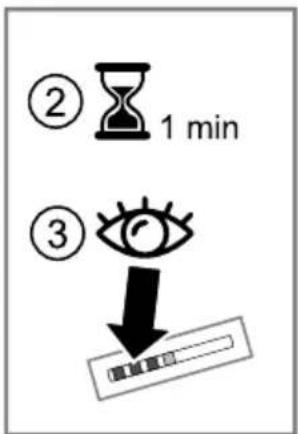

1. Briefly dip the test strip in fresh tap

2. Allow the water to drain off the test

3. Read the water hardness off the test

strip after 1minute.

"Overview of water hardness lev- els", Page17 Note:Please use the test strip even if you have a water softening system installed as they generate different water hardnesses. Tips ¡ You can change the settings at any time.

"Basic settings", Page25 ¡ If the water hardness is higher than 21.9gr/gal (US), you can fill the water tank with prefiltered water to reduce limescale deposits in the water tank. 6.3 Overview of water hardness levels The table shows allocation of the levels to the different degrees of water hardness. Level Ring setting on INTENZA filter Degree of German hardness in °dH Water hardness in gr/gal (US) 1 A 1 - 7 < 7.3 2 A 8 - 14 7.3 - 14.6 3 B 15 - 21 14.6 - 21.9

Factory setting 6.4 Water filter You can use a water filter to minimize limescale deposits and reduce impurities in the water. The limescale content of the water influences the aroma and crema of coffee. There is an aroma ring on the underside of the BRITA INTENZA water filter. Turn the aroma ring to set the optimum aroma level for your mains water. Insert water filter NOTICE: Possible damage to the appliance due to limescale build-up. ▶ Change the water filter at the correct time. ▶ Change the water filter after 2months at the latest. ▶ Observe the display messages.

1. Press .2. Select "INTENZA filter" and follow

the instructions on the display. Changing or removing the water filter You can also operate your appliance without a water filter.

1. Press .2. Select "INTENZA filter".3. Select "Replace" or "Remove" and

follow the instructions on the display.en-us Before using for the first time

Notes ¡ Dispose of spent water filters according to local regulations. ¡ Always store replacement water filters in a cool and dry place in their original sealed packaging. Tips ¡ You should also change your water filter for sanitation reasons. ¡ With a water filter you need to descale your appliance less frequently. ¡ If you use a water filter, your coffee will be more flavorful. ¡ If your appliance has not been used for a long time, for example if you were on vacation, you should rinse the water filter before use by dispensing a cup of hot water. ¡ The water filter can be purchased from retailers or customer service.

"Accessories", Page12 6.5 Performing initial start-up After connecting the appliance to the power supply, configure the settings for initial start-up. Initial start-up appears when switching on for the first time or after resetting to the factory settings.

1. Press to switch the appliance on.

2. Follow the instructions on the

display. a The display will guide you through the cycle. Notes ¡ If you want to set up HomeConnect now, follow the instructions in the HomeConnect app.

"Setting upHomeConnect", Page23 ¡ If "Demo mode" is selected, only the display screens will work. You cannot dispense a beverage or run a cycle. 6.6 General instructions Please bear this information in mind so that you can get the best out of your appliance. Notes ¡ The appliance has been programmed at the factory with standard settings for optimum operation. ¡ The grinder has been factory-set for optimum operation. If coffee is only dispensed drop by drop or is too thin and with too little crema, you can adjust the grinding level when the grinder is running.

"Setting the grinding level", Page21 ¡ During operation water droplets may form at the ventilation slits and on the lid of the tablet compartment. ¡ If you do not perform any actions on the appliance for a certain period, it will automatically switch off. You can change the duration in the basic settings. → Page25Basic Operation en-us

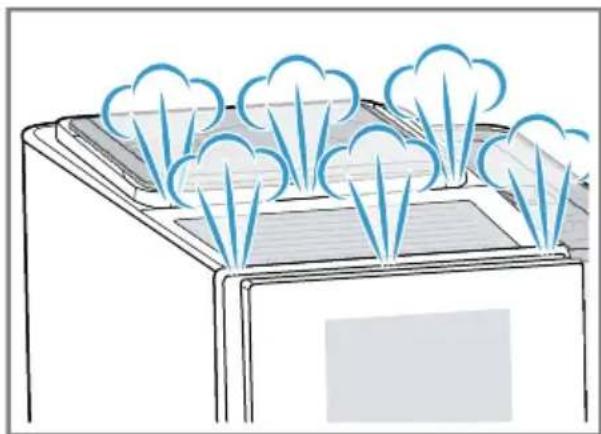

¡ For technical reasons steam can escape from the appliance.

The first beverage will not yet have its full aroma if: – You are using the appliance for the first time. – You have run a machine care cycle. – You have not used the appliance for a long time. Tip:You will get a stable, fine-pored crema after you have started up your appliance and dispensed a few cups. Basic Operation 7 Basic Operation Basic Operation 7.1 Switching the appliance on or off ▶ Press . When the appliance switches on, the display shows the logo. When the appliance is switched on or off, it will rinse itself automatically. When switched off, the appliance will emit steam into the drip tray for cleaning. The appliance will not rinse itself if the appliance is still warm when switched on or if no beverage was dispensed before it was switched off. 7.2 Dispensing beverages Find out how to prepare a drink of your choice. WARNING Freshly prepared beverages are very hot. ▶ Let drinks cool down if necessary. ▶ Do not let escaping liquids or steam come into contact with your skin. Notes ¡ With a number of settings your coffee is prepared in several steps. Wait until the process has completely finished. ¡ If you are dispensing a beverage with milk, always connect a container filled with milk to the milk inlet tube and suction pipe. ¡ If the milk system has not been cleaned, small amounts of milk may escape when hot water is dispensed. 7.3 doubleShot and tripleShot Your appliance grinds the coffee two or three times. To ensure that only pleasant-tasting and easily digestible flavorful substances are released, coffee beans are freshly ground and brewed again by the appliance. The longer the coffee brews, the more bitter substances and unpleasant flavors are released. Bitter substances and undesirable aromas affect the taste and digestibility of coffee. Note:The functions "doubleShot" and "tripleShot" depend on the beverage strength and beverage size selected.en-us Basic Operation

7.4 Slow Brew and Cold Brew Slow Brew and Cold Brew are slowly brewed beverages that your appliance dispenses in a pulsating beverage flow that is not continuous. This type of coffee preparation exists as a hot and a cold version. Dispensing the beverage takes several minutes. Note:Fill the water tank with fresh, cold, non-carbonated drinking water before dispensing drinks. 7.5 Dispensing a coffee drink with milk Learn how to prepare a latte macchiato by following this example. WARNING The milk system becomes very hot. ▶ Never touch the milk system when it is hot. ▶ Allow the hot milk system to cool down before touching it. Requirements ¡ The milk inlet tube with the suction pipe is connected to the milk system. ¡ The suction pipe is immersed in milk.

3. Select and press the beverage

‒ To stop dispensing the beverage completely, press "Stop". ‒ To only stop the current dispensing step, press "Skip". After preparing the beverage, the milk system will automatically clean itself with a short jet of steam. a The beverage is prepared and then runs into the glass. Notes ¡ If you do not change any settings for approx. 30seconds, the appliance will exit settings mode. ¡ The appliance saves the settings automatically. ¡ Do not use creamers. Tips ¡ You can also pre-heat cups before dispensing using hot water or the cup heater

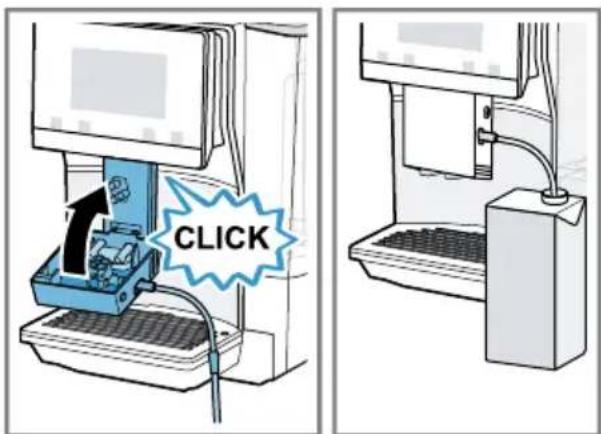

¡ You can also use plant-based alternatives to milk, e.g. soy milk. ¡ The quality of the milk froth depends on the type of milk or plant-based alternative used. 7.6 Dispensing two cups at once Depending on your beverage, you can make 2 cups at the same time. Note:If the "doubleShot" or "tripleShot" function is active, the function for dispensing two cups at once is not possible.

2. Place two cups on the left and right

The beverage is prepared in 2 steps. The beans are ground in 2 grinding operations. a The beverage is brewed and then runs into the cups.

4. Wait until the process is complete.Grinder

8 Grinder Grinder Your appliance has an adjustable grinder, which you can use to customize the right coffee grind size of your coffee beans. 8.1 Setting the grinding level Set the required grinding level while the coffee beans are being ground. WARNING The grinder rotates. ▶ Never reach into the grinder. NOTICE: Risk of damage to the grinder. The grinder may be damaged if the grinding level is not set properly. ▶ Only set the grinding level when the grinder is running. ▶ Select the grinding level step by step using the rotary selector. Grinding level Setting Fine grinding level for light- roasted beans Turn rotary selector counterclockwise. Grinding level Setting Coarse grinding level for dark- roasted beans Turn rotary selector clockwise. The grinding level setting only takes effect after the second cup. Tip:If the coffee is only dispensed drop by drop, set a coarser grinding level. If the coffee is dispensed too quickly and with too little crema, set a finer grinding level. Child protection 9 Child protection Child protection You can lock the appliance to protect children against scalding and burns. 9.1 Activating the child lock Requirement:The appliance is switched on. ▶ Press and hold for at least 3seconds. a The child lock is now activated. 9.2 Deactivating the child lock ▶ Press and hold for at least 3seconds. a This deactivates the child lock.en-us Cup warmer

Cup warmer 10 Cup warmer

Cup warmer You can use the cup warmer to pre- heat your cups. 10.1 Activating and deactivat- ing the cup warmer

can become hot. ▶ Don't touch the cup warmer

while hot. ▶ Allow the hot cup warmer

to cool down before touching it. Tip:To optimally warm the cups, place the cups with the cup base on the cup warmer

Favorites 11 Favorites Favorites Save beverages with your personal settings as a favorite. You can mark your favorites with a color. A favorite is a beverage with personal settings. You can change the settings at any time. Note:To exit the settings, press or start dispensing the beverage. 11.1 Saving beverages from the beverage selection

1. Select a beverage from "Classics"

2. Select personal beverage settings.

3. Press "Favorite".

4. Select the desired color for the

11.2 Saving the beverage in the menu

3. Select the desired beverage.

4. Select personal beverage settings.

6. Select the desired color for the

11.3 Changing beverage set- tings

1. Press "Favorites".

2. Select the beverage and press

3. Change the beverage settings.

a The new settings are saved. 11.4 Deleting a favorite

1. Press "Favorites".

2. Select the beverage.

3. Press the beverage for at least

4. Confirm "Delete".

HomeConnect 12 HomeConnect HomeConnect This appliance is network-capable. Connecting your appliance to a mobile device lets you control its functions via the HomeConnect app, adjust its basic settings and monitor its operating status. The HomeConnect services are not available in every country. The availability of the HomeConnect function depends on the availability of HomeConnect services in your country. You can find information on this at: www.home-connect.com. To be able to use HomeConnect, you must first set up the connection to the WLAN home network (Wi-Fi

) and to the HomeConnect app. The HomeConnect app guides you through the entire registration process. Follow the instructions in the HomeConnect app to implement the settings. Tip:Follow the instructions in the HomeConnect app as well. Notes ¡ Also note the safety information in this instruction manual and ensure that it is also observed when operating the appliance using the HomeConnect app.

"Safety", Page4 ¡ Operating the appliance on the appliance itself always takes priority. It is not possible to operate the appliance using the HomeConnect app during this time. 12.1 Setting up the HomeConnect app

1. Install the HomeConnect app on

2. Start the HomeConnect app and

set up access for HomeConnect. The HomeConnect app guides you through the entire registration process. 12.2 Setting upHomeCon- nect Requirements ¡ The HomeConnectapp is installed on your mobile device. ¡ The appliance receives signals from the WLAN home network (Wi-Fi) at its installation location.

1. Open the HomeConnect app and

scan the following QR code.

2. Follow the instructions in the

HomeConnect app. 12.3 HomeConnect settings Adapt HomeConnect to your needs. You can find the HomeConnect settings in the basic settings for your appliance. Which settings the display shows will depend on whether

Wi-Fi is a registered trade mark of the Wi-Fi Alliance.en-us HomeConnect

HomeConnect has been set up and whether the appliance is connected to your home network. Overview of the Home Connect settings Here is an overview of the HomeConnect settings and network settings. Basic setting Select Description Wi-Fi connection On Off Switch off the wireless module during long absences or to save energy. Note:In networked standby mode your appliance requires max. 2W. Remote start On Off Switch remote start on the appliance on and off. Note:With the HomeConnect app only switch-off is possible. Add mobile device - Connect the appliance to the "Home Connect" app or additional accounts. Network informa- tion - Display network information and appliance information. Delete network settings - Note:You cannot operate your appliance via the "Home Connect" app without a network connection. Software update - Note:This setting is only available with a software update. 12.4 Remote diagnostics Customer Service can access your appliance via Remote Diagnostics if you ask them to do so, if your appliance is connected to the HomeConnect server and if Remote Diagnostics is available in the country where you are using the appliance. Tip:Further information and details about the availability of Remote Diagnostics in your country can be found in the Service/Support section of your local website: www.home- connect.com. 12.5 Data Protection Please read this information on data protection. The first time your appliance is registered on a home network connected to the Internet, your appliance transmits the following types of data to the HomeConnect server (initial registration): ¡ Unique appliance identification (consisting of appliance codes as well as the MAC address of the installed Wi-Fi communication module).Basic settings en-us

¡ Security certificate of the Wi-Fi communication module (to ensure a secure data connection). ¡ The current software and hardware version of your home appliance. ¡ Status of any previous reset to factory settings. This initial registration prepares the HomeConnect functions for use and is only required when you want to use the HomeConnect functions for the first time. Note:Please note that the HomeConnect functions can only be used in conjunction with the HomeConnect app. Information on data protection can be retrieved in the HomeConnect app. Basic settings 13 Basic settings Basic settings You can configure the basic settings for your appliance to meet your needs and call up additional functions. 13.1 Changing the basic set- tings

1. Change the desired basic setting.

a The appliance saves the basic setting automatically.

2. To exit the basic settings, press .

13.2 Overview of the basic settings Here is an overview of the basic settings. Beverage setting Brewing temperature Set the brewing temperature. Milk sequence Select the sequence for milk and coffee. Latte macchiato pause Select the pause between milk and coffee. Reset beverage parameters Reset the beverage settings. Appliance setting Cup heater

Switch the cup heater

or off. Automatic switch-off Set the length of time after which the appliance will turn off. Display brightness Set the brightness in steps. Tones ¡ Switch sounds on and off. ¡ Set the volume. Water hardness Set the water hardness.

Depending on the appliance specificationsen-us Cleaning and maintenance

Language Set language. Factory settings Reset appliance to factory settings. Customization Operation after switch-on Set the display screen for "Favorites", "Classics" or "coffeeWorld". Sort favorites Set the sequence of favorites. HomeConnect Information about HomeConnect

"Setting upHomeCon- nect", Page23 Appliance information Drink counter Display the number of beverages dispensed. Cleaning information Time until the water filter should next be changed or a machine care cycle started. Version information Display network information and appliance information. License information Display FOSS license text. Mode for demo purposes Switch "Demo mode" on or off.

Depending on the appliance specifications Cleaning and maintenance 14 Cleaning and maintenance Cleaning and maintenance To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully. 14.1 Dishwasher-safe components Here is an overview of the components you can clean in the dishwasher. NOTICE: Some components are sensitive to heat and may be damaged if they are cleaned in a dishwasher. ▶ Follow the operating instructions of the dishwasher. ▶ Only clean dishwasher-safe components in the dishwasher. ▶ Only use programs that do not heat the components above 140°F (60°C).Cleaning and maintenance en-us

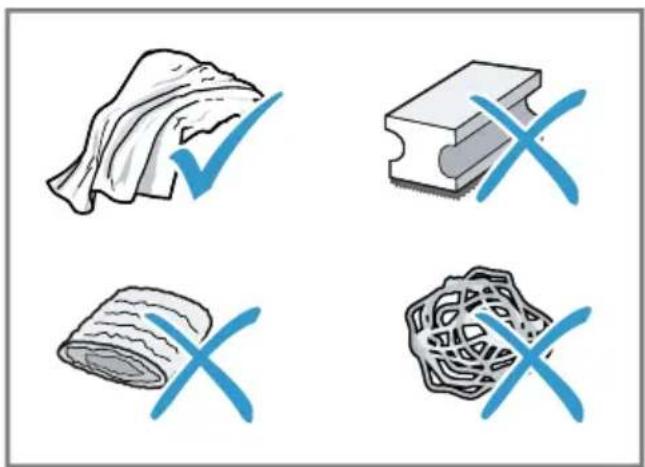

Suitable: ¡ Drip tray – Drip plate – Coffee dregs container – Mechanical fill level indicator ¡ Milk system with adapter Not suitable: ¡ Water tank ¡ Lid for water tank ¡ Brewing unit ¡ Beverage dispenser cover 14.2 Cleaning agents Only use suitable cleaning agents. NOTICE: Unsuitable cleaning agents may damage the surfaces of the appliance. ▶ Do not use strong or abrasive cleaning agents. ▶ Do not use cleaning agents containing alcohol or spirits. ▶ Do not use hard scouring pads or cleaning sponges. Unsuitable cleaning and descaling agents may damage the appliance. ▶ Do not use pure citric acid, vinegar or any vinegar-based agents to descale the appliance. ▶ Do not use descaling agent with phosphoric acid. ▶ Only use cleaning tablets and descaling tablets that have been specially developed for the appliance.

"Accessories", Page12 Tips ¡ Wash new sponge cloths thoroughly to remove any salt adhering to them. Salt can cause rust film to develop on stainless steel surfaces. ¡ Always remove any residues of limescale, coffee, milk and cleaning/ descaling solutions immediately to prevent corrosion. 14.3 Cleaning the appliance WARNING Moisture intrusion may cause an electric shock. ▶ Never immerse the appliance or the power cord in water. ▶ Liquids must not be spilled on the appliance plug connection. ▶ Do not use any steam cleaners or high-pressure cleaners to clean the appliance. WARNING Some parts of the appliance become very hot. ▶ Never touch hot appliance parts. ▶ Allow hot appliance parts to cool down before touching.

1. Clean the housing, the high-gloss

surfaces and the control panel with a microfiber cloth.

2. Clean the outlet system with a soft,

damp cloth after beverages have been dispensed.en-us Cleaning and maintenance

3. Rinse the water tank with fresh,

4. If the appliance has not been used

for a long time, e.g. after a vacation, clean the entire appliance, including moving parts such as the brewing unit or water tank. Note:The appliance will rinse itself automatically if you switch it on when it is cold or switch it off after it has dispensed coffee. In other words the system cleans itself. 14.4 Cleaning the drip tray and coffee dregs con- tainer Clean and empty the drip tray and coffee dregs container every day to prevent deposits.

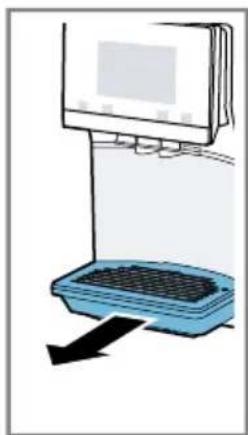

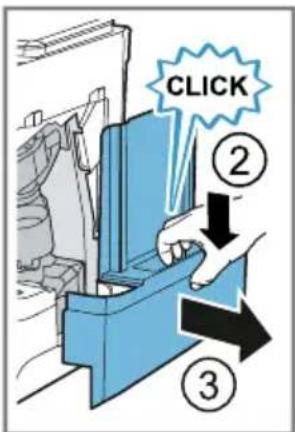

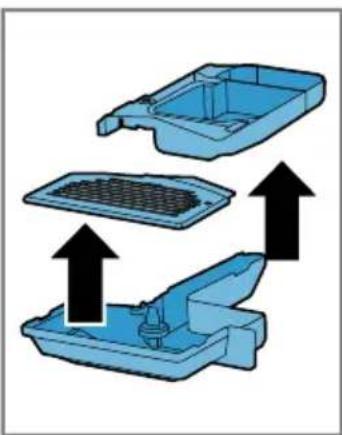

1. Pull the drip tray and the coffee

dregs container forwards and out. ‒ Insert the coffee dregs container in the drip tray and put the drip plate on top.

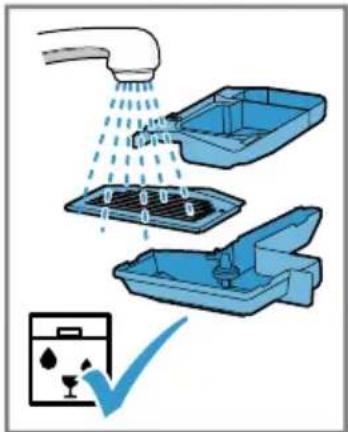

2. Clean and dry all parts.

‒ Insert the coffee dregs container in the drip tray and put the drip plate on top. ‒ Insert the drip tray with the coffee dregs container in the appliance. 14.5 Machine care cycles Use the machine care cycles if you insert or remove a water filter or in order to clean your appliance thoroughly. Your appliance will tell you when you need to perform a machine care cycle, e.g. cleaning. NOTICE: Improper cleaning and descaling or a delay in doing so may damage the appliance. ▶ Immediately perform the descaling process in accordance with the instructions. ▶ Only use cleaning tablets in the tablet compartment. ▶ Do not put descaling tablets or other products in the tablet compartment. Notes ¡ The display indicates the progress of the descaling or cleaning process.Cleaning and maintenance en-us

¡ If your appliance has been locked, you can only operate it again once the descaling process has been carried out. Tip:In addition to automatic rinsing, also remove and clean the brewing unit regularly. Using the machine care cycles ▶ Press . a The display will guide you through the program.en-us Troubleshooting

Troubleshooting 15 Troubleshooting Troubleshooting WARNING Improper repairs are dangerous. ▶ Only original spare parts may be used to repair the appliance. ▶ If the power cord of this appliance becomes damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service, or an authorized service provider in order to prevent injury. Issue Cause and troubleshooting Appliance no longer responds. Appliance has an error.

1. Unplug the appliance and wait 60seconds.

HomeConnect is not working properly. Various causes are possible. ▶ Go to www.home-connect.com. Appliance only dispenses water, not coffee. Empty bean container is not detected by the appliance. ▶ Pour in coffee beans. Coffee shaft on brewing unit is blocked. ▶ Clean the brewing unit. Coffee beans are too oily and do not fall into the grinder. ▶ Gently tap the bean container. ▶ Change the type of coffee. ▶ Do not use oily beans. ▶ Clean the empty bean container with a damp cloth. Brewing unit is not inserted properly.

1. Check whether the brewing unit is inserted correctly

and is securely locked.

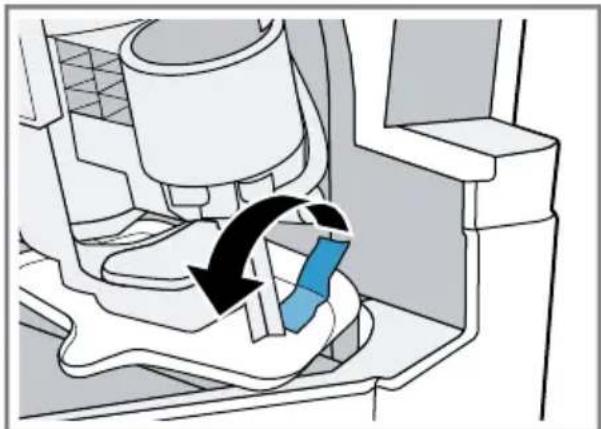

2. Push the red lever up to the left.

3. Insert the brewing unit cover.

Appliance is not dispensing milk froth. Milk system is soiled. ▶ Clean the milk system in the dishwasher. Milk inlet tube not immersed in milk. ▶ Use more milk. ▶ Check whether the milk inlet tube is immersed in the milk. Heavy build-up of limescale in the appliance. ▶ Descale the appliance.Troubleshooting en-us

Issue Cause and troubleshooting No milk intake by the milk system. The milk system is assembled incorrectly. ▶ Assemble the milk system correctly. Milk inlet tube not immersed in milk. ▶ Use more milk. ▶ Check whether the milk inlet tube is immersed in the milk. Milk froth is too cold. Milk is too cold. ▶ Warm the milk. Cold-brewed beverage is not cold enough. Water in water tank is warm.

1. Fill the water tank with fresh, cold, non-carbonated

2. You can add ice cubes to cool the beverage down

even more. Appliance is not dispensing hot water. Milk system is soiled. ▶ Clean the milk system in the dishwasher. Appliance is not dispensing drinks. Air in the water filter.

1. Immerse the water filter in water with the opening

facing upwards until no more air bubbles escape.

2. Reinsert the filter.

▶ Firmly press the water filter straight down into the tank connection. Residues of limescale remover are blocking the water tank.

1. Remove the water tank.

2. Clean the water tank thoroughly.

Water has dripped inside at the base of the appliance. Drip tray was removed too soon. ▶ Wait a few seconds after the last drink was dispensed before removing the drip tray. Brewing unit cannot be removed. Locking mechanism cannot be released, brewing unit is jammed. ▶ Switch the appliance off and back on after 3minutes. Grinder will not start. Appliance is too hot.

1. Disconnect the appliance from the power supply.

Issue Cause and troubleshooting Grinder is not grinding any coffee beans despite full bean container. Coffee beans are too oily and do not fall into the grinder. ▶ Gently tap the bean container. ▶ Change the type of coffee. ▶ Do not use oily beans. ▶ Clean the empty bean container with a damp cloth. Coffee or milk froth quality varies considerably. Build-up of limescale in the appliance. ▶ Descale the appliance. Milk froth quality varies considerably. Milk froth quality depends on the type of milk or plant- based alternative used. ▶ Optimize the result through the selection of the milk or plant-based drink type. Coffee is not dispensed or has slowed to a trickle. Set quantity is not reached. Grinding level is set too fine. ▶ Set a coarser grinding level.

"Setting the grinding level", Page21 Heavy build-up of limescale in the appliance. ▶ Descale the appliance. Air in the water filter.

1. Immerse the water filter in water with the opening

facing upwards until no more air bubbles escape.

2. Reinsert the filter.

Appliance is soiled. ▶ Clean the brewing unit. ▶ Descale and clean the appliance. Coffee has no crema. Type of coffee is not optimal. ▶ Use a coffee variety with a higher proportion of Robusta beans. Coffee beans are no longer freshly roasted. ▶ Use fresh coffee beans. Grinding level is not appropriate for coffee beans. ▶ Adjust the grinder to a finer setting.

"Setting the grinding level", Page21 Coffee is too acidic. Grinding level is set too coarse. ▶ Adjust the grinder to a finer setting.

"Setting the grinding level", Page21 Type of coffee is not optimal.Troubleshooting en-us

Issue Cause and troubleshooting Coffee is too acidic. ▶ Use a coffee variety with a higher proportion of Robusta beans. Coffee is too bitter. Grinding level is set too fine. ▶ Set a coarser grinding level.

"Setting the grinding level", Page21 Type of coffee is not optimal. ▶ Change the type of coffee. Coffee tastes burnt. Grinding level is set too fine. ▶ Set a coarser grinding level.

"Setting the grinding level", Page21 Type of coffee is not optimal. ▶ Change the type of coffee. Brewing temperature is too high. ▶ Set the brewing temperature lower. Coffee grounds are not compact and are too wet. Grinding level is not set correctly. ▶ Adjust the grinder to a coarser or finer setting.

"Setting the grinding level", Page21 Coffee beans are too oily. ▶ Use a different type of bean. Display shows "Please insert the brewing unit.". Cover is inserted wrong.

1. Check whether the brewing unit is inserted correctly

and is securely locked.

2. Push the red lever up to the left.

3. Insert the brewing unit cover.

Display shows "Please fill the water tank" despite the water tank being full. Water tank is inserted wrong. ▶ Insert the water tank correctly. Carbonated water is in the water tank. ▶ Fill the water tank with fresh drinking water. Float is stuck in the water tank.

1. Remove the water tank.

2. Clean the water tank thoroughly.

New water filter was not rinsed as per instructions.

1. Rinse the water filter according to the instructions.

2. Place the water filter into operation.

Air in the water filter.

1. Immerse the water filter in water with the opening

facing upwards until no more air bubbles escape.en-us Troubleshooting

Issue Cause and troubleshooting Display shows "Please fill the water tank" despite the water tank being full.

2. Reinsert the filter.

Water filter is old. ▶ Insert a new water filter. Limescale deposits in the water tank are blocking the system.

1. Clean the water tank thoroughly.

2. Start the descaling program.

Display shows "Please clean brewing unit. In- structions in Use and Care Manual". Brewing unit is soiled. ▶ Clean the brewing unit. Mechanism of brewing unit is stiff. ▶ Clean the brewing unit. Display shows "Over- voltage or undervoltage". There are problems with the power supply. ▶ Only operate the appliance at 120V∼. Display shows "Error in water system. Unplug the appliance, wait one minute and plug in again.". Appliance has an error.

1. Unplug the appliance and wait 60seconds.

Display shows "Please run Calc'nClean pro- gram!" very frequently. Decalcified water still contains small amounts of lime.

1. Insert a new water filter.

2. Set the corresponding water hardness.

Incorrect or too little descaling agent used. ▶ When descaling, only use suitable tablets. Machine care cycle has not been carried out in its entirety. ▶ Start the "Special rinsing" machine care cycle.

Transportation, storage and disposal 16 Transportation, stor- age and disposal Transportation, storage and disposal 16.1 Activate frost protection Protect your appliance from frost during transport and storage. NOTICE: Residues of liquid in the appliance may damage it during transport or storage. ▶ Empty the pipe system before transport or storage.

1. Run the "Frost protection" program.2. Disconnect the appliance from the

power supply. 16.2 Disposal of your old ap- pliance Environmentally compatible disposal allows valuable raw materials to be recycled.

1. Unplug the appliance from the

2. Cut through the power cord.3. Dispose of the appliance in an

environmentally responsible manner. Information about current disposal methods can be obtained from your specialist dealer or local authority. Customer Service 17 Customer Service Customer Service With any warranty repair, we will make sure your appliance is repaired by an authorized service provider using genuine replacement parts. We use only genuine replacement parts for all repairs. Detailed information on the warranty period and terms of warranty can be found in the Statement of Limited Product Warranty, from your retailer, or on our website. If you contact Customer Service, you will need the model number (E-Nr.), the production number (FD) and the consecutive numbering (Z-Nr.) of your appliance. USA: (800)701-5231 www.bosch-home.com/us/owner- support/get-support www.bosch-home.com/us/shop CA: (800)701-5231 www.bosch-home.ca/en/service/get- support www.bosch-home.ca/en/service/ cleaners-and-accessories For assistance with connecting to HomeConnect, you can also view instructions here: www.home-connect.com/us/en/help- support/set-up 17.1 Model number (E-Nr.), production number (FD) and consecutive num- bering (Z-Nr.) You can find the model number (E- Nr.), the production number (FD) and the consecutive numbering (Z-Nr.) on the appliance's rating plate. Making a note of your appliance's details and the Customer Service telephone number will enable you to find them again quickly.en-us Technical specifications

Technical specifications 18 Technical specifica- tions Technical specifications Voltage 120V∼ Frequency 60Hz Power rating 1600W Maximum static pump pressure 19bar Maximum capacity of water tank (without filter) 81 oz. (2.4l) Maximum capacity of bean container

(320g) Power cord length 39 ⅜" (1m) Appliance height 15" (380mm) Appliance width 13 ⁶⁄₇" (352mm) Appliance depth 18 ⅖" (467mm) Weight, empty 20 lbs (9kg) Type of grinding unit Ceramic This product contains light sources from energy efficiency classes D and F. These light sources are available as spare parts and may only be replaced by trained specialist staff. 18.1 Information regarding Free and Open Source Software This product includes software components that are licensed by the copyright holders as free or open source software. The applicable license information is stored on your home appliance. You can also access the applicable license information via your HomeConnect app: "Profile -> Legal information -> License Information".

You can download the license information on the brand product website. (Please search on the product website for your appliance model and additional documents). Alternatively, you can request the relevant information from ossrequest@bshg.com or BSH Hausgeräte GmbH, Carl-Wery-Str. 34, 81739 Munich, Germany. The source code will be made available to you on request. Please send your request to ossrequest@bshg.com or BSH Hausgeräte GmbH, Carl-Wery-Str.34, 81739 Munich, Germany. Subject: „OSSREQUEST“ The cost of performing your request will be charged to you. This offer is valid for three years from the date of purchase or at least as long as we offer support and spare parts for the relevant appliance.

YOU MAY ALSO HAVE OTHER

19.1 What this warranty cov- ers & Who it applies to The limited warranty provided by BSH Home Appliances (“Bosch”) in this Statement of Limited Product Warranty applies only to the Bosch appliance (“Product”) sold to you provided that the Product was purchased: ¡ For your normal, household (non- commercial) use (i.e., no more than 7,000 cups during the warranty period), and has in fact at all times only been used for normal, non- commercial household purposes. ¡ New at retail from a BSH authorized dealer or directly from BSH (not a display, floor, “As Is”, or “B” stock appliances), and not for resale, or commercial use. ¡ Within the United States or Canada, and has at all times remained within the country of original purchase. The warranties stated herein apply to the original purchaser of the product warranted herein purchased for ordinary household use during the term of the warranty. Please make sure to register your product; failure to register will not affect your warranty rights. Registering your product is the best way for Bosch to notify you in the unlikely event of a safety notice or product recall. Upon purchase or receipt of the product, it is recommended to register it using the QR code on the side of the machine or at https://registerbosch.com/ 19.2 Obtaining warranty ser- vice To obtain warranty service for your product, you should contact Bosch Customer Service at (800)701-5231 to arrange a repair. 19.3 How long the warranty lasts Bosch warrants that the Product is free from defects in materials and workmanship for a period of seven hundred thirty (730) days from the date of the original delivery. The foregoing timeline begins to run upon the date of the original delivery. The warranty shall only be extended for the time that elapsed between the date of your warranty claim and the date of the completed repair or replacement. This Product is also warranted to be free from cosmetic defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chips, dents, or other damage to the finish) of the Product, for a period of thirty (30) days from the date of delivery. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, “As Is”, or “B” stock appliances. UNDER THIS SPECIFIC

WARRANTY, A PROOF OF

cannot be provided, date of production plus three months will be used as the purchase date. You may be required to provide clear images (e.g., pictures of the Product and/or including the data tag showing model and serial number), but failure to do so will not diminish your warranty rights. 19.4 Repair/replace as your exclusive remedy During this warranty period, Bosch or one of its authorized service providers will repair your Product without charge to you (subject to certain limitations stated herein) under a valid warranty claim under the terms of the applicable warranty. Bosch will cover the cost of returning the Bosch Product to Bosch via ground shipping, and the original Product (removed parts and components) shall become the property of Bosch.

PACKAGING INSTRUCTIONS PROVIDED BY BOSCH. This warranty does not cover for shipping damage or loss of product during shipping. If reasonable attempts to repair the Product have been made without success, then Bosch will replace your Product with a new or factory certified (i.e., refurbished) replacement (upgraded models may be available to you, in Bosch’s sole discretion, for an additional charge). Bosch may repair a part of the original Product with a factory certified (i.e., refurbished) part. You have the right to reject a replacement Product that materially differs from the original Product. Bosch’s sole liability and responsibility hereunder is to repair the Product under a valid warranty claim, using a Bosch technician or one of its authorized service providers during normal business hours. For safety and property damage concerns, Bosch highly recommends that you do not attempt to repair the Product yourself, or use a non-authorized service provider; Bosch will have no responsibility or liability for damage resulting from repairs or work performed by a non-authorized service provider. Authorized service providers are those persons or companies that have been specially trained on Bosch products, and who possess, in Bosch’s opinion, a superior reputation for customer service and technical ability (note that they are independent entities and are not agents, partners, affiliates or representatives of Bosch). Nevertheless, having your roduct serviced by a repair shop that is not affiliated with or an authorized dealer of Bosch will not void this warranty. Also, using third-party parts will not void this warranty. 19.5 Out of warranty product Bosch is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, prorates, or Product replacement, once this warranty has expired.STATEMENT OF LIMITED PRODUCT WARRANTY en-us

19.6 Warranty exclusions This Limited Warranty does not cover any of the following: ¡ Products sold outside of the United States of America, USA Territories, and Canada ¡ Consumables (e.g., water filter) ¡ Repairs made by non-authorized retailer or dealers ¡ Products purchased on eBay or auctions ¡ Shipping damage or loss of product during shipping ¡ Use and care related repairs ¡ Use of care products not sold by Bosch (e.g., descalers, cleaners, etc.) The warranty coverage described herein excludes all defects or damage caused by, including without limitation, one or more of the following: ¡ Use of the Product in anything other than its normal, household (non- commercial), and intended manner (including without limitation, any form of commercial use, use or storage of an indoor product outdoors, use of the Product in conjunction with air or water-going vessels). ¡ Use of the Product with voltage or frequency outside of the dataplate rating. ¡ Use of the product on a generator, solar, inverter, or DC to AC converter. ¡ Any party's willful misconduct, negligence, misuse, abuse, accidents, neglect, improper operation, failure to maintain according to Use & Care Manual, improper or negligent installation, tampering, failure to follow operating instructions, mishandling, unauthorized service (including self- performed "fixing" or exploration of the appliance’s internal workings). ¡ Adjustment, alteration or modification of any kind. ¡ A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local fire and building codes and regulations. ¡ Ordinary wear and tear, spills of food, liquid, grease accumulations, or other substances that accumulate on, in, or around the Product. ¡ Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God. ¡ Service calls to correct the installation of your Product, to instruct you how to use your Product, to replace house fuses, or correct house wiring. ¡ Damage or defects caused by labor or parts installed by any non- authorized service provider, unless approved by Bosch before service is performed. In no event shall Bosch have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings,en-us STATEMENT OF LIMITED PRODUCT WARRANTY

and other structures or objects around the Product. Also excluded from this warranty are Products, on which the serial numbers have been altered, defaced, or removed; any type of service to teach you how to use the Product, or servicing where there is nothing wrong with the Product; correction of installation problems (you are solely responsible for any structure and setting for the Product, including all electrical, or other connecting facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls, floors, shelving, etc.); and resetting of breakers or fuses.

TO THE EXTENT ALLOWED BY

LAW, THIS WARRANTY SETS OUT

OR TORT (INCLUDING STRICT

IMPLIED BY LAW, WHETHER FOR

EXPENSES, INCLUDING WITHOUT

REMODELLING EXPENSES IN

THE ABOVE EXCLUSIONS OR

LIMITATIONS MAY NOT APPLY TO

MAY ALSO HAVE OTHER RIGHTS

WHICH VARY FROM STATE TO

STATE. No attempt to alter, modify or amend this warranty shall be effective unless authorized in writing by an officer of BSH. 19.7 Product information For handy reference, copy the information below from the rating plate. Keep your invoice and/or delivery documents for warranty validation. Model number (E- Nr.) Production number (FD) Date of deliveryfr-ca

CONTRAT OU DÉLIT (Y COMPRIS

• Discounts for filters, cleaners, accessories & parts

• Easy access to manuals & appliance specifications

• Easy access to part lists

• Customized offer for the Bosch Appliance Service Plan (sent by mail after appliance registration) Register here: www.bosch-home.com/us/owner-support/mybosch Looking for help? You'll find it here. No matter what, no matter when: Bosch is here to support you. We’re here to assist with usage instructions, cleaning tips, accessories & parts, troubleshooting, and repairs. Find online resources such as FAQs, how-to-videos, manuals, warranties and authorized Bosch servicers at: www.bosch-home.com/us/owner-support/get-support Contact us: Please have your Model Number (E-Nr) ready when contacting us. 1-800-944-2904www.bosch-home.com/us/owner-support/contact-us *8001315402* 8001315402 (040604) en-us, fr-ca, es-mx BSH Home Appliances Corporation 1901 Main Street, Suite 600 Irvine, CA 92614 USA www.bosch-home.com (800)701-5231 © 2024 BSH Home Appliances Corporation
