Easy Dry FS4020 - Iron TEFAL - Free user manual and instructions

Product type	Iron
Brand	Tefal
Model	Easy Dry FS4020
Category	Non-steam iron
Power supply	220-240 V ~ 50/60 Hz
Temperature setting	Yes, thermostat with positions for different fabrics
Irons fabrics	Linen (MAX), Cotton, Wool, Silk, Synthetics (Polyester, Acetate, Acrylic, Polyamide)
Heating indicator light	Yes, lights up and turns off depending on temperature
Weight	Approximately 1.2 kg
Dimensions	Approximately 28 x 12 x 14 cm
Power cord length	Approximately 2 m
Rest position	Heel rest
Storage	Wrap cord around heel
Soleplate cleaning	With a damp sponge when lukewarm
General cleaning	Do not immerse, do not use abrasive products
Safety	Unplug after use, do not leave unattended, stable surface
Earth plug required	Yes
Environmental protection	Recyclable appliance, do not dispose of in household waste
Available languages	French, English, German, Spanish, etc.

Frequently Asked Questions - Easy Dry FS4020 TEFAL

How to adjust the temperature of the Easy Dry FS4020 iron?

Turn the thermostat to the position corresponding to the fabric: Linen (MAX), Cotton, Wool, Silk or Synthetics. The indicator light turns on and then turns off when the soleplate is hot.

What to do if the soleplate is dirty and stains laundry?

Clean the lukewarm soleplate with a damp sponge. Avoid excessively high temperatures and never use abrasive products.

Can I use the iron on delicate fabrics?

Yes, set the thermostat to the Silk or Synthetics position. For blended fibers, set to the most fragile fiber. Test a hidden area of the garment first.

How to clean the soleplate of the iron?

Wait for the soleplate to be lukewarm, then rub it with a damp sponge. Never immerse the iron in water and do not use abrasive pads.

Does the iron turn off automatically?

No, the iron does not have auto shut-off. You must unplug it after each use and never leave it unattended while plugged in.

What is the required electrical voltage?

The iron operates on a voltage of 220-240 V. Always plug it into a grounded outlet.

Can I use an extension cord?

Yes, but use a 10A bipolar extension cord with ground conductor. Ensure it is suitable for the iron's power.

How to store the iron after use?

Unplug the iron, wait for it to cool down (about 1 hour), wrap the cord around the heel, and store it standing on its heel to protect the soleplate.

The iron emits an odor during first uses, is this normal?

Yes, it is normal. A slight smoke or odor may occur the first few times. This phenomenon disappears quickly and does not affect use.

What to do if the power cord is damaged?

Do not use the iron. The cord must be replaced immediately by an Authorized Service Center to avoid any danger.

USER MANUAL Easy Dry FS4020 TEFAL

Tefal iron iron with visible branding and model number (no text or symbols on the device itself)

1 2 3 4 5

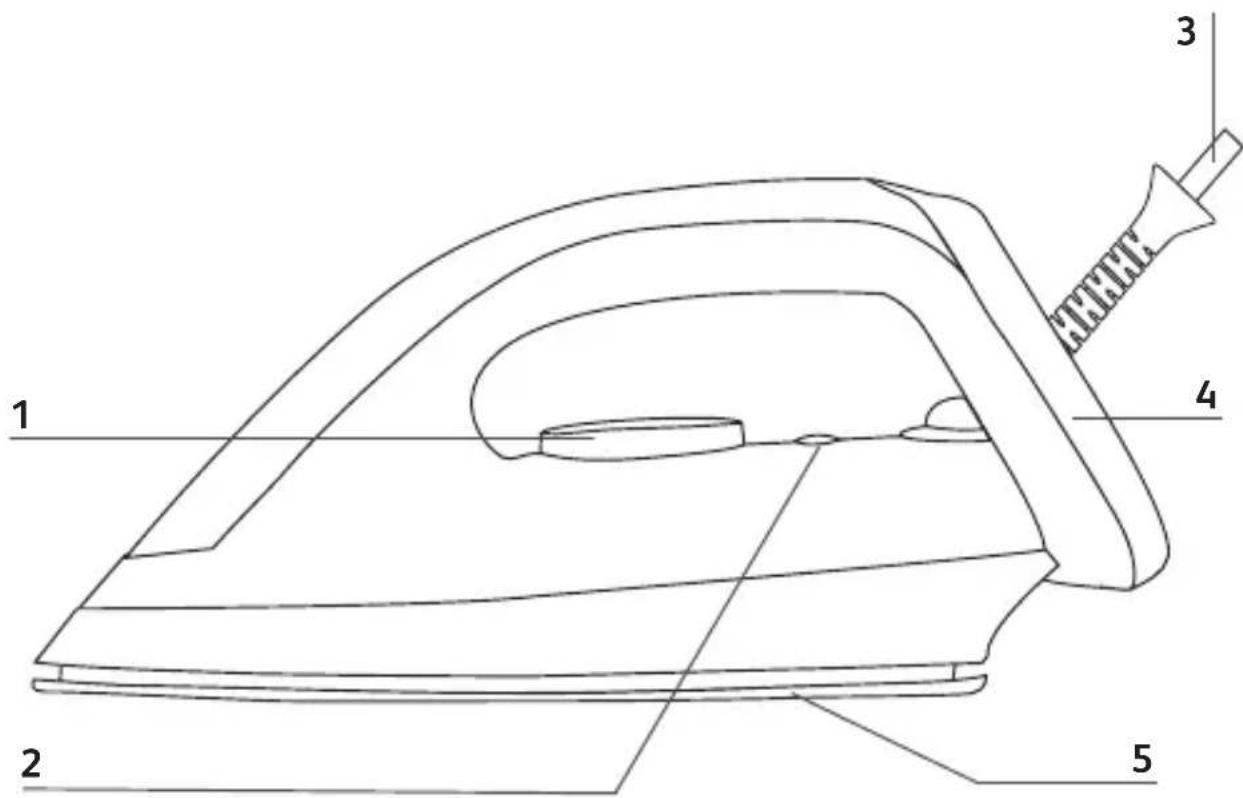

EN - Description

1- Temperature setting indicator
2- Thermostat indicator light
3- Electrical cord
4- Cord tidy heel
5- Soleplate

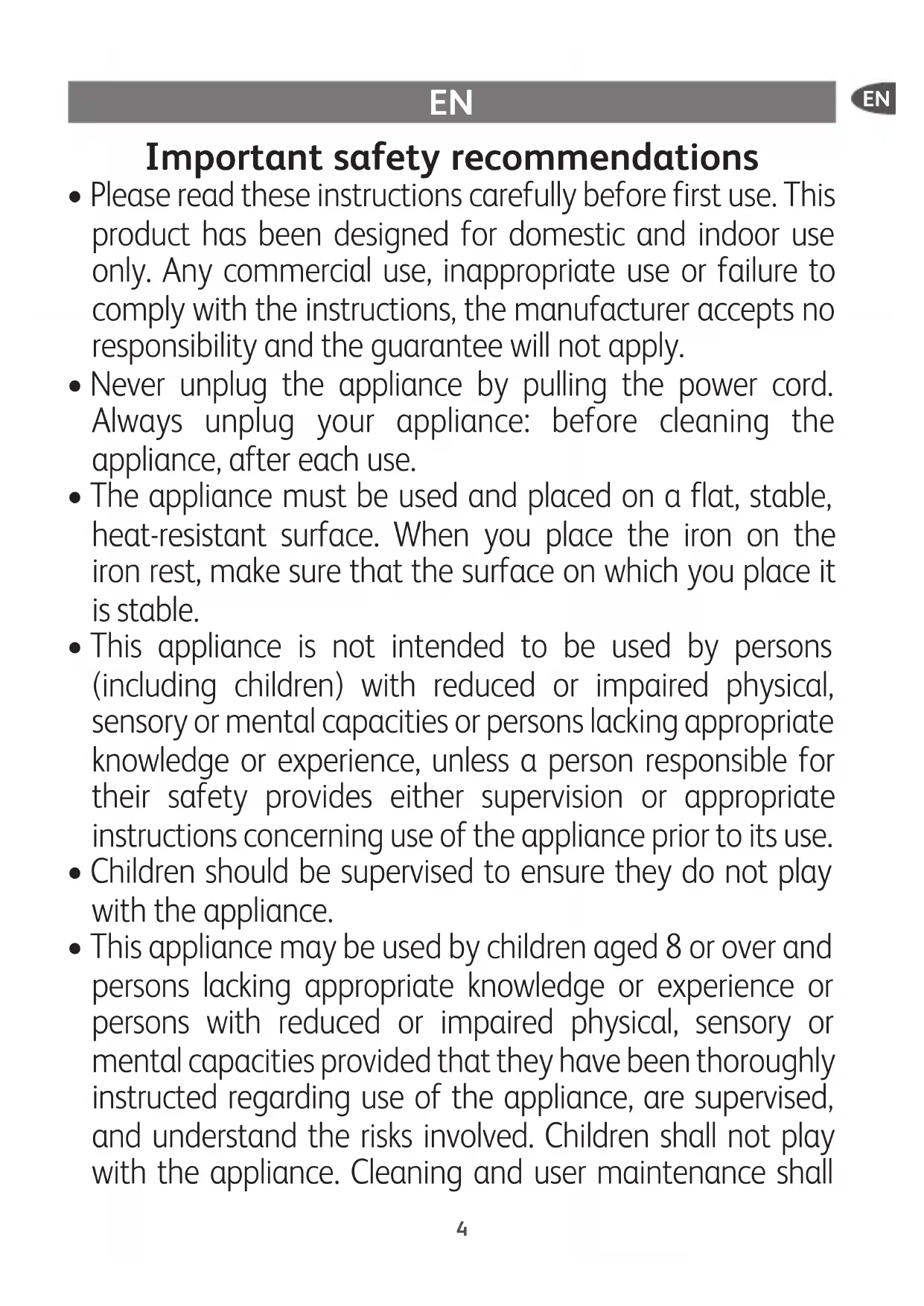

Important safety recommendations

• Please read these instructions carefully before first use. This product has been designed for domestic and indoor use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.
• Never unplug the appliance by pulling the power cord. Always unplug your appliance: before cleaning the appliance, after each use.
• The appliance must be used and placed on a flat, stable, heat-resistant surface. When you place the iron on the iron rest, make sure that the surface on which you place it is stable.
• This appliance is not intended to be used by persons (including children) with reduced or impaired physical, sensory or mental capacities or persons lacking appropriate knowledge or experience, unless a person responsible for their safety provides either supervision or appropriate instructions concerning use of the appliance prior to its use.
• Children should be supervised to ensure they do not play with the appliance.
• This appliance may be used by children aged 8 or over and persons lacking appropriate knowledge or experience or persons with reduced or impaired physical, sensory or mental capacities provided that they have been thoroughly instructed regarding use of the appliance, are supervised, and understand the risks involved. Children shall not play with the appliance. Cleaning and user maintenance shall

not be made by children without supervision. Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.

- The surfaces of your appliance can reach very high temperatures when functioning, which may cause burns. Do not touch the hot surfaces of the appliance (accessible metal parts and plastic parts adjacent to the metallic parts).

• Never leave the appliance unattended when it is connected to the mains. Before storing the appliance, once it is unplugged, please wait until it has cooled down (around 1 hour).
• The appliance must not be used if it has been dropped, if it has any visible damage, if it functions abnormally in any way. Do not attempt to dismantle your appliance: have it examined at an Approved Service Centre to avoid any danger.

- Check the electrical power for sign of wear or damage prior to use. If the electrical power cord is damaged, it must be replaced at an Approved Service Centre to avoid any danger.

- When you place the iron on its heel, ensure that the surface on which it is placed is stable.

- For your safety, this appliance conforms to all applicable regulations (Low Voltage Directive, Electromagnetic Compatibility, Environment, etc).

- Your iron is an electrical appliance: it must be used under normal conditions of use. It is designed for domestic use only.

• Always plug your iron:

• into a mains circuit with voltage between 220 V and 240 V,
• into an earthed electrical socket.
• Connecting to the wrong voltage may cause irreparable damage to the appliance and will invalidate your guarantee. If you are using a mains extension lead, ensure that it is correctly rated (10A) with an earth, and is fully extended.
• Completely unwind the power cord before plugging into an earthed socket.
• The soleplate of your iron can reach extremely high temperatures, and can cause burns: do not touch them. Never touch the electrical power cords with the soleplate of the iron.
• Never immerse your iron in water or any other liquid. Never place it under a running tap.

Before first use

When you first use the iron, some smoke or a harmless odour may be produced. This will not affect the use of the iron and will disappear quickly.

PLEASE RETAIN THIS INSTRUCTION BOOKLET FOR FUTURE REFERENCE

Environment protection first!

Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

Use

Adjust the temperature

- Select the temperature (see table below) setting the thermostat facing the indicator.

FABRIC	POSITION OF THERMOSTAT CURSOR
LINEN	MAX
COTTON	...
WOOL	...
SILK SYNTHETIC (Polyester, Acetate, Acrylic, Nylon)	•

• The thermostat light comes on. It will go out when the soleplate is hot enough.
• Your iron heats up quickly: so begin by ironing fabrics that are ironed at low temperatures first, then go on to those requiring a higher temperature.
• When ironing fabrics with mixed fibres, set the ironing temperature for the most delicate fibre. For delicate fabrics we recommend testing the fabric first on an inconspicious place eg (inside the hem).

It is normal for the indicator light to switch on and off during ironing.

If you turn down the thermostat, wait until the thermostat light comes back on before beginning to iron again.

Storage and Maintenance

Store your iron

• Unplug the iron.
• Wait until the soleplate cools down and Wind the cord around the heel of the iron.
• Store the cold iron on its heel.

Always set your iron on its heel, in order to avoid damage or scratching to the soleplate. Caution: placing your iron flat onto a metallic surface might damage or scratch the soleplate.

Cleaning the soleplate

- Unplug the iron, and when the soleplate is just warm, wipe it with a soft cloth.

Never use abrasive or aggressive products.

Problems with your iron?

PROBLEM POSSIBLE CAUSES		SOLUTIONS
The soleplate is dirty or brown and may soil clothes.	The temperature is too high. Clean the soleplate as indicated in the user guide Use a lower temperature.
The soleplate is scratched or damaged. You have positioned your iron flat on the metallic iron support.You have cleaned your soleplate with an abrasive cloth or steel wool.	You have placed your iron flat on the metallic iron support.You have cleaned your soleplate with an abrasive cloth or steel wool.	Always place your iron in the support base Clean the soleplate as indicated in the user guide.
