USER MANUAL FitRun 50i TUNTURI

Electrical safety 17

Description (fig. A) 18

Package contents (fig. B&C) 18

Assembly (fig. D) 18

Workouts 18

Exercise Instructions 18

Heart rate. 19

Use 20

Console (fig. E-1) 21

Buttons 21

Explanation of display items (Fig. H) 21

Programs 22

Quick start 22

Manual mode (P0) 22

End your workout 22

Preset Programs (P1~P36) 22

User programs (U01~U03) 22

Body Fat ... 23

HRC Program 23

ERP Function 24

Bluetooth & APP 24

Warranty. 24

Cleaning and maintenance. 25

Lubrication (fig. F-4) 25

Troubleshooting 26

Metric/ Imperial setting 26

Error codes 27

Transport and storage 27

Additional information 27

Technical data 27

Declaration of the manufacturer .... 28

Disclaimer 28

Treadmill

Welcome to the world of Tunturi!

Thank you for purchasing this piece of Tunturi equipment. Tunturi offers a wide range of home fitness equipment, including crosstrainers, treadmills, exercise bikes and rowers. The Tunturi equipment is suitable for the entire family, no matter what fitness level. For more information, please visit our website www.tunturi.com

Important Safety Instructions

This Owner's Manual is an essential part of your training equipment: reading all instructions in this manual before you start using this appliance. The following precautions must always be followed:

Safety warnings

WARNING

• Read the safety warnings and the instructions. Failure to follow the safety warnings and the instructions can cause personal injury or damage to the equipment. Keep the safety warnings and the instructions for future reference.

WARNING

• Heart rate monitoring systems may be inaccurate. Over exercise may result in serious injury or death. If you feel faint stop exercising immediately.

• The equipment is suitable for domestic use only. The equipment is not suitable for commercial use.

• Max. usage is limited to 3 hrs a day.
• The use of this equipment by children or persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety must give explicit instructions or supervise the use of the equipment.
• Before starting your workout, consult a physician to check your health.

• If you experience nausea, dizziness or other abnormal symptoms, immediately stop your workout and consult a physician.

• To avoid muscular pain and strain, start each workout by warming up and finish each workout by cooling down. Remember to stretch at the end of the workout.

• The equipment is suitable for indoor use only.
  The equipment is not suitable for outdoor use.
• Only use the equipment in environments with adequate ventilation. Do not use the equipment in draughty environments in order not to catch a cold.
• Only use the equipment in environments with ambient temperatures between 10^ 35^ . Only store the equipment in environments with ambient temperatures between 5^ 45^ .
• Do not use or store the equipment in humid surroundings. The air humidity must never be more than 80% .
• Only use the equipment for its intended purpose. Do not use the equipment for other purposes than described in the manual.
• Do not use the equipment if any part is damaged or defective. If a part is damaged or defective, contact your dealer.
• Keep your hands, feet and other body parts away from the moving parts.
• Keep your hair away from the moving parts.
• Wear appropriate clothing and shoes.
• Keep clothing, jewellery and other objects away from the moving parts.
• Make sure that only one person uses the equipment at a time. The equipment must not be used by persons weighing more than 125kg (275 lbs).
• Do not open equipment without consulting your dealer.

Electrical safety

(Only for equipment with electric power)

• Before use, always check that the mains voltage is the same as the voltage on the rating plate of the equipment.
• Do not use an extension cable.
• Keep the mains cable away from heat, oil and sharp edges.
• Do not alter or modify the mains cable or the mains plug.
• Do not use the equipment if the mains cable or the mains plug is damaged or defective. If the mains cable or the mains plug is damaged or defective, contact your dealer.

• Always fully unwind the mains cable.

• Do not run the mains cable underneath the equipment. Do not run the mains cable underneath a carpet. Do not place any objects on the mains cable.

• Make sure that the mains cable does not hang over the edge of a table.
• Make sure that the mains cable cannot be caught accidentally or tripped over.
• Do not leave the equipment unattended when the mains plug is inserted into the wall socket.
• Do not pull the mains cable to remove the mains plug from the wall socket.
• Remove the mains plug from the wall socket when the equipment is not in use, before assembly or disassembly and before cleaning and maintenance.

CAUTION

• If voltage varies by ten percent (10%) or more, the performance of your treadmill may be affected. Such conditions are not covered under your warranty. If you suspect the voltage is low, contact your local power company or a licensed electrician for proper testing.

CAUTION

• NEVER use a RCD - Residual Current Device (U.S. ver. = GFCI) - wall outlet with this treadmill. As with any appliance with a large motor, the RCD/GFCI will trip often. Route the power mains cord away from any moving part of the treadmill including the elevation mechanism and transport wheels.

Grounding Instructions

This product must be grounded. If the treadmill's electrical system should malfunction or breakdown grounding provides a path of least resistance for electric current, reducing the risk of electric shock. This product is equipped with a cord having an equipment-grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING

• Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly

grounded. Do not modify the plug provided with the product if it will not fit the outlet; have a proper outlet installed by a qualified electrician.

Description (fig. A)

Your treadmill is a piece of stationary fitness equipment used to simulate walking or running without causing excessive pressure to the joints.

Package contents (fig. B&C)

• The package contains the parts as shown in fig. B.
• The package contains the fasteners as shown in fig. C. Refer to the section "Description"

NOTE

If a part is missing, contact your dealer.

Assembly (fig. D)

WARNING

• Assemble the equipment in the given order.
• Carry and move the equipment with at least two persons.

CAUTION

• Place the equipment on a firm, level surface.
• Place the equipment on a protective base to prevent damage to the floor surface.
• Allow at least 100cm of clearance around the equipment.
  Refer to the illustrations for the correct assembly of the equipment.

Workouts

The workout must be suitably light, but of long duration. Aerobic exercise is based on improving the body's maximum oxygen uptake, which in turn improves endurance and fitness. You should perspire, but you should not get out of breath during the workout.

To reach and maintain a basic fitness level, exercise at least three times a week, 30 minutes at

a time. Increase the number of exercise sessions to improve your fitness level. It is worthwhile to combine regular exercise with a healthy diet. A person committed to dieting should exercise daily, at first 30 minutes or less at a time, gradually increasing the daily workout time to one hour. Start your workout at low speed and low resistance to prevent the cardiovascular system from being subjected to excessive strain. As the fitness level improves, speed and resistance can be increased gradually. The efficiency of your exercise can be measured by monitoring your heart rate and your pulse rate.

Exercise Instructions

Using your fitness trainer will provide you with several benefits, it will improve your physical fitness, tone muscle and in conjunction with a calorie controlled diet help you lose weight.

The warming up phase

This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury. It is advisable to do a few stretching exercises as shown below. Each stretch should be held for approximately 30 seconds, do not force or jerk your muscles into a stretch - if it hurts, STOP

The exercise phase

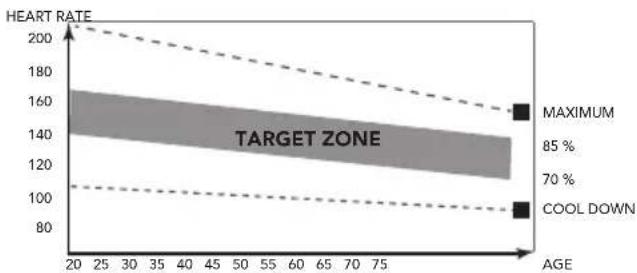

This is the stage where you put the effort in. After regular use, the muscles in your legs will become more flexible. Work to your but it is very important to maintain a steady tempo throughout. The rate of work should be sufficient to raise your heart beat into the target zone shown on the graph below.

This stage should last for a minimum of 12 minutes though most people start at about 15-20 minutes

The cool down phase

This stage is to let your Cardiovascular System and muscles wind down. This is a repeat of the warm up exercise e.g. reduce your tempo, continue for approximately 5 minutes. The stretching exercises should now be repeated, again remembering not to force or jerk your muscles into the stretch.

As you get fitter you may need to train longer and harder. It is advisable to train at least three times a week, and if possible space your workouts evenly throughout the week.

Muscle toning

To tone muscle while on your fitness trainer you will need to have the resistance set quite high. This will put more strain on our leg muscles and may mean you cannot train for as long as you would like. If you are also trying to improve your fitness you need to alter your training program. You should train as normal during the warm up and cool down phases, but towards the end of the exercise phase you should increase resistance making your legs work harder. You will have to reduce your speed to keep your heart rate in the target zone.

Weight loss

The important factor here is the amount of effort you put in. The harder and longer you work the more calories you will burn. Effectively this is the same as if you were training to improve your fitness, the difference is the goal.

Heart rate

Pulse rate measurement (hand pulse sensors)

The pulse rate is measured by sensors in the handlebars when the user is touching both sensors at the same time. Accurate pulse measurement requires that the skin is slightly moist and constantly touching the hand pulse sensors. If the skin is too dry or too moist, the pulse rate measurement will become less accurate.

NOTE

• Do not use the hand pulse sensors in combination with a heart rate chest belt.
  If you set a heart rate limit for your workout, an alarm will sound when it is exceeded.

Heart rate measurement (heart rate chest belt)

NOTE

• A chest strap does not come standard with this trainer. When you like to use a wireless chest strap you need to purchase this as an accessory.

The most accurate heart rate measurement is achieved with a heart rate chest belt. The heart rate is measured by a heart rate receiver in combination with a heart rate transmitter belt. Accurate heart measurement requires that the electrodes on the transmitter belt are slight moist and constantly touching the skin. If the electrodes are too dry or too moist, the heart rate measurement will become less accurate.

WARNING

• If you have a pacemaker, consult a physician before using a heartrate chest belt.

CAUTION

• If there are several heart rate measurement devices next to each other, make sure that the distance between them is at least 1.5 metres.
• If there is only one heart rate receiver and several heart rate transmitters, make sure that only one person with a transmitter is within transmission range.

NOTE

• Do not use a heart rate chest belt in combination with the handpulse sensors.

• Always wear the heart rate chest belt under your clothes directly in contact with your skin. Do not wear the heart rate chest belt above your clothes. If you wear the heart rate chest belt above your clothes, there will be no signal.
  If you set a heart rate limit for your workout, an alarm will sound when it is exceeded.

• The transmitter transmits the heart rate to the console up to a distance of 1 metre. If the electrodes are not moist, the heart rate will not appear on the display.

• Some fibers in clothes (e.g. polyester, polyamide) create static electricity which can prevent accurate heart rate measurement.

• Mobile phones, televisions and other electrical appliances create an electromagnetic field which can prevent accurate heart rate measurement.

Maximum heart rate (during training)

The maximum heart rate is the highest heart rate a person can safely achieve through exercise stress. The following formula is used to calculate the average maximum heart rate: 220 - AGE. The maximum heart rate varies from person to person.

WARNING

• Make sure that you do not exceed your maximum heart rate during your workout. If you belong to a risk group, consult a physician.

Beginner 50-60% of maximum heart rate

Suitable for beginners, weight-watchers, convalescents and persons who have not exercised for a long time. Exercise at least three times a week, 30 minutes at a time.

Advanced 60-70% of maximum heart rate

Suitable for persons who want to improve and maintain fitness. Exercise at least three times a week, 30 minutes at a time.

Expert 70-80% of maximum heart rate

Suitable for the fittest of persons who are used to long-endurance workouts.

Use

Master power switch (fig. E-2A)

The equipment is equipped with a master power switch to shut down the equipment completely.

To start the equipment:

• Insert the mains plug into the equipment.
• Insert the mains plug into the wall socket.
• Set the master power switch to the on position.

To stop the equipment:

• Set the mains power switch to the off position.
• Remove the mains plug from the wall socket.
• Remove the mains plug from the equipment.

Safety key (Fig F-4)

The equipment is equipped with a safety key that must be properly inserted into the console to start the equipment. If you remove the safety key from the console, the equipment will stop immediately.

• Insert the safety key into the slot in the console.
• Make sure that the clip of the safety key is properly attached to your clothing.

Make sure that the clip is not removed from your clothing before the safety key is removed from the console.

NOTE

• Console will show E7 code when safety key is not in (correct) position during start up.

Circuit breaker (Fig. E-2B)

The equipment is equipped with a circuit breaker that interrupts the circuit when the electricity load is above the maximum capacity. When this occurs, the circuit breaker must be pressed.

WARNING

• Before pressing the circuit breaker, remove the mains plug from the equipment.

If the equipment shuts down, proceed as follows to restart the equipment:

• Remove the mains plug from the equipment.
• Press the circuit breaker to restart the equipment.
• Insert the mains plug into the equipment.

NOTE

• Some circuit breakers used in homes are not rated for high inrush currents that can occur when a treadmill is first turned on or even during normal use. If your treadmill is tripping the circuit breaker (even though it is the proper current rating and the treadmill is the only appliance on the circuit) but the circuit breaker on the treadmill itself does not trip, you will need to replace the breaker with a high inrush type. This is not a warranty defect. This is a condition we as a manufacture have no ability to control.

Unfolding and folding the equipment (fig. F1-F2)

The equipment can be unfolded for use (fig. F1) and folded for transport and storage (fig. F2).

Refer to the illustrations for the correct way of unfolding and folding the equipment.

CAUTION

• Before folding the equipment, make sure that the incline is 0. If the incline is not 0, folding will damage the mechanism.

Console (fig. E-1)

CAUTION

• Keep the console away from direct sunlight.
• Dry the surface of the console when it is covered with drops of sweat.
• Do not lean on the console.
• Only touch the display with the tip of your finger. Make sure that your nails or sharp objects do not touch the display.

NOTE

• The console switches to standby mode when the equipment is not used for 4 minutes.

Buttons

STOP

• Press once, stop workout/ treadmill gently.
• Press twice, stop workout/ treadmill more rapidly.
• Press and hold for two seconds in idle mode to reset console settings/ clear ERR message.

SPEED Up

• Increases the speed (1.0 - 16 Kph).
• Pressing once increases the speed 0,1 kph.
• Pressing and holding for two seconds will increase the speed faster.
• Scroll programs and change values in programming mode.

SPEED Down

• Decreases the speed (1.0 - 16 Kph).
• Pressing once decreases the speed 0,1 kph.
• Pressing and holding for two seconds will decrease the speed faster.
• Scroll programs and change values in programming mode.

INCLINE up

• Increases the incline (0 10± 1)

INCLINE down

• Decreases the incline (0 10± 1)

MODE

• Press to select program target mode when treadmill is in programming mode: Cycle the FAT parameters when being in FAT programming mode.

PROGRAM

• Press to Cycle through the possible programmes. (P0/ P1~P36/ U01~U03/ FAT)

START/ PAUSE

• Start selected workout, or restart pause workout when being in pause mode.
• Pause active workout.

Speed hot keys:

Speed Hot Keys are set as 3,6,12,16. For example, the speed changes from any speed to 8km / h by pressing the Speed Hot Key 8.

Incline hot keys.

Incline Hot Keys are set as 6, 9 &12. For example, the incline level changes from any level to 6% by pressing the Incline Hot Key 6.

Handle bar speed quick-access keys:

• • Same as Speed +.
    -- Same as Speed -.

Handle bar incline quick-access keys:

• • : Same as Incline +.
    : Same as Incline -

Explanation of display items (Fig.

H)

Speed

• Shows the actual treadmill speed in workout mode.
• Shows target speed in programming mode.

• Shows program selection when being in program mode.

• 400 meter dots-track shows the imaginary position as if you would be running on a 400 mtr. running track.

Inc.

• Shows the actual treadmill incline in workout mode.
• Shows target incline in programming mode.

Dis.

• Shows the ran distance workout mode.
• Shows left distance when workout in countdown mode.
• Shows the target distance when being in programming mode.

Time

• Shows the ran time in workout mode.
• Shows left time when workout in countdown mode.
• Shows the target time when being in programming mode.

Pul.

• Shows the pulse rate in workout mode, or "P" when no pulse is measured.

Cal.

• Shows the consumed K .calories in workout mode. Shows left K. calories when workout in countdown mode.
• Shows the target K. calories when being in programming mode.

NOTE

• This data is a rough guide for comparison of different exercise sessions which cannot be used in medical treatment

NOTE

• Display for "Inc." & "Pul." scans every 5 seconds..

Programs

Quick start

• Press "START/ PAUSE" button to start your workout without any pre-set settings.
• Treadmill will start at minimum speed of 1,0 Km/h, and maintains the current set incline setting.
• Adjust SPEED / INCLINE manually at any time to change your workout, and stop/ pause at anytime.

Manual mode (P0)

• Press "PROGRAM" buttons to select "P0" program.
• Press "MODE" button to select training mode: Training mode 1: All values count up, no target is set to automatically end your workout.

Training mode 2: Time countdown, use up and down keys to adjust value.

Training mode 3: Distance countdown, use up and down keys to adjust value.

Training mode 4: Calories countdown, use up and down keys to adjust value.

• Press "START/ PAUSE" button to start your workout.

End your workout

• Pause your workout at any time by press "START/ PAUSE" button once.

Display will show "PAUS" when being in pause mode.

• Press "START/ PAUSE" button to resume training when being in "PAUSE" mode.
• Press "STOP" once button to stop workout.
• Press "STOP" twice to reset console.

Preset Programs (P1~P36)

The equipment has 36 pre-set programs with different profiles. (Fig G)

• Press "PROGRAM" buttons to select "P1~P36" program, press "MODE" button to confirm.
• Use up and down keys to set your desired training time Default training time is set on 30:00 minutes. Range 5:00~99:00 min.
• Press "START/ PAUSE" button to start your workout.

User programs (U01~U03)

The equipment has 3 user programs.

Each user program can be adjusted to personal requirements.

Each user program has 10 steps.

The speed and the incline can be set for each step.

Each steps takes 1/10 of the total amount of time.

• Set your desired speed and incline values for each segment of the program by using the "Up/Down" keys and confirm each step with "MODE" button.
• Press the "START/ PAUSE" button to start the program.

NOTE

• Programmed user program will be saved automatically so they can be used next time.

Body Fat

The Body Fat program is to indicate your fiscal state based on your body parameters and heart rate.

• Press "MODE" button to open programming mode.
• Press "PROGRAM" buttons to select "FAT" program, press "MODE" button to confirm.
• The display shows "F1" (SEX).
  The display shows "1"

Press "Up/Down" buttons to select:

1: Male/ 2: Female press "MODE" button to confirm.
- The display shows "F2" (Age).

The display shows "25"

Press "Up/Down" buttons to select: 1 99 press "MODE" button to confirm.

• The display shows "F3" (Heigth).
  The display shows "170"cm Press "Up/Down" buttons to select: 100 220 cm

press "MODE" button to confirm.
- The display shows "F4" (Weigth).

The display shows "70"kg

Press "Up/Down" buttons to select: 20 150kg press "MODE" button to confirm.

The "Distance" display shows "F5" (Active)

CAUTION

• Holding the contact hand-grip heart rate measurement pads is required for this function.

Result calculation:

• BODY TYPE: (Body Fat ratio; 9 types)

FAT 0~17 Underweight
FAT 18 ~ 24 Standard
FAT 28 ~ 28 Overweight
FAT 29 ~ Up Obesity.

• BF = Body Fat (in ratio %)
• Error code "ER" will show if no heart rate was detected during the BF measurement process.
• Press "STOP" button to leave Body Fat program.

HRC Program

The HRC program is a speed controlled program based on your heart rate. The speed will automatically increase when your heart rate is under target, and decrease when over target.

• Press "PROGRAM" buttons to select "HRC"

HRC1: Pre-set maximum.

speed limit is 9km / h

HRC2: Pre-set maximum.

speed limit is 11km / h

HRC3: Pre-set maximum.

speed limit is 13km / h

program, press "MODE" button to confirm.

• Set your age the display shows "25"

Press "Up/Down" buttons to select: 1 99

press "MODE" button to confirm.

• Set your workout time the display shows "30:00"

Press "Up/Down" buttons to select:

5:00~99:00

press "MODE" button to confirm.

• Press the "START/ PAUSE" button to start the program.

CAUTION

• Heart rate measurement is required for this function.

HRC operating function:

Target heart rate (220-age) x0,6 (range 80-180) Console checks heart rate every 30 seconds and if:

• 30 beats or more under target: +2.0 km/h .
• 6~29 beats under target: +1.0 km/h.
• 0~5 beats under target : No change
• 0~5 beats over target: No change.
• 6~29 beats over target: - 1.0 km/h
• 30 beats or more over target: -2.0 km/h.

NOTE

• Incline setting is not controlled in HRC program mode but can be controlled by user at any time to intensify or ease your workout.

English

If no heart rate is detected for over a minute, the treadmill will stop workout.
- The initial speed is 1.0 km/h , this cannot be changed the first minute you are running.

ERP Function

ERP function can shut your treadmill in sleep mode automatically when being without operation for 4:30 minutes. .You can turn this function On and off by:

• When treadmill is in Stand by mode press and hold "MODE" button for 3 seconds to cancel ERP Function. Console shows "2222"
• Press and hold "MODE" seconds again to enter ERP mode again. Console shows. "1111".

Bluetooth & APP

• This console can connect with an APP on a smart device by Bluetooth (iOS & Android).
• Establish the Bluetooth connection only via the connection mode on the installed APP on your smart device.

NOTE

• Tunturi only provides the option to connect your fitness console throughout a blue tooth connection. Therefore Tunturi cannot be held responsible for damage, or malfunctioning of products other than Tunturi products.

• Check the website for extra information.

Warranty

Warranty terms

The consumer is entitled to the applicable legal rights stated in the national legislation concerning the commerce of consumer goods. This warranty does not restrict these rights. The Purchaser's Warranty is only valid if the item is used in an environment approved by Tunturi New Fitness BV for that particular equipment. The product-specific approved environment is stated in the Owner's Manual provided with your equipment.

Warranty conditions

The warranty conditions commence from the date of purchase. Warranty conditions may vary per country, so please consult your local dealer for the warranty conditions.

Warranty coverage

Under no circumstances shall Tunturi New Fitness BV or the Tunturi Distributor be liable by virtue of this warranty or otherwise for any special, indirect, secondary or consequential damages of any nature arising out of any use or inability to use this equipment.

Warranty limitations

This warranty covers manufacturing defects in the fitness equipment as originally packed by Tunturi New Fitness BV. The warranty shall apply only under conditions of normal, recommended use of the product as described in the Owner's Manual and providing that Tunturi New Fitness BV's instructions for installation, maintenance and use have been complied with. Neither Tunturi New Fitness BV's nor the Tunturi Distributors' obligations apply to defects due to reasons beyond their control. The warranty applies only to the original purchaser and is valid only in countries where Tunturi New Fitness BV has an authorised importer. The warranty does not extend to fitness equipment or components that have been modified without the consent of Tunturi New Fitness BV. Defects resulting from normal wear, misuse, abuse, corrosion, or damage incurred during loading or transportation are not covered.

The warranty does not cover sounds or noises emitted during use where these do not substantially impede the use of the equipment and where they are not caused by a fault in the equipment.

The warranty does not cover defects arising from the failure to carry periodic maintenance as outlined within the Owner's Manual for the product. Furthermore, the warranty does not cover defects arising from usage and storage within an unsuitable environment as described within the Owner's Manual which should be indoors, dry, dust and grit free and within a temperature range of +15^ to +35^ . The warranty does not cover maintenance activities, such as cleaning, lubricating, and normal part adjustments, nor installation

procedures that customers can accomplish themselves, such as changing uncomplicated meters, pedals and other similar parts not requiring any dismantling/reassembling of the fitness equipment. Warranty repairs carried out by other than authorised Tunturi representatives are not covered.

Failure to follow the instructions given in the Owner's Manual will invalidate the product's warranty.

Cleaning and maintenance

WARNING

• Before cleaning and maintenance, remove the mains plug from the wall socket.

• Do not use solvents to clean the equipment.

• Do not block the ventilation openings. Keep the ventilation openings clear from dust, dirt and other obstructions.

• Clean the equipment with a soft, absorbent cloth after each use.
• Clean the visible parts of the equipment with a vacuum cleaner with a small suction nozzle
• Regularly check that all screws and nuts are tight.

Belt and Running Deck

Your treadmill uses a very high-efficient low-friction bed. Performance is maximized when the running deck is kept as clean as possible. Use a soft, damp cloth or paper towel to wipe the edge of the belt and the area between the belt edge and frame. Also reach as far as practical directly under the belt edge. This should be done once a month to extend belt and running deck life. Use water only - no cleaners or abrasives. A mild soap and water solution along with a nylon scrub brush will clean the top of the textured belt. Allow the belt to dry before using.

Lubrication (fig. F-4)

The running belt must be checked for lubrication condition regularly. Therefore the treadmill comes with a 300 hours reminder function. The "TIME WINDOW" will display "OIL" and will make an acoustic beeping sound every 10 seconds to remind you. Follow the below checking procedure and eliminate the "OIL" message and acoustic

warning signal by pressing and hold the "STOP" button for at least 3 seconds during this warning signal.

WARNING

• Before lubrication, remove the mains plug from the wall socket.

CAUTION

• We recommend to check the running belt lubrication at least once every month, as more factors than time can be effective to the lubricant conditions.

• Only lubricate the running belt if necessary. If you apply too much lubricant, the running belt will slip easily due to lack of friction.

• Stand steadily on the running belt.

• Take hold of the front handlebar and push the running belt with your feet so that it slides back and forth. The running belt must move smoothly and evenly without making sound.
• If the running belt does not move smoothly and evenly or if the running belt does not move at all, touch the underside of the running belt with your fingertips to check the lubrication:
• If you feel lubrication or your fingertips are shiny, there is sufficient lubrication on the running belt.
• If you do not feel lubrication or your fingertips are dusty or rough, apply lubricant (15-20 ml) in the middle of the running deck under the running belt and let the equipment operate at 5km/h for at least 5 minutes.
• After lubrication, do not fold the equipment before having done a workout for 20 minutes with a speed of at least 5km/h . The lubricant will be spread evenly over the running belt.

Belt Dust

This occurs during normal break-in or until the belt stabilizes. Wiping excess off with a damp cloth will minimize build-up.

General Cleaning

Dirt, dust, and pet hair can block air inlets and accumulate on the running belt. On a monthly basis: vacuum underneath your treadmill to prevent buildup. Twice a year, you should remove the black motor hood and vacuum out dirt that may accumulate.

UNPLUG POWER CORD BEFORE THIS TASK.

Belt adjustments

Adjustment must be made from the rear roller. The adjustment bolts are located at the end of the step rails in the end caps.

• Tighten the rear roller bolts (clockwise) only enough to prevent slippage at the front roller. Turn both running belt tension adjustment bolts in increments of 1/4 turn each and inspect for proper tension by walking on the belt at a low speed, making sure the belt does not slip. Keep tensioning the bolts until the belt stops slipping.
• If you feel the belt is tight enough, but it still slips, the problem may be a loose Motor drive belt under the front cover.
• Do Not Over-tighten Over tightening will cause belt damage and premature bearing failure.

Running belt tracking adjustment

The performance of your treadmill is dependent on the frame running on a reasonably level surface. If the frame is not level, the front and back roller cannot run parallel, and constant belt adjustment may be necessary.

The treadmill is designed to keep the running belt reasonably centered while in use. It is normal for some belts to drift near one side while the belt is running with no one on it. After a few minutes of use, the running belt should have a tendency to center itself. If, during use, the belt continues to move toward one side, adjustments are necessary.

Exception:

During rehabilitation where the user is using one leg much stronger than the other, it might happen that the running belt drifts to one side. In these cases you should not adjust unless the running belt does not centre itself during normal condition usage.

To set running belt tracking (fig. F-5)

A 10mm Allen wrench is provided to adjust the rear roller. Make tracking adjustments from the left side only. Set belt speed at approximately 3 to 5 kph.

Remember, a small adjustment can make a dramatic difference!

Turn the bolt clockwise to move the belt to the right. Counterclockwise to move to the left. Turn

the bolt only a 1/4 turn and wait a few minutes for the belt to adjust itself. Continue to make 1/4 rotation turns until the belt stabilizes in the center of the running deck.

The belt may require periodic tracking adjustment depending on use and walking/ running characteristics. Some users will affect tracking differently. Expect to make adjustments as required to center the tread-belt. Adjustments will become less of a maintenance concern as the belt is used. Proper belt tracking is an owner responsibility common with all treadmills.

NOTE

• Damage to the running belt because of incorrect running-belt adjustments is not covered by the products warranty.

Troubleshooting

Despite continuous quality control, defects and malfunctions caused by individual components may occur in the equipment. In most cases it's unnecessary to take the whole device in for repair, as it's usually sufficient to replace the defective part.

If the equipment does not function properly during use, contact your Tunturi dealer immediately. Always give the model and serial number of your equipment. Please state also the nature of the problem, conditions of use and purchase date.

If you require spare parts, always give the model, serial number of your equipment and the spare part number for the part you need. The spare part list is at the back of this manual. Use only spare parts mentioned in the spare part list.

Metric/ Imperial setting

When displayed speed is not matching your expectation the machine might be set in incorrect setting.

Metric: Min speed: 1.0/ Max. speed 16.0 Km/H
Imperial: Min speed: 0.6/ Max. speed 10.0 MIs/H

Switch units by:

Take off safety key. (Console show E7)

Press and hold "Prog" & "Mode" button for 3 seconds.

Console shows shortly:

• 0.6 When switched to Imperial mode.
• 1.0 When switched to Metric mode.

Put Safety key back in position.

Error codes

If the display shows an error code (marked with "E"/"DC"+number), restart the equipment and check whether the display still shows the error code. If the display still shows the error code, immediately contact the dealer.

NOTE

• E7 is not an error code, see "Safety key"

Transport and storage

WARNING

• Before cleaning and maintenance, remove the mains plug from the wall socket.
• Carry and move the equipment with at least two persons.
• Make sure that there are no other persons or objects under the equipment.
• When folding the folding the equipment, make sure that you hear the equipment lock into position to prevent the equipment from dropping back down.

CAUTION

• Before folding the equipment, make sure that the incline is 0% . If the incline is not 0% , folding will damage the mechanism.
• Move the equipment as shown (fig. F3). Move the equipment and carefully put the equipment down. Place the equipment on a protective base to prevent damage to the floor surface. Move the equipment carefully over uneven surfaces. Do not move the equipment upstairs using the wheels, but carry the equipment by the handlebars.
• Store the equipment in the upright position (fig. F1). Store the equipment in a dry place with as little temperature variation as possible.

Additional information

Packaging disposal

Government guidelines ask that we reduce the amount of waste material disposed of in land fill sites. We therefore ask that you dispose of all packaging waste responsibly at public recycling centres.

End of life disposal

We at Tunturi hope you enjoy many years of enjoyable use from your fitness trainer. However, a time will come when your fitness trainer will come to the end of its useful life. Under 'European WEEE Legislation you are responsible for the appropriate disposal of your fitness trainer to a recognised public collection facility.

Technical data

Parameter Unit of measurement	Value
Mains voltage VAC 220~240
Mains frequency	HZ 50~60
Motor HP 2.0
Speed Km/h 1.0~16.0
Speed	Mph
Incline	Step
Length (folded)	Cm
Length (folded)	Inch
Width Cm	75.0
Width	Inch
Height (folded)	Cm
Height (folded)	Inch
Weight	Kg
Weight	Lbs

Max. user weight	Kb 125
Max. user weight	Lbs 275
HR. receiver Khz	5.0

Declaration of the manufacturer

Tunturi New Fitness BV declares that the product is in conformity with the following standards and directives: EN 957 (HB), 89/336/EEC. The product therefore carries the CE label.

03-2018

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

The Netherlands

Disclaimer

© 2018 Tunturi New Fitness BV

All rights reserved.

The product and the manual are subject to change. Specifications can be changed without further notice.

Deutsch

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

The Netherlands

Haftungsausschluss

© 2018 Tunturi New Fitness BV

(P0/P1-P36/U01-U03/FAT)

START/PAUSE (Début/ pause)

Lubrification (fig. F-4)

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

Pays-Bas

© 2018 Tunturi New Fitness BV

(P0/ P1~P36/U01~U03/FAT)

START/ PAUSE

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

The Netherlands

Disclaimer

© 2018 Tunturi New Fitness BV

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

Paesi Bassi

Disconoscimento

© 2018 Tunturi New Fitness BV

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

The Netherlands

© 2017 Tunturi New Fitness BV

(P0/ P1~P36/U01~U03/FAT)

START

• Starta vald training

Snabbtangenter for hastighet

Hastighetstangenter stalls in som: 3, 6, 12, 16 km/h.

Imperial: Min speed: 0.6/Max.speed 10.0 MIs/H

Byt enheter genom:

(P0/ P1~P36/U01~U03/FAT)

START

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

Alankomaat

Vastuuvapauslaseke

© 2017 Tunturi New Fitness BV

1 Base frame 1
2 Main frame 1
3 Adjustable frame 1
4 Stand post 2
5 Computer frame 1
6 Display frame 1
7 Ezfit Linking parts 1
8 Motor frame 1
9 Hex full thread screw M8×75 1
10 Bolt welding M8×65 1
11 Allen socket full thread screw M8×75 3
12 Allen socket full thread screw M8×15 2
13 Allen socket half thread screw M10×85×20 2
14 Allen socket half thread screw M10×35×20 1
15 Allen socket half thread screw M10×60×20 1
16 Allen socket full thread screw M10×25		2
17 Allen socket half thread screw M8×50×20		7
18 Allen socket half thread screw M8×40×20		2
19 Allen socket half thread screw M8×30×20		1
20 Allen socket full thread screw M8×15 10
21 Philips C.K.S. full thread screw M6×50×Ø16	6
22 Allen socket full thread screw M6×25 4
23 Philips C.K.S. full thread screw M5×10 6
24 Philips C.K.S. full thread screw M4×10 7
25 Philips C.K.S. full thread screw ST4×12	6
26 Philips C.K.S. full thread screw ST4×16	21
27 Philip self-tapping screw ST4×15	6
28 Philip self-tapping screw ST4×15	17
29 Philip self-tapping screw ST3×10	6
30 Philip self-tapping screw ST3×25	4
31 Philips C.K.S. full thread screw ST5	6
32 Flat washer Ø8	13
33 Flat washer Ø10	3
34 Elastic washer Ø8	2
35 Elastic washer Ø5	3
36 Washer Ø5	3
37 Hex self-locking nut M8	6
38 Hex self-locking nut M10	3
39 Metallurgy cover Ø17×Ø10×7	2
40 Bushing for folding shock set t0.5×16.5×43 1
41 Ring Ø29×Ø17×t7.5 1
42 Console housing set ERP/ 5"LCD/ 1-16KM/0-1	2% 1
43 Middle data wire for console (1200mm)	L-1200mm 1
44 Lower data wire for console (800mm) L-800mm	m 1
45 Upper data wire for console (700mm) L-700mm	m 1
46 Speed sensor (300mm) L-300 1
47 Handle pulse set 2
48 Handle pulse wire (800mm) L-800mm 2
49 Handle bar wiring (800mm) L-800mm 2
50 Motor control board ( 220V-ERP)	AC220V/ 1-16KM/H/ ERP	1
51 Safety key Ø32×9/L-1000 1
52 Internal power wire (black) L-350mm/ 1.5mm2 1
53 Internal power wire (red) L-350mm/ 1.5mm2 1
54 Switch 1
55 Fuseholder (8A) 8A 1
57 Front roller 1
58 Rear roller 1
59 Drive motor ( 180V DC) 1
60 Incline motor (220 VAC) 1
61 Folding shock set (532×232×Ø10×Ø8,2×400N)	532×232×Ø10×Ø8.2×400N	1
62 Running deck (1175×584×18) 1175×584×t18 1
63 Running belt (2655×440×1.4) 2655×440×t1.4 1
64 Motor belt (J170_P6) 170PJ6 1
65 Motor cover 1
66 Rear pad 1
67 Side landing rail profile 2
68 Console Holder set 1
69 console back cover 1
70 Handle bar cover (left) 1
71 Handle bar cover (right) 1
72 Foam grip 2
73 Back cover of console housing 1
74 Square cushion 6
75 Square cushion 4
76 Wheel (Ø46mm) 2
77 Wheel (Ø62mm) 2
78 End cap 1
79 Droplets pipe plug 2
80 Curved pipe plug 2
81 Round side rail guider 6
82 Feet pad 4
83 Wire protector 1
84 Binder 2
85 Cable binder 1
86 Plastic flat cushion 2
87 Cushion 2
88 Motor cover fixed piece left 1
89 Motor cover fixed piece right 1
90 Motor cover limit piece 2
91 Power cord(seperate 1
92 Power cord(seperate socket 1
93 Wire L-100mm (red) 1
HW Hardware kit (& 17, 20, 22)

TUNTURI

WORLDWIDE FITNESS

Tunturi New Fitness BV

Purmerweg 1 NL - 1311 XE Almere

P.O.Box 60001 NL-1320 AA Almere

The Netherlands

www.tunturi.com

[e-mail]
