Product type	Wood stove
Brand	WANDERS
Model	Olaf Eco
Nominal power	8 kW
Flue pipe diameter	150 mm
Maximum loading	3 kg (3 logs)
Fuel	Dry wood logs (30 x 10 cm)
Burning time	Approximately 1 hour
Efficiency	85 %
CO emissions (at 13% O2)	0.08 %
Fine particles	17 mg/m³
Flue gas temperature	275 °C
Required draught pressure	0.12 mBar (12 Pa)
European standard	EN 13240
Main materials	Cast iron, vermiculite, soapstone, ceramic glass
Glass cleaning system	Preheated by secondary air
Heat accumulation	Soapstone (speckstein)
Routine maintenance	Remove ashes, clean glass with ceramic product, do not touch glass with fingers
Annual maintenance	Sweeping by a certified chimney sweep, check seals and dampers
Safety distances	80 cm in front, 10 cm behind, 100 cm from combustible objects
Warranty	5 years (1 year for cast iron, vermiculite and paint)

Frequently Asked Questions - Olaf Eco WANDERS

How to light the Olaf Eco stove?

Open the air inlet damper (2) and the flue damper (1). Place firelighters and kindling, light and leave the door ajar for 3 to 5 minutes. Add wood when the kindling is burning well. Then close damper (1) to direct the smoke towards the soapstone.

What type of wood to use?

Use only dry, unpainted, untreated wood. Hardwoods (oak, beech, birch) provide slow combustion and high efficiency. The wood should have a moisture content between 12 and 15%. Avoid wet wood which fouls the glass and flue.

How to clean the stove glass?

Clean the glass with a special product for ceramic hobs, when the stove is cold. Do not use abrasive products. Do not touch the glass with your fingers: fingerprints burn and become indelible.

What safety distances must be observed?

Maintain at least 80 cm between the glass front and any combustible object (curtains, furniture). Behind the stove, a gap of 10 cm is sufficient. For a combustible floor, use a hearth plate extending 50 cm in front and 30 cm on the sides.

What to do in case of a chimney fire?

Immediately close the chimney damper and all air intakes. Alert the fire department. After extinction, have the chimney and stove checked by a certified installer.

How to maintain the stove annually?

Have the chimney swept by a certified chimney sweep. Check the operation of the dampers and slides, and the condition of the door and frame seals. Regular maintenance ensures safety and performance.

What is the first heating procedure?

Follow a progressive break-in: light the stove with a maximum of 3 kg of wood, let it burn then cool. Repeat 3 times, then 3 times with 1 kg of wood. This allows the heat-resistant paint to cure and avoids odors. Ventilate the room.

Can I use wet wood?

No, wet wood (moisture content > 20%) reduces efficiency, fouls the glass and flue, and can cause a chimney fire. Use wood dried for at least 1 to 2 years depending on the species.

What is the warranty and what does it cover?

The warranty is 5 years from the date of purchase, for material and manufacturing defects. Defective parts are replaced free of charge, but labor costs are not covered. The glass, cast iron and vermiculite parts, as well as the paint, have a 1-year warranty. The warranty is void if instructions are not followed or if installed by an unauthorized person.

How to install the stove correctly?

Installation must be carried out by a certified installer in accordance with local standards. Check that the chimney flue has a diameter of 150 mm and a draught of at least 12 Pa. Observe safety distances and use a hearth plate if the floor is combustible. Connect the stove with a steel pipe at least 2 mm thick.

USER MANUAL Olaf Eco WANDERS

Modern minimalist stove with open fire pit and metal frame, placed on a dark mat in a minimalist living room (no text or symbols visible)

NL

Users guide and installation manual 16

FR

Modern living room interior featuring a stone coffee stove with visible flames, a potted plant, and a purple vase (no text or symbols)

De Olaf Eco

3D diagram of a cabinet with labeled components (① and ②), showing internal structure and ventilation duct (no text or symbols beyond labels)

Hout bijvullen

3D technical illustration of a portable stove with internal components and external views (no text or symbols)

Veiligheid

X > 23^

X < 23^

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

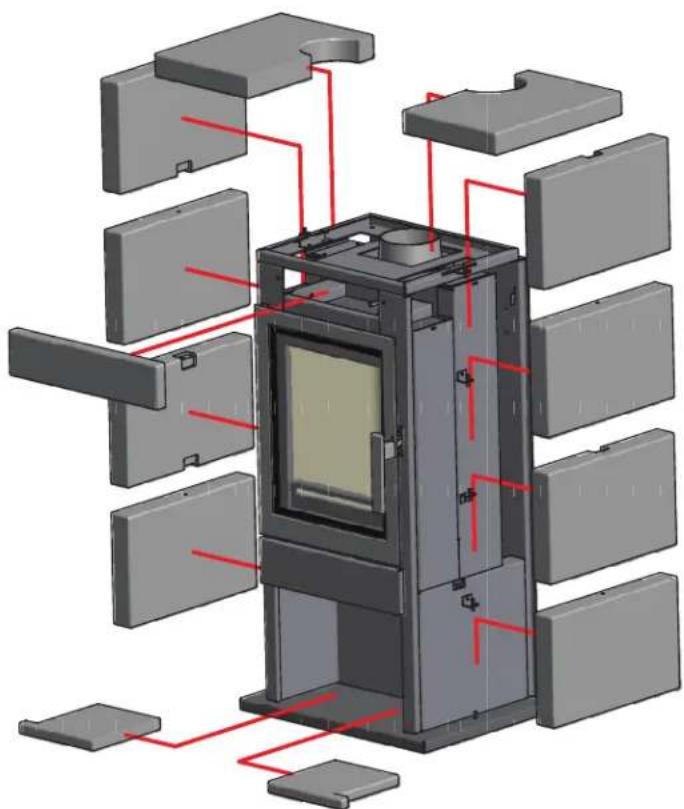

3D diagram of a device with multiple panels and red wiring, no visible text or symbols

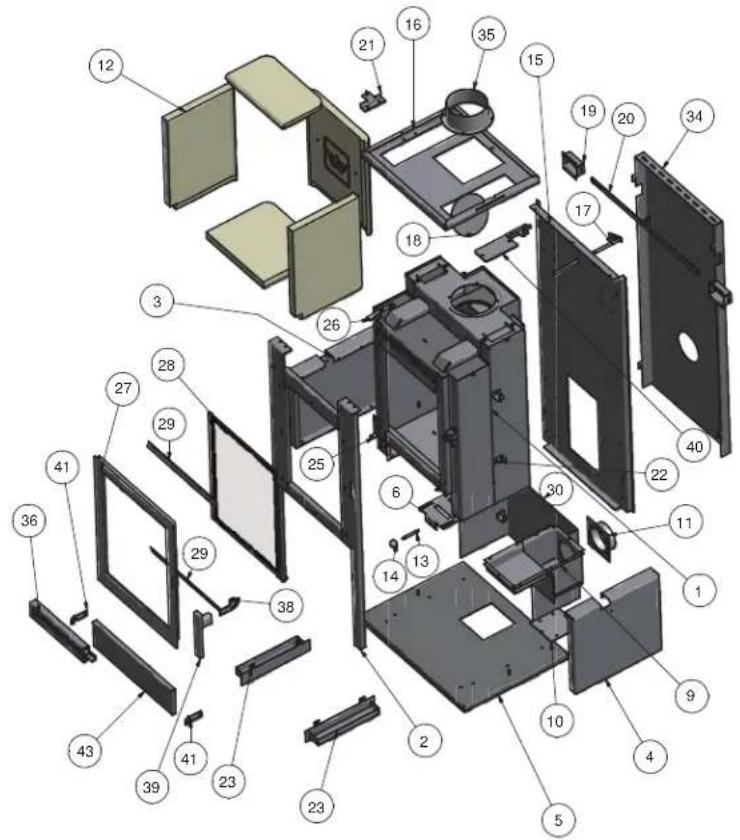

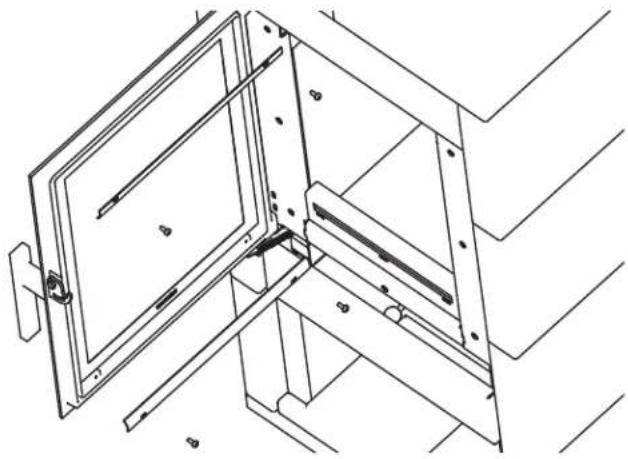

Reparaties

Technical line drawing of a mechanical assembly with no visible text or symbols

Technische gegevens

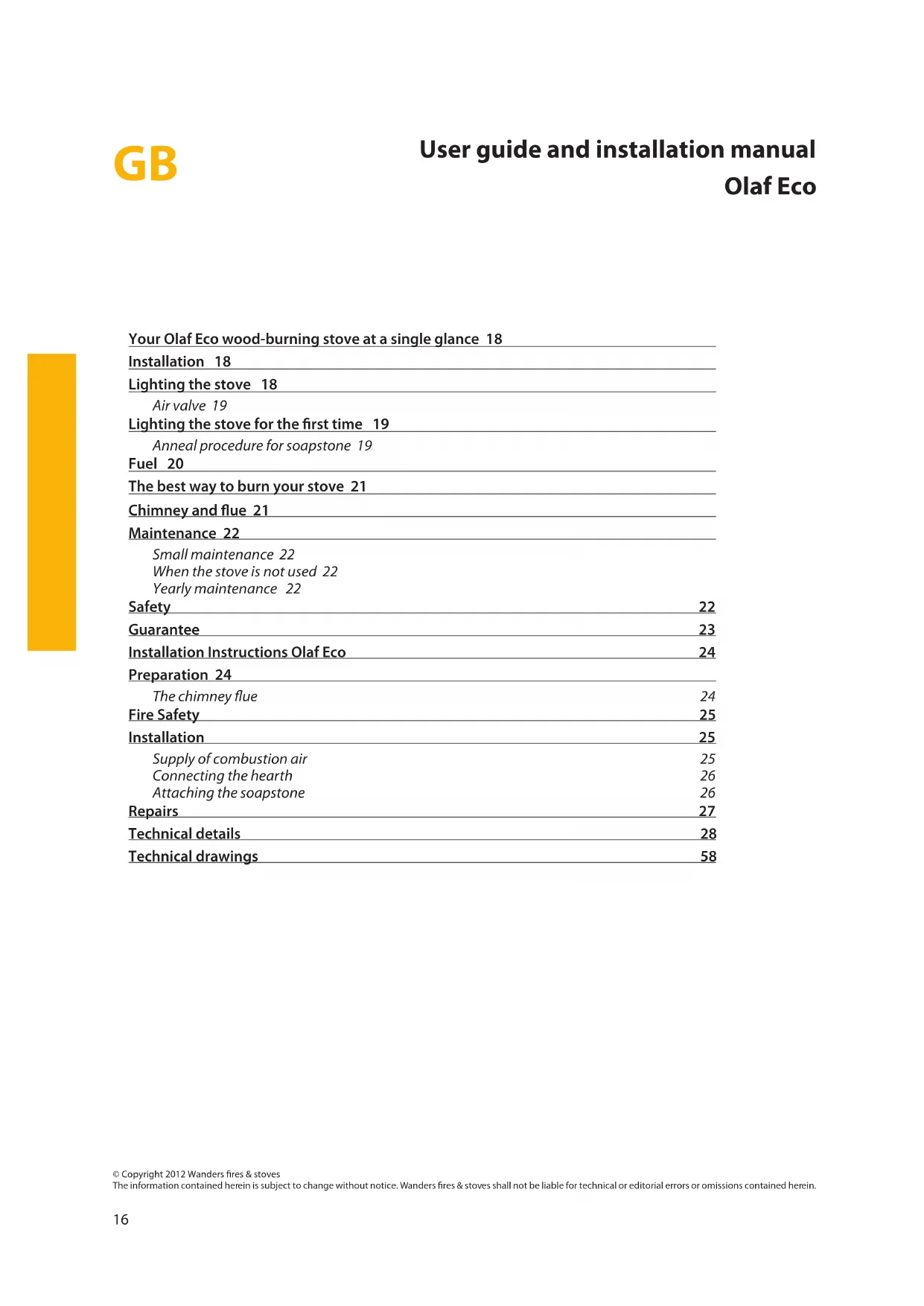

Your Olaf Eco wood-burning stove at a single glance 18

Installation 18

Lighting the stove 18

Air valve 19

Lighting the stove for the first time 19

Anneal procedure for soapstone 19

Fuel 20

The best way to burn your stove 21

Chimney and flue 21

Maintenance 22

Small maintenance 22

When the stove is not used 22

Yearly maintenance 22

Safety 22

Guarantee 23

Installation Instructions Olaf Eco 24

Preparation 24

The chimney flue 24

Fire Safety 25

Installation 25

Supply of combustion air 25

Connecting the hearth 26

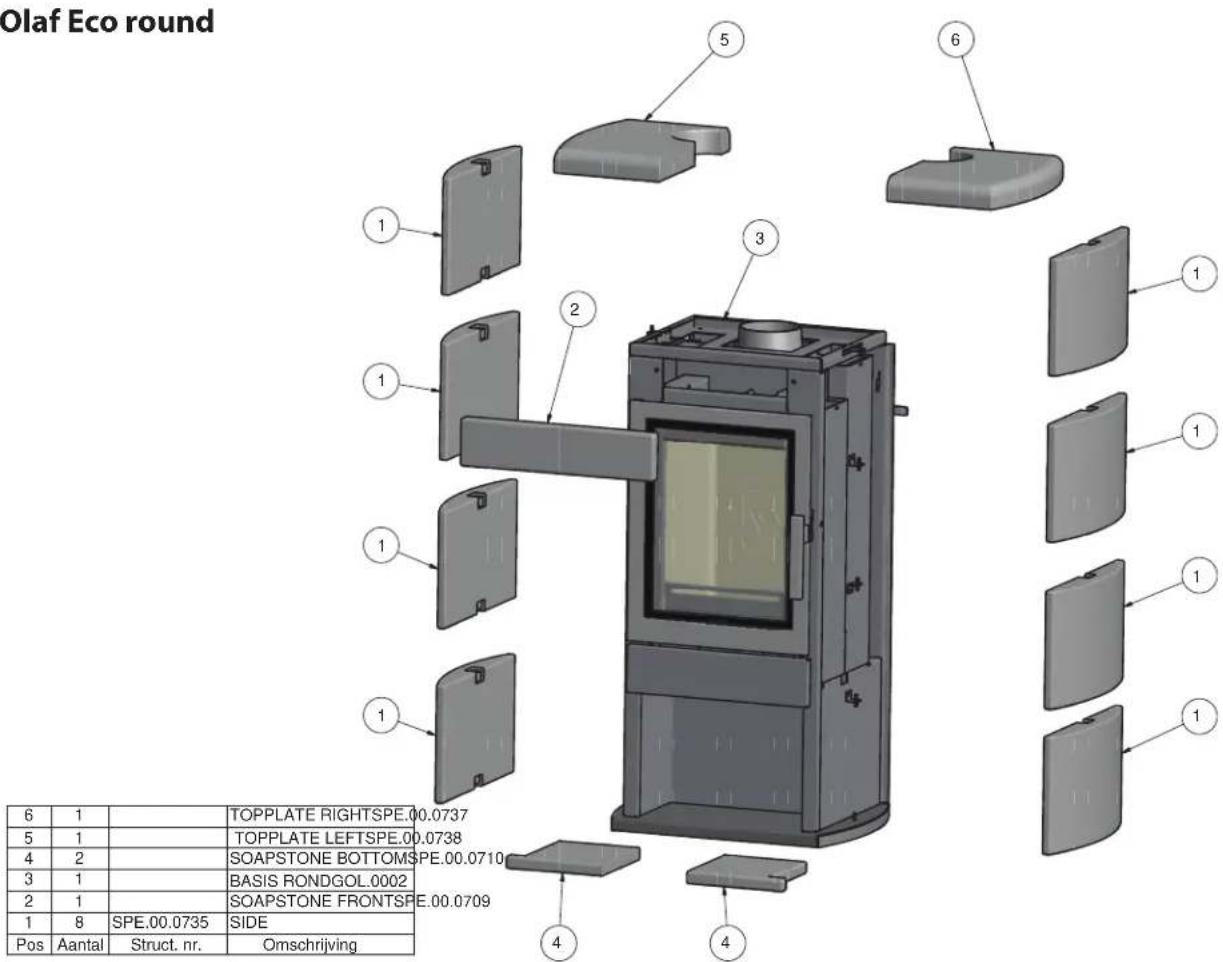

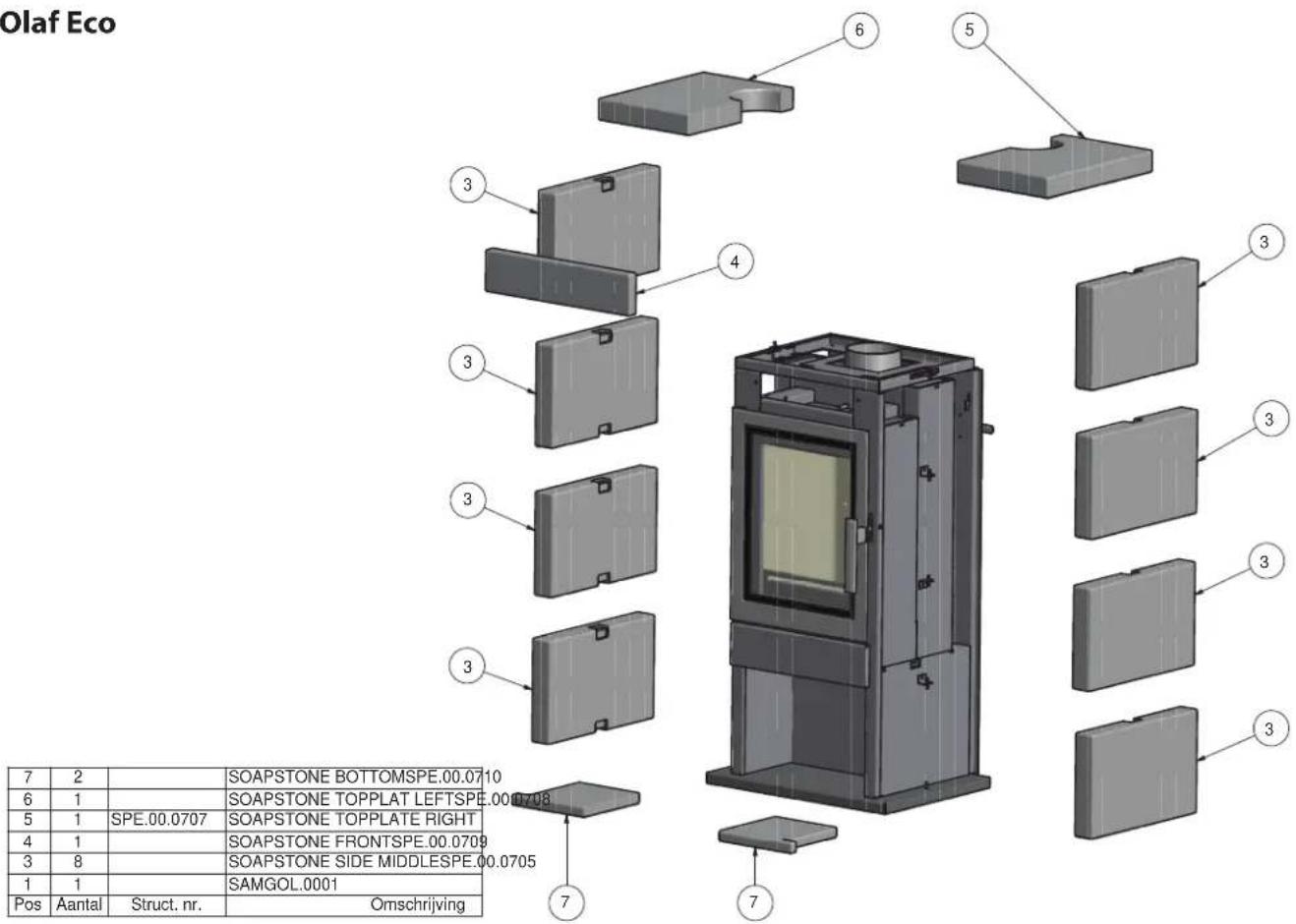

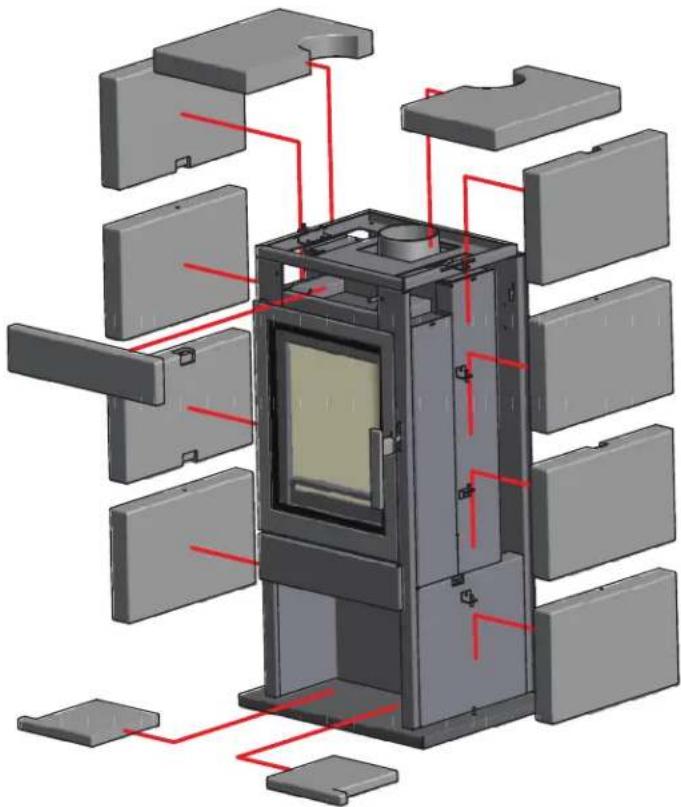

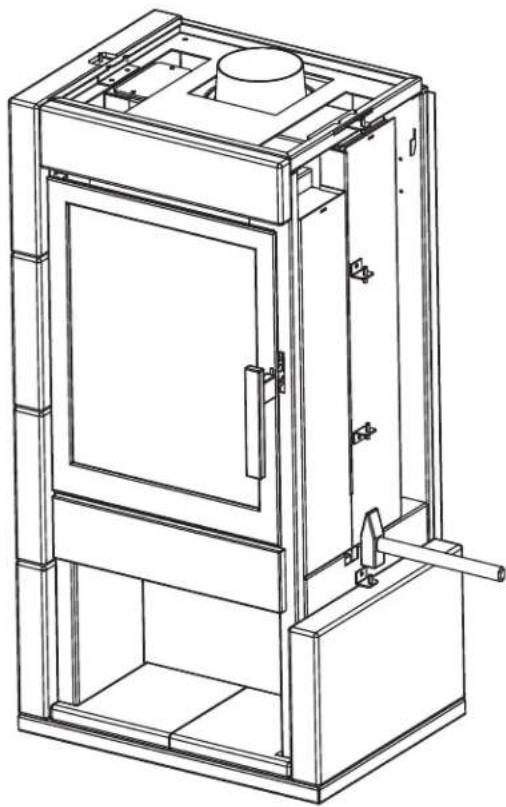

Attaching the soapstone 26

Repairs 27

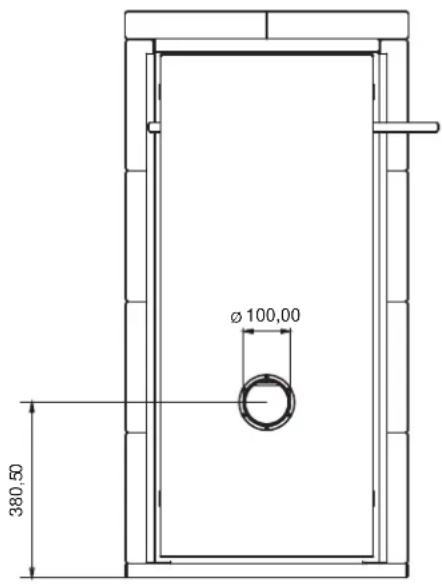

Technical details 28

Technical drawings 58

Dear Client,

Congratulations on your new wood-burning stove, which will be a comfortable source of heat to enjoy for many years on end. With its unique design you can view the Olaf Eco from all corners of the room.

When designing this fireplace we took particular care regarding the ease of use, the operational safety and the design. The Olaf Eco is developed and produced at our own factory in Netterden (the Netherlands) and is for the greater part handmade. Only the best materials are used for the construction and comply with current international standards. This will guarantee that your woodstove has a long life.

The first part of this user's guide gives you tips and directions about how to use your wood-burning stove correctly and safely. The sEcond part of the manual contains the installation instructions and the technical specifications of the Olaf Eco. They are of particular importance to the installer.

We advise you to read this manual thoroughly before using your new stove and to keep the manual in a handy place. Your installer may need the manual for the yearly maintenance of your fireplace.

We wish you much warmth with your new fireplace!

The WANDERS team

• Do not use the appliance without glass.
- Do not place highly flammable materials like nylon clothes of flammable fluids in the neighbourhood of the appliance.
- This appliance is not meant for operation by persons (including children) with limited physical or intellectual faculties, or by persons who are unfamiliar with the operation of gas appliances. Always ensure that they are supervised when near the appliance.
• Use a fire-screen to avoid burning and to protect the above-mentioned children and persons.
- The appliance must be mounted and connected by an acknowledge installer in accordance with the installation instructions and national and currently applicable local regulations

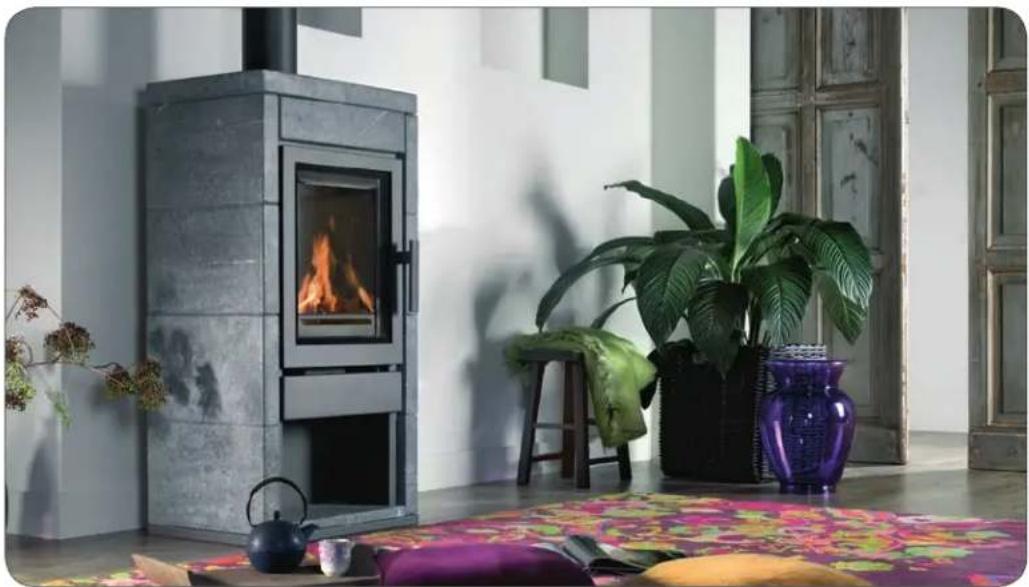

Your Olaf Eco wood-burning stove at a single glance

Modern interior living room featuring a stone coffee stove with a fire vent, potted plants, and a purple ceramic vase (no visible text or symbols)

The Olaf Eco

The Olaf ECO stove has a pre-heated glass-cleansing system and an extra ingenious air circulation system for afterburning gasses. High-quality cast iron and the vermiculite inner cladding ensure an optimum heat output. The elongated flue channel in the stove ensures that the soapstone is optimally heated when the stove is used. The heat retention property of the soapstone is such that most of the thermal energy is retained in the soapstone mass, which continues to radiate heat long after the fire has gone out.

Installation

It is common practice for the dealer where you purchased your stove to also take care of installing it. If this is not the case, please ensure that the installation is done by a certified installer. A certified installer can also give you the right advice about the flue tube to which the stove must be connected. Connecting wood-burning stoves by unqualified persons is prohibited, in which case we cannot give any guarantee about proper functioning of your stove. Please bear the fire safety in mind when installing the stove. See also page 25.

It is not allowed to have wood-burning stoves connected by unqualified installers. In such case we cannot give any guarantee that the Olaf Eco will work properly.

The wood-burning stove is suitable as an extra heat source and does not replace your principal heating device.

Lighting the stove

Lighting your stove early in autumn or late in winter

When the external and internal temperatures do not differ much, a proper chimney draught is a real challenge. You can help chimney draught get started early in autumn or late in winter by burning some wood while keeping all air inlets maximally open. An abundant air supply speeds up quick heating which in turn increases the draught in the chimney. Lighting up the stove with only a little wood prevents smoke from streaming into the room but be sure that the valve is not completely closed.

The stove will become very hot when you light it and will need at least a couple of hours to cool off. Don't touch the stove without protection during firing and during cooling off. Handle the stove always with a glove to avoid getting serious burns.

Before lighting the fire, you must clean away any deposits on the window pane with a piece of paper towel. The same paper can be used for lighting the fire. Open the combustion air inlet ②. Open the slide to its maximum before lighting the stove. Open the flue gas regulator in the flue duct ①. Then open the door and put some balls of paper or firelighters in the stove and place some wood kindling on top. Light the kindling and leave the stove door ajar (for 3 to 5 minutes) for extra air supply and enhancing chimney draught. Once the kindling has caught fire you can add extra wood. (Put the logs loosely on the fire so that the flames can catch on all around). Close the flue gas regulator once the stove has the right temperature ①.

The flue gases are then guided along the soapstone on the inside.

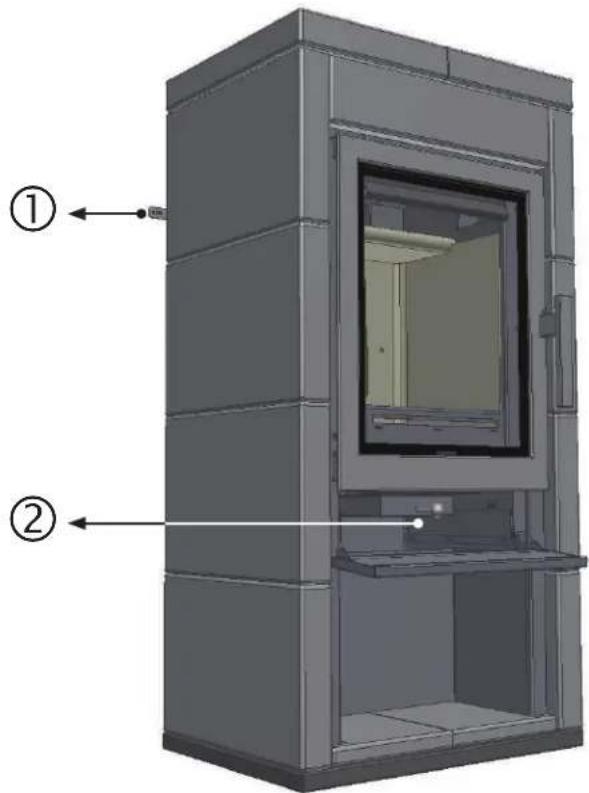

3D diagram of a cabinet with labeled components (① and ②), showing internal structure and ventilation space (no text or symbols beyond labels)

Reloading wood

To prevent fumes from entering the room while reloading the wood make sure to open the regulator in the flue duct first. After you've closed the door you can close the regulator again.

Air valve

The air valve ② has 3 positions:

1. Opened all the way: the primary and secondary air supply is open.
2. Pressed until the first click is heard: only the secondary air supply is open and the stove will produce the highest yield while the glass cleaning system works optimally.
3. Pressed until the second click is heard: everything is closed, and the fire will go out slowly.

It is prohibited to light the stove with liquids like petrol or spirits. Do not have the cooker hood on in the room where you operate your stove.

Never touch the varnished parts when you heat your stove.

Lighting the stove for the first time

Newly-built house or recently renovated?

It is advisable to wait six weeks before lighting the stove in a newly-built house that has recently been completed, or in a space that has recently been renovated drastically. The walls and ceilings still contain gases, softeners and moisture from plasterwork or paint. The warm air-streams may discolour the dust particles in the space which may stick to walls and ceilings. Even the moisture in the walls and ceilings will become warm and may cause yellow stains.

Anneal procedure for soapstone

The warranty does not cover any damage caused by not complying with the anneal procedure set out below. The stove is only suitable for burning wood. Please see the chapter on 'Fuel' on page 20.

- Open the air valve ②

• Open the flue regulator by pulling the handle on the left back to the left ①.
  • Put two firelighters in the middle of the fire plate
• Arrange a pyramid of 8 to 10 pieces of kindling measuring about 3cm thick and 25cm long
  • Light the firelighters
  • Leave the door slightly ajar
• Once the stove is burning and the condensation has disappeared from the glass pane, you can close the door
• Once the stove is burning you can close the flue gas regulator ① by pulling the left-back handle to the right.
• Do not refuel the stove but leave the stove to die and cool down to room temperature
  • Repeat this procedure three times
• Repeat the above steps again but refill the stove with 1 kg of wood and then let the stove die again.
  • Repeat this procedure three times.

When you light the Olaf ECO for the first time, the hearth must still 'anneal' and temper itself. The unit has a heat resistant lacquer which must burn in the stove at temperatures above 400 °Celsius. This will happen during the first few times of lighting the stove and temperatures rise to 600 °C. Though this may give an unpleasant smell, it is otherwise harmless. Air the room well when the stove is burning. Make sure that any cooking hood in the same space is not turned on when the stove is burning; a cooking hood extracts the combustion air that the stove needs.

Some deposit may form on the glass panes of the stove when you 'anneal' your hearth. You can easily remove this deposit with a damp cloth after the stove has cooled down. You can also use some cleansing agent for ceramic rings. Please make sure you do not leave any finger marks on the clean glass. Finger marks burn into the glass and cannot be removed later.

It is prohibited to light the stove with liquids like petrol or spirits. Do not have the cooker hood on in the room where you operate your stove. Never touch the varnished parts when you heat your stove.

Avoid finger marks

Do not touch the glass of the stove with your fingers. Finger marks will burn into the glass and cannot be removed later.

Discolouration of walls, ceilings and grates

The walls, ceilings and grates may show some discolouration after lighting your hearth. This is caused by the dust particles that burn in the convection cover. This is a natural process for which WANDERS cannot be held responsible. To minimize discolouring we refer to the advice given for atmospheric hearths. Your installer can give you more information about this.

Fuel

Wood Drying time
Fir, Poplar 1 year
Lime, Willow, Spruce, Birch, Ash, Alder 1,5 years
Fruit trees, Beech 2 years
Oak 2,5 years

The stove only burns on wood. Do not put more than 3 to 4 kg of fuel in the stove at the time. Always use clean and cut logs, which have sufficiently dried. Please see the above list for drying times. Wet wood does not burn well and gives heavy smoke emission. It may blacken the glass pane of your stove with soot and build up smut in the flue pipe. This may increase the risk of chimney fire.

Fresh, moist wood contains about 50% moisture. Cleaved wood still contains 20% moisture after drying it for a year and moisture percentage will be decreased to 12 to 15% after drying it for two years. Dry wood gives nice flames and little or no smoke, and the fire will crackle when burning. Wet wood makes a hissing sound, gives much smoke and only small flames which will considerably dampen the pleasure of burning your stove and the heat output.

Do not put any paraffin-containing logs in your stove. When the door is closed, the high heat will melt the paraffin from the logs too quickly. The polluted flue gasses which consequently develop will deposit on and burn in the glass of your stove and cannot be removed later.

Do not use any wood that is painted, impregnated, glued together or processed in any other way. The flue gases are very harmful to the environment and may affect your stove. It is also prohibited to burn plastics and other waste matter due to poisonous smoke development.

Wood species and storage

You can use all kinds of woods as fuel as long as it is clean, split and dry. Hardwood like oak, beech and birch burn slowly, give off much heat and form charcoal easily. Softer woods like spruce, fir and poplar give more flames but less heat and less charcoal.

The best place to store timber is in a windy spot but sheltered from the rain. This is how the logs can dry in a natural way. Pile the logs on an old pallet or a frame to let the wood dry from underneath and to prevent the lower logs from being in contact with water.

The best way to burn your stove

All WANDERS' stoves are designed so that they give a maximum output. A well-lit wood-burning stove can produce a yield of about 85% . This means that you need less wood for the same amount of heat. Moreover, a well-lit stove produces less smoke pollution. Below are a few tips to give you optimum pleasure:

• Always burn your stove with its door closed; this will improve the output within 8 to 10 times. When the door of the stove is open, the chimney will draw more air than is needed for proper combustion. The relatively cold air will cool the fire. It will also preclude fire damage by any sputtering sparks, especially from softwood.
• Do not put more than 3 logs on the fire at one time. Too much fuel at one time thwarts efficient combustion and burdens the environment unnecessarily.
• Ventilate the space well when you have the stove on. A crackling fire has a minimum air consumption of 25 cubic metres an hour. Never put on your cooking hood when you have a stove burning in the same space.
• Be careful with lighting the stove when it is foggy or when there is no wind outside. There is hardly any draught in the cold chimney when the weather is calm. Since smoke is heavier than air there is the chance of smoke streaming into the room. In foggy weather, the smoke from the chimney (outside) cools quickly and may descend and become a nuisance in your neighbourhood.
• Don't smother the fire suddenly with water, but let it burn out. The materials inside the stove may deform or crack as a result of sudden or great differences in temperature.
• Avoid loading too much fuel into the stove. To much heat can be produced and may damage the stove permanently.

Chimney and flue

The chimney is the most important part of your wood-burning hearth.

When the chimney is right it will not distribute any smoke into your room, leave any deposit on the glass pane or create bad combustion. Before starting the installation of the stove, your installer or a qualified chimney sweep must check whether the chimney flue has a diameter of at least 150 millimetres over the entire length, and whether the channel is clean, smooth and leak-proof.

Chimney with a proper draught

Warm air wants to ascend. This is the principle of every chimney. It helps when the wind near the chimney mouth draws the air from the chimney.

Fall wind may give the opposite effect and blow the air back into the chimney. Relatively cold foggy air may thwart proper draught in your chimney as does a long flue pipe with a rough inside and many bends. If the natural draught in your chimney is poor your installer can give you information about using a ventilator for your flue tube.

What to do in case of chimney fire

In case of chimney fi re, immediately close the shut-off valve in the chimney and all air supply ducts. Call the fi re department. After the fi re is extinguished, the chimney and the stove must be inspected again by your installer.

Maintenance

Small maintenance

• Remove the cooled-down ash from the stove two or three times a week. It is advisable to use an ash bucket.
  • It is advisable to leave an ash layer of two to three centimetres on the fire plate. It will protect the material.
• Clean the exterior of the stove with a soft cloth that does not give off fluff. Do not use any aggressive cleansing agents or abrasives.
  • Do not use any water because of the soapstone
• Clean the cold glass pane with a cleaning agent for ceramic cooking rings. Do not touch the clean glass with your fingers. Finger marks burn into the glass.

Do not use any aggressive cleaning agents or abrasives to maintain your stove.

When the stove is not used

• Leave the air valve open during the summer period. This creates an air flow and any humidity will be drawn out of the stove.
• Clean the stove after the season. Don't forget the elongated fl ue channel.

Yearly maintenance

• Have your chimney properly cleaned by a qualified chimney sweep every year; this is for safety reasons and any fire insurance.
• Have the valves and/or fl aps checked for their functioning.
  • Have the sealing of doors and glass panes checked for wear and tear.

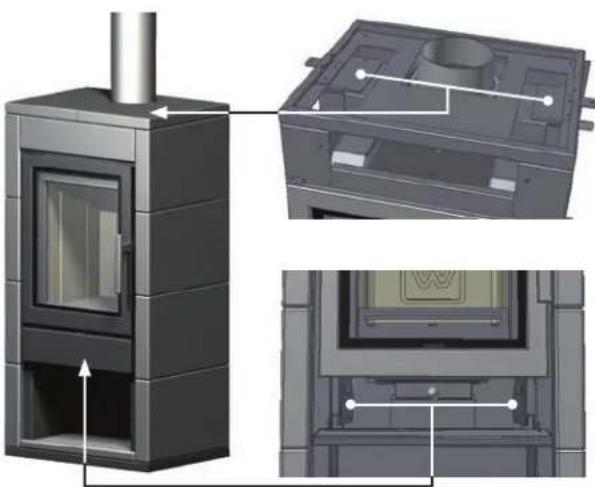

3D technical illustration of a portable stove with internal components and external cross-sections (no text or symbols)

Safety

A WANDERS wood-burning stove is a comfortable and safe heat source in your home. Fire safety starts with proper installation and a flue tube that is in good working order. That is why your installer must adhere to the installation requirements as given in page 24 and further. To burn your stove safely, the following points are important:

1. Burn your stove as much as possible with its door closed; it will improve the output and is much better for the environment.
2. Prevent small children or the infirm from getting too close to a burning stove, and never leave them alone

in the room when the stove is burning. You could use a fire-screen.

1. Do not pour combustible liquids or put combustible materials on the stove, as it may damage the fireplace beyond repair.

2. Never place the stove in front of a wall covered with combustible materials (such as wallpaper).

3. The Olaf Eco wood-burning stove should never be built in.

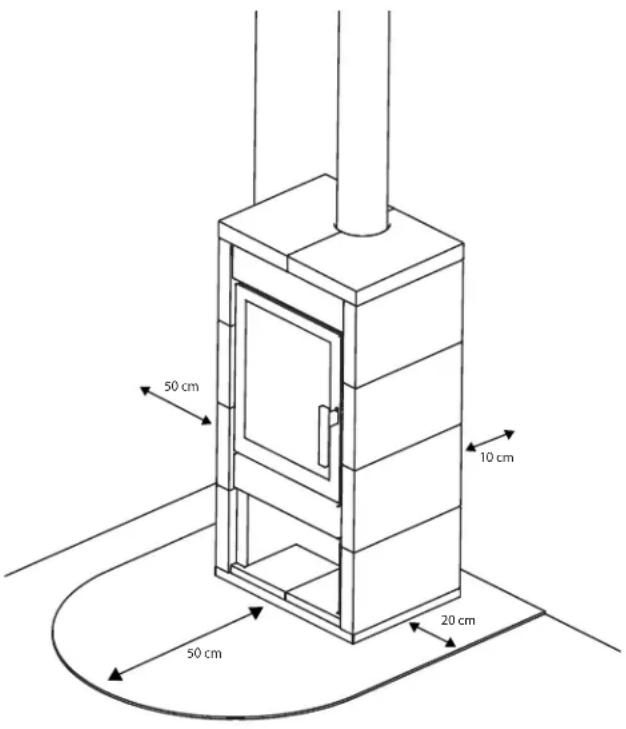

4. There must be a distance of at least 10 cm measured from the Olaf Eco stove to the fire-proof wall behind it.

5. For safety reasons, there must always be a distance of over 80 cm measured from the glass area of the hearth to the wall.

6. Do not place any combustible materials, such as curtains, wooden objects (cupboards, paintings) close to the fireplace or the flue tube. A minimum distance of 100 cm is required, measured from the exterior of the stove or from the flue tube.

7. If the floor around the fireplace is made of combustible material you must use a floor slab. Please see the installation requirements on page 23 for minimum distances.

8. Have your wood-burning stove only repaired by a certified installer and use original parts.

Guarantee

WANDERS Metaalproducten B.V. in Netterden, the Netherlands, gives a guarantee of five years after the purchase date of your wood-burning stove, provided that the fireplace is properly installed and used in accordance with the instructions in the manual.

The guarantee includes all defects which can be reduced to flaws in material and construction, in which case you will receive the new parts free of charge. Labour costs or other expenses are not covered by the guarantee. You can send defect parts (shipping paid) to WANDERS Metaalproducten B.V., Amtweg 4, 7077 AL in Netterden [The Netherlands].

Before installing your stove you must check if there is any visible damage to the unit. If there is, do not accept the unit and contact your supplier.

The guarantee does not include: the glass, failure due to improper use; non-compliance with the national regulations and enclosed installation and operating instructions; installation by an installer of dealer who is not acknowledged by WANDERS, negligence of the unit and change of owner. The guarantee is also disclaimed when a wrong fuel is used and the stove is damaged by overheating.

There is a guarantee period of one year for all cast iron and vermiculite parts, and the lacquer.

WANDERS disclaims responsibility for any cracks in stuccoed walls or discolouration of walls, ceilings and/or grates after burning the fireplace. Discolouration can be caused when dust particles burn in the convection cover. To minimize the chance of cracks in stucco and discolouration we refer to the advice given for decorative hearths. Your installer can give you more information.

Any complaints will be dealt with after the sales firm, the installer has filed a complaint and sent a copy of the purchase receipt with purchase date. Any repairs do not entitle you to extend the guarantee term. All consequential damages or loss are excluded.

Soapstone is a natural product and the material may show some hairline cracks and the panels may show some change in colour. This does not effect the operation of the stove and is therefore not included in the warranty.

Installation Instructions Olaf Eco

The Olaf Eco is tested in accordance with the international EN 13240 standardization, and has an extra additional standardization for optimally environment-friendly heating devices related to flue gases (Section 15a B-Vg. Des BmfWA). The stove can be connected to a flue tube to which several stoves are connected. The flue tube has a diameter of 150 millimetres.

The heating device must be placed by an acknowledged installer and according to the installation instructions given below. The national and local rules and regulations for placing and using wood-burning stoves are equally applicable. WANDERS does not give any guarantee if the Olaf Eco is connected or installed incompletely or incorrectly.

It is not allowed to place the stove in:

• Arcades and corridors accessible to the public.
  • Stairwells, except in buildings with no more than 2 dwellings.
• Spaces where highly flammable or explosive materials are used.
• Spaces where an exhaust system is used or where a mechanical exhaust system is placed, except when the air supply is taken directly from outside to assure a hazardous combustion.

Preparation

The chimney flue

Before placing the stove you must observe the following points:

• If the stove is connected to an existing chimney, you must first have the chimney professionally cleaned and checked by a qualified chimney sweep company. Any cut-off valves or stop valves must be removed.
• The flue tube of the stove must be connected with the chimney without diversions.
• The underpressure in the chimney must be at least 12 Pa or 0.12 mbar.
• The chimney flue must always end up in outlet area 1 (see the drawing below)

X > 23^

X < 23^

• At the time of placing the stove, the chimney flue must be clean, leak-proof and without obstructions, and must have a diameter of 150 mm.
  • Any bends in the flue tube must not exceed 45 degrees.
• Ensure that the chimney tube can discharge the flue gases adequately, properly and safely.

Fire Safety

For reasons of fire safety is it important to observe the instructions below before installing the stove.

1. If the floor around the stove is made of combustible material, you must use a floor slab. The floor slab must measure at least: - 50 cm from the stove on the front side of the door - 30 cm from the stove on the sides of the door.
2. Keep at least a distance of 80 cm between the stove and combustible objects such as curtains, wooden objects (cupboards and paintings) and glass objects. Keep the same distance from the flue tube.
3. Wooden construction parts within the radiation range of the stove (80 cm from the exterior of the stove) must be covered with fireproof material.
4. If the flue tube goes through a ceiling and/or roof that consist of flammable materials, the ceiling and the roof must be covered with fireproof materials all around (about 80 cm). Pay also attention to joisted floor layers and any electric wiring.
5. Keep a distance of at least 50 cm (in all directions) between the stove and supporting steel construction parts.
6. Shield off all combustible materials within a radius of 80 cm from the stove openings with non-combustible materials.
7. Never cover the stove and flue pipes with combustible material (e.g. paper covering).
8. The wall behind the stove must consist of, or be insulated with, fire-proof materials. The insulation material must resist a temperature of 700 °C and have a density of 80 kg/m ^3 . Please see for insulation materials table page 29).
9. Avoid heat transmission when placing the stove. Heat transmission of a burning stove can penetrate the wall and even cause fire damage on the other side of the wall. Prevention is better than cure.

Installation

The Olaf Eco stove is tested in accordance with the international EN 13240 standardization and has an extra additional standardization for optimally environment-friendly heating devices related to flue gases (Section 15a B-Vg. Des BmfWA). The stove can be connected to a flue tube to which several stoves are connected. The flue tube has a diameter of 150 mm.

The heating device must be placed by an acknowledged installer and according to the installation instructions given below. The national and local rules and regulations for placing and using wood-burning stoves are equally applicable. WANDERS does not give any guarantee if the Olaf Eco is connected or installed incompletely or incorrectly.

Supply of combustion air

The stove must have enough supply of fresh combustion air. If necessary, make an extra air supply opening. An extra opening for air supply is always required if:

• the house has a heat recovery system.
- the space where the stove is placed has a central exhaust system.
• there is a cooker hood in the same space.

The illustrations give the connections for external air supply.

Connecting the hearth

Check whether the floor on which the stove is placed can carry this weight without problem. The Olaf Eco weighs around 375 kg's. You must follow the directions given in the previous chapter on 'Preparation' before installing the stove. Please mind your back and the floor during installation!

1. Connect the Olaf ECO to an existing chimney.
2. The under-pressure in the flue tube must be 10 to 12 Pa (0.1 to 0.12 millibars).
3. Take precautionary measures against fire (see points 1 to 9 on page 25)
4. Place the stove at the selected place.

5. Level the stove.

6. Place the pipe between the stove and the outlet channel. Connect a ∅ 150 mm tube to the coupling unit (the mouthpiece) in the straightest possible line from the stove to the chimney. The tube must be made of steel with a thickness of at least 2 mm. Please keep in mind that the tube will expand in the length by about 1 cm per meter, and verify that the outlet is not jammed between the mouthpiece and the ceiling.

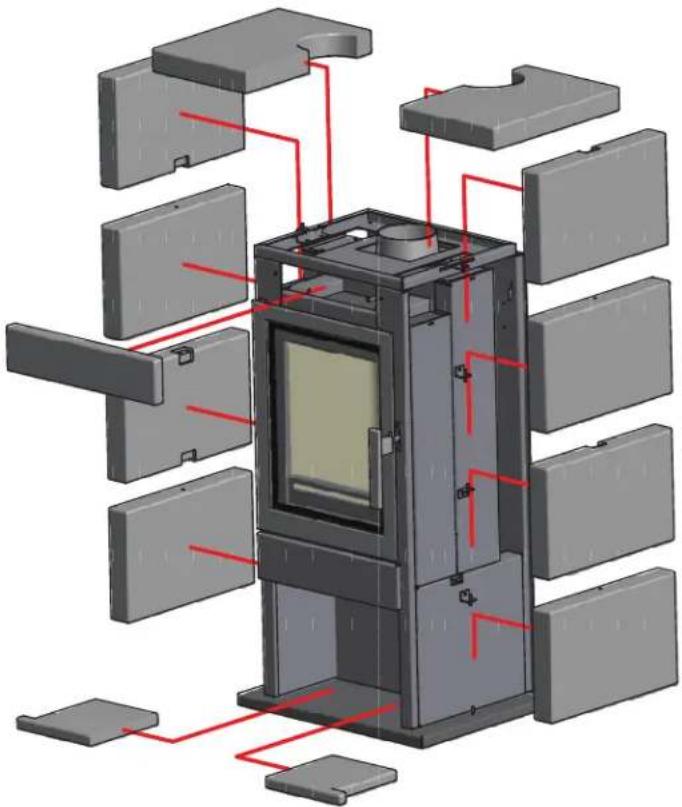

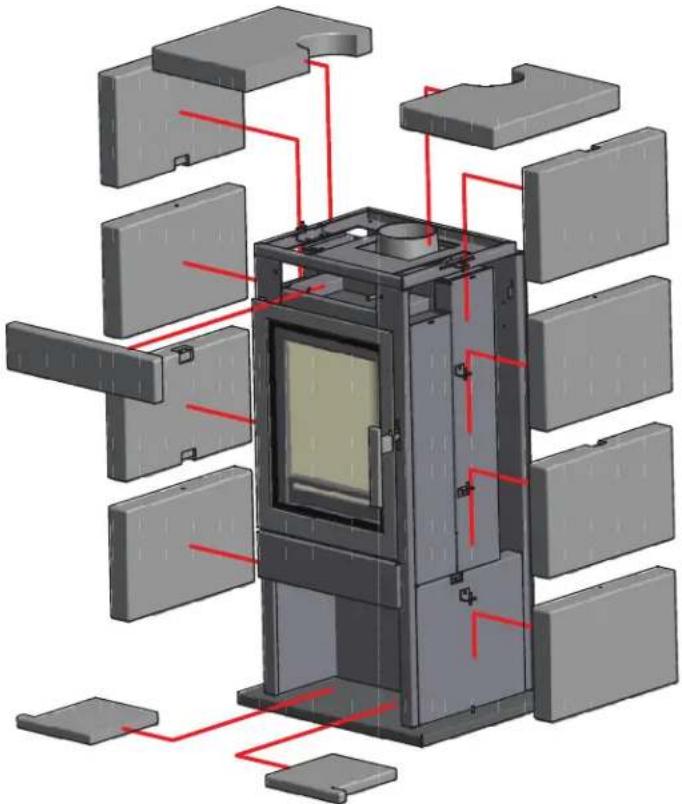

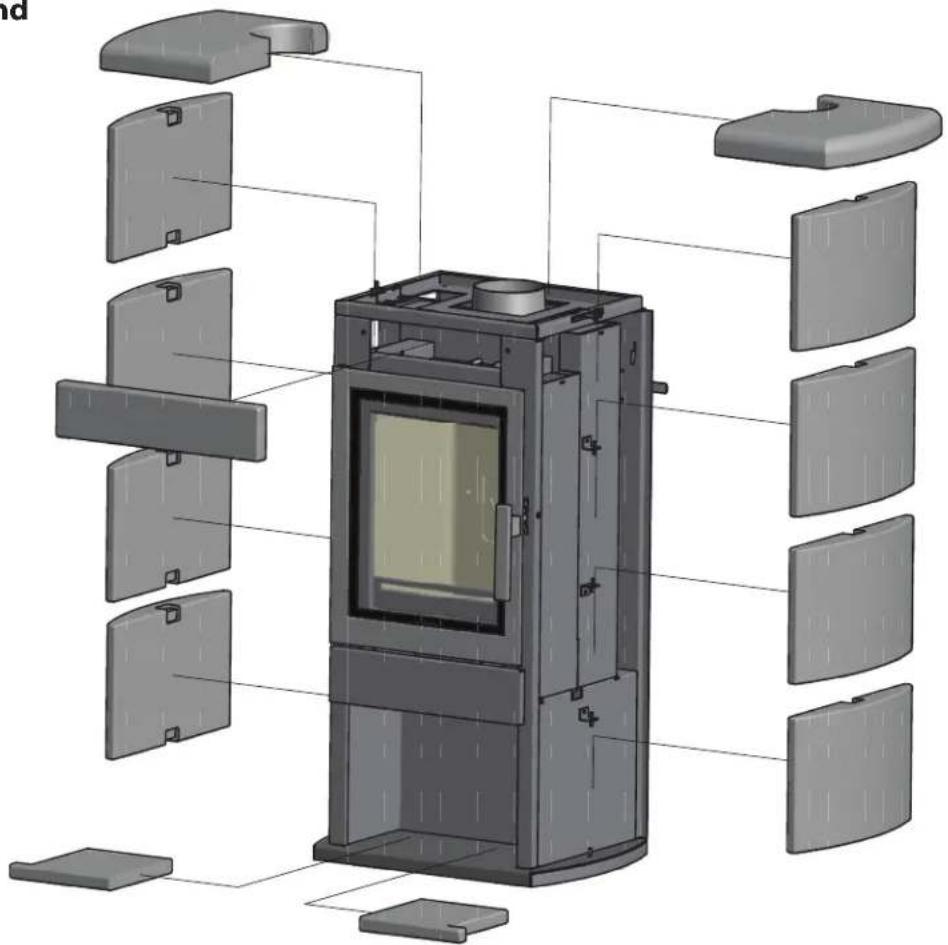

Attaching the soapstone

The soapstone panels must be mounted carefully to avoid damage. Please mind your back.

Technical line drawing of a mechanical device with open door, side panel, and handle (no text or symbols)

3D diagram of a device with multiple panels and red wiring, no visible text or symbols

Repairs

Replacing the glass

Be careful, the glass is sharp.

Remove the 4 screws and the 2 glass strips in the inner corners of the door. Carefully remove the glass and any glass fragments.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical details

	Olaf Eco
Door latch I & II Ba
Nominal capacity* 8 kW
Fleu collar diameter 150 mm
Maximum load capacity 3 kg
* the nominal heat is obtained with a chimney draft of 0,12 mBar

Fuel, wood logs (30 x 10 cm)
Maximum supply capacity 3 pieces
Primary air valve maximum
Secundairy air outlet maximum
Fuel burning period about 1 hour

Flue gas values in accordance with DIN4705, DIN 18895 part 2
	Olaf Eco
Flue gas quantity 6,4 g/s
Flue gas temperature	275	^
Pre-pressure	0,12 mBar
Efficiency	85,0 %
CO at 13% O_2	0,08 %
Particulate matter	17	mg/m ^3
Certificate institute	1625
Test standard	EN13240
Test report number	RRF - 4010 2388

Target value for the volume of the space to be heated:

Not all spaces meet the present insulating values. According to DIN 18893, the following values can be taken for the volume of the space to be heated:

If heating circumstances are favourable:	calculate according to DIN 4701
In less favourable circumstances:	135 m^3
In unfavourable circumstances:	95 m^3

For temporary heating you may assume a reduction of 25% for the volume to be heated if the interval is more than 8 hours.

Table for thickness of insulation of the wall

	Wall thickness10 cm	Insulation Convection
Protection of the wall		back side8 cmsides8 cmbeneath6 cm
Walls made of combustable constructions X X
Supporting walls in steel construcions X X
Intergrated pieces against stove X X
Intergrated pieces in the wall behind X X
Other walls
Wall thickness < 10 cm X X
Wall thickness > 10 cm (e.g. a brickwork wall) - -
Table gives the insulation thickness to be used for a given wall thickness to protect intergrated wall

Table for insulation material. Only use products in the shaded area

Insulation Pack appli		ed Thermal condance temp.		uction Maximum Density		sity
nr	article	nr	form	nr	packed	nr	°C	nr	kg/m3
10	mineral wool	01	bands	01	stitched mats	10	100	02	20
11	glass wool	02	loose wool		stitched mats	12	120	03	30
12	rock wool	03	wool	02	stitched mats	14	140	04	40
13	waste prod.		granule		g. curve 2	16	160	05	50
		04	felt					06	60
		05	lamella mat	10	flakes			07	70
					g. curve 1			08	80
		06	stitched mats	11	flakes			09	90
		07	plates		g. curve 2			10	100
		08	scales			72	720	11	110
		09	segments	20	plates	74	740	12	120
		10	interwoven		g. curve 1	76	760	13	130
				21	plates
					g. curve 2			18	180
		99	otherwise	99	single	99		99

Select the insulation material from this table. Group 99 is NOT allowed.

Modern interior living room featuring a metal coffee stove with flames, a potted plant, and a purple ceramic vase on the floor (no visible text or symbols)

Olaf Eco

3D architectural rendering of a modern industrial cabinet or enclosure with labeled components (no text or symbols present)

Technical illustration of a portable stove with internal components and cross-sectional views (no text or symbols)

Sécurité

X > 23^

X < 23^

Technical line drawing of a rectangular enclosure with internal components and dimension标注 (no text or symbols)

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

3D diagram of a device with multiple panels and red wiring, no visible text or symbols

Réparations

Technical line drawing of a mechanical assembly with no visible text or symbols

Données techniques

Modern interior living room featuring a stone coffee stove with a fire vent, potted plants, and a purple ceramic vase (no text or symbols visible)

Der Olaf Eco

3D architectural rendering of a modern industrial cabinet or enclosure with labeled components (no text or symbols present)

Holz nachlegen

3D architectural rendering of a portable stove with internal compartments and ventilation duct (no text or symbols)

X > 23^

X < 23^

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

3D diagram of a device with multiple panels and red wiring, no visible text or symbols

Reparaturen

Technical line drawing of a mechanical assembly with no visible text or symbols

Technische Angaben

3D rendering of a cylindrical industrial stove or storage unit with a glass vent and top opening (no text or symbols visible)

Olaf Eco

		HOL.0159145
44	1	HOL.0158
43	1	HOL.0155
42	1	SOL.1006
		HOL.0154241
40	2	HOL.0151
		INK.00.0702139
		HOL.0144138
		DRA.00.160213
36	1	SOL.1007
		HAL2448135
34	1	HOL.0150
		DRA.00.157313
		DRA.00.157213
31	1	HOL.0149
30	1	HOL.0148
		HOL.0147229
		GLA.00.0818128
27	1	GIE.00.0015
		HOL.0146126
25	1	HOL.0145
		BEV.00.6065824
		SOL.1005223
22	6	HOL.0139
		HOL.0138221
20	1	HOL.0137
		HOL.0136219
		HOL.0135118
17	1	SOL.1004
16	1	HOL.0141
		HOL.0140115
		INK.00.0701114
		DRA.00.160011
		INK.00.0700112
11	1	SOL.1003
10	1	HOL.0132
		SOL.100219
		INK.00.704228
7	2	HOL.0129
		HOL.012816
5	1	HOL.0127
4	1	HOL.0126
		HOL.012513
		SOL.100112
1	1	SOL.1000
		Struct. nr.Aan

Olaf Eco round

55	1	HOL.0159
50	1	HOL.0155
49	1	SOL.1006
		HOL.0154248
47	2	HOL.0151
		INK.00.0702146
45	1	HOL.0144
		DRA.00.1602144
		SOL.1007143
		HAL2448142
41	1	HOL.0150
		DRA.00.1579140
		DRA.00.1572139
38	1	HOL.0149
36	1	HOL.0148
35	2	HOL.0147
34	1	GLA.00.0818
33	1	GIE.00.0015
32	1	HOL.0146
31	1	HOL.0145
		BEV.00.6065825
24	2	SOL.1005
23	6	HOL.0139
22	2	HOL.0138
20	1	HOL.0137
19	2	HOL.0136
18	1	HOL.0135
17	1	SOL.1004
16	1	HOL.0141
15	1	HOL.0140
		INK.00.0701114
		DRA.00.1600110
		INK.00.0700112
11	1	SOL.1003
		HOL.0132110
9	1	SOL.1002
		INK.00.704228
7	2	HOL.0129
6	1	HOL.0128
5		SOL.10081
4	1	HOL.0126
3	1	HOL.0125
2	1	SOL.1001
1	1	SOL.1000
Pos	Aantal	Struct. nr.

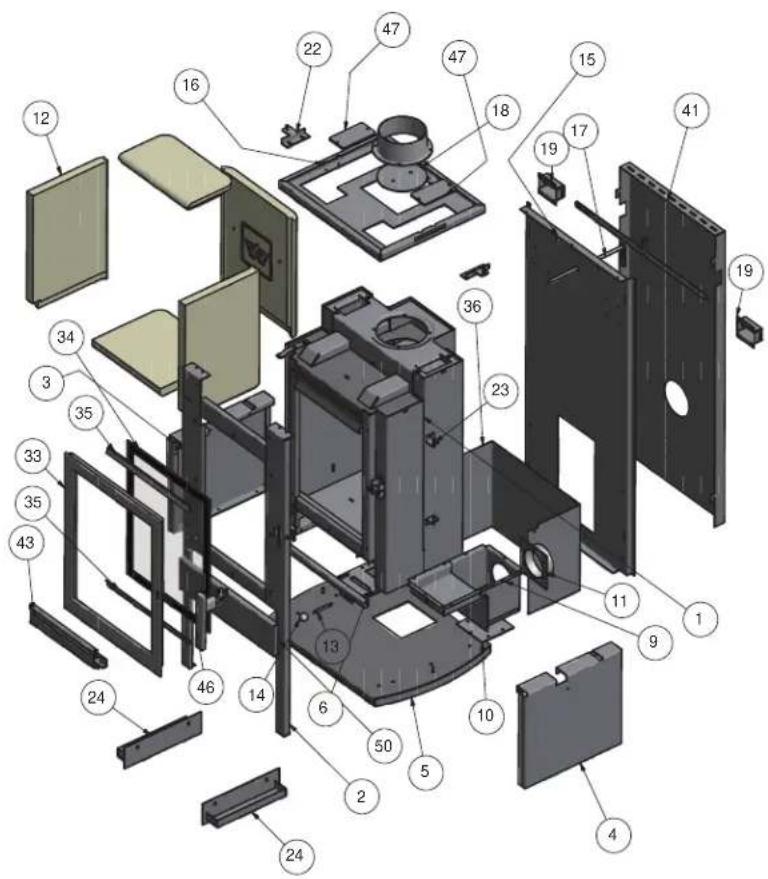

Olaf Eco

Exploded view diagram of a mechanical device with multiple internal components (no text or labels)

Olaf Eco round

Exploded view diagram of a device showing internal components and connections (no text or labels)

garantiebewijs / guarantee certificate / certificat de garantie / garantieschein

/// please enclose copy of proof of purchase

The guarantee includes all defects which can be reduced to flaws in material and construction, in which case you will receive the new parts free of charge. Labour costs or other expenses are not covered by the guarantee. You can send defect parts (shipping paid) to WANDERS Metaalproducten B.V., Amtweg 4, 7077 AL in Netterden [The Netherlands].

Before installing your stove you must check if there is any visible damage to the unit. If there is, do not accept the unit and contact your supplier.

The guarantee does not include: the glass, failure due to improper use; non-compliance with the national regulations and enclosed installation and operating instructions; installation by an installer of dealer who is not acknowledged by WANDERS, negligence of the unit and change of owner. The guarantee is also disclaimed when a wrong fuel is used.

WANDERS disclaims responsibility for any cracks in stuccoed walls or discolouration of walls, ceilings and/or grates after burning the fireplace. Discolouration can be caused when dust particles burn in the convection cover. To minimize the chance of cracks in stucco and discolouration we refer to the advice given for decorative hearths. Your installer can give you more information.

Any complaints will be dealt with after the sales firm, the installer has filed a complaint and sent a copy of the purchase receipt with purchase date. Any repairs do not entitle you to extend the guarantee term.

All consequential damages or loss are excluded.
