Combination Cutter PSFS 250 A1

●Introduction

Congratulations on your new product. You have selected a high quality product. The instructions for use are a part of this product. They contain important information about safety, use and disposal. Before using the product, please familiarise yourself with all the operating and safety instructions. Only use the product as described and for the indicated purpose. When passing this product on to others please be sure to also include all of its documentation.

Intendeduse

This device - used with the recommended tools and accessories - is designed to work on materials such as wood, plastic, light metal sheets, fibreboards and wall tiles. It is also suitable for grinding using various cylindrical grinders and for milling using milling bits with a shank diameter of 4.8 mm. Any other use or modifying the device is considered improper use and involves considerable accident risks. The manufacturer is not liable for damage caused by improper use. Not intended for commercial use.

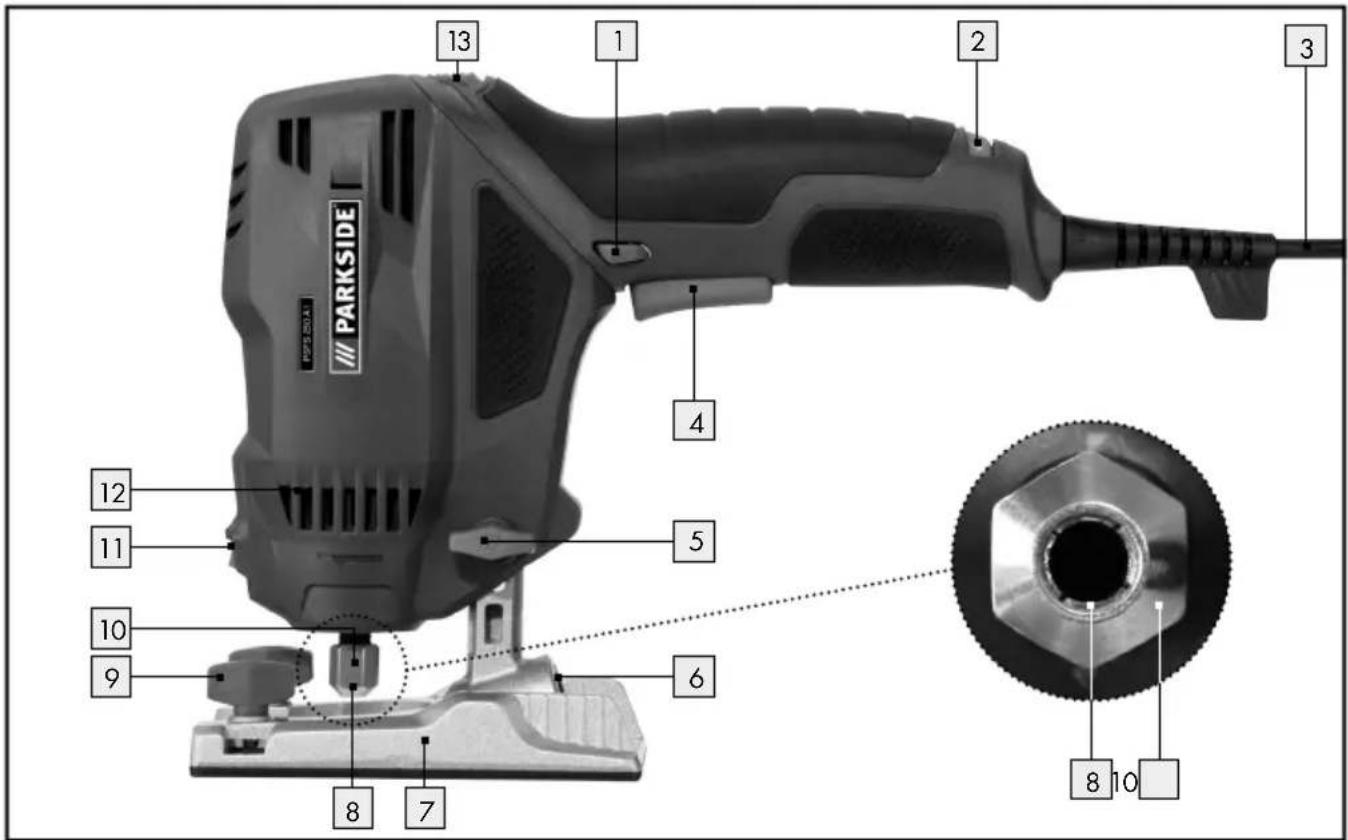

Features

1 Locking switch
2 Variable speed control
3 Mains lead
4 ON/OFF switch
5 Wing setscrew
6 Dust extraction nozzle
7 Base plate
8 Collet
9 Wing bolt (base plate)
10 Clamping nut
11 Spindle lock button
12 Louvres
13 Stop plate
14 Open-ended spanner
15 Circle/parallel cutting guide
16 Sanding belts

17 Slot cutter (HSS)
18 Multi-purpose cutter (HSS)
19 Adapter (dust extraction nozzle)

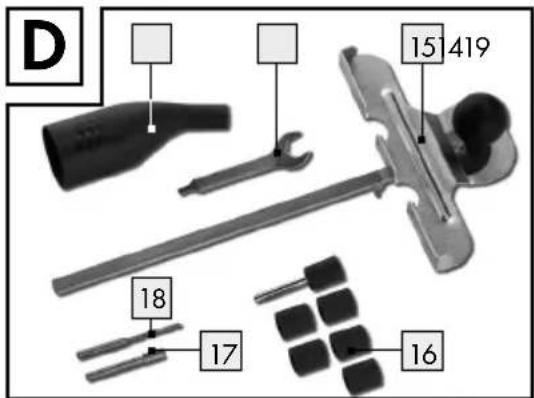

- Scope of delivery

1 Combination cutter PSFS 250 A1
1 Parallel fence with circle cutting function
1 Dust extraction adapter
1 Open-ended spanner
1 Multi-purpose cutter (HSS)
1 Slot cutter (HSS)
1 Sanding belt tensioning arbor
6 Sanding belts
1 Operating instructions

- Technical Data

Rated power input: 250 W

Voltage: 230V\~, 50Hz

Idle speed ( n_0 ): 10.000–28.000 rpm

Collet capacity: 4.8 mm

Protection class: II / ☐

Noise and vibration data:

Noise value determined according to EN 60745.

The A-rated noise level of the electric tool is typically:

Sound pressure level: 75 dB(A)

Sound power level: 86 dB(A)

Uncertainty K: 3 dB(A)

Wear hearing protection!

Evaluated acceleration, typically:

Hand-/arm vibration a_h < 2.5 m/s^2

Uncertainty K = 1.5 m/s^2

WARNING! The vibration level specified in these instructions was measured in accordance with an EN 60745 standardised measurement process and can be used to compare equipment. The vibration emission value specified can also serve as a preliminary assessment of the exposure.

The vibration level will change according to the application of the electrical tool and in some cases, may exceed the value specified in these instructions.

Regularly using the electric tool in such a way may make it easy to underestimate the vibration.

Note: If you wish to make an accurate assessment of the vibration loads experienced during a particular period of work, you should also take into account the intervening periods of time when the device is switched off or is running but is not actually in use. This can result in a much lower vibration load over the whole of the work period.

● General safety advice for electrical power tools

WARNING! Please read all safety information and instructions. Failure to observe the safety information and instructions can result in electric shock, fire and / or serious injury.

For future reference keep all the safety advice and instructions in a safe place.

The term "electrical tool" used in the safety advice refers to electrical tools powered by mains electricity (by means of a mains lead) and electrical tools powered by rechargeable batteries (without a mains lead).

1. Workplace safety

a) Keep your working area clean and well lit. Untidy or poorly lit working areas can lead to accidents.
b) Do not work with the device in potentially explosive environments, which contain inflammable liquids, gases or dusts. Electrical power tools create sparks which can ignite dusts or fumes.
c) Keep children and other people away whilst operating the electrical tool.
Distractions can cause you to lose control of the device.

2. Electrical safety

a) The mains plug on the device must match the mains socket. The plug must not be modified in any way. Do not use an adapter plug with devices fitted with a protective earth. Unmodified plugs and matching sockets reduce the risk of electric shock.
b) Avoid touching grounded surfaces such as pipes, radiators, ovens, and refrigerators. There is a higher risk of electric shock if your body is earthed.
c) Keep the device away from rain or moisture. The penetration of water into the electrical device increases the risk of an electric shock.
d) Do not use the mains lead for any purpose for which it was not intended, e.g. to carry the device, to hang up the device or to pull the mains plug out of the mains socket. Keep the mains lead away from heat, oil, sharp edges or moving parts of the device. Damaged or tangled cables increase the risk of an electric shock.
e) When using electric power tools outdoors always use extension cords approved for outdoor use. The use of an extension cable suitable for outdoor use reduces the risk of electric shock.
f) Use a residual current device for protection if the operation of the electrical power tool in a moist environment cannot be avoided. The use of an residual current operated device reduces the risk of electric shock.

3. Personal safety

a) Remain alert at all times, watch what you are doing and always proceed with caution. Do not use the device if you are tired or under the influence of drugs, alcohol or medication. One moment of carelessness when using the electric tool can lead to serious injury.

b) Always wear protective equipment and wear safety glasses. Depending on the type of electrical tool and its application, wearing personal protective equipment such as ear protection, dust mask or work gloves reduces the risk of injuries.

c) Avoid unintentional operation of the device. Check that the electrical power tool is switched off before you connect it to the mains, pick it up or carry it. Accidents can happen if you carry the device with your finger on the ON / OFF switch or with the device switched on.

d) Remove any setting tools or spanners before you switch on the device. A tool or spanner left attached to a rotating part of a device can lead to injury.

e) Avoid placing your body in an unnatural position. Keep proper footing and balance at all times. By doing this, you will be in a better position to control the electrical power tool in unforeseen circumstances.

f) Wear suitable clothing. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves clear of moving parts. Loose clothing, jewellery or long hair can become trapped in moving parts.

g) If vacuum dust extraction and collection devices are fitted, do not forget to check that they are properly connected and used correctly. The use of these devices reduces the hazard presented by dust.

4. Careful handling and use of electrical power tools

a) Do not overload the device. Always use an electrical power tool that is intended for the task you are undertaking. By using the right electrical power tool for the job, you will work more safely and achieve a better result.

b) Do not use an electrical power tool if its switch is defective. An electrical power tool that can no longer be switched on and off is dangerous and must be repaired.

c) Pull the mains plug from the socket before you make any adjustments to the device, change accessories or when the device is laid aside. This precaution is intended to prevent you from unintentionally starting the device.

d) Always ensure that electrical power tools are kept out of reach of children when not in use. Do not let anyone use the device if he or she is not familiar with it or has not read the instructions and advice. Electrical power tools are dangerous when they are used by inexperienced people.

e) Maintain the device carefully. Check that moving parts are working properly and move freely. Check for any parts that are broken or damaged enough to detrimentally affect the functioning of the device. Have damaged parts repaired before you use the device. Many accidents have their origins in poorly maintained electrical power tools.

f) Keep cutting tools clean and sharp. Carefully maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.

g) Use the electrical power tool, accessories, inserted tools etc. in accordance with these instructions and advice, and the stipulations for this particular type of device. When doing this, take the working conditions into consideration, as well as the task at hand. The use of electrical power tools for purposes other than those intended can lead to dangerous situations.

5. Service

a) Only have the equipment repaired by qualified specialist personnel using OEM spare parts. This ensures that the safety of the device is maintained.

● Additional safety information for grinders and polishers

■ POISONOUSDUSTS! The working of materials that can produce harmful / toxic dusts presents a health risk for the operator and for people located in the close vicinity.
- Avoid sanding of paints containing lead or other material detrimental to your health.
- Do not work on materials containing asbestos. Asbestos is considered carcinogenic.
■ Wear safety glasses and a dust protection mask!

● Additional safety information for routers

Hold the device by the insulated handle surfaces as there is a danger of the cutter striking the device's mains lead. Contact with a live wire could cause metal parts of the device to become live and lead to electric shock.
■ Only use cutting bits with the correct size shaft diameter suitable for the speed of the electric tool.
Fix and secure the work piece to a stable surface using clamps or other means. If you only hold the work piece with your hand or against your body, it will remain unstable which could lead to a loss of control.

Operation

Never use the device for any purpose other than the intended purpose and only use it with the original parts and accessories. The use of parts or accessories other than those recommended in the operating instructions could lead to you suffering an injury. Use only an extension cable that has been completely unrolled and is undamaged with a capacity of at least 5 A.

WARNING: Do not use this tool for the creation of notches in the vicinity of installations or openings with live electric cables or in walls behind which live electric cables could potentially be laid. The bit could conduct electricity into the tool and this could involve the risk of electric shock to the operator.

☐ Trigger the circuit breaker or remove the fuse in order to disconnect the relevant electric circuit.

Attention: Always hold the tool on the plastic housing and always wear safety goggles when working with the tool.

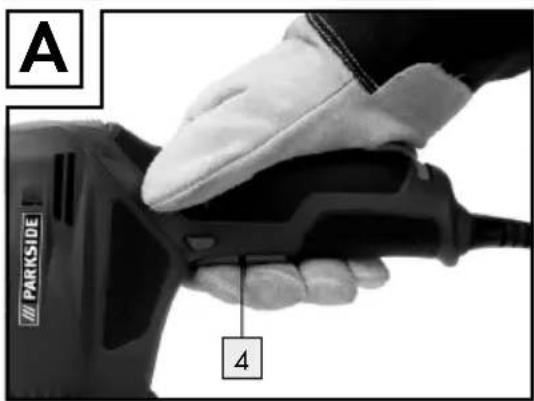

- Switching ON / OFF (see Fig. A)

Switching on:

Press the ON / OFF switch.

Switching off:

☐ Release the ON / OFF switch.

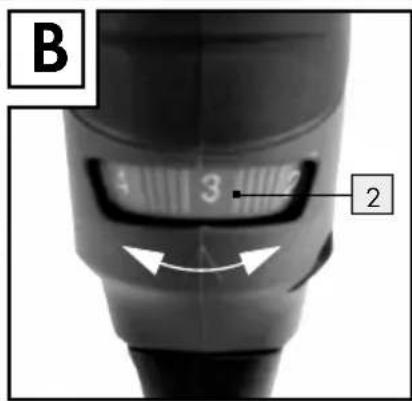

- Setting the speed (see Fig. B)

☐ Turn the speed controller 2 in a clockwise direction to increase the speed.
☐ Turn the speed controller 2 in an anticlockwise direction to reduce the speed.

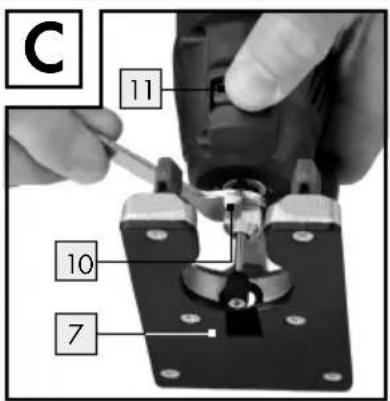

• Changing tools (see Fig. C)

Note: Only use combination cutter accessory parts with a shaft diameter of 4.8 mm.

Hold the spindle lock button pressed down.
☐ Loosen the clamping n10 with the wrench 14 by turning in an anticlockwise direction.
Change the tool.
☐ Block the spindle lock, tighten the clamping nut 10 using the open-ended spanner 14.

Bits:

The bits included are intended for the following applications (see Fig. D).

Multi-purpose cutter (HSS) 18:

Application: wood, particle board, plastic

Slot cutter (HSS) 17:

Application: wood, particle board, plastic

Sanding belts 16:

Application: sanding wood

Note: Please use suitable accessories available from your speciality retailer to cut wall tiles.

• Installing sanding belts

☐ Install the sanding belts 16 as shown in Figure C.

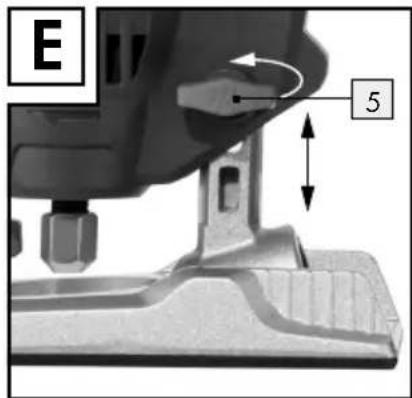

- Setting the working depth (see Fig. E)

□ Loosen the wing boat.

Slide the base plate to the desired working depth (to cut through completely set approx. 3.2 mm deeper than the material thickness). The recommended maximum cutting depth for wood is 13 mm.

Retighten the wing bob.

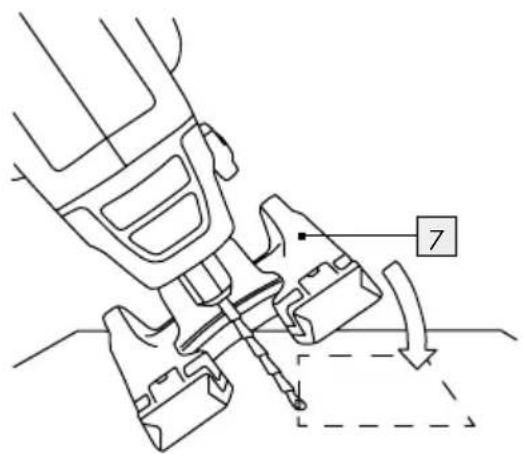

- Plunge cutting

☐ Insert the bit into the work piece at an angle of 45^ .

☐ Slowly straighten the bit to an angle of 90^ to begin the cut.

Note: The base plate 7 must be flush with the material surface.

Technical diagram showing mechanical assembly with numbered component '7' and directional arrows indicating motion or movement.

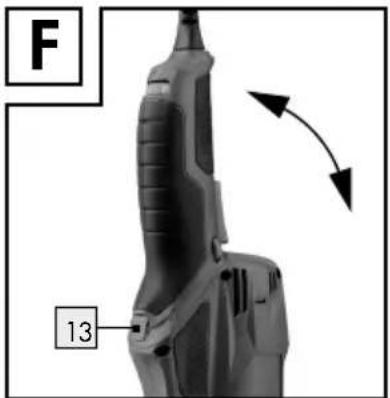

- Pivot handle (see Fig. F)

Pivot to horizontal

Press and hold the bevel stop. Turn the handle counter-clockwise from vertical to horizontal until the bevel stop locks in.

Pivot to vertical

Press and hold the bevel stop. Turn the handle clockwise from horizontal to vertical until the bevel stop locks in.

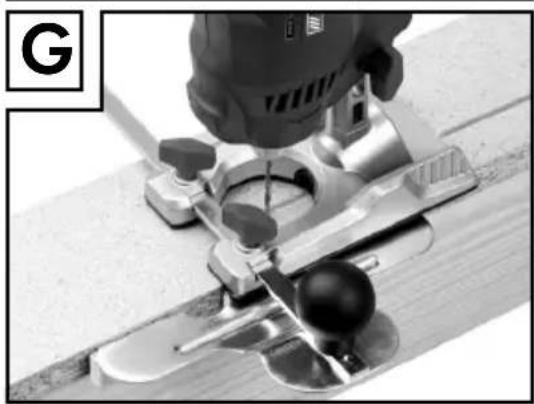

• Using the rip fence (see Fig. G)

☐ Loosen the wing bolts on the base plate 7 and slide the guide bar for the circle- / rip fence 15 through the two openings in the bottom of the base plate 7, with the rip fence facing down. ☐ Position the tool the desired distance from the edge of the work piece. Tighten the wing bolts 9 to secure the circle- / ripe fence 15 to the foot plate 7.

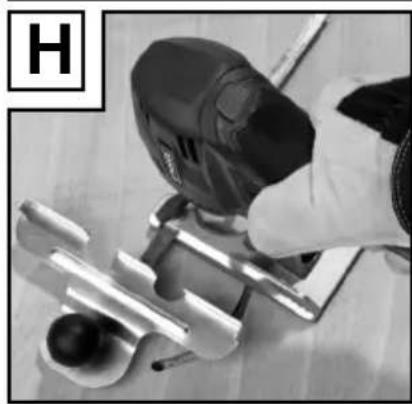

• Cutting circles (see Fig. H)

Note: the position of the guide hole depends on the desired result, either inside or outside of the edge of the circle: inside for holes, outside for discs. The radius can be set from ca. 5 to 16 cm.

☐ Make a circle on the work piece.
☐ Mark the centre and drill a hole into the hole (plunge cut).
Drill a guide hole on the edge of the circle (plunge cut) (guide hole diameter 3 mm).
☐ Loosen the wing bolts in the foot plate 7 and slide the guide rod for the circle-/rip fence set 15 through the two holes in the bottom of the base plate 7, with the centring tip facing down.
☐ Insert the centring tip in the middle of the circle.
Adjust the distance of the circle- / rip fence so as to plunge the bit into the guide hole at the edge of the circle.
☐ Lock the base plate by tightening the wing bolts 9.
Press and hold the ON / OFF switch to power on the unit.
☐ Slowly push the unit forward.

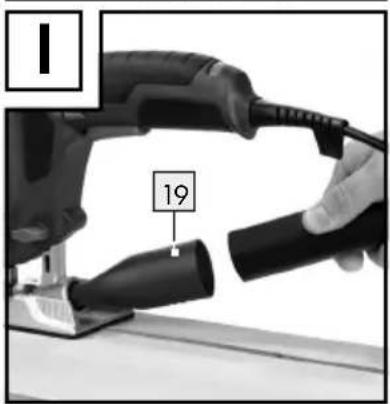

• Dust extraction (see Fig. I)

☐ The tool features a dust extraction nozzle to vacuum off dust.

☐ Insert the adapter in the extraction nozzle 6.

Connect a vacuum cleaner to the adapter.

Continuous tool operation

Locking the ON / OFF switch 4:

□ Activate the ON / OFF switch.

☐ Press the locking switch and release the ON/OFF switch 4.

Unlocking the ON / OFF switch 4:

□ Activate the ON / OFF switch and release.

● Maintenance and Cleaning

The device requires no maintenance.

□ Clean the unit promptly after use.
□ Clean the device with a dry cloth, never use petrol, solvents or cleaning agents harmful to plastic.
□ Always keep the vents clear.
☐ Remove dust clinging to the sander with a brush.

pliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use.

The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.

The warranty period will not be extended by repairs made unter warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration

of the warranty period are subject to payment.

Service

■ WARWINS have your device repaired by qualified specialist personnel using only original manufacturer parts. This will maintain the safety of the device.
A WARNING or mains lead needs to be replaced, always have the work performed by the manufacturer or its service centre. This will maintain the safety of the device.

GB

Service Great Britain

Tel.: [phone]

(0,10 GBP / Min.)

e-mail: [e-mail]

IAN 79032

- Disposal

The packaging is made of environmentally friendly materials, which may be disposed through your local recycling facilities.

Do not dispose of electrical power tools with household rubbish!

Warranty

The warranty for this appliance is for 3 years from the date of purchase. The ap-

In accordance with European Directive 2002 / 96 / EC on waste electrical and electronic equipment and its implementation into national legislation, worn out electrical power tools must be collected separately and recycled in an environmentally friendly fashion.

Contact your local refuse disposal authority for more details on the disposal of worn out electrical devices.

- Declaration of Conformity / Manufacturer CE

We, Kompernaß GmbH, the person responsible for documents: Mr Semi Uguzlu, Burgstr. 21, D-44867 Bochum, Germany, hereby declare this product to comply with the following standards, normative documents and EC Directives:

Machinery Directive (2006/42/EC)

EC Low Voltage Directive (2006/95/EC)

Electromagnetic Compatibility (2004/108/EC)

RoHS Directive (2011/65/EC)

harmonised standards applied:

EN 60745-1/A11:2010 EN 60745-2-4/A11:2011 EN 60745-2-17:2010, EN 62233:2008 EN 55014-1/A2:2011 EN 55014-2/A2:2008 EN 61000-3-2/A2:2009 EN 61000-3-3:2008

Type / Description of product: Combination Cutter PSFS 250 A1

Date of manufacture: 11-2012 Serial number: IAN 79032

Bochum, 30.11.2012

Jeddyork

Semi Uguzlu - Quality Manager -

We reserve the right to make technical modifications in the interest of product advancement.

KOMPERNASS GMBH

Burgstraße21

D-44867Bochum

© by ORFGEN Marketing
