Product Type	USB Digital Audio Converter
Brand	Sony
Model	USB Digital Audio Converter (PCLK-U5)
Dimensions (W x H x D)	43 x 23 x 80 mm
Weight	40 g
Power Consumption	80 mA (USB bus power)
Power Supply	USB port (bus-powered)
USB Connector	USB type B, version 1.1
Digital Audio Output	Optical (TOSLINK), rectangular connector, wavelength 660 nm
Sampling Frequency	44.1 kHz
Compatible Operating Systems	Windows 98/98SE/Me/2000 Professional
Package Contents	CAV-U5 converter, USB cable, optical cable, instruction manual, warranty card
Main Function	Convert USB audio signal to optical output for connection to a stereo system or MD deck
Installation	Plug-and-play after installing the included USB driver
Multimedia Settings	Configuration via Windows Control Panel (Multimedia Properties)
Maintenance	Clean with a soft, dry cloth; do not use solvents
Safety	Do not expose to humidity or extreme temperatures. Disconnect before cleaning
Warranty	1 year (warranty card included)
General Information	Compliant with USB 1.1 standard, compatible with E-IDE (ATAPI) CD-ROM drives

Frequently Asked Questions - USB Digital Audio Converter SONY

How to install the USB driver on Windows 98?

To install the driver, start Windows and close all applications. Connect the CAV-U5 converter to the computer using the supplied USB cable. The Add New Hardware Wizard appears. Follow the on-screen instructions. After installation, check the device status in the Device Manager.

Why is there no sound from the stereo system?

First check the connections: the USB cable must be connected directly to the computer (not via a hub), and the optical cable must be properly inserted into both devices. Make sure the USB driver is installed and the device is recognized in the Device Manager. Then check the multimedia settings in the Control Panel: select USB Audio Device as the preferred device and check Enable digital CD audio for the CD-ROM device.

Which operating systems are compatible with this converter?

The converter is compatible with Windows 98, Windows 98SE, Windows Me and Windows 2000 Professional. It does not work on Windows 3.1, Windows 95, Windows NT, or Macintosh systems.

Can I use this converter with a Mac?

No, the converter is not compatible with Apple Macintosh computers. The software requires an IBM PC/AT or compatible.

How to adjust multimedia settings in Windows?

Open the Control Panel, double-click on Multimedia, go to the Audio tab, and under Preferred device, select USB Audio Device. Click the options adjustment button, then in the Speaker window, set the volume sliders to maximum. In the CD Music tab, check Enable digital CD audio for the CD-ROM device.

What to do if the "Din Unlock" message appears or no sound is recorded?

This message usually indicates a synchronization problem. Check that the optical cable is properly connected. Restart the computer after driver installation. Also check the device status in the Device Manager and multimedia settings.

Does the converter work with a USB hub?

It is recommended to connect the converter directly to a USB port on the computer. Using a USB hub may cause malfunctions.

How to connect the optical cable?

Insert the optical cable plug into the DIGITAL OUT of the CAV-U5 converter and into the optical input of your MD deck or stereo system. Ensure the plug is straight when inserting to avoid damaging the connectors.

What items are included in the box?

The box contains: the CAV-U5 PC connection converter, a USB cable, an optical digital connection cable, the instruction manual and a warranty card.

What to do if the audio output stops during playback?

This may be due to excessive system load. Close unnecessary applications. A temporary power failure may also interrupt the audio output. If the problem persists, check the connections and restart the computer.

USER MANUAL USB Digital Audio Converter SONY

USB Digital Audio Converter

Operating Instructions GB
Mode d'emploi FR
Bedienungsanleitung
Manual de instrucciones ES
Gebruiksaanwijzing NL
Bruksanvising
Istruzioni per l'uso
Instruções de Uso PT

Table of contents

System requirements 3
Checking the supplied items 3
Connections 4
Installing the USB driver 5

Verifying the status of the installed device. 5

Setting the multimedia parameters on the PC 5

Troubleshooting 7

Specifications 7

For the customers in the U.S.A.

WARNING

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION

You are cautioned that any changes or modification not expressly approved in this manual could void your authority to operate this equipment.

The shielded interface cable recommended in this manual must be used with this equipment in order to comply with The limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

If you have any questions about this product, you may call; Sony customer Information Center 1-800-488-7669. The number below is for the FCC related matters only.

Regulatory Information

Declaration of Conformity

Trade name: SONY

Model No.: CAV-U5

Responsible Party: Sony Electronics Inc.

Address: 680 Kinderkamack Road, Oradell, NJ 07649 USA

Telephone No.: 201-930-6972

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

• Microsoft, MS-DOS and Windows are the registered trademarks of Microsoft Corporation.
• IBM and PC/AT are the registered trademarks of International Business Machines Corporation.
• Macintosh is the registered trademark of Apple Computer Inc.
• Other companies and product names are the trademarks or the registered trademarks of each company.

System requirements

The following hardware is necessary to use the PCLK-U5 kit.

□IBM PC/AT or compatible (This software does not run on the Apple Macintosh.)

□CPU*: Intel Pentium II 233 MHz/ Celeron 300A or higher

• The operation of PCLK-U5 is not guaranteed on some computers with Pentium-compatible CPU chips, such as the AMD K6 (e.g., sound skipping may occur during playing of an audio file).

□CD-ROM drive with E-IDE (ATAPI) compliant*

• Make sure your CD-ROM drive is E-IDE (ATAPI) compliant. If it is not, audio CDs may not play properly through the USB connection, even if the Windows settings are correct. For more details, contact the manufacturer of the respective CD-ROM drive.

□USB port: 1 or more

OS: Windows 98/Windows 98SE/ Windows Me/Windows 2000 Professional (This product does not work on Microsoft Windows 3.1, Windows 95, or Windows NT.)

Checking the supplied items

Make sure all of the following items are included in your PCLK-U5 kit. If anything is missing, contact the shop where you purchased this unit or your nearest Sony dealer.

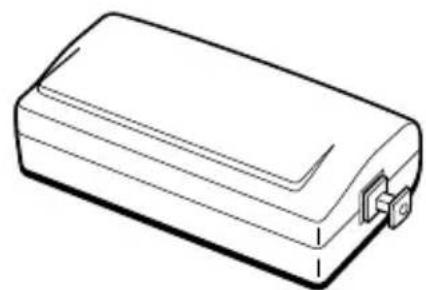

PC connecting converter CAV-U5 (1)

• USB cable (1)

Optical digital connecting cable (fitted with rectangular connectors) (1)
- Operating instructions (1)
Warranty card (1)

Connections

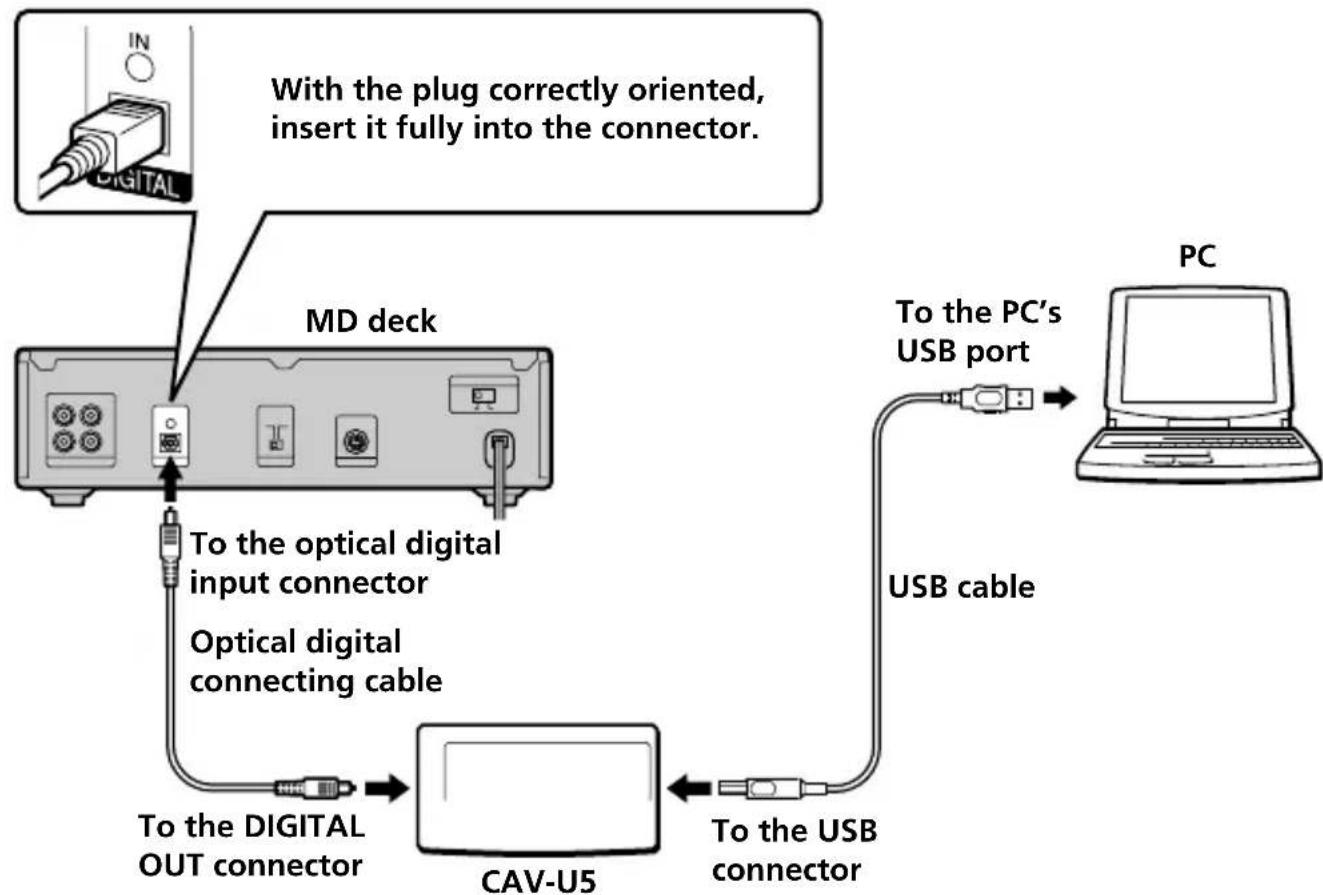

Use the supplied CAV-U5, USB cable, and optical digital connecting cable to connect your PC to a system stereo component.

Be sure to start up Windows before making connections for the first time. For details, see "Installing the USB driver" on the next page.

Notes

• Make sure the plug is straight when you insert it. Inserting it at an angle may damage the connector parts.
• Connect the DIGITAL OUT connector on the CAV-U5 to the optical digital input connector on an MD deck or a system stereo component, using the supplied optical digital connecting cable. For more information on connections and how to change the input selection, refer to the instruction manual of the component that you use.
• Connect the CAV-U5 to the PC directly, using the supplied USB cable. If a USB hub is used for connections, the CAV-U5 may not work properly.

Installing the USB driver

Note

The following instructions are for Windows 98. Some parts of the installation procedure may differ depending on which operating system you are installing the driver to.

1 Start up Windows, and quit any active applications.
2 Connect the CAV-U5 to the PC, using the supplied USB cable. "Add New Hardware Wizard" appears.
3 Follow the instructions of the wizard.

Verifying the status of the installed device

Be sure to check the status of the installed device after you have installed the driver.

1 Open the Control Panel. In the Start menu, select "Settings", then "Control Panel."
2 Double-click the System icon. The "System Properties" dialog box appears.

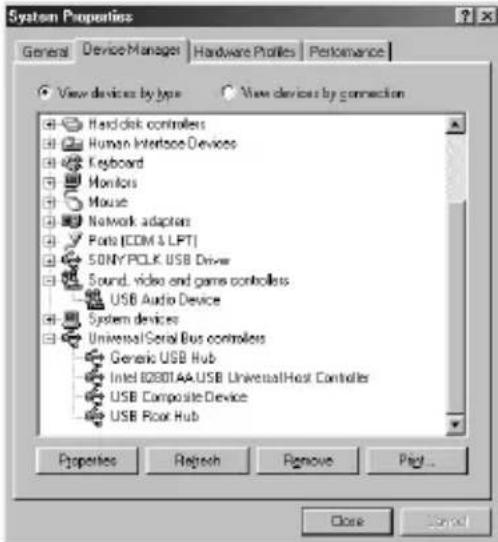

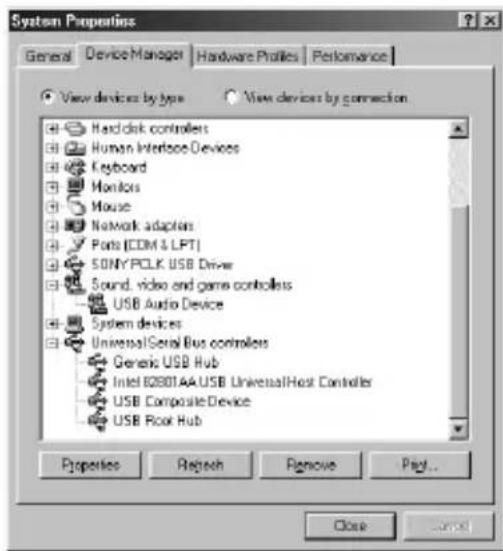

3 Click the "Device Manager" tab. Make sure that the following items are listed in the "Device Manager" window.

"USB Audio Device" under "Sound, video and game controllers"
"USB Composite Device" under "Universal Serial Bus controllers"

Note on Windows Me

Depending on the configuration of your PC, may appear before "USB Composite Device". This, however, does not affect the operation of the system (the PC and system stereo component).

4 Click "OK" to close the "System Properties" dialog box.

Setting the multimedia parameters on the PC

You must set the multimedia parameters on the PC before you can output audio from a CD in the CD-ROM drive or a MIDI file stored on the hard disk of the PC through the system stereo component connected to the PC.

1 Open the Control Panel. In the Start menu, select "Settings", then "Control Panel."
2 Double-click the Multimedia icon. The "Multimedia Properties" dialog box appears.

continued

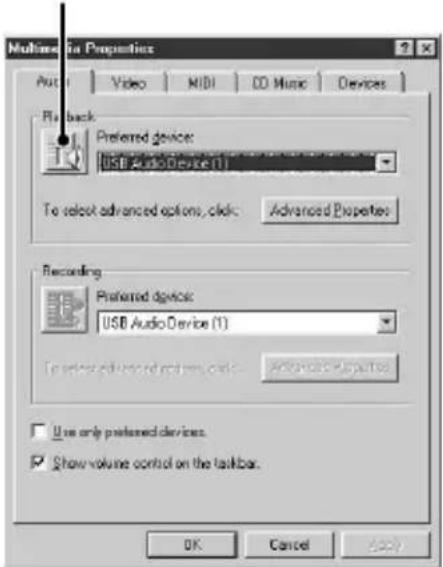

3 Click the "Audio" tab, then select "USB Audio Device" in "Preferred device:"

Option setting button

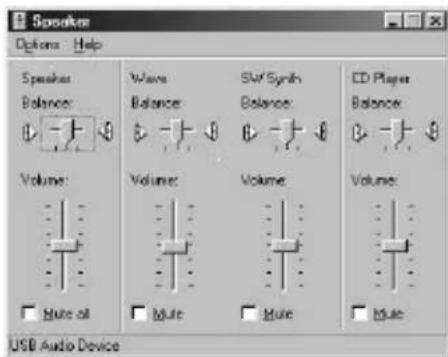

4 Click the option setting button. The "Speaker" dialog box appears.

5 Adjust all the volume sliders to the full volume.

Note

You can not adjust the volume of the playback sound of the PC with the slider under "Speaker". Adjust the volume, balance, and mute the sound with the appropriate slider and check box under "CD Player," "Wave," or "SW Synth."

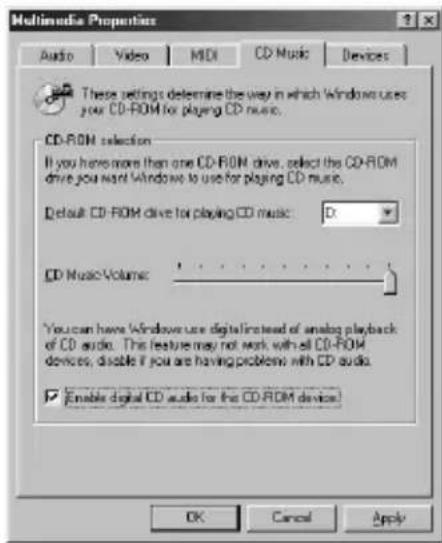

6 Click the "CD Music" tab and check "Enable digital CD audio for the CD-ROM device."

Note

Depending on your version of Windows 98, this item may be grayed out and therefore inaccessible. If this is the case, restart the PC.

7 Click "OK" to close the "Multimedia Properties" dialog box.

Note

Depending on your CD-ROM drive, audio CD may not play. For details, consult the CD-ROM drive manufacturer.

Troubleshooting

System sounds (warning alarm/mail arrival notice) are not output.

System sounds are not output from the PC while the PC is recognizing the CAV-U5 as a playback device.

"Din Unlock" appears in the display or no sound is output or recorded on the connected system stereo component when you start playback (CD, MIDI file, etc.) on the PC.
Check the USB connector connection.
If the problem occurred just after installing the driver, restart the PC.
- Check the status of the installed device and the setting of the Multimedia Properties.

Some noise is heard during playback on the PC.

If you are running a large application, quit the application to reduce the system load. A temporary deficiency in system resources may also cause the sound output to stop.

Specifications

Description

PC connecting adaptor

Sampling frequency

44.1 kHz

USB connector

Series B receptacle, bus power mode (in compliance with USB Ver. 1.1)

Output

DIGITAL OUT: rectangular connector, wavelength: 660nm

Power consumption

Approx. 80mA

Dimensions (w/h/d)

Approx. 43· 23· 80mm (not incl. projecting parts)

Mass

Approx. 40g

Table des matières

"USB Audio Device" sous "Sound, video and game controllers"
"USB Composite Device" sous "Universal Serial Bus controllers"

"USB Audio Device" unter "Sound, video and game controllers"
"USB Composite Device" unter Universal Serial Bus controllers

"USB Audio Device" bajo "Sound, video and game controllers"
"USB Composite Device" bajo "Universal Serial Bus controllers"

NotasobreWindowsMe

DIGITAL OUT: conector rectangular,

"USB Audio Device" under "Sound, video and game controllers"
"USB Composite Device" under Universal Serial Bus controllers

Observera om Windows Me

• "USB Audio Device" gotta
• "Sound, video and game controllers"
• "USB Composite Device" gotta
• "Universal Serial Bus controllers"

Notasu Windows Me

Sony Corporation Printed in Japan
