General Safety Rules

Read all safety warnings and all instructions enclosed with the tile cutter. Failure to comply with the safety warnings and instructions can cause severe injury.

Save these instructions.

16 | English

SafetyWarnings for Tile Cutters

Use the tile cutter only for cutting the materials listed under Intended Use. Marble or granite as well as tiles with a rough surface structure and natural stone tiles cannot be cut.
- Keep your fingers clear of the movable parts of the tile cutter. Danger of fingers being crushed or contused and considerably injured.
Wear protective gloves when cutting tiles. Sharp edges develop on broken tiles and can cause injuries to the operator.
- When transporting the tile cutter, use only the handles, tighten all loose components (fences, rulers), press down the locking lever to lock the guide rail, and fix the transport safety-lock (see figures 15 and 16). There is a risk of injury if it falls down.

Product Description and Specifications

Intended Use

The tile cutter is intended for cutting ceramic tiles.

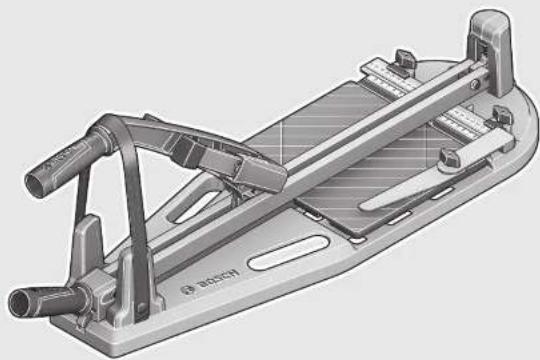

Product Features

The numbering of the product features refers to the illustrations on the graphics pages.

1 Scoring and breaking lever
2 Breaking stamp
3 Cutting wheel
4 Guide rail
5 Rulers/Fence
6 Supporting surface
7 Carrying handle
8 Base plate
9 Transport safety-lock
10 Locking lever
11 Support extension (PTC 640)
12 Stop for serial cut (PTC 640)

Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program.

Technical Data

Tile cutter	PTC 470	PTC 640
Article number
3 603 M04 ...	... 3...... 4..
Max. cutting height	mm 12 12
Max. cutting length of rip cuts mm 470 640
Mitre/Bevel Angle
Horizontal	° 0-45 0-45
Weight according to EPTA-Procedure 01:2014	kg 7,4 9,1

Practical Advice

Problem Cause	Corrective Measure		See graphic
Tile does not break cleanly	Too much pressure applied when scoring the tile (e.g. on "soft" tiles such as wall tiles or glazed tiles)	Apply less pressure to the scoring and breaking lever 1 when scoring
	There is tile debris under the spring-mounted supporting surface 6	Remove tile debris
Tile already breaks when scoring	Too much pressure applied when scoring the tile (e.g. on "soft" tiles such as wall tiles or glazed tiles)	Apply less pressure to the scoring and breaking lever 1 when scoring
Tile does not break along the cutting line	Not enough pressure applied when scoring the tile (e.g. on "hard" tiles such as fine stoneware, floor tiles or frostproof tiles)	Apply more pressure to the scoring and breaking lever 1 when scoring

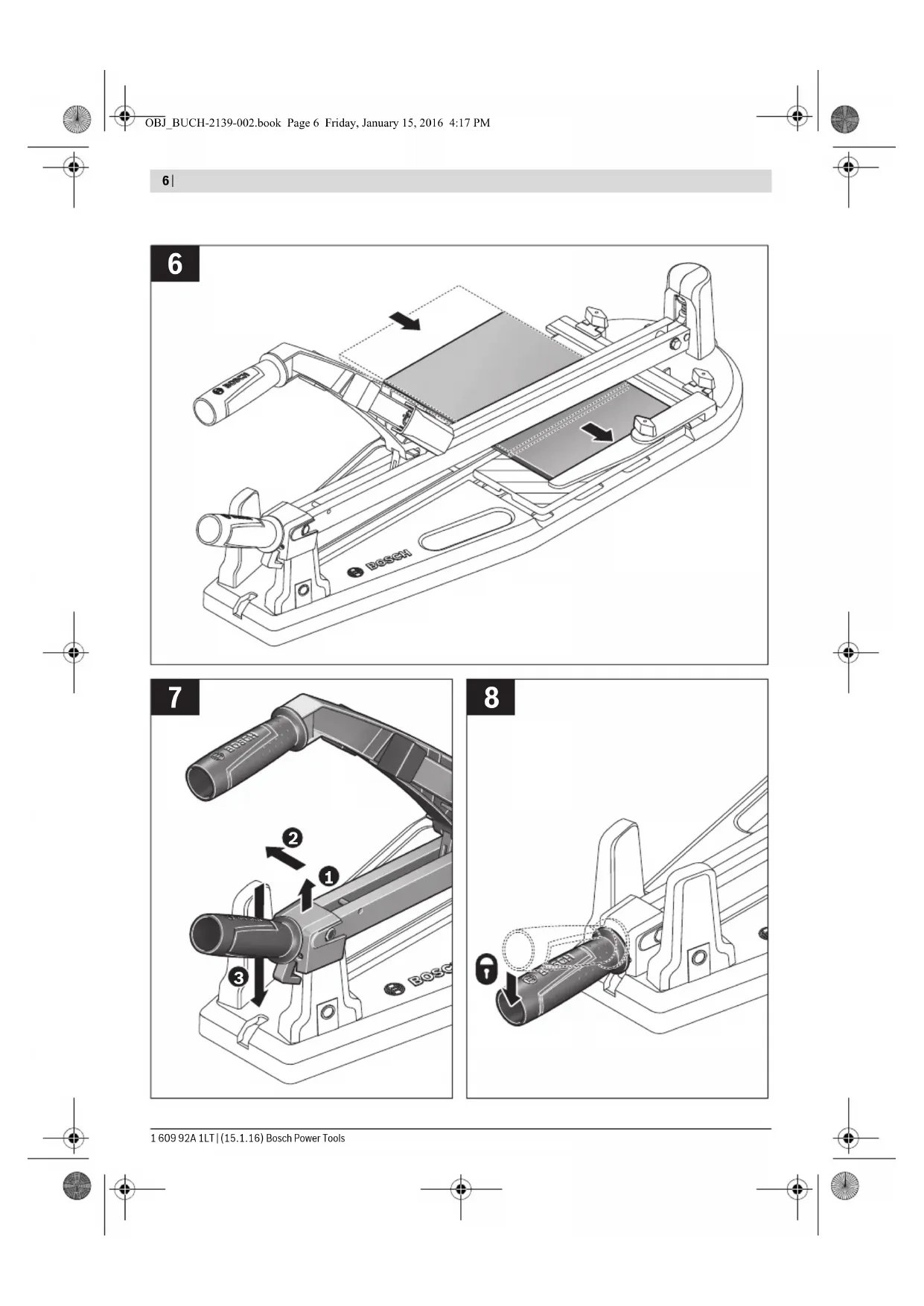

	Guide rail 4 not locked	Press down the locking lever 10 to lock it	8
	Cutting wheel 3 blunt	Replace cutting wheel 3	E
Tile breaks incorrectly when making a parallel cut	Breaking stamps 2 not applied at the end of the tile	Apply breaking stamps 2 right at the end of the tile	11a
Tile breaks incorrectly when making a diagonal cut	Breaking stamps 2 applied at the end of the tile	Apply breaking stamps 2 slightly ahead of the rulers/fence 5	11b
Tile not stable on the supporting surface 6	Tile is wider than the supporting surface 6	PTC 640: Fold out the support extensions 11	C
Cutting wheel 3 snags/judders during scoring	Too much pressure applied when scoring the tile	Apply less pressure to the scoring and breaking lever 1 when scoring

1609 92A 1LT| (15.1.16) Bosch Power Tools

Francais | 17

Maintenance and Service

In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the tile cutter.

After-sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Bosch's application service team will gladly answer questions concerning our products and their accessories.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB95HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Disposal

The tile cutter, accessories and packaging should be sorted for environmental-friendly recycling.

Subject to change without notice.
