Product Type	External USB Sound Card
Brand	Gembird
Model	SC5.13
Connectivity	USB 2.0 (plug & play)
Inputs	1 × microphone (3.5mm jack), 1 × line-in (3.5mm jack)
Outputs	1 × headphone (3.5mm jack), 1 × line-out (3.5mm jack)
Audio Format	16-bit stereo, sampling rate up to 48 kHz
Audio Chip	Integrated (USB Audio Class 1.0 compliant)
Power	Via USB port (bus-powered)
Dimensions (L × W × H)	Approximately 10 × 5 × 2 cm
Weight	Approximately 50 g
Housing Material	ABS Plastic
Supported Operating Systems	Windows, macOS, Linux (generic, driverless)
Main Functions	Analog-to-digital and digital-to-analog conversion, built-in headphone amplifier
Indicator Light	Operating LED (blue)
Care and Cleaning	Clean with a soft, dry cloth; avoid liquids and abrasive products
Safety	Do not expose to water, excessive heat, or shocks
Spare Parts and Repairability	Not user-serviceable; contact customer support
Warranty	24 months (see terms)

Frequently Asked Questions - SC5.13 Gembird

How to install the Gembird SC5.13 sound card?

Simply plug the sound card into a free USB port on your computer. The operating system automatically recognizes it as a USB audio device without requiring additional drivers.

Which operating systems are compatible?

The sound card is compatible with Windows (7, 8, 10, 11), macOS, and most Linux distributions thanks to the USB Audio Class 1.0 standard.

Can I use this sound card with a smartphone or tablet?

Yes, if your device supports USB audio peripherals (OTG). You may need an OTG adapter to connect the USB port.

Does the sound card have a built-in microphone?

No, it does not have a built-in microphone. It offers a microphone input (3.5mm jack) for connecting an external microphone.

How to adjust the headphone volume?

The headphone volume is adjusted via the volume control of your operating system. Some models may have a physical volume button on the unit.

What is the maximum supported audio quality?

The sound card supports a sampling rate up to 48 kHz and 16-bit resolution in stereo.

Is there latency (direct monitoring)?

For direct listening, you can plug headphones into the headphone output for near-instant monitoring. Software latency depends on your system.

How to clean the sound card?

Use a soft, dry cloth to wipe the surface. Do not use liquid or abrasive products that could damage components.

What if the sound card is not recognized?

Try a different USB port, restart the computer, or test on another device. If the problem persists, contact Gembird support.

Is the warranty valid in case of damage?

The 24-month warranty covers manufacturing defects. It is void in case of damage caused by misuse, impact, humidity, or unauthorized opening. Keep your proof of purchase.

USER MANUAL SC5.13 Gembird

PYKOBODCTBO NOIb3OBATEJIa

KEPIBHNICTBO KOPNCTYBAUA

GEMBIRD

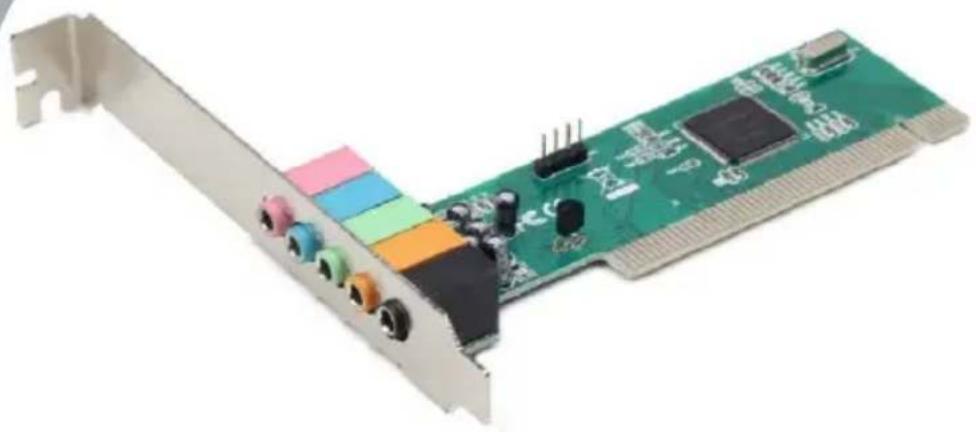

5.1 CHANNEL SOUND CARD

SC-5.1-2 5.1 SURROUND SOUNDKARTE

5.1 SURROUND 3D GELUIDSKAART

CARTE SON CANAL 5.1

6-TN KAHAJbHAR 3ByKOBAR KAPTA 5.1

3BYKOBA KAPTKA 5.1

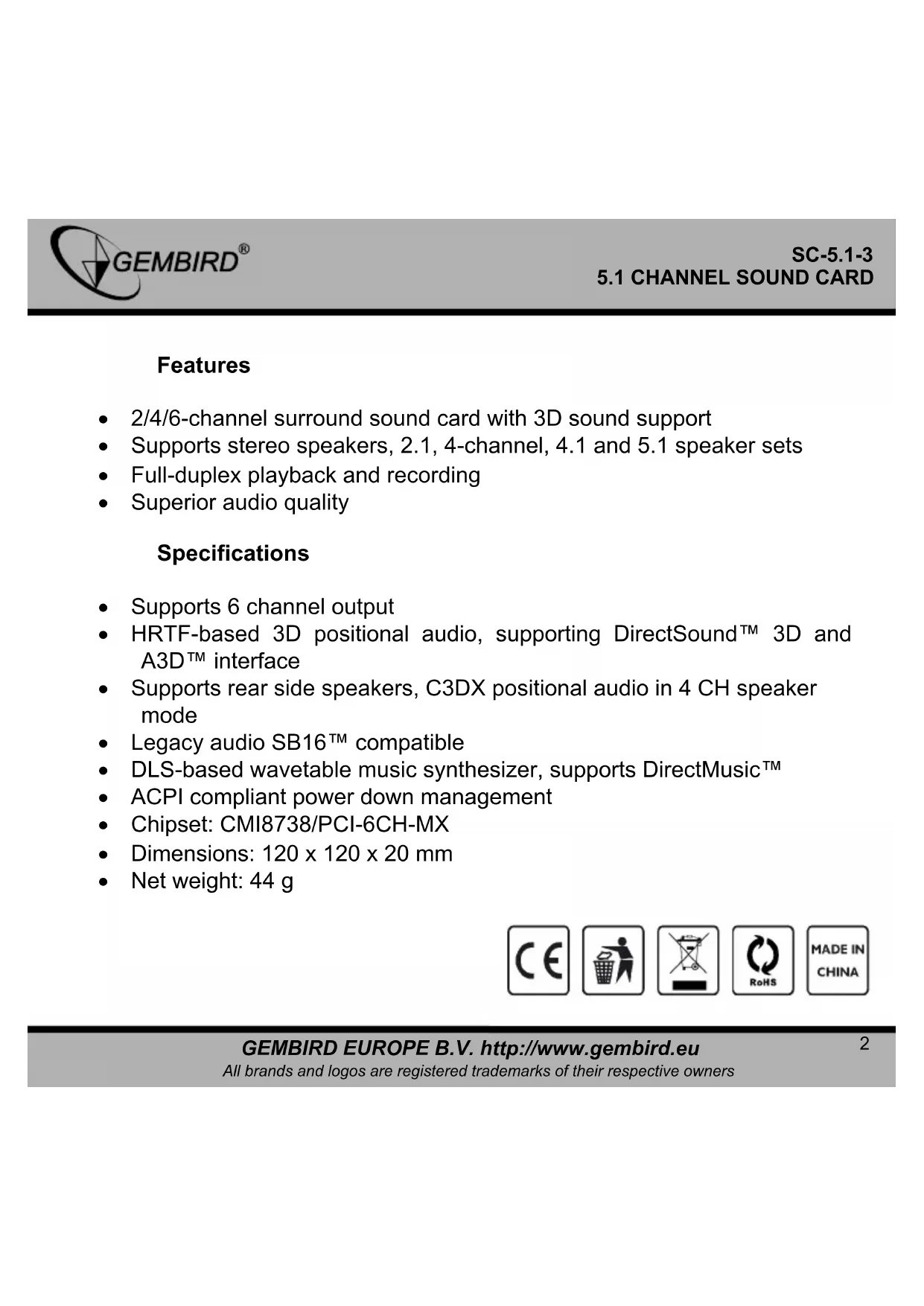

Features

2/4/6-channel surround sound card with 3D sound support
Supports stereo speakers, 2.1, 4-channel, 4.1 and 5.1 speaker sets
Full-duplex playback and recording
- Superior audio quality

Specifications

Supports 6 channel output
- HRTF-based 3D positional audio, supporting DirectSound™ 3D and A3D™ interface
Supports rear side speakers, C3DX positional audio in 4 CH speaker mode
Legacy audio SB16™ compatible
- DLS-based wavetable music synthesizer, supports DirectMusic™
ACPI compliant power down management
- Chipset: CMI8738/PCI-6CH-MX
- Dimensions: 120 × 120 × 20 mm
Net weight: 44 g

1

(2)

(3)

(4)

5

7
Microphone

Headphones

Front speakers

Bass interface

This product is tested and complies with the essential requirements of the laws of member states concerning EMC(2004/108/EC), EMC: EN 55022:2010; EN 55024:2010. The CE declaration can be found under www.gembird.eu

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
