48556 - Fondue, raclette and wok appliance UNOLD - Free user manual and instructions

Product Type	Popcorn Machine
Brand	Unold
Model	48556
Power Supply	230 V ~, 50 Hz, 500 W
Dimensions (L x W x H)	Approx. 30 x 30 x 28 cm
Weight	Approx. 1.4 kg
Material	Plastic, silver / transparent
Pot Coating	Non-stick coating
Maximum corn capacity	100 g
Functions	Popcorn cooking with integrated stirrer, timer, automatic shut-off
Timer	Yes, adjustable
Indicator light	Operating indicator lamp
Non-slip feet	Yes
Cable length	Approx. 80 cm
Included accessories	User manual
Safety	Automatic shut-off after timer, hot surface, do not immerse motor base
Cleaning of pot and accessories	Hand wash with soapy water, do not put in dishwasher
Cleaning of motor base	Wipe with a damp cloth, do not immerse
Warranty	24 months (domestic use), 12 months (professional use)
Intended use	Domestic and similar (offices, hotels, etc.)

Frequently Asked Questions - 48556 UNOLD

What is the maximum corn capacity to use?

Do not exceed 100 g of corn per use to avoid overloading.

Should I add oil before preparing popcorn?

Yes, add approx. 2 tablespoons of oil with the corn for better cooking.

How to season the prepared popcorn?

You can add sucre, sel, paprika, curry ou caramel according to your taste after cooking.

Can I open the appliance during operation?

No, never open the appliance or put your hands inside during operation.

How to clean the removable parts?

Wash the lid, stirrer and nut by hand in warm soapy water. Do not put them in the dishwasher.

Can I use accessories from other brands?

No, only use accessories recommended by the manufacturer to avoid any damage.

What to do if the power cord is damaged?

Do not use the appliance. Return it to after-sales service for inspection and repair.

Does the appliance get very hot?

Yes, the appliance becomes extremely hot during operation. Use the handles and keep children away.

Why do some kernels not pop?

It is normal that a certain amount of kernels do not pop. The stirrer helps distribute heat.

Can I prepare something other than popcorn?

No, the appliance is exclusively designed for preparing popcorn in small quantities.

USER MANUAL 48556 UNOLD

Black-and-white photo of a UNOLD water heater with granular contents inside, placed on a reflective surface with a bowl of food nearby (no text or symbols visible)

Bedienungsanleitung

Modell 48556 Instructions for use - Notice d'utilisation Gebruiksaanwijzing - Istruzioni per l'uso Manual de instrucciones - Návod k obsluze Instrukcja obsługi

Impressum:

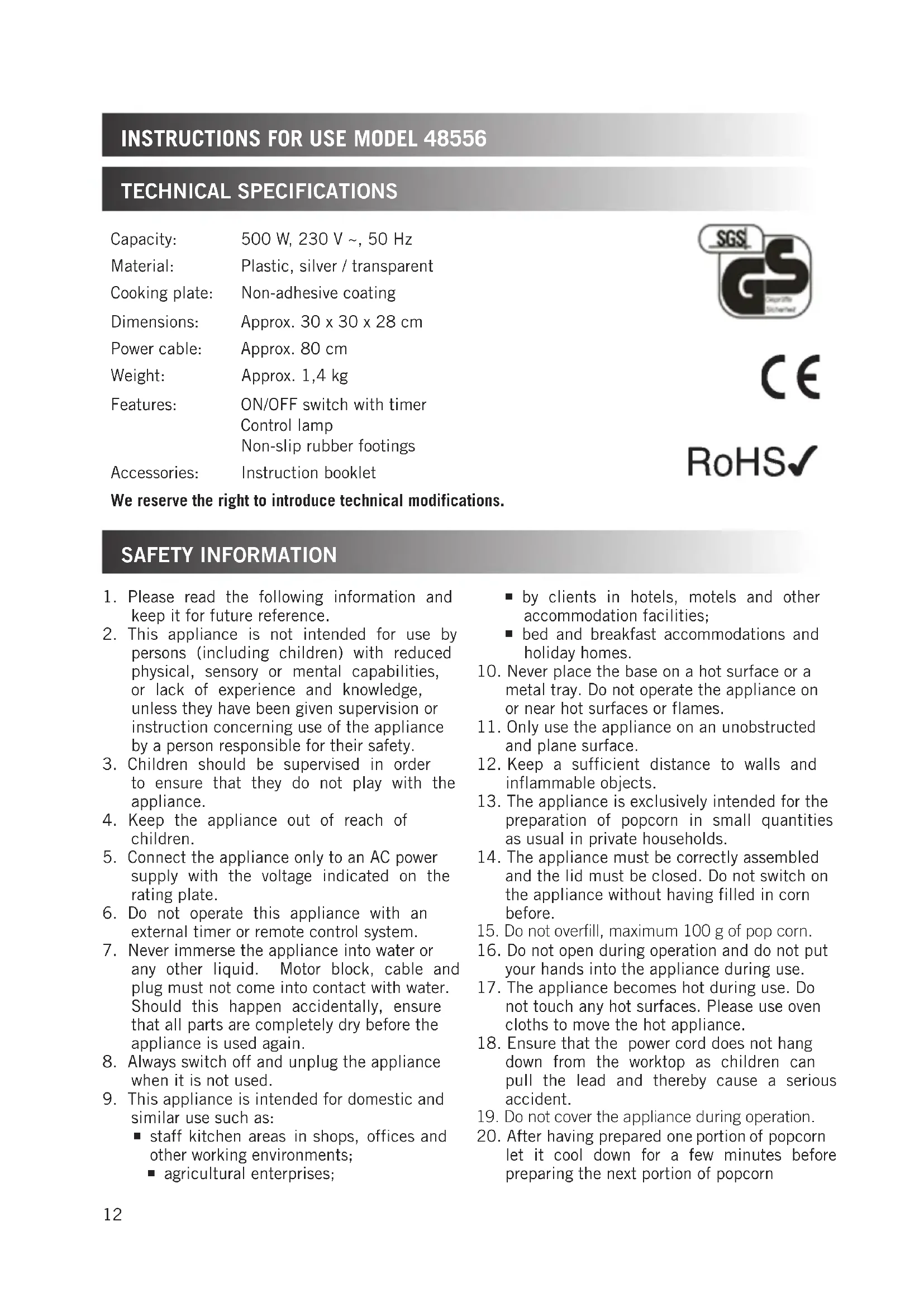

Instructions for use Model 48556

Technical Specifications.... 12

Safety Information 12

Before first use....13

Operation....13

Cleaning and care....14

Guarantee Conditions....38

Waste Disposal / Environmental Protection 42

GB Motor block with popcorn plate

Close-up of hands holding a silver piggy bank filled with granular food, no visible text or symbols

Hand using a power iron shaver to press down a metal tray (no visible text or symbols)

Hand holding a glass bowl filled with granular food, no visible text or symbols

REINIGEN UND PFLEGEN

Capacity: 500 W, 230 V \~, 50 Hz

Material: Plastic, silver / transparent

Cooking plate: Non-adhesive coating

Dimensions: Approx. 30 x 30 x 28 cm

Power cable: Approx. 80 cm

Weight: Approx. 1,4 kg

Features: ON/OFF switch with timer

Control lamp

Non-slip rubber footings

Accessories: Instruction booklet

We reserve the right to introduce technical modifications.

SAFETY INFORMATION

1. Please read the following information and keep it for future reference.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3. Children should be supervised in order to ensure that they do not play with the appliance.
4. Keep the appliance out of reach of children.
5. Connect the appliance only to an AC power supply with the voltage indicated on the rating plate.
6. Do not operate this appliance with an external timer or remote control system.
7. Never immerse the appliance into water or any other liquid. Motor block, cable and plug must not come into contact with water. Should this happen accidentally, ensure that all parts are completely dry before the appliance is used again.
8. Always switch off and unplug the appliance when it is not used.
9. This appliance is intended for domestic and similar use such as:
   ■ staff kitchen areas in shops, offices and other working environments;
   ■ agricultural enterprises;

■ by clients in hotels, motels and other accommodation facilities;
■ bed and breakfast accommodations and holiday homes.

1. Never place the base on a hot surface or a metal tray. Do not operate the appliance on or near hot surfaces or flames.

2. Only use the appliance on an unobstructed and plane surface.

3. Keep a sufficient distance to walls and inflammable objects.

4. The appliance is exclusively intended for the preparation of popcorn in small quantities as usual in private households.

5. The appliance must be correctly assembled and the lid must be closed. Do not switch on the appliance without having filled in corn before.

6. Do not overfill, maximum 100 g of pop corn.

7. Do not open during operation and do not put your hands into the appliance during use.

8. The appliance becomes hot during use. Do not touch any hot surfaces. Please use oven cloths to move the hot appliance.

9. Ensure that the power cord does not hang down from the worktop as children can pull the lead and thereby cause a serious accident.

10. Do not cover the appliance during operation.

11. After having prepared one portion of popcorn let it cool down for a few minutes before preparing the next portion of popcorn

12. For safety reasons, never place the appliance on hot surfaces, a metal tray or a wet surface.

13. Do not place the appliance or lead cable near open flames during operation.
14. Always use the popcornmaker on a level, uncluttered and heat-resistant surface.
15. Make sure that the lead cable does not hang over the edge of the worktop or table, since this can cause accidents, for example if small children pull on the cable.
16. Route the lead cable so that it is prevented from being pulled or tripped over.
17. Never wrap the lead cable around the appliance, but around the cable storage on the bottom of the base.
18. Always disconnect the lead cable from the wall socket pulling on the plug, never on the cable.

19. Never carry the base by the lead cable.

20. Do not use the appliance with accessories of other manufacturers or brands, to prevent damage.

21. Disconnect the appliance from the wall socket after use and prior to cleaning. Never leave the appliance unattended when it is connected to the wall socket.
22. Let the appliance cool off before cleaning it.
23. Never open the casing of the popcornmaker. There is danger of electric shock.
24. Check the appliance, the wall socket and the lead cable regularly for wear or damage. In case the lead cable or other parts appear damaged, please send the appliance or the base to our after sales service for inspection and repair (for address, see warranty terms). Unauthorised repairs can constitute serious risks for the user and void the warranty.

CAUTION:

The appliance becomes hot during operation!

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

BEFORE FIRST USE

1. Remove all packaging materials and any transport safety devices.
2. Clean all parts with a damp cloth, as described in the chapter "Cleaning and care" on page 18.
3. Check if the appliance is placed firmly.
4. Connect the base to the mains supply by means of the lead cable (230 V\~, 50 Hz).
5. Preheat the appliance for some minutes on highest level before using it for the first

time to remove eventual production residues on the plates. Open the window during this heating period. Let the appliance cool down after the initial heating. After the initial heating you see some use tracks, however, these will not affect the function of the appliances and are no reason for complaints.

OPERATION

1. Set the mixer (3) on the axle and fix it clockwise with the screw (2).
2. Fill approx. 100 g of corn kernels into the bowl. The bottom should be covered to 75 %. Do not use more kernels at a time. If the popping chamber is overfilled the appliance might get blocked.
3. Add approx. 2 tablespoons of oil as well as salt or sugar to taste. Do not add other spices, they might burn.

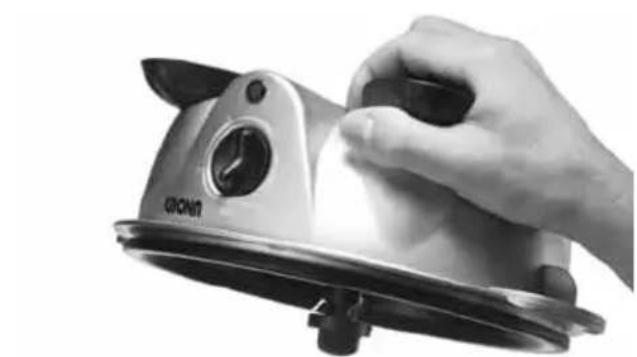

4. Put the lid (1) on the motor block (4).
5. Put the plug into a power socket.
6. Set the timer to the maximum time.
7. The appliance starts to heat and the corn begins to pop up. The mixer ensures a

uniform mixing of popped and unpopped kernels and thus provides a higher performance. However, it is normal, that a certain number of kernels remains unpopped.

1. When the preset time has finished, the appliance switches off. The mixer continues to turn to avoid the popcorn from sticking together.

2. Unplug the appliance before opening the lid.

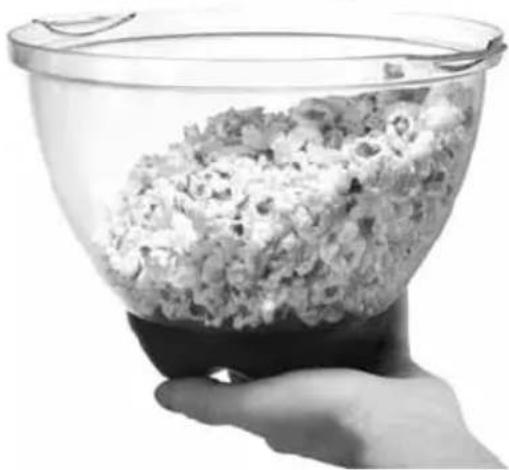

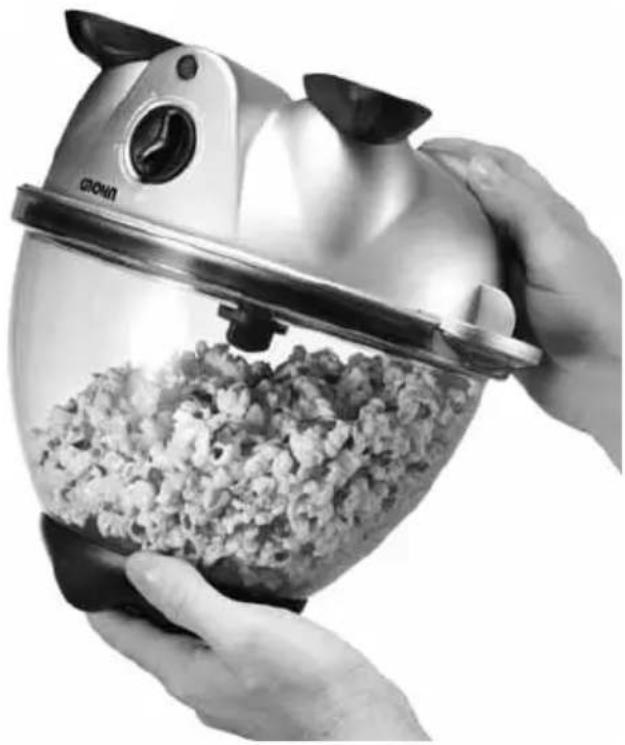

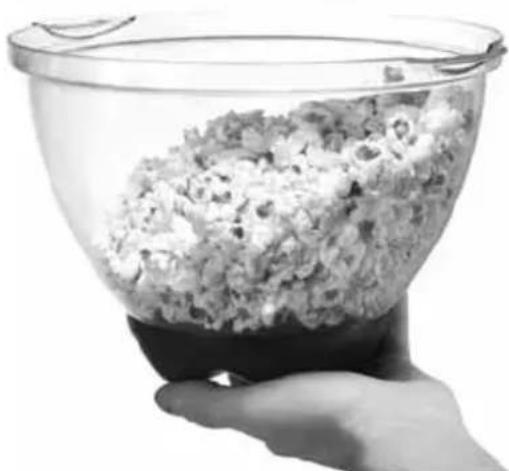

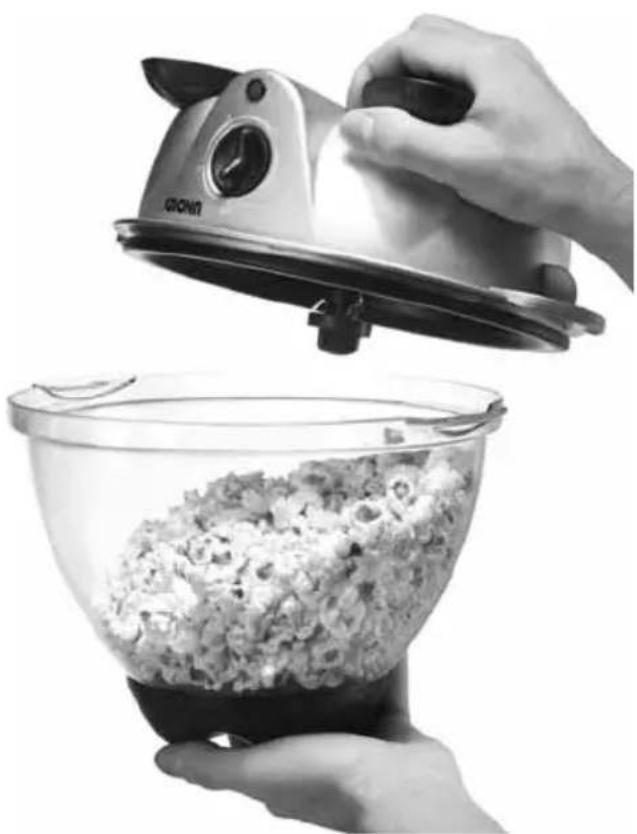

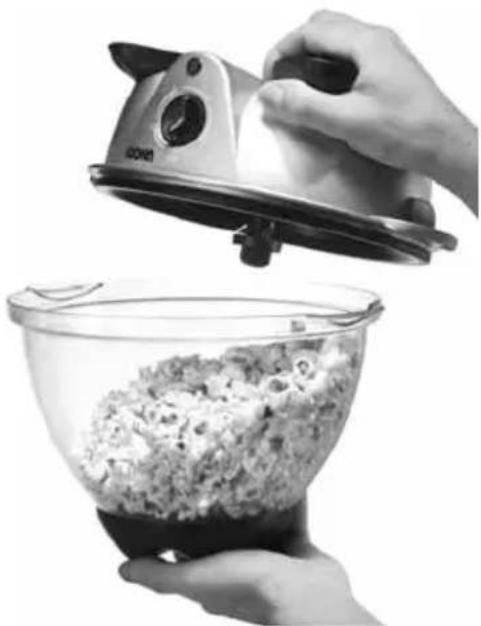

3. The lid (1) serves also as serving dish. To take out the popcorn, turn the whole appliance using oven cloths and turn the motor block off clockwise (see photo).

4. Shake the dish softly to allow unpopped kernels to fall through the holes in the bottom into the black bottom part, from which they can be removed easily.

5. Season the still hot popcorn in the bowl according to your taste:

Close-up of hands holding a glass bowl containing granular material, with no visible text or symbols.

■ sweet with sugar, icing sugar, or candy
■ savoury with salt, paprika or curry powder, etc.
■ Just try some new flavours.

Black-and-white photo showing a hand using an electric iron mixer to press food into a glass bowl filled with chopped ingredients (no text or symbols visible)

CLEANING AND CARE

1. Always switch off and disconnect the plug from the mains before cleaning the appliance. Let the appliance cool down.
2. Clean the heating bowl after each use.
3. The motor block and cable must never be
4. immersed into water or any other liquid.
5. All removable parts such as transparent lid, mixing arm and screw can be cleaned in warm soapy water. The parts are not dishwasher-safe.

6. Wipe the motor block with a moist cloth and a drop of washing-up liquid. Never use an

7. aggressive scouring or steel wool.

8. If necessary the heating bowl can be cleaned with an oven cleanser according to the instructions on the product. Remove the cleansing foam with a damp cloth.
9. Possible discolorations of the heating bowl are normal and can be removed with a few drops of lemon juice on a damp cloth.
10. All parts must be dried completely before being reassembled and used.

SPÉCIFICATION TECHNIQUE

Alimentation: 500 W - 230 V \~ - 50 Hz

Close-up of hands holding a metallic piggy bank filled with granular food, no visible text or symbols

Black-and-white photo showing a hand using an iron shaver to press down a bowl of chopped produce, with no visible text or symbols.

NETTOYAGE ET ENTRETIEN

Close-up of hands holding a metallic piggy bank filled with granular food, no visible text or symbols

Hand using a power iron shaver to press down a white surface (no text or symbols visible)

Hand holding a glass bowl filled with granular material, no visible text or symbols

REINIGING EN ONDERHOUD

AVVERTENZE DI SICUREZZA

Close-up of hands holding a transparent container filled with granular food, no visible text or symbols

Hand using a power iron shaver to press down a metallic tray (no visible text or symbols)

Hand holding a glass bowl filled with granular food, no visible text or symbols

Close-up of hands holding a stainless steel piggy bank filled with granular food, no visible text or symbols

Black-and-white photo showing a hand using an electric iron grater to press food into a glass bowl filled with chopped ingredients (no text or symbols visible)

LIMPIEZA Y MANTENIMIENTO

Close-up of hands holding a silver piggy bank filled with granular food, no visible text or symbols

Hand using a power iron shaver to press down a cylindrical component (no visible text or symbols)

Hand holding a glass bowl filled with granular material, likely rice or salt, against a plain background (no text or symbols visible)

ČIŠTĚNÍ A ÚDRŽBA

Close-up of hands holding a metal bowl filled with chopped granular material, no visible text or symbols

Black-and-white photo showing hands using a hair iron mixer to spread food into a glass bowl (no text or symbols visible)

CZYSZCZENIE I PIELEGNACJA

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option.

Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

CONDITIONS DE GARANTIE

E-Mail [e-mail]

SCHWEIZ

MENAGROS SA

Route der Servion

CH - 1083 Mezières

Telefon [phone]

Telefax [phone]

E-Mail [e-mail]

Internet www.menagros.ch

POLEN

„Quadra-net“ Sp. z o.o.

Skadowa 5

61-888 Poznan Skadowa 5

Internet www.quadra-net.pl

INFORMATIONEN

This appliance complies with the European Directives for electromagnetic compatibility (EMC) 2004/108/EC and its revisions, as well as Low Voltage Directive (LVD) 2006/95/EC and its revisions.

This appliance complies with the RoHS Directive 2002/95/EC on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

This appliance complies with the WEEE-Directive 2002/96/EC on the disposal of electrical and electronic equipment (WEEE).

The warranty period for this product is 24 months

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal.

Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products.

By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

TRAITEMENT DES DÉCHETS / PROTECTION DE L'ENVIRONNEMENT
