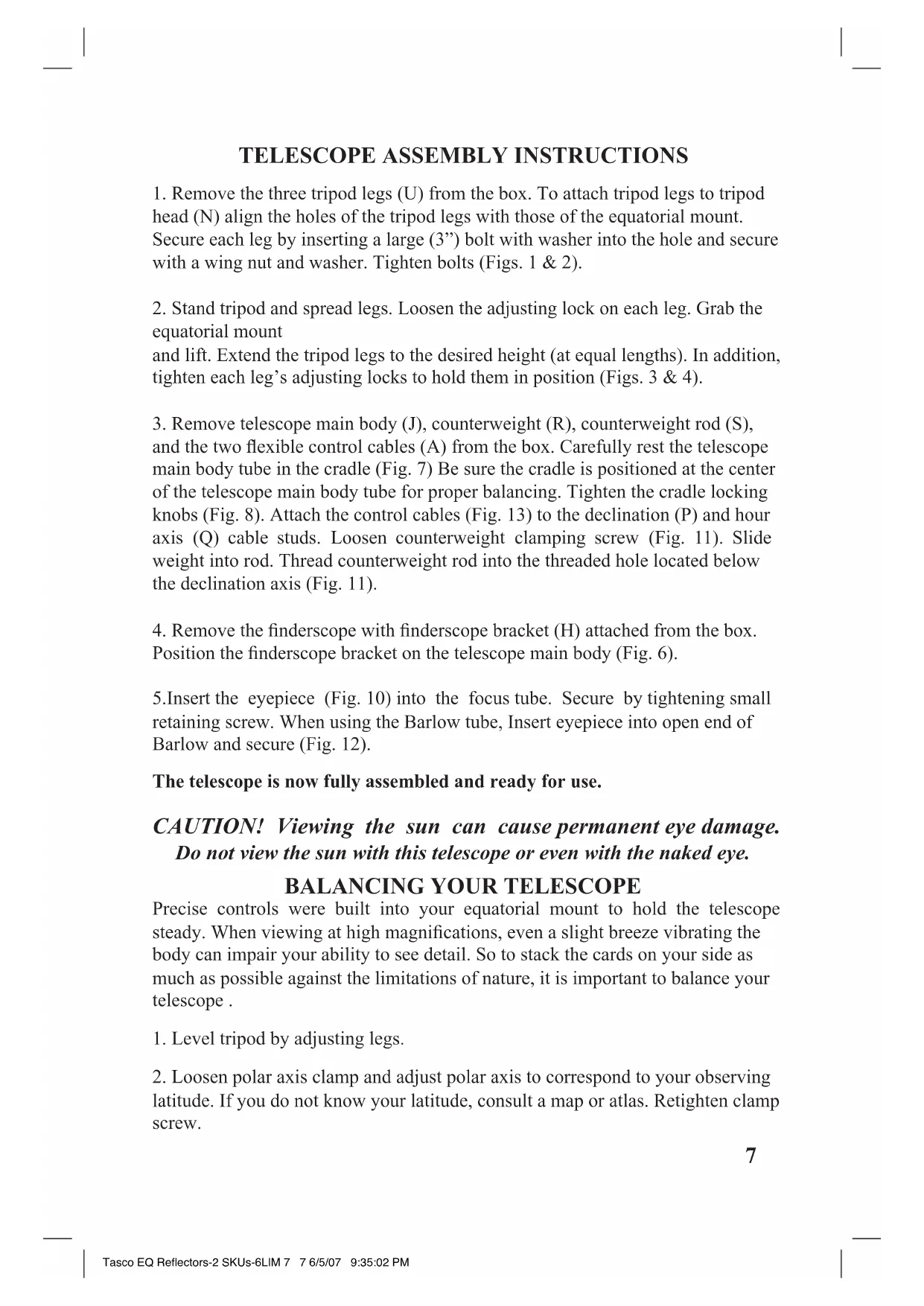

TELESCOPE ASSEMBLY INSTRUCTIONS

1. Remove the three tripod legs (U) from the box. To attach tripod legs to tripod head (N) align the holes of the tripod legs with those of the equatorial mount. Secure each leg by inserting a large (3^ ) bolt with washer into the hole and secure with a wing nut and washer. Tighten bolts (Figs. 1 & 2).

2. Stand tripod and spread legs. Loosen the adjusting lock on each leg. Grab the equatorial mount and lift. Extend the tripod legs to the desired height (at equal lengths). In addition, tighten each leg's adjusting locks to hold them in position (Figs. 3 & 4).

3. Remove telescope main body (J), counterweight (R), counterweight rod (S), and the two flexible control cables (A) from the box. Carefully rest the telescope main body tube in the cradle (Fig. 7) Be sure the cradle is positioned at the center of the telescope main body tube for proper balancing. Tighten the cradle locking knobs (Fig. 8). Attach the control cables (Fig. 13) to the declination (P) and hour axis (Q) cable studs. Loosen counterweight clamping screw (Fig. 11). Slide weight into rod. Thread counterweight rod into the threaded hole located below the declination axis (Fig. 11).

4. Remove the finderscope with finderscope bracket (H) attached from the box. Position the finderscope bracket on the telescope main body (Fig. 6).

5.Insert the eyepiece (Fig. 10) into the focus tube. Secure by tightening small retaining screw. When using the Barlow tube, Insert eyepiece into open end of Barlow and secure (Fig. 12).

The telescope is now fully assembled and ready for use.

CAUTION! Viewing the sun can cause permanent eye damage. Do not view the sun with this telescope or even with the naked eye.

BALANCING YOUR TELESCOPE

Precise controls were built into your equatorial mount to hold the telescope steady. When viewing at high magnifications, even a slight breeze vibrating the body can impair your ability to see detail. So to stack the cards on your side as much as possible against the limitations of nature, it is important to balance your telescope.

1. Level tripod by adjusting legs.
2. Loosen polar axis clamp and adjust polar axis to correspond to your observing latitude. If you do not know your latitude, consult a map or atlas. Retighten clamp screw.

BALANCING YOUR TELESCOPE

1. Loosen declination clamp screw and rotate telescope about the declination axis so that "90°" on the declination scale is aligned with the fixed pointer. Retighten clamp screw.
2. Loosen hour axis clamp, rotate scope until the counter weight rod is in a horizontal position. Do not tighten clamp screws.
3. If telescope is balanced, it will remain in place.
4. If telescope is out of balance, loosen counter weight thumb screw and slide weight along rod until telescope remains in place. Tighten weight and hour axis screws.

TO USE THE STARPOINTER

1. The StarPointer is the quickest and easiest way to point your telescope exactly at a desired object in the sky. It's like having a laser pointer that you can shine directly into the night sky. The star pointer is a zero magnification pointing tool that uses a coated glass window to superimpose the image of a small red dot into the night sky. Like all finderscopes, the StarPointer must be properly aligned with the main telescope before it can be used.
2. To turn on the StarPointer, rotate the variable brightness control clockwise until you hear a "click." To increase the brightness level of the red dot, continue rotating the control knob about 180^ until it stops.
3. Locate a bright star or planet and center it in a low power eyepiece in the main telescope. If the StarPointer is perfectly aligned, you will see the red LED dot overlap the alignment star. If the StarPointer is not aligned, take notice of where the red dot is relative to the bright star.

Without moving the main telescope, turn the StarPointer's azimuth and altitude alignment controls until the red dot is directly over the alignment star.

If the LED dot is brighter than the alignment star, it may make it difficult to see the star. Turn the variable brightness control counterclockwise, until the red dot is the same brightness as the alignment star. This will make it easier to get an accurate alignment. The StarPointer is now ready to be used. Remember to always turn the power off after you have found an object. This will extend the life of both the battery and the LED.

FINDING OBJECTS

1. Look through the StarPointer finderscope and pan the telescope until the object appears in the field of view. Once it's in the field, tighten the altitude and azimuth locks.
2. To center the object with the red dot in the StarPointer, use the fine adjustment ring on the altitude slow motion rod assembly.

FOCUSing

1. Once you have found an object in the telescope, turn the focus knob until the image is sharp.
2. To focus on an object that is nearer than your current target, turn the focus knob toward the eyepiece (i.e., so that the focus tube moves away from the front of the telescope). For more distant objects, turn the focus knob in the opposite direction.
3. To achieve a truly sharp focus, never look through glass windows or across objects that produce heat waves, such as asphalt parking lots.

MAGNIFICATION

The magnification (or power) of a telescope varies depending upon the focal length of the eyepiece being used and the focal length of the telescope.

To calculate magnification, use the following formula, in which FL = focal length:

Magnification = FL (telescope) in mm

FL (cyc piece) in mm

SOLAR OBSERVATION

CAUTION! Viewing the sun can cause permanent eye damage. Do not view the sun with this product or even with the naked eye. Never leave a telescope unattended during the daytime; a child could look at the sun with it and suffer permanent damage to vision.

THE MOON FILTER

A moon filter has been included with your telescope for removing glare and increasing contrast when viewing the moon. To attach it to the telescope eyepiece, screw the filter onto the threaded end of the eyepiece.

CAUTION! The moon filter should only be used to view the moon. It is not intended for viewing the sun. Viewing the sun through this telescope (with or without the filter), or even with the naked eye, can cause permanent eye damage.

EYE LENS CHART & THEORETICAL POWER LIMITS

Eyepiece / Model # 4911	900 Reflector	49076700 Reflector
H25mm Eye Lens Power	36x 28x
H10mm Eye Lens Power	90x 70x
SR4 Eye Lens Power 225x	175x

NOTE: Magnification is calculated magnification. Low power is recommended for most viewing conditions.

TECHNICAL SPECIFICATIONS

Spec / Model # 49114900	Reflector	49076700 Reflector
Mirror Diameter 114mm (4.5") 76mm (3.0")
Focal Length 900mm 800mm	mm
Eyepiece-Low Power H25	mm H25mm
Eyepiece-Medium Power H10mm H10mm	mm
Eyepiece-High Power SR4	mm SR4mm
Barlow Inc. Yes, 3x Yes, 3x	x
Maximum Magnification 6	75x 525x
Accessories Finderscope,	Moon Filter, Moon Map	Finderscope, Moon Filter, Moon Map

NOTES

WARRANTY/REPAIR INFORMATION

Telescope IIFeTIMe LIMITEWARRANTY

Your Tasco telescope is warranted to be free of defects in materials and workmanship for the lifetime of the original owner. The Lifetime Limited Warranty is an expression of our confidence in the materials and mechanical workmanship of our products and is your assurance of a lifetime of dependable service.

If your telescope contains electrical components, these components are warranted to be free of defects in materials and workmanship for two years after the date of purchase.

In the event of a defect under this warranty, we will, at our option, repair or replace the product, provided that you return the product postage prepaid. This warranty does not cover damages caused by misuse, improper handling, installation, or maintenance provided by someone other than a Tasco Authorized Service Department.

Any return made under this warranty must be accompanied by the items listed below:

1) A check/money order in the amount of $15.00 to cover the cost of postage and handling

2)Name and address for product return

3)An explanation of the defect

4) Proof of Date Purchased

5)Product should be well packed in a sturdy outside shipping carton, to prevent damage

in transit, with return postage prepaid to the address listed below:

IN U.S.A. Send To: IN CANADA Send To:

Bushnell Outdoor Products Bushnell Outdoor Products

Attn.: Repairs Attn.: Repairs

8500 Marshall Drive 25A East Pearce Street, Unit 1

Lenexa, Kansas 66214 Richmond Hill, Ontario L4B 2M9

For products purchased outside the United States or Canada please contact your local dealer for applicable warranty information. In Europe you may also contact Tasco at: BUSHNELL Outdoor Products GmbH

European Service Centre

MORSESTRASSE 4

D-50769 KOLN

GERMANY

Tel: [phone]

Fax: [phone]

This warranty gives you specific legal rights.

You may have other rights which vary from country to country.

©2007 B.O.P
