USER MANUAL 45722 PARKSIDE

Line drawing of a cleaning brush with a handle and base (no text or symbols)

DE AT

KEHRMASCHINE 45722

Operating Instructions ...... 6

FR BE

BALAYEUSE 45722

Simple line drawing of a mechanical component with an arrow indicating motion (no text or symbols)

1x

Illustration of four different types of screws (no text or symbols)

Simple line drawing of a person pushing a cart (no text or symbols)

Illustration of a person pushing a manual lawn mower on a paved surface (no text or symbols)

Simple diagram showing a device emitting a wall-mounted device (no text or symbols)

Diagram of a cleaning brush with a moving blade and brush head, showing no text or symbols

Diagram showing a car handle with a magnified inset of the screw and a person pushing a cart (no text or symbols)

Diagram showing a manual lawn mower with a magnified view of the tool and a person walking nearby.

Illustration of a person pushing a lawn mower on a slope (no text or symbols)

Illustration of a glass cup pouring liquid into a container with a lid, placed on a tiled floor (no text or symbols)

Technical line drawing of two different mechanical device components (no text or symbols)

Inhalt

97953 Königheim (Germany)

www.cleanerworld-gmbh.de

■ SERVICE TELEFON: [phone]

(14 ct. pro angefangene Minute)

Am Schützenbaum 19, 97953 Königheim (Germany)

Telefon: [phone] Fax: [phone]

Garantie

Description of the Appliance 6

Safety instructions 6

Assembly 7

Operation 7

Maintenance and care 7

Technical specifications 7

Service 7

Warranty 8

General information

Dear Customer,

Please read and comply with these original instructions prior

to the initial operation of your appliance and store them for later use or subsequent owners.

Proper use

This sweeper has been designed to sweep dirt and debris from outdoor surfaces.

Environmental protection

The packaging material can be recycled. Please do not place the packaging into the ordinary refuse for disposal, but arrange for the proper recycling.

Description of the Appliance

When unpacking the product, make sure that no accessories are missing and that none of the package contents has been damaged. If you detect any transport damage please contact your SERVICE PARTNER.

→ Illustrations on Page 2

1 Side brushes

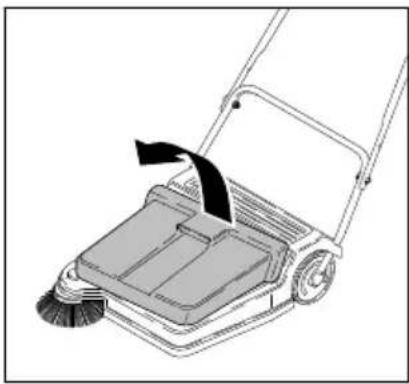

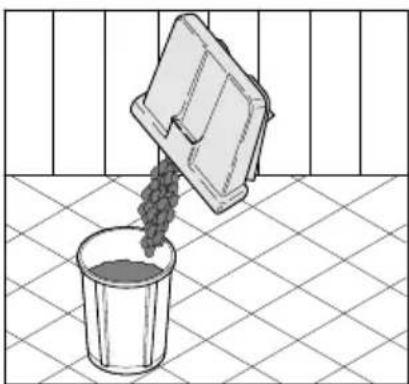

2 Waste container
3 Push handle
4 Roller brush
5 Wheels

Safety instructions

This device is not intended for use by persons (including children) with reduced physical, sensory or mental abilities or lacking experience and/or knowledge, unless they are supervised by a person responsible for their safety or are instructed by these persons on the use of the device. Children should be supervised, to ensure that they do not play with the device.
■ The machine with working equipment must be checked to ensure that it is in proper working order and is operating safely prior to use. Otherwise, the appliance must not be used.
■ The operator must use the appliance properly. He must consider the local conditions and must pay attention to third parties, in particular children, when working with the appliance.
■ The appliance is not suitable for sweeping off hazardous substances.
■ The appliance is not suitable for sweeping off liquids.
■ Please do not sweep away any burning substances such as cigarettes, match sticks or similar objects.
■ Please wear safety gloves while removing glass, metal or other materials from the waste container.
■ Never vacuum up explosive liquids, combustible gases or undiluted acids and solvents. This includes petrol, paint thinner or heating oil which can generate explosive fumes or mixtures upon contact with the suction air. Acetone, undiluted acids and solvents must also be avoided as they can harm the materials on the machine.

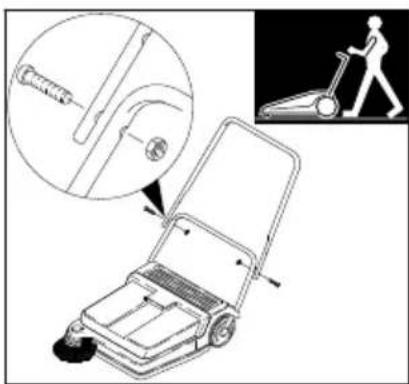

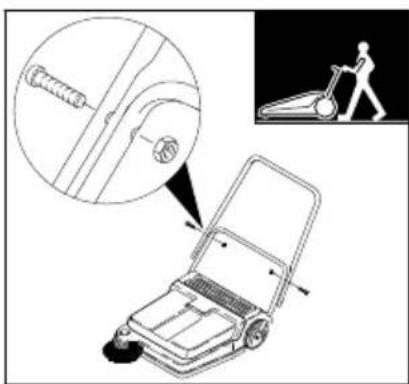

Assembly

See page 2.

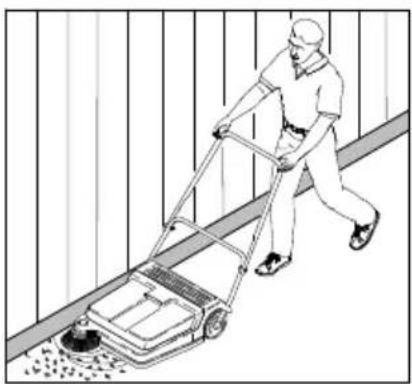

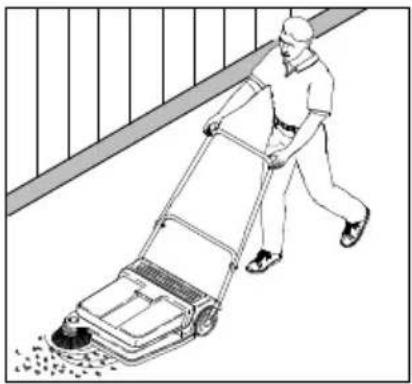

Operation

See page 2.

⚠ Warning

Risk of being squeezed or hurt at the belts, side-brushes, containers, pushing handle.

Maintenance and care

Checking roller brush

→ Wrapped up leaves, grass and small branches are best loosened using a knife or scissors and then removed.

Cleaning the device

→ Wipe the appliance using a damp cloth. Do not use any aggressive agents, such as cleaning powder.

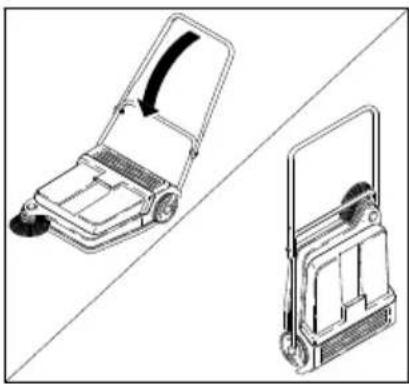

Storing the appliance

See page 2.

Maintenance

The appliance is maintenance-free.

Disposal information

Do not use worn out appliance; first put it out of use; then arrange for its proper disposal as scrap.

Old appliances contain valuable materials that can be recycled. Please

arrange for the proper recycling of old appliances. Please dispose your old appliances using appropriate collection systems.

Technical specifications

Working width with side-brush 500 mm

Volume of waste container 11,5 l

Weight 7,8 kg

Width 600 mm

Length 650 mm

Height 870 mm

Subject to technical modifications!

Service

■ UK helpline: 0844 8710705
■ IE helpline: 01-4097777

[e-mail]

Warranty

The warranty period is 3 years and begins on the date of purchase. In order to file a warranty claim, you must present the sales receipt as well as complete a warranty card. Therefore, make sure you keep the sales receipt and the warranty card in safe place!

The manufacturer warrants the rectification of defects that can be traced back to flaws in material or workmanship. The manufacturer will choose to repair, replace or refund the money for the product. The warranty does not cover damages caused by an accident, an unexpected incident (e.g. lightning, water, fire, etc.), improper use, or

transport, disobeying the safety and maintenance instructions or other improper processing or modifications. The warranty period can only be extended if this is intended by a legal standard. In countries, where a (mandatory) warranty and/or a spare parts storage or replacement warranty is demanded by law, the minimum legal requirements apply.

After the warranty period has elapsed, you may still send the defective device to the service address to be repaired. Repairs made after the warranty period has elapsed, are subject to repair costs.

Warranty card

Company and seller's headquarters: LIDL

Service address:

see page 7 of Operating Instructions

Phone hotline:

see page 7 of Operating Instructions

Email

see page 7 of Operating Instructions

Name of manufacturer/importer:

Cleanerworld GmbH

Am Schützenbaum 19

97953 Königheim (Germany)

Fon: [phone]

Fax: [phone]

Product name:

Sweeper

Product/manufacturer ID no.:

1.766-155.0 1.766-156.0 1.766-157.0

1.766-158.0 1.766-159.0

Buyer's name:

Postal Code/City:

Street:

Phone/E-mail:

Signature:

Fault description:
