PKM 1500 A1 - Sweeper PARKSIDE - Free user manual and instructions

Product Type	Manual Sweeper
Brand	Parkside
Model	PKM 1500 A1
Working width (with side brushes)	500 mm
Dust bin capacity	11.5 L
Weight	7.8 kg
Dimensions (L x W x H)	650 x 600 x 870 mm
Rotating brush	Yes
Side brush	Yes
Push handle	Yes
Power supply	None (manual)
Intended use	Sweeping dirty outdoor surfaces
Prohibited substances	Liquids, burning or hot objects, hazardous substances (acids, solvents, etc.)
Bin material	Not specified (estimated: plastic)
Maintenance	Clean the exterior with a damp cloth; do not use harsh chemicals
Storage	See user manual (fold handle?)
Warranty	3 years (subject to proof of purchase and completed warranty card)
Manufacturer / Importer	Cleanerworld GmbH (Germany)
After-sales service	Cleanerworld GmbH, Am Schuetzenbaum 19, 97953 Koenigheim, Germany
Product code	1.766-160.0 / 1.766-161.0 / 1.766-162.0 / 1.766-163.0 / 1.766-164.0

Frequently Asked Questions - PKM 1500 A1 PARKSIDE

How to assemble the PKM 1500 A1 sweeper?

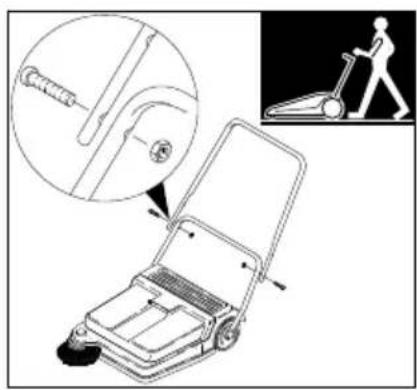

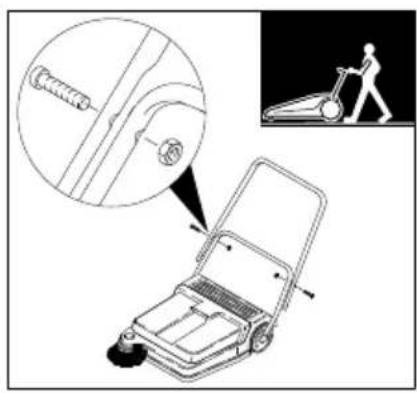

Assembly is shown on page 2 of the manual. Attach the push handle to the appliance body using the screws provided. Make sure the rotating brush and side brush are correctly installed before use.

How to empty the dust bin?

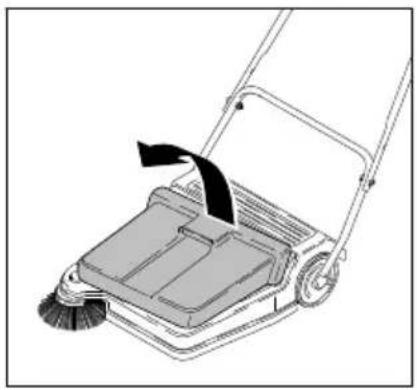

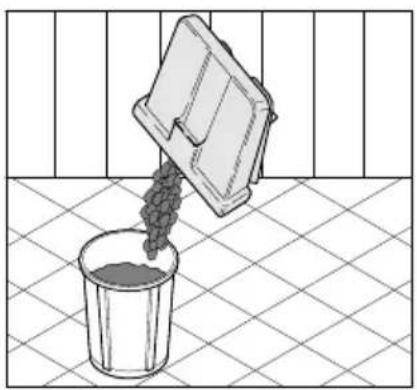

Lift the dust bin (2) to remove it. Empty its contents into a trash can. Put it back in place until it clicks. If removing glass or metal, wear sturdy gloves to avoid cuts.

Can you sweep wet leaves with this sweeper?

Yes, it is suitable for sweeping wet leaves. However, avoid sweeping liquids or overly wet substances as the appliance is not designed for liquids. Sticky leaves may clog the brush; clean it after use.

How to clean the rotating brush?

Use a knife or scissors to cut leaves, grass, or branches wrapped around the rotating brush, then remove them. Do not use sharp objects that could damage the brush. Regular cleaning maintains efficiency.

What types of waste should not be swept?

Never sweep liquids, burning or hot objects (cigarettes, matches), hazardous substances (acids, solvents, gasoline), or flammable gases. These items can damage the appliance or pose a fire risk.

Is the sweeper suitable for gravel paths?

Yes, it can be used on gravel, but be careful not to lift gravel with the brush. The dust bin can collect small gravel, but excessive use on gravel may wear the brush prematurely.

What is the lifespan of the brushes?

The lifespan depends on frequency of use and surfaces swept. Under normal use on smooth surfaces, the brushes can last several years. Regularly check the condition of the rotating brush and side brush, and replace them if necessary (parts not included).

How to maintain the sweeper after use?

Empty the dust bin, clean the rotating brush as described above, and wipe the exterior of the appliance with a damp cloth. Do not use harsh chemicals (scouring powders). Store the appliance in a dry place.

Does the warranty cover the brushes?

The 3-year warranty covers material or manufacturing defects. Brushes are wear parts and are generally not covered by the standard warranty. Check the warranty conditions on the purchase receipt or with after-sales service.

Can I use the sweeper on grass?

Yes, it can be used for sweeping grassy surfaces, such as garden paths. However, tall and wet grass can wrap around the brush. It is recommended to mow first or use the sweeper on short grass.

USER MANUAL PKM 1500 A1 PARKSIDE

Line drawing of a cleaning brush with a handle and base (no text or symbols)

DE CH

KEHRMASCHINE PKM 1500 A1

Operating Instructions ...... 6

BE CH

BALAYEUSE PKM 1500 A1

Mode d'emploi....9

IT CH

SPAZZATRICE PKM 1500 A1

VEEGMACHINE PKM 1500 A1

Simple line drawing of a mechanical component with an arrow indicating motion (no text or symbols)

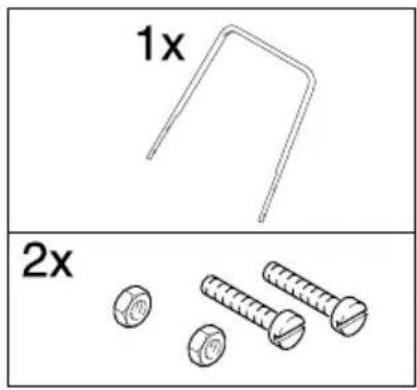

1x 2x

Diagram showing a mechanical device with a magnified inset of a screw and a person pushing a lawn tool, alongside a silhouette sketch.

Diagram showing a manual lawn mower with a close-up inset of the screw and a person walking on a plow, alongside a schematic sketch.

Silhouette of a person pushing a large object on a pole against a black background (no text or symbols)

Line drawing of a person pushing a manual lawn mower on a paved surface (no text or symbols)

Illustration of a person pushing a lawn mower on a slope (no text or symbols)

Diagram of a manual lawn mower with a brush and blade, showing blade positioning and rotation direction (no text or symbols)

Illustration of a glass cup pouring liquid into a container with a lid, placed on a grid-patterned surface (no text or symbols)

Technical line drawing of a mechanical device with two views (top and side), no text or symbols present.

Inhalt

97953 Königheim (Germany)

www.cleanerworld-gmbh.de

■ SERVICE TELEFON: [phone]

Am Schützenbaum 19, 97953 Königheim (Germany)

Telefon: [phone] Fax: [phone]

Garantie

Description of the Appliance 6

Safety instructions 6

Assembly 7

Operation 7

Maintenance and care 7

Technical specifications 7

Service 7

Warranty 8

General information

Dear Customer,

Please read and comply with these original instructions prior

to the initial operation of your appliance and store them for later use or subsequent owners.

Proper use

This sweeper has been designed to sweep dirt and debris from outdoor surfaces.

Environmental protection

The packaging material can be recycled. Please do not place the packag-

ing into the ordinary refuse for disposal, but arrange for the proper recycling.

Description of the Appliance

When unpacking the product, make sure that no accessories are missing and that none of the package contents has been damaged. If you detect any transport damage please contact your SERVICE PARTNER.

→ Illustrations on Page 2

1 Side brushes
2 Waste container
3 Push handle
4 Roller brush
5 Wheels

Safety instructions

This device is not intended for use by persons (including children) with reduced physical, sensory or mental abilities or lacking experience and/or knowledge, unless they are supervised by a person responsible for their safety or are instructed by these persons on the use of the device. Children should be supervised, to ensure that they do not play with the device.
■ The machine with working equipment must be checked to ensure that it is in proper working order and is operating safely prior to use. Otherwise, the appliance must not be used.
■ The operator must use the appliance properly. He must consider the local conditions and must pay attention to third parties, in particular children, when working with the appliance.
■ The appliance is not suitable for sweeping off hazardous substances.
■ The appliance is not suitable for sweeping off liquids.
■ Please do not sweep away any burning substances such as cigarettes, match sticks or similar objects.
■ Please wear safety gloves while removing glass, metal or other materials from the waste container.
■ Never vacuum up explosive liquids, combustible gases or undiluted acids and solvents. This includes petrol, paint thinner or heating oil which can generate explosive fumes or mixtures upon contact with the suction air. Acetone, undiluted acids and solvents must also be avoided as they can harm the materials on the machine.

Assembly

See page 2.

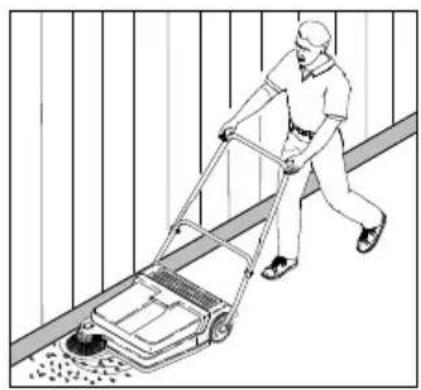

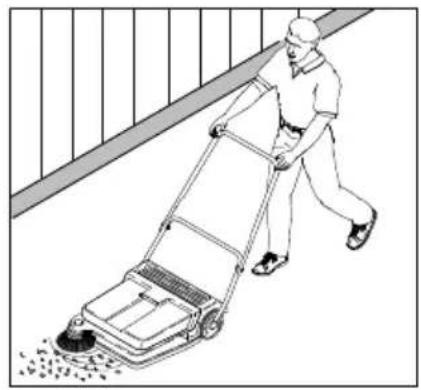

Operation

See page 2.

⚠ Warning

Risk of being squeezed or hurt at the belts, side-brushes, containers, pushing handle.

Maintenance and care

Checking roller brush

→ Wrapped up leaves, grass and small branches are best loosened using a knife or scissors and then removed.

Cleaning the device

→ Wipe the appliance using a damp cloth. Do not use any aggressive agents, such as cleaning powder.

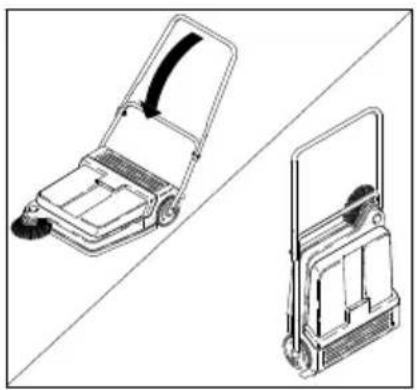

Storing the appliance

See page 2.

Maintenance

The appliance is maintenance-free.

Disposal information

Do not use worn out appliance; first put it out of use; then arrange for its proper disposal as scrap.

Old appliances contain valuable materials that can be recycled. Please

arrange for the proper recycling of old appliances. Please dispose your old appliances using appropriate collection systems.

Technical specifications

Working width with side-brush 500 mm

Volume of waste container 11,5 l

Weight 7,8 kg

Width 600 mm

Length 650 mm

Height 870 mm

Subject to technical modifications!

Service

■ UK helpline: 0844 8710705
■ IE helpline: 01-4097777

[e-mail]

Warranty

The warranty period is 3 years and begins on the date of purchase. In order to file a warranty claim, you must present the sales receipt as well as complete a warranty card. Therefore, make sure you keep the sales receipt and the warranty card in safe place!

The manufacturer warrants the rectification of defects that can be traced back to flaws in material or workmanship. The manufacturer will choose to repair, replace or refund the money for the product. The warranty does not cover damages caused by an accident, an unexpected incident (e.g. lightning, water, fire, etc.), improper use, or

transport, disobeying the safety and maintenance instructions or other improper processing or modifications. The warranty period can only be extended if this is intended by a legal standard. In countries, where a (mandatory) warranty and/or a spare parts storage or replacement warranty is demanded by law, the minimum legal requirements apply.

After the warranty period has elapsed, you may still send the defective device to the service address to be repaired. Repairs made after the warranty period has elapsed, are subject to repair costs.

Warranty card

Company and seller's headquarters: LIDL

Service address:

see page 7 of Operating Instructions

Phone hotline:

see page 7 of Operating Instructions

Email

see page 7 of Operating Instructions

Name of manufacturer/importer:

Cleanerworld GmbH

Am Schuetzenbaum 19

97953 Koenigheim (Germany)

Tel: [phone]

Fax: [phone]

Product name:

Sweeper

Product/manufacturer ID no.:

1.766-160.0 1.766-161.0 1.766-162.0

1.766-163.0 1.766-164.0

Buyer's name:

Postal Code/City:

Street:

Phone/E-mail:

Signature:

Fault description:
