Masterpiece Retrograde Moon MP7078 - Watch Maurice Lacroix - Free user manual and instructions

Brand	Maurice Lacroix
Model	Masterpiece Retrograde Moon MP7078
Product type	Manual winding mechanical watch
Movement calibre	ML104
Power reserve	48 hours
Frequency	18,000 vibrations per hour (2.5 Hz)
Functions	Hours, minutes, retrograde date, moon phases, day of week, power reserve
Regulation	Adjusted in 5 positions after full winding and after 24 hours
Movement decoration	Hand-decorated and customized according to the collection design
Case material	Stainless steel (estimate)
Case diameter	43 mm (estimate)
Case thickness	12 mm (estimate)
Weight	Approximately 100 g (estimate)
Crystal	Sapphire
Water resistance	Not specified in the manual, but typically 30m (estimate)
Crown	Position 1: winding; Position 2: time setting
Pushers	3 pushers: moon phase (H), days (I), date (J)
Maintenance	Clean with a soft, dry cloth. Avoid shocks and magnetic fields.
Serviceability	Entrust to a qualified watchmaker for any servicing

Frequently Asked Questions - Masterpiece Retrograde Moon MP7078 Maurice Lacroix

How to wind the watch?

Turn the crown in position 1 clockwise until you feel resistance. Do not force. The power reserve is 48 hours.

How to set the time?

Pull the crown to position 2, turn clockwise to advance the time. Push the crown back after setting.

How to set the retrograde date?

Use the pusher at 8 o'clock (J). Press until the desired date. Do not perform between 9 PM and 1 AM.

How to set the day of the week?

Use the pusher at 4 o'clock (I). Press until the desired day. Avoid between 9 PM and 1 AM.

How to set the moon phases?

Use the pusher at 3:30 (H). Press until the full moon appears, then press as many times as the number of days since the last full moon.

What is the power reserve?

The power reserve is 48 hours. The power reserve hand at 2 o'clock indicates the winding level.

How to read the power reserve?

The hand at 2 o'clock moves from bottom to top. The number indicates the remaining hours.

Is the watch water-resistant?

The manual does not specify water resistance. It is recommended to avoid any contact with water.

What to do if the watch stops?

Wind the watch manually. If the problem persists, consult a qualified watchmaker.

How to maintain the watch?

Clean with a soft cloth. Avoid shocks and magnetic fields. Have it serviced every 3 to 5 years.

USER MANUAL Masterpiece Retrograde Moon MP7078 Maurice Lacroix

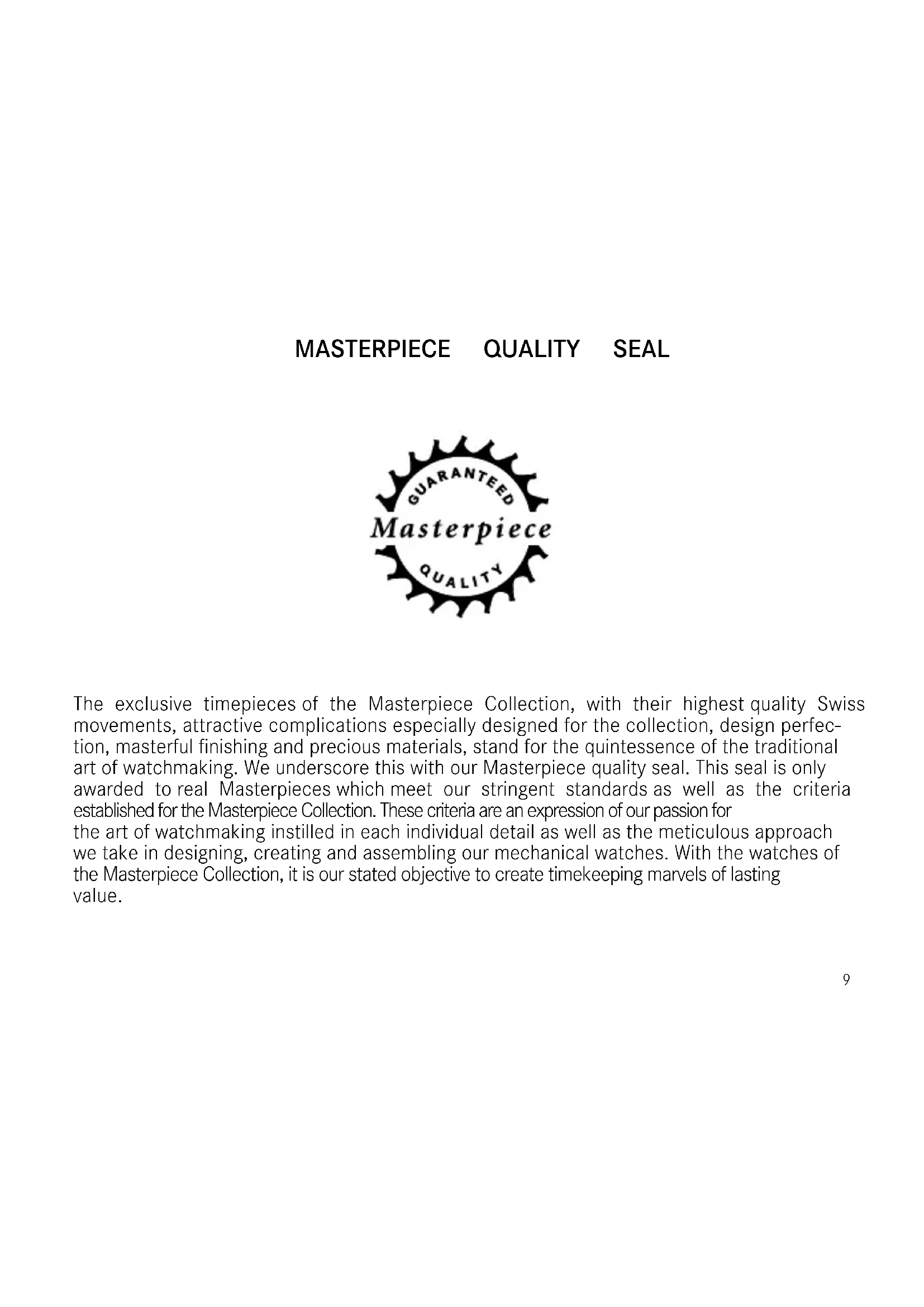

Masterpiece Quality Seal 9

Criteria for a Masterpiece watch.... 10

Technical specifications 11

Instructions 12

The exclusive timepieces of the Masterpiece Collection, with their highest quality Swiss movements, attractive complications especially designed for the collection, design perfection, masterful finishing and precious materials, stand for the quintessence of the traditional art of watchmaking. We underscore this with our Masterpiece quality seal. This seal is only awarded to real Masterpieces which meet our stringent standards as well as the criteria established for the Masterpiece Collection. These criteria are an expression of our passion for the art of watchmaking instilled in each individual detail as well as the meticulous approach we take in designing, creating and assembling our mechanical watches. With the watches of the Masterpiece Collection, it is our stated objective to create timekeeping marvels of lasting value.

CRITERIA FOR A MASTERPIECE WATCH

1. Exclusive manufacture-made movements or complications designed for the Masterpiece Collection.
2. Modified and hand-decorated movements with components of the highest quality.
3. Precision tested in 5 positions (fully wound and after 24 hours' operation).
4. Skeleton rotors on automatic movements.
5. Precious solid silver dials.
6. High-quality folding clasps on straps and bracelets.
7. Screwed caseback with sapphire crystal.

TECHNICAL SPECIFICATIONS

MOVEMENT : ML104 caliber, hand-wound mechanical movement.

FUNCTIONS: Hours and minutes displays as well as retrograde date, lunar phase, days of the weei and power reserve indicators.

VIBRATIONS : 18,000 vph, 2.5 Hz.

POWER RESERVE: 48 hours.

NUMBER OF JEWELS: 35.

ADJUSTMENT : In 5 positions, fully wound after 24 hours' operation.

COMPONENTS: All the components are certified by our master watchmakers and have therefore passed all Maurice Lacroix quality tests.

FINISHING : Meticulously hand-decorated and modified according to the collection design.

INSTRUCTIONS

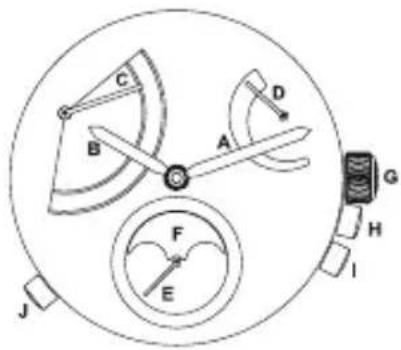

Diagram of a mechanical device with labeled components including gears, blades, and a sensor or meter.

LEGEND

A Minutes hand
B Hours hand
C Date hand
D Power reserve display hand
E Days of the week hand
F Lunar phase indicator
G Crown
H Lunar phase display button
I Days of the week display button
J Date display button

Crown G

Position 1 : Normal position, movement winding.

Position 2 : Precise time setting.

Time-setting mode

- Wind the watch manually using the crown (G).

During this operation, you will notice that the power-reserve hand (D), located at 2 o'clock, will move upward. The figure indicated by the hand represents the number of hours for which the watch will function before needing to be rewound. It is preferable to wind your watch in the morning before wea-ring it. Wearing the watch with a fully-loaded spring improves the precision of the timepiece.

- Pull the crown into position 2 and rotate hands (A) + (B) clockwise: when the hour hand passes 24:00 hours, the date and day of the week will jump. Continue rotating the hand until the desired TIME is shown.

- Push the crown back into position 1

- Using the button (J) located at 8 o'clock, rotate the retrograde date hand (C) until the desired DATE is shown.

Do not use this function between 9.00 p.m. and 1.00 a.m. in order to avoid poor positioning of the hand due to the triggering of the driving finger device.

- Using the button (I), located at 4 o'clock, rotate the days-of-the-week hand (E) until the desired DAY OF THE WEEK is shown.

Do not use this function between 9.00 p.m. and 1.00 a.m. in order to avoid poor positioning of the hand due to the triggering of the driving finger device.

- Using the button (H), located at half past 3 (thus between crown G and button I), rotate the LUNAR PHASE display (F) until the desired phase is shown.

Do not use this function between 11.00 p.m. and 4.00 a.m. in order to avoid poor positioning of the hand due to the triggering of the driving finger device.

You can find lunar phases in a calendar: look for the date on which the last full moon occurred. Press the button (H) until the full moon is displayed in the centre of the dial window. Then, continue to push the button (H) yet another time for day passed since the last full moon.

A moon-phase calendar is available on our website at www.mauricelacroix.com.

Special features of the movement

• The « power reserve » system is equipped with a differential that ensures optimum movement and remarkable precision.
• The « Retrograde date » complication has a few innovative elements: first of all, a cam with 31 small flats which position an arm that operates a spindle with a segmented edge.
• The jumps of the retrograde date and day of the week take place within a 45 minute bracket.
• The Lunar Phase display jumps at around 3.00 a.m.
