A002028 - Bottle warmer BABYMOOV - Free user manual and instructions

Frequently Asked Questions - A002028 BABYMOOV

USER MANUAL A002028 BABYMOOV

GARANTIE À VIE® LIFETIME WARRANTY® babymoov

Chauffe-biberon Tulipe maison/voiture

Réfs.: A002028 - A002030

Notice d'utilisation • Instructions for use • Gebrauchsanleitung • Gebruiksaanwijzing

babymoov b f g e h a d c

Hand holding a transparent cylindrical object, no visible text or symbols

Close-up of a hand pouring liquid from a small container labeled 'babymbox' (no other text or symbols visible)

White baby bottle with a cap and label 'babyfly' (no additional text or symbols visible)

Close-up of a hand holding a ring-shaped object, labeled 'babymicov' on a white cloth (no other text or symbols visible)

Close-up of a babymbox jar being held by a hand, with the label 'babymbox' visible on the base (no other text or symbols)

Close-up of a baby bottle with a hand holding the product (no visible text or symbols)

White babymoor device with a black handle and label '7' (no additional text or symbols visible)

Close-up of a white medical or dental connector with a pointed tip and threaded end, labeled with number 8 (no text or symbols on the object itself)

Interior view of a car infotainment system showing a bottle connected to a plug, with no visible text or symbols.

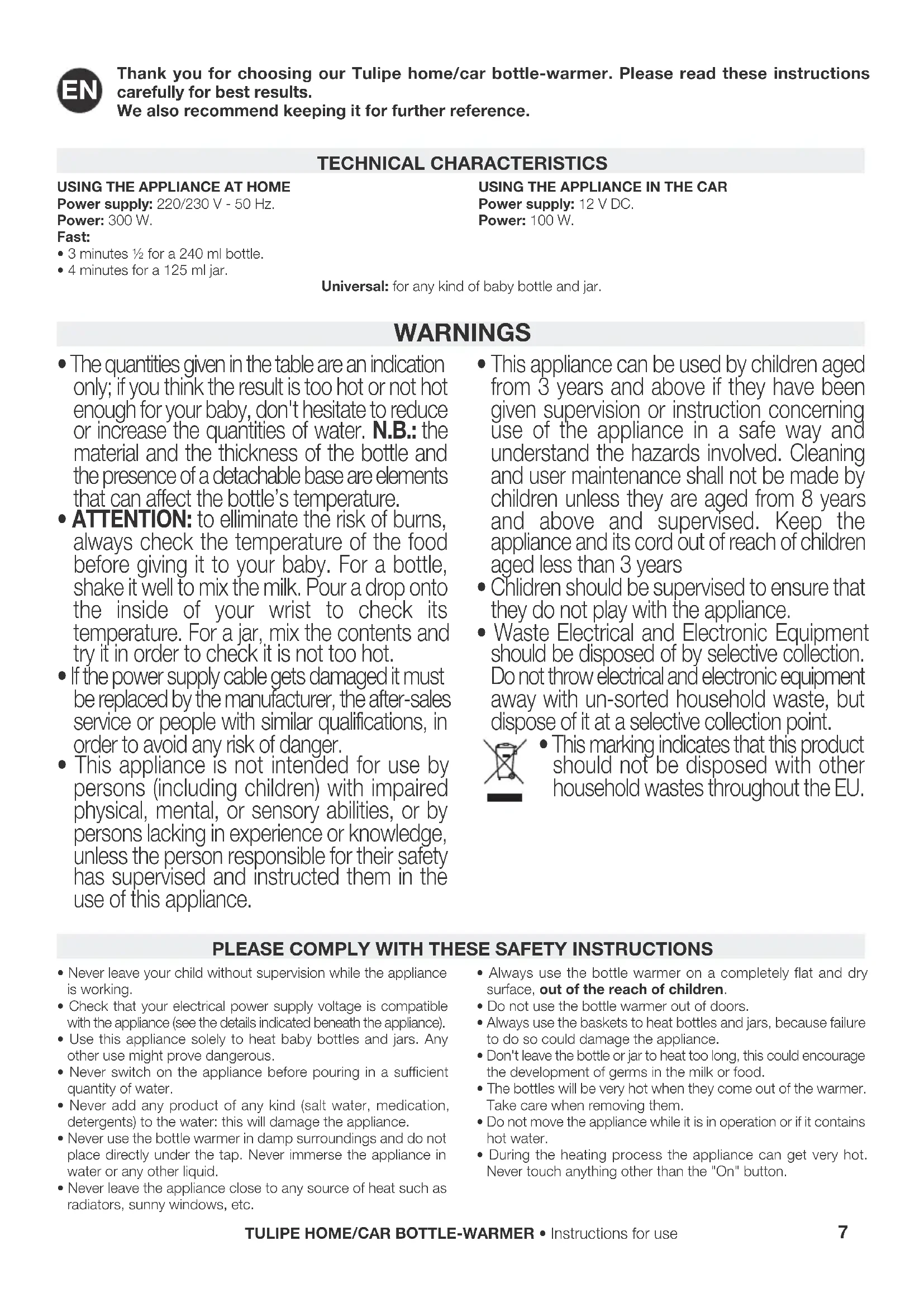

CARACTÉRISTIQUES TECHNIQUES

UTILISATION À LA MAISON

USING THE APPLIANCE AT HOME

Power supply: 220/230 V - 50 Hz.

Power: 300 W.

Fast:

• 3 minutes 12 for a 240 ml bottle.
  • 4 minutes for a 125 ml jar.

USING THE APPLIANCE IN THE CAR

Power supply: 12 V DC.

Power: 100 W.

Universal: for any kind of baby bottle and jar.

WARNINGS

• The quantities given in the table are an indication only; if you think the result is too hot or not hot enough for your baby, don't hesitate to reduce or increase the quantities of water. N.B.: the material and the thickness of the bottle and the presence of a detachable base are elements that can affect the bottle's temperature.
• ATTENTION: to eliminate the risk of burns, always check the temperature of the food before giving it to your baby. For a bottle, shake it well to mix the milk. Pour a drop onto the inside of your wrist to check its temperature. For a jar, mix the contents and try it in order to check it is not too hot.
• If the power supply cable gets damaged it must be replaced by the manufacturer, the after-sales service or people with similar qualifications, in order to avoid any risk of danger.

• This appliance is not intended for use by persons (including children) with impaired physical, mental, or sensory abilities, or by persons lacking in experience or knowledge, unless the person responsible for their safety has supervised and instructed them in the use of this appliance.

• This appliance can be used by children aged from 3 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. Keep the appliance and its cord out of reach of children aged less than 3 years

• Children should be supervised to ensure that they do not play with the appliance.
• Waste Electrical and Electronic Equipment should be disposed of by selective collection. Do not throw electrical and electronic equipment away with un-sorted household waste, but dispose of it at a selective collection point.

- This marking indicates that this product should not be disposed with other household wastes throughout the EU.

PLEASE COMPLY WITH THESE SAFETY INSTRUCTIONS

• Never leave your child without supervision while the appliance is working.
• Check that your electrical power supply voltage is compatible with the appliance (see the details indicated beneath the appliance).
• Use this appliance solely to heat baby bottles and jars. Any other use might prove dangerous.
• Never switch on the appliance before pouring in a sufficient quantity of water.
• Never add any product of any kind (salt water, medication, detergents) to the water: this will damage the appliance.
• Never use the bottle warmer in damp surroundings and do not place directly under the tap. Never immerse the appliance in water or any other liquid.

• Never leave the appliance close to any source of heat such as radiators, sunny windows, etc.

• Always use the bottle warmer on a completely flat and dry surface, out of the reach of children.

• Do not use the bottle warmer out of doors.
• Always use the baskets to heat bottles and jars, because failure to do so could damage the appliance.
• Don't leave the bottle or jar to heat too long, this could encourage the development of germs in the milk or food.
• The bottles will be very hot when they come out of the warmer. Take care when removing them.
• Do not move the appliance while it is in operation or if it contains hot water.

• During the heating process the appliance can get very hot. Never touch anything other than the "On" button.

• Leave the bottle warmer to cool for about 15 minutes before using it again. Never touch the inside of the tank while the appliance is in use, or immediately after use.

• Always unplug the appliance before cleaning or filling and after each use.
• Do not leave the power cable at the edge of a table or work-surface. Do not place it on a hot surface. Do not leave the power cable dangling where a child could reach it.
• In the interests of safety, only use Babymoov accessories and spare parts and never dismantle the appliance.
• Avoid using your appliance if it is not working properly or if it is damaged. If this happens, contact the Babymoov after-sales service.

Using the appliance in the car:

• Never use the bottle-warmer while the vehicle is in motion. Leave your engine on when using the bottle-warmer to avoid running the battery down.
• The cigarette-lighter adapter is specially designed for this bottle-warmer: do not use it with other appliances.
• Regularly check your vehicle's cigarette lighter.
• Clean it as required.
• If you have just used your car's cigarette lighter, let it cool down for five minutes in the open position before plugging in the bottle-warmer.

HOW TO USE

a. Measuring device

b. Warming tank

c. Jar basket

d. Adapter ring

e. ON button

f. Cigarette-lighter adapter

g. Power cable

h. Backlit ring

Points to respect for trouble-free use:

• Always check that the bottle is slightly open.
• Always remove the lid from the jar.
• Optimum heating will be guaranteed provided operation is not interrupted.
• Use tap water only, with no added product.

PLEASE NOTE: always use the adapter ring and the basket to warm up baby bottles and jars.

By using the amounts of water indicated in the tables below, a baby bottle or jar will be heated to 30 °C / 33 °C .

The quantities given are an indication only; if you think the result is too hot or not hot enough for your baby, don't hesitate to reduce or increase the quantities of water.

Take care: the quantities of water given correspond to a polycarbonate bottle without a removable base.

Using the appliance at home

Put the bottle-warmer on a flat and steady surface. Make sure the bottle-warmer's power cable is out of the reach of children. Plug the power cable into a power outlet.

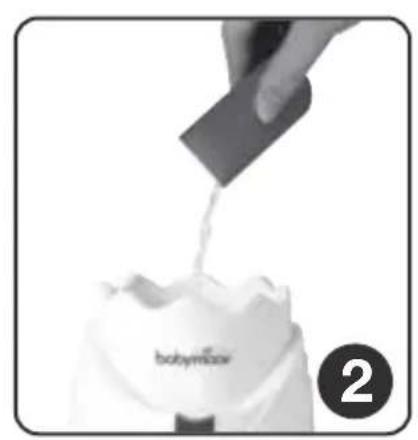

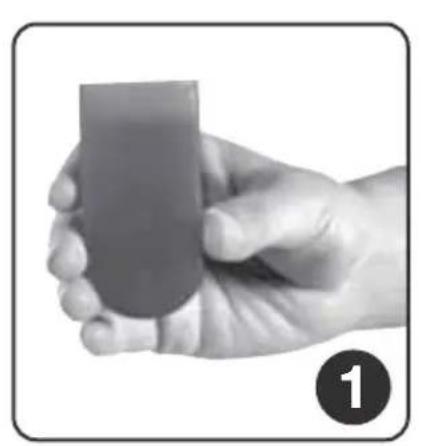

1-2. Fill up the measuring device (a) with water by following the doses reported here to the side and then pour the water into the warming tank (b).
3. Put the baby bottle in the bottle-warmer's warming tank (b).

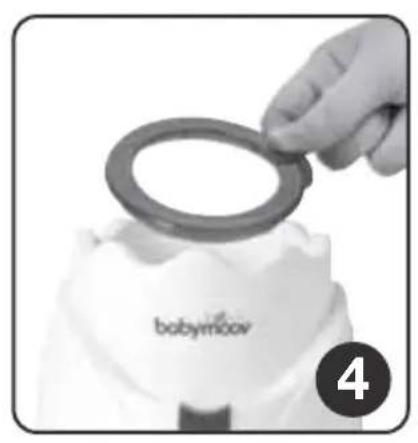

4. If using a standard/small baby bottle, place the adapter ring (d) around the bottle to better warm up the contents.

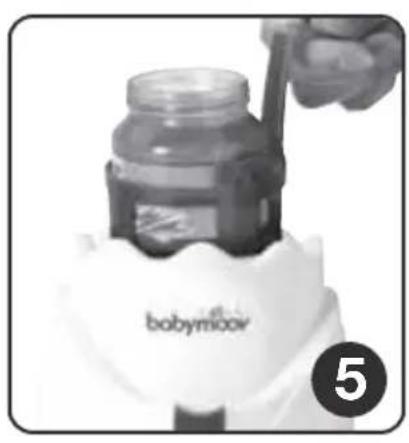

5. To warm up a jar, place it in the designated basket (c) and then in the warming tank (b).

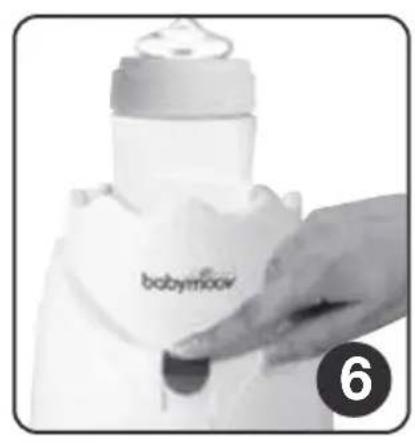

6. Press the ON button (e) to start the heating cycle. The backlit ring (h) will turn red, which means that the heating cycle is in progress. CAUTION! The steam that comes out during the heating cycle is very hot. Do not put your hands on the appliance when it is in use.

Amount of milk in the bottle	Quantity of water to put in the measure, when the bottle has been prepared with water at room temperature.	Quantity of water to put in the measure for a bottle prepared and placed in the refrigerator.
60 ml	7 ml	10 ml
90 ml	8 ml	12 ml
120 ml	10 ml	12,5 ml
150 ml	11 ml	13 ml
180 ml	12 ml	13,5 ml
210 ml	13 ml	14 ml
240 ml	14 ml	14,5 ml
270 ml	15 ml	15 ml
300 ml	16 ml	15,5 ml
330 ml	17 ml	16 ml

Jar	Quantity of water to put in the measure for one jar.	Quantity of water to put in the measure for a jar kept in the refrigerator.
120 g	10 ml	18 ml
200 g	12 ml	22 ml
250 g	15 ml	28 ml

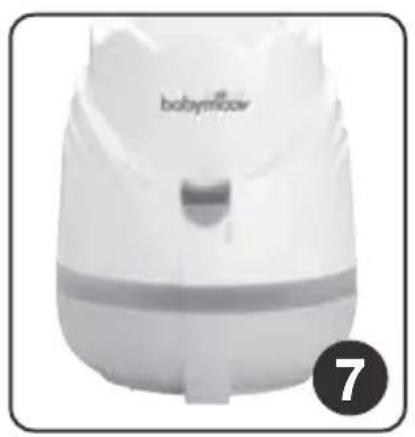

1. The bottle-warmer turns off automatically when the heating cycle is over. At the same time, the backlight ring (h) will turn green for a minute, which means that the bottle is ready.

Take out the bottle or jar straight away with a pair of tongs or a cloth as they are hot.

To avoid the risk of burns, always check the temperature of the food before giving it to your baby. If you are using a baby bottle, shake it well to mix the milk. Pour a drop onto the inside of your wrist to check how warm it is. If you are using a jar, mix the contents and taste it to make sure it is not too hot.

Using the appliance in the car

Stop the vehicle and let the engine running.

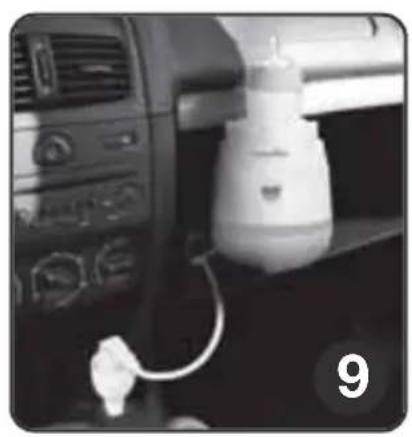

1. Put the bottle-warmer on a flat and steady surface inside your vehicle. Plug the cigarette-lighter adapter (f) into to the bottle-warmer's power cable (g).

2. Plug the adapter (f) into the cigarette-lighter. Fill up the measuring device (a) with water by following the doses reported here below and then pour the water into the warming tank (b).

Repeat the steps above, from 3 to 7.

Amount of water in the baby bottle	Amount of water to put in the measuring device for a baby bottle prepared with warm water
60 ml	4 ml
90 ml	5 ml
120 ml	5 ml
150 ml	5 ml
180 ml	5 ml
210 ml	5,5 ml
240 ml	5,5 ml
270 ml	6 ml
300 ml	6,5 ml
330 ml	6,5 ml

Jar	Amount of water to put in the measuring device for a jar
120 g	9 ml
200 g	12 ml
250 g	14 ml

MAINTENANCE

Cleaning:

• Wait until the bottle warmer is cold before cleaning it.
• Always unplug the appliance before cleaning it.
• Never submerge the appliance in water, and don't fill it right up with water.
• Never use detergents to clean the appliance.
• Use a slightly damp cloth to clean the inside and outside.
• Adaptor ring, measure and baskets for jars can be washed in the dishwasher.

De-scaling:

Do not use any de-scaling products. Depending on the quality of water used and after a certain period of time, a layer of scale may build up in the tank (b). In order for the sterilizer to work properly, the tank needs to be de-scaled regularly.

Proceed as follows: Mix 100 ml hot water with 100 ml white vinegar and pour it all into the tank (b). Leave to act for 30 minutes then empty the appliance. Then use a damp cloth to clean it.

IN CASE OF ANY LITTLE PROBLEMS

The bottle warmer doesn't heat up:

• check the "On" button to make sure it is properly switched on,
• check that the appliance is properly plugged in,
• check that there is not too much scale in the tank, and de-scale if necessary.

The warming cycles are too short or too long:

too much or too little water used. Adjust the quantity of water according to the temperature you want:

more water = hotter

less water = cooler

TECHNISCHE DATEN

BENUTZUNG ZU HAUSE

Icon showing a document with lines and a plus sign, symbolizing editing or addition

* Lifetime warranty. Warranty subject to terms and conditions. List of countries involved, activation and information online at this address: www.service-babymoov.com
